直接在机器上部署

下载

下载页面：https://github.com/alibaba/nacos/releases
下载链接：https://github.com/alibaba/nacos/releases/download/2.0.3/nacos-server-2.0.3.tar.gz
https://github.com/alibaba/nacos/releases/download/2.0.3/nacos-server-2.0.3.zip

解压

tar -zxvf nacos-server-2.0.3.tar.gz -C /usr/local/ && cd /usr/local/nacos/conf

配置cluster.conf

cp cluster.conf.example cluster.conf
vim cluster.conf

  1. #
  2. # Copyright 1999-2018 Alibaba Group Holding Ltd.
  3. #
  4. # Licensed under the Apache License, Version 2.0 (the "License");
  5. # you may not use this file except in compliance with the License.
  6. # You may obtain a copy of the License at
  7. #
  8. #      http://www.apache.org/licenses/LICENSE-2.0
  9. #
  10. # Unless required by applicable law or agreed to in writing, software
  11. # distributed under the License is distributed on an "AS IS" BASIS,
  12. # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  13. # See the License for the specific language governing permissions and
  14. # limitations under the License.
  15. #
  17. #it is ip
  18. #example
  19. 192.168.2.20:8848
  20. 192.168.2.21:8848
  21. 192.168.2.22:8848

19-21行：配置集群信息

配置application.properties文件

vim /usr/local/nacos/conf/application.properties

  1. #
  2. # Copyright 1999-2021 Alibaba Group Holding Ltd.
  3. #
  4. # Licensed under the Apache License, Version 2.0 (the "License");
  5. # you may not use this file except in compliance with the License.
  6. # You may obtain a copy of the License at
  7. #
  8. #      http://www.apache.org/licenses/LICENSE-2.0
  9. #
  10. # Unless required by applicable law or agreed to in writing, software
  11. # distributed under the License is distributed on an "AS IS" BASIS,
  12. # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  13. # See the License for the specific language governing permissions and
  14. # limitations under the License.
  15. #
  17. #*************** Spring Boot Related Configurations ***************#
  18. ### Default web context path:
  19. server.servlet.contextPath=/nacos
  20. ### Default web server port:
  21. server.port=8848
  23. #*************** Network Related Configurations ***************#
  24. ### If prefer hostname over ip for Nacos server addresses in cluster.conf:
  25. # nacos.inetutils.prefer-hostname-over-ip=false
  27. ### Specify local server's IP:
  28. # nacos.inetutils.ip-address=
  31. #*************** Config Module Related Configurations ***************#
  32. ### If use MySQL as datasource:
  33. # spring.datasource.platform=mysql
  34. spring.datasource.platform=mysql
  36. ### Count of DB:
  37. # db.num=1
  39. ### Connect URL of DB:
  40. db.url.0=jdbc:mysql://192.168.2.20:30569/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC
  41. db.user.0=root
  42. db.password.0=root
  44. ### Connection pool configuration: hikariCP
  45. db.pool.config.connectionTimeout=30000
  46. db.pool.config.validationTimeout=10000
  47. db.pool.config.maximumPoolSize=20
  48. db.pool.config.minimumIdle=2
  50. #*************** Naming Module Related Configurations ***************#
  51. ### Data dispatch task execution period in milliseconds: Will removed on v2.1.X, replace with nacos.core.protocol.distro.data.sync.delayMs
  52. # nacos.naming.distro.taskDispatchPeriod=200
  54. ### Data count of batch sync task: Will removed on v2.1.X. Deprecated
  55. # nacos.naming.distro.batchSyncKeyCount=1000
  57. ### Retry delay in milliseconds if sync task failed: Will removed on v2.1.X, replace with nacos.core.protocol.distro.data.sync.retryDelayMs
  58. # nacos.naming.distro.syncRetryDelay=5000
  60. ### If enable data warmup. If set to false, the server would accept request without local data preparation:
  61. # nacos.naming.data.warmup=true
  63. ### If enable the instance auto expiration, kind like of health check of instance:
  64. # nacos.naming.expireInstance=true
  66. ### will be removed and replaced by `nacos.naming.clean` properties
  67. nacos.naming.empty-service.auto-clean=true
  68. nacos.naming.empty-service.clean.initial-delay-ms=50000
  69. nacos.naming.empty-service.clean.period-time-ms=30000
  71. ### Add in 2.0.0
  72. ### The interval to clean empty service, unit: milliseconds.
  73. # nacos.naming.clean.empty-service.interval=60000
  75. ### The expired time to clean empty service, unit: milliseconds.
  76. # nacos.naming.clean.empty-service.expired-time=60000
  78. ### The interval to clean expired metadata, unit: milliseconds.
  79. # nacos.naming.clean.expired-metadata.interval=5000
  81. ### The expired time to clean metadata, unit: milliseconds.
  82. # nacos.naming.clean.expired-metadata.expired-time=60000
  84. ### The delay time before push task to execute from service changed, unit: milliseconds.
  85. # nacos.naming.push.pushTaskDelay=500
  87. ### The timeout for push task execute, unit: milliseconds.
  88. # nacos.naming.push.pushTaskTimeout=5000
  90. ### The delay time for retrying failed push task, unit: milliseconds.
  91. # nacos.naming.push.pushTaskRetryDelay=1000
  93. ### Since 2.0.3
  94. ### The expired time for inactive client, unit: milliseconds.
  95. # nacos.naming.client.expired.time=180000
  97. #*************** CMDB Module Related Configurations ***************#
  98. ### The interval to dump external CMDB in seconds:
  99. # nacos.cmdb.dumpTaskInterval=3600
  101. ### The interval of polling data change event in seconds:
  102. # nacos.cmdb.eventTaskInterval=10
  104. ### The interval of loading labels in seconds:
  105. # nacos.cmdb.labelTaskInterval=300
  107. ### If turn on data loading task:
  108. # nacos.cmdb.loadDataAtStart=false
  111. #*************** Metrics Related Configurations ***************#
  112. ### Metrics for prometheus
  113. #management.endpoints.web.exposure.include=*
  115. ### Metrics for elastic search
  116. management.metrics.export.elastic.enabled=false
  117. #management.metrics.export.elastic.host=http://localhost:9200
  119. ### Metrics for influx
  120. management.metrics.export.influx.enabled=false
  121. #management.metrics.export.influx.db=springboot
  122. #management.metrics.export.influx.uri=http://localhost:8086
  123. #management.metrics.export.influx.auto-create-db=true
  124. #management.metrics.export.influx.consistency=one
  125. #management.metrics.export.influx.compressed=true
  127. #*************** Access Log Related Configurations ***************#
  128. ### If turn on the access log:
  129. server.tomcat.accesslog.enabled=true
  131. ### The access log pattern:
  132. server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i %{Request-Source}i
  134. ### The directory of access log:
  135. server.tomcat.basedir=
  137. #*************** Access Control Related Configurations ***************#
  138. ### If enable spring security, this option is deprecated in 1.2.0:
  139. #spring.security.enabled=false
  141. ### The ignore urls of auth, is deprecated in 1.2.0:
  142. nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-ui/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**
  144. ### The auth system to use, currently only 'nacos' and 'ldap' is supported:
  145. nacos.core.auth.system.type=nacos
  147. ### If turn on auth system:
  148. nacos.core.auth.enabled=false
  150. ### worked when nacos.core.auth.system.type=ldap，{0} is Placeholder,replace login username
  151. # nacos.core.auth.ldap.url=ldap://localhost:389
  152. # nacos.core.auth.ldap.userdn=cn={0},ou=user,dc=company,dc=com
  154. ### The token expiration in seconds:
  155. nacos.core.auth.default.token.expire.seconds=18000
  157. ### The default token:
  158. nacos.core.auth.default.token.secret.key=SecretKey012345678901234567890123456789012345678901234567890123456789
  160. ### Turn on/off caching of auth information. By turning on this switch, the update of auth information would have a 15 seconds delay.
  161. nacos.core.auth.caching.enabled=true
  163. ### Since 1.4.1, Turn on/off white auth for user-agent: nacos-server, only for upgrade from old version.
  164. nacos.core.auth.enable.userAgentAuthWhite=false
  166. ### Since 1.4.1, worked when nacos.core.auth.enabled=true and nacos.core.auth.enable.userAgentAuthWhite=false.
  167. ### The two properties is the white list for auth and used by identity the request from other server.
  168. nacos.core.auth.server.identity.key=serverIdentity
  169. nacos.core.auth.server.identity.value=security
  171. #*************** Istio Related Configurations ***************#
  172. ### If turn on the MCP server:
  173. nacos.istio.mcp.server.enabled=false
  175. #*************** Core Related Configurations ***************#
  177. ### set the WorkerID manually
  178. # nacos.core.snowflake.worker-id=
  180. ### Member-MetaData
  181. # nacos.core.member.meta.site=
  182. # nacos.core.member.meta.adweight=
  183. # nacos.core.member.meta.weight=
  185. ### MemberLookup
  186. ### Addressing pattern category, If set, the priority is highest
  187. # nacos.core.member.lookup.type=[file,address-server]
  188. ## Set the cluster list with a configuration file or command-line argument
  189. # nacos.member.list=192.168.16.101:8847?raft_port=8807,192.168.16.101?raft_port=8808,192.168.16.101:8849?raft_port=8809
  190. ## for AddressServerMemberLookup
  191. # Maximum number of retries to query the address server upon initialization
  192. # nacos.core.address-server.retry=5
  193. ## Server domain name address of [address-server] mode
  194. # address.server.domain=jmenv.tbsite.net
  195. ## Server port of [address-server] mode
  196. # address.server.port=8080
  197. ## Request address of [address-server] mode
  198. # address.server.url=/nacos/serverlist
  200. #*************** JRaft Related Configurations ***************#
  202. ### Sets the Raft cluster election timeout, default value is 5 second
  203. # nacos.core.protocol.raft.data.election_timeout_ms=5000
  204. ### Sets the amount of time the Raft snapshot will execute periodically, default is 30 minute
  205. # nacos.core.protocol.raft.data.snapshot_interval_secs=30
  206. ### raft internal worker threads
  207. # nacos.core.protocol.raft.data.core_thread_num=8
  208. ### Number of threads required for raft business request processing
  209. # nacos.core.protocol.raft.data.cli_service_thread_num=4
  210. ### raft linear read strategy. Safe linear reads are used by default, that is, the Leader tenure is confirmed by heartbeat
  211. # nacos.core.protocol.raft.data.read_index_type=ReadOnlySafe
  212. ### rpc request timeout, default 5 seconds
  213. # nacos.core.protocol.raft.data.rpc_request_timeout_ms=5000
  215. #*************** Distro Related Configurations ***************#
  217. ### Distro data sync delay time, when sync task delayed, task will be merged for same data key. Default 1 second.
  218. # nacos.core.protocol.distro.data.sync.delayMs=1000
  220. ### Distro data sync timeout for one sync data, default 3 seconds.
  221. # nacos.core.protocol.distro.data.sync.timeoutMs=3000
  223. ### Distro data sync retry delay time when sync data failed or timeout, same behavior with delayMs, default 3 seconds.
  224. # nacos.core.protocol.distro.data.sync.retryDelayMs=3000
  226. ### Distro data verify interval time, verify synced data whether expired for a interval. Default 5 seconds.
  227. # nacos.core.protocol.distro.data.verify.intervalMs=5000
  229. ### Distro data verify timeout for one verify, default 3 seconds.
  230. # nacos.core.protocol.distro.data.verify.timeoutMs=3000
  232. ### Distro data load retry delay when load snapshot data failed, default 30 seconds.
  233. # nacos.core.protocol.distro.data.load.retryDelayMs=30000

配置34-42行：使用mysql做数据存储

配置jvm参数

vim /usr/local/nacos/bin/startup.sh
JAVA_OPT=”${JAVA_OPT} -server -Xms512M -Xmx2g -Xmn256M

分发安装包

  1. 拷贝整个目录到机器2(node1)、和机器3(node2)中
  2. scp -r /usr/local/nacos root@192.168.2.21:/usr/local/nacos

    启动集群

    1. sh /usr/local/nacos/bin/startup.sh && tail -f /usr/local/nacos/logs/start.out

    查看状态

    http://192.168.2.20:8848/nacos
    nacos/nacos

    停止集群

    1. sh /usr/local/nacos/bin/shutdown.sh
    至此，完成了nacos集群的安装和启停。

    使用docker部署

    ```shell docker run \ —name nacos -d \ -p 8848:8848 \ —privileged=true \ —restart=always \ -e JVM_XMS=256m \ -e JVM_XMX=256m \ -e MODE=standalone \ -e PREFER_HOST_MODE=hostname \ -v /home/nacos/logs:/home/nacos/logs \ -v /home/nacos/init.d/custom.properties:/home/nacos/init.d/custom.properties \ nacos/nacos-server:v2.0.3
  1. <a name="tbV5W"></a>
  2. # 使用kubesphere部署
  3. <a name="KDuDE"></a>
  4. ## dockerhub
  5. nacos/nacos-server:v2.0.3
  6. <a name="afysl"></a>

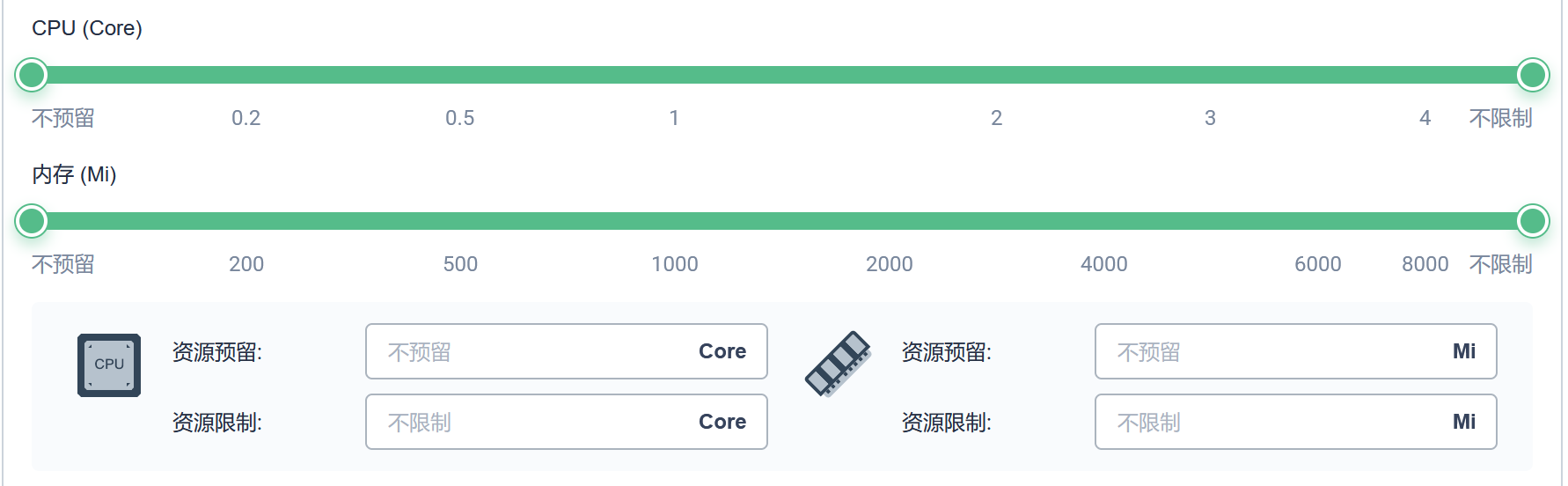

  7. ## 资源分配
  8. ![图片.png](https://cdn.nlark.com/yuque/0/2022/png/22706049/1648882583864-4e871f92-2f15-46d7-9835-e85183eacb52.png#clientId=u41850453-3e7e-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=276&id=u05b1e0a2&margin=%5Bobject%20Object%5D&name=%E5%9B%BE%E7%89%87.png&originHeight=552&originWidth=1782&originalType=binary&ratio=1&rotation=0&showTitle=false&size=75896&status=done&style=none&taskId=ubca88ad4-50f5-4169-93f1-eaf140723c7&title=&width=891)
  9. <a name="Vvz0K"></a>

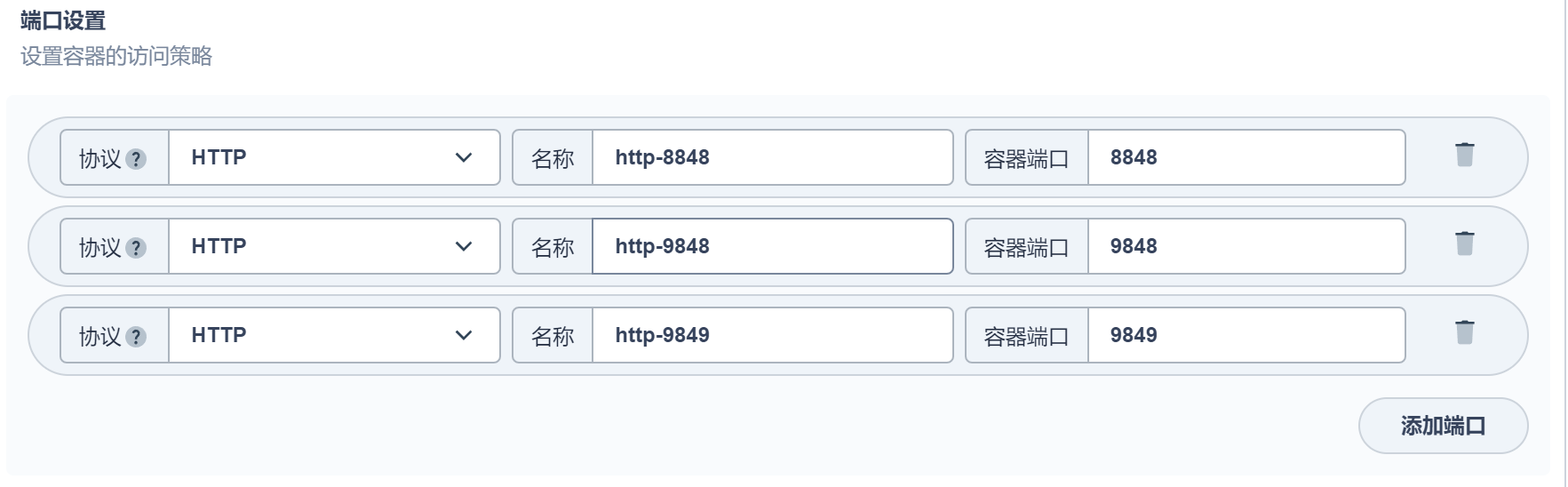

  10. ## 端口配置
  11. 8848<br />9848<br />9849<br />![image.png](https://cdn.nlark.com/yuque/0/2022/png/22706049/1649508361741-291e415f-332c-4c81-afef-001e6f01bdbb.png#clientId=ud87f7287-936a-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=274&id=u173d1315&margin=%5Bobject%20Object%5D&name=image.png&originHeight=548&originWidth=1765&originalType=binary&ratio=1&rotation=0&showTitle=false&size=67673&status=done&style=none&taskId=u08ec4737-5ad4-4292-b73f-c7ef37a2ce9&title=&width=882.5)
  12. <a name="LQqLV"></a>
  13. ## 环境变量
  14. ![image.png](https://cdn.nlark.com/yuque/0/2022/png/22706049/1649852902341-580f89f3-95e3-4155-90d8-72a0531d7709.png#clientId=udc0f2458-23d9-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=174&id=u051078be&margin=%5Bobject%20Object%5D&name=image.png&originHeight=347&originWidth=1859&originalType=binary&ratio=1&rotation=0&showTitle=false&size=41603&status=done&style=none&taskId=u33a34913-ce7c-4012-8127-17c104bd0e5&title=&width=929.5)
  15. <a name="oLquI"></a>

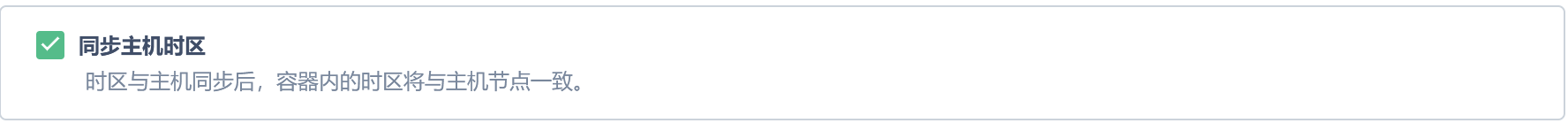

  16. ## 同步主机时区
  17. ![image.png](https://cdn.nlark.com/yuque/0/2022/png/22706049/1648807336453-2261a953-b3aa-4ee6-bee8-4836b99ad1ad.png#clientId=uad63ce43-ea4d-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=74&id=u313c3871&margin=%5Bobject%20Object%5D&name=image.png&originHeight=148&originWidth=1776&originalType=binary&ratio=1&rotation=0&showTitle=false&size=14988&status=done&style=none&taskId=u4298e127-b7d4-494f-8d77-9d62e6d28a9&title=&width=888)
  18. <a name="j5POk"></a>
  19. ## 配置文件子路径挂载
  20. （*** 默认使用路径挂载会覆盖容器内所有配置，所以如果只需要覆盖个别配置可以使用子路径）
  21. <a name="rWuEe"></a>

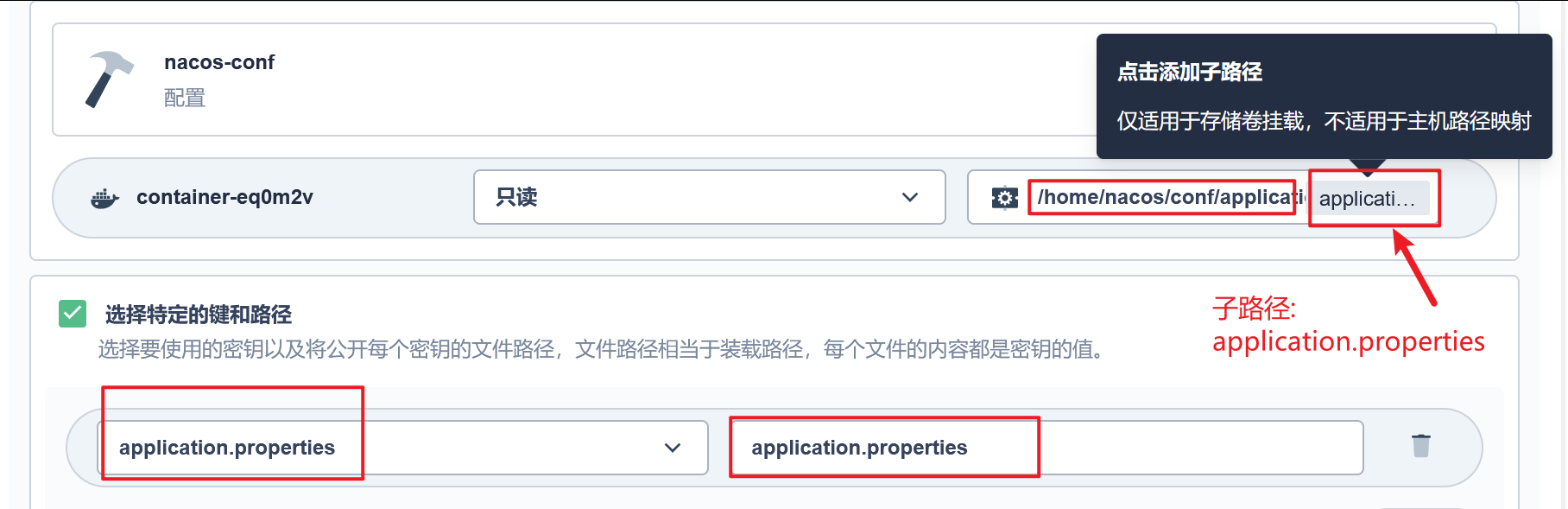

  22. ### /home/nacos/conf/application.properties
  23. ![图片.png](https://cdn.nlark.com/yuque/0/2022/png/22706049/1649063243156-db6cc76c-6729-4dcf-976b-cebd6c1fd266.png#clientId=uc0c26cf6-75aa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=295&id=u364c8882&margin=%5Bobject%20Object%5D&name=%E5%9B%BE%E7%89%87.png&originHeight=589&originWidth=1816&originalType=binary&ratio=1&rotation=0&showTitle=false&size=117547&status=done&style=none&taskId=u5264db4f-0903-4a4b-9b4b-23a1d5b27e9&title=&width=908)
  24. <a name="iagoe"></a>

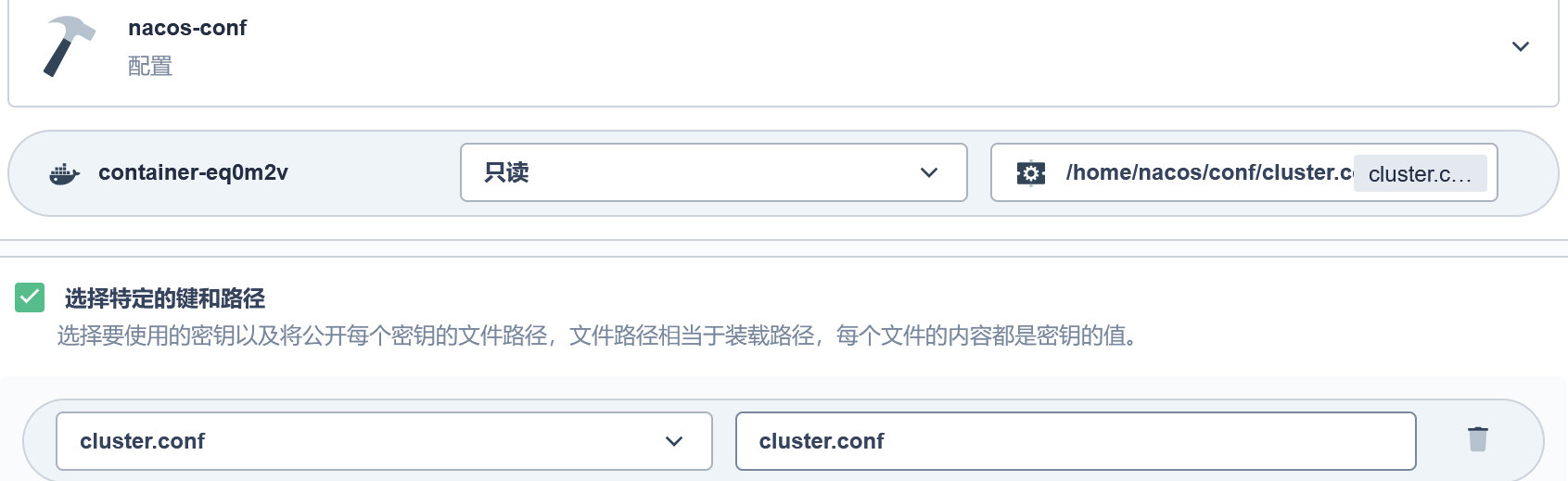

  25. ### /home/nacos/conf/cluster.conf![图片.png](https://cdn.nlark.com/yuque/0/2022/png/22706049/1649063263881-28804293-5fbd-4d08-91b0-ec8e28349938.png#clientId=uc0c26cf6-75aa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=260&id=u72390ef5&margin=%5Bobject%20Object%5D&name=%E5%9B%BE%E7%89%87.png&originHeight=519&originWidth=1691&originalType=binary&ratio=1&rotation=0&showTitle=false&size=73653&status=done&style=none&taskId=ue7d5b274-887c-4654-aab8-4e72cb6f906&title=&width=845.5)
  26. <a name="pC9IB"></a>
  27. # 使用mysql作为持久化方式
  28. <a name="poEAY"></a>
  29. ## sql语句
  30. ```sql
  31. /*
  32.  * Copyright 1999-2018 Alibaba Group Holding Ltd.
  33.  *
  34.  * Licensed under the Apache License, Version 2.0 (the "License");
  35.  * you may not use this file except in compliance with the License.
  36.  * You may obtain a copy of the License at
  37.  *
  38.  *      http://www.apache.org/licenses/LICENSE-2.0
  39.  *
  40.  * Unless required by applicable law or agreed to in writing, software
  41.  * distributed under the License is distributed on an "AS IS" BASIS,
  42.  * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  43.  * See the License for the specific language governing permissions and
  44.  * limitations under the License.
  45.  */
  47. /******************************************/
  48. /*   数据库全名 = nacos_config   */
  49. /*   表名称 = config_info   */
  50. /******************************************/
  51. create database nacos;
  52. use nacos;
  53. CREATE TABLE `config_info` (
  54.   `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  55.   `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  56.   `group_id` varchar(255) DEFAULT NULL,
  57.   `content` longtext NOT NULL COMMENT 'content',
  58.   `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  59.   `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  60.   `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  61.   `src_user` text COMMENT 'source user',
  62.   `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  63.   `app_name` varchar(128) DEFAULT NULL,
  64.   `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  65.   `c_desc` varchar(256) DEFAULT NULL,
  66.   `c_use` varchar(64) DEFAULT NULL,
  67.   `effect` varchar(64) DEFAULT NULL,
  68.   `type` varchar(64) DEFAULT NULL,
  69.   `c_schema` text,
  70.   PRIMARY KEY (`id`),
  71.   UNIQUE KEY `uk_configinfo_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
  72. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info';
  74. /******************************************/
  75. /*   数据库全名 = nacos_config   */
  76. /*   表名称 = config_info_aggr   */
  77. /******************************************/
  78. CREATE TABLE `config_info_aggr` (
  79.   `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  80.   `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  81.   `group_id` varchar(255) NOT NULL COMMENT 'group_id',
  82.   `datum_id` varchar(255) NOT NULL COMMENT 'datum_id',
  83.   `content` longtext NOT NULL COMMENT '内容',
  84.   `gmt_modified` datetime NOT NULL COMMENT '修改时间',
  85.   `app_name` varchar(128) DEFAULT NULL,
  86.   `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  87.   PRIMARY KEY (`id`),
  88.   UNIQUE KEY `uk_configinfoaggr_datagrouptenantdatum` (`data_id`,`group_id`,`tenant_id`,`datum_id`)
  89. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='增加租户字段';
  92. /******************************************/
  93. /*   数据库全名 = nacos_config   */
  94. /*   表名称 = config_info_beta   */
  95. /******************************************/
  96. CREATE TABLE `config_info_beta` (
  97.   `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  98.   `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  99.   `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  100.   `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  101.   `content` longtext NOT NULL COMMENT 'content',
  102.   `beta_ips` varchar(1024) DEFAULT NULL COMMENT 'betaIps',
  103.   `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  104.   `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  105.   `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  106.   `src_user` text COMMENT 'source user',
  107.   `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  108.   `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  109.   PRIMARY KEY (`id`),
  110.   UNIQUE KEY `uk_configinfobeta_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
  111. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_beta';
  113. /******************************************/
  114. /*   数据库全名 = nacos_config   */
  115. /*   表名称 = config_info_tag   */
  116. /******************************************/
  117. CREATE TABLE `config_info_tag` (
  118.   `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  119.   `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  120.   `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  121.   `tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
  122.   `tag_id` varchar(128) NOT NULL COMMENT 'tag_id',
  123.   `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  124.   `content` longtext NOT NULL COMMENT 'content',
  125.   `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  126.   `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  127.   `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  128.   `src_user` text COMMENT 'source user',
  129.   `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  130.   PRIMARY KEY (`id`),
  131.   UNIQUE KEY `uk_configinfotag_datagrouptenanttag` (`data_id`,`group_id`,`tenant_id`,`tag_id`)
  132. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_tag';
  134. /******************************************/
  135. /*   数据库全名 = nacos_config   */
  136. /*   表名称 = config_tags_relation   */
  137. /******************************************/
  138. CREATE TABLE `config_tags_relation` (
  139.   `id` bigint(20) NOT NULL COMMENT 'id',
  140.   `tag_name` varchar(128) NOT NULL COMMENT 'tag_name',
  141.   `tag_type` varchar(64) DEFAULT NULL COMMENT 'tag_type',
  142.   `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  143.   `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  144.   `tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
  145.   `nid` bigint(20) NOT NULL AUTO_INCREMENT,
  146.   PRIMARY KEY (`nid`),
  147.   UNIQUE KEY `uk_configtagrelation_configidtag` (`id`,`tag_name`,`tag_type`),
  148.   KEY `idx_tenant_id` (`tenant_id`)
  149. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_tag_relation';
  151. /******************************************/
  152. /*   数据库全名 = nacos_config   */
  153. /*   表名称 = group_capacity   */
  154. /******************************************/
  155. CREATE TABLE `group_capacity` (
  156.   `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  157.   `group_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Group ID，空字符表示整个集群',
  158.   `quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
  159.   `usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
  160.   `max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
  161.   `max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数，，0表示使用默认值',
  162.   `max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
  163.   `max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
  164.   `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  165.   `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  166.   PRIMARY KEY (`id`),
  167.   UNIQUE KEY `uk_group_id` (`group_id`)
  168. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='集群、各Group容量信息表';
  170. /******************************************/
  171. /*   数据库全名 = nacos_config   */
  172. /*   表名称 = his_config_info   */
  173. /******************************************/
  174. CREATE TABLE `his_config_info` (
  175.   `id` bigint(64) unsigned NOT NULL,
  176.   `nid` bigint(20) unsigned NOT NULL AUTO_INCREMENT,
  177.   `data_id` varchar(255) NOT NULL,
  178.   `group_id` varchar(128) NOT NULL,
  179.   `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  180.   `content` longtext NOT NULL,
  181.   `md5` varchar(32) DEFAULT NULL,
  182.   `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
  183.   `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
  184.   `src_user` text,
  185.   `src_ip` varchar(50) DEFAULT NULL,
  186.   `op_type` char(10) DEFAULT NULL,
  187.   `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  188.   PRIMARY KEY (`nid`),
  189.   KEY `idx_gmt_create` (`gmt_create`),
  190.   KEY `idx_gmt_modified` (`gmt_modified`),
  191.   KEY `idx_did` (`data_id`)
  192. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='多租户改造';
  195. /******************************************/
  196. /*   数据库全名 = nacos_config   */
  197. /*   表名称 = tenant_capacity   */
  198. /******************************************/
  199. CREATE TABLE `tenant_capacity` (
  200.   `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  201.   `tenant_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Tenant ID',
  202.   `quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
  203.   `usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
  204.   `max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
  205.   `max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数',
  206.   `max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
  207.   `max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
  208.   `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  209.   `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  210.   PRIMARY KEY (`id`),
  211.   UNIQUE KEY `uk_tenant_id` (`tenant_id`)
  212. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='租户容量信息表';
  215. CREATE TABLE `tenant_info` (
  216.   `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  217.   `kp` varchar(128) NOT NULL COMMENT 'kp',
  218.   `tenant_id` varchar(128) default '' COMMENT 'tenant_id',
  219.   `tenant_name` varchar(128) default '' COMMENT 'tenant_name',
  220.   `tenant_desc` varchar(256) DEFAULT NULL COMMENT 'tenant_desc',
  221.   `create_source` varchar(32) DEFAULT NULL COMMENT 'create_source',
  222.   `gmt_create` bigint(20) NOT NULL COMMENT '创建时间',
  223.   `gmt_modified` bigint(20) NOT NULL COMMENT '修改时间',
  224.   PRIMARY KEY (`id`),
  225.   UNIQUE KEY `uk_tenant_info_kptenantid` (`kp`,`tenant_id`),
  226.   KEY `idx_tenant_id` (`tenant_id`)
  227. ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='tenant_info';
  229. CREATE TABLE `users` (
  230.     `username` varchar(50) NOT NULL PRIMARY KEY,
  231.     `password` varchar(500) NOT NULL,
  232.     `enabled` boolean NOT NULL
  233. );
  235. CREATE TABLE `roles` (
  236.     `username` varchar(50) NOT NULL,
  237.     `role` varchar(50) NOT NULL,
  238.     UNIQUE INDEX `idx_user_role` (`username` ASC, `role` ASC) USING BTREE
  239. );
  241. CREATE TABLE `permissions` (
  242.     `role` varchar(50) NOT NULL,
  243.     `resource` varchar(255) NOT NULL,
  244.     `action` varchar(8) NOT NULL,
  245.     UNIQUE INDEX `uk_role_permission` (`role`,`resource`,`action`) USING BTREE
  246. );
  248. INSERT INTO users (username, password, enabled) VALUES ('nacos', '$2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu', TRUE);
  250. INSERT INTO roles (username, role) VALUES ('nacos', 'ROLE_ADMIN');

configMap配置

application.properties

  1. # spring
  2. server.servlet.contextPath=${SERVER_SERVLET_CONTEXTPATH:/nacos}
  3. server.contextPath=/nacos
  4. server.port=${NACOS_APPLICATION_PORT:8848}
  5. spring.datasource.platform=${SPRING_DATASOURCE_PLATFORM:""}
  6. nacos.cmdb.dumpTaskInterval=3600
  7. nacos.cmdb.eventTaskInterval=10
  8. nacos.cmdb.labelTaskInterval=300
  9. nacos.cmdb.loadDataAtStart=false
  10. db.num=${MYSQL_DATABASE_NUM:1}
  11. db.url.0=jdbc:mysql://192.168.2.20:30569/nacos?${MYSQL_SERVICE_DB_PARAM:characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useSSL=false}
  12. #db.url.1=jdbc:mysql://${MYSQL_SERVICE_HOST}:${MYSQL_SERVICE_PORT:3306}/${MYSQL_SERVICE_DB_NAME}?${MYSQL_SERVICE_DB_PARAM:characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useSSL=false}
  13. db.user=root
  14. db.password=root
  15. ### The auth system to use, currently only 'nacos' is supported:
  16. nacos.core.auth.system.type=${NACOS_AUTH_SYSTEM_TYPE:nacos}
  19. ### The token expiration in seconds:
  20. nacos.core.auth.default.token.expire.seconds=${NACOS_AUTH_TOKEN_EXPIRE_SECONDS:18000}
  22. ### The default token:
  23. nacos.core.auth.default.token.secret.key=${NACOS_AUTH_TOKEN:SecretKey012345678901234567890123456789012345678901234567890123456789}
  25. ### Turn on/off caching of auth information. By turning on this switch, the update of auth information would have a 15 seconds delay.
  26. nacos.core.auth.caching.enabled=${NACOS_AUTH_CACHE_ENABLE:false}
  27. nacos.core.auth.enable.userAgentAuthWhite=${NACOS_AUTH_USER_AGENT_AUTH_WHITE_ENABLE:false}
  28. nacos.core.auth.server.identity.key=${NACOS_AUTH_IDENTITY_KEY:serverIdentity}
  29. nacos.core.auth.server.identity.value=${NACOS_AUTH_IDENTITY_VALUE:security}
  30. server.tomcat.accesslog.enabled=${TOMCAT_ACCESSLOG_ENABLED:false}
  31. server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D
  32. # default current work dir
  33. server.tomcat.basedir=
  34. ## spring security config
  35. ### turn off security
  36. nacos.security.ignore.urls=${NACOS_SECURITY_IGNORE_URLS:/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-fe/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**}
  37. # metrics for elastic search
  38. management.metrics.export.elastic.enabled=false
  39. management.metrics.export.influx.enabled=false
  41. nacos.naming.distro.taskDispatchThreadCount=10
  42. nacos.naming.distro.taskDispatchPeriod=200
  43. nacos.naming.distro.batchSyncKeyCount=1000
  44. nacos.naming.distro.initDataRatio=0.9
  45. nacos.naming.distro.syncRetryDelay=5000
  46. nacos.naming.data.warmup=true

cluster.conf
