桥接模式（Bridge）

目的

将抽象与实现分离开来，使它们可以独立变化。、

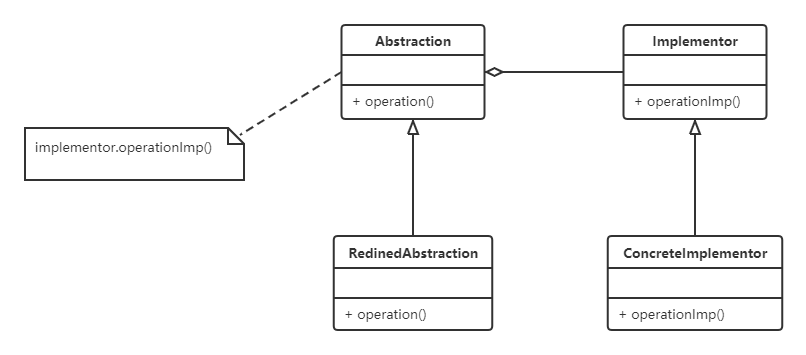

类图

• Abstraction: 定义抽象类的接口
• Implementor: 定义实现类接口

实现

RemoteControl 表示遥控器，指代 Abstraction。
TV 表示电视，指代 Implementor。
桥接模式将遥控器和电视分离开来，从而可以独立改变遥控器或者电视的实现。

public abstract class TV {
    public abstract void on();
    public abstract void off();
    public abstract void tuneChannel();
}
public class Sony extends TV {
    @Override
    public void on() {
        System.out.println("Sony.on()");
    }
    @Override
    public void off() {
        System.out.println("Sony.off()");
    }
    @Override
    public void tuneChannel() {
        System.out.println("Sony.tuneChannel()");
    }
}
public class RCA extends TV {
    @Override
    public void on() {
        System.out.println("RCA.on()");
    }
    @Override
    public void off() {
        System.out.println("RCA.off()");
    }
    @Override
    public void tuneChannel() {
        System.out.println("RCA.tuneChannel()");
    }
}
public abstract class RemoteControl {
    protected TV tv;
    public RemoteControl(TV tv) {
        this.tv = tv;
    }
    public abstract void on();
    public abstract void off();
    public abstract void tuneChannel();
}
public class ConcreteRemoteControl1 extends RemoteControl {
    public ConcreteRemoteControl1(TV tv) {
        super(tv);
    }
    @Override
    public void on() {
        System.out.println("ConcreteRemoteControl1.on()");
        tv.on();
    }
    @Override
    public void off() {
        System.out.println("ConcreteRemoteControl1.off()");
        tv.off();
    }
    @Override
    public void tuneChannel() {
        System.out.println("ConcreteRemoteControl1.tuneChannel()");
        tv.tuneChannel();
    }
}
public class ConcreteRemoteControl2 extends RemoteControl {
    public ConcreteRemoteControl2(TV tv) {
        super(tv);
    }
    @Override
    public void on() {
        System.out.println("ConcreteRemoteControl2.on()");
        tv.on();
    }
    @Override
    public void off() {
        System.out.println("ConcreteRemoteControl2.off()");
        tv.off();
    }
    @Override
    public void tuneChannel() {
        System.out.println("ConcreteRemoteControl2.tuneChannel()");
        tv.tuneChannel();
    }
}
public class Client {
    public static void main(String[] args) {
        RemoteControl remoteControl1 = new ConcreteRemoteControl1(new RCA());
        remoteControl1.on();
        remoteControl1.off();
        remoteControl1.tuneChannel();
        RemoteControl remoteControl2 = new ConcreteRemoteControl2(new Sony());
         remoteControl2.on();
         remoteControl2.off();
         remoteControl2.tuneChannel();
    }
}

JDK中的体现

• AWT (It provides an abstraction layer which maps onto the native OS the windowing support.)
• JDBC
