5.Netty核心源码剖析

5.Netty核心源码剖析

5.1 Netty源码构建

下载源码
https://github.com/netty/netty

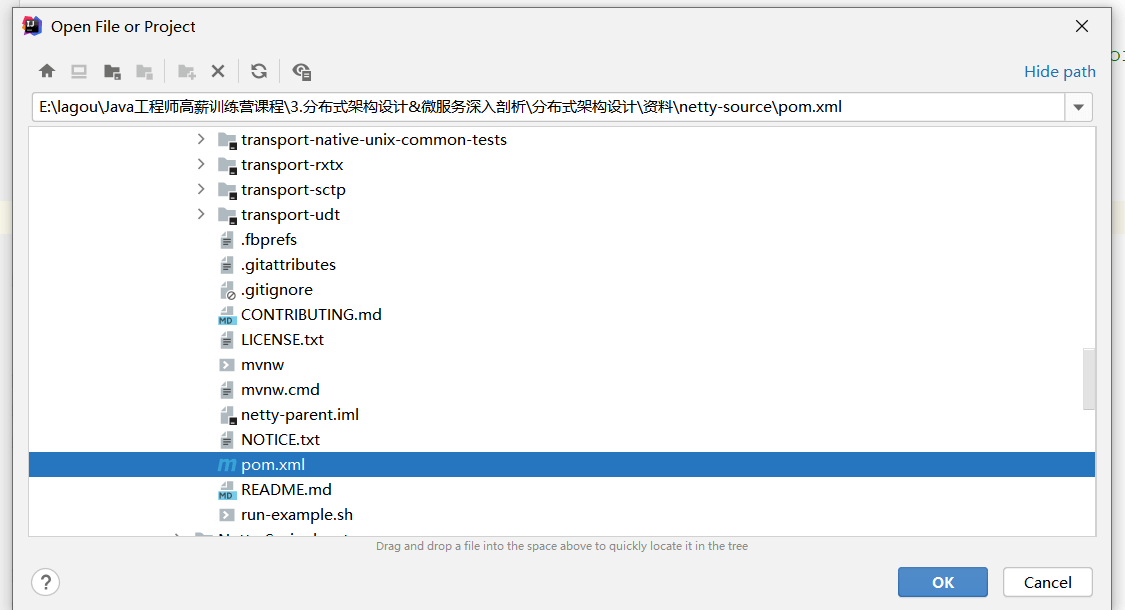

2. 导入项目工程

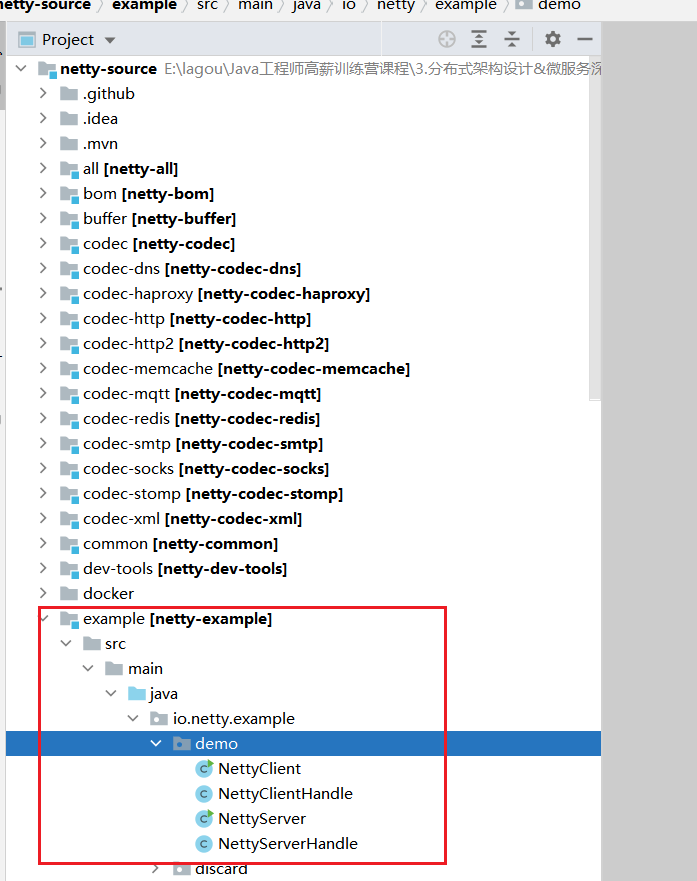

3. 将入门案例demo代码example模块下

5.2 EventLoopGroup事件循环组（线程组）源码
EventLoopGroup 是一组 EventLoop 的抽象，Netty 为了更好的利用多核 CPU 资源，一般会有多个 EventLoop 同时工作，每个 EventLoop 维护着一个 Selector 实例。

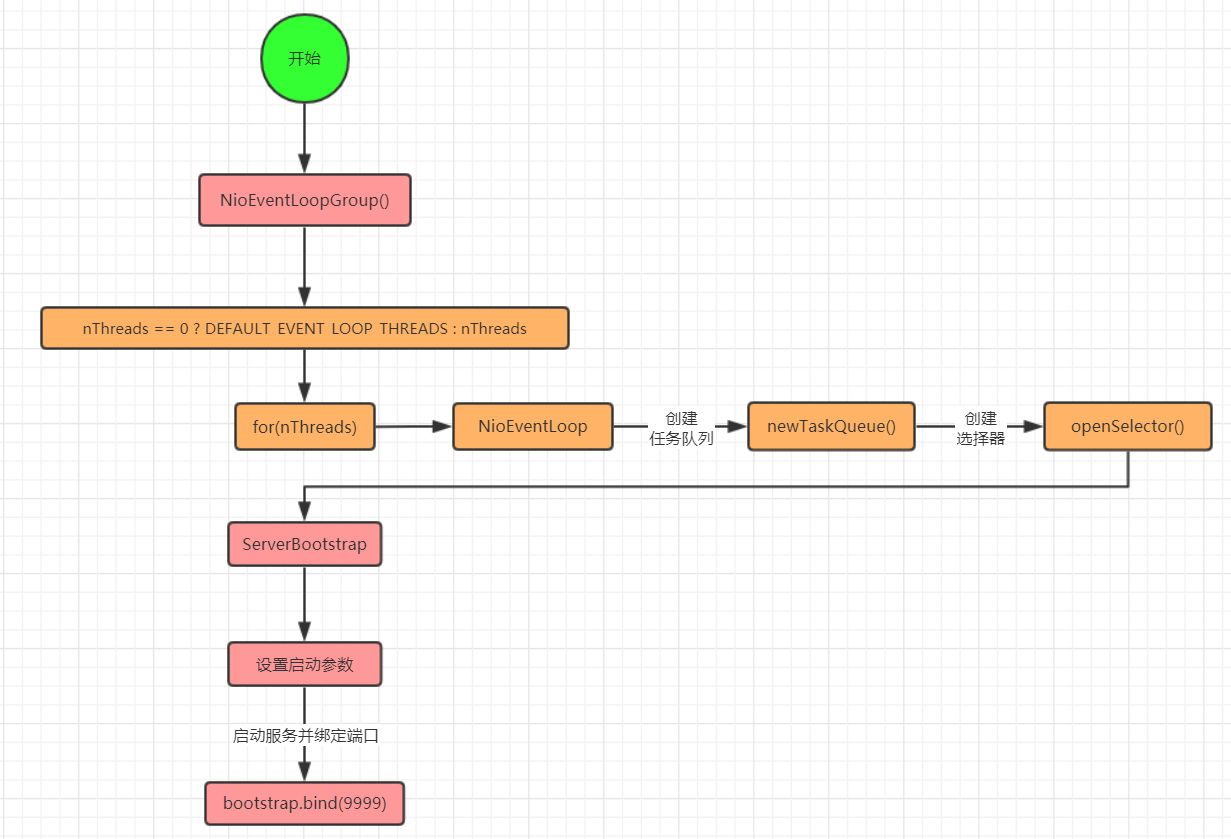

5.2.1 线程组源码流程分析

5.2.2 线程组源码主要源码跟踪
NioEventLoopGroup线程组的创建 ```java static { //默认线程数量为处理器数*2 DEFAULT_EVENT_LOOP_THREADS = Math.max(1, SystemPropertyUtil.getInt(
```
 "io.netty.eventLoopThreads", NettyRuntime.availableProcessors() * 2)
```
); if (logger.isDebugEnabled()) {
```
 logger.debug("-Dio.netty.eventLoopThreads: {}",
 DEFAULT_EVENT_LOOP_THREADS);
```
} } /**

@see MultithreadEventExecutorGroup#MultithreadEventExecutorGroup(int, Executor, Object…) */ protected MultithreadEventLoopGroup(int nThreads, Executor executor, Object… args) { super(nThreads == 0 ? DEFAULT_EVENT_LOOP_THREADS : nThreads, executor, args); } ```

NioEventLoop的创建

protected MultithreadEventExecutorGroup(int nThreads, Executor executor, EventExecutorChooserFactory chooserFactory, Object... args) {
 if (nThreads <= 0) {
     throw new IllegalArgumentException(String.format("nThreads: %d(expected: > 0)", nThreads));
 }
 if (executor == null) {
        executor = new ThreadPerTaskExecutor(newDefaultThreadFactory());
 }
 //根据线程数量创建
 children = new EventExecutor[nThreads];
 for (int i = 0; i < nThreads; i ++) {
     boolean success = false;
     try {
         //循环创建线程NioEventLoop
         children[i] = newChild(executor, args);
         success = true;
     } catch (Exception e) {
         // TODO: Think about if this is a good exception type
         throw new IllegalStateException("failed to create a child event loop", e);
     } finally {
         ...
     }
 }
 ......
}

newChild方法

@Override
protected EventLoop newChild(Executor executor, Object... args) throws Exception {
 EventLoopTaskQueueFactory queueFactory = args.length == 4 ? (EventLoopTaskQueueFactory) args[3] : null;
 //创建NioEventLoop
 return new NioEventLoop(
     this, executor,
     (SelectorProvider) args[0],
     ((SelectStrategyFactory) args[1]).newSelectStrategy(),
     (RejectedExecutionHandler) args[2],
     queueFactory
 );
}

NioEventLoop

NioEventLoop(NioEventLoopGroup parent, Executor executor, SelectorProvider selectorProvider,
          SelectStrategy strategy,
          RejectedExecutionHandler rejectedExecutionHandler,
          EventLoopTaskQueueFactory queueFactory) {
 super(parent, executor, false, newTaskQueue(queueFactory),
       newTaskQueue(queueFactory),
       rejectedExecutionHandler
 );
 if (selectorProvider == null) {
        throw new NullPointerException("selectorProvider");
 }
 if (strategy == null) {
     throw new NullPointerException("selectStrategy");
 }
 provider = selectorProvider;
 //创建选择器
 final SelectorTuple selectorTuple = openSelector();
 selector = selectorTuple.selector;
 unwrappedSelector = selectorTuple.unwrappedSelector;
 selectStrategy = strategy;
}

5.3 Netty启动源码

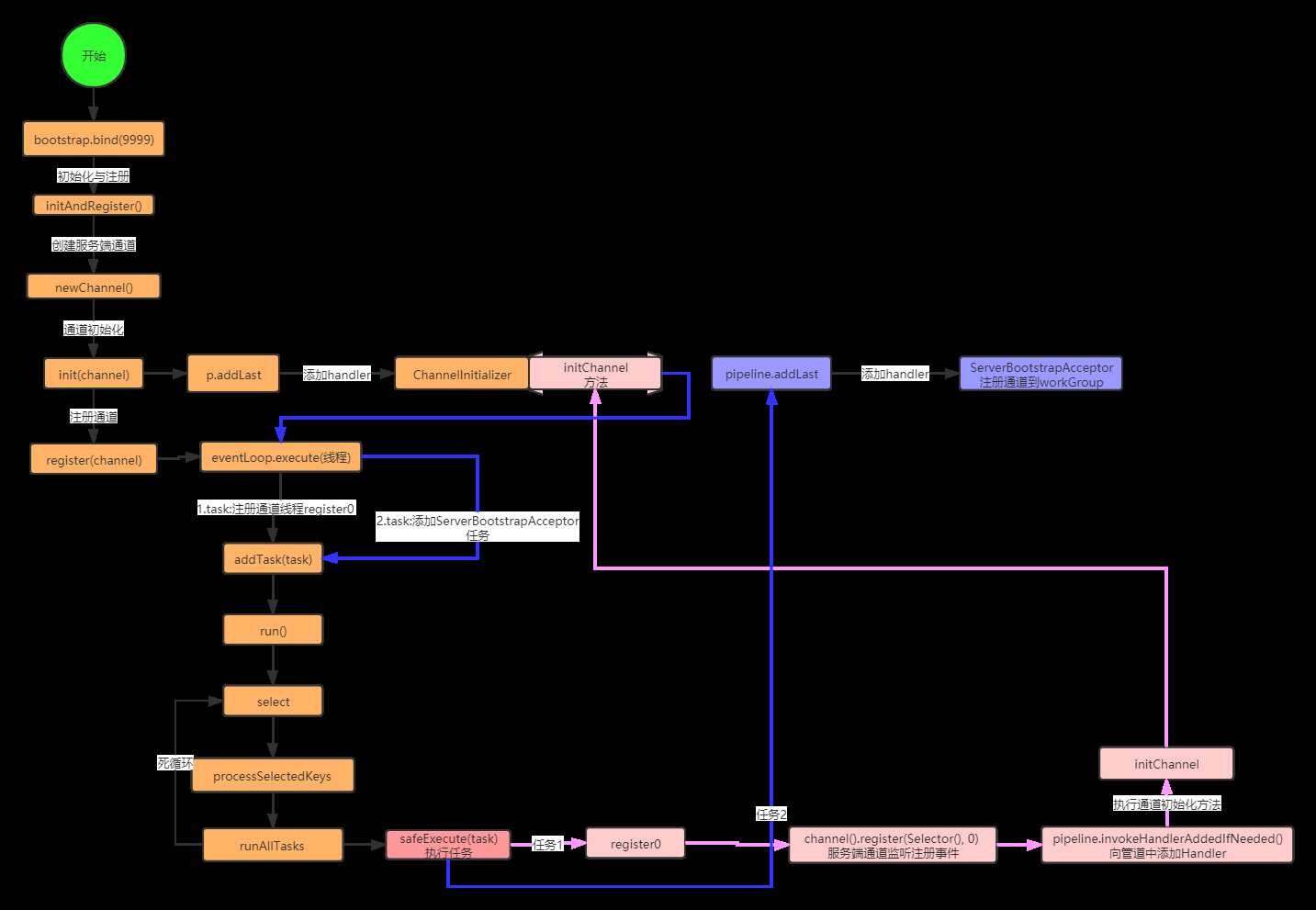

5.3.1 启动流程分析

5.3.2 主要源码跟踪

initAndRegister方法

final ChannelFuture initAndRegister() {
 Channel channel = null;
 try {
     //创建通道
     channel = channelFactory.newChannel();
     //通道初始化
     init(channel);
 } catch (Throwable t) {
     if (channel != null) {
         // channel can be null if newChannel crashed (eg SocketException("too many open files"))
         channel.unsafe().closeForcibly();
         // as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
         return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
     }
     // as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
     return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
 }
 //注册通道
 ChannelFuture regFuture = config().group().register(channel);
 if (regFuture.cause() != null) {
     if (channel.isRegistered()) {
         channel.close();
     } else {
         channel.unsafe().closeForcibly();
     }
 }
 return regFuture;
}

init方法

void init(Channel channel) {
 setChannelOptions(channel, options0().entrySet().toArray(newOptionArray(0)), logger);
 setAttributes(channel, attrs0().entrySet().toArray(newAttrArray(0)));
 //得到通道pipeline
 ChannelPipeline p = channel.pipeline();
 //赋值workGroup与服务端handler
 final EventLoopGroup currentChildGroup = childGroup;
 final ChannelHandler currentChildHandler = childHandler;
 final Entry<ChannelOption<?>, Object>[] currentChildOptions = childOptions.entrySet().toArray(newOptionArray(0));
 final Entry<AttributeKey<?>, Object>[] currentChildAttrs = childAttrs.entrySet().toArray(newAttrArray(0));
 //添加通道初始化handler
 p.addLast(new ChannelInitializer<Channel>() {
     @Override
     public void initChannel(final Channel ch) {
         final ChannelPipeline pipeline = ch.pipeline();
         ChannelHandler handler = config.handler();
         if (handler != null) {
             pipeline.addLast(handler);
         }
         ch.eventLoop().execute(new Runnable() {
             @Override
             public void run() {
                 //在initChannel方法中添加ServerBootstrapAcceptor的handler
                 pipeline.addLast(
                     new ServerBootstrapAcceptor(
                         ch, currentChildGroup, currentChildHandler,
                         currentChildOptions, currentChildAttrs
                     )
                 );
             }
         });
     }
 });
}

register方法

public final void register(EventLoop eventLoop, final ChannelPromise promise) {
 if (eventLoop == null) {
     throw new NullPointerException("eventLoop");
 }
 if (isRegistered()) {
     promise.setFailure(new IllegalStateException("registered to an event loop already"));
     return;
 }
 if (!isCompatible(eventLoop)) {
     promise.setFailure(
     new IllegalStateException("incompatible event loop type: " + eventLoop.getClass().getName()));
     return;
 }
 AbstractChannel.this.eventLoop = eventLoop;
 if (eventLoop.inEventLoop()) {
     register0(promise);
 } else {
     try {
         //执行NioEventLoop
         eventLoop.execute(new Runnable() {
             @Override
             public void run() {
                 //注册通道
                 register0(promise);
             }
         });
     } catch (Throwable t) {
         logger.warn(
             "Force-closing a channel whose registration task was not accepted by an event loop: {}",
             AbstractChannel.this, t
         );
         closeForcibly();
         closeFuture.setClosed();
         safeSetFailure(promise, t);
     }
 }
}

execute方法

public void execute(Runnable task) {
 if (task == null) {
     throw new NullPointerException("task");
 }
 boolean inEventLoop = inEventLoop();
 //添加到任务队列
 addTask(task);
 if (!inEventLoop) {
     //启动线程
     startThread();
     if (isShutdown()) {
         boolean reject = false;
         try {
             if (removeTask(task)) {
                 reject = true;
             }
         } catch (UnsupportedOperationException e) {
             // The task queue does not support removal so the best thing we can do is to just move on and
             // hope we will be able to pick-up the task before its completely terminated.
             // In worst case we will log on termination.
         }
         if (reject) {
             reject();
         }
     }
 }
 if (!addTaskWakesUp && wakesUpForTask(task)) {
     wakeup(inEventLoop);
 }
}

startThread—>run方法

protected void run() {
 for (;;) {
     try {
         try {
             switch (selectStrategy.calculateStrategy(selectNowSupplier, hasTasks())) {
                 case SelectStrategy.CONTINUE:
                     continue;
                 case SelectStrategy.BUSY_WAIT:
                     // fall-through to SELECT since the busy-wait is not supported with NIO
                 case SelectStrategy.SELECT:
                     select(wakenUp.getAndSet(false));
                     if (wakenUp.get()) {
                         selector.wakeup();
                     }
                 // fall through
                 default:
             }
         } catch (IOException e) {
             // If we receive an IOException here its because the Selector is messed up. Let's rebuild
             // the selector and retry. https://github.com/netty/netty/issues/8566
             rebuildSelector0();
             handleLoopException(e);
             continue;
         }
         cancelledKeys = 0;
         needsToSelectAgain = false;
         final int ioRatio = this.ioRatio;
         if (ioRatio == 100) {
             try {
                 processSelectedKeys();
             } finally {
                 // Ensure we always run tasks.
                 runAllTasks();
             }
         } else {
             final long ioStartTime = System.nanoTime();
             try {
                 //处理SelectedKey
                 processSelectedKeys();
             } finally {
                 // Ensure we always run tasks.
                 final long ioTime = System.nanoTime() - ioStartTime;
                 runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
             }
         }
     } catch (Throwable t) {
         handleLoopException(t);
     }
     // Always handle shutdown even if the loop processing threw an exception.
     try {
         if (isShuttingDown()) {
             closeAll();
             if (confirmShutdown()) {
                 return;
             }
         }
     } catch (Throwable t) {
         handleLoopException(t);
     }
 }
}

runAllTasks方法

protected boolean runAllTasks(long timeoutNanos) {
 fetchFromScheduledTaskQueue();
 //轮询任务
 Runnable task = pollTask();
 if (task == null) {
     afterRunningAllTasks();
     return false;
 }
 final long deadline = ScheduledFutureTask.nanoTime() + timeoutNanos;
 long runTasks = 0;
 long lastExecutionTime;
 for (;;) {
     //执行任务
     safeExecute(task);
     runTasks ++;
     // Check timeout every 64 tasks because nanoTime() is relatively expensive.
     // XXX: Hard-coded value - will make it configurable if it is really a problem.
     if ((runTasks & 0x3F) == 0) {
         lastExecutionTime = ScheduledFutureTask.nanoTime();
         if (lastExecutionTime >= deadline) {
             break;
         }
     }
     task = pollTask();
     if (task == null) {
         lastExecutionTime = ScheduledFutureTask.nanoTime();
         break;
     }
 }
 afterRunningAllTasks();
 this.lastExecutionTime = lastExecutionTime;
 return true;
}

register0方法

private void register0(ChannelPromise promise) {
 try {
     // check if the channel is still open as it could be closed in the mean time when the register
     // call was outside of the eventLoop
     if (!promise.setUncancellable() || !ensureOpen(promise)) {
         return;
     }
     boolean firstRegistration = neverRegistered;
     //注册通道
     doRegister();
     neverRegistered = false;
     registered = true;
     // Ensure we call handlerAdded(...) before we actually notify the promise. This is needed as the
     // 向pipeline中添加handler主要是针对initChannel方法中
     pipeline.invokeHandlerAddedIfNeeded();
     safeSetSuccess(promise);
     pipeline.fireChannelRegistered();
     // Only fire a channelActive if the channel has never been registered. This prevents firing
     // multiple channel actives if the channel is deregistered and reregistered.
     if (isActive()) {
         if (firstRegistration) {
             pipeline.fireChannelActive();
         } else if (config().isAutoRead()) {
             // This channel was registered before and autoRead() is set. This means we need to begin read
             // again so that we process inbound data.
             //
             // See https://github.com/netty/netty/issues/4805
             beginRead();
         }
     }
 } catch (Throwable t) {
     // Close the channel directly to avoid FD leak.
     closeForcibly();
     closeFuture.setClosed();
     safeSetFailure(promise, t);
 }
}

doRegister()

protected void doRegister() throws Exception {
 boolean selected = false;
 for (;;) {
     try {
         //将channel注册到Selector上
             selectionKey = javaChannel().register(eventLoop().unwrappedSelector(), 0, this);
             return;
     } catch (CancelledKeyException e) {
         if (!selected) {
             // Force the Selector to select now as the "canceled" SelectionKey may still be
             // cached and not removed because no Select.select(..)
             operation was called yet.
             eventLoop().selectNow();
             selected = true;
          } else {
              // We forced a select operation on the selector before but the SelectionKey is still cached
              // for whatever reason. JDK bug ?
              throw e;
         }
     }
 }
}

invokeHandlerAddedIfNeeded—>initChannel方法

p.addLast(new ChannelInitializer<Channel>() {
 @Override
 public void initChannel(final Channel ch) {
        final ChannelPipeline pipeline = ch.pipeline();
     ChannelHandler handler = config.handler();
     if (handler != null) {
         pipeline.addLast(handler);
     }
     ch.eventLoop().execute(new Runnable() {
         @Override
         public void run() {
             //在initChannel方法中添加ServerBootstrapAcceptor的handler
             pipeline.addLast(
                 new ServerBootstrapAcceptor(
                     ch, currentChildGroup, currentChildHandler,
                     currentChildOptions, currentChildAttrs)
             );
         }
     });
 }
});

5.4 BossGroup/WorkGroup/消息入站源码

BossGroup主要负责监听. workGroup负责消息处理. 主要看下BossGroup如何将通道交给workGroup的,和如何处理消息读取的.即入站

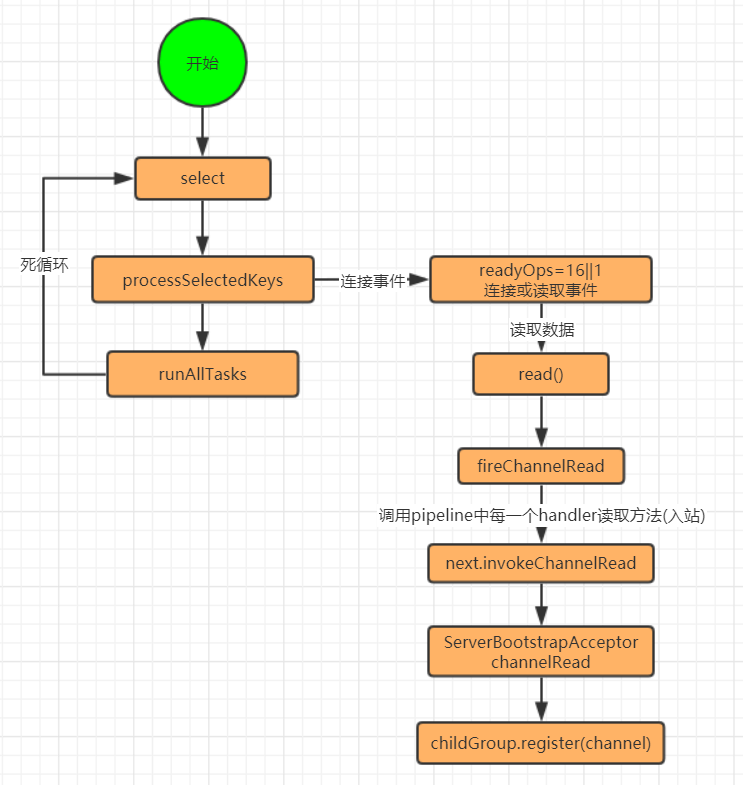

5.4.1 BossGroup/WorkGroup源码分析

5.4.2 主要流程源码

processSelectedKeysOptimized

private void processSelectedKeysOptimized() {
 for (int i = 0; i < selectedKeys.size; ++i) {
     final SelectionKey k = selectedKeys.keys[i];
     // null out entry in the array to allow to have it GC'ed once the Channel close
     // See https://github.com/netty/netty/issues/2363
     selectedKeys.keys[i] = null;
     final Object a = k.attachment();
     if (a instanceof AbstractNioChannel) {
         //处理SelectedKey
         processSelectedKey(k, (AbstractNioChannel) a);
     } else {
         @SuppressWarnings("unchecked")
         NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
         processSelectedKey(k, task);
     }
     if (needsToSelectAgain) {
         // null out entries in the array to allow to have it GC'ed once the Channel close
         // See https://github.com/netty/netty/issues/2363
         selectedKeys.reset(i + 1);
         selectAgain();
         i = -1;
     }
 }
}

processSelectedKey

private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
 final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
 if (!k.isValid()) {
     final EventLoop eventLoop;
     try {
         eventLoop = ch.eventLoop();
     } catch (Throwable ignored) {
         // If the channel implementation throws an exception because there is no event loop, we ignore this
         // because we are only trying to determine if ch is registered to this event loop and thus has authority
         // to close ch.
         return;
     }
     // Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
     // and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
     // still healthy and should not be closed.
     // See https://github.com/netty/netty/issues/5125
     if (eventLoop != this || eventLoop == null) {
         return;
     }
     // close the channel if the key is not valid anymore
     unsafe.close(unsafe.voidPromise());
     return;
 }
 try {
     int readyOps = k.readyOps();
     // We first need to call finishConnect() before try to trigger a read(...) or write(...) as otherwise
     // the NIO JDK channel implementation may throw a NotYetConnectedException.
     if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
         // remove OP_CONNECT as otherwise Selector.select(..) will always return without blocking
         // See https://github.com/netty/netty/issues/924
         int ops = k.interestOps();
         ops &= ~SelectionKey.OP_CONNECT;
         k.interestOps(ops);
         unsafe.finishConnect();
     }
     // Process OP_WRITE first as we may be able to write some queued buffers and so free memory.
     if ((readyOps & SelectionKey.OP_WRITE) != 0) {
         // Call forceFlush which will also take care of clear the OP_WRITE once there is nothing left to write
         ch.unsafe().forceFlush();
     }
     // Also check for readOps of 0 to workaround possible JDK bug which may otherwise lead
     // to a spin loop
     if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
         //读取数据
         unsafe.read();
     }
 } catch (CancelledKeyException ignored) {
     unsafe.close(unsafe.voidPromise());
 }
}

unsafe.read()

private static class ServerBootstrapAcceptor extends ChannelInboundHandlerAdapter {
 @Override
 @SuppressWarnings("unchecked")
 public void channelRead(ChannelHandlerContext ctx, Object msg) {
     //获得通道信息
     final Channel child = (Channel) msg;
     //将服务端处理器添加到pipeline中
     child.pipeline().addLast(childHandler);
     setChannelOptions(child, childOptions, logger);
     setAttributes(child, childAttrs);
     try {
         //将通道注册到workGroup线程组上
         childGroup.register(child).addListener(new ChannelFutureListener() {
             @Override
             public void operationComplete(ChannelFuture future) throws
                 Exception {
                 if (!future.isSuccess()) {
                     forceClose(child, future.cause());
                 }
             }
         });
     } catch (Throwable t) {
         forceClose(child, t);
     }
 }
}

5.5 消息出站源码

private void write(Object msg, boolean flush, ChannelPromise promise) {
 ObjectUtil.checkNotNull(msg, "msg");
 try {
     if (isNotValidPromise(promise, true)) {
         ReferenceCountUtil.release(msg);
         // cancelled
         return;
     }
 } catch (RuntimeException e) {
     ReferenceCountUtil.release(msg);
     throw e;
 }
 //得到上下文出站handler-从后往前查找
 final AbstractChannelHandlerContext next = findContextOutbound(flush ? (MASK_WRITE | MASK_FLUSH) : MASK_WRITE);
 final Object m = pipeline.touch(msg, next);
 EventExecutor executor = next.executor();
 if (executor.inEventLoop()) {
     if (flush) {
         //调用写入和刷新方法
         next.invokeWriteAndFlush(m, promise);
     } else {
         next.invokeWrite(m, promise);
     }
 } else {
     final AbstractWriteTask task;
     if (flush) {
         task = WriteAndFlushTask.newInstance(next, m, promise);
     } else {
         task = WriteTask.newInstance(next, m, promise);
     }
     if (!safeExecute(executor, task, promise, m)) {
         // We failed to submit the AbstractWriteTask. We need to cancel it so we decrement the pending bytes
         // and put it back in the Recycler for re-use later.
         //
         // See https://github.com/netty/netty/issues/8343.
         task.cancel();
     }
 }
}

学习分享 - RPC 框架设置

T-1 RPC框架设计.5 Netty核心源码剖析
