实际项目中有时会遇到消息丢失问题，订阅方反馈没订阅到，发送方反馈已经发送了。需要直接在RabbitMQ中看数据，这时可以采用RabbitMQ 的trace插件进行消息查看。
首先需要进入rabbitmq安装目录：

确认rabbitmqctl正常

  1. [root@master rabbitmq]# rabbitmqctl status
  2. Status of node rabbit@master ...
  3. [{pid,11428},
  4.  {running_applications,
  5.      [{rabbitmq_management,"RabbitMQ Management Console","3.3.5"},
  6.       {rabbitmq_web_dispatch,"RabbitMQ Web Dispatcher","3.3.5"},
  7.       {webmachine,"webmachine","1.10.3-rmq3.3.5-gite9359c7"},
  8.       {mochiweb,"MochiMedia Web Server","2.7.0-rmq3.3.5-git680dba8"},
  9.       {rabbitmq_management_agent,"RabbitMQ Management Agent","3.3.5"},
  10.       {rabbit,"RabbitMQ","3.3.5"},
  11.       {mnesia,"MNESIA  CXC 138 12","4.11"},
  12.       {os_mon,"CPO  CXC 138 46","2.2.14"},
  13.       {inets,"INETS  CXC 138 49","5.9.8"},
  14.       {amqp_client,"RabbitMQ AMQP Client","3.3.5"},
  15.       {xmerl,"XML parser","1.3.6"},
  16.       {sasl,"SASL  CXC 138 11","2.3.4"},
  17.       {stdlib,"ERTS  CXC 138 10","1.19.4"},
  18.       {kernel,"ERTS  CXC 138 10","2.16.4"}]},
  19.  {os,{unix,linux}},
  20.  {erlang_version,
  21.      "Erlang R16B03-1 (erts-5.10.4) [source] [64-bit] [async-threads:30] [hipe] [kernel-poll:true]\n"},
  22.  {memory,
  23.      [{total,40801504},
  24.       {connection_procs,5440},
  25.       {queue_procs,33376},
  26.       {plugins,317304},
  27.       {other_proc,13339840},
  28.       {mnesia,68096},
  29.       {mgmt_db,154440},
  30.       {msg_index,70464},
  31.       {other_ets,1251400},
  32.       {binary,829760},
  33.       {code,20232316},
  34.       {atom,711569},
  35.       {other_system,3787499}]},
  36.  {alarms,[]},
  37.  {listeners,[{clustering,25672,"::"},{amqp,5672,"::"}]},
  38.  {vm_memory_high_watermark,0.4},
  39.  {vm_memory_limit,407832166},
  40.  {disk_free_limit,50000000},
  41.  {disk_free,45208797184},
  42.  {file_descriptors,
  43.      [{total_limit,924},{total_used,3},{sockets_limit,829},{sockets_used,1}]},
  44.  {processes,[{limit,1048576},{used,181}]},
  45.  {run_queue,0},
  46.  {uptime,39026}]
  47. ...done.

查看rabbitmq支持的插件列表

  1. [root@master rabbitmq]# rabbitmq-plugins list
  2. [e] amqp_client                       3.3.5
  3. [ ] cowboy                            0.5.0-rmq3.3.5-git4b93c2d
  4. [ ] eldap                             3.3.5-gite309de4
  5. [e] mochiweb                          2.7.0-rmq3.3.5-git680dba8
  6. [ ] rabbitmq_amqp1_0                  3.3.5
  7. [ ] rabbitmq_auth_backend_ldap        3.3.5
  8. [ ] rabbitmq_auth_mechanism_ssl       3.3.5
  9. [ ] rabbitmq_consistent_hash_exchange 3.3.5
  10. [ ] rabbitmq_federation               3.3.5
  11. [ ] rabbitmq_federation_management    3.3.5
  12. [E] rabbitmq_management               3.3.5
  13. [e] rabbitmq_management_agent         3.3.5
  14. [ ] rabbitmq_management_visualiser    3.3.5
  15. [ ] rabbitmq_mqtt                     3.3.5
  16. [ ] rabbitmq_shovel                   3.3.5
  17. [ ] rabbitmq_shovel_management        3.3.5
  18. [ ] rabbitmq_stomp                    3.3.5
  19. [ ] rabbitmq_test                     3.3.5
  20. [ ] rabbitmq_tracing                  3.3.5
  21. [e] rabbitmq_web_dispatch             3.3.5
  22. [ ] rabbitmq_web_stomp                3.3.5
  23. [ ] rabbitmq_web_stomp_examples       3.3.5
  24. [ ] sockjs                            0.3.4-rmq3.3.5-git3132eb9
  25. [e] webmachine                        1.10.3-rmq3.3.5-gite9359c7

启用trace插件

  1. [root@master rabbitmq]# rabbitmq-plugins enable rabbitmq_tracing
  2. The following plugins have been enabled:
  3.   rabbitmq_tracing
  4. Plugin configuration has changed. Restart RabbitMQ for changes to take effect.

启用trace功能

  1. [root@master rabbitmq]# rabbitmqctl trace_on
  2. Starting tracing for vhost "/" ...
  3. ...done.

重启rabbitmq

  1. systemctl stop rabbitmq-server.service
  3. systemctl start rabbitmq-server.service

登录rabbitmq客户端

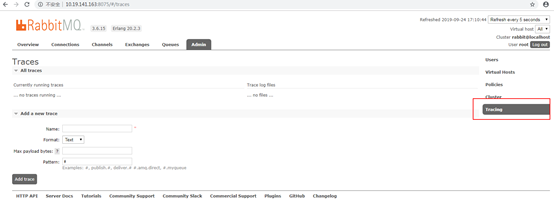

查看trace是否已启用

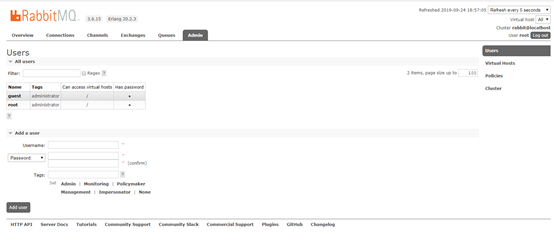

进入Admin模块，查看trace已存在，表示trace启用成功

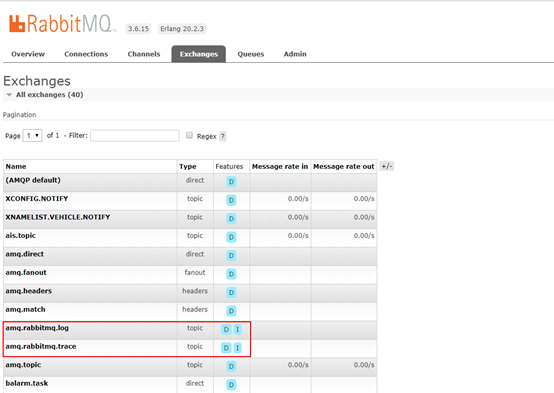

进入Exchange模块，查看trace启用后，有增加对应topic

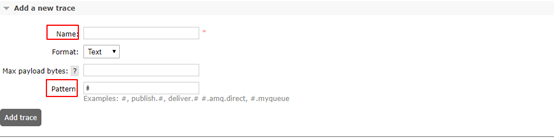

添加trace
输入trace名称，format类型，Pattern，添加trace，注意：publish.# （接入），deliver.#（接出） ,#.amq.directueue（指定交换机）, #.myqueue（指定一个Queue）

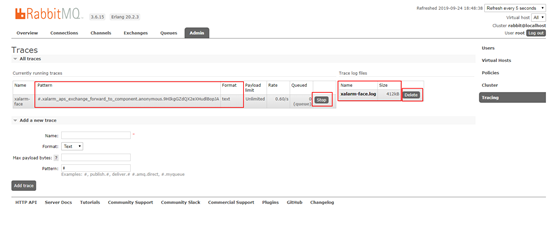

trace日志查看

指定对应的规则，比如打印某个queue的消息日志

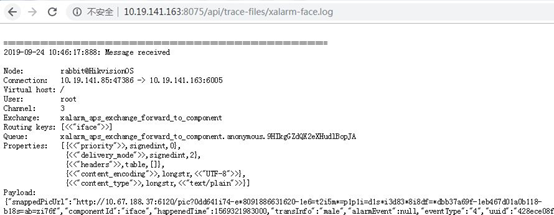

点击右侧日志名查看日志详情，在详情中可以查看消息报文

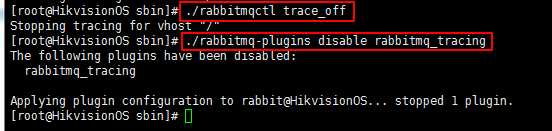

关闭trace，禁用trace plugin

在定位问题完毕后，记得删除对应的trace和log信息，禁用trace
关闭trace，输入：./rabbitmqctl trace_off
禁用trace，输入：./rabbitmq-plugins disable rabbitmq_tracing

确认是否禁用成功

如果禁用成功，查看Admin页面已经没有Tracing 列
