接口文档

Playwright Python接口文档

常用API操作

如何指定chrome的userDataDir?

如果在args中指定，会报下面的错误：
playwright._impl._api_types.Error: Pass userDataDir parameter instead of specifying --user-data-dir argument

正确方法如下：

  1.         with sync_playwright() as playwright:
  2.             self.__browser = playwright.chromium.launch_persistent_context(configs['chrome_user_data_dir'],
  3.                                                                            headless=configs['record_headless'],
  4.                                                                            executable_path=configs['ext_chrome_path'])
  5.             print(f'start to load page,{time.time()}')
  6.             self.recordInfo.status = RecordStatus.page_start
  7.             self.start_load_timer()
  8.             page = self.__browser.new_page()
  9.             page.goto(param['url'])

更多参数，参考：链接

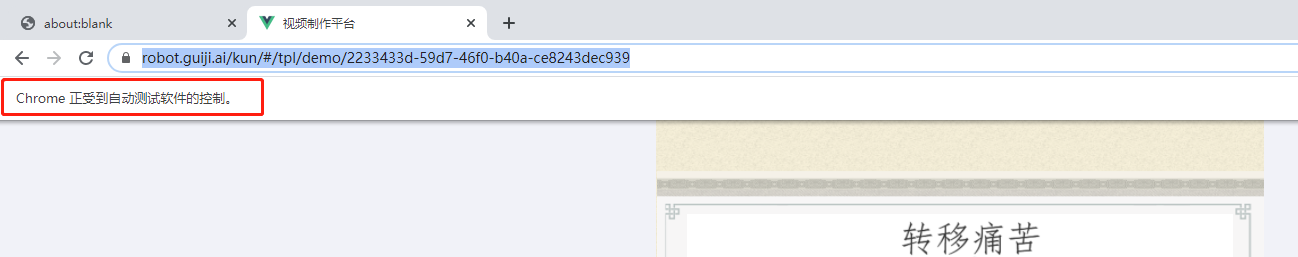

如何去掉提示：Chrome正受到自动测试软件的控制

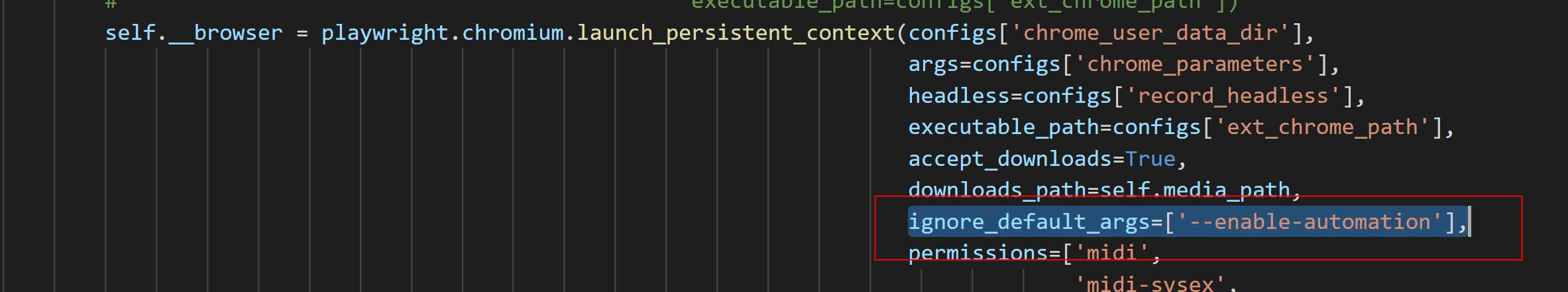

代码如下：

如何启动指定的插件？

NOTE Extensions in Chrome / Chromium currently only work in non-headless mode. 参考：https://playwright.dev/docs/1.3.0/api/working-with-chrome-extensions/

  1. args: [<br />`--disable-extensions-except=${pathToExtension}`,<br />`--load-extension=${pathToExtension}`<br />]<br />通过上面的两个参数来指定，加载指定的插件。

如何加载自定义插件？

https://stackoverflow.com/questions/32280949/enable-developer-mode-extension-for-chrome-browser-using-cmd
https://github.com/Rob—W/extension-dev-tools/blob/master/chrome/master_preferences

如何指定chrome启动参数？

  1.     webkit = playwright.chromium
  2.     browser = webkit.launch(headless=False, devtools=True, args=['--auto-select-desktop-capture-source=Sharing'])
  3.     context = browser.new_context(record_video_dir="../record/", record_video_size={"width": 1920, "height": 1080},
  4.                                         viewport={"width": 1920, "height": 1080})

在args中指定具体的chrome参数，可选的参数有：链接

如何模拟按钮点击？

主要代码如下：

  1.     # 等待分享视频按钮能看到
  2.     page.wait_for_selector('#share-screen')
  3.     # 点击分享屏幕按钮
  4.     page.click("#share-screen")

下面是完整代码：

  1. from playwright.sync_api import sync_playwright
  3. def run(playwright):
  4.     # webkit = playwright.firefox
  5.     webkit = playwright.chromium
  6.     # devtools=True 开启调试窗口
  7.     browser = webkit.launch(headless=False, devtools=True, args=['--auto-select-desktop-capture-source=Sharing'])
  8.     context = browser.new_context(record_video_dir="../record/", record_video_size={"width": 1920, "height": 1080},
  9.                                         viewport={"width": 1920, "height": 1080})
  11.     print(f'start to load page,{time.time()}')
  12.     page = context.new_page()
  13.     page.goto("https://www.webrtc-experiment.com/Pluginfree-Screen-Sharing/#8249560123750639")
  15.     def print_args(msg):
  16.         for arg in msg.args:
  17.             value = arg.json_value()
  18.             if value == 'video_start':
  19.                 print(f'start to play video,{time.time()}')
  20.             if value == "video_end":
  21.                 print(f"video is end, start to close browser, {time.time()}")
  22.                 browser.close()
  24.     page.on("console", print_args)
  26.     # 等待分享视频按钮能看到
  27.     page.wait_for_selector('#share-screen')
  29.     # 点击分享屏幕按钮
  30.     page.click("#share-screen")
  32.     page.wait_for_timeout(10040 * 1000)
  34. with sync_playwright() as playwright:
  35.     run(playwright)

如何让页面保持在等待状态，避免退出?

page.wait_for_timeout(10040 * 1000)

如何监听console消息？

    def print_args(msg):
        for arg in msg.args:
            value = arg.json_value()
            if value == 'video_start':
                print(f'start to play video,{time.time()}')
            if value == "video_end":
                print(f"video is end, start to close browser, {time.time()}")
                browser.close()

    page.on("console", print_args)

初步实现和页面的交互

交互通过收到页面发来的console消息，来实现的，目前还是单向通讯。

myweb.zip
页面：index.html

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>菜鸟教程(runoob.com)</title>
</head>
<body>

<video id="myVideo" autoplay muted width="320" height="240" controls src="movie.ogg">
 您的浏览器不支持 video 标签。
</video>

<p><b>注意：</b>  IE 和 Safari 浏览器不支持 .ogg 文件格式。</p>

<script type='text/javascript'>
    myvideo = document.getElementById('myVideo');
    myvideo.addEventListener('playing',function(){console.log("video_start");},false);
    myvideo.addEventListener('ended',function(){console.log("video_end");},false);
</script>

</body>
</html>

下面是python代码：

import asyncio
from playwright.async_api import async_playwright
import time

async def run(playwright):
    webkit = playwright.chromium
    browser = await webkit.launch(headless=False)
    context = await browser.new_context(record_video_dir="./record/", record_video_size={"width": 1920, "height": 1080},
                                  viewport={"width": 1920, "height": 1080})

    print(f'start to load page,{time.time()}')
    page = await context.new_page()
    await page.goto("http://127.0.0.1/index.html")
    await page.screenshot(path="screenshot.png")

    async def print_args(msg):
        for arg in msg.args:
            value = await arg.json_value()
            if value == 'video_start':
                print(f'start to play video,{time.time()}')
            if value == "video_end":
                print(f"video is end, start to close browser, {time.time()}")
                await browser.close()

    page.on("console", print_args)

    await page.wait_for_timeout(60 * 60 * 1000)

async def main():
    async with async_playwright() as playwright:
        await run(playwright)
asyncio.run(main())

如何解决ERR_CERT_AUTHORITY_INVALID错误？

在加载非安全的https页面时，报了下面的错误：

playwright._impl._api_types.Error: net::ERR_CERT_AUTHORITY_INVALID at https://192.168.6.61:8080/duix/#/render

解决办法：
增加参数：ignore_https_errors=True

    webkit = playwright.chromium
    # devtools=True 开启调试窗口
    browser = webkit.launch(headless=False, devtools=True, args=['--auto-select-desktop-capture-source=DUIX'])
    context = browser.new_context(ignore_https_errors=True, record_video_dir="../record/", record_video_size={"width": 1920, "height": 1080},
                                        viewport={"width": 1920, "height": 1080})

打开浏览器自带的devtools

await chromium.launch({ devtools: true });

检查视频播放完毕事件，然后停止录制

视频停止事件： ended

问题：playwright打开的视频，无法自动播放

链接
chrome默认禁止音频的播放，如果视频中有音频，也会被禁止播放。
解决方法：在video中增加muted标签

问题：playwright使用chrome打开浏览器，播放页面中的mp4失败

打开含有mp4的页面时，直接显示空白，加载失败。
解决方法：使用playwright中的firefox打开页面即可

注： firefox打开的页面布局和chrome会有一些不同，需要注意处理。

或者使用低版本的chrome浏览器

问题：录制视频的时候，是否需要headless=False

不需要，不用弹出浏览器窗口也可以的。

问题：在运行过程中，如何获取录制的视频文件的名称？

video_name = await page.video.path()
print(f’video name: {video_name}’)
完整代码如下：

import asyncio
from playwright.async_api import async_playwright
import time

"""用于验证是否能获取到录制的视频文件名称，目前还没有验证通过"""


async def run(playwright):
    webkit = playwright.chromium
    browser = await webkit.launch(headless=True)
    context = await browser.new_context(record_video_dir="./record/", record_video_size={"width": 1920, "height": 1080},
                                        viewport={"width": 1920, "height": 1080})

    print(f'start to load page,{time.time()}')
    page = await context.new_page()
    await page.goto("http://127.0.0.1/index.html")

    async def print_args(msg):
        for arg in msg.args:
            value = await arg.json_value()
            if value == 'video_start':
                print(f'start to play video,{time.time()}')
            if value == "video_end":
                print(f"video is end, start to close browser, {time.time()}")
                await browser.close()

    page.on("console", print_args)

    video_name = await page.video.path()
    print(f'video name: {video_name}')

    await page.wait_for_timeout(60 * 60 * 1000)


async def main():
    async with async_playwright() as playwright:
        await run(playwright)


asyncio.run(main())

Linux部署

运行报错： Unable to open X display.

参考：链接
