前言

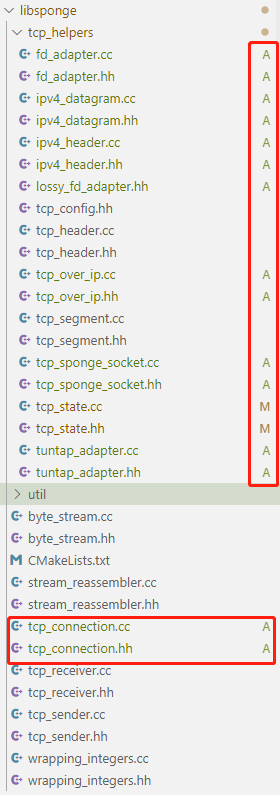

merge lab4的初始代码，出现如下变化

进入build文件夹
运行make -j4
然后依次检查lab0~lab3的结果，由于加入了新的样例，所以前面的实验可能由没通过的新的样例

DEBUG LAB0~LAB3

LAB1样例没过，DEBUG过程见LAB1实现的第五阶段
LAB3样例没过，DEBUG过程见LAB3实现的第三阶段

第一阶段

分析

新增成员
- bool _rst，如果收到RST报文段或者发送RST报文段，则_rst为true

疑问

终止连接需要做什么事情？

TCPConnection和TCPSender一样有一个_segments_out，我要做的事情是不是：从TCPSender中的_segments_out取出TCPSegment，添加ackno和window size字段，然后放到TCPConnection的_segments_out中，这个操作应该放在哪里？write方法吗？

write方法
segment_received方法，确保返回一个带着ack的段
end_input_stream方法

ACK和window size字段是配套的吗？如果没有ack，还需要设置window size吗？

如何利用之前的接口发送一个空的RST报文段？

在哪里判断连续重传次数是否达到上限？tick()

什么时候连接会正常关闭？连接正常关闭需要做什么事情？如何进入lingering状态？

这样对que操作，不会修改_sender.segments_out的内容

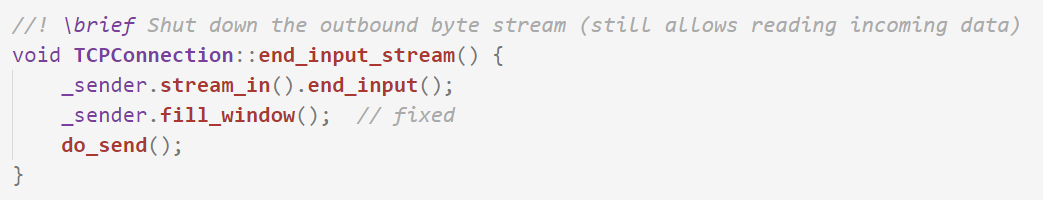

TCPConnection::end_input_stream，也需要fill_window，以发送FIN

断开连接时，本地先发送FIN，对面的FIN和ACK可能会在一个报文段中传回来

什么时候会关闭入流？什么时候会关闭出流？什么时候将_linger_after_streams_finish置为false

关闭出流：TCPConnection::end_input_stream()
关闭入流：_receiver._reassembler::push_substring()
- 这个方法运行到，如果所有的字节已经组装完成（unassembled_bytes()==0&&_next_index==_eof_index）
- 那么就调用_output.end_input()

TCPConnection关闭之后，还能从里面读出数据吗？我觉得是可以的，只要数据已经被组装完成，什么时候取走都没关系

假如说先收到对方发送的FIN，但是前面还有一些数据报文段没到（乱序或丢失），然后在对面发过来的数据字节流完全组装完成之前，我先发送了FIN，那么这种情况到底算谁主动发起关闭连接？

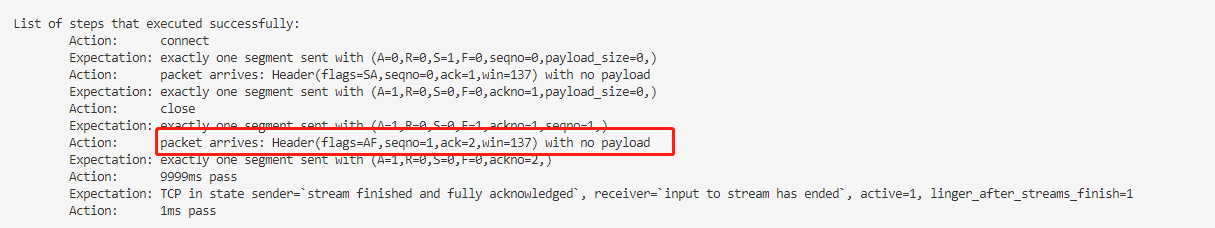

换一种说法，我先发送FIN，还没收到这个FIN的ACK之前，对方也发了FIN过来，那么我是否需要lingering？如下图

在TCPConnection::end_input_stream()中查看_receiver.stream_out().input_ended()，如果是true，说明已经收到对面FIN，且已经被组装

如果_sender数据已经全部发完，但是还可能重传，这个时候出流算不算结束？

我们在学习四次挥手的时候，那个图是画的4个报文段，这种情况是一种比较理想的情况；实际上现实中的TCP连接在断开的时候，并不一定是这么理想的，双方可能在几乎相同的时间给对方发送FIN报文段，这种情况双方最后都会进入lingering状态。

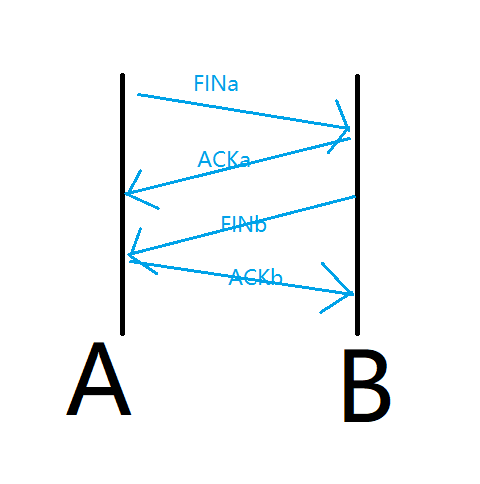

如下图是理想状况

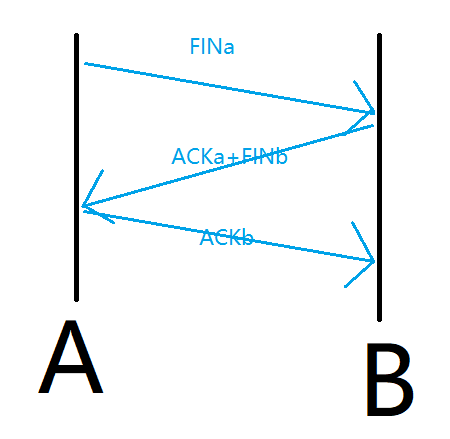

如下图是B将ACK和FIN合并

如下图是两者几乎同时发送FIN报文段，在这种情况下，我认为两者都会进入lingering状态

_linger_after_streams_finish**初始化为true。如果入站流在TCPConnection的出站流读到EOF之前结束（意思就是对方先发送FIN），则此变量需要设置为false

TCPConnection不一定是主动发起连接的一方，如果先收到对方的SYN报文段，我也要回复SYN+ACK报文段，所以在TCPConnection::segment_received中也需要调用_sender.fill_window()

代码

tcp_connection.hh

#ifndef SPONGE_LIBSPONGE_TCP_FACTORED_HH
#define SPONGE_LIBSPONGE_TCP_FACTORED_HH
#include "tcp_config.hh"
#include "tcp_receiver.hh"
#include "tcp_sender.hh"
#include "tcp_state.hh"
//! \brief A complete endpoint of a TCP connection
class TCPConnection {
  private:
    TCPConfig _cfg;
    TCPReceiver _receiver{_cfg.recv_capacity};
    TCPSender _sender{_cfg.send_capacity, _cfg.rt_timeout, _cfg.fixed_isn};
    //! outbound queue of segments that the TCPConnection wants sent
    std::queue<TCPSegment> _segments_out{};
    //! Should the TCPConnection stay active (and keep ACKing)
    //! for 10 * _cfg.rt_timeout milliseconds after both streams have ended,
    //! in case the remote TCPConnection doesn't know we've received its whole stream?
    bool _linger_after_streams_finish{true};
    bool _rst{false};
    size_t do_send(bool limit=false, size_t send_num=0);
    bool _lingering{false};
    size_t _linger_timer_ms{0};
    bool _closed{false};
    size_t _time_since_last_segment_received{0};
  public:
    //! \name "Input" interface for the writer
    //!@{
    // 下面的4个接口是应用程序在使用这个TCPConnection，用来发送数据的接口
    //! \brief Initiate a connection by sending a SYN segment
    void connect();
    //! \brief Write data to the outbound byte stream, and send it over TCP if possible
    //! \returns the number of bytes from `data` that were actually written.
    size_t write(const std::string &data);
    //! \returns the number of `bytes` that can be written right now.
    size_t remaining_outbound_capacity() const;
    //! \brief Shut down the outbound byte stream (still allows reading incoming data)
    void end_input_stream();
    //!@}
    //! \name "Output" interface for the reader
    //!@{
    // 这个就是TCPReceiver组装后的字节流
    //! \brief The inbound byte stream received from the peer
    ByteStream &inbound_stream() { return _receiver.stream_out(); }
    //!@}
    //! \name Accessors used for testing
    // 下面的4个接口是用于校验测试结果的
    //!@{
    //! \brief number of bytes sent and not yet acknowledged, counting SYN/FIN each as one byte
    size_t bytes_in_flight() const;
    //! \brief number of bytes not yet reassembled
    size_t unassembled_bytes() const;
    //! \brief Number of milliseconds since the last segment was received
    size_t time_since_last_segment_received() const;
    //!< \brief summarize the state of the sender, receiver, and the connection
    TCPState state() const { return {_sender, _receiver, active(), _linger_after_streams_finish}; };
    //!@}
    //! \name Methods for the owner or operating system to call
    //!@{
    // 下面的5个接口是操作系统调用的
    // 网络层收到packet，转化成TCPSegment，调用这个函数提交给传输层
    //! Called when a new segment has been received from the network
    void segment_received(const TCPSegment &seg);
    //! Called periodically when time elapses
    // 时间的流逝
    void tick(const size_t ms_since_last_tick);
    //! \brief TCPSegments that the TCPConnection has enqueued for transmission.
    //! \note The owner or operating system will dequeue these and
    //! put each one into the payload of a lower-layer datagram (usually Internet datagrams (IP),
    //! but could also be user datagrams (UDP) or any other kind).
    // 操作系统会从这个队列中拿出数据，放到网络层并发送到网络上
    std::queue<TCPSegment> &segments_out() { return _segments_out; }
    //! \brief Is the connection still alive in any way?
    //! \returns `true` if either stream is still running or if the TCPConnection is lingering
    //! after both streams have finished (e.g. to ACK retransmissions from the peer)
    // 连接是否active
    bool active() const;
    //!@}
    //! Construct a new connection from a configuration
    explicit TCPConnection(const TCPConfig &cfg) : _cfg{cfg} {}
    //! \name construction and destruction
    //! moving is allowed; copying is disallowed; default construction not possible
    // 下面是构造函数和析构函数
    //!@{
    ~TCPConnection();  //!< destructor sends a RST if the connection is still open
    TCPConnection() = delete;
    TCPConnection(TCPConnection &&other) = default;
    TCPConnection &operator=(TCPConnection &&other) = default;
    TCPConnection(const TCPConnection &other) = delete;
    TCPConnection &operator=(const TCPConnection &other) = delete;
    //!@}
};
#endif  // SPONGE_LIBSPONGE_TCP_FACTORED_HH

tcp_connection.cc

#include "tcp_connection.hh"
#include <iostream>
// Dummy implementation of a TCP connection
// For Lab 4, please replace with a real implementation that passes the
// automated checks run by `make check`.
template <typename... Targs>
void DUMMY_CODE(Targs &&... /* unused */) {}
using namespace std;
//! \returns the number of `bytes` that can be written right now.
// 返回outgoing bytestream的剩余容量
// _sender.stream_in()
size_t TCPConnection::remaining_outbound_capacity() const { return _sender.stream_in().remaining_capacity(); }
//! \brief number of bytes sent and not yet acknowledged, counting SYN/FIN each as one byte
// 返回已经发送但未确认的字节数
// _sender.bytes_in_flight()
size_t TCPConnection::bytes_in_flight() const { return _sender.bytes_in_flight(); }
//! \brief number of bytes not yet reassembled
// 返回已经接收但未组装的字节数
// _receiver.unassembled_bytes()
size_t TCPConnection::unassembled_bytes() const { return _receiver.unassembled_bytes(); }
//! \brief Number of milliseconds since the last segment was received
// 返回自接收到上个报文段经过的毫秒数
size_t TCPConnection::time_since_last_segment_received() const { return _time_since_last_segment_received; }
//! Called when a new segment has been received from the network
// 当网络层收到packet后，会转化为TCPSegment，调用这个函数
/*
如果设置了RST（重置）标志，将入站和出站的流都设置为错误状态并永久终止连接。否则……
将报文段提供给TCPReceiver，以便它可以检查其关注的字段：seqno、SYN、payload和FIN
如果ACK标志已设置，告诉TCPSender它关心的字段：ackno和接收窗口大小。
如果传入的段占用任何序列号，则TCPConnection确保至少发送一个段作为答复，以反映ackno和窗口大小的更新。
*/
void TCPConnection::segment_received(const TCPSegment &seg) {
    _time_since_last_segment_received=0;
    if (_closed||_rst) {
        return;
    }
    if (seg.header().rst) {  // 如果设置了RST标志
        _sender.stream_in().set_error();
        _receiver.stream_out().set_error();
        _rst=true;
    } else {
        // 交给receiver处理
        _receiver.segment_received(seg);
        if (seg.header().ack) {  // 如果设置了ACK标志
            // 告诉TCPSender它关心的字段：ackno和接收窗口大小
            _sender.ack_received(seg.header().ackno, seg.header().win);
        }
        // 如果收到了SYN报文，那么这里的调用可以回复SYN报文
        if (_receiver.ackno().has_value()&&!_receiver.stream_out().input_ended()) {
            _sender.fill_window();
        }
        if (seg.length_in_sequence_space()) {  // 如果传入的段占用任何序列号
            // std::cout<<"****** TCPConnection::segment_received with seqno space occupied>0, at least one ack should be send"<<std::endl;
            // 则TCPConnection确保至少发送一个段作为答复，以反映ackno和窗口大小的更新
            if (!do_send()) {  // 如果没有发送任何段，则发送一个空的ACK报文段
                // std::cout<<"****** TCPConnection::segment_received generate a empty ACK segment"<<std::endl;
                _sender.send_empty_segment();
                do_send();
            }
        }
        /* 如果当前收到的报文段带FIN标志，那么_receiver.segment_received(seg)处理完后，
            _receiver.stream_out.input_ended()可能已经是true，表示入流已经结束，
            上面的代码确保发送一个ACK，这个ACK有可能就是对这个FIN的ACK，
            此时需要检查出流是否也已经结束
        */
        /* 如果当前收到的报文段带ack，那么ACK有可能是对我之前发送的FIN的ACK，这里也需要检查出流和入流是否已经全部结束
        */
        // std::cout<<"****** instream ended: "<<_receiver.stream_out().input_ended()
        //     <<", outstream ended:"<<(_sender.stream_in().eof() && _sender.next_seqno_absolute()==_sender.stream_in().bytes_written()+2 && _sender.bytes_in_flight()>0)<<std::endl;
        // _stream.eof()&&_next_seqno==_stream.bytes_written()+2&&bytes_in_flight()==0
        if (_receiver.stream_out().input_ended()&&!_sender.stream_in().eof()) {
            _linger_after_streams_finish=false;
        }
        if (_receiver.stream_out().input_ended()&&(
            _sender.stream_in().eof() && _sender.next_seqno_absolute()==_sender.stream_in().bytes_written()+2 &&
            _sender.bytes_in_flight()==0
        )) {
            if (_linger_after_streams_finish) {
                if (!_lingering) {
                    // std::cout<<"****** TCPConnection into lingering"<<std::endl;
                    _lingering=true;
                }
            } else {
                // std::cout<<"****** TCPConnection closed"<<std::endl;
                _closed=true;
            }
        }
    }
}
//! \brief Is the connection still alive in any way?
//! \returns `true` if either stream is still running or if the TCPConnection is lingering
//! after both streams have finished (e.g. to ACK retransmissions from the peer)
bool TCPConnection::active() const {
    return !_rst&&!_closed;
    // if (_rst||_closed) {
    //     return false;
    // }
    // // _sender.stream_in(), _receiver.stream_out()
    // // 如何判断正在lingering?
    // // if (_sender.stream_in().eof()&&_receiver.stream_out().eof()&&!_linger_after_streams_finish) {
    // if (_sender.stream_in().eof()&&_receiver.stream_out().input_ended()&&!_linger_after_streams_finish) {
    //     return false;
    // }
    // return true;
}
//! \brief Write data to the outbound byte stream, and send it over TCP if possible
//! \returns the number of bytes from `data` that were actually written.
size_t TCPConnection::write(const string &data) {
    size_t sz = _sender.stream_in().write(data);
    _sender.fill_window();
    do_send();
    return sz;
}
// 从TCPSender的_segments_out中取出TCPSegment，添加ack和window size字段，放入TCPConnection的_segments_out中
size_t TCPConnection::do_send(bool limit, size_t send_num) {
    size_t cnt=0;
    // auto que = _sender.segments_out();  // 这么写是复制了一个队列出来，不会更改原队列
    while (_sender.segments_out().size()&&!(limit&&cnt<send_num)) {
        cnt++;
        TCPSegment seg = _sender.segments_out().front();
        _sender.segments_out().pop();
        std::optional<WrappingInt32> ackno=_receiver.ackno();
        if (ackno) {
            seg.header().ack=true;
            seg.header().ackno=ackno.value();
            size_t window_size=_receiver.window_size();
            // 需要转化为16位
            uint16_t uint16_window_size=0xFFFF&window_size;
            seg.header().win=uint16_window_size;
        }
        if (_rst) {
            seg.header().rst=true;
        }
        //  (A=1,R=0,S=0,F=0,ackno=1,payload_size=0,)
        // std::cout<<"****** TCPConnection do send a segment(A="<<seg.header().ack
            // <<",R="<<seg.header().rst<<",S="<<seg.header().syn
            // <<",F="<<seg.header().fin<<",payload_size="<<seg.payload().size()<<")"<<std::endl;
        _segments_out.push(seg);
    }
    // std::cout<<"****** TCPConnection do send "<<cnt<<" segments and "<<_sender.segments_out().size()<<" left in _send._segments_out"<<std::endl;
    return cnt;
}
//! \param[in] ms_since_last_tick number of milliseconds since the last call to this method
void TCPConnection::tick(const size_t ms_since_last_tick) {
    _time_since_last_segment_received+=ms_since_last_tick;
    if (_rst||_closed) {
        return;
    }
    if (_lingering) {
        _linger_timer_ms+=ms_since_last_tick;
        // std::cout<<"****** Lingering, _linger_timer_ms: "<<_linger_timer_ms<<", up to: "<<10*_cfg.rt_timeout;
        // std::cout<<", _closed: "<<_closed<<", linger_after_streams_finish: "<<_linger_after_streams_finish;
        // std::cout<<", active():"<<active()<<std::endl;
        if (_linger_timer_ms>=10*_cfg.rt_timeout) {
            _lingering=false;
            _closed=true;
            // std::cout<<"****** TCPConnection lingering ended, now fully closed"<<std::endl;
        }
        return;  // 我认为如果在lingering，说明_sender已经没有东西要发送了，也没有需要重传的东西
    }
    // 如果在lingering，这里后面的代码还需要执行吗？
    _sender.tick(ms_since_last_tick);

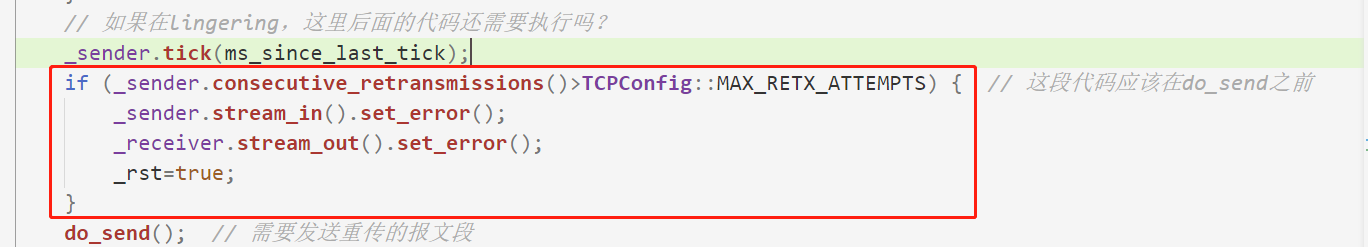

    if (_sender.consecutive_retransmissions()>TCPConfig::MAX_RETX_ATTEMPTS) {  // 这段代码应该在do_send之前
        _sender.stream_in().set_error();
        _receiver.stream_out().set_error();
        _rst=true;
    }
    do_send();  // 需要发送重传的报文段
}
//! \brief Shut down the outbound byte stream (still allows reading incoming data)
void TCPConnection::end_input_stream() {
    // std::cout<<"****** Call TCPConnection::end_intput_stream()"<<std::endl;
    // if (_receiver.stream_out().input_ended()) {  // 这个判断条件对应了_recevier的FIN_RECEIVED状态
    //     std::cout<<"****** in stream has ened, _linger_after_streams_finish set false"<<std::endl;
    //     _linger_after_streams_finish=false;
    // }
    _sender.stream_in().end_input();
    // 如果对方的接收窗口大小不够，这里调用fill_window还不一定能发送FIN
    _sender.fill_window();  // fixed
    do_send();
}
//! \brief Initiate a connection by sending a SYN segment
// 初始化连接，发送一个SYN报文段
// 需要保证这个函数只能被成功调用一次吧？
void TCPConnection::connect() {
    // std::cout<<"****** TCPConnection::connect called";
    // 主动发起连接，发送SYN报文
    _sender.fill_window();
    // std::cout<<", _sender.segments_out().size()"<<_sender.segments_out().size();
    // if (do_send()==1) {
    //     std::cout<<"****** send syn when connect"<<std::endl;
    // }
    do_send();
    // std::cout<<", TCPConnection._segments_out.size()"<<_segments_out.size()<<std::endl;
}
//!< destructor sends a RST if the connection is still open
TCPConnection::~TCPConnection() {
    try {
        if (active()) {
            cerr << "Warning: Unclean shutdown of TCPConnection\n";
            _rst=true;
            _sender.stream_in().set_error();
            _receiver.stream_out().set_error();
            if (!do_send(true, 1)) {
                _sender.send_empty_segment();
                do_send(true, 1);
            }
            // Your code here: need to send a RST segment to the peer
        }
    } catch (const exception &e) {
        std::cerr << "Exception destructing TCP FSM: " << e.what() << std::endl;
    }
}
