一、`release-3.2.2`打包`docker`镜像失败

当前使用的thingsboard版本号为：release-3.2.2。
使用如下命令，进行docker镜像打包，会报错。

提示：往下看，有解决方案！

mvn clean install -DskipTests=true -Ddockerfile.skip=false

二、将整个`thingsboard`项目必须是`Linux`换行符

正常情况下，对thingsboard项目进行二次开发时，是在Windows系统下进行的。而此时，整个thingsboard项目的换行符都为Windows下的CRLF，而打包thinsgboard项目的docker镜像时，需要将整个项目的换行符转为Linux下的LF。

根本原因：项目中含有的SHELL脚本，是要打包到镜像中的，而SHELL脚本的换行符必须为LF。

三、使用master分支替换release-3.2.2分支上的Dockerfile文件

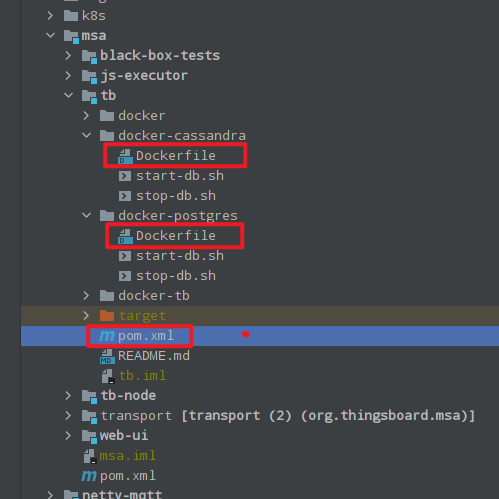

①: msa/tb/docker-cassandra/Dockerfile以及msa/tb/docker-postgres/Dockerfile两个Dockerfile文件，以及将msa/tb/pom.xml替。然后重新编译：

[https://github.com/thingsboard/thingsboard/commit/ae5632f8abbbfbb99395c727cd860f88c64821d6#diff-d7077d41b12ebeee915c2f18d84e9f5fc0d14111c74c869d3bc9cb8ed6c30f4e](https://github.com/thingsboard/thingsboard/commit/ae5632f8abbbfbb99395c727cd860f88c64821d6#diff-d7077d41b12ebeee915c2f18d84e9f5fc0d14111c74c869d3bc9cb8ed6c30f4e)

②: 你也可以，从下面的内容中复制：

Ⅰ：将thingsboard\msa\tb\docker-cassandra目录下面的Dockerfile，替换成以下的内容： ```shell #
Copyright © 2016-2021 The Thingsboard Authors
#
Licensed under the Apache License, Version 2.0 (the “License”);
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
#
http://www.apache.org/licenses/LICENSE-2.0
#
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an “AS IS” BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
#

FROM thingsboard/openjdk11

RUN apt-get update RUN apt-get install -y curl nmap procps gnupg2 RUN echo ‘deb http://apt.postgresql.org/pub/repos/apt/ buster-pgdg main’ | tee —append /etc/apt/sources.list.d/pgdg.list > /dev/null RUN curl -L https://www.postgresql.org/media/keys/ACCC4CF8.asc | apt-key add - RUN echo ‘deb http://downloads.apache.org/cassandra/debian 40x main’ | tee —append /etc/apt/sources.list.d/cassandra.list > /dev/null RUN curl -L https://downloads.apache.org/cassandra/KEYS | apt-key add - ENV PG_MAJOR=12 RUN apt-get update RUN apt-get install -y cassandra cassandra-tools postgresql-12 RUN update-rc.d cassandra disable RUN update-rc.d postgresql disable RUN sed -i.old ‘/ulimit/d’ /etc/init.d/cassandra

COPY logback.xml ${pkg.name}.conf start-db.sh stop-db.sh start-tb.sh upgrade-tb.sh install-tb.sh ${pkg.name}.deb /tmp/

RUN chmod a+x /tmp/*.sh \ && mv /tmp/start-tb.sh /usr/bin \ && mv /tmp/upgrade-tb.sh /usr/bin \ && mv /tmp/install-tb.sh /usr/bin \ && mv /tmp/start-db.sh /usr/bin \ && mv /tmp/stop-db.sh /usr/bin

RUN dpkg -i /tmp/${pkg.name}.deb RUN rm /tmp/${pkg.name}.deb

RUN systemctl —no-reload disable —now ${pkg.name}.service > /dev/null 2>&1 || :

RUN mv /tmp/logback.xml ${pkg.installFolder}/conf \ && mv /tmp/${pkg.name}.conf ${pkg.installFolder}/conf

ENV DATA_FOLDER=/data

ENV HTTP_BIND_PORT=9090 ENV DATABASE_TS_TYPE=cassandra

ENV PGDATA=/data/db ENV CASSANDRA_DATA=/data/cassandra

ENV SPRING_JPA_DATABASE_PLATFORM=org.hibernate.dialect.PostgreSQLDialect ENV SPRING_DRIVER_CLASS_NAME=org.postgresql.Driver ENV SPRING_DATASOURCE_URL=jdbc:postgresql://localhost:5432/thingsboard ENV SPRING_DATASOURCE_USERNAME=${pkg.user} ENV SPRING_DATASOURCE_PASSWORD=postgres

ENV CASSANDRA_HOST=localhost ENV CASSANDRA_PORT=9042 ENV CASSANDRA_HOME=/opt/cassandra

ENV PATH=$CASSANDRA_HOME/bin:$PATH ENV PATH=$PATH:/usr/lib/postgresql/$PG_MAJOR/bin

ENV PGLOG=/var/log/postgres ENV CASSANDRA_LOG=/var/log/cassandra

postgres config

RUN mkdir -p $PGLOG RUN chown -R ${pkg.user}:${pkg.user} $PGLOG RUN chown -R ${pkg.user}:${pkg.user} /var/log/postgresql RUN chown -R ${pkg.user}:${pkg.user} /var/run/postgresql

cassandra config

RUN rm -rf /var/lib/cassandra RUN chmod a+w /var/lib RUN chown -R ${pkg.user}:${pkg.user} $CASSANDRA_LOG

RUN mkdir -p $DATA_FOLDER RUN chown -R ${pkg.user}:${pkg.user} $DATA_FOLDER RUN chown -R ${pkg.user}:${pkg.user} /var/log/${pkg.name}

RUN chmod 555 ${pkg.installFolder}/bin/${pkg.name}.jar

USER ${pkg.user}

EXPOSE 9090 EXPOSE 1883 EXPOSE 5683/udp

VOLUME [“/data”]

CMD [“start-tb.sh”]


- Ⅱ：将`thingsboard\msa\tb\docker-postgres`目录下的`Dockerfile`，替换成以下的内容：
```shell
#
# Copyright © 2016-2021 The Thingsboard Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
FROM thingsboard/openjdk11
RUN apt-get update
RUN apt-get install -y curl gnupg2
RUN echo 'deb http://apt.postgresql.org/pub/repos/apt/ buster-pgdg main' | tee --append /etc/apt/sources.list.d/pgdg.list > /dev/null
RUN curl -L https://www.postgresql.org/media/keys/ACCC4CF8.asc | apt-key add -
ENV PG_MAJOR 12
RUN apt-get update
RUN apt-get install -y postgresql-12
RUN update-rc.d postgresql disable
COPY logback.xml ${pkg.name}.conf start-db.sh stop-db.sh start-tb.sh upgrade-tb.sh install-tb.sh ${pkg.name}.deb /tmp/
RUN chmod a+x /tmp/*.sh \
    && mv /tmp/start-tb.sh /usr/bin \
    && mv /tmp/upgrade-tb.sh /usr/bin \
    && mv /tmp/install-tb.sh /usr/bin \
    && mv /tmp/start-db.sh /usr/bin \
    && mv /tmp/stop-db.sh /usr/bin
RUN dpkg -i /tmp/${pkg.name}.deb
RUN rm /tmp/${pkg.name}.deb
RUN systemctl --no-reload disable --now ${pkg.name}.service > /dev/null 2>&1 || :
RUN mv /tmp/logback.xml ${pkg.installFolder}/conf \
    && mv /tmp/${pkg.name}.conf ${pkg.installFolder}/conf
ENV DATA_FOLDER=/data
ENV HTTP_BIND_PORT=9090
ENV DATABASE_TS_TYPE=sql
ENV PGDATA=/data/db
ENV PATH=$PATH:/usr/lib/postgresql/$PG_MAJOR/bin
ENV SPRING_JPA_DATABASE_PLATFORM=org.hibernate.dialect.PostgreSQLDialect
ENV SPRING_DRIVER_CLASS_NAME=org.postgresql.Driver
ENV SPRING_DATASOURCE_URL=jdbc:postgresql://localhost:5432/thingsboard
ENV SPRING_DATASOURCE_USERNAME=${pkg.user}
ENV SPRING_DATASOURCE_PASSWORD=postgres
ENV PGLOG=/var/log/postgres
RUN mkdir -p $PGLOG
RUN chown -R ${pkg.user}:${pkg.user} $PGLOG
RUN chown -R ${pkg.user}:${pkg.user} /var/run/postgresql
RUN mkdir -p /data
RUN chown -R ${pkg.user}:${pkg.user} /data
RUN chown -R ${pkg.user}:${pkg.user} /var/log/${pkg.name}
RUN chmod 555 ${pkg.installFolder}/bin/${pkg.name}.jar
USER ${pkg.user}
EXPOSE 9090
EXPOSE 1883
EXPOSE 5683/udp
VOLUME ["/data"]
CMD ["start-tb.sh"]

Ⅲ：将thingsboard\msa\tb目录下的pom.xml替换成以下的内容：

  <properties>
      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
      <main.dir>${basedir}/../..</main.dir>
      <pkg.name>thingsboard</pkg.name>
      <tb.docker.name>tb</tb.docker.name>
      <tb-postgres.docker.name>tb-postgres</tb-postgres.docker.name>
      <tb-cassandra.docker.name>tb-cassandra</tb-cassandra.docker.name>
      <pkg.installFolder>/usr/share/${pkg.name}</pkg.installFolder>
      <pkg.upgradeVersion>3.3.0</pkg.upgradeVersion>
  </properties>

三、对源码进行docker镜像打包

编译命令：

mvn clean install -DskipTests=true -Ddockerfile.skip=false

打包成docker镜像成功后，输出如下：

[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary for Thingsboard 3.2.2:
[INFO]
[INFO] Thingsboard ........................................ SUCCESS [ 20.774 s]
[INFO] Netty MQTT Client .................................. SUCCESS [  2.015 s]
[INFO] Thingsboard Server Commons ......................... SUCCESS [  0.197 s]
[INFO] Thingsboard Server Common Data ..................... SUCCESS [  4.490 s]
[INFO] Thingsboard Server Common Utils .................... SUCCESS [  0.279 s]
[INFO] Thingsboard Server Common Messages ................. SUCCESS [  1.421 s]
[INFO] Thingsboard Actor system ........................... SUCCESS [  1.017 s]
[INFO] Thingsboard Server Stats ........................... SUCCESS [  0.410 s]
[INFO] Thingsboard Server Queue components ................ SUCCESS [  6.499 s]
[INFO] Thingsboard Server Commons ......................... SUCCESS [  0.044 s]
[INFO] Thingsboard Server Common Transport components ..... SUCCESS [  2.645 s]
[INFO] Thingsboard MQTT Transport Common .................. SUCCESS [  1.623 s]
[INFO] Thingsboard HTTP Transport Common .................. SUCCESS [  0.692 s]
[INFO] Thingsboard CoAP Transport Common .................. SUCCESS [  1.294 s]
[INFO] Thingsboard Server Common DAO API .................. SUCCESS [  1.112 s]
[INFO] Thingsboard Extensions ............................. SUCCESS [  0.056 s]
[INFO] Thingsboard Rule Engine API ........................ SUCCESS [  1.117 s]
[INFO] Thingsboard Server DAO Layer ....................... SUCCESS [  5.978 s]
[INFO] Thingsboard Rule Engine Components ................. SUCCESS [  4.100 s]
[INFO] Thingsboard Server Transport Modules ............... SUCCESS [  0.025 s]
[INFO] Thingsboard HTTP Transport Service ................. SUCCESS [ 17.420 s]
[INFO] Thingsboard MQTT Transport Service ................. SUCCESS [ 10.196 s]
[INFO] Thingsboard CoAP Transport Service ................. SUCCESS [ 10.264 s]
[INFO] ThingsBoard Server UI .............................. SUCCESS [01:19 min]
[INFO] Thingsboard Server Tools ........................... SUCCESS [  0.596 s]
[INFO] Thingsboard Rest Client ............................ SUCCESS [  0.631 s]
[INFO] ThingsBoard Server Application ..................... SUCCESS [ 25.185 s]
[INFO] ThingsBoard Microservices .......................... SUCCESS [  1.056 s]
[INFO] ThingsBoard Docker Images .......................... SUCCESS [  01:05 h]
[INFO] ThingsBoard JavaScript Executor Microservice ....... SUCCESS [05:25 min]
[INFO] ThingsBoard Web UI Microservice .................... SUCCESS [04:25 min]
[INFO] ThingsBoard Node Microservice ...................... SUCCESS [03:22 min]
[INFO] ThingsBoard Transport Microservices ................ SUCCESS [  0.025 s]
[INFO] ThingsBoard MQTT Transport Microservice ............ SUCCESS [01:46 min]
[INFO] ThingsBoard HTTP Transport Microservice ............ SUCCESS [01:48 min]
[INFO] ThingsBoard COAP Transport Microservice ............ SUCCESS [02:00 min]
[INFO] ThingsBoard Black Box Tests ........................ SUCCESS [  2.435 s]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  01:27 h
[INFO] Finished at: 2021-06-18T17:18:01+08:00
[INFO] ------------------------------------------------------------------------

四、在Docker软件中，使用docker images命令，查看镜像

使用docker images命令进行查看，输入如下：

11475@greamrod-pc-company MINGW64 /f/temp-code/thingsboard (release-3.2)
$ docker images
REPOSITORY                      TAG              IMAGE ID       CREATED             SIZE
thingsboard/tb-coap-transport   3.2.2            c08296cd0663   6 minutes ago       860MB
thingsboard/tb-coap-transport   latest           c08296cd0663   6 minutes ago       860MB
thingsboard/tb-http-transport   3.2.2            f33c3b8ecbfb   8 minutes ago       858MB
thingsboard/tb-http-transport   latest           f33c3b8ecbfb   8 minutes ago       858MB
thingsboard/tb-mqtt-transport   3.2.2            fee682097390   10 minutes ago      858MB
thingsboard/tb-mqtt-transport   latest           fee682097390   10 minutes ago      858MB
thingsboard/tb-node             3.2.2            6db3f208360c   12 minutes ago      1.05GB
thingsboard/tb-node             latest           6db3f208360c   12 minutes ago      1.05GB
thingsboard/tb-web-ui           3.2.2            5ee7ada7ebbe   15 minutes ago      226MB
thingsboard/tb-web-ui           latest           5ee7ada7ebbe   15 minutes ago      226MB
thingsboard/tb-js-executor      3.2.2            55e9da92e2ae   20 minutes ago      320MB
thingsboard/tb-js-executor      latest           55e9da92e2ae   20 minutes ago      320MB
thingsboard/tb-cassandra        3.2.2            ff47a0bf7d3e   25 minutes ago      1.45GB
thingsboard/tb-cassandra        latest           ff47a0bf7d3e   25 minutes ago      1.45GB
thingsboard/tb-postgres         3.2.2            c2044d60b558   36 minutes ago      1.34GB
thingsboard/tb-postgres         latest           c2044d60b558   36 minutes ago      1.34GB
thingsboard/tb                  3.2.2            ba843e7de042   About an hour ago   1.05GB
thingsboard/tb                  latest           ba843e7de042   About an hour ago   1.05GB

thingsboard-3.2学习笔记

源码二次开发后，打包docker镜像

一、`release-3.2.2`打包`docker`镜像失败

二、将整个`thingsboard`项目必须是`Linux`换行符

三、使用master分支替换release-3.2.2分支上的Dockerfile文件

Copyright © 2016-2021 The Thingsboard Authors

Licensed under the Apache License, Version 2.0 (the “License”);

you may not use this file except in compliance with the License.

You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software

distributed under the License is distributed on an “AS IS” BASIS,

WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and

limitations under the License.

postgres config

cassandra config

三、对源码进行docker镜像打包

四、在Docker软件中，使用docker images命令，查看镜像

源码二次开发后，打包docker镜像

一、release-3.2.2打包docker镜像失败

二、将整个thingsboard项目必须是Linux换行符

三、使用master分支替换release-3.2.2分支上的Dockerfile文件

Copyright © 2016-2021 The Thingsboard Authors

Licensed under the Apache License, Version 2.0 (the “License”);

you may not use this file except in compliance with the License.

You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software

distributed under the License is distributed on an “AS IS” BASIS,

WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and

limitations under the License.

postgres config

cassandra config

三、对源码进行docker镜像打包

四、在Docker软件中，使用docker images命令，查看镜像

一、`release-3.2.2`打包`docker`镜像失败

二、将整个`thingsboard`项目必须是`Linux`换行符
