自动装配

不同于SpringBoot中常用spring.factories文件中配置@EnableAutoConfigration做自动装配，SpringCloud中比较常见的组件引入方式是通过@EnableXXX注解方式引入。Hystrix的引入方式是@EnableCircuitBreaker或则@EnableHystrix。

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@EnableCircuitBreaker// 引用
public @interface EnableHystrix {
}
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Import(EnableCircuitBreakerImportSelector.class) // import导入
public @interface EnableCircuitBreaker {
}

EnableCircuitBreakerImportSelector是Spring中ImportSelector的实现类，用于引入配置类.

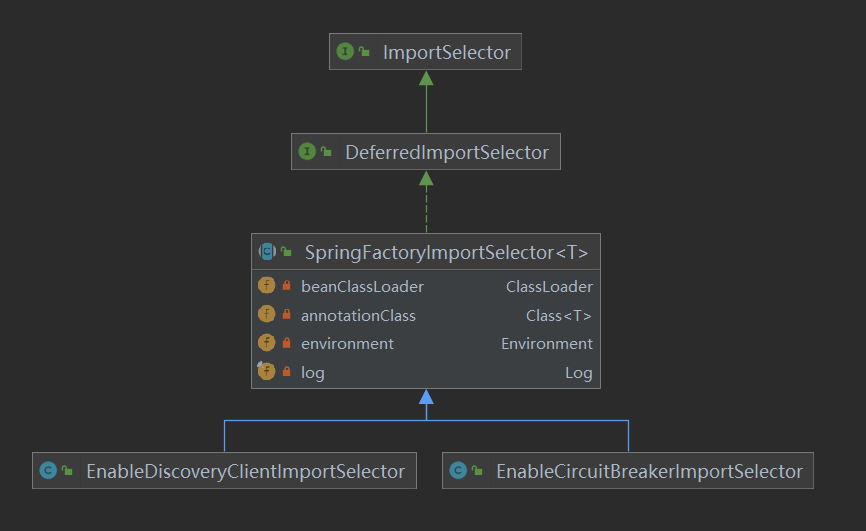

在SpringCloud中做了一个抽象实现，SpringFactoryImportSelector<T>,Euraka客户端和Hystrix都是通过这个方式引入。

SpringFactoryImportSelector

public abstract class SpringFactoryImportSelector<T>
        implements DeferredImportSelector, BeanClassLoaderAware, EnvironmentAware {

    private ClassLoader beanClassLoader;
    private Class<T> annotationClass;
    private Environment environment;

    protected SpringFactoryImportSelector() {
        // 获取实现类上泛型参数，如@EnableCircuitBreaker
        this.annotationClass = (Class<T>) GenericTypeResolver.resolveTypeArgument(this.getClass(), SpringFactoryImportSelector.class);
    }

    @Override
    public String[] selectImports(AnnotationMetadata metadata) {
        if (!isEnabled()) {
            return new String[0];
        }
        //
        AnnotationAttributes attributes = AnnotationAttributes.fromMap(metadata.getAnnotationAttributes(this.annotationClass.getName(), true));

        // 从spring.factories文件中加载指定的配置类
        List<String> factories = new ArrayList<>(new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(this.annotationClass, this.beanClassLoader)));

        if (factories.isEmpty() && !hasDefaultFactory()) {
            throw new IllegalStateException("Annotation @" + getSimpleName() + " found, but there are no implementations. Did you forget to include a starter?");
        }
        // 配置类全路径
        return factories.toArray(new String[factories.size()]);
    }
}

子类的作用就是指定特定的泛型以便于加载配置类

@Order(Ordered.LOWEST_PRECEDENCE - 100)
public class EnableCircuitBreakerImportSelector extends
    SpringFactoryImportSelector<EnableCircuitBreaker> {
    @Override
    protected boolean isEnabled() {
        return getEnvironment().getProperty("spring.cloud.circuit.breaker.enabled", Boolean.class, Boolean.TRUE);
    }
}

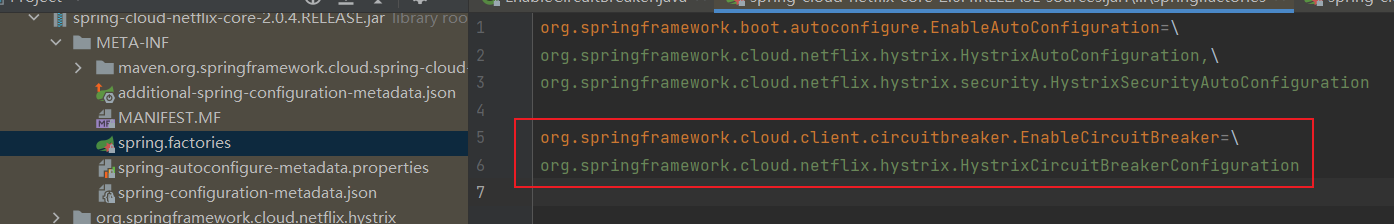

这里的泛型参数就是@EnableCircuitBreaker，同时可以看到在spring.factories配置文件中存在这样的配置

在启动类上标注了@EnableCircuitBreaker后，就会加载配置类HystrixCircuitBreakerConfiguration

@Configuration
public class HystrixCircuitBreakerConfiguration {
    // 熔断操作的切面配置
    @Bean
    public HystrixCommandAspect hystrixCommandAspect() {
        return new HystrixCommandAspect();
    }
    // 钩子方法
    @Bean
    public HystrixShutdownHook hystrixShutdownHook() {
        return new HystrixShutdownHook();
    }

    @Bean
    public HasFeatures hystrixFeature() {
        return HasFeatures.namedFeatures(new NamedFeature("Hystrix", HystrixCommandAspect.class));
    }
    private class HystrixShutdownHook implements DisposableBean {

        @Override
        public void destroy() throws Exception {
            // Just call Hystrix to reset thread pool etc.
            Hystrix.reset();
        }
    }
}

从配置类中看到比较重要的就是AOP切面类的装配HystrixCommandAspect

@Aspect
public class HystrixCommandAspect {

    private static final Map<HystrixPointcutType, MetaHolderFactory> META_HOLDER_FACTORY_MAP;

    static {
        META_HOLDER_FACTORY_MAP = ImmutableMap.<HystrixPointcutType, MetaHolderFactory>builder()
            .put(HystrixPointcutType.COMMAND, new CommandMetaHolderFactory())
            .put(HystrixPointcutType.COLLAPSER, new CollapserMetaHolderFactory())
            .build();
    }
    // 切点1
    @Pointcut("@annotation(com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand)")
    public void hystrixCommandAnnotationPointcut() {
    }
    // 切点2
    @Pointcut("@annotation(com.netflix.hystrix.contrib.javanica.annotation.HystrixCollapser)")
    public void hystrixCollapserAnnotationPointcut() {
    }
    // 环绕通知
    @Around("hystrixCommandAnnotationPointcut() || hystrixCollapserAnnotationPointcut()")
    public Object methodsAnnotatedWithHystrixCommand(final ProceedingJoinPoint joinPoint) throws Throwable {
        Method method = getMethodFromTarget(joinPoint);
        Validate.notNull(method, "failed to get method from joinPoint: %s", joinPoint);
        if (method.isAnnotationPresent(HystrixCommand.class) && method.isAnnotationPresent(HystrixCollapser.class)) {
            throw new IllegalStateException("method cannot be annotated with HystrixCommand and HystrixCollapser " +
                                            "annotations at the same time");
        }
        MetaHolderFactory metaHolderFactory = META_HOLDER_FACTORY_MAP.get(HystrixPointcutType.of(method));
        MetaHolder metaHolder = metaHolderFactory.create(joinPoint);
        HystrixInvokable invokable = HystrixCommandFactory.getInstance().create(metaHolder);
        ExecutionType executionType = metaHolder.isCollapserAnnotationPresent() ?
            metaHolder.getCollapserExecutionType() : metaHolder.getExecutionType();

        Object result;
        try {
            if (!metaHolder.isObservable()) {
                result = CommandExecutor.execute(invokable, executionType, metaHolder);
            } else {
                result = executeObservable(invokable, executionType, metaHolder);
            }
        } catch (HystrixBadRequestException e) {
            throw e.getCause();
        } catch (HystrixRuntimeException e) {
            throw hystrixRuntimeExceptionToThrowable(metaHolder, e);
        }
        return result;
    }
}
