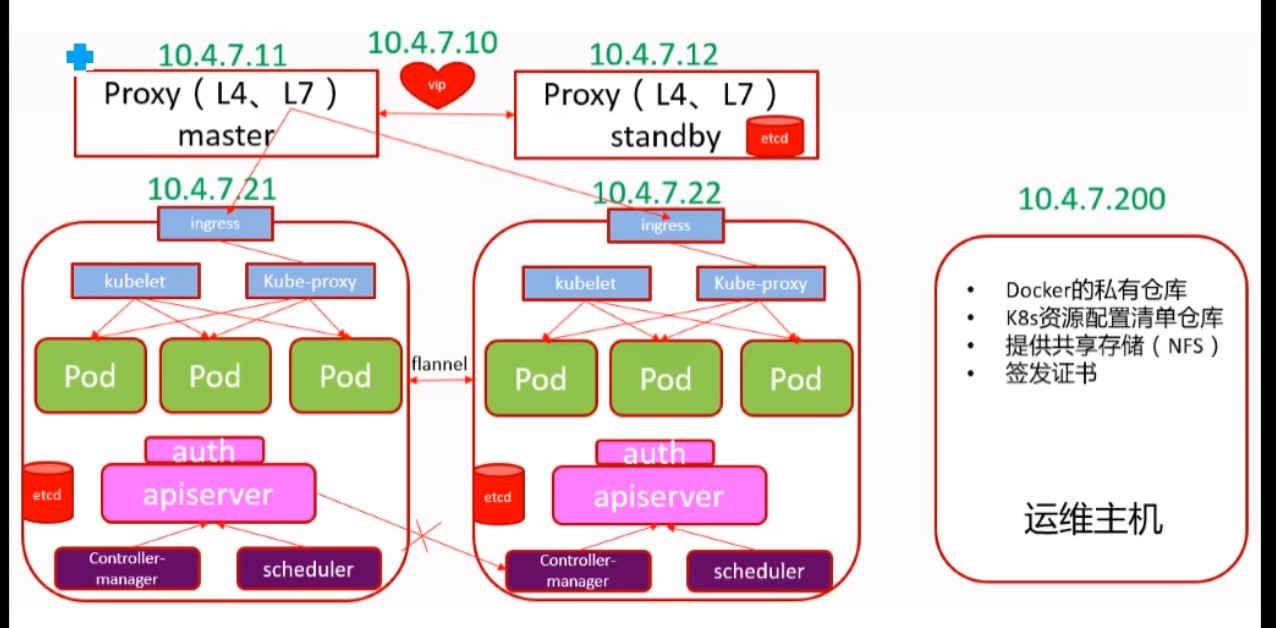

1. 规划架构

服务器五台：

10.4.7.11
10.4.7.12
10.4.7.21
10.4.7.22
10.4.7.200

${781E2665-5F61-4955-83B4-628334B33C42}_20200623182733.jpg$

2 基础部署

2.1 环境准备

systemctl disable firewalld
curl -o  /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
sed -i 's#SELINUX=enforcing#SELINUX=disabled#g'  /etc/sysconfig/selinux
getenforce 0
yum install epel-release -y
yum install wget net-tools telnet tree nmap sysstat lrzsz dos2unix bind-utils -y

2.2 bind安装

2.2.1 hdss7-11安装bind

yum install -y bind

2.2.2 hdss7-11配置bind

配置文件

[root@hdss7-11 ~]# vim /etc/named.conf  # 确保以下配置正确

# options下配置以下参数
options {
    allow-query     { any; };
    listen-on port 53 { 10.4.7.11; };
    forwarders      { 10.4.7.254; };
    recursion yes;
    dnssec-enable no;
    dnssec-validation no;

# 检查配置文件是否正常
named-checkconf

区域配置文件

[root@hdss7-11 ~]# vim /etc/named.rfc1912.zones

# 添加以下内容
zone "host.com" IN {
        type master;
        file "host.com.zone";
        allow-update { 10.4.7.11; };
};

zone "od.com" IN {
        type master;
        file "od.com.zone";
        allow-update { 10.4.7.11; };
};

配置主机域文件

# line7中时间需要修改
[root@hdss7-11 ~]# vim /var/named/host.com.zone

$ORIGIN host.com.
$TTL 600  ; 10 minutes
@       IN SOA  dns.host.com. dnsadmin.host.com. (
        20200625 ; serial
        10800      ; refresh (3 hours)
        900        ; retry (15 minutes)
        604800     ; expire (1 week)
        86400      ; minimum (1 day)
        )
      NS   dns.host.com.
$TTL 60 ; 1 minute
dns                A    10.4.7.11
HDSS7-11           A    10.4.7.11
HDSS7-12           A    10.4.7.12
HDSS7-21           A    10.4.7.21
HDSS7-22           A    10.4.7.22
HDSS7-200          A    10.4.7.200

在 hdss7-11.host.com 配置业务域文件

[root@hdss7-11 ~]# vim /var/named/od.com.zone

$ORIGIN od.com.
$TTL 600  ; 10 minutes
@       IN SOA  dns.od.com. dnsadmin.od.com. (
        20200625   ; serial
        10800      ; refresh (3 hours)
        900        ; retry (15 minutes)
        604800     ; expire (1 week)
        86400      ; minimum (1 day)
        )
        NS   dns.od.com.
$TTL 60 ; 1 minute
dns                A    10.4.7.11

在 hdss7-11.host.com 启动bind服务，并测试

[root@hdss7-11 ~]# named-checkconf  # 检查配置文件

[root@hdss7-11 named]# systemctl start named && systemctl enable named

# 测试解析
[root@hdss7-11 named]# dig -t A hdss7-200.host.com @10.4.7.11 +short
10.4.7.200

[root@hdss7-11 named]# host HDSS7-200 10.4.7.11

2.2.3 修改主机DNS

修改所有主机的dns服务器地址

[root@hdss7-12 ~]# sed -i '/DNS1/s/10.4.7.254/10.4.7.11/' /etc/sysconfig/network-scripts/ifcfg-ens33
[root@hdss7-12 ~]# systemctl restart network
[root@hdss7-12 ~]# cat /etc/resolv.conf
search host.com
nameserver 10.4.7.11

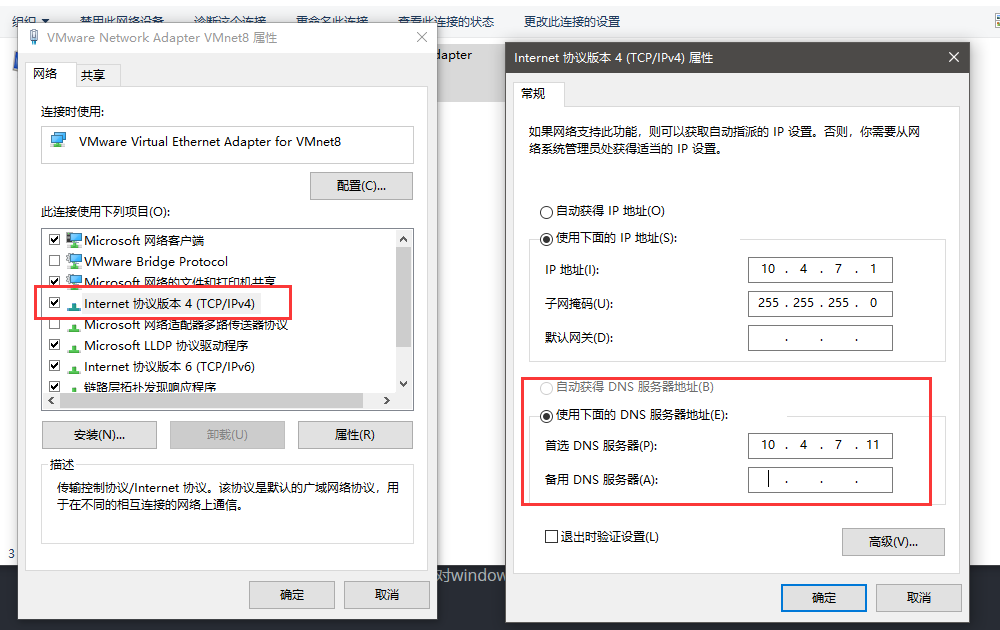

实验环境使用的是虚拟机，因此也要对windows宿主机NAT网卡DNS进行修改

2.3 准备签发证书环境

2.3.1 HDSS7-200 安装CFSSL

签发证书服务器安装CFSSL

[root@hdss7-200 ~]# wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64 -O /usr/local/bin/cfssl
[root@hdss7-200 ~]# wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64 -O /usr/local/bin/cfssl-json
[root@hdss7-200 ~]# wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64 -O /usr/local/bin/cfssl-certinfo
[root@hdss7-200 ~]# chmod u+x /usr/local/bin/cfssl*

2.3.2 HDSS7-200 签注根证书

mkdir /opt/certs && cd /opt/certs
# 根证书配置：
# CN 一般写域名，浏览器会校验
# names 为地区和公司信息
# expiry 为过期时间

vim /opt/certs/ca-csr.json
# 导入一下内容
{
    "CN": "OldboyEdu",
    "hosts": [
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ],
    "ca": {
        "expiry": "175200h"
    }
}

# 生成证书
[root@hdss7-200 certs]# cfssl gencert -initca ca-csr.json | cfssl-json -bare ca
2020/06/26 07:21:12 [INFO] generating a new CA key and certificate from CSR
2020/06/26 07:21:12 [INFO] generate received request
2020/06/26 07:21:12 [INFO] received CSR
2020/06/26 07:21:12 [INFO] generating key: rsa-2048
2020/06/26 07:21:13 [INFO] encoded CSR
2020/06/26 07:21:13 [INFO] signed certificate with serial number 195774333875083650425027629036787803655602042592

ls -l ca*

2.4 安装Docker环境

需要安装的机器: HDSS7-21.host.com,HDSS7-22.host.com,HDSS7-200.host.com

2.4.1 安装

# 第一种方法
curl -fsSL https://get.docker.com |bash -s docker --mirror Aliyun


# 第二种方法
wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum install -y docker-ce

2.4.2 配置启动

mkdir -p /etc/docker /data/docker
vim /etc/docker/daemon.json
# 不安全的registry中增加了harbor地址
# 各个机器上bip网段不一致，bip中间两段与宿主机最后两段相同，目的是方便定位问题

{
  "graph": "/data/docker",
  "storage-driver": "overlay2",
  "insecure-registries": ["registry.access.redhat.com","quay.io","harbor.od.com"],
  "registry-mirrors": ["https://registry.docker-cn.com"],
  "bip": "172.7.21.1/24",
  "exec-opts": ["native.cgroupdriver=systemd"],
  "live-restore": true
}

[root@hdss7-21 ~]# systemctl start docker ; systemctl enable docker

[root@hdss7-21 ~]# docker version

2.5 安装harbor

2.5.1 安装配置harbor

部署机器：HDSS7-200.host.com

参考地址：https://www.yuque.com/duduniao/trp3ic/ohrxds#9Zpxx

官方地址：https://goharbor.io/

下载地址：https://github.com/goharbor/harbor/releases

# 存放源码包源地址
mkdir /opt/src

tar -xf harbor-offline-installer-v1.10.3.tgz -C /opt/
mv /opt/harbor /opt/harbor-v1.10.3
ln -s /opt/harbor-v1.10.3 /opt/harbor

# 实验环境仅修改以下配置项，生产环境还得修改密码
[root@hdss7-200 src]# vim /opt/harbor/harbor.yml
hostname: harbor.od.com

http:
  port: 180

#注释https 因为没有配置证书
#https:
#  port: 443
#  certificate: /your/certificate/path
#  private_key: /your/private/key/path

# 生产需修改
harbor_admin_password: Harbor12345
data_volume: /data/harbor
location: /data/harbor/logs


# harbar依赖 所以安装
yum install -y docker-compose
cd /opt/harbor
./install.sh
docker-compase ps

2.5.2 设置开机自启动

[root@hdss7-200 harbor]# vim /etc/rc.d/rc.local  # 增加以下内容
# start harbor
cd /opt/harbor
/usr/bin/docker-compose stop
/usr/bin/docker-compose start

2.5.3 hdss7-200 安装nginx

安装Nginx反向代理harbor

# 当前机器中Nginx功能较少，使用yum安装即可。如有多个harbor考虑源码编译且配置健康检查
# nginx配置此处忽略，仅仅使用最简单的配置

[root@hdss7-200 harbor]# vim /etc/nginx/conf.d/harbor.od.com.conf
server {
    listen       80;
    server_name  harbor.od.com;
    # 避免出现上传失败的情况
    client_max_body_size 1000m;

    location / {
        proxy_pass http://127.0.0.1:180;
    }
}
[root@hdss7-200 harbor]# systemctl start nginx ; systemctl enable nginx

配置DNS解析

[root@hdss7-11 ~]# vim /var/named/od.com.zone  # 序列号需要滚动一个
$ORIGIN od.com.
$TTL 600  ; 10 minutes
@       IN SOA  dns.od.com. dnsadmin.od.com. (
        20200625   ; serial
        10800      ; refresh (3 hours)
        900        ; retry (15 minutes)
        604800     ; expire (1 week)
        86400      ; minimum (1 day)
        )
        NS   dns.od.com.
$TTL 60 ; 1 minute
dns                A    10.4.7.11
harbor             A    10.4.7.200

[root@hdss7-11 ~]# systemctl restart named.service  # reload 无法使得配置生效
[root@hdss7-11 ~]# host harbor.od.com
harbor.od.com has address 10.4.7.200

dig -t A harbor.od.com +short

浏览器访问域名：harbor.od.com

登录为: admin 密码为：配置文件中所写（Harbor12345）

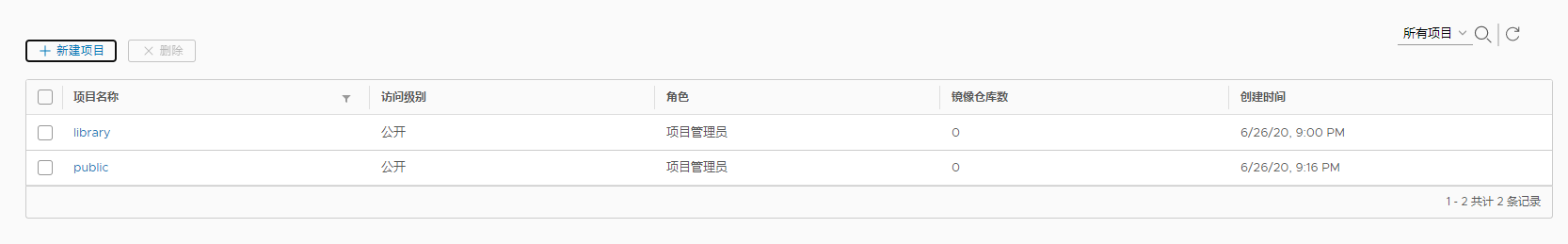

新建项目—public

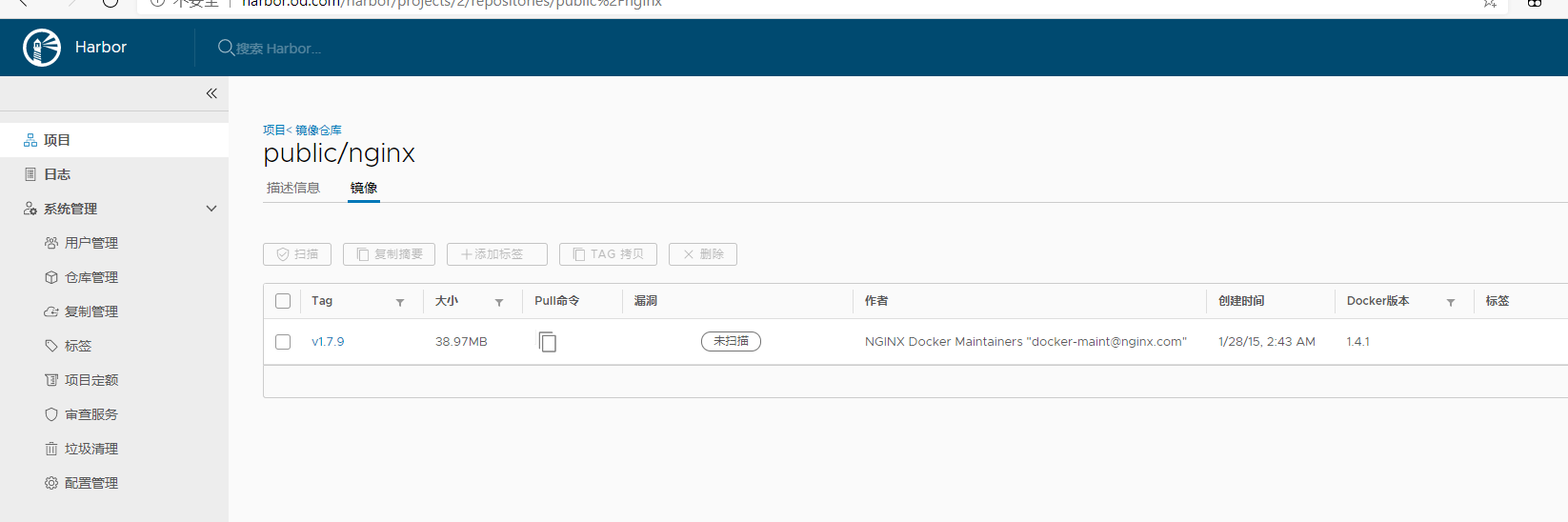

测试harbor

# pull一个镜像
docker pull nginx:1.7.9
<==> docker.io/library/

# 打上标签
docker tag nginx:1.7.9 harbor.od.com/public/nginx:v1.7.9

# 登录
docker login -u admin harbor.od.com

# 推送
docker push harbor.od.com/public/nginx:v1.7.9

3. 主控节点安装

3.1 etcd 安装

etcd 的leader选举机制，要求至少为3台或以上的奇数台。本次安装涉及：hdss7-12, hdss7-21, hdss7-22

3.1.1 签发etcd证书

服务器：hdss7-200
**

创建ca的json配置文件：/opt/certs/ca-config.json
- server 表示服务端连接客户端时携带的证书，用于客户端验证服务端身份
- client 表示客户端连接服务端时携带的证书，用于服务端验证客户端身份
- peer 表示相互之间连接时使用的证书，如etcd节点之间验证

{
    "signing": {
        "default": {
            "expiry": "175200h"
        },
        "profiles": {
            "server": {
                "expiry": "175200h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "server auth"
                ]
            },
            "client": {
                "expiry": "175200h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "client auth"
                ]
            },
            "peer": {
                "expiry": "175200h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "server auth",
                    "client auth"
                ]
            }
        }
    }
}

创建etcd证书配置文件：/opt/certs/etcd-peer-csr.json

重点在hosts上，将所有可能的etcd服务器添加到host列表，不能使用网段，新增etcd服务器需要重新签发证书

{
    "CN": "k8s-etcd",
    "hosts": [
        "10.4.7.11",
        "10.4.7.12",
        "10.4.7.21",
        "10.4.7.22"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ]
}

签发证书

cd /opt/certs

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=peer etcd-peer-csr.json |cfssl-json -bare etcd-peer

ll etcd*

3.1.2 安装etcd

服务器：hdss7-11,hdss7-21,hdss7-22
**
etcd地址：https://github.com/etcd-io/etcd/
安装使用版本：etcd-v3.3.20-linux-amd64.tar.gz
安装etcd机器：hdss7-12,hdss7-21,hdss7-22

下载etcd（三台安装etcd服务器都需要执行）

# 创建etcd用户
useradd -s /sbin/nologin -M etcd

mkdir /opt/src && cd /opt/src/

wget https://github.com/etcd-io/etcd/releases/download/v3.3.20/etcd-v3.3.20-linux-amd64.tar.gz
tar xf etcd-v3.3.20-linux-amd64.tar.gz -C /opt

mv /opt/etcd-v3.3.20-linux-amd64 /opt/etcd-v3.3.20
ln -s /opt/etcd-v3.3.20 /opt/etcd

mkdir -p /opt/etcd/certs /data/etcd /data/logs/etcd-server

证书服务器发布证书（HDSS7-200）

cd /opt/certs/
for i in 12 21 22;do scp ca.pem etcd-peer.pem etcd-peer-key.pem hdss7-${i}:/opt/etcd/certs/ ;done

创建etcd启动脚本 (部分参数每台机器不同)

[root@hdss7-12 ~]# vim /opt/etcd/etcd-server-startup.sh
#!/bin/sh
# listen-peer-urls etcd节点之间通信端口
# listen-client-urls 客户端与etcd通信端口
# quota-backend-bytes 配额大小
# 需要修改的参数：name,listen-peer-urls,listen-client-urls,initial-advertise-peer-urls

WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/etcd/etcd --name etcd-server-7-12 \
    --data-dir /data/etcd/etcd-server \
    --listen-peer-urls https://10.4.7.12:2380 \
    --listen-client-urls https://10.4.7.12:2379,http://127.0.0.1:2379 \
    --quota-backend-bytes 8000000000 \
    --initial-advertise-peer-urls https://10.4.7.12:2380 \
    --advertise-client-urls https://10.4.7.12:2379,http://127.0.0.1:2379 \
    --initial-cluster  etcd-server-7-12=https://10.4.7.12:2380,etcd-server-7-21=https://10.4.7.21:2380,etcd-server-7-22=https://10.4.7.22:2380 \
    --ca-file ./certs/ca.pem \
    --cert-file ./certs/etcd-peer.pem \
    --key-file ./certs/etcd-peer-key.pem \
    --client-cert-auth  \
    --trusted-ca-file ./certs/ca.pem \
    --peer-ca-file ./certs/ca.pem \
    --peer-cert-file ./certs/etcd-peer.pem \
    --peer-key-file ./certs/etcd-peer-key.pem \
    --peer-client-cert-auth \
    --peer-trusted-ca-file ./certs/ca.pem \
    --log-output stdout

授权etcd

chmod u+x /opt/etcd/etcd-server-startup.sh
chown -R etcd.etcd /opt/etcd-v3.3.20 /data/etcd /data/logs/etcd-server

3.1.3 配置启动

因为这些进程都是要启动为后台进程，要么手动启动，要么采用后台进程管理工具，实验中使用后台管理工具

yum install supervisor -y

systemctl start supervisord ; systemctl enable supervisord

vim /etc/supervisord.d/etcd-server.ini

[program:etcd-server-7-12]
command=/opt/etcd/etcd-server-startup.sh         ; the program (relative uses PATH, can take args)
numprocs=1                                            ; number of processes copies to start (def 1)
directory=/opt/etcd                              ; directory to cwd to before exec (def no cwd)
autostart=true                                        ; start at supervisord start (default: true)
autorestart=true                                      ; retstart at unexpected quit (default: true)
startsecs=30                                          ; number of secs prog must stay running (def. 1)
startretries=3                                        ; max # of serial start failures (default 3)
exitcodes=0,2                                         ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                       ; signal used to kill process (default TERM)
stopwaitsecs=10                                       ; max num secs to wait b4 SIGKILL (default 10)
user=etcd                                             ; setuid to this UNIX account to run the program
redirect_stderr=true                                  ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/etcd-server/etcd.stdout.log ; stdout log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                          ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=5                              ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                           ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false                           ; emit events on stdout writes (default false)

[root@hdss7-12 ~]# supervisorctl update
etcd-server-7-12: added process group

etcd进程查看 ```shell [root@hdss7-12 ~]# supervisorctl status # supervisorctl 状态 etcd-server-7-12 RUNNING pid 22375, uptime 0:00:39

[root@hdss7-12 ~]# netstat -lntp|grep etcd tcp 0 0 10.4.7.12:2379 0.0.0.0: LISTEN 22379/etcd
tcp 0 0 127.0.0.1:2379 0.0.0.0: LISTEN 22379/etcd
tcp 0 0 10.4.7.12:2380 0.0.0.0:* LISTEN 22379/etcd

集群检测任意一台etcd服务器

[root@hdss7-12 ~]# /opt/etcd/etcdctl member list # 随着etcd重启，leader会变化 988139385f78284: name=etcd-server-7-22 peerURLs=https://10.4.7.22:2380 clientURLs=http://127.0.0.1:2379,https://10.4.7.22:2379 isLeader=false 5a0ef2a004fc4349: name=etcd-server-7-21 peerURLs=https://10.4.7.21:2380 clientURLs=http://127.0.0.1:2379,https://10.4.7.21:2379 isLeader=true f4a0cb0a765574a8: name=etcd-server-7-12 peerURLs=https://10.4.7.12:2380 clientURLs=http://127.0.0.1:2379,https://10.4.7.12:2379 isLeader=false

[root@hdss7-12 ~]# /opt/etcd/etcdctl cluster-health member 988139385f78284 is healthy: got healthy result from http://127.0.0.1:2379 member 5a0ef2a004fc4349 is healthy: got healthy result from http://127.0.0.1:2379 member f4a0cb0a765574a8 is healthy: got healthy result from http://127.0.0.1:2379 cluster is healthy


- etcd启动方式
```shell
supervisorctl start etcd-server-7-12
supervisorctl stop etcd-server-7-12
supervisorctl restart etcd-server-7-12
supervisorctl status etcd-server-7-12

3.2 apiserver安装

3.2.1 下载kubernetes客户端

aipserver 涉及的服务器：hdss7-21，hdss7-22

下载 kubernetes 二进制版本包需要科学上网工具（你懂的）

进入kubernetes的github页面: https://github.com/kubernetes/kubernetes

进入tag，选择对应版本，点击对应版本的：点击 CHANGELOG-${version}.md

找到对应版本的：Server binaries

选择版本为：v1.17.8/kubernetes-server-linux-amd64.tar.gz: https://dl.k8s.io/v1.17.8/kubernetes-server-linux-amd64.tar.gz

cd /opt/src
wget https://dl.k8s.io/v1.17.8/kubernetes-server-linux-amd64.tar.gz
# 或上传

tar xf kubernetes-server-linux-amd64.tar -C /opt/
mv /opt/kubernetes /opt/kubernetes-v1.17.8
ln -s /opt/kubernetes-v1.17.8 /opt/kubernetes

cd /opt/kubernetes
# 该文件为go语言编写源码包 可以删除
rm -f kubernetes-src.tar.gz

# 删除源码包
cd /opt/kubernetes/server/bin
rm -rf *docker_tag *.tar

[root@hdss7-21 bin]# ll
total 537592
-rwxr-xr-x 1 root root  46968832 Jun 26 00:19 apiextensions-apiserver
-rwxr-xr-x 1 root root  39346176 Jun 26 00:19 kubeadm
-rwxr-xr-x 1 root root 118759424 Jun 26 00:19 kube-apiserver
-rwxr-xr-x 1 root root 108650496 Jun 26 00:19 kube-controller-manager
-rwxr-xr-x 1 root root  43503616 Jun 26 00:19 kubectl
-rwxr-xr-x 1 root root 111667064 Jun 26 00:19 kubelet
-rwxr-xr-x 1 root root  37806080 Jun 26 00:19 kube-proxy
-rwxr-xr-x 1 root root  42102784 Jun 26 00:19 kube-scheduler
-rwxr-xr-x 1 root root   1687552 Jun 26 00:19 mounter

3.2.2 签发client证书

服务器：HDSS7-200

apiserver和etcd通信的证书

创建生成证书签名请求（csr）的JSON配置文件

cd /opt/certs/
vim /opt/certs/client-csr.json

{
    "CN": "k8s-node",
    "hosts": [
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ]
}

# 生成证书
gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=client client-csr.json |cfssl-json -bare client

[root@hdss7-200 certs]# ll *client*
-rw-r--r-- 1 root root  993 Jun 27 05:58 client.csr
-rw-r--r-- 1 root root  280 Jun 27 05:55 client-csr.json
-rw------- 1 root root 1679 Jun 27 05:58 client-key.pem
-rw-r--r-- 1 root root 1363 Jun 27 05:58 client.pem

3.2.3 签发kube-apiserver证书

服务器：HDSS7-200

cd /opt/certs
vim apiserver-csr.json

# hosts中将所有可能作为apiserver的ip添加进去，VIP 10.4.7.10 也要加入
{
    "CN": "k8s-apiserver",
    "hosts": [
        "127.0.0.1",
        "192.168.0.1",
        "kubernetes.default",
        "kubernetes.default.svc",
        "kubernetes.default.svc.cluster",
        "kubernetes.default.svc.cluster.local",
        "10.4.7.10",
        "10.4.7.21",
        "10.4.7.22",
        "10.4.7.23"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ]
}

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json  -profile=server apiserver-csr.json |cfssl-json -bare apiserver

ls apiserver* -l

证书下发

for i in 21 22;do echo hdss7-$i;ssh hdss7-$i "mkdir /opt/kubernetes/server/bin/cert";scp apiserver-key.pem apiserver.pem ca-key.pem ca.pem client-key.pem client.pem hdss7-$i:/opt/kubernetes/server/bin/cert/;done

3.2.4 配置apiserver日志审计

服务器：hdss7-21,hdss7-22

mkdir /opt/kubernetes/server/bin/conf

vi /opt/kubernetes/server/bin/conf/audit.yaml

# 导入以下内容
apiVersion: audit.k8s.io/v1beta1 # This is required.
kind: Policy
# Don't generate audit events for all requests in RequestReceived stage.
omitStages:
  - "RequestReceived"
rules:
  # Log pod changes at RequestResponse level
  - level: RequestResponse
    resources:
    - group: ""
      # Resource "pods" doesn't match requests to any subresource of pods,
      # which is consistent with the RBAC policy.
      resources: ["pods"]
  # Log "pods/log", "pods/status" at Metadata level
  - level: Metadata
    resources:
    - group: ""
      resources: ["pods/log", "pods/status"]

  # Don't log requests to a configmap called "controller-leader"
  - level: None
    resources:
    - group: ""
      resources: ["configmaps"]
      resourceNames: ["controller-leader"]

  # Don't log watch requests by the "system:kube-proxy" on endpoints or services
  - level: None
    users: ["system:kube-proxy"]
    verbs: ["watch"]
    resources:
    - group: "" # core API group
      resources: ["endpoints", "services"]

  # Don't log authenticated requests to certain non-resource URL paths.
  - level: None
    userGroups: ["system:authenticated"]
    nonResourceURLs:
    - "/api*" # Wildcard matching.
    - "/version"

  # Log the request body of configmap changes in kube-system.
  - level: Request
    resources:
    - group: "" # core API group
      resources: ["configmaps"]
    # This rule only applies to resources in the "kube-system" namespace.
    # The empty string "" can be used to select non-namespaced resources.
    namespaces: ["kube-system"]

  # Log configmap and secret changes in all other namespaces at the Metadata level.
  - level: Metadata
    resources:
    - group: "" # core API group
      resources: ["secrets", "configmaps"]

  # Log all other resources in core and extensions at the Request level.
  - level: Request
    resources:
    - group: "" # core API group
    - group: "extensions" # Version of group should NOT be included.

  # A catch-all rule to log all other requests at the Metadata level.
  - level: Metadata
    # Long-running requests like watches that fall under this rule will not
    # generate an audit event in RequestReceived.
    omitStages:
      - "RequestReceived"

3.2.5 配置启动脚本

服务器：hdss7-21,hdss7-22

vim /opt/kubernetes/server/bin/kube-apiserver-startup.sh


#!/bin/bash

WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

./kube-apiserver \
    --apiserver-count 2 \
    --audit-log-path /data/logs/kubernetes/kube-apiserver/audit-log \
    --audit-policy-file ./conf/audit.yaml \
    --authorization-mode RBAC \
    --client-ca-file ./cert/ca.pem \
    --requestheader-client-ca-file ./cert/ca.pem \
    --enable-admission-plugins NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,MutatingAdmissionWebhook,ValidatingAdmissionWebhook,ResourceQuota \
    --etcd-cafile ./cert/ca.pem \
    --etcd-certfile ./cert/client.pem \
    --etcd-keyfile ./cert/client-key.pem \
    --etcd-servers https://10.4.7.12:2379,https://10.4.7.21:2379,https://10.4.7.22:2379 \
    --service-account-key-file ./cert/ca-key.pem \
    --service-cluster-ip-range 192.168.0.0/16 \
    --service-node-port-range 3000-29999 \
    --target-ram-mb=1024 \
    --kubelet-client-certificate ./cert/client.pem \
    --kubelet-client-key ./cert/client-key.pem \
    --log-dir  /data/logs/kubernetes/kube-apiserver \
    --tls-cert-file ./cert/apiserver.pem \
    --tls-private-key-file ./cert/apiserver-key.pem \
    --v 2

配置supervisor

# apiserver启动脚本添加可执行权限
chmod +x /opt/kubernetes/server/bin/kube-apiserver-startup.sh

vim /etc/supervisord.d/kube-apiserver.ini

[program:kube-apiserver-7-22]
command=/opt/kubernetes/server/bin/kube-apiserver-startup.sh
numprocs=1
directory=/opt/kubernetes/server/bin
autostart=true
autorestart=true
startsecs=30
startretries=3
exitcodes=0,2
stopsignal=QUIT
stopwaitsecs=10
user=root
redirect_stderr=true
stdout_logfile=/data/logs/kubernetes/kube-apiserver/apiserver.stdout.log
stdout_logfile_maxbytes=64MB
stdout_logfile_backups=5
stdout_capture_maxbytes=1MB
stdout_events_enabled=false


[root@hdss7-22 bin]# mkdir -p /data/logs/kubernetes/kube-apiserver
[root@hdss7-22 bin]# supervisorctl update
[root@hdss7-22 bin]# supervisorctl status
etcd-server-7-22                 RUNNING   pid 23637, uptime 22:26:08
kube-apiserver-7-22              RUNNING   pid 32591, uptime 0:05:37

启动apiserver

[root@hdss7-12 ~]# supervisorctl start kube-apiserver-7-22
[root@hdss7-12 ~]# supervisorctl stop kube-apiserver-7-22
[root@hdss7-12 ~]# supervisorctl restart kube-apiserver-7-22
[root@hdss7-12 ~]# supervisorctl status kube-apiserver-7-22

查看状态

[root@hdss7-22 bin]# netstat -lntup|grep api
tcp        0      0 127.0.0.1:8080          0.0.0.0:*               LISTEN      2989/./kube-apiserv
tcp6       0      0 :::6443                 :::*                    LISTEN      2989/./kube-apiserv
[root@hdss7-22 bin]# ps -ef|grep api
root       2985   2166  0 06:31 ?        00:00:00 /bin/bash /opt/kubernetes/server/bin/kube-apiserver-startup.sh
root       2989   2985  1 06:31 ?        00:00:06 ./kube-apiserver --apiserver-count 2 --audit-log-path /data/logs/kubernetes/kube-apiserver/audit-log --audit-policy-file ./conf/audit.yaml --authorization-mode RBAC --client-ca-file ./cert/ca.pem --requestheader-client-ca-file ./cert/ca.pem --enable-admission-plugins NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,MutatingAdmissionWebhook,ValidatingAdmissionWebhook,ResourceQuota --etcd-cafile ./cert/ca.pem --etcd-certfile ./cert/client.pem --etcd-keyfile ./cert/client-key.pem --etcd-servers https://10.4.7.12:2379,https://10.4.7.21:2379,https://10.4.7.22:2379 --service-account-key-file ./cert/ca-key.pem --service-cluster-ip-range 192.168.0.0/16 --service-node-port-range 3000-29999 --target-ram-mb=1024 --kubelet-client-certificate ./cert/client.pem --kubelet-client-key ./cert/client-key.pem --log-dir /data/logs/kubernetes/kube-apiserver --tls-cert-file ./cert/apiserver.pem --tls-private-key-file ./cert/apiserver-key.pem --v 2

3.3 配置apiserver l4 代理

3.3.1 安装配置nginx

服务器：HDSS7-11,HDSS7-12

# 安装nginx
yum install -y nginx

# 编辑nginx配置文件
vim /etc/nginx/nginx.conf
# 添加以下内容 注意不能添加到http中
# 只能添加主体 main中，和http平级

stream {
    log_format proxy '$time_local|$remote_addr|$upstream_addr|$protocol|$status|'
                     '$session_time|$upstream_connect_time|$bytes_sent|$bytes_received|'
                     '$upstream_bytes_sent|$upstream_bytes_received' ;

    upstream kube-apiserver {
        server 10.4.7.21:6443     max_fails=3 fail_timeout=30s;
        server 10.4.7.22:6443     max_fails=3 fail_timeout=30s;
    }

    server {
        listen 7443;
        proxy_connect_timeout 2s;
        proxy_timeout 900s;
        proxy_pass kube-apiserver;
        access_log /var/log/nginx/proxy.log proxy;
    }
}

systemctl start nginx ; systemctl enable nginx

curl 127.0.0.1:7443

# 查看log日志
[root@hdss7-11 ~]# tail -f /var/log/nginx/proxy.log
28/Jun/2020:23:30:18 -0400|127.0.0.1|10.4.7.21:6443|TCP|200|0.002|0.001|76|78|78|76
28/Jun/2020:23:30:47 -0400|127.0.0.1|10.4.7.22:6443|TCP|200|0.000|0.000|76|78|78|76
28/Jun/2020:23:30:48 -0400|127.0.0.1|10.4.7.21:6443|TCP|200|0.001|0.000|76|78|78|76

3.3.2 安装keepalived

实现高可用，VIP自动切换

服务器：HDSS7-11,HDSS7-12

yum install keepalived -y


# 创建检查脚本
vim /etc/keepalived/check_port.sh

#!/bin/bash
if [ $# -eq 1 ] && [[ $1 =~ ^[0-9]+ ]];then
    [ $(netstat -lntp|grep ":$1 " |wc -l) -eq 0 ] && echo "[ERROR] nginx may be not running!" && exit 1 || exit 0
else
    echo "[ERROR] need one port!"
    exit 1
fi

# 添加执行权限
chmod +x /etc/keepalived/check_port.sh

配置主节点：/etc/keepalived/keepalived.conf

主节点中，必须加上 nopreempt

因为一旦因为网络抖动导致VIP漂移，不能让它自动飘回来，必须要分析原因后手动迁移VIP到主节点！

如主节点确认正常后，重启备节点的keepalive，让VIP飘到主节点.

keepalived 的日志输出配置此处省略，生产中需要进行处理。

! Configuration File for keepalived
global_defs {
   router_id 10.4.7.11
}
vrrp_script chk_nginx {
    script "/etc/keepalived/check_port.sh 7443"
    interval 2
    weight -20
}
vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 251
    priority 100
    advert_int 1
    mcast_src_ip 10.4.7.11
    nopreempt

    authentication {
        auth_type PASS
        auth_pass 11111111
    }
    track_script {
         chk_nginx
    }
    virtual_ipaddress {
        10.4.7.10
    }
}

配置备节点：/etc/keepalived/keepalived.conf

! Configuration File for keepalived
global_defs {
  router_id 10.4.7.12
}
vrrp_script chk_nginx {
  script "/etc/keepalived/check_port.sh 7443"
  interval 2
  weight -20
}
vrrp_instance VI_1 {
  state BACKUP
  interface ens33
  virtual_router_id 251
  mcast_src_ip 10.4.7.12
  priority 90
  advert_int 1
  authentication {
    auth_type PASS
    auth_pass 11111111
  }
  track_script {
    chk_nginx
  }
  virtual_ipaddress {
    10.4.7.10
  }
}

启动keepalived

[root@hdss7-11 ~]# systemctl start keepalived ; systemctl enable keepalived
[root@hdss7-11 /]# ip a
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:35:d5:4d brd ff:ff:ff:ff:ff:ff
    inet 10.4.7.11/24 brd 10.4.7.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 10.4.7.10/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe35:d54d/64 scope link
       valid_lft forever preferred_lft forever

3.4 kube-controller-manager安装

服务器：HDSS7-21,HDSS7-22

controller-manager 设置为只调用当前机器的 apiserver，走127.0.0.1网卡，因此不配制SSL证书

vim /opt/kubernetes/server/bin/kube-controller-manager-startup.sh

#!/bin/sh
WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

./kube-controller-manager \
    --cluster-cidr 172.7.0.0/16 \
    --leader-elect true \
    --log-dir /data/logs/kubernetes/kube-controller-manager \
    --master http://127.0.0.1:8080 \
    --service-account-private-key-file ./cert/ca-key.pem \
    --service-cluster-ip-range 192.168.0.0/16 \
    --root-ca-file ./cert/ca.pem \
    --v 2


# 添加可执行权限
chmod u+x /opt/kubernetes/server/bin/kube-controller-manager-startup.sh
mkdir /data/logs/kubernetes/kube-controller-manager

vim /etc/supervisord.d/kube-controller-manager.ini


[program:kube-controller-manager-7-21]
command=/opt/kubernetes/server/bin/kube-controller-manager-startup.sh                     ; the program (relative uses PATH, can take args)
numprocs=1                                                                        ; number of processes copies to start (def 1)
directory=/opt/kubernetes/server/bin                                              ; directory to cwd to before exec (def no cwd)
autostart=true                                                                    ; start at supervisord start (default: true)
autorestart=true                                                                  ; retstart at unexpected quit (default: true)
startsecs=30                                                                      ; number of secs prog must stay running (def. 1)
startretries=3                                                                    ; max # of serial start failures (default 3)
exitcodes=0,2                                                                     ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                                                   ; signal used to kill process (default TERM)
stopwaitsecs=10                                                                   ; max num secs to wait b4 SIGKILL (default 10)
user=root                                                                         ; setuid to this UNIX account to run the program
redirect_stderr=true                                                              ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/kubernetes/kube-controller-manager/controller.stdout.log  ; stderr log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                                                      ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=4                                                          ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                                                       ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false                                                       ; emit events on stdout writes (default false)

启动

[root@hdss7-21 ~]# supervisorctl update
kube-controller-manager-7-21: stopped
kube-controller-manager-7-21: updated process group

[root@hdss7-21 ~]# supervisorctl status
etcd-server-7-21                 RUNNING   pid 23637, uptime 1 day, 0:16:54
kube-apiserver-7-21              RUNNING   pid 32591, uptime 1:56:23
kube-controller-manager-7-21     RUNNING   pid 33357, uptime 0:00:38

3.5 kube-scheduler安装

服务器：HDSS7-21,HDSS7-22

kube-scheduler 设置为只调用当前机器的 apiserver，走127.0.0.1网卡，因此不配制SSL证书

[root@hdss7-21 ~]# vim /opt/kubernetes/server/bin/kube-scheduler-startup.sh

#!/bin/sh
WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/kubernetes/server/bin/kube-scheduler \
    --leader-elect  \
    --log-dir /data/logs/kubernetes/kube-scheduler \
    --master http://127.0.0.1:8080 \
    --v 2

# 创建日志log目录
mkdir /data/logs/kubernetes/kube-scheduler
# 添加可执行权限
chmod u+x /opt/kubernetes/server/bin/kube-scheduler-startup.sh

vim /etc/supervisord.d/kube-scheduler.ini

[program:kube-scheduler-7-21]
command=/opt/kubernetes/server/bin/kube-scheduler-startup.sh
numprocs=1
directory=/opt/kubernetes/server/bin
autostart=true
autorestart=true
startsecs=30
startretries=3
exitcodes=0,2
stopsignal=QUIT
stopwaitsecs=10
user=root
redirect_stderr=true
stdout_logfile=/data/logs/kubernetes/kube-scheduler/scheduler.stdout.log
stdout_logfile_maxbytes=64MB
stdout_logfile_backups=4
stdout_capture_maxbytes=1MB
stdout_events_enabled=false

启动

supervisorctl update

[root@hdss7-21 bin]# supervisorctl status
etcd-server-7-21                 RUNNING   pid 2276, uptime 2 days, 14:07:21
kube-apiserver-7-21              RUNNING   pid 4094, uptime 1 day, 20:04:02
kube-controller-manager-7-21     RUNNING   pid 4775, uptime 0:17:15
kube-scheduler-7-21              RUNNING   pid 4810, uptime 0:01:09

3.6 检查主控节点

服务器：HDSS7-21,HDSS7-22

[root@hdss7-21 bin]# ln -s /opt/kubernetes/server/bin/kubectl /usr/local/bin/
[root@hdss7-21 bin]# kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-2               Healthy   {"health":"true"}
etcd-0               Healthy   {"health":"true"}
etcd-1               Healthy   {"health":"true"}

[root@hdss7-22 bin]# ln -s /opt/kubernetes/server/bin/kubectl /usr/local/bin
[root@hdss7-22 bin]# kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-1               Healthy   {"health":"true"}
etcd-2               Healthy   {"health":"true"}
etcd-0               Healthy   {"health":"true"}

4. 部署运算节点

4.1 kubelet部署

4.1.1 签发证书

服务器：HDSS7-200

创建生成证书签名请求（csr）的json文件

cd /opt/certs

vim kubelet-csr.json
# 将所有可能成为kubelet的host提前加入，避免后期添加节点，导致重新签发证书的问题
{
    "CN": "k8s-kubelet",
    "hosts": [
    "127.0.0.1",
    "10.4.7.10",
    "10.4.7.21",
    "10.4.7.22",
    "10.4.7.23",
    "10.4.7.24",
    "10.4.7.25",
    "10.4.7.26",
    "10.4.7.27",
    "10.4.7.28"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ]
}

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=server kubelet-csr.json |cfssl-json -bare kubelet

root@hdss7-200 certs]# ll kubelet*
-rw-r--r-- 1 root root 1115 Jun 29 04:22 kubelet.csr
-rw-r--r-- 1 root root  452 Jun 29 03:24 kubelet-csr.json
-rw------- 1 root root 1679 Jun 29 04:22 kubelet-key.pem
-rw-r--r-- 1 root root 1468 Jun 29 04:22 kubelet.pem

# 推送
scp kubelet.pem kubelet-key.pem hdss7-21:/opt/kubernetes/server/bin/cert/
scp kubelet.pem kubelet-key.pem hdss7-22:/opt/kubernetes/server/bin/cert/

4.1.2 kubelet配置

服务器：HDSS7-21,HDSS7-22

最好在：/opt/kubernetes/conf/

没有就创建

set-cluster # 创建需要连接的集群信息，可以创建多个kubernetes集群信息

[root@hdss7-21 ~]# kubectl config set-cluster myk8s \
--certificate-authority=/opt/kubernetes/server/bin/cert/ca.pem \
--embed-certs=true \
--server=https://10.4.7.10:7443 \
--kubeconfig=/opt/kubernetes/server/conf/kubelet.kubeconfig

set-credentials # 创建用户账号，即用户登陆使用的客户端私有和证书，可以创建多个证书

[root@hdss7-21 ~]# kubectl config set-credentials k8s-node \
--client-certificate=/opt/kubernetes/server/bin/cert/client.pem \
--client-key=/opt/kubernetes/server/bin/cert/client-key.pem \
--embed-certs=true \
--kubeconfig=/opt/kubernetes/server/conf/kubelet.kubeconfig

set-context # 设置context，即确定账号和集群对应关系

[root@hdss7-21 ~]# kubectl config set-context myk8s-context \
--cluster=myk8s \
--user=k8s-node \
--kubeconfig=/opt/kubernetes/server/conf/kubelet.kubeconfig

use-context # 设置当前使用哪个context

[root@hdss7-21 ~]# kubectl config use-context myk8s-context --kubeconfig=/opt/kubernetes/server/conf/kubelet.kubeconfig

4.1.3. 授权k8s-node用户

此步骤只需要在一台master节点执行

授权 k8s-node 用户绑定集群角色 system:node ，让 k8s-node 成为具备运算节点的权限

[root@hdss7-21 ~]# vim k8s-node.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: k8s-node
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:node
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: User
  name: k8s-node

[root@hdss7-21 ~]# kubectl create -f k8s-node.yaml
clusterrolebinding.rbac.authorization.k8s.io/k8s-node created
[root@hdss7-21 ~]# kubectl get clusterrolebinding k8s-node
NAME       AGE
k8s-node   36s

4.1.4. 装备pause镜像

将pause镜像放入到harbor私有仓库中，仅在 hdss7-200 操作：

[root@hdss7-200 ~]# docker image pull kubernetes/pause
[root@hdss7-200 ~]# docker image tag kubernetes/pause:latest harbor.od.com/public/pause:latest
[root@hdss7-200 ~]# docker login -u admin harbor.od.com
[root@hdss7-200 ~]# docker image push harbor.od.com/public/pause:latest

4.1.5 创建启动脚本

在node节点创建脚本并启动kubelet，服务器： HDSS7-21,HDSS7-22

vim /opt/kubernetes/server/bin/kubelet-startup.sh

#!/bin/sh

WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

./kubelet \
    --anonymous-auth=false \
    --cgroup-driver systemd \
    --cluster-dns 192.168.0.2 \
    --cluster-domain cluster.local \
    --runtime-cgroups=/systemd/system.slice \
    --kubelet-cgroups=/systemd/system.slice \
    --fail-swap-on="false" \
    --client-ca-file ./cert/ca.pem \
    --tls-cert-file ./cert/kubelet.pem \
    --tls-private-key-file ./cert/kubelet-key.pem \
    --hostname-override hdss7-21.host.com \
    --image-gc-high-threshold 20 \
    --image-gc-low-threshold 10 \
    --kubeconfig ../conf/kubelet.kubeconfig \
    --log-dir /data/logs/kubernetes/kube-kubelet \
    --pod-infra-container-image harbor.od.com/public/pause:latest \
    --root-dir /data/kubelet

chmod u+x /opt/kubernetes/server/bin/kubelet-startup.sh
mkdir -p /data/logs/kubernetes/kube-kubelet /data/kubelet

supervisor

vim /etc/supervisord.d/kube-kubelet.ini

[program:kube-kubelet-7-21]
command=/opt/kubernetes/server/bin/kubelet-startup.sh
numprocs=1
directory=/opt/kubernetes/server/bin
autostart=true
autorestart=true
startsecs=30
startretries=3
exitcodes=0,2
stopsignal=QUIT
stopwaitsecs=10
user=root
redirect_stderr=true
stdout_logfile=/data/logs/kubernetes/kube-kubelet/kubelet.stdout.log
stdout_logfile_maxbytes=64MB
stdout_logfile_backups=5
stdout_capture_maxbytes=1MB
stdout_events_enabled=false

启动

[root@hdss7-21 ~]# supervisorctl update
[root@hdss7-21 ~]# supervisorctl status
etcd-server-7-21                 RUNNING   pid 23637, uptime 1 day, 14:56:25
kube-apiserver-7-21              RUNNING   pid 32591, uptime 16:35:54
kube-controller-manager-7-21     RUNNING   pid 33357, uptime 14:40:09
kube-kubelet-7-21                RUNNING   pid 37232, uptime 0:01:08
kube-scheduler-7-21              RUNNING   pid 33450, uptime 14:30:50
[root@hdss7-21 ~]# kubectl get node
NAME                STATUS   ROLES    AGE     VERSION
hdss7-21.host.com   Ready    <none>   3m13s   v1.15.2
hdss7-22.host.com   Ready    <none>   3m13s   v1.15.2

4.1.6. 修改节点角色

使用 kubectl get nodes 获取的Node节点角色为空，可以按照以下方式修改

[root@hdss7-21 ~]# kubectl get node
NAME                STATUS   ROLES    AGE     VERSION
hdss7-21.host.com   Ready    <none>   3m13s   v1.15.2
hdss7-22.host.com   Ready    <none>   3m13s   v1.15.2
[root@hdss7-21 ~]# kubectl label node hdss7-21.host.com node-role.kubernetes.io/node=
node/hdss7-21.host.com labeled
[root@hdss7-21 ~]# kubectl label node hdss7-21.host.com node-role.kubernetes.io/master=
node/hdss7-21.host.com labeled
[root@hdss7-21 ~]# kubectl label node hdss7-22.host.com node-role.kubernetes.io/master=
node/hdss7-22.host.com labeled
[root@hdss7-21 ~]# kubectl label node hdss7-22.host.com node-role.kubernetes.io/node=
node/hdss7-22.host.com labeled
[root@hdss7-21 ~]# kubectl get node
NAME                STATUS   ROLES         AGE     VERSION
hdss7-21.host.com   Ready    master,node   7m44s   v1.15.2
hdss7-22.host.com   Ready    master,node   7m44s   v1.15.2

4.2 kube-proxy

4.2.1 签发证书

服务器：HDSS7-200

cd/opt/certs
vim kube-proxy-csr.json

{
    "CN": "system:kube-proxy",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ]
}

# 生成证书
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=client kube-proxy-csr.json |cfssl-json -bare kube-proxy-client

[root@hdss7-200 certs]# ll kube-proxy*
-rw-r--r-- 1 root root 1005 Jun 29 06:03 kube-proxy-client.csr
-rw------- 1 root root 1679 Jun 29 06:03 kube-proxy-client-key.pem
-rw-r--r-- 1 root root 1375 Jun 29 06:03 kube-proxy-client.pem
-rw-r--r-- 1 root root  267 Jun 29 06:00 kube-proxy-csr.json

# 发送证书
scp kube-proxy-client.pem kube-proxy-client-key.pem hdss7-21:/opt/kubernetes/server/bin/cert
scp kube-proxy-client.pem kube-proxy-client-key.pem hdss7-22:/opt/kubernetes/server/bin/cert

4.2.2 创建kube-proxy配置

[root@hdss7-21 ~]# kubectl config set-cluster myk8s \
--certificate-authority=/opt/kubernetes/server/bin/cert/ca.pem \
--embed-certs=true \
--server=https://10.4.7.10:7443 \
--kubeconfig=/opt/kubernetes/server/conf/kube-proxy.kubeconfig

[root@hdss7-21 ~]# kubectl config set-credentials kube-proxy \
--client-certificate=/opt/kubernetes/server/bin/cert/kube-proxy-client.pem \
--client-key=/opt/kubernetes/server/bin/cert/kube-proxy-client-key.pem \
--embed-certs=true \
--kubeconfig=/opt/kubernetes/server/conf/kube-proxy.kubeconfig

[root@hdss7-21 ~]# kubectl config set-context myk8s-context \
--cluster=myk8s \
--user=kube-proxy \
--kubeconfig=/opt/kubernetes/server/conf/kube-proxy.kubeconfig

[root@hdss7-21 ~]# kubectl config use-context myk8s-context --kubeconfig=/opt/kubernetes/server/conf/kube-proxy.kubeconfig

4.2.3 加载ipvs模块

kube-proxy 共有3种流量调度模式，分别是 namespace，iptables，ipvs，其中ipvs性能最好。

[root@hdss7-21 ~]# for i in $(ls /usr/lib/modules/$(uname -r)/kernel/net/netfilter/ipvs|grep -o "^[^.]*");do echo $i; /sbin/modinfo -F filename $i >/dev/null 2>&1 && /sbin/modprobe $i;done
[root@hdss7-21 ~]# lsmod | grep ip_vs  # 查看ipvs模块

4.2.4 创建启动脚本

vim /opt/kubernetes/server/bin/kube-proxy-startup.sh

#!/bin/sh

WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

./kube-proxy \
  --cluster-cidr 172.7.0.0/16 \
  --hostname-override hdss7-21.host.com \
  --proxy-mode=ipvs \
  --ipvs-scheduler=nq \
  --kubeconfig ../conf/kube-proxy.kubeconfig

chmod u+x /opt/kubernetes/server/bin/kube-proxy-startup.sh
mkdir -p /data/logs/kubernetes/kube-proxy

supervisor

[root@hdss7-21 ~]# vim /etc/supervisord.d/kube-proxy.ini

[program:kube-proxy-7-21]
command=/opt/kubernetes/server/bin/kube-proxy-startup.sh
numprocs=1
directory=/opt/kubernetes/server/bin
autostart=true
autorestart=true
startsecs=30
startretries=3
exitcodes=0,2
stopsignal=QUIT
stopwaitsecs=10
user=root
redirect_stderr=true
stdout_logfile=/data/logs/kubernetes/kube-proxy/proxy.stdout.log
stdout_logfile_maxbytes=64MB
stdout_logfile_backups=5
stdout_capture_maxbytes=1MB
stdout_events_enabled=false

启动

[root@hdss7-21 ~]# supervisorctl update

4.2.4 验证

[root@hdss7-21 conf]# supervisorctl status
etcd-server-7-21                 RUNNING   pid 2276, uptime 2 days, 17:56:56
kube-apiserver-7-21              RUNNING   pid 4094, uptime 1 day, 23:53:37
kube-controller-manager-7-21     RUNNING   pid 4775, uptime 4:06:50
kube-kubelet-7-21                RUNNING   pid 5431, uptime 0:56:52
kube-proxy-7-21                  RUNNING   pid 15907, uptime 0:02:23
kube-scheduler-7-21              RUNNING   pid 4810, uptime 3:50:44

# 安装ipvs工具
yum install ipvsadm -y

# 检测查看
[root@hdss7-21 conf]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.0.1:443 nq
  -> 10.4.7.21:6443               Masq    1      0          0
  -> 10.4.7.22:6443               Masq    1      0          0
[root@hdss7-21 conf]# kubectl get svc
NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   192.168.0.1   <none>        443/TCP   47h

vim nginx-ds.yaml

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: nginx-ds
spec:
  selector:
    matchLabels:
      app: nginx-ds

  template:
    metadata:
      labels:
        app: nginx-ds
    spec:
      containers:
      - name: my-nginx
        image: harbor.od.com/public/nginx:v1.7.9
        ports:
        - containerPort: 80

[root@hdss7-21 ~]# kubectl get pods
NAME             READY   STATUS              RESTARTS   AGE
nginx-ds-7wjnf   0/1     ContainerCreating   0          24s
nginx-ds-j2kk6   0/1     ContainerCreating   0          24s

5. 核心插件

5.1 CNI网络插件

kubernetes设计了网络模型，但是pod之间通信的具体实现交给了CNI往插件。常用的CNI网络插件有：Flannel 、Calico、Canal、Contiv等，其中Flannel和Calico占比接近80%，Flannel占比略多于Calico。本次部署使用Flannel作为网络插件。涉及的机器 hdss7-21,hdss7-22

5.1.1 安装Flannel

github地址：https://github.com/coreos/flannel/releases

服务器：HDSS7-21,HDSS7-22

[root@hdss7-21 ~]# cd /opt/src/
[root@hdss7-21 src]# wget https://github.com/coreos/flannel/releases/download/v0.11.0/flannel-v0.11.0-linux-amd64.tar.gz

cd /opt/src
mkdir /opt/flannel-v0.11.0
tar xf flannel-v0.11.0-linux-amd64.tar.gz -C /opt/flannel-v0.11.0
ln -s /opt/flannel-v0.11.0/ /opt/flannel
[root@hdss7-21 opt]# ls /opt/flannel
flanneld  mk-docker-opts.sh  README.md

5.1.2 拷贝证书

[root@hdss7-21 /]# mkdir /opt/flannel/cert
[root@hdss7-200 ~]# cd /opt/certs/
[root@hdss7-200 certs]# scp ca.pem client-key.pem client.pem hdss7-21:/opt/flannel/cert/

5.1.3 创建启动脚本

服务器： hdss7-21,hdss7-22

[root@hdss7-21 flannel]# vim /opt/flannel/subnet.env

FLANNEL_NETWORK=172.7.0.0/16
FLANNEL_SUBNET=172.7.21.1/24
FLANNEL_MTU=1500
FLANNEL_IPMASQ=false

[root@hdss7-21 src]# /opt/etcd/etcdctl set /coreos.com/network/config '{"Network": "172.7.0.0/16", "Backend": {"Type": "host-gw"}}'
[root@hdss7-21 src]# /opt/etcd/etcdctl get /coreos.com/network/config # 只需要在一台etcd机器上设置就可以了
{"Network": "172.7.0.0/16", "Backend": {"Type": "host-gw"}}

# public-ip 为本机IP，iface 为当前宿主机对外网卡
[root@hdss7-21 src]# vim /opt/flannel/flanneld-startup.sh
#!/bin/sh

WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

./flanneld \
    --public-ip=10.4.7.21 \
    --etcd-endpoints=https://10.4.7.12:2379,https://10.4.7.21:2379,https://10.4.7.22:2379 \
    --etcd-keyfile=./cert/client-key.pem \
    --etcd-certfile=./cert/client.pem \
    --etcd-cafile=./cert/ca.pem \
    --iface=ens33 \
    --subnet-file=./subnet.env \
    --healthz-port=2401

[root@hdss7-21 src]# chmod u+x /opt/flannel/flanneld-startup.sh
[root@hdss7-21 src]# mkdir /data/logs/flanneld/

[root@hdss7-21 src]# vim /etc/supervisord.d/flannel.ini
[program:flanneld-7-21]
command=/opt/flannel/flanneld-startup.sh                 ; the program (relative uses PATH, can take args)
numprocs=1                                                   ; number of processes copies to start (def 1)
directory=/opt/flannel                                  ; directory to cwd to before exec (def no cwd)
autostart=true                                               ; start at supervisord start (default: true)
autorestart=true                                             ; retstart at unexpected quit (default: true)
startsecs=30                                                 ; number of secs prog must stay running (def. 1)
startretries=3                                               ; max # of serial start failures (default 3)
exitcodes=0,2                                                ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                              ; signal used to kill process (default TERM)
stopwaitsecs=10                                              ; max num secs to wait b4 SIGKILL (default 10)
user=root                                                    ; setuid to this UNIX account to run the program
redirect_stderr=true                                         ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/flanneld/flanneld.stdout.log       ; stderr log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                                 ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=5                                     ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                                  ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false                                  ; emit events on stdout writes (default false)

检查启动

[root@hdss7-21 src]# supervisorctl update
flanneld-7-21: added process group
[root@hdss7-21 src]# supervisorctl status
etcd-server-7-21                 RUNNING   pid 1058, uptime -1 day, 16:33:25
flanneld-7-21                    RUNNING   pid 13154, uptime 0:00:30
kube-apiserver-7-21              RUNNING   pid 1061, uptime -1 day, 16:33:25
kube-controller-manager-7-21     RUNNING   pid 1068, uptime -1 day, 16:33:25
kube-kubelet-7-21                RUNNING   pid 1052, uptime -1 day, 16:33:25
kube-proxy-7-21                  RUNNING   pid 1082, uptime -1 day, 16:33:25
kube-scheduler-7-21              RUNNING   pid 1089, uptime -1 day, 16:33:25

5.1.4 flannel原理

2.1 Kubernetes集群搭建 - 图6

5.1.5 Flannel其他模型

vxlan模型

# 只需要修改etcd中的type类型
/opt/etcd/etcdctl set /coreos.com/network/config '{"Network": "172.7.0.0/16", "Backend": {"Type": "VxLAN"}}'

直接路由模型

/opt/etcd/etcdctl set /coreos.com/network/config '{"Network": "172.7.0.0/16", "Backend": {"Type": "VxLAN","Directrouting": true}}'

5.1.6 podip转换

[root@hdss7-21 ~]# iptables-save |grep POSTROUTING|grep docker # 引发问题的规则
-A POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE

[root@hdss7-21 ~]# yum install -y iptables-services
[root@hdss7-21 ~]# systemctl start iptables.service ; systemctl enable iptables.service
# 需要处理的规则：
[root@hdss7-21 ~]# iptables-save |grep POSTROUTING|grep docker
-A POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE
[root@hdss7-21 ~]# iptables-save | grep -i reject
-A INPUT -j REJECT --reject-with icmp-host-prohibited
-A FORWARD -j REJECT --reject-with icmp-host-prohibited
# 处理方式：
[root@hdss7-21 ~]# iptables -t nat -D POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE
[root@hdss7-21 ~]# iptables -t nat -I POSTROUTING -s 172.7.21.0/24 ! -d 172.7.0.0/16 ! -o docker0 -j MASQUERADE

[root@hdss7-21 ~]# iptables -t filter -D INPUT -j REJECT --reject-with icmp-host-prohibited
[root@hdss7-21 ~]# iptables -t filter -D FORWARD -j REJECT --reject-with icmp-host-prohibited

[root@hdss7-21 ~]# iptables-save > /etc/sysconfig/iptables

5.2 coredns服务发现

CoreDNS用于实现 service —> cluster IP的dns解析。以容器的交付到k8s集群，由k8s自行管理，降低人为操作的复杂度

5.2.1 配置yaml文件库

服务器：hdss7-200

在hdss7-200上配置yaml文件库，后期可以通过http请求方式使用yaml清单文件

配置nginx虚拟主机（hdss7-200）

vim /etc/nginx/conf.d/k8s-yaml.od.com.conf

server {
    listen       80;
    server_name  k8s-yaml.od.com;

    location / {
        autoindex on;
        default_type text/plain;
        root /data/k8s-yaml;
    }
}

[root@hdss7-200 conf.d]# mkdir -p /data/k8s-yaml/coredns
[root@hdss7-200 conf.d]# nginx -t
[root@hdss7-200 conf.d]# nginx -s reload

配置DNS解析
服务器：HDSS7-11

[root@hdss7-11 ~]# vim /var/named/od.com.zone
[root@hdss7-11 ~]# cat /var/named/od.com.zone
$ORIGIN od.com.
$TTL 600  ; 10 minutes
@       IN SOA  dns.od.com. dnsadmin.od.com. (
        20200625   ; serial
        10800      ; refresh (3 hours)
        900        ; retry (15 minutes)
        604800     ; expire (1 week)
        86400      ; minimum (1 day)
        )
        NS   dns.od.com.
$TTL 60 ; 1 minute
dns                A    10.4.7.11
harbor             A    10.4.7.200
k8s-yaml           A    10.4.7.200


[root@hdss7-11 ~]# systemctl restart named

# 测试解析生效
[root@hdss7-11 ~]# dig -t A k8s-yaml.od.com @10.4.7.11 +short
10.4.7.200

coredns的资源配置清单
单文件存放到 hdss7-200:/data/k8s-yaml/coredns/coredns_1.6.1/
dockerHub：https://hub.docker.com/r/coredns/coredns/tags
github：https://github.com/coredns/coredns

# 拉取docker官方源的coredns镜像
docker pull docker.io/coredns/coredns:1.6.7

# 打上标签，推送到本地的harbor仓库中
docker tag 67da37a9a360 harbor.od.com/public/coredns:v1.6.7
docker push harbor.od.com/public/coredns:v1.6.7

rbac.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: coredns
  namespace: kube-system
  labels:
      kubernetes.io/cluster-service: "true"
      addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
    addonmanager.kubernetes.io/mode: Reconcile
  name: system:coredns
rules:
- apiGroups:
  - ""
  resources:
  - endpoints
  - services
  - pods
  - namespaces
  verbs:
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
    addonmanager.kubernetes.io/mode: EnsureExists
  name: system:coredns
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:coredns
subjects:
- kind: ServiceAccount
  name: coredns
  namespace: kube-system

configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
data:
  Corefile: |
    .:53 {
        errors
        log
        health
        ready
        kubernetes cluster.local 192.168.0.0/16
        forward . 10.4.7.11
        cache 30
        loop
        reload
        loadbalance
    }

deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: coredns
  namespace: kube-system
  labels:
    k8s-app: coredns
    kubernetes.io/name: "CoreDNS"
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s-app: coredns
  template:
    metadata:
      labels:
        k8s-app: coredns
    spec:
      priorityClassName: system-cluster-critical
      serviceAccountName: coredns
      containers:
      - name: coredns
        image: harbor.od.com/public/coredns:v1.6.7
        args:
        - -conf
        - /etc/coredns/Corefile
        volumeMounts:
        - name: config-volume
          mountPath: /etc/coredns
        ports:
        - containerPort: 53
          name: dns
          protocol: UDP
        - containerPort: 53
          name: dns-tcp
          protocol: TCP
        - containerPort: 9153
          name: metrics
          protocol: TCP
        livenessProbe:
          httpGet:
            path: /health
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 60
          timeoutSeconds: 5
          successThreshold: 1
          failureThreshold: 5
      dnsPolicy: Default
      volumes:
        - name: config-volume
          configMap:
            name: coredns
            items:
            - key: Corefile
              path: Corefile

service.yaml

apiVersion: v1
kind: Service
metadata:
  name: coredns
  namespace: kube-system
  labels:
    k8s-app: coredns
    kubernetes.io/cluster-service: "true"
    kubernetes.io/name: "CoreDNS"
spec:
  selector:
    k8s-app: coredns
  clusterIP: 192.168.0.2
  ports:
  - name: dns
    port: 53
    protocol: UDP
  - name: dns-tcp
    port: 53
  - name: metrics
    port: 9153
    protocol: TCP

5.2.2 交付coredns到k8s中

kubectl apply -f http://k8s-yaml.od.com/coredns/rbac.yaml
kubectl apply -f http://k8s-yaml.od.com/coredns/configmap.yaml
kubectl apply -f http://k8s-yaml.od.com/coredns/deployment.yaml
kubectl apply -f http://k8s-yaml.od.com/coredns/service.yaml

[root@hdss7-21 ~]# kubectl get all -n kube-system
NAME                           READY   STATUS    RESTARTS   AGE
pod/coredns-5b68b658f4-pr74c   1/1     Running   0          11m

NAME              TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)                  AGE
service/coredns   ClusterIP   192.168.0.2   <none>        53/UDP,53/TCP,9153/TCP   10m

NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/coredns   1/1     1            1           11m

NAME                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/coredns-5b68b658f4   1         1         1       11m

5.2.3 测试

# 创建service
[root@hdss7-21 ~]# kubectl create deployment nginx-web --image=harbor.od.com/public/nginx:v1.7.9
[root@hdss7-21 ~]# kubectl expose deployment nginx-web --port=80 --target-port=80
[root@hdss7-21 ~]# kubectl get svc
NAME         TYPE        CLUSTER-IP        EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   192.168.0.1       <none>        443/TCP   8d
nginx-web    ClusterIP   192.168.164.230   <none>        80/TCP    8s
# 测试DNS，集群外必须使用FQDN(Fully Qualified Domain Name)，全域名
[root@hdss7-21 ~]# dig -t A nginx-web.default.svc.cluster.local @192.168.0.2 +short # 内网解析OK
192.168.164.230
[root@hdss7-21 ~]# dig -t A www.baidu.com @192.168.0.2 +short # 外网解析OK
www.a.shifen.com.
180.101.49.11
180.101.49.12

coredns搭建完毕后：正确域名访问方式： podName.namespace.svc.cluster.local 例子： nginx-dp.kube-public.svc.cluster.local

[root@hdss7-21 ~]# kubectl get service -n kube-public
NAME       TYPE        CLUSTER-IP        EXTERNAL-IP   PORT(S)   AGE
nginx-dp   ClusterIP   192.168.202.253   <none>        80/TCP    2d3h

5.3 Ingress-Controller

service是将一组pod管理起来，提供了一个cluster ip和service name的统一访问入口，屏蔽了pod的ip变化。 ingress 是一种基于七层的流量转发策略，即将符合条件的域名或者location流量转发到特定的service上，而ingress仅仅是一种规则，k8s内部并没有自带代理程序完成这种规则转发。

ingress-controller 是一个代理服务器，将ingress的规则能真正实现的方式，常用的有 nginx,traefik,haproxy。但是在k8s集群中，建议使用traefik，性能比haroxy强大，更新配置不需要重载服务，是首选的ingress-controller。

github地址：https://github.com/containous/traefik

5.3.1 配置traefik资源清单

清单文件放到 hdss7-200:/data/k8s-yaml/traefik/traefik_1.7.2

rbac.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: traefik-ingress-controller
rules:
  - apiGroups:
      - ""
    resources:
      - services
      - endpoints
      - secrets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: traefik-ingress-controller
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik-ingress-controller
subjects:
- kind: ServiceAccount
  name: traefik-ingress-controller
  namespace: kube-system

daemonset.yaml

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: traefik-ingress
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress
spec:
  selector:
    matchLabels:
      name: traefik-ingress

  template:
    metadata:
      labels:
        k8s-app: traefik-ingress
        name: traefik-ingress
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 60
      containers:
      - image: harbor.od.com/public/traefik:v1.7.2
        name: traefik-ingress
        ports:
        - name: controller
          containerPort: 80
          hostPort: 81
        - name: admin-web
          containerPort: 8080
        securityContext:
          capabilities:
            drop:
            - ALL
            add:
            - NET_BIND_SERVICE
        args:
        - --api
        - --kubernetes
        - --logLevel=INFO
        - --insecureskipverify=true
        - --kubernetes.endpoint=https://10.4.7.10:7443
        - --accesslog
        - --accesslog.filepath=/var/log/traefik_access.log
        - --traefiklog
        - --traefiklog.filepath=/var/log/traefik.log
        - --metrics.prometheus

service.yaml

kind: Service
apiVersion: v1
metadata:
  name: traefik-ingress-service
  namespace: kube-system
spec:
  selector:
    k8s-app: traefik-ingress
  ports:
    - protocol: TCP
      port: 80
      name: controller
    - protocol: TCP
      port: 8080
      name: admin-web

ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: traefik-web-ui
  namespace: kube-system
  annotations:
    kubernetes.io/ingress.class: traefik
spec:
  rules:
  - host: traefik.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: traefik-ingress-service
          servicePort: 8080

镜像准备

[root@hdss7-200 traefik_1.7.2]# docker pull traefik:v1.7.2-alpine
[root@hdss7-200 traefik_1.7.2]# docker image tag traefik:v1.7.2-alpine harbor.od.com/public/traefik:v1.7.2
[root@hdss7-200 traefik_1.7.2]# docker push harbor.od.com/public/traefik:v1.7.2

5.3.2 交付到k8s中

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/traefik/traefik_1.7.2/rbac.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/traefik/traefik_1.7.2/daemonset.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/traefik/traefik_1.7.2/service.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/traefik/traefik_1.7.2/ingress.yaml

检查

[root@hdss7-21 ~]# kubectl get pods -n kube-system -o wide
NAME                       READY   STATUS    RESTARTS   AGE   IP           NODE                NOMINATED NODE   READINESS GATES
coredns-5c48579f88-7xp6p   1/1     Running   2          22h   172.7.21.4   hdss7-21.host.com   <none>           <none>
traefik-ingress-pfr7c      1/1     Running   0          36m   172.7.21.2   hdss7-21.host.com   <none>           <none>
traefik-ingress-tf59b      1/1     Running   0          36m   172.7.22.5   hdss7-22.host.com   <none>           <none>

[root@hdss7-21 ~]# kubectl get ds -n kube-system
NAME              DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
traefik-ingress   2         2         2       2            2           <none>          36m

5.3.3. 配置外部nginx负载均

服务器：hdss7-11,hdss7-12 配置nginx L7转发

[root@hdss7-11 ~]# vim /etc/nginx/conf.d/od.com.conf
server {
    server_name *.od.com;

    location / {
        proxy_pass http://default_backend_traefik;
        proxy_set_header Host       $http_host;
        proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
    }
}

upstream default_backend_traefik {
    # 所有的nodes都放到upstream中
    server 10.4.7.21:81    max_fails=3 fail_timeout=10s;
    server 10.4.7.22:81    max_fails=3 fail_timeout=10s;
}

[root@hdss7-11 ~]# nginx -tq && nginx -s reload

配置dns解析

[root@hdss7-11 ~]# vim /var/named/od.com.zone
$ORIGIN od.com.
$TTL 600  ; 10 minutes
@       IN SOA  dns.od.com. dnsadmin.od.com. (
        2020011302 ; serial
        10800      ; refresh (3 hours)
        900        ; retry (15 minutes)
        604800     ; expire (1 week)
        86400      ; minimum (1 day)
        )
        NS   dns.od.com.
$TTL 60 ; 1 minute
dns                A    10.4.7.11
harbor             A    10.4.7.200
k8s-yaml           A    10.4.7.200
traefik            A    10.4.7.10

[root@hdss7-11 ~]# systemctl restart named

查看测试

5.4. dashboard

5.4.1. 配置资源清单

清单文件存放到 hdss7-200:/data/k8s-yaml/dashboard/dashboard_1.10.1

准备镜像

# 镜像准备
# 因不可描述原因，无法访问k8s.gcr.io，改成registry.aliyuncs.com/google_containers
[root@hdss7-200 ~]# docker image pull docker pull kubernetesui/dashboard:v2.0.2
[root@hdss7-200 ~]# docker image tag f9aed6605b81 harbor.od.com/public/dashboard:v2.0.2
[root@hdss7-200 ~]# docker image push harbor.od.com/public/dashboard:v2.0.2

dashboard_deployment.yaml

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kube-system

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kube-system
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kube-system
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kube-system
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kube-system

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "kubernetes-dashboard-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "kubernetes-dashboard-scraper", "http:kubernetes-dashboard-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kube-system

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kube-system

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: harbor.od.com/public/dashboard:v2.0.2
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kube-system
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-scraper
  namespace: kube-system
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard-scraper
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard-scraper
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
    spec:
      containers:
        - name: kubernetes-dashboard-scraper
          image: kubernetesui/metrics-scraper:v1.0.4
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: kubernetes-dashboard
  namespace: kube-system
  annotations:
    kubernetes.io/ingress.class: traefik
spec:
  rules:
  - host: dashboard.od.com
    http:
      paths:
      - path: '/'
        backend:
          serviceName: kubernetes-dashboard
          servicePort: 443

admin_user.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kube-system

5.4.2 交付dashboard到k8s中

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dashboard/dashboard_2.0.2/dashboard_deployment.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dashboard/dashboard_2.0.2/ingress.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dashboard/dashboard_2.0.2/admin_user.yaml

5.4.3. 配置DNS解析

[root@hdss7-11 ~]# vim /var/named/od.com.zone
$ORIGIN od.com.
$TTL 600  ; 10 minutes
@       IN SOA  dns.od.com. dnsadmin.od.com. (
        2020011303 ; serial
        10800      ; refresh (3 hours)
        900        ; retry (15 minutes)
        604800     ; expire (1 week)
        86400      ; minimum (1 day)
        )
        NS   dns.od.com.
$TTL 60 ; 1 minute
dns                A    10.4.7.11
harbor             A    10.4.7.200
k8s-yaml           A    10.4.7.200
traefik            A    10.4.7.10
dashboard          A    10.4.7.10
[root@hdss7-11 ~]# systemctl restart named.service

5.4.4. 签发SSL证书

[root@hdss7-200 ~]# cd /opt/certs/
[root@hdss7-200 certs]# (umask 077; openssl genrsa -out dashboard.od.com.key 2048)
[root@hdss7-200 certs]# openssl req -new -key dashboard.od.com.key -out dashboard.od.com.csr -subj "/CN=dashboard.od.com/C=CN/ST=BJ/L=Beijing/O=OldboyEdu/OU=ops"
[root@hdss7-200 certs]# openssl x509 -req -in dashboard.od.com.csr -CA ca.pem -CAkey ca-key.pem -CAcreateserial -out dashboard.od.com.crt -days 3650
[root@hdss7-200 certs]# ll dashboard.od.com.*
-rw-r--r-- 1 root root 1196 Jan 29 20:52 dashboard.od.com.crt
-rw-r--r-- 1 root root 1005 Jan 29 20:51 dashboard.od.com.csr
-rw------- 1 root root 1675 Jan 29 20:51 dashboard.od.com.key
[root@hdss7-200 certs]# scp dashboard.od.com.key dashboard.od.com.crt hdss7-11:/etc/nginx/certs/
[root@hdss7-200 certs]# scp dashboard.od.com.key dashboard.od.com.crt hdss7-12:/etc/nginx/certs/

5.4.5. 配置Nginx

# hdss7-11和hdss7-12都需要操作
[root@hdss7-11 ~]# vim /etc/nginx/conf.d/dashborad.conf
server {
    listen       80;
    server_name  dashboard.od.com;
    rewrite ^(.*)$ https://${server_name}$1 permanent;
}

server {
    listen       443 ssl;
    server_name  dashboard.od.com;

    ssl_certificate "certs/dashboard.od.com.crt";
    ssl_certificate_key "certs/dashboard.od.com.key";
    ssl_session_cache shared:SSL:1m;
    ssl_session_timeout  10m;
    ssl_ciphers HIGH:!aNULL:!MD5;
    ssl_prefer_server_ciphers on;

    location / {
        proxy_pass http://default_backend_traefik;
        proxy_set_header Host       $http_host;
        proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
    }
}
[root@hdss7-11 ~]# nginx -t && nginx -s reload

5.4.6 测试登陆

kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}') > admin-token.yaml && cat admin-token.yaml

复制token，选择token登录

2.1 Kubernetes集群搭建

1. 规划架构

2 基础部署

2.1 环境准备

2.2 bind安装

2.2.1 hdss7-11安装bind

2.2.2 hdss7-11配置bind

2.2.3 修改主机DNS

2.3 准备签发证书环境

2.3.1 HDSS7-200 安装CFSSL

2.3.2 HDSS7-200 签注根证书

2.4 安装Docker环境

2.4.1 安装

2.4.2 配置启动

2.5 安装harbor

2.5.1 安装配置harbor

2.5.2 设置开机自启动

2.5.3 hdss7-200 安装nginx

3. 主控节点安装

3.1 etcd 安装

3.1.1 签发etcd证书

3.1.2 安装etcd

3.1.3 配置启动

集群检测 任意一台etcd服务器

3.2 apiserver安装

3.2.1 下载kubernetes客户端

3.2.2 签发client证书

3.2.3 签发kube-apiserver证书

3.2.4 配置apiserver日志审计

3.2.5 配置启动脚本

3.3 配置apiserver l4 代理

3.3.1 安装配置nginx

3.3.2 安装keepalived

3.4 kube-controller-manager安装

3.5 kube-scheduler安装

3.6 检查主控节点

4. 部署运算节点

4.1 kubelet部署

4.1.1 签发证书

4.1.2 kubelet配置

4.1.3. 授权k8s-node用户

4.1.4. 装备pause镜像

4.1.5 创建启动脚本

4.1.6. 修改节点角色

4.2 kube-proxy

4.2.1 签发证书

4.2.2 创建kube-proxy配置

4.2.3 加载ipvs模块

4.2.4 创建启动脚本

4.2.4 验证

5. 核心插件

5.1 CNI网络插件

5.1.1 安装Flannel

5.1.2 拷贝证书

5.1.3 创建启动脚本

5.1.4 flannel原理

5.1.5 Flannel其他模型

5.1.6 podip转换

5.2 coredns服务发现

5.2.1 配置yaml文件库

5.2.2 交付coredns到k8s中

5.2.3 测试

5.3 Ingress-Controller

5.3.1 配置traefik资源清单

5.3.2 交付到k8s中

5.3.3. 配置外部nginx负载均

5.4. dashboard

5.4.1. 配置资源清单

5.4.2 交付dashboard到k8s中

5.4.3. 配置DNS解析

5.4.4. 签发SSL证书

5.4.5. 配置Nginx

5.4.6 测试登陆

集群检测任意一台etcd服务器
