Elasticsearch
开源搜索引擎，帮助在海量数据中进行快速查找。
结合kibana、Logstach、Beats，合成BLK (elastic stack)。应用在日志数据分析、实时监控等。
倒排索引
文档：每条数据是一个文档
词条：文档按照词义分成的词语
| 正向索引 | 倒排索引 |
|---|---|
| 基于文档id创建索引。查找时先找到文档，判断是否包含词条 | 对文档内容分词，对词条创建索引，记录词条在文档中的信息。查找是先根据词条找到文档id，获取文档 |
概念对比
文档
索引
- 索引：相同类型的文档集合
- 映射：索引中文档的字段约束信息，类似表的结构约束
安装es,kibana,ik及使用
https://www.elastic.co/cn/elasticsearch/
https://www.elastic.co/cn/kibana/
https://github.com/medcl/elasticsearch-analysis-ik/releases
IK分词器
分词器作用？
- 创建倒排索引时对文档分词
- 用户搜索时，对输入内容分词
IK分词器几种模式？
- ik_smart：粗粒度
- ik_max_word：细粒度
操作索引库
mapping属性
索引库的文档约束，常见mapping属性
- type：字段数据类型
- 字符串：text（可分词文本）、keyword
- 数值：long、integer、short、byte、double、float
- 布尔：boolean
- 日期：date
- 对象：object
- index：是否创建索引，默认true
- analyzer：使用哪种分词器
- properties：该字段的子字段
索引库操作
创建、查询、删除、修改
PUT /heima{"mappings": {"properties": {"info": {"type": "text","analyzer": "ik_smart"},"email":{"type": "keyword","index": false},"name": {"type": "object","properties": {"firstName": {"type": "keyword"},"lastName": {"type" : "keyword"}}}}}}
DELETE /heima
ES禁止修改索引库，只能添加新字段
PUT /heima/_mapping
{
"properties": {
"age": {
"type": "integer"
}
}
}
文档操作
# 插入文档
POST /heima/_doc/1
{
"info": "黑马程序员",
"email": "zy@itcast.cn",
"name": {
"firstName": "云",
"last": "赵"
}
}
# 查询操作
GET /heima/_doc/1
# 删除操作
DELETE /heima/_doc/1
# 全量修改文档
PUT /heima/_doc/1
{
"info": "黑马程序员",
"email": "zhaoyun@itcast.cn",
"name": {
"firstName": "云",
"last": "赵"
}
}
# 局部修改文档字段
POST /heima/_update/1
{
"doc": {
"email": "ZhaoYun@itcast.cn"
}
}
RestClient操作索引库
ES官方提供的各种语言的客户端，本质是组装DSL语句，通过http请求发给ES。
步骤1：导入课前资料Demo
步骤2：分析数据结构
酒店mapping
# 酒店的mapping
PUT /hotel
{
"mappings": {
"properties": {
"id" : {
"type": "keyword"
},
"name": {
"type": "text",
"analyzer": "ik_max_word",
"copy_to": "all"
},
"address": {
"type": "keyword",
"index": false
},
"price": {
"type": "integer"
},
"score": {
"type": "integer"
},
"brand": {
"type": "keyword",
"copy_to": "all"
},
"city": {
"type": "keyword"
},
"starName": {
"type": "keyword"
},
"business": {
"type": "keyword",
"copy_to": "all"
},
"location": {
"type": "geo_point"
},
"pic": {
"type": "keyword",
"index": false
},
"all": {
"type": "text",
"analyzer": "ik_max_word"
}
}
}
}
tips:字段拷贝使用copy_to属性将当前字段拷贝到
步骤3：初始化JavaRestClient
- 引入es的RestHighLevelClient依赖
- 覆盖默认ES版本
- 初始化RestHighLevelClient
步骤4：创建索引库。准备DSL，常量 ```java package cn.itcast.hotel.constans;<properties> <java.version>1.8</java.version> <elasticsearch.version>7.12.1</elasticsearch.version> </properties> <dependencies> <dependency> <groupId>org.elasticsearch.client</groupId> <artifactId>elasticsearch-rest-high-level-client</artifactId> </dependency> </dependencies>
public class HotelConstants { public static final String MAPPING_TEMPLATE = “{\n” + “ \”mappings\”: {\n” + “ \”properties\”: {\n” + “ \”id\” : {\n” + “ \”type\”: \”keyword\”\n” + “ },\n” + “ \”name\”: {\n” + “ \”type\”: \”text\”,\n” + “ \”analyzer\”: \”ik_max_word\”,\n” + “ \”copy_to\”: \”all\”\n” + “ },\n” + “ \”address\”: {\n” + “ \”type\”: \”keyword\”,\n” + “ \”index\”: false\n” + “ },\n” + “ \”price\”: {\n” + “ \”type\”: \”integer\”\n” + “ },\n” + “ \”score\”: {\n” + “ \”type\”: \”integer\”\n” + “ },\n” + “ \”brand\”: {\n” + “ \”type\”: \”keyword\”,\n” + “ \”copy_to\”: \”all\”\n” + “ },\n” + “ \”city\”: {\n” + “ \”type\”: \”keyword\”\n” + “ },\n” + “ \”starName\”: {\n” + “ \”type\”: \”keyword\”\n” + “ },\n” + “ \”business\”: {\n” + “ \”type\”: \”keyword\”,\n” + “ \”copy_to\”: \”all\”\n” + “ },\n” + “ \”location\”: {\n” + “ \”type\”: \”geo_point\”\n” + “ },\n” + “ \”pic\”: {\n” + “ \”type\”: \”keyword\”,\n” + “ \”index\”: false\n” + “ },\n” + “ \”all\”: {\n” + “ \”type\”: \”text\”,\n” + “ \”analyzer\”: \”ik_max_word\”\n” + “ }\n” + “ }\n” + “ }\n” + “}”; }
**初始化&创建索引**
```java
public class HotelIndexTest {
private RestHighLevelClient client;
@Test
void testInit() {
System.out.println(client);
}
@Test
void createHotelIndex() throws IOException {
//1.创建Request对象
CreateIndexRequest request = new CreateIndexRequest("hotel");
//2.准备请求的参数，DSL语句
request.source(MAPPING_TEMPLATE, XContentType.JSON);
//3.发送请求
client.indices().create(request, RequestOptions.DEFAULT);
}
@BeforeEach
void setUp() {
this.client = new RestHighLevelClient(RestClient.builder(
HttpHost.create("http://localhost:9200")
));
}
@AfterEach
void tearDown() throws IOException {
this.client.close();
}
}
删除&判断存在
@Test
void testDeleteHotelIndex() throws IOException {
//1.创建Request对象
DeleteIndexRequest request = new DeleteIndexRequest("hotel");
//2.发送请求
client.indices().delete(request, RequestOptions.DEFAULT);
}
@Test
void testExistsIndex() throws IOException {
//1.创建Request对象
GetIndexRequest request = new GetIndexRequest("hotel");
//2.发送请求
boolean exists = client.indices().exists(request, RequestOptions.DEFAULT);
//3.输出
System.err.println(exists?"索引库已存在！":"索引库不存在！");
}
RestClient操作文档
从数据库查询数据导入hotel索引库，实现数据CRUD
ps：修改application.yaml中的url、username、password
新增文档
@Test
void testAddDocumnet() throws IOException {
//根据id查询酒店数据
Hotel hotel = hotelService.getById(61083L);
//转换为文档类型
HotelDoc hotelDoc = new HotelDoc(hotel);
//1.准备Request对象
IndexRequest request = new IndexRequest("hotel").id(hotel.getId().toString());
//2.准备Json文档
request.source(JSON.toJSONString(hotelDoc), XContentType.JSON);
//3.发送请求
client.index(request, RequestOptions.DEFAULT);
}
查询文档
@Test
void testGetDocumentById() throws IOException {
//1.准备Request
GetRequest request = new GetRequest("hotel", "61083");
//2.发送请求，得到相应
GetResponse response = client.get(request, RequestOptions.DEFAULT);
//3.解析响应结果
String json = response.getSourceAsString();
HotelDoc hotelDoc = JSON.parseObject(json, HotelDoc.class);
System.out.println(hotelDoc);
}
更新文档
方式一：全量更新，删除id一样的旧文档
方式二：局部更新，只更新部分字段，演示方式二
@Test
void testUpdateDocumentById() throws IOException {
//1.创建Request对象
UpdateRequest request = new UpdateRequest("hotel", "61083");
//2.准备参数，一对key-value
request.doc(
"price","999",
"starName","四钻"
);
//3.更新文档，发送参数
client.update(request,RequestOptions.DEFAULT);
}
删除文档
@Test
void testDeleteDocumentById() throws IOException {
//1.准备Request
DeleteRequest request = new DeleteRequest("hotel", "61083");
//2.发送请求
client.delete(request,RequestOptions.DEFAULT);
}
批量导入
@Test
void testBulkRequest() throws IOException {
//1.批量查询数据并转换为hotelDoc
List<Hotel> hotels = hotelService.list();
BulkRequest request = new BulkRequest();
//2.循环添加
for(Hotel hotel : hotels){
HotelDoc hotelDoc = new HotelDoc(hotel);
request.add(new IndexRequest("hotel")
.id(hotelDoc.getId().toString())
.source(JSON.toJSONString(hotelDoc),XContentType.JSON));
}
//3.提交请求
client.bulk(request,RequestOptions.DEFAULT);
}
GET /hotel/_search
DSL
DSL查询语法
简单查询包括
- 查询所有：所有数据，一般测试用
- 全文检索：分词。例：match，multi_match
- 精确查询：不分词。例：term，range
- 地理查询：根据经纬度。例：geo_bounding_box，geo_distance
GET /索引库名/_search
{"query": {"查询类型":{"FIELD": "TEXT"}}}
# 全文检索
GET /hotel/_search
{
"query": {
"match": {
"all": "外滩"
}
}
}
# 精确查询
GET /hotel/_search
{
"query": {
"term": {
"city": {
"value": "上海"
}
}
}
}
GET /hotel/_search
{
"query": {
"range": {
"price": {
"gte": 100,
"lte": 300
}
}
}
}
# 地理查询
GET /hotel/_search
{
"query": {
"geo_distance":{
"distance": "5km",
"location": "31.21,121.5"
}
}
}
复合查询
- 相关性算分：match查询时，文档结果根据与搜索词条的关联度打分，返回排序
# function score查询
GET /hotel/_search
{
"query": {
"function_score": {
"query": {
"match": {
"all": "外滩"
}
},
"functions": [
{
"filter": {
"term": {
"brand": "如家"
}
},
"weight": 10
}
],
"boost_mode": "sum"
}
}
}
子查询组合方式
- must：必须匹配每个子查询
- should：选择匹配子查询
- must_not：必须不匹配，不参与算分
- filter：必须匹配，不参与算分
demo：搜索名字包含”如家”，价格不高于400，在坐标31.21，121.5周围10km酒店
# boolean query
GET /hotel/_search
{
"query": {
"bool": {
"must": [
{
"match": {
"name": "如家"
}
}
],
"must_not": [
{
"range": {
"price": {
"gt": 400
}
}
}
],
"filter": [
{
"geo_distance": {
"distance": "10km",
"location": {
"lat": 31.21,
"lon": 121.5
}
}
}
]
}
}
}
搜索结果处理
排序
默认根据相关度算分排序，可自定义排序字段
# 排序
GET /hotel/_search
{
"query": {
"match_all": {}
},
"sort": [
{
"score": "desc"
},
{
"price": "asc"
}
]
}
找附近酒店
# 排序
GET /hotel/_search
{
"query": {
"match_all": {}
},
"sort": [
{
"_geo_distance": {
"location": {
"lat": 31.034662,
"lon": 121.612282
},
"order": "asc",
"unit": "km"
}
}
]
}
分页
# 分页
GET /hotel/_search
{
"query": {
"match_all": {}
},
"sort": [
{
"price": "asc"
}
],
"from": 10,
"size": 10
}
深度分页
针对深度分页，ES提供了两种解决方案，官方文档：
- search after：分页时需要排序，原理是从上一次的排序值开始，查询下一页数据。官方推荐使用的方式。
- scroll：原理将排序后的文档id形成快照，保存在内存。官方已经不推荐使用。
分页查询的常见实现方案以及优缺点：
- from + size：
- 优点：支持随机翻页
- 缺点：深度分页问题，默认查询上限（from + size）是10000
- 场景：百度、京东、谷歌、淘宝这样的随机翻页搜索
- after search：
- 优点：没有查询上限（单次查询的size不超过10000）
- 缺点：只能向后逐页查询，不支持随机翻页
- 场景：没有随机翻页需求的搜索，例如手机向下滚动翻页
- scroll：
RestClient查询文档
快速入门
@Test
void testMatchAll() throws IOException {
//1.准备Request
SearchRequest request = new SearchRequest("hotel");
//2.准备DSL
request.source().query(QueryBuilders.matchAllQuery());
//3.发送请求
SearchResponse response = client.search(request, RequestOptions.DEFAULT);
//4.解析response
SearchHits searchHits = response.getHits();
long total = searchHits.getTotalHits().value;
System.out.println("条数："+total);
SearchHit[] hits = searchHits.getHits();
for (SearchHit hit : hits) {
//获取文档source
String json = hit.getSourceAsString();
//反序列化
HotelDoc hotelDoc = JSON.parseObject(json, HotelDoc.class);
System.out.println("hotelDoc="+hotelDoc);
}
System.out.println(response);
}
QueryBuilders
@Test
void testBool() throws IOException {
//1.准备Request
SearchRequest request = new SearchRequest("hotel");
//2.准备DSL
//2.1 准备BooleanQuery
BoolQueryBuilder boolQuery = QueryBuilders.boolQuery();
boolQuery.must(QueryBuilders.termQuery("city","上海"))
.filter(QueryBuilders.rangeQuery("price").lte(250));
request.source().query(boolQuery);
//3.发送请求
SearchResponse response = client.search(request, RequestOptions.DEFAULT);
handleResponse(response);
System.out.println(response);
}
排序和分页
@Test
void testPageAndSort() throws IOException {
//1.准备Request
SearchRequest request = new SearchRequest("hotel");
int page = 1, size = 5;
//2.准备DSL
//2.1 query
//2.2排序
//2.3分页
request.source().query(QueryBuilders.matchAllQuery())
.sort("price", SortOrder.ASC)
.from((page - 1)*size).size(size);
//3.发送请求
SearchResponse response = client.search(request, RequestOptions.DEFAULT);
handleResponse(response);
System.out.println(response);
}
高亮显示
//获取高亮结果
Map<String, HighlightField> highlightFields = hit.getHighlightFields();
//健壮值处理
if(!CollectionUtils.isEmpty(highlightFields)){
HighlightField highlightField = highlightFields.get("name");
if(highlightField != null){
//获取高亮值
String name = highlightField.getFragments()[0].string();
hotelDoc.setName(name);
}
}
黑马旅游
demo1：实现搜索功能，完成关键字搜索和分页
- 定义实体类，接收前端请求 ```javascript @Data public class RequestParams { private String key; private Integer page; private Integer size; private String sortBy; }
```javascript
@Data
public class PageResult {
private Long total;
private List<HotelDoc> hotels;
public PageResult(Long total, List<HotelDoc> hotels) {
this.total = total;
this.hotels = hotels;
}
public PageResult() {
}
}
- 定义Controller接口，接收页面请求，调用IHotelService的search方法
ctrl+alt+t 封装抛出异常
@RestController
@RequestMapping("/hotel")
public class HotelController {
@Autowired
private IHotelService hotelService;
@PostMapping("/list")
public PageResult search(@RequestBody RequestParams params){
return hotelService.search(params);
}
}
@Service public class HotelService extends ServiceImpl<HotelMapper, Hotel> implements IHotelService { @Autowired private RestHighLevelClient client; @Override public PageResult search(RequestParams params) { try { //1.准备Request SearchRequest request = new SearchRequest("hotel"); //2.准备DSL //2.1 query String key = params.getKey(); if(key == null || "".equals(key)){ request.source().query(QueryBuilders.matchAllQuery()); }else{ request.source().query(QueryBuilders.matchQuery("all",key)); } //2.2 分页 int page = params.getPage(); int size = params.getSize(); request.source().from((page - 1) * size).size(size); //3.发送请求，得到响应 SearchResponse response = client.search(request, RequestOptions.DEFAULT); //4.解析相应 return handleResponse(response); } catch (IOException e) { throw new RuntimeException(e); } } private PageResult handleResponse(SearchResponse response) { //4.解析response SearchHits searchHits = response.getHits(); long total = searchHits.getTotalHits().value; System.out.println("条数：" + total); SearchHit[] hits = searchHits.getHits(); List<HotelDoc> hotels = new ArrayList<>(); for (SearchHit hit : hits) { //获取文档source String json = hit.getSourceAsString(); //反序列化 HotelDoc hotelDoc = JSON.parseObject(json, HotelDoc.class); hotels.add(hotelDoc); System.out.println("hotelDoc=" + hotelDoc); } return new PageResult(total,hotels); } }demo2：添加品牌、城市、星级、价格等过滤功能
修改RequestParams类，添加brand、city、starName、minPrice、maxPrice等参数
修改searhc方法，在搜索时，如果参数存在，对其过滤
private void buildBasicQuery(RequestParams params, SearchRequest request, BoolQueryBuilder boolQuery) { //关键字搜索 String key = params.getKey(); if(key == null || "".equals(key)){ boolQuery.must(QueryBuilders.matchAllQuery()); }else{ boolQuery.must(QueryBuilders.matchQuery("all",key)); } //条件过滤 if(params.getCity() != null && !params.getCity().equals("")){ boolQuery.filter(QueryBuilders.termQuery("city", params.getCity())); } if(params.getBrand() != null && !params.getBrand().equals("")){ boolQuery.filter(QueryBuilders.termQuery("brand", params.getBrand())); } if(params.getStarName() != null && !params.getStarName().equals("")){ boolQuery.filter(QueryBuilders.termQuery("starName", params.getStarName())); } //范围过滤 if(params.getMinPrice() != null && params.getMinPrice() != null){ boolQuery.filter(QueryBuilders. rangeQuery("price").gte(params.getMinPrice()).lte(params.getMaxPrice())); } request.source().query(boolQuery); }demo3：我附近的酒店
修改RequestParams参数，接收location字段
修改search方法业务逻辑，如果location有值，添加根据geo_distance排序功能
//2.3 排序 String location = params.getLocation(); if(location != null && !location.equals("")){ request.source().sort(SortBuilders .geoDistanceSort("location",new GeoPoint(location)) .order(SortOrder.ASC) .unit(DistanceUnit.KILOMETERS) ); }//获取排序值 Object[] sortValues = hit.getSortValues(); if(sortValues.length > 0){ Object sortValue = sortValues[0]; hotelDoc.setDistance(sortValue); }demo4：指定酒店在搜索结果中排名置顶
给Hotel类添加isAD字段，Boolean类型
挑选几个酒店，添加isAD字段（用DSL）
POST /hotel/_update/205612683 { "doc": { "isAD": true } } POST /hotel/_update/2056105938 { "doc": { "isAD": true }修改search方法，添加function score功能，给isAD为true酒店增加权重
//算分控制 FunctionScoreQueryBuilder functionScoreQueryBuilder = QueryBuilders.functionScoreQuery( //原始查询，相关性算分查询 boolQuery, //function socre的数组 new FunctionScoreQueryBuilder.FilterFunctionBuilder[]{ //其中一个function score元素 new FunctionScoreQueryBuilder.FilterFunctionBuilder( //过滤条件 QueryBuilders.termQuery("isAD",true), //算分函数 ScoreFunctionBuilders.weightFactorFunction(10) ) }); request.source().query(functionScoreQueryBuilder);
数据聚合
聚合（aggregations）实现对文档数据统计、分析、运算。常见三类：
- 桶聚合：对文档做分组，比如按日期、字段值
- 度量聚合：用以计算值，比如max、min、average
- 管道聚合：其他聚合的结果为基础做聚合
DSL实现Bucket聚合
# 聚合
GET /hotel/_search
{
"size": 0,
"aggs": {
"brandAgg": {
"terms": {
"field": "brand",
"size": 10,
"order": {
"_count": "asc"
}
}
}
}
}
DSL实现Metrics聚合
聚合嵌套
# 嵌套聚合
GET /hotel/_search
{
"size": 0,
"aggs": {
"brandAgg": {
"terms": {
"field": "brand",
"size": 20,
"order": {
"scoreAgg.avg": "desc" # 根据平均值排序
}
},
"aggs": {
"scoreAgg": {
"stats": {
"field": "score" # 度量聚合
}
}
}
}
}
}
RestAPI实现聚合
@Test
void testAggregation() throws IOException {
//1.准备Request
SearchRequest request = new SearchRequest("hotel");
//2.准备DSL
//2.1设置size
request.source().size(0);
request.source().aggregation(AggregationBuilders
.terms("brandAgg")
.field("brand")
.size(10)
);
//3.发出请求
SearchResponse response = client.search(request, RequestOptions.DEFAULT);
//4.解析结果
Aggregations aggregations = response.getAggregations();
//4.1根据聚合名称获取聚合结果
Terms brandTerms = aggregations.get("brandAgg");
List<? extends Terms.Bucket> buckets = brandTerms.getBuckets();
for (Terms.Bucket bucket : buckets) {
String key = bucket.getKeyAsString();
System.out.println(key);
}
System.out.println(response);
}
多条件聚合
demo：在IUserService定义方法，实现对品牌、城市、星级的聚合
@Override
public Map<String, List<String>> filters() {
try {
//1.准备Request
SearchRequest request = new SearchRequest("hotel");
//2.准备DSL
//2.1设置size
request.source().size(0);
buildAggregation(request);
//3.发出请求
SearchResponse response = client.search(request, RequestOptions.DEFAULT);
//4.解析结果
Map<String,List<String>> result = new HashMap<>();
Aggregations aggregations = response.getAggregations();
//根据名称获取品牌结果
List<String> brandList = getAggByName(aggregations,"brandAgg");
List<String> cityList = getAggByName(aggregations,"cityAgg");
List<String> starList = getAggByName(aggregations,"starAgg");
//4.4放入map
result.put("品牌",brandList);
result.put("城市",cityList);
result.put("星级",starList);
System.out.println(response);
return result;
} catch (IOException e) {
throw new RuntimeException(e);
}
}
private List<String> getAggByName(Aggregations aggregations, String aggName) {
//4.1根据聚合名称获取聚合结果
Terms brandTerms = aggregations.get(aggName);
//4.2获取buckets
List<? extends Terms.Bucket> buckets = brandTerms.getBuckets();
//4.3遍历
List<String> brandList = new ArrayList<>();
for (Terms.Bucket bucket : buckets) {
String key = bucket.getKeyAsString();
brandList.add(key);
}
return brandList;
}
测试类：
@SpringBootTest
class HotelDemoApplicationTests {
@Autowired
private IHotelService hotelService;
@Test
void contextLoads() {
Map<String, List<String>> filters = hotelService.filters();
System.out.println(filters);
}
}
带过滤条件的聚合
输入栏控制过滤条件，比如输入虹桥时，城市只显示上海（含结果的城市）
对接前端接口
- 编写controller接口，接收请求
- 修改IUserServiceGetFilters()方法，添加RequestParam参数
修改getFilters方法的业务，聚合时添加query条件 ```java @Override public Map
//1.准备Request SearchRequest request = new SearchRequest("hotel"); //2.准备DSL //query buildBasicQuery(params, request, QueryBuilders.boolQuery()); //2.1设置size request.source().size(0); buildAggregation(request); //3.发出请求 SearchResponse response = client.search(request, RequestOptions.DEFAULT); //4.解析结果 Map<String,List<String>> result = new HashMap<>(); Aggregations aggregations = response.getAggregations(); //根据名称获取品牌结果 List<String> brandList = getAggByName(aggregations,"brandAgg"); List<String> cityList = getAggByName(aggregations,"cityAgg"); List<String> starList = getAggByName(aggregations,"starAgg"); //4.4放入map result.put("brand",brandList); result.put("city",cityList); result.put("starName",starList); System.out.println(response); return result;} catch (IOException e) {
throw new RuntimeException(e);} }
private List

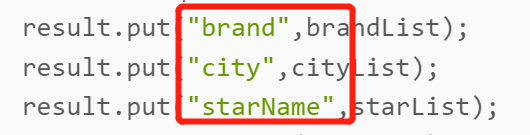

ps：map的key应改为brand、city、starName，否则前台显示空白，视频有误！！<br />
<a name="iuhLP"></a>
## 自动补全
<a name="aZVXi"></a>
### 安装拼音分词器
[https://github.com/medcl/elasticsearch-analysis-pinyin](https://github.com/medcl/elasticsearch-analysis-pinyin)
1. 下载
1. 解压到es的plugin目录
1. 重启es，测试
```java
POST /_analyze
{
"text": ["如家还不错"],
"analyzer": "pinyin"
}
自定义分词器
es中的分词器的组成：
- character filters：删除字符、替换字符
- tokenizer：按规则分词
tokenizer filter：进一步处理，如大小写转换、同义词处理、拼音处理
// 自定义拼音分词器 PUT /test { "settings": { "analysis": { "analyzer": { "my_analyzer": { "tokenizer": "ik_max_word", "filter": "py" } }, "filter": { "py": { "type": "pinyin", "keep_full_pinyin": false, "keep_joined_full_pinyin": true, "keep_original": true, "limit_first_letter_length": 16, "remove_duplicated_term": true, "none_chinese_pinyin_tokenize": false } } } } }POST /test/_analyze { "text": ["如家还不错"], "analyzer": "my_analyzer" }拼音分词器适合在创建倒排索引时使用，不能在搜索时使用
因此在创建时应用my_analyzer分词器；搜索时用ik_smart分词器PUT /test { "settings": { "analysis": { "analyzer": { "my_analyzer": { "tokenizer": "ik_max_word", "filter": "py" } }, "filter": { "py": { "type": "pinyin", "keep_full_pinyin": false, "keep_joined_full_pinyin": true, "keep_original": true, "limit_first_letter_length": 16, "remove_duplicated_term": true, "none_chinese_pinyin_tokenize": false } } } }, "mappings": { "properties": { "name": { "type": "text", "analyzer": "my_analyzer", "search_analyzer": "ik_smart" } } } }DSL实现自动补全
completion suggester查询
参与补全查询的字段completion类型
- 字段内容一般用来补全多个词条形成的数组
```json# 自动补全的索引库 PUT test2 { "mappings": { "properties": { "title":{ "type": "completion" } } } } # 示例数据 POST test2/_doc { "title": ["Sony", "WH-1000XM3"] } POST test2/_doc { "title": ["SK-II", "PITERA"] } POST test2/_doc { "title": ["Nintendo", "switch"] }示例数据
POST test2/_doc { “title”: [“Sony”, “WH-1000XM3”] } POST test2/_doc { “title”: [“SK-II”, “PITERA”] } POST test2/_doc { “title”: [“Nintendo”, “switch”] }
GET /test2/_search { “suggest”: { “titleSuggest”: { “text”: “s”, “completion”: { “field”: “title”, “skip_duplicates”: true, “size”: 10 } } } }
<a name="VFdkI"></a>
### 酒店数据自动补全
**demo：实现hotel索引库的自动补全、拼音搜索功能**
1. 修改hotel索引库结构，设置自定义拼音分词器
1. 修改索引name、all字段，使用自定义分词器
1. 索引库添加字段suggestion，类型completion，使用自定义分词器
1. 给HotelDoc类型添加suggestion字段，包含brand、business
1. 重新导入数据到hotel库
```json
# 酒店数据索引库
PUT /hotel
{
"settings": {
"analysis": {
"analyzer": {
"text_anlyzer": {
"tokenizer": "ik_max_word",
"filter": "py"
},
"completion_analyzer": {
"tokenizer": "keyword",
"filter": "py"
}
},
"filter": {
"py": {
"type": "pinyin",
"keep_full_pinyin": false,
"keep_joined_full_pinyin": true,
"keep_original": true,
"limit_first_letter_length": 16,
"remove_duplicated_term": true,
"none_chinese_pinyin_tokenize": false
}
}
}
},
"mappings": {
"properties": {
"id":{
"type": "keyword"
},
"name":{
"type": "text",
"analyzer": "text_anlyzer",
"search_analyzer": "ik_smart",
"copy_to": "all"
},
"address":{
"type": "keyword",
"index": false
},
"price":{
"type": "integer"
},
"score":{
"type": "integer"
},
"brand":{
"type": "keyword",
"copy_to": "all"
},
"city":{
"type": "keyword"
},
"starName":{
"type": "keyword"
},
"business":{
"type": "keyword",
"copy_to": "all"
},
"location":{
"type": "geo_point"
},
"pic":{
"type": "keyword",
"index": false
},
"all":{
"type": "text",
"analyzer": "text_anlyzer",
"search_analyzer": "ik_smart"
},
"suggestion":{
"type": "completion",
"analyzer": "completion_analyzer"
}
}
}
}
创建分词器
- text_analyzer：做汉字和拼音分词，适用text
- completion_analyzer：只做拼音分词，适用keyword
_mapping
- analyzer：创建倒排索引时分词器
- search_analyzer：搜索时分词器，只中文不拼音
suggestion
- 用于补全的字段
if(this.business.contains("/")){ String[] arr = this.business.split("/"); this.suggestion = new ArrayList<>(); this.suggestion.add(this.brand); Collections.addAll(this.suggestion,arr); }else{ this.suggestion = Arrays.asList(this.brand,this.business); }GET /hotel/_search { "suggest": { "suggestions": { "text": "h", "completion": { "field": "suggestion", "skip_duplicates": true, "size": 10 } } } }RestAPI实现自动补全
@Test
void testSuggest() throws IOException {
//1.准备Request
SearchRequest request = new SearchRequest("hotel");
//2.准备DSL
request.source().suggest(new SuggestBuilder().addSuggestion(
"suggestions",
SuggestBuilders.completionSuggestion("suggestion")
.prefix("h")
.skipDuplicates(true)
.size(10)
));
//3.发起请求
SearchResponse response = client.search(request, RequestOptions.DEFAULT);
//4.解析结果
Suggest suggest = response.getSuggest();
CompletionSuggestion suggestions = suggest.getSuggestion("suggestions");
List<CompletionSuggestion.Entry.Option> options = suggestions.getOptions();
for (CompletionSuggestion.Entry.Option option : options) {
String text = option.getText().toString();
System.out.println(text);
}
}
实现搜索框自动补全
↑在前端页面查看输入时的ajax请求，在服务端编写接口
ctrl+alt+b 接口跳转实现类
@GetMapping("suggestion")
public List<String> getSuggestions(@RequestParam("key")String prefix){
return hotelService.getSuggestions(prefix);
}
@Override
public List<String> getSuggestions(String prefix) {
try {
//1.准备Request
SearchRequest request = new SearchRequest("hotel");
//2.准备DSL
request.source().suggest(new SuggestBuilder().addSuggestion(
"suggestions",
SuggestBuilders.completionSuggestion("suggestion")
.prefix(prefix)
.skipDuplicates(true)
.size(10)
));
//3.发起请求
SearchResponse response = client.search(request, RequestOptions.DEFAULT);
//4.解析结果
Suggest suggest = response.getSuggest();
CompletionSuggestion suggestions = suggest.getSuggestion("suggestions");
List<CompletionSuggestion.Entry.Option> options = suggestions.getOptions();
List<String> list = new ArrayList<>(options.size());
for (CompletionSuggestion.Entry.Option option : options) {
String text = option.getText().toString();
list.add(text);
}
return list;
} catch (IOException e) {
throw new RuntimeException(e);
}
}
数据同步
方案分析
方案一：同步调用
导入酒店管理项目
demo：利用MQ实现mysql与es数据同步
- 导入hotel-admn项目，测试CRUD
- 生命exchange、queue、RoutingKey
- 在hotel-admin的增删改业务中完成消息发送
- 在hotel-demo中完成消息监听，并更新es中数据
- 联调测试
其他步骤：
安装Erlang、RabbitMQ
修改yml
rabbitmq:
host: 127.0.0.1
port: 5672
username: guest
password: guest
virtual-host: /
声明队列和交换机
ctrl+shift+u 转大写
MqConstants
package cn.itcast.hotel.constans;
public class MqConstants {
/**
* 交换机
*/
public final static String HOTEL_EXCHANGE = "hotel.topic";
/**
* 监听队列
*/
public final static String HOTEL_INSERT_QUEUE = "hotel.insert.queue";
public final static String HOTEL_DELETE_QUEUE = "hotel.delete.queue";
/**
* RoutingKey
*/
public final static String HOTEL_INSERT_KEY = "hotel.insert";
public final static String HOTEL_DELETE_KEY = "hotel.delete";
}
MqConfig
package cn.itcast.hotel.config;
import cn.itcast.hotel.constans.MqConstants;
import org.elasticsearch.index.query.QueryBuilders;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class MqConfig {
@Bean
public TopicExchange topicExchange(){
return new TopicExchange(MqConstants.HOTEL_EXCHANGE,true,false);
}
@Bean
public Queue insertQueue(){
return new Queue(MqConstants.HOTEL_INSERT_QUEUE,true);
}
@Bean
public Queue deleteQueue(){
return new Queue(MqConstants.HOTEL_DELETE_QUEUE,true);
}
@Bean
public Binding insertQueueBinding(){
return BindingBuilder.bind(insertQueue()).to(topicExchange()).with(MqConstants.HOTEL_INSERT_KEY);
}
@Bean
public Binding deleteQueueBinding(){
return BindingBuilder.bind(deleteQueue()).to(topicExchange()).with(MqConstants.HOTEL_DELETE_KEY);
}
}
发送MQ消息
rabbitTemplate.convertAndSend(HotelMqConstants.EXCHANGE_NAME, HotelMqConstants.INSERT_KEY, hotel.getId());
rabbitTemplate.convertAndSend(HotelMqConstants.EXCHANGE_NAME, HotelMqConstants.INSERT_KEY, hotel.getId());
rabbitTemplate.convertAndSend(HotelMqConstants.EXCHANGE_NAME, HotelMqConstants.DELETE_KEY, id);
监听MQ消息
@Override
public void deleteById(Long id) {
try {
//1.准备Request
DeleteRequest request = new DeleteRequest("hotel", id.toString());
//2.发送请求
client.delete(request,RequestOptions.DEFAULT);
} catch (IOException e) {
throw new RuntimeException(e);
}
}
@Override
public void insertById(Long id) {
try {
//0.查询酒店数据
Hotel hotel = getById(id);
//转换为文档类型
HotelDoc hotelDoc = new HotelDoc(hotel);
//1.准备Request对象
IndexRequest request = new IndexRequest("hotel").id(hotel.getId().toString());
//2.准备Json文档
request.source(JSON.toJSONString(hotelDoc), XContentType.JSON);
//3.发送请求
client.index(request, RequestOptions.DEFAULT);
} catch (IOException e) {
throw new RuntimeException(e);
}
}
测试同步功能⭐
学习该篇MQ，Vue调试相关
集群
集群结构介绍
单机es面临问题：海量数据存储、单点故障
- 海量数据存储：将索引库从逻辑上拆分为N个分片（shard），存储到多个节点
- 单点故障：将分片数据在不同节点备份（replica）
搭建集群
创建集群
安装elasticsearch.md
docker-compose文件
version: '2.2'
services:
es01:
image: elasticsearch:7.12.1
container_name: es01
environment:
- node.name=es01
- cluster.name=es-docker-cluster
- discovery.seed_hosts=es02,es03
- cluster.initial_master_nodes=es01,es02,es03
- "ES_JAVA_OPTS=-Xms512m -Xmx512m"
volumes:
- data01:/usr/share/elasticsearch/data
ports:
- 9200:9200
networks:
- elastic
es02:
image: elasticsearch:7.12.1
container_name: es02
environment:
- node.name=es02
- cluster.name=es-docker-cluster
- discovery.seed_hosts=es01,es03
- cluster.initial_master_nodes=es01,es02,es03
- "ES_JAVA_OPTS=-Xms512m -Xmx512m"
volumes:
- data02:/usr/share/elasticsearch/data
ports:
- 9201:9200
networks:
- elastic
es03:
image: elasticsearch:7.12.1
container_name: es03
environment:
- node.name=es03
- cluster.name=es-docker-cluster
- discovery.seed_hosts=es01,es02
- cluster.initial_master_nodes=es01,es02,es03
- "ES_JAVA_OPTS=-Xms512m -Xmx512m"
volumes:
- data03:/usr/share/elasticsearch/data
networks:
- elastic
ports:
- 9202:9200
volumes:
data01:
driver: local
data02:
driver: local
data03:
driver: local
networks:
elastic:
driver: bridge
通过FinalShell上传文件
es运行需要修改一些linux系统权限，修改/etc/sysctl.conf文件
vi /etc/sysctl.conf
添加下面的内容：
vm.max_map_count=262144
然后执行命令，让配置生效：
sysctl -p
通过docker-compose启动集群：
docker-compose up -d
集群状态监控
cerebro：启动bat
访问http://localhost:9000
创建索引库
集群职责和脑裂
典型es集群职责划分：
脑裂是因为集群中的节点失联导致的。
解决脑裂的方案是，要求选票超过 ( eligible节点数量 + 1 ）/ 2 才能当选为主，因此eligible节点数量最好是奇数。对应配置项是discovery.zen.minimum_master_nodes，在es7.0以后，已经成为默认配置，因此一般不会发生脑裂问题
分布式新增和查询流程
在9200插入三条数据
测试看到，三条数据分别在不同分片
分片原理
说明：
- _routing默认是文档的id
- 算法与分片数量有关，因此索引库一旦创建，分片数量不能修改！
新增文档流程：
分布式查询
elasticsearch的查询分成两个阶段：
- scatter phase：分散阶段，coordinating node会把请求分发到每一个分片
- gather phase：聚集阶段，coordinating node汇总data node的搜索结果，并处理为最终结果集返回给用户
故障转移
- 重新选主
- 数据迁移
若有收获，就点个赞吧
0 人点赞
