目标

开发机没有公网 ip，不能被集群直接访问到的情况下
开发机 Spark Driver 连接另一个网段的 YARN 集群

环境

Python 3.7 本地，miniconda base 环境
Python 3.7 集群，每台同样目录，miniconda 环境，有 pandas 包
Spark 2.4.4，加入到了 PYTHONPATH 中
PyCharm 2019.3
HDFS/YARN 2.7.2

背景

之前的文章介绍的是本地开发，本地集群，都在同一个网段内，不需要经过路由器。
而实际使用中很可能集群在另一个网段，开发机并不在集群网段内。

概要

Spark driver 模式提交 YARN 任务后，启动的 Application Master 和 Executor 需要能够连回 driver
本文先介绍能够连回来的网络准备，然后再介绍 spark driver 中的配置

连接到远程环境

远程环境的网段，连接进去可能要用VPN/HTTP(S)代理/SOCKS代理/SS(R)代理等方式
如果要控制某一台服务器，还是使用SSH方式，可以用免费的putty或者更稳定更方便的收费的xshell
连接之后，被连接的电脑叫做边缘节点Edge Node或Gateway Node，如果集群上有HTTP服务器，比如用python flask写一个，集群上应该都是可以访问到的，本地开发机也应该是能访问到的

可以使用命令检查：

curl http://gateway_node:5000 -I

但是，如果在开发机上开一个HTTP服务，集群上是访问不到的，因为没有路由回来

配置路由需要的权限较高，工作量较大；
除了配置路由，也可以用端口转发的方式。

远程端口转发

使用方法

既然远程集群可以访问到gateway的端口，那么这个端口如果能转发到本地，就能反向连回来了

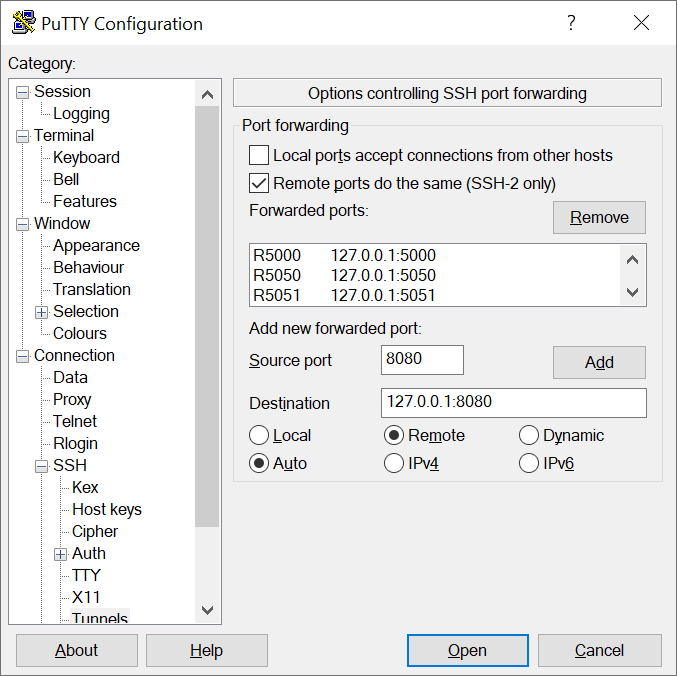

SSH是支持这个功能的，如果使用putty，配置如下，Connection->SSH->Tunnels

选择Remote表示，是在远程打开的端口，Destination写的127.0.0.1就代表在本地（发起连接的一方）打开端口，不写localhost就能避免地址解析出现意外（通常也没啥意外）。
图中打勾的选项，是希望远程可以开放这个端口给其他服务器使用，而不只是这一台使用

需要在边缘上做的配置

然而这个功能需要在远程服务器上配置sshd的gatewayports为yes或者clientspecified，不然只能把远程端口绑定到远程这一台机器的127.0.0.1上，不能接收其他服务器的连接
这种安全性的配置，默认当然是no！如果没有管理员权限，就完蛋了

其实……也不尽然

妥协的方式

比如，既然远程的边缘节点开个网页服务，能被其他服务器连接上，那就在上面开一个别的端口，接收到的连接直接转发到SSH转发的端口上，不就可以传回来了嘛，不过有点麻烦，每个端口要运行一个转发的程序，比如：

A simple TCP redirector in python
是个8年前的程序了，还是python2的呢……但是可以用

比如在边缘节点上，开两个，一个收5050转到5000，一个收5051转到5001
然后
SSH把边缘的5000转到本地的5050，把边缘的5001转到本地的5051
对于本地的应用，根本不知道中间有个5000/5001的存在，就直接使用5050/5051就行了

优雅的妥协方式

然而，ssh这么强大，肯定会有办法的：连接自己（localhost），加一层代理！

同上，连接SSH的时候，把边缘的5000转发到本地的5050，边缘的5001转发到本地的5051
然后

ssh -g -L 5050:localhost:5000 -L 5051:localhost:5001 username@edgenode

这样看起来就只是

ssh localhost

了一下嘛……
然而，它已经完成了刚刚用python程序做的事，而且一个命令，两个端口都打开了，还是ssh直接支持的，不需要用python语言来解释

在本地开发机启动 spark

环境变量有HADOOP_HOME/HADOOP_CONF_DIR/PYSPARK_PYTHON
这里只讲解与本地集群不同的地方
远程集群上的 ApplicationMaster 和 Executor 如果要连接本地的 driver，就需要经由边缘节点转发，所以它们连接的目标其实是边缘节点

.config('spark.driver.host','edgenode_name_or_ip')\
.config('spark.driver.port','5050')

然后对于本地的 driver 来说，它只要把端口 bind 到本地即可，因为不需要局域网内其他 ip 地址的主机访问到

.config('spark.driver.bindAddress','localhost')\

然而，给了这些配置还是会报错，任务无法运行，不停重试，直到最大次数，放弃，失败，退出

经过研究，了解到 ApplicationMaster 和 Executor 还需要访问 driver 的 blockmanager，因此要给它分配一个端口

.config('spark.driver.blockManager.port','5051')

这样就可以了

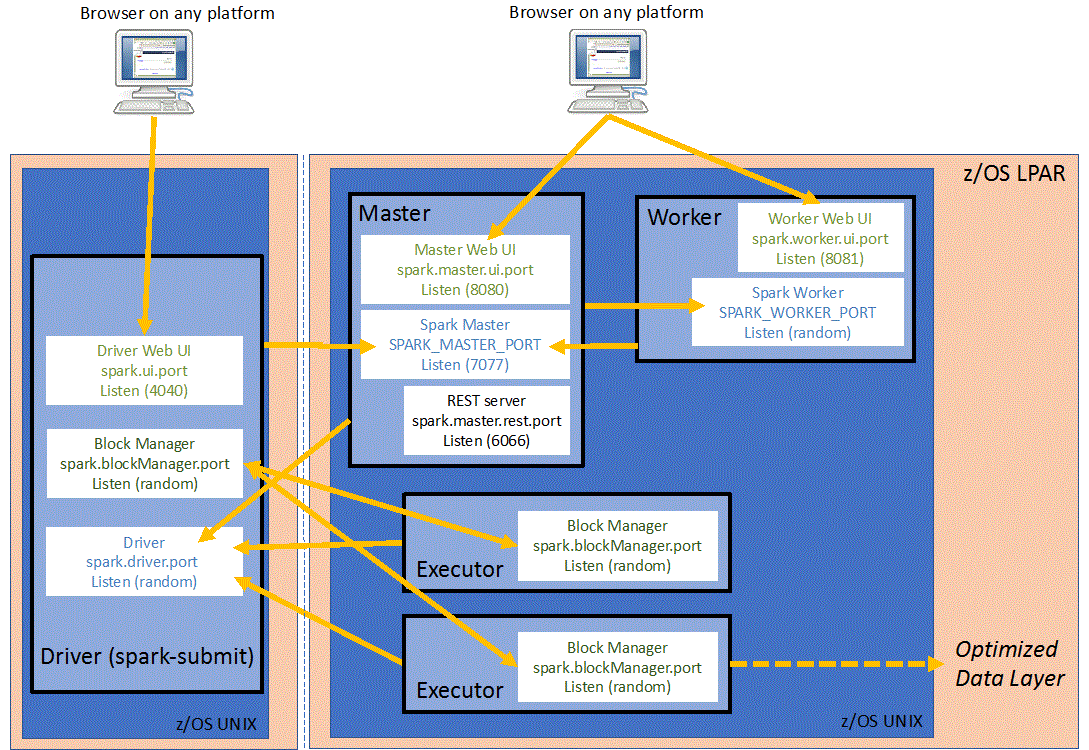

Spark Local Driver 与远程 YARN 的连接 - 图4
图中是针对 z/OS UNIX 系统说明的 Spark Driver 和 StandAlone Master/Worker/Executor 的关系

汇总如下

from pyspark.sql import SparkSession
spark=SparkSession.builder.master('yarn')\
.config('spark.driver.bindAddress','localhost')\
.config('spark.driver.host','edgenode_name_or_ip')\
.config('spark.driver.blockManager.port','5051')\
.config('spark.driver.port','5050')\
.appName('local driver').getOrCreate()

然后可以尝试一下在 executor 上运行 python 任务看看

def fun(x):
    import sys;return sys.path
print(spark.version)
df=sc.parallelize([1]).map(fun)
r=df.collect()[0][-1]
print(r)

结果如下

/path_to_miniconda3/envs/pandas/lib/python3.7/site-packages

故障报错示例（开发界面Log）

YARN Executor 连不上 Driver

[Stage 0:>                                                          (0 + 0) / 2]19/12/11 13:20:16 ERROR cluster.YarnClientSchedulerBackend: YARN application has exited unexpectedly with state FAILED! Check the YARN application logs for more details.
19/12/11 13:20:16 WARN cluster.YarnSchedulerBackend$YarnSchedulerEndpoint: Attempted to request executors before the AM has registered!
Traceback (most recent call last):
  File "C:\Users\cdarling\Miniconda3\lib\site-packages\IPython\core\interactiveshell.py", line 3296, in run_code
    exec(code_obj, self.user_global_ns, self.user_ns)
  File "<ipython-input-2-1a189c899f21>", line 6, in <module>
    runfile('C:/Users/cdarling/PycharmProjects/remote_spark_proj/local244.py', wdir='C:/Users/cdarling/PycharmProjects/remote_spark_proj')
  File "C:\Users\cdarling\AppData\Local\JetBrains\Toolbox\apps\PyCharm-P\ch-0\193.5233.109\plugins\python\helpers\pydev\_pydev_bundle\pydev_umd.py", line 197, in runfile
    pydev_imports.execfile(filename, global_vars, local_vars)  # execute the script
  File "C:\Users\cdarling\AppData\Local\JetBrains\Toolbox\apps\PyCharm-P\ch-0\193.5233.109\plugins\python\helpers\pydev\_pydev_imps\_pydev_execfile.py", line 18, in execfile
    exec(compile(contents+"\n", file, 'exec'), glob, loc)
  File "C:/Users/cdarling/PycharmProjects/remote_spark_proj/local244.py", line 26, in <module>
    r=df.collect()[0][-1]
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\pyspark\rdd.py", line 816, in collect
    sock_info = self.ctx._jvm.PythonRDD.collectAndServe(self._jrdd.rdd())
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\lib\py4j-0.10.7-src.zip\py4j\java_gateway.py", line 1257, in __call__
    answer, self.gateway_client, self.target_id, self.name)
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\pyspark\sql\utils.py", line 63, in deco
    return f(*a, **kw)
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\lib\py4j-0.10.7-src.zip\py4j\protocol.py", line 328, in get_return_value
    format(target_id, ".", name), value)
py4j.protocol.Py4JJavaError: An error occurred while calling z:org.apache.spark.api.python.PythonRDD.collectAndServe.
: org.apache.spark.SparkException: Job 0 cancelled because SparkContext was shut down
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$cleanUpAfterSchedulerStop$1.apply(DAGScheduler.scala:932)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$cleanUpAfterSchedulerStop$1.apply(DAGScheduler.scala:930)
    at scala.collection.mutable.HashSet.foreach(HashSet.scala:78)
    at org.apache.spark.scheduler.DAGScheduler.cleanUpAfterSchedulerStop(DAGScheduler.scala:930)
    at org.apache.spark.scheduler.DAGSchedulerEventProcessLoop.onStop(DAGScheduler.scala:2128)
    at org.apache.spark.util.EventLoop.stop(EventLoop.scala:84)
    at org.apache.spark.scheduler.DAGScheduler.stop(DAGScheduler.scala:2041)
    at org.apache.spark.SparkContext$$anonfun$stop$6.apply$mcV$sp(SparkContext.scala:1949)
    at org.apache.spark.util.Utils$.tryLogNonFatalError(Utils.scala:1340)
    at org.apache.spark.SparkContext.stop(SparkContext.scala:1948)
    at org.apache.spark.scheduler.cluster.YarnClientSchedulerBackend$MonitorThread.run(YarnClientSchedulerBackend.scala:121)
    at org.apache.spark.scheduler.DAGScheduler.runJob(DAGScheduler.scala:737)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2061)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2082)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2101)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2126)
    at org.apache.spark.rdd.RDD$$anonfun$collect$1.apply(RDD.scala:945)
    at org.apache.spark.rdd.RDDOperationScope$.withScope(RDDOperationScope.scala:151)
    at org.apache.spark.rdd.RDDOperationScope$.withScope(RDDOperationScope.scala:112)
    at org.apache.spark.rdd.RDD.withScope(RDD.scala:363)
    at org.apache.spark.rdd.RDD.collect(RDD.scala:944)
    at org.apache.spark.api.python.PythonRDD$.collectAndServe(PythonRDD.scala:166)
    at org.apache.spark.api.python.PythonRDD.collectAndServe(PythonRDD.scala)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
    at java.lang.reflect.Method.invoke(Unknown Source)
    at py4j.reflection.MethodInvoker.invoke(MethodInvoker.java:244)
    at py4j.reflection.ReflectionEngine.invoke(ReflectionEngine.java:357)
    at py4j.Gateway.invoke(Gateway.java:282)
    at py4j.commands.AbstractCommand.invokeMethod(AbstractCommand.java:132)
    at py4j.commands.CallCommand.execute(CallCommand.java:79)
    at py4j.GatewayConnection.run(GatewayConnection.java:238)
    at java.lang.Thread.run(Unknown Source)

YARN Executor 连不上 BlockManager

[Stage 0:>                                                          (0 + 2) / 2]19/12/11 13:23:55 WARN scheduler.TaskSetManager: Lost task 0.0 in stage 0.0 (TID 0, clusternode9, executor 1): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
19/12/11 13:24:10 WARN scheduler.TaskSetManager: Lost task 0.1 in stage 0.0 (TID 2, clusternode9, executor 1): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
19/12/11 13:24:25 WARN scheduler.TaskSetManager: Lost task 0.2 in stage 0.0 (TID 4, clusternode9, executor 1): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
[Stage 0:>                                                          (0 + 2) / 2]19/12/11 13:24:40 WARN scheduler.TaskSetManager: Lost task 0.3 in stage 0.0 (TID 6, clusternode9, executor 1): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
19/12/11 13:24:40 ERROR scheduler.TaskSetManager: Task 0 in stage 0.0 failed 4 times; aborting job
Traceback (most recent call last):
  File "C:\Users\cdarling\Miniconda3\lib\site-packages\IPython\core\interactiveshell.py", line 3296, in run_code
    exec(code_obj, self.user_global_ns, self.user_ns)
  File "<ipython-input-2-1a189c899f21>", line 6, in <module>
    runfile('C:/Users/cdarling/PycharmProjects/remote_spark_proj/local244.py', wdir='C:/Users/cdarling/PycharmProjects/remote_spark_proj')
  File "C:\Users\cdarling\AppData\Local\JetBrains\Toolbox\apps\PyCharm-P\ch-0\193.5233.109\plugins\python\helpers\pydev\_pydev_bundle\pydev_umd.py", line 197, in runfile
    pydev_imports.execfile(filename, global_vars, local_vars)  # execute the script
  File "C:\Users\cdarling\AppData\Local\JetBrains\Toolbox\apps\PyCharm-P\ch-0\193.5233.109\plugins\python\helpers\pydev\_pydev_imps\_pydev_execfile.py", line 18, in execfile
    exec(compile(contents+"\n", file, 'exec'), glob, loc)
  File "C:/Users/cdarling/PycharmProjects/remote_spark_proj/local244.py", line 26, in <module>
    r=df.collect()[0][-1]
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\pyspark\rdd.py", line 816, in collect
    sock_info = self.ctx._jvm.PythonRDD.collectAndServe(self._jrdd.rdd())
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\lib\py4j-0.10.7-src.zip\py4j\java_gateway.py", line 1257, in __call__
    answer, self.gateway_client, self.target_id, self.name)
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\pyspark\sql\utils.py", line 63, in deco
    return f(*a, **kw)
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\lib\py4j-0.10.7-src.zip\py4j\protocol.py", line 328, in get_return_value
    format(target_id, ".", name), value)
py4j.protocol.Py4JJavaError: An error occurred while calling z:org.apache.spark.api.python.PythonRDD.collectAndServe.
: org.apache.spark.SparkException: Job aborted due to stage failure: Task 0 in stage 0.0 failed 4 times, most recent failure: Lost task 0.3 in stage 0.0 (TID 6, clusternode9, executor 1): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
Driver stacktrace:
    at org.apache.spark.scheduler.DAGScheduler.org$apache$spark$scheduler$DAGScheduler$$failJobAndIndependentStages(DAGScheduler.scala:1889)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$abortStage$1.apply(DAGScheduler.scala:1877)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$abortStage$1.apply(DAGScheduler.scala:1876)
    at scala.collection.mutable.ResizableArray$class.foreach(ResizableArray.scala:59)
    at scala.collection.mutable.ArrayBuffer.foreach(ArrayBuffer.scala:48)
    at org.apache.spark.scheduler.DAGScheduler.abortStage(DAGScheduler.scala:1876)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$handleTaskSetFailed$1.apply(DAGScheduler.scala:926)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$handleTaskSetFailed$1.apply(DAGScheduler.scala:926)
    at scala.Option.foreach(Option.scala:257)
    at org.apache.spark.scheduler.DAGScheduler.handleTaskSetFailed(DAGScheduler.scala:926)
    at org.apache.spark.scheduler.DAGSchedulerEventProcessLoop.doOnReceive(DAGScheduler.scala:2110)
    at org.apache.spark.scheduler.DAGSchedulerEventProcessLoop.onReceive(DAGScheduler.scala:2059)
    at org.apache.spark.scheduler.DAGSchedulerEventProcessLoop.onReceive(DAGScheduler.scala:2048)
    at org.apache.spark.util.EventLoop$$anon$1.run(EventLoop.scala:49)
    at org.apache.spark.scheduler.DAGScheduler.runJob(DAGScheduler.scala:737)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2061)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2082)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2101)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2126)
    at org.apache.spark.rdd.RDD$$anonfun$collect$1.apply(RDD.scala:945)
    at org.apache.spark.rdd.RDDOperationScope$.withScope(RDDOperationScope.scala:151)
    at org.apache.spark.rdd.RDDOperationScope$.withScope(RDDOperationScope.scala:112)
    at org.apache.spark.rdd.RDD.withScope(RDD.scala:363)
    at org.apache.spark.rdd.RDD.collect(RDD.scala:944)
    at org.apache.spark.api.python.PythonRDD$.collectAndServe(PythonRDD.scala:166)
    at org.apache.spark.api.python.PythonRDD.collectAndServe(PythonRDD.scala)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
    at java.lang.reflect.Method.invoke(Unknown Source)
    at py4j.reflection.MethodInvoker.invoke(MethodInvoker.java:244)
    at py4j.reflection.ReflectionEngine.invoke(ReflectionEngine.java:357)
    at py4j.Gateway.invoke(Gateway.java:282)
    at py4j.commands.AbstractCommand.invokeMethod(AbstractCommand.java:132)
    at py4j.commands.CallCommand.execute(CallCommand.java:79)
    at py4j.GatewayConnection.run(GatewayConnection.java:238)
    at java.lang.Thread.run(Unknown Source)
Caused by: java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
[Stage 0:>                                                          (0 + 1) / 2]19/12/11 13:24:41 WARN scheduler.TaskSetManager: Lost task 1.3 in stage 0.0 (TID 7, clusternode4, executor 2): TaskKilled (Stage cancelled)

Spark Executor 连不上 Driver

IDE提交任务后，一直挂不上任务，一直重试，一直卡着、报错
以下信息会不停重复，10多分钟也不会停

[Stage 0:>                                                          (0 + 0) / 2]19/12/11 13:30:54 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:31:09 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:31:24 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:31:39 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
[Stage 0:>                                                          (0 + 0) / 2]19/12/11 13:31:54 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:32:09 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:32:24 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:32:39 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
[Stage 0:>                                                          (0 + 0) / 2]19/12/11 13:32:54 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:33:09 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:33:24 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
19/12/11 13:33:39 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources
[Stage 0:>                                                          (0 + 0) / 2]19/12/11 13:33:54 WARN scheduler.TaskSchedulerImpl: Initial job has not accepted any resources; check your cluster UI to ensure that workers are registered and have sufficient resources

Spark Executor 连不上 BlockManager

IDE提交任务后，一直挂不上任务，一直重试，一直卡着、报错

[Stage 0:>                                                          (0 + 2) / 2]19/12/11 13:12:28 WARN scheduler.TaskSetManager: Lost task 0.0 in stage 0.0 (TID 0, 172.172.172.177, executor 5): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
19/12/11 13:12:43 WARN scheduler.TaskSetManager: Lost task 1.0 in stage 0.0 (TID 1, 172.172.172.177, executor 5): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
19/12/11 13:12:59 WARN scheduler.TaskSetManager: Lost task 1.1 in stage 0.0 (TID 3, 172.172.172.182, executor 6): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
[Stage 0:>                                                          (0 + 2) / 2]19/12/11 13:13:14 WARN scheduler.TaskSetManager: Lost task 1.2 in stage 0.0 (TID 5, 172.172.172.182, executor 6): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
19/12/11 13:13:16 ERROR scheduler.TaskSetManager: Task 0 in stage 0.0 failed 4 times; aborting job
Traceback (most recent call last):
  File "C:\Users\cdarling\Miniconda3\lib\site-packages\IPython\core\interactiveshell.py", line 3296, in run_code
    exec(code_obj, self.user_global_ns, self.user_ns)
  File "<ipython-input-2-1a189c899f21>", line 6, in <module>
    runfile('C:/Users/cdarling/PycharmProjects/remote_spark_proj/local244.py', wdir='C:/Users/cdarling/PycharmProjects/remote_spark_proj')
  File "C:\Users\cdarling\AppData\Local\JetBrains\Toolbox\apps\PyCharm-P\ch-0\193.5233.109\plugins\python\helpers\pydev\_pydev_bundle\pydev_umd.py", line 197, in runfile
    pydev_imports.execfile(filename, global_vars, local_vars)  # execute the script
  File "C:\Users\cdarling\AppData\Local\JetBrains\Toolbox\apps\PyCharm-P\ch-0\193.5233.109\plugins\python\helpers\pydev\_pydev_imps\_pydev_execfile.py", line 18, in execfile
    exec(compile(contents+"\n", file, 'exec'), glob, loc)
  File "C:/Users/cdarling/PycharmProjects/remote_spark_proj/local244.py", line 26, in <module>
    r=df.collect()[0][-1]
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\pyspark\rdd.py", line 816, in collect
    sock_info = self.ctx._jvm.PythonRDD.collectAndServe(self._jrdd.rdd())
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\lib\py4j-0.10.7-src.zip\py4j\java_gateway.py", line 1257, in __call__
    answer, self.gateway_client, self.target_id, self.name)
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\pyspark\sql\utils.py", line 63, in deco
    return f(*a, **kw)
  File "C:\files\spark\spark-2.4.4-bin-hadoop2.7\python\lib\py4j-0.10.7-src.zip\py4j\protocol.py", line 328, in get_return_value
    format(target_id, ".", name), value)
py4j.protocol.Py4JJavaError: An error occurred while calling z:org.apache.spark.api.python.PythonRDD.collectAndServe.
: org.apache.spark.SparkException: Job aborted due to stage failure: Task 0 in stage 0.0 failed 4 times, most recent failure: Lost task 0.3 in stage 0.0 (TID 6, 172.172.172.183, executor 3): java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
Driver stacktrace:
    at org.apache.spark.scheduler.DAGScheduler.org$apache$spark$scheduler$DAGScheduler$$failJobAndIndependentStages(DAGScheduler.scala:1889)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$abortStage$1.apply(DAGScheduler.scala:1877)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$abortStage$1.apply(DAGScheduler.scala:1876)
    at scala.collection.mutable.ResizableArray$class.foreach(ResizableArray.scala:59)
    at scala.collection.mutable.ArrayBuffer.foreach(ArrayBuffer.scala:48)
    at org.apache.spark.scheduler.DAGScheduler.abortStage(DAGScheduler.scala:1876)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$handleTaskSetFailed$1.apply(DAGScheduler.scala:926)
    at org.apache.spark.scheduler.DAGScheduler$$anonfun$handleTaskSetFailed$1.apply(DAGScheduler.scala:926)
    at scala.Option.foreach(Option.scala:257)
    at org.apache.spark.scheduler.DAGScheduler.handleTaskSetFailed(DAGScheduler.scala:926)
    at org.apache.spark.scheduler.DAGSchedulerEventProcessLoop.doOnReceive(DAGScheduler.scala:2110)
    at org.apache.spark.scheduler.DAGSchedulerEventProcessLoop.onReceive(DAGScheduler.scala:2059)
    at org.apache.spark.scheduler.DAGSchedulerEventProcessLoop.onReceive(DAGScheduler.scala:2048)
    at org.apache.spark.util.EventLoop$$anon$1.run(EventLoop.scala:49)
    at org.apache.spark.scheduler.DAGScheduler.runJob(DAGScheduler.scala:737)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2061)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2082)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2101)
    at org.apache.spark.SparkContext.runJob(SparkContext.scala:2126)
    at org.apache.spark.rdd.RDD$$anonfun$collect$1.apply(RDD.scala:945)
    at org.apache.spark.rdd.RDDOperationScope$.withScope(RDDOperationScope.scala:151)
    at org.apache.spark.rdd.RDDOperationScope$.withScope(RDDOperationScope.scala:112)
    at org.apache.spark.rdd.RDD.withScope(RDD.scala:363)
    at org.apache.spark.rdd.RDD.collect(RDD.scala:944)
    at org.apache.spark.api.python.PythonRDD$.collectAndServe(PythonRDD.scala:166)
    at org.apache.spark.api.python.PythonRDD.collectAndServe(PythonRDD.scala)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
    at java.lang.reflect.Method.invoke(Unknown Source)
    at py4j.reflection.MethodInvoker.invoke(MethodInvoker.java:244)
    at py4j.reflection.ReflectionEngine.invoke(ReflectionEngine.java:357)
    at py4j.Gateway.invoke(Gateway.java:282)
    at py4j.commands.AbstractCommand.invokeMethod(AbstractCommand.java:132)
    at py4j.commands.CallCommand.execute(CallCommand.java:79)
    at py4j.GatewayConnection.run(GatewayConnection.java:238)
    at java.lang.Thread.run(Unknown Source)
Caused by: java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
[Stage 0:>                                                          (0 + 1) / 2]19/12/11 13:13:30 WARN scheduler.TaskSetManager: Lost task 1.3 in stage 0.0 (TID 7, 172.172.172.178, executor 0): TaskKilled (Stage cancelled)

故障报错示例（远程Log）

YARN Executor 连不上 Driver

SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/bigdata/spark-2.4.4-bin-hadoop2.7/jars/slf4j-log4j12-1.7.16.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/bigdata/hadoop-2.7.2/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
19/12/10 13:45:22 INFO util.SignalUtils: Registered signal handler for TERM
19/12/10 13:45:22 INFO util.SignalUtils: Registered signal handler for HUP
19/12/10 13:45:22 INFO util.SignalUtils: Registered signal handler for INT
19/12/10 13:45:22 INFO spark.SecurityManager: Changing view acls to: user1,user2
19/12/10 13:45:22 INFO spark.SecurityManager: Changing modify acls to: user1,user2
19/12/10 13:45:22 INFO spark.SecurityManager: Changing view acls groups to:
19/12/10 13:45:22 INFO spark.SecurityManager: Changing modify acls groups to:
19/12/10 13:45:22 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users  with view permissions: Set(user1, user2); groups with view permissions: Set(); users  with modify permissions: Set(user1, user2); groups with modify permissions: Set()
19/12/10 13:45:23 INFO yarn.ApplicationMaster: Preparing Local resources
19/12/10 13:45:23 INFO yarn.ApplicationMaster: ApplicationAttemptId: appattempt_1575437477213_0132_000002
19/12/10 13:45:23 INFO yarn.YarnRMClient: Registering the ApplicationMaster
19/12/10 13:45:24 ERROR yarn.ApplicationMaster: Uncaught exception:
org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.rpc.RpcTimeout.awaitResult(RpcTimeout.scala:75)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRefByURI(RpcEnv.scala:101)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRef(RpcEnv.scala:109)
    at org.apache.spark.deploy.yarn.ApplicationMaster.runExecutorLauncher(ApplicationMaster.scala:514)
    at org.apache.spark.deploy.yarn.ApplicationMaster.org$apache$spark$deploy$yarn$ApplicationMaster$$runImpl(ApplicationMaster.scala:307)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply$mcV$sp(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anon$3.run(ApplicationMaster.scala:779)
    at java.security.AccessController.doPrivileged(Native Method)
    at javax.security.auth.Subject.doAs(Subject.java:422)
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1698)
    at org.apache.spark.deploy.yarn.ApplicationMaster.doAsUser(ApplicationMaster.scala:778)
    at org.apache.spark.deploy.yarn.ApplicationMaster.run(ApplicationMaster.scala:244)
    at org.apache.spark.deploy.yarn.ApplicationMaster$.main(ApplicationMaster.scala:803)
    at org.apache.spark.deploy.yarn.ExecutorLauncher$.main(ApplicationMaster.scala:833)
    at org.apache.spark.deploy.yarn.ExecutorLauncher.main(ApplicationMaster.scala)
Caused by: java.io.IOException: Failed to connect to /127.0.0.1:5000
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.rpc.netty.NettyRpcEnv.createClient(NettyRpcEnv.scala:198)
    at org.apache.spark.rpc.netty.Outbox$$anon$1.call(Outbox.scala:194)
    at org.apache.spark.rpc.netty.Outbox$$anon$1.call(Outbox.scala:190)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: /127.0.0.1:5000
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    ... 1 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 13:45:24 INFO yarn.ApplicationMaster: Final app status: FAILED, exitCode: 10, (reason: Uncaught exception: org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.rpc.RpcTimeout.awaitResult(RpcTimeout.scala:75)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRefByURI(RpcEnv.scala:101)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRef(RpcEnv.scala:109)
    at org.apache.spark.deploy.yarn.ApplicationMaster.runExecutorLauncher(ApplicationMaster.scala:514)
    at org.apache.spark.deploy.yarn.ApplicationMaster.org$apache$spark$deploy$yarn$ApplicationMaster$$runImpl(ApplicationMaster.scala:307)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply$mcV$sp(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anon$3.run(ApplicationMaster.scala:779)
    at java.security.AccessController.doPrivileged(Native Method)
    at javax.security.auth.Subject.doAs(Subject.java:422)
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1698)
    at org.apache.spark.deploy.yarn.ApplicationMaster.doAsUser(ApplicationMaster.scala:778)
    at org.apache.spark.deploy.yarn.ApplicationMaster.run(ApplicationMaster.scala:244)
    at org.apache.spark.deploy.yarn.ApplicationMaster$.main(ApplicationMaster.scala:803)
    at org.apache.spark.deploy.yarn.ExecutorLauncher$.main(ApplicationMaster.scala:833)
    at org.apache.spark.deploy.yarn.ExecutorLauncher.main(ApplicationMaster.scala)
Caused by: java.io.IOException: Failed to connect to /127.0.0.1:5000
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.rpc.netty.NettyRpcEnv.createClient(NettyRpcEnv.scala:198)
    at org.apache.spark.rpc.netty.Outbox$$anon$1.call(Outbox.scala:194)
    at org.apache.spark.rpc.netty.Outbox$$anon$1.call(Outbox.scala:190)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: /127.0.0.1:5000
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    ... 1 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
)
19/12/10 13:45:24 INFO yarn.ApplicationMaster: Unregistering ApplicationMaster with FAILED (diag message: Uncaught exception: org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.rpc.RpcTimeout.awaitResult(RpcTimeout.scala:75)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRefByURI(RpcEnv.scala:101)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRef(RpcEnv.scala:109)
    at org.apache.spark.deploy.yarn.ApplicationMaster.runExecutorLauncher(ApplicationMaster.scala:514)
    at org.apache.spark.deploy.yarn.ApplicationMaster.org$apache$spark$deploy$yarn$ApplicationMaster$$runImpl(ApplicationMaster.scala:307)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply$mcV$sp(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anon$3.run(ApplicationMaster.scala:779)
    at java.security.AccessController.doPrivileged(Native Method)
    at javax.security.auth.Subject.doAs(Subject.java:422)
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1698)
    at org.apache.spark.deploy.yarn.ApplicationMaster.doAsUser(ApplicationMaster.scala:778)
    at org.apache.spark.deploy.yarn.ApplicationMaster.run(ApplicationMaster.scala:244)
    at org.apache.spark.deploy.yarn.ApplicationMaster$.main(ApplicationMaster.scala:803)
    at org.apache.spark.deploy.yarn.ExecutorLauncher$.main(ApplicationMaster.scala:833)
    at org.apache.spark.deploy.yarn.ExecutorLauncher.main(ApplicationMaster.scala)
Caused by: java.io.IOException: Failed to connect to /127.0.0.1:5000
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.rpc.netty.NettyRpcEnv.createClient(NettyRpcEnv.scala:198)
    at org.apache.spark.rpc.netty.Outbox$$anon$1.call(Outbox.scala:194)
    at org.apache.spark.rpc.netty.Outbox$$anon$1.call(Outbox.scala:190)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: /127.0.0.1:5000
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    ... 1 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
)
19/12/10 13:45:24 INFO impl.AMRMClientImpl: Waiting for application to be successfully unregistered.
19/12/10 13:45:24 INFO yarn.ApplicationMaster: Deleting staging directory hdfs://zkha/tmp/cdarling/.sparkStaging/application_1575437477213_0132
19/12/10 13:45:24 INFO util.ShutdownHookManager: Shutdown hook called

YARN Executor 连不上 BlockManager

SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/bigdata/spark-2.4.4-bin-hadoop2.7/jars/slf4j-log4j12-1.7.16.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/bigdata/hadoop-2.7.2/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
19/12/10 16:35:19 INFO util.SignalUtils: Registered signal handler for TERM
19/12/10 16:35:19 INFO util.SignalUtils: Registered signal handler for HUP
19/12/10 16:35:19 INFO util.SignalUtils: Registered signal handler for INT
19/12/10 16:35:20 INFO spark.SecurityManager: Changing view acls to: user1,user2
19/12/10 16:35:20 INFO spark.SecurityManager: Changing modify acls to: user1,user2
19/12/10 16:35:20 INFO spark.SecurityManager: Changing view acls groups to:
19/12/10 16:35:20 INFO spark.SecurityManager: Changing modify acls groups to:
19/12/10 16:35:20 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users  with view permissions: Set(user1, user2); groups with view permissions: Set(); users  with modify permissions: Set(user1, user2); groups with modify permissions: Set()
19/12/10 16:35:20 INFO yarn.ApplicationMaster: Preparing Local resources
19/12/10 16:35:21 INFO yarn.ApplicationMaster: ApplicationAttemptId: appattempt_1575437477213_0141_000002
19/12/10 16:35:21 INFO yarn.YarnRMClient: Registering the ApplicationMaster
19/12/10 16:35:21 INFO client.TransportClientFactory: Successfully created connection to edgenode/172.172.172.172:5050 after 69 ms (0 ms spent in bootstraps)
19/12/10 16:35:22 WARN server.TransportChannelHandler: Exception in connection from edgenode/172.172.172.172:5050
java.io.IOException: Connection reset by peer
    at sun.nio.ch.FileDispatcherImpl.read0(Native Method)
    at sun.nio.ch.SocketDispatcher.read(SocketDispatcher.java:39)
    at sun.nio.ch.IOUtil.readIntoNativeBuffer(IOUtil.java:223)
    at sun.nio.ch.IOUtil.read(IOUtil.java:192)
    at sun.nio.ch.SocketChannelImpl.read(SocketChannelImpl.java:380)
    at io.netty.buffer.PooledUnsafeDirectByteBuf.setBytes(PooledUnsafeDirectByteBuf.java:288)
    at io.netty.buffer.AbstractByteBuf.writeBytes(AbstractByteBuf.java:1106)
    at io.netty.channel.socket.nio.NioSocketChannel.doReadBytes(NioSocketChannel.java:343)
    at io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:123)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:645)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
19/12/10 16:35:22 ERROR client.TransportResponseHandler: Still have 1 requests outstanding when connection from edgenode/172.172.172.172:5050 is closed
19/12/10 16:35:22 ERROR yarn.ApplicationMaster: Uncaught exception:
org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.rpc.RpcTimeout.awaitResult(RpcTimeout.scala:75)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRefByURI(RpcEnv.scala:101)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRef(RpcEnv.scala:109)
    at org.apache.spark.deploy.yarn.ApplicationMaster.runExecutorLauncher(ApplicationMaster.scala:514)
    at org.apache.spark.deploy.yarn.ApplicationMaster.org$apache$spark$deploy$yarn$ApplicationMaster$$runImpl(ApplicationMaster.scala:307)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply$mcV$sp(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anon$3.run(ApplicationMaster.scala:779)
    at java.security.AccessController.doPrivileged(Native Method)
    at javax.security.auth.Subject.doAs(Subject.java:422)
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1698)
    at org.apache.spark.deploy.yarn.ApplicationMaster.doAsUser(ApplicationMaster.scala:778)
    at org.apache.spark.deploy.yarn.ApplicationMaster.run(ApplicationMaster.scala:244)
    at org.apache.spark.deploy.yarn.ApplicationMaster$.main(ApplicationMaster.scala:803)
    at org.apache.spark.deploy.yarn.ExecutorLauncher$.main(ApplicationMaster.scala:833)
    at org.apache.spark.deploy.yarn.ExecutorLauncher.main(ApplicationMaster.scala)
Caused by: java.io.IOException: Connection reset by peer
    at sun.nio.ch.FileDispatcherImpl.read0(Native Method)
    at sun.nio.ch.SocketDispatcher.read(SocketDispatcher.java:39)
    at sun.nio.ch.IOUtil.readIntoNativeBuffer(IOUtil.java:223)
    at sun.nio.ch.IOUtil.read(IOUtil.java:192)
    at sun.nio.ch.SocketChannelImpl.read(SocketChannelImpl.java:380)
    at io.netty.buffer.PooledUnsafeDirectByteBuf.setBytes(PooledUnsafeDirectByteBuf.java:288)
    at io.netty.buffer.AbstractByteBuf.writeBytes(AbstractByteBuf.java:1106)
    at io.netty.channel.socket.nio.NioSocketChannel.doReadBytes(NioSocketChannel.java:343)
    at io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:123)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:645)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
19/12/10 16:35:22 INFO yarn.ApplicationMaster: Final app status: FAILED, exitCode: 10, (reason: Uncaught exception: org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.rpc.RpcTimeout.awaitResult(RpcTimeout.scala:75)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRefByURI(RpcEnv.scala:101)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRef(RpcEnv.scala:109)
    at org.apache.spark.deploy.yarn.ApplicationMaster.runExecutorLauncher(ApplicationMaster.scala:514)
    at org.apache.spark.deploy.yarn.ApplicationMaster.org$apache$spark$deploy$yarn$ApplicationMaster$$runImpl(ApplicationMaster.scala:307)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply$mcV$sp(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anon$3.run(ApplicationMaster.scala:779)
    at java.security.AccessController.doPrivileged(Native Method)
    at javax.security.auth.Subject.doAs(Subject.java:422)
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1698)
    at org.apache.spark.deploy.yarn.ApplicationMaster.doAsUser(ApplicationMaster.scala:778)
    at org.apache.spark.deploy.yarn.ApplicationMaster.run(ApplicationMaster.scala:244)
    at org.apache.spark.deploy.yarn.ApplicationMaster$.main(ApplicationMaster.scala:803)
    at org.apache.spark.deploy.yarn.ExecutorLauncher$.main(ApplicationMaster.scala:833)
    at org.apache.spark.deploy.yarn.ExecutorLauncher.main(ApplicationMaster.scala)
Caused by: java.io.IOException: Connection reset by peer
    at sun.nio.ch.FileDispatcherImpl.read0(Native Method)
    at sun.nio.ch.SocketDispatcher.read(SocketDispatcher.java:39)
    at sun.nio.ch.IOUtil.readIntoNativeBuffer(IOUtil.java:223)
    at sun.nio.ch.IOUtil.read(IOUtil.java:192)
    at sun.nio.ch.SocketChannelImpl.read(SocketChannelImpl.java:380)
    at io.netty.buffer.PooledUnsafeDirectByteBuf.setBytes(PooledUnsafeDirectByteBuf.java:288)
    at io.netty.buffer.AbstractByteBuf.writeBytes(AbstractByteBuf.java:1106)
    at io.netty.channel.socket.nio.NioSocketChannel.doReadBytes(NioSocketChannel.java:343)
    at io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:123)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:645)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
)
19/12/10 16:35:23 INFO yarn.ApplicationMaster: Unregistering ApplicationMaster with FAILED (diag message: Uncaught exception: org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.rpc.RpcTimeout.awaitResult(RpcTimeout.scala:75)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRefByURI(RpcEnv.scala:101)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRef(RpcEnv.scala:109)
    at org.apache.spark.deploy.yarn.ApplicationMaster.runExecutorLauncher(ApplicationMaster.scala:514)
    at org.apache.spark.deploy.yarn.ApplicationMaster.org$apache$spark$deploy$yarn$ApplicationMaster$$runImpl(ApplicationMaster.scala:307)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply$mcV$sp(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anonfun$run$1.apply(ApplicationMaster.scala:245)
    at org.apache.spark.deploy.yarn.ApplicationMaster$$anon$3.run(ApplicationMaster.scala:779)
    at java.security.AccessController.doPrivileged(Native Method)
    at javax.security.auth.Subject.doAs(Subject.java:422)
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1698)
    at org.apache.spark.deploy.yarn.ApplicationMaster.doAsUser(ApplicationMaster.scala:778)
    at org.apache.spark.deploy.yarn.ApplicationMaster.run(ApplicationMaster.scala:244)
    at org.apache.spark.deploy.yarn.ApplicationMaster$.main(ApplicationMaster.scala:803)
    at org.apache.spark.deploy.yarn.ExecutorLauncher$.main(ApplicationMaster.scala:833)
    at org.apache.spark.deploy.yarn.ExecutorLauncher.main(ApplicationMaster.scala)
Caused by: java.io.IOException: Connection reset by peer
    at sun.nio.ch.FileDispatcherImpl.read0(Native Method)
    at sun.nio.ch.SocketDispatcher.read(SocketDispatcher.java:39)
    at sun.nio.ch.IOUtil.readIntoNativeBuffer(IOUtil.java:223)
    at sun.nio.ch.IOUtil.read(IOUtil.java:192)
    at sun.nio.ch.SocketChannelImpl.read(SocketChannelImpl.java:380)
    at io.netty.buffer.PooledUnsafeDirectByteBuf.setBytes(PooledUnsafeDirectByteBuf.java:288)
    at io.netty.buffer.AbstractByteBuf.writeBytes(AbstractByteBuf.java:1106)
    at io.netty.channel.socket.nio.NioSocketChannel.doReadBytes(NioSocketChannel.java:343)
    at io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:123)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:645)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
)
19/12/10 16:35:23 INFO impl.AMRMClientImpl: Waiting for application to be successfully unregistered.
19/12/10 16:35:23 INFO impl.AMRMClientImpl: Waiting for application to be successfully unregistered.
19/12/10 16:35:23 INFO yarn.ApplicationMaster: Deleting staging directory hdfs://zkha/tmp/cdarling/.sparkStaging/application_1575437477213_0141
19/12/10 16:35:23 INFO util.ShutdownHookManager: Shutdown hook called

Spark Executor 连不上 Driver

Spark Worker 会有很多，不停关闭旧的，重启新的，打开其中一个可以看到如下内容

Spark Executor Command: "/opt/bigdata/jdk1.8.0_151/bin/java" "-cp" "/opt/bigdata/spark-2.4.4-bin-hadoop2.7/conf/:/opt/bigdata/spark-2.4.4-bin-hadoop2.7/jars/*:/opt/bigdata/hadoop-2.7.2/etc/hadoop/" "-Xmx1024M" "-Dspark.driver.port=5000" "org.apache.spark.executor.CoarseGrainedExecutorBackend" "--driver-url" "spark://CoarseGrainedScheduler@127.0.0.1:5000" "--executor-id" "42" "--hostname" "172.172.172.178" "--cores" "4" "--app-id" "app-20191210134321-0010" "--worker-url" "spark://Worker@172.172.172.178:8080"
========================================

19/12/10 13:43:27 INFO executor.CoarseGrainedExecutorBackend: Started daemon with process name: 4705@clusternode6
19/12/10 13:43:27 INFO util.SignalUtils: Registered signal handler for TERM
19/12/10 13:43:27 INFO util.SignalUtils: Registered signal handler for HUP
19/12/10 13:43:27 INFO util.SignalUtils: Registered signal handler for INT
19/12/10 13:43:28 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
19/12/10 13:43:28 INFO spark.SecurityManager: Changing view acls to: user1,user2
19/12/10 13:43:28 INFO spark.SecurityManager: Changing modify acls to: user1,user2
19/12/10 13:43:28 INFO spark.SecurityManager: Changing view acls groups to:
19/12/10 13:43:28 INFO spark.SecurityManager: Changing modify acls groups to:
19/12/10 13:43:28 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users  with view permissions: Set(user1, user2); groups with view permissions: Set(); users  with modify permissions: Set(user1, user2); groups with modify permissions: Set()
Exception in thread "main" java.lang.reflect.UndeclaredThrowableException
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1713)
    at org.apache.spark.deploy.SparkHadoopUtil.runAsSparkUser(SparkHadoopUtil.scala:64)
    at org.apache.spark.executor.CoarseGrainedExecutorBackend$.run(CoarseGrainedExecutorBackend.scala:188)
    at org.apache.spark.executor.CoarseGrainedExecutorBackend$.main(CoarseGrainedExecutorBackend.scala:281)
    at org.apache.spark.executor.CoarseGrainedExecutorBackend.main(CoarseGrainedExecutorBackend.scala)
Caused by: org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.rpc.RpcTimeout.awaitResult(RpcTimeout.scala:75)
    at org.apache.spark.rpc.RpcEnv.setupEndpointRefByURI(RpcEnv.scala:101)
    at org.apache.spark.executor.CoarseGrainedExecutorBackend$$anonfun$run$1.apply$mcV$sp(CoarseGrainedExecutorBackend.scala:201)
    at org.apache.spark.deploy.SparkHadoopUtil$$anon$2.run(SparkHadoopUtil.scala:65)
    at org.apache.spark.deploy.SparkHadoopUtil$$anon$2.run(SparkHadoopUtil.scala:64)
    at java.security.AccessController.doPrivileged(Native Method)
    at javax.security.auth.Subject.doAs(Subject.java:422)
    at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1698)
    ... 4 more
Caused by: java.io.IOException: Failed to connect to /127.0.0.1:5000
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.rpc.netty.NettyRpcEnv.createClient(NettyRpcEnv.scala:198)
    at org.apache.spark.rpc.netty.Outbox$$anon$1.call(Outbox.scala:194)
    at org.apache.spark.rpc.netty.Outbox$$anon$1.call(Outbox.scala:190)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: /127.0.0.1:5000
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    ... 1 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more

Spark Executor 连不上 BlockManager

Spark Worker 正常如数启动，但有 stderr

Spark Executor Command: "/opt/bigdata/jdk1.8.0_151/bin/java" "-cp" "/opt/bigdata/spark-2.4.4-bin-hadoop2.7/conf/:/opt/bigdata/spark-2.4.4-bin-hadoop2.7/jars/*:/opt/bigdata/hadoop-2.7.2/etc/hadoop/" "-Xmx1024M" "-Dspark.driver.port=5050" "org.apache.spark.executor.CoarseGrainedExecutorBackend" "--driver-url" "spark://CoarseGrainedScheduler@edgenode:5050" "--executor-id" "4" "--hostname" "172.172.172.175" "--cores" "4" "--app-id" "app-20191210143937-0012" "--worker-url" "spark://Worker@172.172.172.175:8080"
========================================

19/12/10 14:39:37 INFO executor.CoarseGrainedExecutorBackend: Started daemon with process name: 18192@clusternode3
19/12/10 14:39:37 INFO util.SignalUtils: Registered signal handler for TERM
19/12/10 14:39:37 INFO util.SignalUtils: Registered signal handler for HUP
19/12/10 14:39:37 INFO util.SignalUtils: Registered signal handler for INT
19/12/10 14:39:38 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
19/12/10 14:39:38 INFO spark.SecurityManager: Changing view acls to: user1,user2
19/12/10 14:39:38 INFO spark.SecurityManager: Changing modify acls to: user1,user2
19/12/10 14:39:38 INFO spark.SecurityManager: Changing view acls groups to:
19/12/10 14:39:38 INFO spark.SecurityManager: Changing modify acls groups to:
19/12/10 14:39:38 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users  with view permissions: Set(user1, user2); groups with view permissions: Set(); users  with modify permissions: Set(user1, user2); groups with modify permissions: Set()
19/12/10 14:39:38 INFO client.TransportClientFactory: Successfully created connection to edgenode/172.172.172.172:5050 after 79 ms (0 ms spent in bootstraps)
19/12/10 14:39:38 INFO spark.SecurityManager: Changing view acls to: user1,user2
19/12/10 14:39:38 INFO spark.SecurityManager: Changing modify acls to: user1,user2
19/12/10 14:39:38 INFO spark.SecurityManager: Changing view acls groups to:
19/12/10 14:39:38 INFO spark.SecurityManager: Changing modify acls groups to:
19/12/10 14:39:38 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users  with view permissions: Set(user1, user2); groups with view permissions: Set(); users  with modify permissions: Set(user1, user2); groups with modify permissions: Set()
19/12/10 14:39:38 INFO client.TransportClientFactory: Successfully created connection to edgenode/172.172.172.172:5050 after 1 ms (0 ms spent in bootstraps)
19/12/10 14:39:39 INFO storage.DiskBlockManager: Created local directory at /tmp/spark-05e37637-c0ea-4b3c-87f9-58a45a1a2199/executor-4e046e1b-c0b5-47a1-a98e-780aaa307d6a/blockmgr-adf7a41e-5dbf-4bc6-ba6b-d96c46288a59
19/12/10 14:39:39 INFO memory.MemoryStore: MemoryStore started with capacity 366.3 MB
19/12/10 14:39:39 INFO executor.CoarseGrainedExecutorBackend: Connecting to driver: spark://CoarseGrainedScheduler@edgenode:5050
19/12/10 14:39:39 INFO worker.WorkerWatcher: Connecting to worker spark://Worker@172.172.172.175:8080
19/12/10 14:39:39 INFO client.TransportClientFactory: Successfully created connection to /172.172.172.175:8080 after 1 ms (0 ms spent in bootstraps)
19/12/10 14:39:39 INFO worker.WorkerWatcher: Successfully connected to spark://Worker@172.172.172.175:8080
19/12/10 14:39:39 INFO executor.CoarseGrainedExecutorBackend: Successfully registered with driver
19/12/10 14:39:39 INFO executor.Executor: Starting executor ID 4 on host 172.172.172.175
19/12/10 14:39:39 INFO util.Utils: Successfully started service 'org.apache.spark.network.netty.NettyBlockTransferService' on port 36353.
19/12/10 14:39:39 INFO netty.NettyBlockTransferService: Server created on 172.172.172.175:36353
19/12/10 14:39:39 INFO storage.BlockManager: Using org.apache.spark.storage.RandomBlockReplicationPolicy for block replication policy
19/12/10 14:39:39 INFO storage.BlockManagerMaster: Registering BlockManager BlockManagerId(4, 172.172.172.175, 36353, None)
19/12/10 14:39:39 INFO storage.BlockManagerMaster: Registered BlockManager BlockManagerId(4, 172.172.172.175, 36353, None)
19/12/10 14:39:39 INFO storage.BlockManager: Initialized BlockManager: BlockManagerId(4, 172.172.172.175, 36353, None)
19/12/10 14:39:39 INFO executor.CoarseGrainedExecutorBackend: Got assigned task 0
19/12/10 14:39:39 INFO executor.CoarseGrainedExecutorBackend: Got assigned task 1
19/12/10 14:39:39 INFO executor.Executor: Running task 1.0 in stage 0.0 (TID 1)
19/12/10 14:39:39 INFO executor.Executor: Running task 0.0 in stage 0.0 (TID 0)
19/12/10 14:39:39 INFO broadcast.TorrentBroadcast: Started reading broadcast variable 0
19/12/10 14:39:39 ERROR shuffle.RetryingBlockFetcher: Exception while beginning fetch of 1 outstanding blocks
java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.start(RetryingBlockFetcher.java:121)
    at org.apache.spark.network.netty.NettyBlockTransferService.fetchBlocks(NettyBlockTransferService.scala:124)
    at org.apache.spark.network.BlockTransferService.fetchBlockSync(BlockTransferService.scala:98)
    at org.apache.spark.storage.BlockManager.getRemoteBytes(BlockManager.scala:757)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:162)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    ... 1 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:39:39 INFO shuffle.RetryingBlockFetcher: Retrying fetch (1/3) for 1 outstanding blocks after 5000 ms
19/12/10 14:39:44 ERROR shuffle.RetryingBlockFetcher: Exception while beginning fetch of 1 outstanding blocks (after 1 retries)
java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.lambda$initiateRetry$0(RetryingBlockFetcher.java:169)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    ... 2 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:39:44 INFO shuffle.RetryingBlockFetcher: Retrying fetch (2/3) for 1 outstanding blocks after 5000 ms
19/12/10 14:39:49 ERROR shuffle.RetryingBlockFetcher: Exception while beginning fetch of 1 outstanding blocks (after 2 retries)
java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.lambda$initiateRetry$0(RetryingBlockFetcher.java:169)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    ... 2 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:39:49 INFO shuffle.RetryingBlockFetcher: Retrying fetch (3/3) for 1 outstanding blocks after 5000 ms
19/12/10 14:39:54 ERROR shuffle.RetryingBlockFetcher: Exception while beginning fetch of 1 outstanding blocks (after 3 retries)
java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.lambda$initiateRetry$0(RetryingBlockFetcher.java:169)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    ... 2 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:39:54 WARN storage.BlockManager: Failed to fetch block after 1 fetch failures. Most recent failure cause:
org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.network.BlockTransferService.fetchBlockSync(BlockTransferService.scala:121)
    at org.apache.spark.storage.BlockManager.getRemoteBytes(BlockManager.scala:757)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:162)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.lambda$initiateRetry$0(RetryingBlockFetcher.java:169)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    ... 1 more
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    ... 2 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:39:54 INFO broadcast.TorrentBroadcast: Started reading broadcast variable 0
19/12/10 14:39:54 ERROR util.Utils: Exception encountered
org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
19/12/10 14:39:54 ERROR executor.Executor: Exception in task 1.0 in stage 0.0 (TID 1)
java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
19/12/10 14:39:55 ERROR shuffle.RetryingBlockFetcher: Exception while beginning fetch of 1 outstanding blocks
java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.start(RetryingBlockFetcher.java:121)
    at org.apache.spark.network.netty.NettyBlockTransferService.fetchBlocks(NettyBlockTransferService.scala:124)
    at org.apache.spark.network.BlockTransferService.fetchBlockSync(BlockTransferService.scala:98)
    at org.apache.spark.storage.BlockManager.getRemoteBytes(BlockManager.scala:757)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:162)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    ... 1 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:39:55 INFO shuffle.RetryingBlockFetcher: Retrying fetch (1/3) for 1 outstanding blocks after 5000 ms
19/12/10 14:40:00 ERROR shuffle.RetryingBlockFetcher: Exception while beginning fetch of 1 outstanding blocks (after 1 retries)
java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.lambda$initiateRetry$0(RetryingBlockFetcher.java:169)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    ... 2 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:40:00 INFO shuffle.RetryingBlockFetcher: Retrying fetch (2/3) for 1 outstanding blocks after 5000 ms
19/12/10 14:40:05 ERROR shuffle.RetryingBlockFetcher: Exception while beginning fetch of 1 outstanding blocks (after 2 retries)
java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.lambda$initiateRetry$0(RetryingBlockFetcher.java:169)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    ... 2 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:40:05 INFO shuffle.RetryingBlockFetcher: Retrying fetch (3/3) for 1 outstanding blocks after 5000 ms
19/12/10 14:40:10 ERROR shuffle.RetryingBlockFetcher: Exception while beginning fetch of 1 outstanding blocks (after 3 retries)
java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.lambda$initiateRetry$0(RetryingBlockFetcher.java:169)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    at java.lang.Thread.run(Thread.java:748)
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    ... 2 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:40:10 WARN storage.BlockManager: Failed to fetch block after 1 fetch failures. Most recent failure cause:
org.apache.spark.SparkException: Exception thrown in awaitResult:
    at org.apache.spark.util.ThreadUtils$.awaitResult(ThreadUtils.scala:226)
    at org.apache.spark.network.BlockTransferService.fetchBlockSync(BlockTransferService.scala:121)
    at org.apache.spark.storage.BlockManager.getRemoteBytes(BlockManager.scala:757)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:162)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: java.io.IOException: Failed to connect to edgenode/172.172.172.172:51159
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:245)
    at org.apache.spark.network.client.TransportClientFactory.createClient(TransportClientFactory.java:187)
    at org.apache.spark.network.netty.NettyBlockTransferService$$anon$2.createAndStart(NettyBlockTransferService.scala:114)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.fetchAllOutstanding(RetryingBlockFetcher.java:141)
    at org.apache.spark.network.shuffle.RetryingBlockFetcher.lambda$initiateRetry$0(RetryingBlockFetcher.java:169)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at io.netty.util.concurrent.DefaultThreadFactory$DefaultRunnableDecorator.run(DefaultThreadFactory.java:138)
    ... 1 more
Caused by: io.netty.channel.AbstractChannel$AnnotatedConnectException: Connection refused: edgenode/172.172.172.172:51159
    at sun.nio.ch.SocketChannelImpl.checkConnect(Native Method)
    at sun.nio.ch.SocketChannelImpl.finishConnect(SocketChannelImpl.java:717)
    at io.netty.channel.socket.nio.NioSocketChannel.doFinishConnect(NioSocketChannel.java:323)
    at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe.finishConnect(AbstractNioChannel.java:340)
    at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:633)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:580)
    at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:497)
    at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:459)
    at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:858)
    ... 2 more
Caused by: java.net.ConnectException: Connection refused
    ... 11 more
19/12/10 14:40:10 ERROR util.Utils: Exception encountered
org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
19/12/10 14:40:10 ERROR executor.Executor: Exception in task 0.0 in stage 0.0 (TID 0)
java.io.IOException: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1333)
    at org.apache.spark.broadcast.TorrentBroadcast.readBroadcastBlock(TorrentBroadcast.scala:207)
    at org.apache.spark.broadcast.TorrentBroadcast._value$lzycompute(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast._value(TorrentBroadcast.scala:66)
    at org.apache.spark.broadcast.TorrentBroadcast.getValue(TorrentBroadcast.scala:96)
    at org.apache.spark.broadcast.Broadcast.value(Broadcast.scala:70)
    at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:84)
    at org.apache.spark.scheduler.Task.run(Task.scala:123)
    at org.apache.spark.executor.Executor$TaskRunner$$anonfun$10.apply(Executor.scala:408)
    at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1360)
    at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:414)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.spark.SparkException: Failed to get broadcast_0_piece0 of broadcast_0
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply$mcVI$sp(TorrentBroadcast.scala:179)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$org$apache$spark$broadcast$TorrentBroadcast$$readBlocks$1.apply(TorrentBroadcast.scala:151)
    at scala.collection.immutable.List.foreach(List.scala:392)
    at org.apache.spark.broadcast.TorrentBroadcast.org$apache$spark$broadcast$TorrentBroadcast$$readBlocks(TorrentBroadcast.scala:151)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1$$anonfun$apply$2.apply(TorrentBroadcast.scala:231)
    at scala.Option.getOrElse(Option.scala:121)
    at org.apache.spark.broadcast.TorrentBroadcast$$anonfun$readBroadcastBlock$1.apply(TorrentBroadcast.scala:211)
    at org.apache.spark.util.Utils$.tryOrIOException(Utils.scala:1326)
    ... 13 more
19/12/10 14:40:40 INFO executor.CoarseGrainedExecutorBackend: Driver commanded a shutdown
19/12/10 14:40:40 ERROR executor.CoarseGrainedExecutorBackend: RECEIVED SIGNAL TERM
tdown

参考链接和阅读材料

1 SSH Double Proxy，ssh -g

2 SSH Remote Gateway Port Forwarding Configuration
3 SSH Reverse Port Tunnelling Configure by User，针对用户配置 gatewayport 权限
4 A simple TCP redirector in python
5 Flask官网例子
6 跨内外网远程操作Spark，远程端口只绑定到了本机
7 Spark Networking Configurations，官网配置说明
8 Spark Security: Configuring Ports，官网，端口号和功能说明
9 Configuring networking for Apache Spark，IBM，Spark 的通信及使用的端口示意
10 Difference of spark.driver.host spark.driver.port spark.bindAddress，我的回答
11 How to configure Apache Spark random worker ports for tight firewalls?，各种端口的建议
12 How to expose Spark Driver behind dockerized Apache Zeppelin?，以 Zeppelin 为例讲解 Spark 组件关系
