一、为什么要有转发
首先要了解跨域问题,此处不进行展开,总之 fate 框架不方便改且前端直接访问会产生跨域问题,所以写了一个中间件进行转发,服务之间的访问不会产生跨域,此外前端是部署在这个spring boot转发服务上的也不会产生跨域。
二、拿到一个 fate 的接口如何编写转发函数

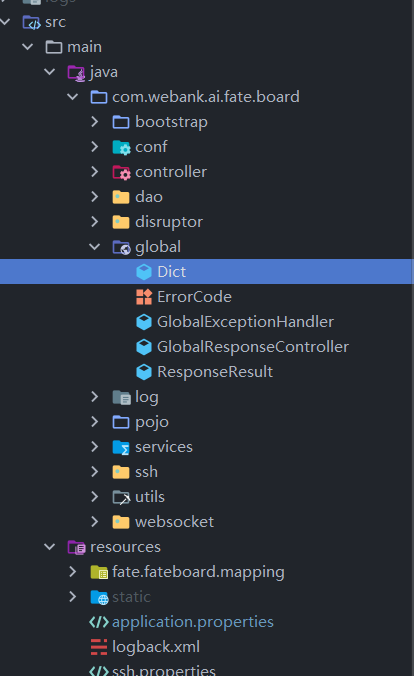

通常是在这个文件中添加新接口
1.附带文件时,application-context为multipart,前端通过new FormData()来作为data
@RequestMapping(value = "/predict/batch", method = RequestMethod.POST)
@ResponseBody
public ResponseResult getPredictBatch(
@RequestPart(value = "service_id") String service_id,
@RequestPart(value = "file") MultipartFile file,
@RequestPart(value = "name") String name,
@RequestPart(value = "context") String context,
BindingResult bindingResult) {
if (bindingResult.hasErrors()) {
FieldError errors = bindingResult.getFieldError();
return new ResponseResult<>(ErrorCode.ERROR_PARAMETER, errors.getDefaultMessage());
}
MultiValueMap<String, Object> map = new LinkedMultiValueMap<>();
map.add("file", new FileSystemResource(convert(file)));
map.add("service_id", service_id);
map.add("context", context);
map.add("name", name);
HttpHeaders headers = new HttpHeaders();
headers.setContentType(MediaType.MULTIPART_FORM_DATA);
HttpEntity<MultiValueMap<String, Object>> request =
new HttpEntity<MultiValueMap<String, Object>>(map, headers);
Map map1;
try {
map1 = restTemplate.postForObject(fateUrl + Dict.URL_PREDICT_BATCH, request, Map.class);
} catch (Exception e) {
logger.error("connect fateflow error:", e);
return new ResponseResult<>(ErrorCode.FATEFLOW_ERROR_CONNECTION, null);
}
if (!map1.get("retcode").equals(0)) {
return new ResponseResult(ErrorCode.SERVLET_ERROR, map1);
}
return new ResponseResult<>(ErrorCode.SUCCESS, map1);
}
类似于此接口,只需要把所有请求到的参数写到函数的参数中去
封装请求的参数和Header(文件需要通过convert函数转成File格式)
然后通过 RestTemplate(SpringBoot封装的网络请求工具)进行转发
2.不附带文件,直接把参数放在axios请求的的data中
@RequestMapping(value = "/preprocess/data/cluster_data", method = RequestMethod.POST)
@ResponseBody
public ResponseResult postPreprocessClusterData(@RequestBody DataGetDTO dataGetDTO) {
String result;
try {
result =
httpClientPool.post(
fateUrl + Dict.PREPROCESS_CLUSTER_DATA, JSON.toJSONString(dataGetDTO));
} catch (Exception e) {
logger.error("connect fateflow error:", e);
return new ResponseResult<>(ErrorCode.FATEFLOW_ERROR_CONNECTION);
}
return ResponseUtil.buildResponse(result, null);
}
代码格式固定,只需要自定义一个DTO文件作为参数即可,需要加get和set、构造函数等方法
public class DataGetDTO implements Serializable {
private String file_path;
private String[] feature;
private String y_feat;
private String y_feature;
private String[] x_feat;
private int n;
....
}
这里如果参数是一个对象(前端概念中的对象,这里指json格式),类型设置为 JSONObject

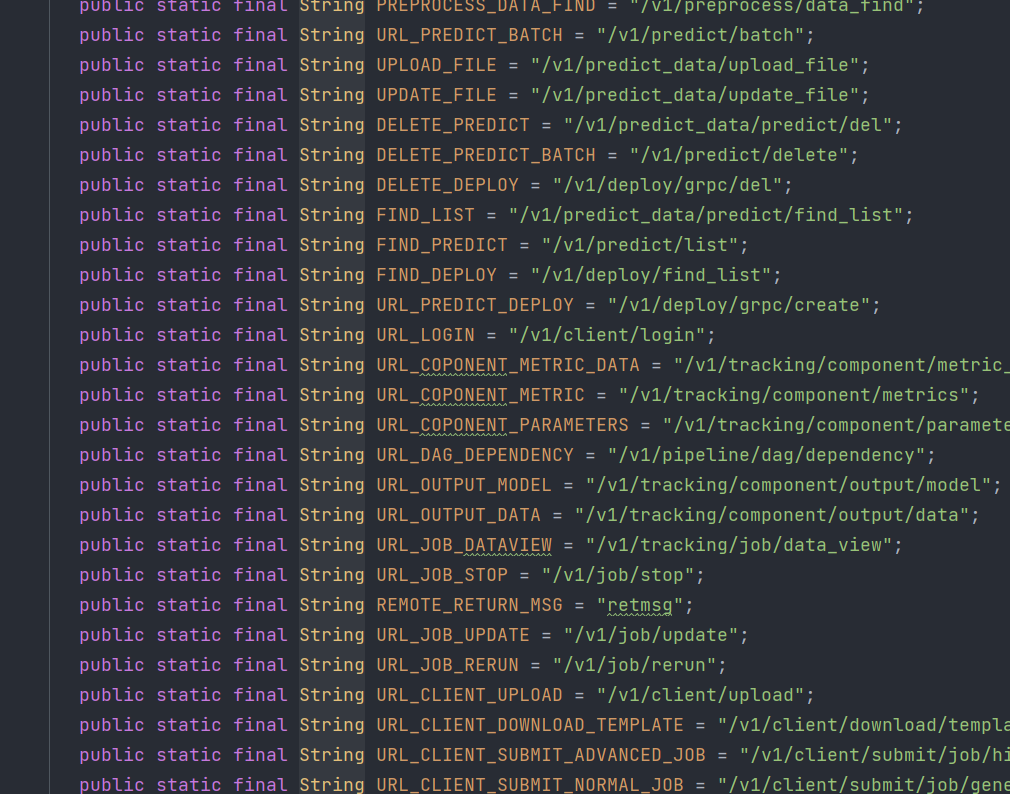

3.转发的路径和请求的路径需要保持一致,要在DICT文件中配置
三、关于访问路径

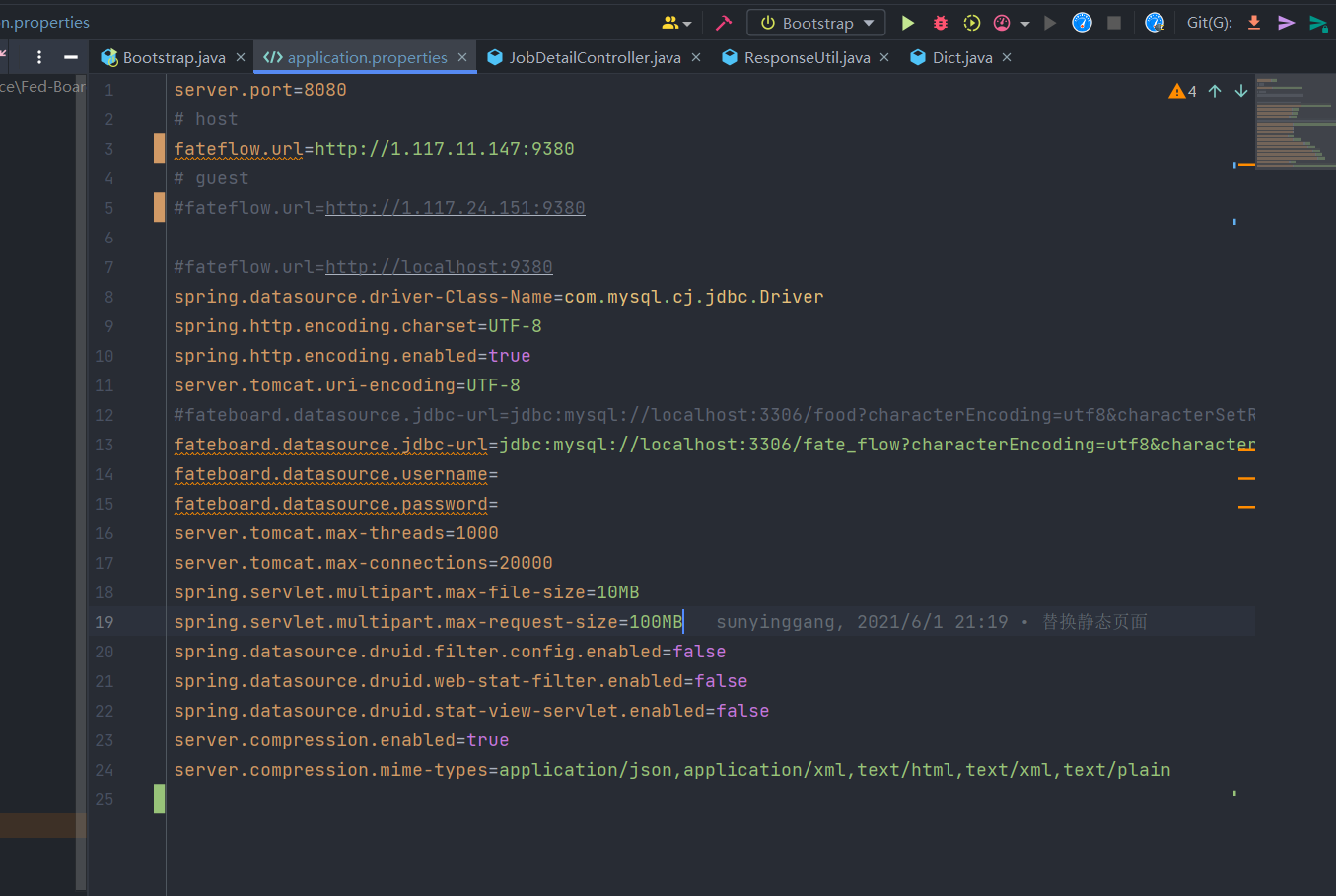

在application.yml中进行配置
正式上线后需要打开第三个注解(严格来说需要写三个配置文件,然后配置参数决定使用哪个配置文件,此处是为了方便开发)
