Background (Why)

Processor has to handle events (i.e. interrupts) reported from devices and other processors. Interrupt Controller (such as GICV3, APIC) is necessary infrastructure for the processor.

GICv3v4 Overview (What)

• A Generic Interrupt Controller (GIC) takes interrupts from peripherals, prioritizes them, and delivers them to the appropriate processor core.
• The GIC is the standard interrupt controller for Arm Cortex-A and Arm Cortex-R profile processors. The GIC provides a flexible and scalable approach to interrupt management, supporting systems with a single core to large multi-chip designs with hundreds of cores.
• Interrupt Types
• Interrupt State Machine
• Timer Interrupts
• Security Model
• Programmer Model
• Prioritization (TBD)
• Affinity routing (TBD)

• Directly Injecting (TBD)

  Interrupt Types and Signaling Path

• IRQ stands for Interrupt ReQuest

• FIQ stands for Fast Interrupt reQuest

Interrupt State Machine (How)

• Inactive

Interrupt source is not currently asserted.

• Pending

Interrupt source has been asserted, but the interrupt has not yet been acknowledged by a PE.

• Active

Interrupt source has been asserted, and the interrupt has been acknowledged by a PE.

• Active and Pending

An instance of the interrupt has been acknowledged, and another instance is now pending.

Time Interrupts (How)

Security Model (How)

• The Arm GICv3 architecture supports Arm TrustZone technology. Each INTID must be assigned a group and security setting by software.
• GICv3 supports three combinations of settings, as you can see in the following table
• Use of TrustZone is OPTIONAL. This means that you can configure your implementation to have either a single Security state or two Security states. Typically, this means that the GIC will support two Security states when connected to Arm Cortex-A profile processors and one Security state when connected to Arm Cortex- R profile processors.

Programmer Model (How)

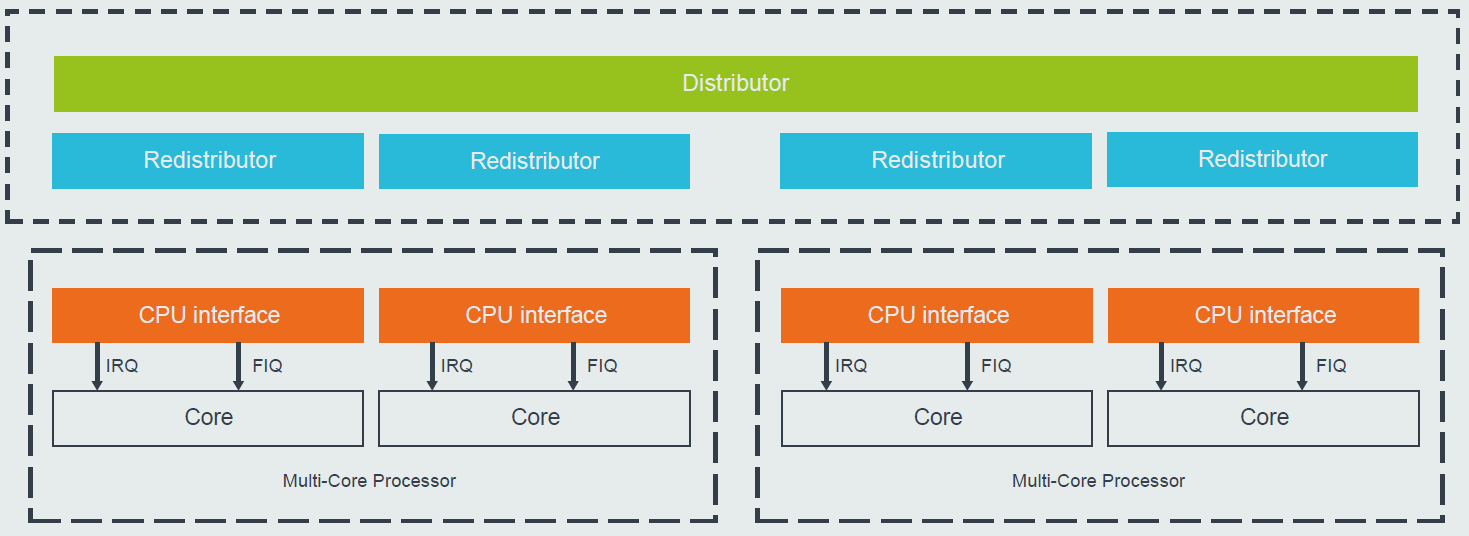

Register Interface

• Distributor interface

The Distributor registers are memory-mapped and used to configure SPIs.

• Redistributor interface

There is one Redistributor per connected core. It is used to configure SGIs & PPIs.

• CPU interface

Each core contains a CPU interface, which are system registers that are used during interrupt handling.

CPU Interface for Virtualization

• Software executing in a virtualizaed environment uses the ICV*_EL1 registers to handle interrupts. These registers have the same format and function as the ICC*_EL1 registers.
• At EL2, EL3 and Secure EL1, the ICC registers are always accessed. At Non-secure EL1, whether the ICC or the ICV registers are accessed is determined by the routing bits in HCR_EL2. When HCR_EL2.IMO==1 or HCR_EL2.FMO==1, ICV registers, instead of ICC registers, are accessed at Non-secure EL1.
