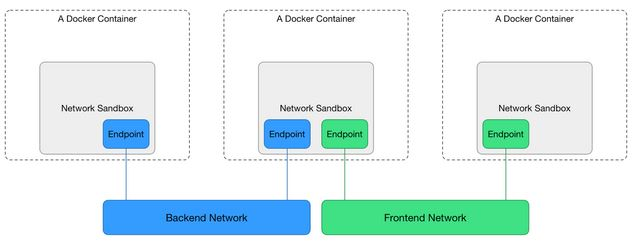

Design


  • Sandbox: 协议栈，可包含多个 Endpoint，可通过 Namespace、Jail 等实现
  • Endpoint: 将 Sandbox 与 Network 连接
  • Network: 可直接通信的 Endpoint 的集合，可使用 Bridge、VLAN 等实现


Docker Architecture

docker-network-arch.svg

Network Controller

docker-network-network-controller.svg

Initialize Network Controllers

Docker Daemon 管理可用的 NetworkController。在启动 Daemon 时，会创建当前操作系统下全部可用的 NetworkController，以 daemon_unix.go 为例，创建了 none、host、bridge 三种模式的网络控制器。

  1. func (daemon *Daemon) initNetworkController(config *config.Config, activeSandboxes map[string]interface{}) (libnetwork.NetworkController, error) {
  2.     netOptions, err := daemon.networkOptions(config, daemon.PluginStore, activeSandboxes)
  3.     if err != nil {
  4.         return nil, err
  5.     }
  7.     controller, err := libnetwork.New(netOptions...)
  8.     if err != nil {
  9.         return nil, fmt.Errorf("error obtaining controller instance: %v", err)
  10.     }
  12.     if len(activeSandboxes) > 0 {
  13.         logrus.Info("There are old running containers, the network config will not take affect")
  14.         return controller, nil
  15.     }
  17.     // Initialize default network on "null"
  18.     if n, _ := controller.NetworkByName("none"); n == nil {
  19.         if _, err := controller.NewNetwork("null", "none", "", libnetwork.NetworkOptionPersist(true)); err != nil {
  20.             return nil, fmt.Errorf("Error creating default \"null\" network: %v", err)
  21.         }
  22.     }
  24.     // Initialize default network on "host"
  25.     if n, _ := controller.NetworkByName("host"); n == nil {
  26.         if _, err := controller.NewNetwork("host", "host", "", libnetwork.NetworkOptionPersist(true)); err != nil {
  27.             return nil, fmt.Errorf("Error creating default \"host\" network: %v", err)
  28.         }
  29.     }
  31.     // Clear stale bridge network
  32.     if n, err := controller.NetworkByName("bridge"); err == nil {
  33.         if err = n.Delete(); err != nil {
  34.             return nil, fmt.Errorf("could not delete the default bridge network: %v", err)
  35.         }
  36.         if len(config.NetworkConfig.DefaultAddressPools.Value()) > 0 && !daemon.configStore.LiveRestoreEnabled {
  37.             removeDefaultBridgeInterface()
  38.         }
  39.     }
  41.     if !config.DisableBridge {
  42.         // Initialize default driver "bridge"
  43.         if err := initBridgeDriver(controller, config); err != nil {
  44.             return nil, err
  45.         }
  46.     } else {
  47.         removeDefaultBridgeInterface()
  48.     }
  50.     // Set HostGatewayIP to the default bridge's IP  if it is empty
  51.     if daemon.configStore.HostGatewayIP == nil && controller != nil {
  52.         if n, err := controller.NetworkByName("bridge"); err == nil {
  53.             v4Info, v6Info := n.Info().IpamInfo()
  54.             var gateway net.IP
  55.             if len(v4Info) > 0 {
  56.                 gateway = v4Info[0].Gateway.IP
  57.             } else if len(v6Info) > 0 {
  58.                 gateway = v6Info[0].Gateway.IP
  59.             }
  60.             daemon.configStore.HostGatewayIP = gateway
  61.         }
  62.     }
  63.     return controller, nil
  64. }


NetworkController Implementation

docker-network-network-controller-impl.svg
controller 是 libnetwork 中对 NetworkController 的实现。可以看到，controller 通过驱动表来区分不同类型的网络，使用驱动创建 Network 及 Endpoint，并将 Endpoint 加入 Sandbox 或移除出 Sandbox。
Container 通过 SandboxID 以及 SandboxKey 来找到对应的 Sandbox。Sandbox 可以使用 containerID 来确定是否归属于某个 Container。

OS Layer Sandbox

Namespace

docker-network-sandbox.svg
Sandbox 接口没有列举出全部功能，只是能看出其能力边界的部分功能。后续以 Namespace 方式实现的 Sandbox 为例。
通过上图，并不难看出，路由、接口等功能应该是由 netlink 提供的，Namespace 获取 netlink 方式如下，需要注意，Namespace 内 netlink 配置，仅在 Namespace 内有效。根据 Namespace 获取 netlink 的关键方法如下

  1. func GetFromPath(path string) (NsHandle, error) {
  2.     fd, err := syscall.Open(path, syscall.O_RDONLY, 0)
  3.     if err != nil {
  4.         return -1, err
  5.     }
  6.     return NsHandle(fd), nil
  7. }

使用返回的 NsHandle 就可以创建具体的 SocketHandle 了，方法如下

  1. func NewHandleAt(ns netns.NsHandle, nlFamilies ...int) (*Handle, error) {
  2.     return newHandle(ns, netns.None(), nlFamilies...)
  3. }
  5. // NewHandleAtFrom works as NewHandle but allows client to specify the
  6. // new and the origin netns Handle.
  7. func NewHandleAtFrom(newNs, curNs netns.NsHandle) (*Handle, error) {
  8.     return newHandle(newNs, curNs)
  9. }
  11. func newHandle(newNs, curNs netns.NsHandle, nlFamilies ...int) (*Handle, error) {
  12.     h := &Handle{sockets: map[int]*nl.SocketHandle{}}
  13.     fams := nl.SupportedNlFamilies
  14.     if len(nlFamilies) != 0 {
  15.         fams = nlFamilies
  16.     }
  17.     for _, f := range fams {
  18.         s, err := nl.GetNetlinkSocketAt(newNs, curNs, f)
  19.         if err != nil {
  20.             return nil, err
  21.         }
  22.         h.sockets[f] = &nl.SocketHandle{Socket: s}
  23.     }
  24.     return h, nil
  25. }

Add Interface

docker-network-add-interface.svg

Bridge Network

docker-network-bridge-overview.svg

Create Network

根据配置文件中 BridgeName 查找系统中已存在的 Link 实例，如果 BridgeName 为空，使用默认网桥 docker0。

  1. func newInterface(nlh *netlink.Handle, config *networkConfiguration) (*bridgeInterface, error) {
  2.     var err error
  3.     i := &bridgeInterface{nlh: nlh}
  5.     // Initialize the bridge name to the default if unspecified.
  6.     if config.BridgeName == "" {
  7.         config.BridgeName = DefaultBridgeName
  8.     }
  10.     // Attempt to find an existing bridge named with the specified name.
  11.     i.Link, err = nlh.LinkByName(config.BridgeName)
  12.     if err != nil {
  13.         logrus.Debugf("Did not find any interface with name %s: %v", config.BridgeName, err)
  14.     } else if _, ok := i.Link.(*netlink.Bridge); !ok {
  15.         return nil, fmt.Errorf("existing interface %s is not a bridge", i.Link.Attrs().Name)
  16.     }
  17.     return i, nil
  18. }

创建 bridgeNetwork 实例，并存入 networks

  1. // Create and set network handler in driver
  2. network := &bridgeNetwork{
  3.     id:         config.ID,
  4.     endpoints:  make(map[string]*bridgeEndpoint),
  5.     config:     config,
  6.     portMapper: portmapper.New(d.config.UserlandProxyPath),
  7.     bridge:     bridgeIface,
  8.     driver:     d,
  9. }
  11. d.Lock()
  12. d.networks[config.ID] = network
  13. d.Unlock()

如果获取的 bridgeInterface 中不存在有效网桥设备，则将创建设备、sysctl 方法加入设置队列；如果使用 docker0，仅将 sysctl 方法加入设置队列

  1. bridgeAlreadyExists := bridgeIface.exists()
  2. if !bridgeAlreadyExists {
  3.     bridgeSetup.queueStep(setupDevice)
  4.     bridgeSetup.queueStep(setupDefaultSysctl)
  5. }
  7. // For the default bridge, set expected sysctls
  8. if config.DefaultBridge {
  9.     bridgeSetup.queueStep(setupDefaultSysctl)
  10. }

根据配置文件参数，将对应的设置方法加入设置队列

  1. for _, step := range []struct {
  2.         Condition bool
  3.         Fn        setupStep
  4. }{
  5.     // Enable IPv6 on the bridge if required. We do this even for a
  6.     // previously  existing bridge, as it may be here from a previous
  7.     // installation where IPv6 wasn't supported yet and needs to be
  8.     // assigned an IPv6 link-local address.
  9.     {config.EnableIPv6, setupBridgeIPv6},
  11.     // We ensure that the bridge has the expectedIPv4 and IPv6 addresses in
  12.     // the case of a previously existing device.
  13.     {bridgeAlreadyExists && !config.InhibitIPv4, setupVerifyAndReconcile},
  15.     // Enable IPv6 Forwarding
  16.     {enableIPv6Forwarding, setupIPv6Forwarding},
  18.     // Setup Loopback Addresses Routing
  19.     {!d.config.EnableUserlandProxy, setupLoopbackAddressesRouting},
  21.     // Setup IPTables.
  22.     {d.config.EnableIPTables, network.setupIPTables},
  24.     //We want to track firewalld configuration so that
  25.     //if it is started/reloaded, the rules can be applied correctly
  26.     {d.config.EnableIPTables, network.setupFirewalld},
  28.     // Setup DefaultGatewayIPv4
  29.     {config.DefaultGatewayIPv4 != nil, setupGatewayIPv4},
  31.     // Setup DefaultGatewayIPv6
  32.     {config.DefaultGatewayIPv6 != nil, setupGatewayIPv6},
  34.     // Add inter-network communication rules.
  35.     {d.config.EnableIPTables, setupNetworkIsolationRules},
  37.     //Configure bridge networking filtering if ICC is off and IP tables are enabled
  38.     {!config.EnableICC && d.config.EnableIPTables, setupBridgeNetFiltering},
  39. } {
  40.     if step.Condition {
  41.         bridgeSetup.queueStep(step.Fn)
  42.     }
  43. }

将设备启动设置方法加入设置队列，并返回执行结果

  1. bridgeSetup.queueStep(setupDeviceUp)
  2. return bridgeSetup.apply()

Setup Device

创建 netlink.Bridge 结构体，LinkAttrs 中使用配置中的 BridgeName，然后，使用 netlink 方法创建网桥设备，如果需要设置 MAC 则随机生成 MAC 地址。

  1. func setupDevice(config *networkConfiguration, i *bridgeInterface) error {
  2.     var setMac bool
  4.     // We only attempt to create the bridge when the requested device name is
  5.     // the default one.
  6.     if config.BridgeName != DefaultBridgeName && config.DefaultBridge {
  7.         return NonDefaultBridgeExistError(config.BridgeName)
  8.     }
  10.     // Set the bridgeInterface netlink.Bridge.
  11.     i.Link = &netlink.Bridge{
  12.         LinkAttrs: netlink.LinkAttrs{
  13.             Name: config.BridgeName,
  14.         },
  15.     }
  17.     // Only set the bridge's MAC address if the kernel version is > 3.3, as it
  18.     // was not supported before that.
  19.     kv, err := kernel.GetKernelVersion()
  20.     if err != nil {
  21.         logrus.Errorf("Failed to check kernel versions: %v. Will not assign a MAC address to the bridge interface", err)
  22.     } else {
  23.         setMac = kv.Kernel > 3 || (kv.Kernel == 3 && kv.Major >= 3)
  24.     }
  26.     if setMac {
  27.         hwAddr := netutils.GenerateRandomMAC()
  28.         i.Link.Attrs().HardwareAddr = hwAddr
  29.         logrus.Debugf("Setting bridge mac address to %s", hwAddr)
  30.     }
  32.     if err = i.nlh.LinkAdd(i.Link); err != nil {
  33.         logrus.Debugf("Failed to create bridge %s via netlink. Trying ioctl", config.BridgeName)
  34.         return ioctlCreateBridge(config.BridgeName, setMac)
  35.     }
  37.     return err
  38. }

Bridge 设备创建、配置等，最终均通过 netlink 接口完成。

Networking Configuration

  • System Control
    • /proc/sys/net/ipv6/conf/BridgeName/accept_ra -> 0：不接受路由建议
    • /proc/sys/net/ipv4/conf/BridgeName/route_localnet -> 1：将外部流量重定向至 loopback，需要配合 iptables 使用


IPTABLES

  • INTERNAL
    • filter
      • DOCKER-ISOLATION-STAGE-1 -i BridgeInterface ! -d Network -j DROP
      • DOCKER-ISOLATION-STAGE-1 -o BridgeInterface ! -s Network -j DROP
  • NON INTERNAL
    • nat
      • DOCKER -t nat -i BridgeInterface -j RETURN
    • filter
      • FORWARD -i BridgeInterface ! -o BridgeInterface -j ACCEPT
    • HOST IP != nil
      • nat
        • POSTROUTING -t nat -s BridgeSubnet ! -o BridgeInterface -j SNAT —to-source HOSTIP
        • POSTROUTING -t nat -m addrtype —src-type LOCAL -o BridgeInterface -j SNAT —to-source HOSTIP
    • HOST IP == nil
      • nat
        • POSTROUTING -t nat -s BridgeSubnet ! -o BridgeInterface -j MASQUERADE
        • POSTROUTING -t nat -m addrtype —src-type LOCAL -o BridgeInterface -j MASQUERADE
    • Inter Container Communication Enabled
      • filter
        • FORWARD -i BridgeInterface -o __BridgeInterface -j ACCEPT
    • Inter Container Communication Disabled
      • filter
        • FORWARD -i BridgeInterface -o __BridgeInterface -j DROP
    • nat
      • PREROUTING -m addrtype —dst-type LOCAL -j DOCKER
      • OUTPUT -m addrtype —dst-type LOCAL -j DOCKER
    • filter
      • FORWARD -o BridgeInterface -j DOCKER
      • FORWARD -o BridgeInterface -m conntrack —ctstate RELATED,ESTABLISHED -j ACCEPT
    • filter
      • -I FORWARD -j DOCKER-ISOLATION-STAGE-1


Create Endpoint

docker-network-bridge-network.svg
全局有一个默认 Bridge 设备 docker0，每个 Container 有自己独立的网络协议栈，容器网络和通过 veth 对与 Bridge 设备互通。
同一节点上不同 Container 间，通过 ARP 协议，即可进行 3 层通信；Container 出 Node 网络可以通过默认网关设备 docker0，再经过 IPTABLES 重定向至 eth0。
