0x00 前言

最近需要把usb做成串口，所以来仔细学一下linux下usb的驱动

0x01描述符类型

/driver/usb/ch9.h

1. usb设备描述符

  1. /* USB_DT_DEVICE: Device descriptor */
  2. struct usb_device_descriptor {
  3.     __u8  bLength;
  4.     __u8  bDescriptorType;
  5.     __le16 bcdUSB;
  6.     __u8  bDeviceClass;
  7.     __u8  bDeviceSubClass;
  8.     __u8  bDeviceProtocol;
  9.     __u8  bMaxPacketSize0;
  10.     __le16 idVendor;
  11.     __le16 idProduct;
  12.     __le16 bcdDevice;
  13.     __u8  iManufacturer;
  14.     __u8  iProduct;
  15.     __u8  iSerialNumber;
  16.     __u8  bNumConfigurations;
  17. } __attribute__ ((packed));

bNumConfigurations：usb中有几个配值，对应几个配值描述符

2. 配置描述符

  1. struct usb_config_descriptor {
  2.     __u8  bLength;
  3.     __u8  bDescriptorType;
  4.     __le16 wTotalLength;
  5.     __u8  bNumInterfaces;
  6.     __u8  bConfigurationValue;
  7.     __u8  iConfiguration;
  8.     __u8  bmAttributes;
  9.     __u8  bMaxPower;
  10. } __attribute__ ((packed));

bNumInterfaces： 接口描述符的个数

3. 接口描述符

usb中有一个接口就是一个功能

  1. /* USB_DT_INTERFACE: Interface descriptor */
  2. struct usb_interface_descriptor {
  3.     __u8  bLength;
  4.     __u8  bDescriptorType;
  5.     __u8  bInterfaceNumber;
  6.     __u8  bAlternateSetting;
  7.     __u8  bNumEndpoints;
  8.     __u8  bInterfaceClass;
  9.     __u8  bInterfaceSubClass;
  10.     __u8  bInterfaceProtocol;
  11.     __u8  iInterface;
  12. } __attribute__ ((packed));

bNumEndpoints：g每个不同的功能就用不同的端点来实现

4. 端点描述符

  1. /* USB_DT_ENDPOINT: Endpoint descriptor */
  2. struct usb_endpoint_descriptor {
  3.     __u8  bLength;                    //描述的长度
  4.     __u8  bDescriptorType;            //描述类型，对于端点就是USB_DT_ENDPOINT
  5.     __u8  bEndpointAddress;            //bit 0 ~ 3位为端点地址
  6.                                             //bit 7 表示方向，输入还是输出
  7.     __u8  bmAttributes;                 //bit 1 和 0 为传输类型 Transfer Type
  8.                                             //00  表示控制， 01 表示等时，
  9.                                             //10  表示批量， 11 表示中断
  10.     __le16 wMaxPacketSize;              //端点一次可以处理的最大字节数
  11.     __u8  bInterval;                    //希望主机轮询自己的时间间隔
  12.     /* NOTE:  these two are _only_ in audio endpoints. */
  13.     /* use USB_DT_ENDPOINT*_SIZE in bLength, not sizeof. */
  14.     __u8  bRefresh;
  15.     __u8  bSynchAddress;
  16. } __attribute__ ((packed));


5.之间的关系

0x02 端点 endpoint

  1. usb通信最基本的形式
    2. 端点只能往一个方向传输数据，IN / OUT （端口0除外）

    从usb端口0读取信息

3.存在usb设备端
4. 主机和端点之间的数据传输通过管道

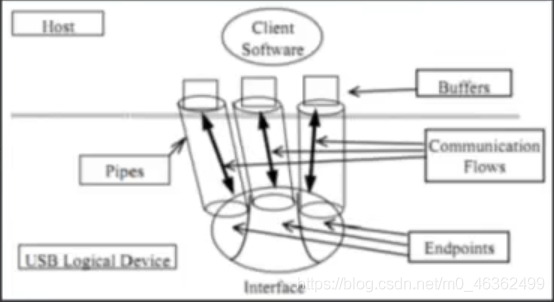

linux USB设备驱动 - 图5image.gif

0x03 USB传输模式

  1. /* USB_DT_ENDPOINT: Endpoint descriptor */
  2. struct usb_endpoint_descriptor {
  3.     __u8  bLength;                    //描述的长度
  4.     __u8  bDescriptorType;            //描述类型，对于端点就是USB_DT_ENDPOINT
  5.     __u8  bEndpointAddress;            //bit 0 ~ 3位为端点地址
  6.                                             //bit 8 表示方向，输入还是输出
  7.     __u8  bmAttributes;                 //bit 1 和 0 为传输类型 Transfer Type
  8.                                             //00  表示控制， 01 表示等时，
  9.                                             //10  表示批量， 11 表示中断
  10.     __le16 wMaxPacketSize;              //端点一次可以处理的最大字节数
  11.     __u8  bInterval;                    //希望主机轮询自己的时间间隔
  12.     /* NOTE:  these two are _only_ in audio endpoints. */
  13.     /* use USB_DT_ENDPOINT*_SIZE in bLength, not sizeof. */
  14.     __u8  bRefresh;
  15.     __u8  bSynchAddress;
  16. } __attribute__ ((packed));


__u8 bmAttributes; //bit 1 和 0 为传输类型 Transfer Type
//00 表示控制， 01 表示等时，
//10 表示批量， 11 表示中断
类似 U盘：就适合用批量， 类似鼠标就适合中断

1.控制传输

获取/配值设备
端口0

2. 中断传输

__u8 bInterval; //希望主机轮询自己的时间间隔
无法自己向输入子系统上报中断，需要主机主动访问

3. 批量传输

大容量数据传输， 没有固定的传输速率 usb打印机，扫描仪，大容量储存设备

4. 等时传输

大容量数据传输，实时性高，不保证到达， 音频视频，usb摄像头

0x04 USB请求块 urb

1. urb的结构

主机——》设备 从主机的角度去考虑

  1. struct urb {
  2.     /* private: usb core and host controller only fields in the urb */
  3.     struct kref kref;        /* reference count of the URB */
  4.     int unlinked;            /* unlink error code */
  5.     void *hcpriv;            /* private data for host controller */
  6.     atomic_t use_count;        /* concurrent submissions counter */
  7.     atomic_t reject;        /* submissions will fail */
  8.     /* public: documented fields in the urb that can be used by drivers */
  9.     struct list_head urb_list;    /* list head for use by the urb's
  10.                      * current owner */
  11.     struct list_head anchor_list;    /* the URB may be anchored */
  12.     struct usb_anchor *anchor;
  13.     struct usb_device *dev;        /* (in) pointer to associated device */
  14.     struct usb_host_endpoint *ep;    /* (internal) pointer to endpoint */
  15.     unsigned int pipe;        /* (in) pipe information */
  16.     unsigned int stream_id;        /* (in) stream ID */
  17.     int status;            /* (return) non-ISO status */
  18.     unsigned int transfer_flags;    /* (in) URB_SHORT_NOT_OK | ...*/
  19.     void *transfer_buffer;        /* (in) associated data buffer */
  20.     dma_addr_t transfer_dma;    /* (in) dma addr for transfer_buffer */
  21.     struct scatterlist *sg;        /* (in) scatter gather buffer list */
  22.     int num_mapped_sgs;        /* (internal) mapped sg entries */
  23.     int num_sgs;            /* (in) number of entries in the sg list */
  24.     u32 transfer_buffer_length;    /* (in) data buffer length */
  25.     u32 actual_length;        /* (return) actual transfer length */
  26.     unsigned char *setup_packet;    /* (in) setup packet (control only) */
  27.     dma_addr_t setup_dma;        /* (in) dma addr for setup_packet */
  28.     int start_frame;        /* (modify) start frame (ISO) */
  29.     int number_of_packets;        /* (in) number of ISO packets */
  30.     int interval;            /* (modify) transfer interval
  31.                      * (INT/ISO) */
  32.     int error_count;        /* (return) number of ISO errors */
  33.     void *context;            /* (in) context for completion */
  34.     usb_complete_t complete;    /* (in) completion routine */
  35.     struct usb_iso_packet_descriptor iso_frame_desc[0];
  36.                     /* (in) ISO ONLY */
  37. };

第11个成员pipe 就是上文，主控制器与端点的传输通道
linux USB设备驱动 - 图9image.gif

第15个成员void *transfer_buffer;
如果的out端点，主机——>设备 transfer_buffer就是要穿的数据
第16个 dma_addr_t transfer_dma; 支持dma操作的用
int interval;轮询的时间间隔
context 保存主机—》设备的上下文信息
complete: 完成的回调函数

2. urb的使用

1. 分配urb

  1. struct urb *usb_alloc_urb(int iso_packets, gfp_t mem_flags);


2. 初始化urb

  1. static inline void usb_fill_control_urb(struct urb *urb,
  2.                     struct usb_device *dev,
  3.                     unsigned int pipe,
  4.                     unsigned char *setup_packet,
  5.                     void *transfer_buffer,
  6.                     int buffer_length,
  7.                     usb_complete_t complete_fn,
  8.                     void *context)
  9. static inline void usb_fill_int_urb(struct urb *urb,
  10.                     struct usb_device *dev,
  11.                     unsigned int pipe,
  12.                     unsigned char *setup_packet,
  13.                     void *transfer_buffer,
  14.                     int buffer_length,
  15.                     usb_complete_t complete_fn,
  16.                     void *context)
  17. static inline void usb_fill_bulk_urb(struct urb *urb,
  18.                     struct usb_device *dev,
  19.                     unsigned int pipe,
  20.                     unsigned char *setup_packet,
  21.                     void *transfer_buffer,
  22.                     int buffer_length,
  23.                     usb_complete_t complete_fn,
  24.                     void *context)

三种初始化： 控制 中断 批量（不适合等时传输）
看一下中断

  1. static inline void usb_fill_int_urb(struct urb *urb,
  2.                     struct usb_device *dev,
  3.                     unsigned int pipe,
  4.                     void *transfer_buffer,
  5.                     int buffer_length,
  6.                     usb_complete_t complete_fn,
  7.                     void *context,
  8.                     int interval)
  9. {
  10.     urb->dev = dev;
  11.     urb->pipe = pipe;
  12.     urb->transfer_buffer = transfer_buffer;
  13.     urb->transfer_buffer_length = buffer_length;
  14.     urb->complete = complete_fn;
  15.     urb->context = context;
  16.     if (dev->speed == USB_SPEED_HIGH || dev->speed >= USB_SPEED_SUPER) {
  17.         /* make sure interval is within allowed range */
  18.         interval = clamp(interval, 1, 16);
  19.         urb->interval = 1 << (interval - 1);
  20.     } else {
  21.         urb->interval = interval;
  22.     }
  23.     urb->start_frame = -1;
  24. }


3. 提交urb

提交给主控制器，由主控制器发送给usb设备
1. 异步提交
只管发，不管成功

  1. int usb_submit_urb(struct urb *urb, gfp_t mem_flags);

是urb_fill_xxx_urb传入的回调函数
2. 同步提交

  1. extern int usb_control_msg(struct usb_device *dev, unsigned int pipe,
  2.     __u8 request, __u8 requesttype, __u16 value, __u16 index,
  3.     void *data, __u16 size, int timeout);
  4. extern int usb_interrupt_msg(struct usb_device *usb_dev, unsigned int pipe,
  5.     void *data, int len, int *actual_length, int timeout);
  6. extern int usb_bulk_msg(struct usb_device *usb_dev, unsigned int pipe,
  7.     void *data, int len, int *actual_length,
  8.     int timeout);

一直等urb传输成功

0x05 usb驱动数据结构

  1. struct usb_device {
  2.     int    devnum;                    //usb总线上的地址
  3.     enum usb_device_state    state;
  4.     enum usb_device_speed    speed;
  6.     struct usb_device *parent;
  8.     struct usb_device_descriptor descriptor;//usb设备描述符
  9.     struct usb_host_config *config;         //包含了配置描述符（>=1）
  10.     struct usb_host_config *actconfig;
  12.         struct usb_host_endpoint *ep_in[16];    //支持的端点
  13.     struct usb_host_endpoint *ep_out[16];
  14.     int maxchild;
  16. };


0x06 管道

每个端点通过管道和usb主控制器连接
1.端点地址
2. 数据传输方向（IN / OUT）
3. 数据传输模式

0x07 usb鼠标驱动分析

  1. 热插拔—-》专门的线程去检测hub ——》调用一个通用的usb设备驱动—-》获取描述符信息—>为接口注册设备（我们需要做的是usb接口驱动）
    2. 详解probe
    1. static int usb_mouse_probe(struct usb_interface *intf, const struct usb_device_id *id)
    2.                                       //接口                           //匹配的ID
    3. {
    4.  struct usb_device *dev = interface_to_usbdev(intf);        //usb设备
    5.  struct usb_host_interface *interface;
    6.                                                   //usb接口描述符（包含端点）
    7.  struct usb_endpoint_descriptor *endpoint;                  //端点结构体
    8.  struct usb_mouse *mouse;
    9.  struct input_dev *input_dev;
    10.  int pipe, maxp;
    11.  int error = -ENOMEM;
    12.  interface = intf->cur_altsetting;         //接口
    13.  if (interface->desc.bNumEndpoints != 1)    //判断描述符中端点数为1个
    14.      return -ENODEV;
    15.  endpoint = &interface->endpoint[0].desc;    //得到端点描述符
    16.  if (!usb_endpoint_is_int_in(endpoint))        //判断是否为中断——in端点
    17.      return -ENODEV;
    18.  pipe = usb_rcvintpipe(dev, endpoint->bEndpointAddress); //得到一个pipe
    19.  maxp = usb_maxpacket(dev, pipe, usb_pipeout(pipe));      //约定一次传输数据大小
    20.  mouse = kzalloc(sizeof(struct usb_mouse), GFP_KERNEL);//申请一个usb_mouse
    21.  input_dev = input_allocate_device();                   //申请输入设备
    22.  if (!mouse || !input_dev)
    23.      goto fail1;
    24.  mouse->data = usb_alloc_coherent(dev, 8, GFP_ATOMIC, &mouse->data_dma);
    25.                                                             //为数据申请8字节
    26.  if (!mouse->data)
    27.      goto fail1;
    28.  mouse->irq = usb_alloc_urb(0, GFP_KERNEL);            //申请一个urb
    29.  if (!mouse->irq)
    30.      goto fail2;
    31.  mouse->usbdev = dev;
    32.  mouse->dev = input_dev;
    33.  if (dev->manufacturer)
    34.      strlcpy(mouse->name, dev->manufacturer, sizeof(mouse->name));
    35.                                                      //为mouse继续初始化
    36.  if (dev->product) {
    37.      if (dev->manufacturer)
    38.          strlcat(mouse->name, " ", sizeof(mouse->name));
    39.      strlcat(mouse->name, dev->product, sizeof(mouse->name));
    40.  }
    41.  if (!strlen(mouse->name))
    42.      snprintf(mouse->name, sizeof(mouse->name),
    43.           "USB HIDBP Mouse %04x:%04x",
    44.           le16_to_cpu(dev->descriptor.idVendor),
    45.           le16_to_cpu(dev->descriptor.idProduct));
    46.  usb_make_path(dev, mouse->phys, sizeof(mouse->phys));
    47.  strlcat(mouse->phys, "/input0", sizeof(mouse->phys));
    48.  input_dev->name = mouse->name;
    49.  input_dev->phys = mouse->phys;
    50.  usb_to_input_id(dev, &input_dev->id);
    51.  input_dev->dev.parent = &intf->dev;
    52.                                                  // 输入子系统，配置
    53.  input_dev->evbit[0] = BIT_MASK(EV_KEY) | BIT_MASK(EV_REL);
    54.  input_dev->keybit[BIT_WORD(BTN_MOUSE)] = BIT_MASK(BTN_LEFT) |
    55.      BIT_MASK(BTN_RIGHT) | BIT_MASK(BTN_MIDDLE);
    56.  input_dev->relbit[0] = BIT_MASK(REL_X) | BIT_MASK(REL_Y);
    57.  input_dev->keybit[BIT_WORD(BTN_MOUSE)] |= BIT_MASK(BTN_SIDE) |
    58.      BIT_MASK(BTN_EXTRA);
    59.  input_dev->relbit[0] |= BIT_MASK(REL_WHEEL);
    60.  input_set_drvdata(input_dev, mouse);
    61.  input_dev->open = usb_mouse_open;
    62.  input_dev->close = usb_mouse_close;
    63.  usb_fill_int_urb(mouse->irq, dev, pipe, mouse->data,        //给urb赋值
    64.           (maxp > 8 ? 8 : maxp),                        //最大长度8
    65.           usb_mouse_irq, mouse, endpoint->bInterval);
    66.                          //中断的回调函数
    67.  mouse->irq->transfer_dma = mouse->data_dma;
    68.  mouse->irq->transfer_flags |= URB_NO_TRANSFER_DMA_MAP;
    69.  error = input_register_device(mouse->dev);                //注册input设备
    70.  if (error)
    71.      goto fail3;
    72.  usb_set_intfdata(intf, mouse);
    73.  return 0;
    74. fail3:
    75.  usb_free_urb(mouse->irq);
    76. fail2:
    77.  usb_free_coherent(dev, 8, mouse->data, mouse->data_dma);
    78. fail1:
    79.  input_free_device(input_dev);
    80.  kfree(mouse);
    81.  return error;
    82. }
  1. static int usb_mouse_open(struct input_dev *dev)
  2. {
  3.     struct usb_mouse *mouse = input_get_drvdata(dev);
  4.     mouse->irq->dev = mouse->usbdev;  //设置中断设备
  5.     if (usb_submit_urb(mouse->irq, GFP_KERNEL)) //异步提交urb
  6.         return -EIO;
  7.     return 0;
  8. }

然后进行urb初始化时的回调函数（它并不是中断函数）

  1. static void usb_mouse_irq(struct urb *urb)
  2. {
  3.     struct usb_mouse *mouse = urb->context;    //哪个usb设备
  4.     signed char *data = mouse->data;           //设备会在此存放数据
  5.     struct input_dev *dev = mouse->dev;
  6.     int status;
  7.     switch (urb->status) {
  8.     case 0:            /* success */
  9.         break;
  10.     case -ECONNRESET:    /* unlink */
  11.     case -ENOENT:
  12.     case -ESHUTDOWN:
  13.         return;
  14.     /* -EPIPE:  should clear the halt */
  15.     default:        /* error */
  16.         goto resubmit;
  17.     }
  18.                                                             //把数据提交给输入子系统
  19.     input_report_key(dev, BTN_LEFT,   data[0] & 0x01);    //左按键
  20.     input_report_key(dev, BTN_RIGHT,  data[0] & 0x02);    //右键
  21.     input_report_key(dev, BTN_MIDDLE, data[0] & 0x04);    //中间键
  22.     input_report_key(dev, BTN_SIDE,   data[0] & 0x08);
  23.     input_report_key(dev, BTN_EXTRA,  data[0] & 0x10);
  24.     input_report_rel(dev, REL_X,     data[1]);            //x坐标
  25.     input_report_rel(dev, REL_Y,     data[2]);            //y坐标
  26.     input_report_rel(dev, REL_WHEEL, data[3]);            //滚轮
  27.     input_sync(dev);                                    //结束
  28. resubmit:
  29.     status = usb_submit_urb (urb, GFP_ATOMIC);            //继续提交，继续轮询
  30.     if (status)
  31.         dev_err(&mouse->usbdev->dev,
  32.             "can't resubmit intr, %s-%s/input0, status %d\n",
  33.             mouse->usbdev->bus->bus_name,
  34.             mouse->usbdev->devpath, status);
  35. }
