Canvas实现基本画图
添加橡皮擦
添加颜色选择功能
清空画板
保存成图片
修改画笔粗细
总结

Canvas实现基本画图

JS操作DOM很慢，改用canvas
canvas是用 width 和 height 属性设置宽高的，用CSS设置会拉伸模糊
为了适配手机，需判断是否是触屏

<!DOCTYPE html>
<html lang="zh-CN">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>画板</title>
    <link rel="stylesheet" href="style.css" />
  </head>
  <body>
    <canvas id="canvas"></canvas>
    <script>
      const canvas = document.getElementById("canvas");
      // 获取文档宽度和高度，设置canvas的html属性
      canvas.width = document.documentElement.clientWidth;
      canvas.height = document.documentElement.clientHeight;
      const ctx = canvas.getContext("2d");
      let lineWidth = 6
      ctx.lineWidth = lineWidth;  // 设置画线宽度
      ctx.lineCap = "round";  // 防止转折处断开
      let painting = false;
      let last = [0, 0];
      // 画线函数
      function drawLine(lastX, lastY, newX, newY) {
        ctx.beginPath();
        ctx.moveTo(lastX, lastY);
        ctx.lineTo(newX, newY);
        ctx.stroke();
      }
      // 画圆
      function drawCircle(x, y, radius) {
        ctx.beginPath()
        ctx.arc(x, y, radius, 0, 2 * Math.PI, true)
        ctx.fill()
      }
      // 检测是否支持触屏
      const isTouchDevice = "ontouchstart" in document.documentElement;
      if (isTouchDevice) {
        canvas.ontouchstart = (e) => {
          const x = e.touches[0].clientX;
          const y = e.touches[0].clientY;
          last = [x, y];
          drawCircle(x, y, lineWidth / 2)
        };
        canvas.ontouchmove = (e) => {
          const x = e.touches[0].clientX;
          const y = e.touches[0].clientY;
          drawLine(last[0], last[1], x, y);
          last = [x, y];
        };
      } else {
        canvas.onmousedown = (e) => {
          painting = true;
          last = [e.clientX, e.clientY];
          drawCircle(e.clientX, e.clientY, lineWidth / 2)
        };
        canvas.onmousemove = (e) => {
          if (painting === true) {
            drawLine(last[0], last[1], e.clientX, e.clientY);
            last = [e.clientX, e.clientY];
          }
        };
        canvas.onmouseup = () => {
          painting = false;
        };
      }
    </script>
  </body>
</html>

添加橡皮擦

使用 clearRect API 实现橡皮擦功能

let eraserEnabled = false
canvas.onmousedown = (e) => {
    painting = true
    last = [e.clientX, e.clientY]
    if (eraserEnabled) {
      ctx.clearRect(e.clientX - 10, e.clientY - 10, 20, 20)
    } else {
      drawCircle(e.clientX, e.clientY, lineWidth / 2)
    }
  }
  canvas.onmousemove = (e) => {
    if (painting === true) {
      if (eraserEnabled) {
        ctx.clearRect(e.clientX - 10, e.clientY - 10, 20, 20)
      } else {
        drawLine(last[0], last[1], e.clientX, e.clientY)
        last = [e.clientX, e.clientY]
      }
    }
  }

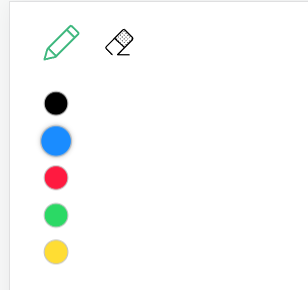

添加颜色选择功能

  <ul class="colorPicker">
    <li class="black active"></li>
    <li class="blue"></li>
    <li class="red"></li>
    <li class="green"></li>
    <li class="yellow"></li>
  </ul>

利用事件委托，将事件监听放在父元素上

const colors = {
  black: '#000',
  red: '#ff1a40',
  blue: '#1a8cff',
  green: '#2bd965',
  yellow: '#ffdd33',
}
const colorPicker = document.querySelector('.colorPicker')
colorPicker.addEventListener('click', (e) => {
  if (e.target !== e.currentTarget) {
    const oldPicked = document.querySelector('.colorPicker > li.active')
    if (oldPicked) oldPicked.classList.remove('active')
    e.target.classList.add('active')
    const classname = e.target.className.replace('active', '').trim()
    const pickedColor = colors[classname]
    ctx.strokeStyle = pickedColor
    ctx.fillStyle = pickedColor
  }
})

清空画板

clearBtn.onclick = () => {
  ctx.clearRect(0, 0, canvas.width, canvas.height)
}

保存成图片

canvas默认背景是透明的，先写个初始化背景函数, 在程序开始以及清空画布时调用

let pickedColor = '#000'
const initBG = () => {
  ctx.fillStyle = '#fff'
  ctx.fillRect(0, 0, canvas.width, canvas.height)
  ctx.fillStyle = pickedColor
}

保存成图片的方法

save.onclick = () => {
  const url = canvas.toDataURL('image/jpeg')
  const a = document.createElement('a')
  document.body.append(a)
  a.href = url
  a.download = 'my-drawing'
  a.target = '_blank'
  a.click()
}

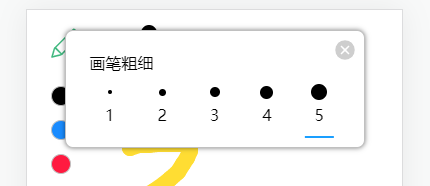

修改画笔粗细

通过 ctx.lineWidth 属性修改画笔粗细
通过 e.target.nodeName 判断点击的是什么元素
该功能更多的是CSS样式的编写，但也没什么难度，就不贴上代码了

const thicknessHash = {
  1: 4,
  2: 7,
  3: 10,
  4: 13,
  5: 16,
}
const thicknessCircle = document.querySelector(
  '.thickness > .circle-wrapper > .circle'
)
const thicknessNumber = document.querySelector('.thickness > .number')
const thicknessPicker = document.querySelector('.thickness-picker > ul')
thicknessPicker.onclick = (e) => {
  if (e.target.nodeName === 'LI') {
    const oldPicked = document.querySelector(
      '.thickness-picker > ul > li.active'
    )
    oldPicked.classList.remove('active')
    e.target.classList.add('active')
    const num = e.target.innerText
    ctx.lineWidth = thicknessHash[num]
    thicknessCircle.style.width = thicknessHash[num] + 'px'
    thicknessCircle.style.height = thicknessHash[num] + 'px'
    thicknessNumber.innerText = num
  }
}

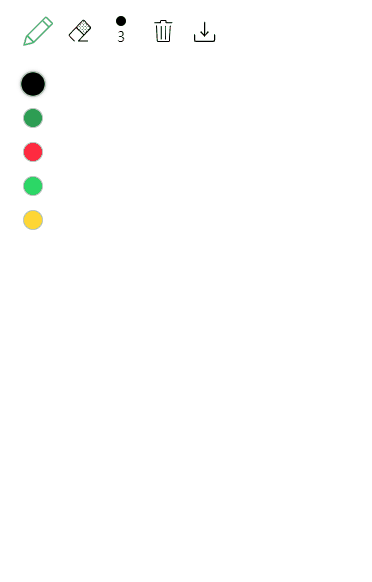

总结

整个 Canvas画板都用原生JS编写，实现了画笔颜色选取，画笔粗细切换，橡皮擦，一键清空画布以及保存图片等功能，项目中用的关键技术有：Canvas API, DOM原生API，事件委托，flex布局，iconfont svg图标，项目使用了 parcel 编译和打包。
