零,题目描述
Two elements of a binary search tree (BST) are swapped by mistake.
Recover the tree without changing its structure.
Example 1:
Input: [1,3,null,null,2]
1
/
3
\
2
Output: [3,1,null,null,2]
3
/
1
\
2
Example 2:
Input: [3,1,4,null,null,2]
3
/ \
1 4
/
2
Output: [2,1,4,null,null,3]
2
/ \
1 4
/
3
Follow up:
- A solution using O(n) space is pretty straight forward.
- Could you devise a constant space solution?
给定一颗BST,但是其中又两个节点的数值交换了。
让我们给换回来。
一,题目分析
方法一,占据O(N)空间的中序遍历解决方案
一上来的第一反应就是inorder中序遍历。因为一颗正常的BST inorder 遍历一定是从小到大遍历的。那么不妨inorder遍历之后看看有那两个节点是反常的。直接交换。

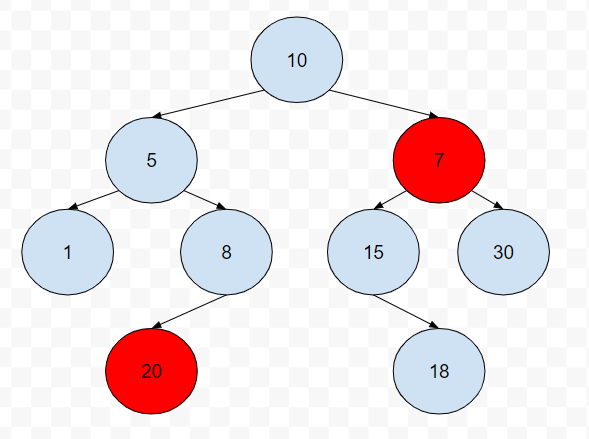

如下所示的树,其中7与20交换了

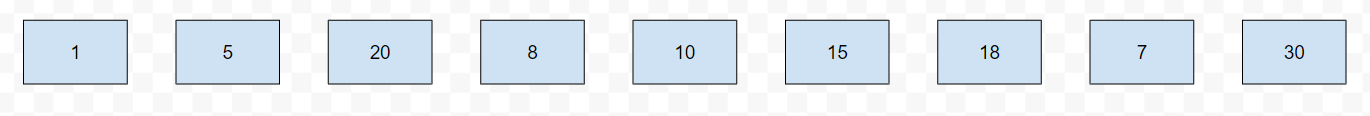

inorder遍历之后如下所示,20和7的位置是有问题的。
是从头开始遍历,当当前节点比其前一个节点大的时候,我们就锁定第一个交换的点。比如这里,我们是遍历到8的时候,发现前一个节点20要比8大。因此firstSwapNode锁定在20。后面当我们遍历到7的时候,又发现7的前一个接待你18要比7大。因此锁定第二个要交换的节点就是7。
关于锁定交换节点的操作,我们需要考虑两种情况,第一种情况如上所示。

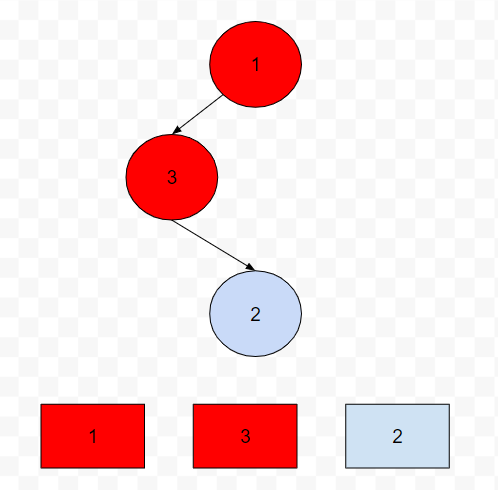

第二种情况则如下图,两个要交换的节点是相邻的。这种情况下,如果我们只当前一个节点比当前的值要大的时候。
才锁定交换节点,是有问题的。我们需要锁定第一个节点的时候,就把第二个节点先临时的锁定了
也就是curr=3的时候,firstSwapNode被设置为1,secondSwapNode被设置为3。
如此一来,如果后面再次出现反常情况,我们就更换secondSwapNode。
代码如下
public void recoverTree2(TreeNode root)
{
Stack<TreeNode> stack = new Stack<>();
if(root == null || (root.left == null && root.right == null))
return;
TreeNode currNode = root;
//inorder遍历中的前一个节点
TreeNode preNode = null;
//第一个出问题的节点
TreeNode firstSwapNode = null;
//第二个出问题的节点
TreeNode secondSwapNode = null;
//inorder遍历
while(currNode != null || !stack.empty())
{
while (currNode != null)
{
stack.push(currNode);
currNode = currNode.left;
}
currNode = stack.pop();
if(preNode != null)
{
//发现出问题了,前一个节点本来应该比当前小的
//现在比当前节点要大
if(preNode.val > currNode.val)
{
if(firstSwapNode == null)
{
firstSwapNode = preNode;
secondSwapNode = currNode;
}
else
{
secondSwapNode = currNode;
break;
}
}
}
preNode = currNode;
currNode = currNode.right;
}
//交换节点
if(firstSwapNode != null && secondSwapNode != null)
{
int temp = firstSwapNode.val;
firstSwapNode.val = secondSwapNode.val;
secondSwapNode.val = temp;
}
}
方法二,占据O(N)空间的Morris Traversal方法
这是一个非常巧妙地方案,Morris Traversal使得我们可以只保存两个节点指针,就能完成inorder中序遍历。
参考这篇博客。
[Morris Traversal方法遍历二叉树(非递归,不用栈,O(1)空间)

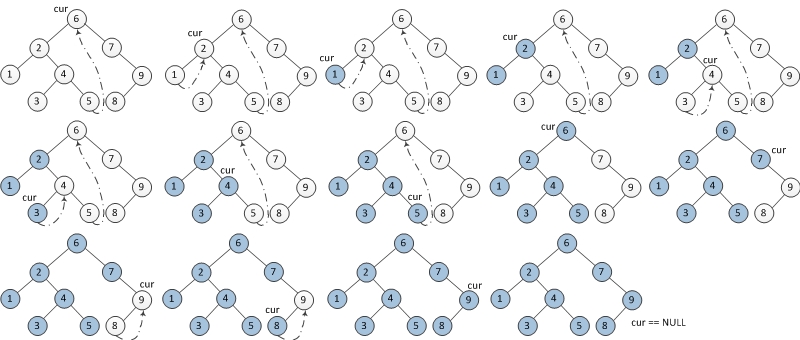

概括地说,就是在遍历每个有leftNode的节点(当前节点称为curr)时,我们都去找他的直接前驱(predecessor),然后把这个predecessor的rightNode改成curr。大体步骤如下所示。
public void recoverTree3(TreeNode root)
{
if(root == null || (root.left == null && root.right == null))
return;
TreeNode curr = root;
//这个pre并不是直接前驱,而是上一个节点
TreeNode pre = null;
//这个是真正的直接前驱
TreeNode preValueNode = null;
TreeNode firstSwapNode = null;
TreeNode secondSwapNode = null;
while (curr != null)
{
if(curr.left == null)
{
if(preValueNode != null && preValueNode.val > curr.val)
{
if(firstSwapNode == null)
{
firstSwapNode = preValueNode;
secondSwapNode = curr;
}
else
{
secondSwapNode = curr;
}
}
preValueNode = curr;
curr = curr.right;
}
else
{
pre = curr.left;
while (pre.right != null && pre.right != curr)
{
pre = pre.right;
}
//临时的修改树结构
if(pre.right == null)
{
pre.right = curr;
curr = curr.left;
}
else
{
//撤销之前修改的树结构
pre.right = null;
//这里是inorder visit curr的地方,做处理
if(preValueNode != null && preValueNode.val > curr.val)
{
if(firstSwapNode == null)
{
firstSwapNode = preValueNode;
secondSwapNode = curr;
}
else
{
//这里不能break,不然会导致撤销不了
secondSwapNode = curr;
}
}
preValueNode = curr;
curr = curr.right;
}
}
}
if(firstSwapNode != null && secondSwapNode != null)
{
int temp = firstSwapNode.val;
firstSwapNode.val = secondSwapNode.val;
secondSwapNode.val = temp;
}
}
