DataV 是阿里云出品的拖拽式可视化工具，专精于业务数据与地理信息融合的大数据可视化。快速开始


准备环境

Node版本在 8.0.0 及以上，10.12.0以下，推荐使用nvm管理node版本。nvm使用说明

安装开发工具套件

  1. // 开发工具
  2. npm install --registry=https://registry.npm.taobao.org datav-cli -g
  3. // 开发工具版本
  4. datav --version

帮助命令

  1. $ datav -h
  3. Usage: datav [options] <folder|file...>
  5. Commands:

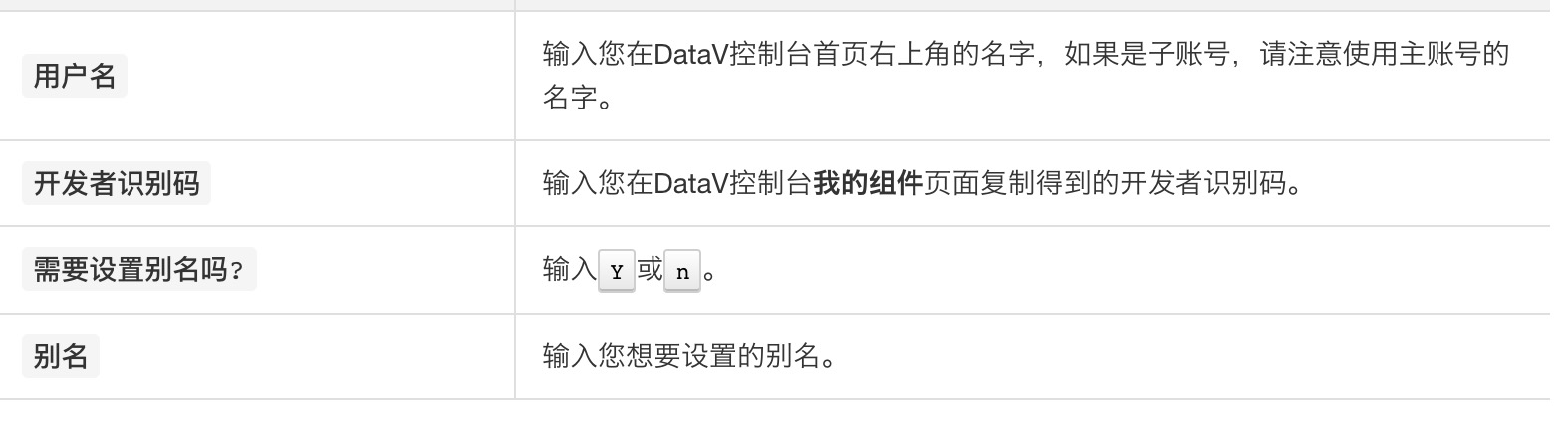

  7. set-key|login           set-key with you username and token in the datav.aliyun.com
  8. init                    init com for datav-coms
  9. start|run [options]     start service for preview component
  10. publish|pbl [options]   publish component
  11. package|pack            package component
  12. locale                  Set your locale
  13. locale-clear|lc         Clear your locale
  14. help                    help
  15. latest                  check datav-cli latest version
  16. whoami                  display datav username, datav region
  18. Options:
  20. -h, --help            output usage information
  21. -V, --version         output the version number
  22. -v --verbose          increase verbosity
  23. -E --exclude <items>  exclude file or folder
  24. -V, --version         output the version number

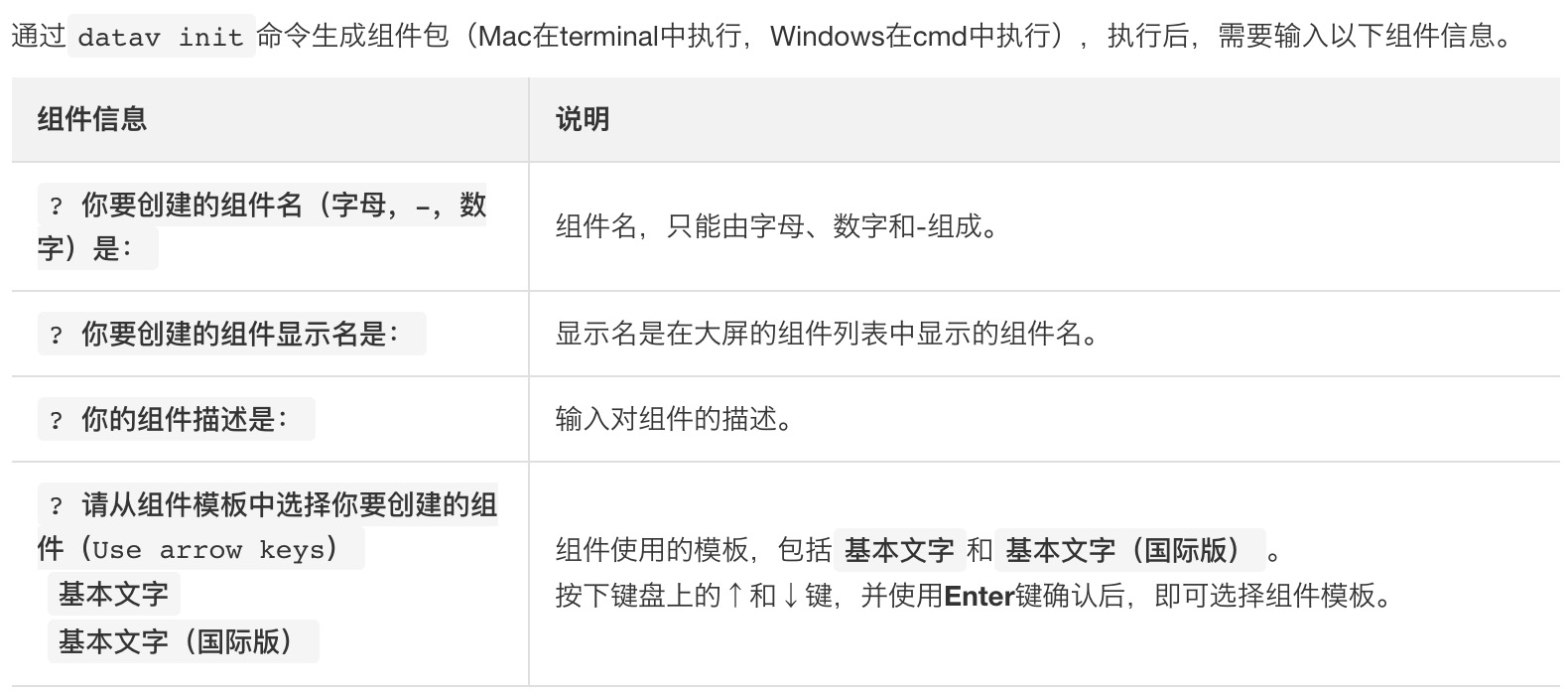

生成基础代码包


预览组件

  1. cd 您的组件名
  2. datav run
  4. http://localhost:1111/

预览页主要分为中心画布区，底部工具栏和右侧工具栏三部分，详细介绍如下：

  • 中心画布区
    • 中心画布区是用来展现组件，实时观测组件变化的区域。
    • 所有右侧工具栏的配置、数据修改都会实时展示在中心画布的组件上。
    • 组件的白框代表了组件的容器范围大小，每个方向上的白框都可以缩放来测试组件在任意方向缩放的表现。
  • 底部工具栏可以切换组件的语言环境。
  • 右侧工具栏右侧工具栏分为配置、数据、交互和发布4个面板。

主要文件

index.js //入口文件
package.json //组件配置项 默认的配置和数据都在这里

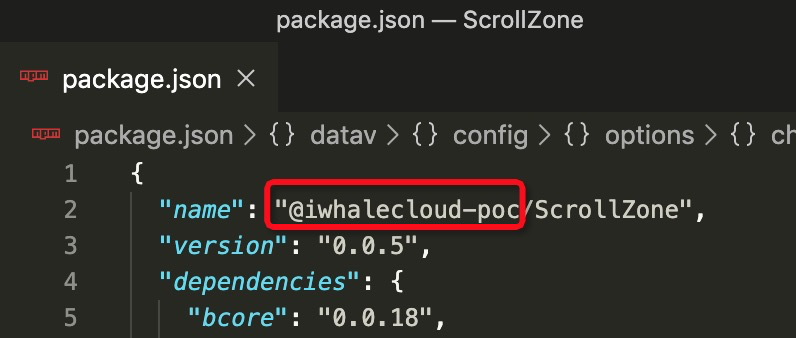

package.json

控件总览 控件配置

  1. {
  2.   "name": "@iwhalecloud-poc/ScrollZone",
  3.   "version": "0.0.5",
  4.   "dependencies": {
  5.     "bcore": "0.0.18",
  6.     "echarts": "^4.6.0",
  7.     "jquery": "2.1.4",
  8.     "lodash": "4.6.1",
  9.     "zrender": "3.4.4"
  10.   },
  11.   "datav": {
  12.     "cn_name": "滚动区",
  13.     "icon": "",
  14.     "protocol": 2,
  15.     "type": [
  16.       "regular_bar"
  17.     ],
  18.     "view": {
  19.       "width": "600",
  20.       "height": "400",
  21.       "minWidth": "40",
  22.       "minHeight": "20"
  23.     },
  24.     "apis": {
  25.       "source": {
  26.         "handler": "render",
  27.         "description": "滚动事件列表接口",
  28.         "fields": {
  29.           "url": {
  30.             "description": "事件图标",
  31.             "type": "string",
  32.             "optional": true
  33.           },
  34.           "title": {
  35.             "description": "事件标题",
  36.             "type": "string"
  37.           },
  38.           "status": {
  39.             "description": "事件状态",
  40.             "type": "int"
  41.           },
  42.           "desc": {
  43.             "description": "事件简述",
  44.             "type": "string"
  45.           },
  46.           "time": {
  47.             "description": "时间",
  48.             "type": "string",
  49.             "optional": true
  50.           },
  51.           "act": {
  52.             "description": "时间",
  53.             "type": "string",
  54.             "optional": true
  55.           },
  56.           "actIconUrl": {
  57.             "description": "处理动作图标",
  58.             "type": "string",
  59.             "optional": true
  60.           }
  61.         }
  62.       }
  63.     },
  64.     "config": {
  65.       "options": {
  66.         "name": "菜单",
  67.         "type": "menu",
  68.         "children": {
  69.           "zone": {
  70.             "name": "全局",
  71.             "mode": "single",
  72.             "children": {
  73.               "size": {
  74.                 "type": "suite",
  75.                 "name": "大小",
  76.                 "children": {
  77.                   "width": {
  78.                     "name": "宽度",
  79.                     "type": "stepper",
  80.                     "default": 200,
  81.                     "step": 1,
  82.                     "min": 0,
  83.                     "suffix": "px",
  84.                     "description": "",
  85.                     "col": 12
  86.                   },
  87.                   "height": {
  88.                     "name": "高度",
  89.                     "type": "stepper",
  90.                     "default": 400,
  91.                     "step": 1,
  92.                     "min": 0,
  93.                     "suffix": "px",
  94.                     "description": "",
  95.                     "col": 12
  96.                   }
  97.                 }
  98.               },
  99.               "position": {
  100.                 "name": "位置",
  101.                 "type": "suite",
  102.                 "children": {
  103.                   "left": {
  104.                     "name": "x",
  105.                     "type": "stepper",
  106.                     "default": 0,
  107.                     "step": 0.1,
  108.                     "suffix": "px",
  109.                     "description": "",
  110.                     "col": 12
  111.                   },
  112.                   "top": {
  113.                     "name": "y",
  114.                     "type": "stepper",
  115.                     "default": 0,
  116.                     "step": 0.1,
  117.                     "suffix": "px",
  118.                     "description": "",
  119.                     "col": 12
  120.                   }
  121.                 }
  122.               },
  123.               "direction": {
  124.                 "name": "排列方式",
  125.                 "type": "select",
  126.                 "range": [
  127.                   {
  128.                     "name": "水平",
  129.                     "value": "row"
  130.                   },
  131.                   {
  132.                     "name": "竖直",
  133.                     "value": "column"
  134.                   }
  135.                 ],
  136.                 "default": "column"
  137.               }
  138.             }
  139.           },
  140.           "card": {
  141.             "name": "卡片",
  142.             "mode": "single",
  143.             "children": {
  144.               "margin": {
  145.                 "type": "margin",
  146.                 "name": "边距",
  147.                 "default": {
  148.                   "top": 10,
  149.                   "bottom": 10,
  150.                   "left": 10,
  151.                   "right": 10
  152.                 }
  153.               },
  154.               "border": {
  155.                 "type": "suite",
  156.                 "name": "边框",
  157.                 "children": {
  158.                   "borderWidth": {
  159.                     "name": "边框粗细",
  160.                     "type": "stepper",
  161.                     "step": 1,
  162.                     "default": 2,
  163.                     "col": 12,
  164.                     "suffix": "px"
  165.                   },
  166.                   "borderColor": {
  167.                     "name": "边框颜色",
  168.                     "type": "fill",
  169.                     "default": "rgba(0,0,0,0.7)",
  170.                     "col": 12
  171.                   },
  172.                   "borderRadius": {
  173.                     "name": "边框圆角",
  174.                     "type": "stepper",
  175.                     "step": 1,
  176.                     "default": 0,
  177.                     "col": 12,
  178.                     "suffix": "px"
  179.                   },
  180.                   "lineStyle": {
  181.                     "name": "边框线型",
  182.                     "type": "select",
  183.                     "range": [
  184.                       {
  185.                         "name": "实线",
  186.                         "value": "solid"
  187.                       },
  188.                       {
  189.                         "name": "虚线",
  190.                         "value": "dashed"
  191.                       },
  192.                       {
  193.                         "name": "点状",
  194.                         "value": "dotted"
  195.                       }
  196.                     ],
  197.                     "default": "solid",
  198.                     "col": 12
  199.                   }
  200.                 }
  201.               },
  202.               "color": {
  203.                 "name": "颜色",
  204.                 "type": "fill",
  205.                 "default": {
  206.                   "type": "flat",
  207.                   "value": "rgba(0,0,0,0.6)"
  208.                 },
  209.                 "components": [
  210.                   "flat",
  211.                   "linearGradient"
  212.                 ]
  213.               },
  214.               "icon": {
  215.                 "name": "图标",
  216.                 "type": "group",
  217.                 "children": {
  218.                   "show": {
  219.                     "name": "显示",
  220.                     "type": "boolean",
  221.                     "default": true
  222.                   },
  223.                   "size": {
  224.                     "type": "suite",
  225.                     "name": "大小",
  226.                     "children": {
  227.                       "width": {
  228.                         "name": "宽度",
  229.                         "type": "stepper",
  230.                         "default": 16,
  231.                         "step": 1,
  232.                         "min": 0,
  233.                         "suffix": "px",
  234.                         "description": "",
  235.                         "col": 12
  236.                       },
  237.                       "height": {
  238.                         "name": "高度",
  239.                         "type": "stepper",
  240.                         "default": 16,
  241.                         "step": 1,
  242.                         "min": 0,
  243.                         "suffix": "px",
  244.                         "description": "",
  245.                         "col": 12
  246.                       }
  247.                     }
  248.                   },
  249.                   "position": {
  250.                     "name": "位置",
  251.                     "type": "suite",
  252.                     "children": {
  253.                       "left": {
  254.                         "name": "x",
  255.                         "type": "stepper",
  256.                         "default": 0,
  257.                         "step": 0.1,
  258.                         "suffix": "px",
  259.                         "description": "",
  260.                         "col": 12
  261.                       },
  262.                       "top": {
  263.                         "name": "y",
  264.                         "type": "stepper",
  265.                         "default": 0,
  266.                         "step": 0.1,
  267.                         "suffix": "px",
  268.                         "description": "",
  269.                         "col": 12
  270.                       }
  271.                     }
  272.                   },
  273.                   "url": {
  274.                     "name": "图标",
  275.                     "type": "image",
  276.                     "default": "./assets/warning.png"
  277.                   }
  278.                 }
  279.               },
  280.               "title": {
  281.                 "name": "标题",
  282.                 "type": "group",
  283.                 "children": {
  284.                   "show": {
  285.                     "name": "显示",
  286.                     "type": "boolean",
  287.                     "default": true
  288.                   },
  289.                   "size": {
  290.                     "type": "suite",
  291.                     "name": "大小",
  292.                     "children": {
  293.                       "width": {
  294.                         "name": "宽度",
  295.                         "type": "stepper",
  296.                         "default": 0,
  297.                         "step": 1,
  298.                         "min": 0,
  299.                         "suffix": "px",
  300.                         "description": "",
  301.                         "col": 12
  302.                       },
  303.                       "height": {
  304.                         "name": "高度",
  305.                         "type": "stepper",
  306.                         "default": 30,
  307.                         "step": 1,
  308.                         "min": 0,
  309.                         "suffix": "px",
  310.                         "description": "",
  311.                         "col": 12
  312.                       }
  313.                     }
  314.                   },
  315.                   "position": {
  316.                     "name": "位置",
  317.                     "type": "suite",
  318.                     "children": {
  319.                       "left": {
  320.                         "name": "x",
  321.                         "type": "stepper",
  322.                         "default": 0,
  323.                         "step": 0.1,
  324.                         "suffix": "px",
  325.                         "description": "",
  326.                         "col": 12
  327.                       },
  328.                       "top": {
  329.                         "name": "y",
  330.                         "type": "stepper",
  331.                         "default": 0,
  332.                         "step": 0.1,
  333.                         "suffix": "px",
  334.                         "description": "",
  335.                         "col": 12
  336.                       }
  337.                     }
  338.                   },
  339.                   "text": {
  340.                     "name": "标题文字",
  341.                     "type": "text",
  342.                     "default": "标题文字"
  343.                   },
  344.                   "textStyle": {
  345.                     "type": "font",
  346.                     "name": "文本",
  347.                     "default": {
  348.                       "fontFamily": "Microsoft Yahei",
  349.                       "fontWeight": "normal",
  350.                       "fontSize": 12,
  351.                       "color": "rgb(255, 255, 255)"
  352.                     }
  353.                   },
  354.                   "align": {
  355.                     "name": "对齐方式",
  356.                     "type": "select",
  357.                     "range": [
  358.                       {
  359.                         "name": "左对齐",
  360.                         "value": "flex-start"
  361.                       },
  362.                       {
  363.                         "name": "居中对齐",
  364.                         "value": "center"
  365.                       },
  366.                       {
  367.                         "name": "右对齐",
  368.                         "value": "flex-end"
  369.                       }
  370.                     ],
  371.                     "default": "center"
  372.                   },
  373.                   "direction": {
  374.                     "name": "排列方式",
  375.                     "type": "select",
  376.                     "range": [
  377.                       {
  378.                         "name": "水平",
  379.                         "value": "horizontal"
  380.                       },
  381.                       {
  382.                         "name": "竖直",
  383.                         "value": "vertical"
  384.                       }
  385.                     ],
  386.                     "default": "horizontal"
  387.                   }
  388.                 },
  389.                 "fold": true
  390.               }
  391.             }
  392.           }
  393.         }
  394.       }
  395.     },
  396.     "api_data": {
  397.       "source": [
  398.         {
  399.           "url": "",
  400.           "title": "我是事件标题1",
  401.           "status": 0,
  402.           "desc": "我是事件简述我是事件简述我是事件简述我是事件简述我是事件简述我是事件简述",
  403.           "time": "2020年03月10日",
  404.           "act": "前往处理"
  405.         }
  406.       ]
  407.     },
  408.     "events": {
  409.       "title-click": {
  410.         "description": "点击触发标题事件",
  411.         "fields": {
  412.           "value": {
  413.             "description": "点击值"
  414.           }
  415.         }
  416.       }
  417.     }
  418.   }
  419. }

index.js

  1. var Event = require("bcore/event");
  2. var $ = require("jquery");
  3. var _ = require("lodash");
  4. // var EChart = require("echarts");
  5. // var Utils = require("datav:/com/maliang-echarts-utils/0.0.18");
  7. /**
  8.  * 马良基础类
  9.  */
  10. module.exports = Event.extend(
  11.   function Base(container, config) {
  12.     this.config = {
  13.       theme: {}
  14.     };
  15.     this.container = $(container); //容器
  16.     this.apis = config.apis; //hook一定要有
  17.     this._data = null; //数据
  18.     this.chart = null; //图表
  19.     this.init(config);
  20.   },
  21.   {
  22.     /**
  23.      * 公有初始化
  24.      */
  25.     init: function(config) {
  26.       //1.初始化,合并配置
  27.       this.mergeConfig(config);
  28.       //2.刷新布局,针对有子组件的组件 可有可无
  29.       this.updateLayout();
  30.       //3.子组件实例化
  31.       //this.chart = new Chart(this.container[0], this.config);
  32.       //4.如果有需要, 更新样式
  33.       this.updateStyle();
  34.     },
  36.     /**
  37.      * 绘制
  38.      * @param data
  39.      * @param options 不一定有
  40.      * !!注意: 第二个参数支持config, 就不需要updateOptions这个方法了
  41.      */
  42.     render: function(data, config) {
  43.       // console.log(data, config);
  44.       data = this.data(data);
  45.       // console.log("data:", data);
  46.       var cfg = this.mergeConfig(config);
  47.       // console.log("config:", cfg);
  49.       var card = cfg.options.card;
  50.       var items = ["<div class='zone'>"];
  51.       data.forEach(element => {
  52.         items.push(
  53.           "<div class='card'><div class='title-row'><img class='icon' src=" +
  54.             (element.url || card.icon.url) +
  55.             "></img><span class='title'>" +
  56.             element.title +
  57.             "</span><span class='status'>" +
  58.             element.status +
  59.             "</span></div>" +
  60.             "<div class='desc'>" +
  61.             element.desc +
  62.             "</div>" +
  63.             "<div class='time'>" +
  64.             element.time +
  65.             "</div>" +
  66.             "<div class='act'>" +
  67.             (element.act || card.act.text.text) +
  68.             "<span class='act-icon'><img src=" +
  69.             (element.actIconUrl || card.act.suffix.url) +
  70.             "></img></span>" +
  71.             "</div></div>"
  72.         );
  73.       });
  74.       items.push("</div>");
  75.       //更新图表
  76.       //this.chart.render(data, cfg);
  77.       // console.log(this.container);
  78.       this.container.html(items.join(""));
  79.       //如果有需要的话,更新样式
  80.       this.updateStyle();
  81.       this.scrollY();
  82.     },
  84.     scrollY: function() {
  85.       $(function() {
  86.         var $this = $(".datav-wraper");
  88.         if (!$this.length) {
  89.           $this = $(".-datav-wraper");
  90.         }
  91.         var scrollTimer;
  92.         $this
  93.           .hover(
  94.             function() {
  95.               clearInterval(scrollTimer);
  96.             },
  97.             function() {
  98.               scrollTimer = setInterval(function() {
  99.                 scrollNews($this);
  100.               }, 2000);
  101.             }
  102.           )
  103.           .trigger("mouseleave");
  105.         function scrollNews(obj) {
  106.           var $self = obj.find(".zone");
  107.           var lineHeight = $self.find(".card:nth-child(1)").height();
  108.           $self.animate(
  109.             {
  110.               transform: "translateY(" + lineHeight + "px)",
  111.               transition: "2s linear"
  112.             },
  113.             2000,
  114.             function() {
  115.               $self
  116.                 .css({
  117.                   transform: "translateY(0)",
  118.                   transition: "2s linear"
  119.                 })
  120.                 .find(".card:nth-child(1)")
  121.                 .appendTo($self);
  122.             }
  123.           );
  124.         }
  125.       });
  126.     },
  128.     /**
  129.      *
  130.      * @param width
  131.      * @param height
  132.      */
  133.     resize: function(width, height) {
  134.       this.updateLayout(width, height);
  135.       //更新图表
  136.       //this.chart.render({
  137.       //  width: width,
  138.       //  height: height
  139.       //})
  140.     },
  142.     /**
  143.      * 每个组件根据自身需要,从主题中获取颜色 覆盖到自身配置的颜色中.
  144.      * 暂时可以不填内容
  145.      */
  146.     setColors: function() {
  147.       //比如
  148.       //var cfg = this.config;
  149.       //cfg.color = cfg.theme.series[0] || cfg.color;
  150.     },
  152.     /**
  153.      * 数据,设置和获取数据
  154.      * @param data
  155.      * @returns {*|number}
  156.      */
  157.     data: function(data) {
  158.       if (data) {
  159.         this._data = data;
  160.       }
  161.       return this._data;
  162.     },
  164.     /**
  165.      * 更新配置
  166.      * 优先级: config.colors > config.theme > this.config.theme > this.config.colors
  167.      * [注] 有数组的配置一定要替换
  168.      * @param config
  169.      * @private
  170.      */
  171.     mergeConfig: function(config) {
  172.       if (!config) {
  173.         return this.config;
  174.       }
  175.       this.config.theme = _.defaultsDeep(config.theme || {}, this.config.theme);
  176.       this.setColors();
  177.       this.config = _.defaultsDeep(config || {}, this.config);
  178.       return this.config;
  179.     },
  181.     /**
  182.      * 更新布局
  183.      * 可有可无
  184.      */
  185.     updateLayout: function() {},
  187.     /**
  188.      * 更新样式
  189.      * 有些子组件控制不到的,但是需要控制改变的,在这里实现
  190.      */
  191.     updateStyle: function() {
  192.       var cfg = this.config;
  193.       var card = cfg.options.card;
  195.       var keys = Object.keys(card);
  196.       keys = keys.filter(item => item !== "margin");
  197.       keys.forEach(function(name) {
  198.         // console.log(name);
  199.         var element = name === "act" ? card[name].text : card[name];
  200.         // console.log(element);
  201.         var tdom = $("." + name);
  202.         if (element.show) {
  203.           if (name === "icon") {
  204.             tdom.css({
  205.               width: element.size.width,
  206.               height: element.size.height,
  207.               position: "relative",
  208.               top: element.position.top,
  209.               left: element.position.left
  210.             });
  211.             return;
  212.           } else if (["title", "status"].indexOf(name) > -1) {
  213.             tdom.css({
  214.               display: "inline-flex"
  215.             });
  216.           } else {
  217.             tdom.css({
  218.               display: "flex"
  219.             });
  220.           }
  221.           if (name === "act") {
  222.             var item = card[name].suffix;
  223.             $(".act-icon").css({
  224.               display: "flex",
  225.               "align-items": "center"
  226.             });
  227.             $(".act-icon img").css({
  228.               width: item.size.width ? item.size.width : undefined,
  229.               height: item.size.height,
  230.               position: "relative",
  231.               top: item.position.top,
  232.               left: item.position.left
  233.             });
  234.           }
  235.           tdom.css({
  236.             "font-size": element.textStyle.fontSize,
  237.             "font-family": element.textStyle.fontFamily,
  238.             "font-weight": element.textStyle.fontWeight,
  239.             color: element.textStyle.color,
  240.             "justify-content": element.align,
  241.             "align-items": "center",
  242.             width: element.size.width ? element.size.width : undefined,
  243.             height: element.size.height,
  244.             position: "relative",
  245.             top: element.position.top,
  246.             left: element.position.left,
  247.             overflow: "hidden",
  248.             "text-overflow": "ellipsis",
  249.             "white-space": "nowrap"
  250.           });
  251.         } else {
  252.           tdom.css({
  253.             display: "none"
  254.           });
  255.         }
  256.       });
  258.       $(".title-row").css({
  259.         display: "flex",
  260.         "justify-content": "space-between",
  261.         "align-items": "center"
  262.       });
  264.       // console.log(card);
  265.       $(".card").css(
  266.         card.color.type === "flat"
  267.           ? {
  268.               background: card.color.value
  269.             }
  270.           : {
  271.               background:
  272.                 "linear-gradient(" +
  273.                 card.color.value.angle +
  274.                 "deg, " +
  275.                 card.color.value.stops[0].color +
  276.                 ", " +
  277.                 card.color.value.stops[1].color +
  278.                 ")"
  279.             }
  280.       );
  281.       $(".card").css({
  282.         width: "auto",
  283.         height: "auto",
  284.         // border: "2px solid #000",
  285.         "border-color": card.border.borderColor,
  286.         "border-width": card.border.borderWidth,
  287.         "border-style": card.border.lineStyle,
  288.         "border-radius": card.border.borderRadius,
  289.         // background: "rgba(0, 0, 0, 0.5)",
  290.         "margin-top": card.margin.top,
  291.         "margin-right": card.margin.right,
  292.         "margin-bottom": card.margin.bottom,
  293.         "margin-left": card.margin.left
  294.       });
  296.       // console.log(cfg);
  297.       var zone = cfg.options.zone;
  298.       $(".zone").css({
  299.         display: "flex",
  300.         "flex-direction": zone.direction,
  301.         position: "absolute",
  302.         top: zone.position.top,
  303.         left: zone.position.left,
  304.         // width: "100%",
  305.         width: zone.size.width,
  306.         height: zone.size.height,
  307.         overflow: "hidden"
  308.       });
  310.       // $(".datav-com,.datav-wraper").css({
  311.       //   width: zone.size.width,
  312.       //   height: zone.size.height,
  313.       //   overflow: "hidden"
  314.       // });
  315.       // $(".-datav-transform-tool").css({
  316.       //   width: zone.size.width + 24,
  317.       //   height: zone.size.height + 24
  318.       // });
  320.       // this.container.css({
  321.       //   "font-size": cfg.size,
  322.       //   color: cfg.color || "#fff"
  323.       // });
  324.     },
  326.     /**
  327.      * 更新配置
  328.      * !!注意:如果render支持第二个参数options, 那updateOptions不是必须的
  329.      */
  330.     //updateOptions: function (options) {},
  332.     /**
  333.      * 更新某些配置
  334.      * 给可以增量更新配置的组件用
  335.      */
  336.     //updateXXX: function () {},
  338.     /**
  339.      * 销毁组件
  340.      */
  341.     destroy: function() {
  342.       console.log("请实现 destroy 方法");
  343.     }
  344.   }
  345. );

发布组件

您可通过以下三种方式发布组件：

  • 方式一（推荐）进入组件的目录地址下，执行datav publish命令，组件将自动打包压缩发布至账号所在域的服务器。
  • 方式二进入组件的目录地址下，执行datav package命令，在组件目录外会有一个以组件-版本号命名的tar.gz压缩包，将此压缩包上传到datav.aliyun.com的组件页，即可发布。
    • 创建组件包


  • 方法三进入预览组件页面下的发布页面，单击发布，即可发布组件。

踩坑

问题：datav init 一直报错，

网上搜，说是gulp和node版本不一致

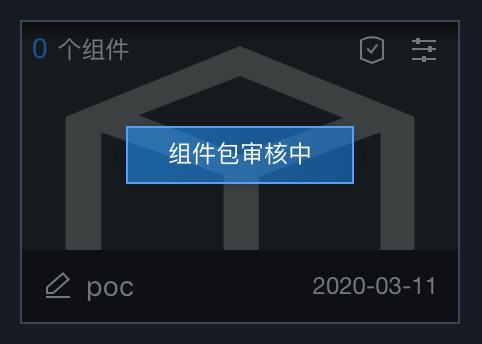

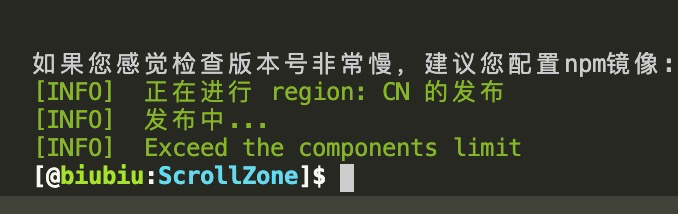

问题：组件上传不上去

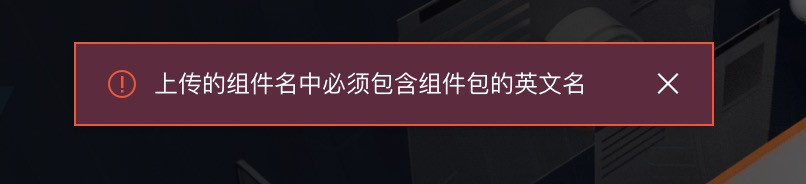

字面意思是上传超限，实际是命名空间不对应导致；

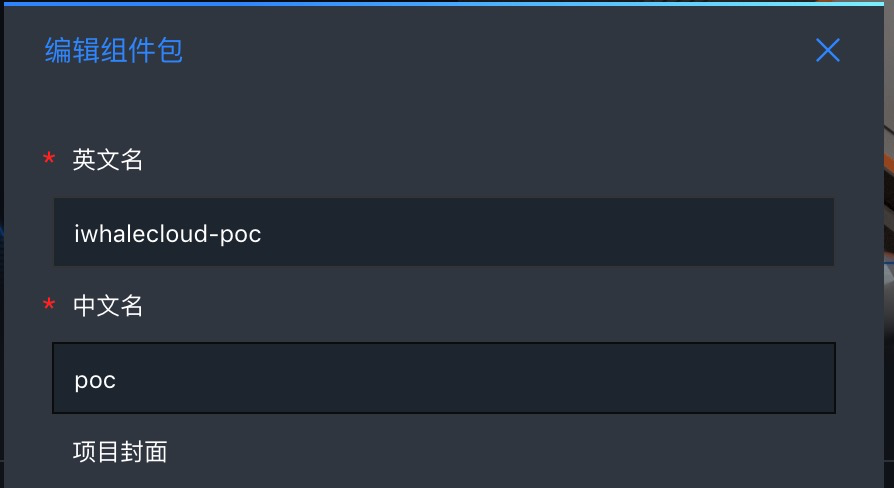

组件包英文名：iwhalecloud-poc
package.json里也要对应上
so datav publish

问题：使用datav login命令，让输入UID和token


问题：哪里设置视频自动播放呢？

文档中关于设置视频自动播放的方法不再有用了
https://gov-mod-asset-zb.oss-cn-zhangjiakou.aliyuncs.com/video/dapindi.mp4

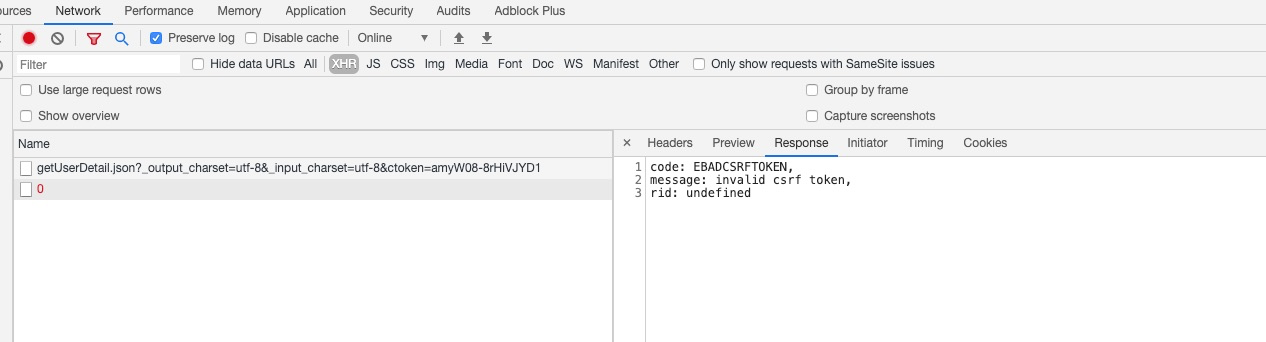

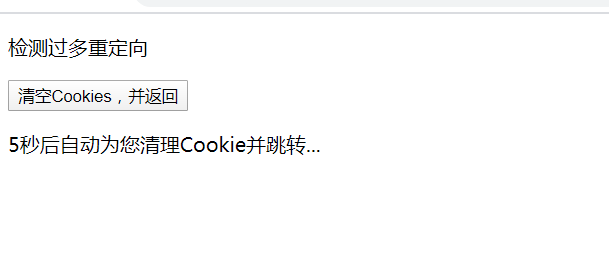

问题：跨域问题，页面打不开

code: EBADCSRFTOKEN,
message: invalid csrf token,
rid: undefined

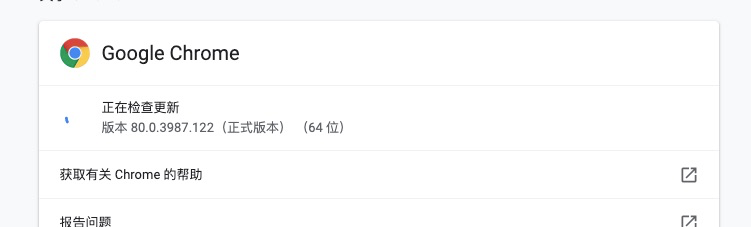

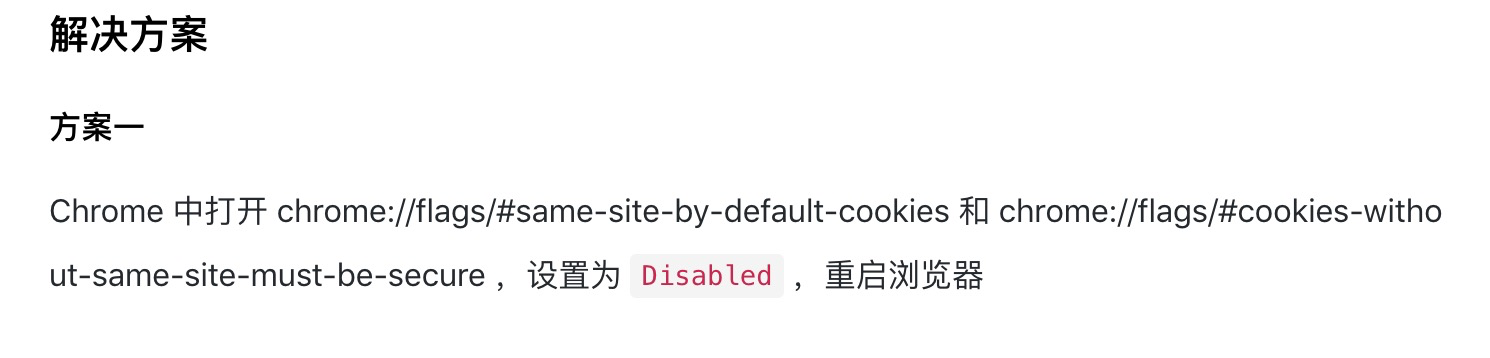

Chrome 中打开 chrome://flags/#same-site-by-default-cookies 和 chrome://flags/#cookies-without-same-site-must-be-secure ，设置为 Disabled，重启浏览器
