线程池实现原理

基于jdk1.8

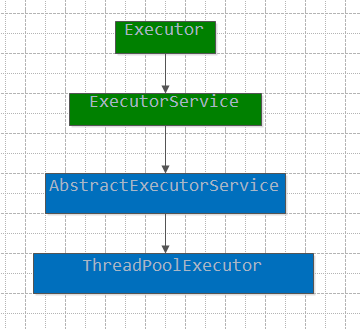

1 Executor框架

1.1 ThreadPoolExecutor 属性

private final AtomicInteger ctl = new AtomicInteger(ctlOf(RUNNING, 0));
    private static final int COUNT_BITS = Integer.SIZE - 3;//29
    private static final int CAPACITY   = (1 << COUNT_BITS) - 1;//536870911
    // runState is stored in the high-order bits
    private static final int RUNNING    = -1 << COUNT_BITS;//-536870912
    private static final int SHUTDOWN   =  0 << COUNT_BITS;//0
    private static final int STOP       =  1 << COUNT_BITS;//536870912
    private static final int TIDYING    =  2 << COUNT_BITS;//1073741824
    private static final int TERMINATED =  3 << COUNT_BITS;//1610612736
    // Packing and unpacking ctl
    private static int runStateOf(int c)     { return c & ~CAPACITY; }//~CAPACITY=-536870912
    private static int workerCountOf(int c)  { return c & CAPACITY; }
    private static int ctlOf(int rs, int wc) { return rs | wc; }

AtomicInteger ctl：利用低29位表示线程池中线程数，通过高3位表示
线程池的运行状态：
1、RUNNING：-1 << COUNT_BITS，即高3位为111，该状态的线程池会接收新任务，并处理阻塞队列中的任务；
2、SHUTDOWN： 0 << COUNT_BITS，即高3位为000，该状态的线程池不会接收新任务，但会处理阻塞队列中的任务；
3、STOP ： 1 << COUNT_BITS，即高3位为001，该状态的线程不会接收新任务，也不会处理阻塞队列中的任务，而且会中断正在运行的任务；
4、TIDYING ： 2 << COUNT_BITS，即高3位为010, 所有的任务都已经终止；
5、TERMINATED： 3 << COUNT_BITS，即高3位为011, terminated()方法已经执行完成
execute –> addWorker –>runworker （getTask）线程池的工作线程通过Woker类实现，在ReentrantLock锁的保证下，把Woker实例插入到HashSet后，并启动Woker中的线程。
从Woker类的构造方法实现可以发现：线程工厂在创建线程thread时，将Woker实例本身this作为参数传入，当执行start方法启动线程thread时，本质是执行了Worker的runWorker方法。
firstTask执行完成之后，通过getTask方法从阻塞队列中获取等待的任务，如果队列中没有任务，getTask方法会被阻塞并挂起，不会占用cpu资源；

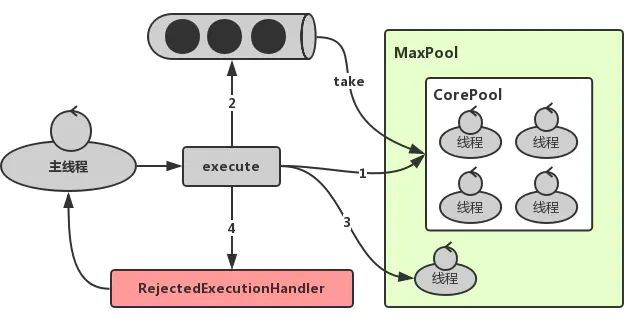

1.2 execute()

public void execute(Runnable command) {
    if (command == null)
        throw new NullPointerException();
    int c = ctl.get();
    if (workerCountOf(c) < corePoolSize) {
    //workerCountOf获取线程池的当前线程数；小于corePoolSize，执行addWorker创建一条新线程执行command任务
       if (addWorker(command, true))
            return;
        c = ctl.get();
    }
    // 如果当前有效线程大于或等于核心线程数，并且线程池处于RUNNING状态，则将任务加入阻塞队列并成功，等待线程取出队列执行
    if (isRunning(c) && workQueue.offer(command)) {
        int recheck = ctl.get();
        // recheck and if necessary 回滚到入队操作前，即倘若线程池shutdown状态，就remove(command)
        //如果线程池没有RUNNING，成功从阻塞队列中删除任务，执行拒绝策略方法处理任务
        if (! isRunning(recheck) && remove(command))
            reject(command);
        //线程池处于running状态，但是没有线程，则创建线程
        else if (workerCountOf(recheck) == 0)
            addWorker(null, false);
    }
    // 往线程池中创建新的线程失败，则reject任务
    else if (!addWorker(command, false))
        reject(command);
}

1.2.1 remove

如果存在此任务，则将其从执行器的内部队列中移除

public boolean remove(Runnable task) {
        boolean removed = workQueue.remove(task);
        tryTerminate(); // In case SHUTDOWN and now empty
        return removed;
    }

1.2.2 reject

调用拒绝策略执行处理程序。

 final void reject(Runnable command) {
        handler.rejectedExecution(command, this);
    }

1.3 addWorker

 private boolean addWorker(Runnable firstTask, boolean core) {
        retry:
        for (;;) {
            int c = ctl.get();
            int rs = runStateOf(c);
            // Check if queue empty only if necessary.
            if (rs >= SHUTDOWN &&
                ! (rs == SHUTDOWN &&
                   firstTask == null &&
                   ! workQueue.isEmpty()))
                return false;
            for (;;) {
                int wc = workerCountOf(c);
                if (wc >= CAPACITY ||
                    wc >= (core ? corePoolSize : maximumPoolSize))
                    return false;
                if (compareAndIncrementWorkerCount(c))
                    break retry;
                c = ctl.get();  // Re-read ctl
                if (runStateOf(c) != rs)
                    continue retry;
                // else CAS failed due to workerCount change; retry inner loop
            }
        }
    }

addWoker方法实现的前半部分：
1、判断线程池的状态，如果线程池的状态值大于或等SHUTDOWN，则不处理提交的任务，直接返回；
2、通过参数core判断当前需要创建的线程是否为核心线程，如果core为true，且当前线程数小于corePoolSize，cas线程数加1，跳出循环

private boolean compareAndIncrementWorkerCount(int expect) {
        return ctl.compareAndSet(expect, expect + 1);
    }

开始创建新的线程

 boolean workerStarted = false;
        boolean workerAdded = false;
        Worker w = null;
        try {
            w = new Worker(firstTask);
            final Thread t = w.thread;
            if (t != null) {
                final ReentrantLock mainLock = this.mainLock;
                mainLock.lock();
                try {
                    // Recheck while holding lock.
                    // Back out on ThreadFactory failure or if
                    // shut down before lock acquired.
                    int rs = runStateOf(ctl.get());
                    if (rs < SHUTDOWN ||
                        (rs == SHUTDOWN && firstTask == null)) {
                        if (t.isAlive()) // precheck that t is startable
                            throw new IllegalThreadStateException();
                        workers.add(w);
                        int s = workers.size();
                        if (s > largestPoolSize)
                            largestPoolSize = s;
                        workerAdded = true;
                    }
                } finally {
                    mainLock.unlock();
                }
                if (workerAdded) {
                    t.start();
                    workerStarted = true;
                }
            }
        } finally {
            if (! workerStarted)
                addWorkerFailed(w);
        }
        return workerStarted;

线程池的工作线程通过Woker类实现，在ReentrantLock锁的保证下，把Woker实例插入到HashSet后，并启动Woker中的线程。

1.4 Worker

  private final class Worker
        extends AbstractQueuedSynchronizer
        implements Runnable
    {
        /**
         * This class will never be serialized, but we provide a
         * serialVersionUID to suppress a javac warning.
         */
        private static final long serialVersionUID = 6138294804551838833L;
        /** Thread this worker is running in.  Null if factory fails. */
        final Thread thread;
        /** Initial task to run.  Possibly null. */
        Runnable firstTask;
        /** Per-thread task counter */
        volatile long completedTasks;
        /**
         * Creates with given first task and thread from ThreadFactory.
         * @param firstTask the first task (null if none)
         */
        Worker(Runnable firstTask) {
            setState(-1); // inhibit interrupts until runWorker
            this.firstTask = firstTask;
            this.thread = getThreadFactory().newThread(this);
        }
        /** Delegates main run loop to outer runWorker  */
        public void run() {
            runWorker(this);
        }
        // Lock methods
        //
        // The value 0 represents the unlocked state.
        // The value 1 represents the locked state.
        protected boolean isHeldExclusively() {
            return getState() != 0;
        }
        protected boolean tryAcquire(int unused) {
            if (compareAndSetState(0, 1)) {
                setExclusiveOwnerThread(Thread.currentThread());
                return true;
            }
            return false;
        }
        protected boolean tryRelease(int unused) {
            setExclusiveOwnerThread(null);
            setState(0);
            return true;
        }
        public void lock()        { acquire(1); }
        public boolean tryLock()  { return tryAcquire(1); }
        public void unlock()      { release(1); }
        public boolean isLocked() { return isHeldExclusively(); }
        void interruptIfStarted() {
            Thread t;
            if (getState() >= 0 && (t = thread) != null && !t.isInterrupted()) {
                try {
                    t.interrupt();
                } catch (SecurityException ignore) {
                }
            }
        }
    }

其中Worker类设计如下：
1、继承了AQS类，可以方便的实现工作线程的中止操作；
2、实现了Runnable接口，可以将自身作为一个任务在工作线程中执行；
3、当前提交的任务firstTask作为参数传入Worker的构造方法；

1.5 runWorker

  final void runWorker(Worker w) {
        Thread wt = Thread.currentThread();
        Runnable task = w.firstTask;
        w.firstTask = null;
        w.unlock(); // allow interrupts
        boolean completedAbruptly = true;
        try {
            while (task != null || (task = getTask()) != null) {
                w.lock();
                // If pool is stopping, ensure thread is interrupted;
                // if not, ensure thread is not interrupted.  This
                // requires a recheck in second case to deal with
                // shutdownNow race while clearing interrupt
                if ((runStateAtLeast(ctl.get(), STOP) ||
                     (Thread.interrupted() &&
                      runStateAtLeast(ctl.get(), STOP))) &&
                    !wt.isInterrupted())
                    wt.interrupt();
                try {
                    beforeExecute(wt, task);
                    Throwable thrown = null;
                    try {
                        task.run();
                    } catch (RuntimeException x) {
                        thrown = x; throw x;
                    } catch (Error x) {
                        thrown = x; throw x;
                    } catch (Throwable x) {
                        thrown = x; throw new Error(x);
                    } finally {
                        afterExecute(task, thrown);
                    }
                } finally {
                    task = null;
                    w.completedTasks++;
                    w.unlock();
                }
            }
            completedAbruptly = false;
        } finally {
            processWorkerExit(w, completedAbruptly);
        }
    }

runWorker方法是线程池的核心：
1、线程启动之后，通过unlock方法释放锁，设置AQS的state为0，表示运行中断；
2、获取第一个任务firstTask，执行任务的run方法，不过在执行任务之前，会进行加锁操作，任务执行完会释放锁；
3、在执行任务的前后，可以根据业务场景自定义beforeExecute和afterExecute方法；
4、firstTask执行完成之后，通过getTask方法从阻塞队列中获取等待的任务，如果队列中没有任务，getTask方法会被阻塞并挂起，不会占用cpu资源；

1.6 getTask

private Runnable getTask() {
        boolean timedOut = false; // 上次poll()是否超时
        for (;;) {
            int c = ctl.get();
            int rs = runStateOf(c);
            // 检查队列是否为空
            if (rs >= SHUTDOWN && (rs >= STOP || workQueue.isEmpty())) {
                decrementWorkerCount();
                return null;
            }
            int wc = workerCountOf(c);
            // Are workers subject to culling?
            boolean timed = allowCoreThreadTimeOut || wc > corePoolSize;
                //当超过最大线程数或超时满足其一， 且 超过线程队列最大容量（CAPACITY=536870911）或队列为空时，ctr 进行CAS减一，成功返回null,退出
            if ((wc > maximumPoolSize || (timed && timedOut))
                && (wc > 1 || workQueue.isEmpty())) {
                if (compareAndDecrementWorkerCount(c))
                    return null;
                continue;
            }
            try {
                Runnable r = timed ?
                    workQueue.poll(keepAliveTime, TimeUnit.NANOSECONDS) :
                    workQueue.take();
                if (r != null)
                    return r;
                timedOut = true;//从队列取出线程为null
            } catch (InterruptedException retry) {
                timedOut = false;
            }
        }
    }

1.6.1 workerCountOf

private static int workerCountOf(int c)  { return c & CAPACITY; }

1.6.2 compareAndDecrementWorkerCount

 private boolean compareAndDecrementWorkerCount(int expect) {
        return ctl.compareAndSet(expect, expect - 1);
    }

整个getTask操作在自旋下完成：
1、remove，remove()是从队列中删除第一个元素。remove() 的行为与 Collection 接口的相似
2、poll，但是新的 poll() 方法时有值时返回值，在空集合调用时不是抛出异常，只是返回 null,
3、take: 获取并移除此队列的头部，在元素变得可用之前一直等待 。queue的长度 == 0 的时候，一直阻塞

2 Future和Callable实现

通过ExecutorService.submit()方法提交的任务，可以获取任务执行完的返回值。
示例：

public class ExecutorByCallableTest {
    public static void main(String[] args) {
        ExecutorService executorService = Executors.newFixedThreadPool(10);
        Future future = executorService.submit(new FutureTaskTest());
        try {
            System.out.println("线程返回结果：" + future.get());
        } catch (InterruptedException e) {
            e.printStackTrace();
        } catch (ExecutionException e) {
            e.printStackTrace();
        }
    }
}
class FutureTaskTest implements Callable {
    @Override
    public Object call() throws Exception {
        return "my is FutureTaskTest...";
    }
}

输出：

线程返回结果：my is FutureTaskTest...

在实际业务场景中，Future和Callable基本是成对出现的，Callable负责产生结果，Future负责获取结果。
1、Callable接口类似于Runnable，只是Runnable没有返回值。
2、Callable任务除了返回正常结果之外，如果发生异常，该异常也会被返回，即Future可以拿到异步执行任务各种结果；
3、Future.get方法会导致主线程阻塞，直到Callable任务执行完成；

2.1 submit

 public <T> Future<T> submit(Callable<T> task) {
        if (task == null) throw new NullPointerException();
        RunnableFuture<T> ftask = newTaskFor(task);
        execute(ftask);
        return ftask;
    }

通过submit方法提交的Callable任务会被封装成了一个FutureTask对象。
最后交给1.2 execute()

2.2 FutureTask

一种可取消的异步计算。此类提供了Future的基本实现，其中包含启动和取消计算、查询以查看计算是否完成以及检索计算结果的方法。只有在计算完成后才能检索结果；如果计算尚未完成，get方法将阻塞。计算完成后，无法重新启动或取消计算（除非使用runAndReset调用计算）。
FutureTask可用于包装可调用或可运行的对象。因为FutureTask实现Runnable，所以FutureTask可以提交给执行者执行。

public class FutureTask<V> implements RunnableFuture<V> {
    private volatile int state;//任务状态
private static final int NEW          = 0; //任务新建和执行中
private static final int COMPLETING   = 1; //任务将要执行完毕
private static final int NORMAL       = 2; //任务正常执行结束
private static final int EXCEPTIONAL  = 3; //任务异常
private static final int CANCELLED    = 4; //任务取消
private static final int INTERRUPTING = 5; //任务线程即将被中断
private static final int INTERRUPTED  = 6; //任务线程已中断
    ...

此任务的运行状态，最初为NEW。运行状态仅在方法set、setException和cancel中转换为终端状态。在完成过程中，状态可能会有一个瞬态值:completed(当结果正在设置时)或interruption(仅当中断运行器以满足取消(true)时)。从这些中间状态到最终状态的转换使用更便宜的有序/惰性写操作，因为值是唯一的，不能进一步修改。可能的状态转换:NEW -> completion -> NORMAL NEW -> completion -> exception NEW -> CANCELLED NEW -> interruption -> INTERRUPTED

2.3 FutureTask.get

public V get() throws InterruptedException, ExecutionException {
        int s = state;
        if (s <= COMPLETING)
            s = awaitDone(false, 0L);
        return report(s);
    }
public V get(long timeout, TimeUnit unit)
        throws InterruptedException, ExecutionException, TimeoutException {
        if (unit == null)
            throw new NullPointerException();
        int s = state;
        if (s <= COMPLETING &&
            (s = awaitDone(true, unit.toNanos(timeout))) <= COMPLETING)
            throw new TimeoutException();
        return report(s);
    }

get的源码很简洁，首先校验参数，然后根据state状态判断是否超时，如果超时则异常，不超时则调用report(s)去获取最终结果。
当 s<= COMPLETING时，表明任务仍然在执行且没有被取消。如果它为true，那么走到awaitDone方法。
awaitDone是futureTask实现阻塞的关键方法，我们重点关注一下它的实现原理。

2.3.1 awaitDone

private int awaitDone(boolean timed, long nanos)
        throws InterruptedException {
       // 任务截止时间
        final long deadline = timed ? System.nanoTime() + nanos : 0L;
        WaitNode q = null;
        boolean queued = false;
      // 自旋
        for (;;) {
            //线程中断则移除等待线程,并抛出异常
            if (Thread.interrupted()) {
                removeWaiter(q);
                throw new InterruptedException();
            }
            int s = state;
            // 任务可能已经正常完成或者中断或者被取消了
            if (s > COMPLETING) {
                if (q != null)
                    q.thread = null;
                return s;
            }
            // 可能任务线程被阻塞了,主线程让出CPU
            else if (s == COMPLETING) // cannot time out yet
                Thread.yield();
            // 等待线程节点为空,则初始化新节点并关联当前线程
            else if (q == null)
                q = new WaitNode();
            else if (!queued)
                // 等待线程入队列,成功则queued=true
                queued = UNSAFE.compareAndSwapObject(this, waitersOffset,
                                                     q.next = waiters, q);
            else if (timed) {
                nanos = deadline - System.nanoTime();
                //已经超时的话,移除等待节点
                if (nanos <= 0L) {
                    removeWaiter(q);
                    return state;
                }
                // 未超时,将当前线程挂起指定时间
                LockSupport.parkNanos(this, nanos);
            }
            else
                // timed=false时会走到这里,挂起当前线程
                LockSupport.park(this);
        }
    }

2.4 FutureTask.run

public void run() {
    //校验任务状态
        if (state != NEW ||
            !UNSAFE.compareAndSwapObject(this, runnerOffset,
                                         null, Thread.currentThread()))
            return;
        try {
            Callable<V> c = callable;
            if (c != null && state == NEW) {
                V result;
                boolean ran;
                try {
                    //获取结果
                    result = c.call();
                    ran = true;
                } catch (Throwable ex) {
                    result = null;
                    ran = false;
                    setException(ex);
                }
                if (ran)
                    set(result);
            }
        } finally {
            // runner must be non-null until state is settled to
            // prevent concurrent calls to run()
            runner = null;
            // state must be re-read after nulling runner to prevent
            // leaked interrupts
            int s = state;
            if (s >= INTERRUPTING)
                handlePossibleCancellationInterrupt(s);
        }
    }

2.5 FutureTask.set

将此future的结果设置为给定的值。

 protected void set(V v) {
        if (UNSAFE.compareAndSwapInt(this, stateOffset, NEW, COMPLETING)) {
            outcome = v;
            UNSAFE.putOrderedInt(this, stateOffset, NORMAL); // final state
            finishCompletion();
        }
    }
protected void setException(Throwable t) {
        if (UNSAFE.compareAndSwapInt(this, stateOffset, NEW, COMPLETING)) {
            outcome = t;
            UNSAFE.putOrderedInt(this, stateOffset, EXCEPTIONAL); // final state
            finishCompletion();
        }
    }

2.6 finishCompletion

private void finishCompletion() {
        // assert state > COMPLETING;
        for (WaitNode q; (q = waiters) != null;) {
            if (UNSAFE.compareAndSwapObject(this, waitersOffset, q, null)) {
                for (;;) {
                    Thread t = q.thread;
                    if (t != null) {
                        q.thread = null;
                        LockSupport.unpark(t);
                    }
                    WaitNode next = q.next;
                    if (next == null)
                        break;
                    q.next = null; // unlink to help gc
                    q = next;
                }
                break;
            }
        }
        done();
        callable = null;        // to reduce footprint
    }

1、执行FutureTask类的get方法时，会把主线程封装成WaitNode节点并保存在waiters链表中；
2、FutureTask任务执行完成后，通过UNSAFE设置waiters的值，并通过LockSupport类unpark方法唤醒主线程；
