Shiro

参考视频
github
Docs

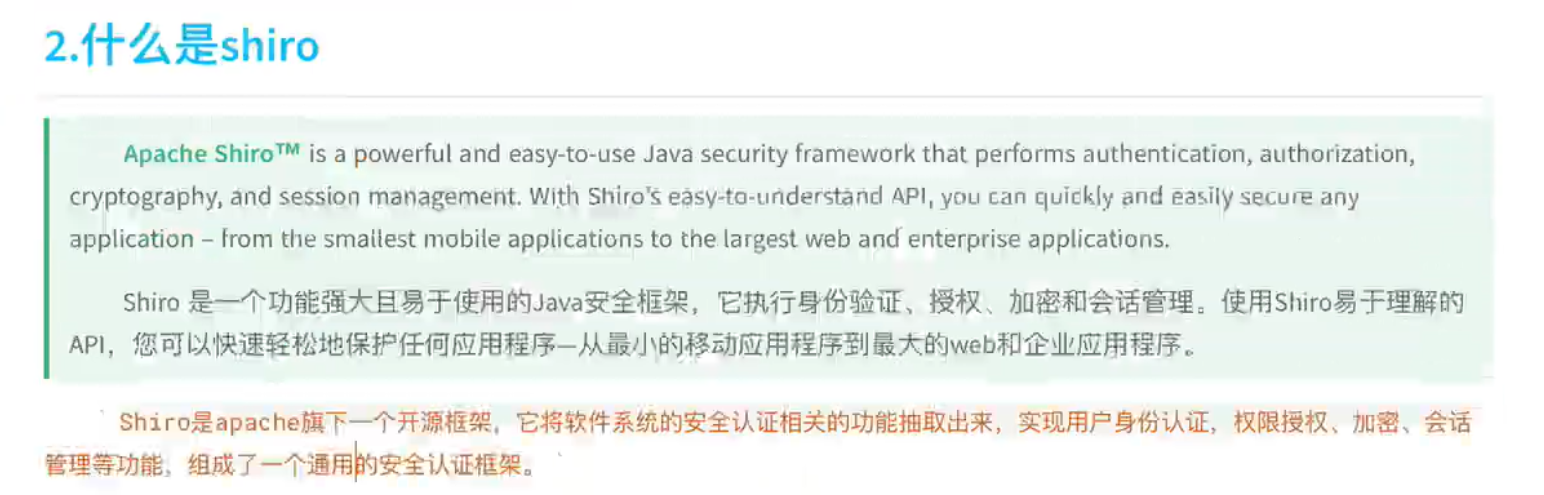

简介

入门

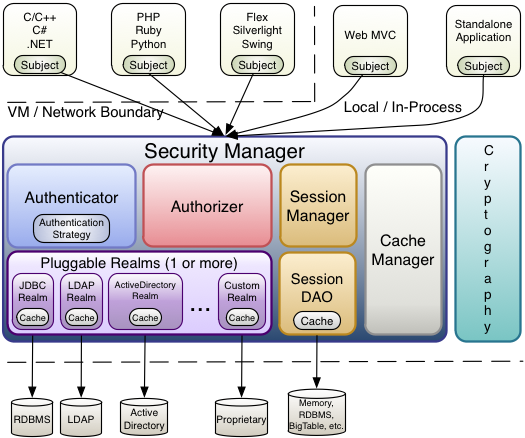

Shiro架构

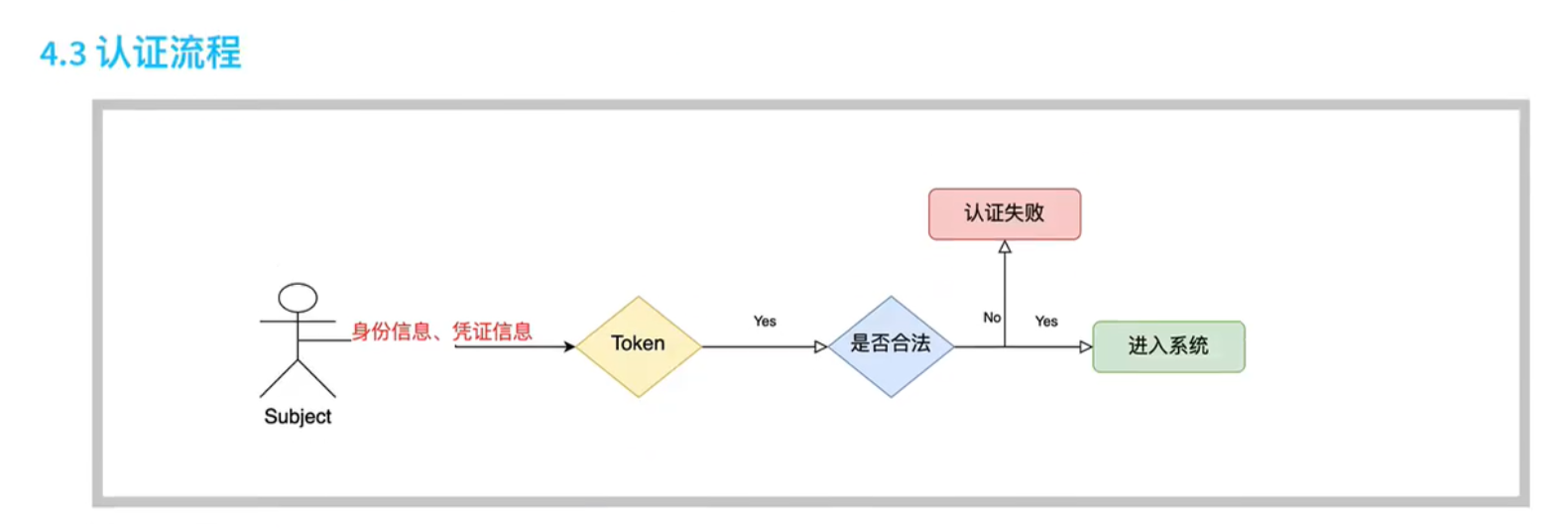

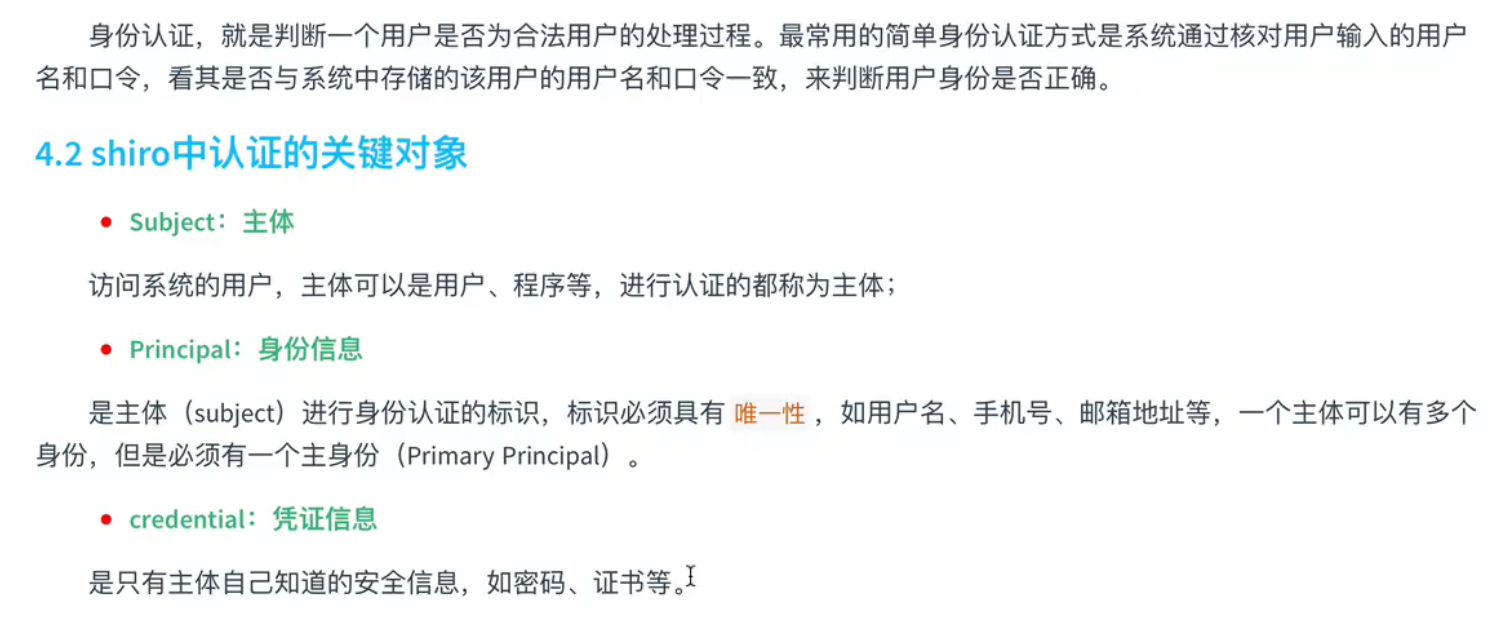

认证

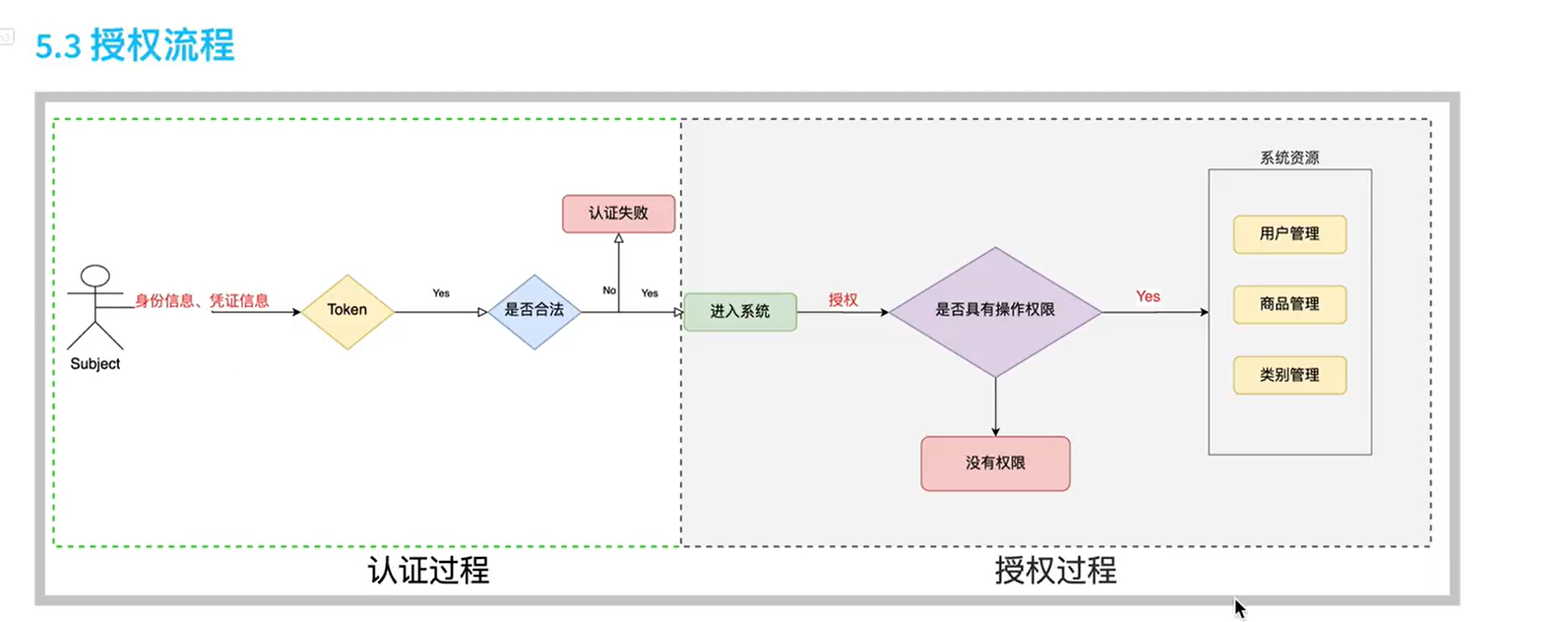

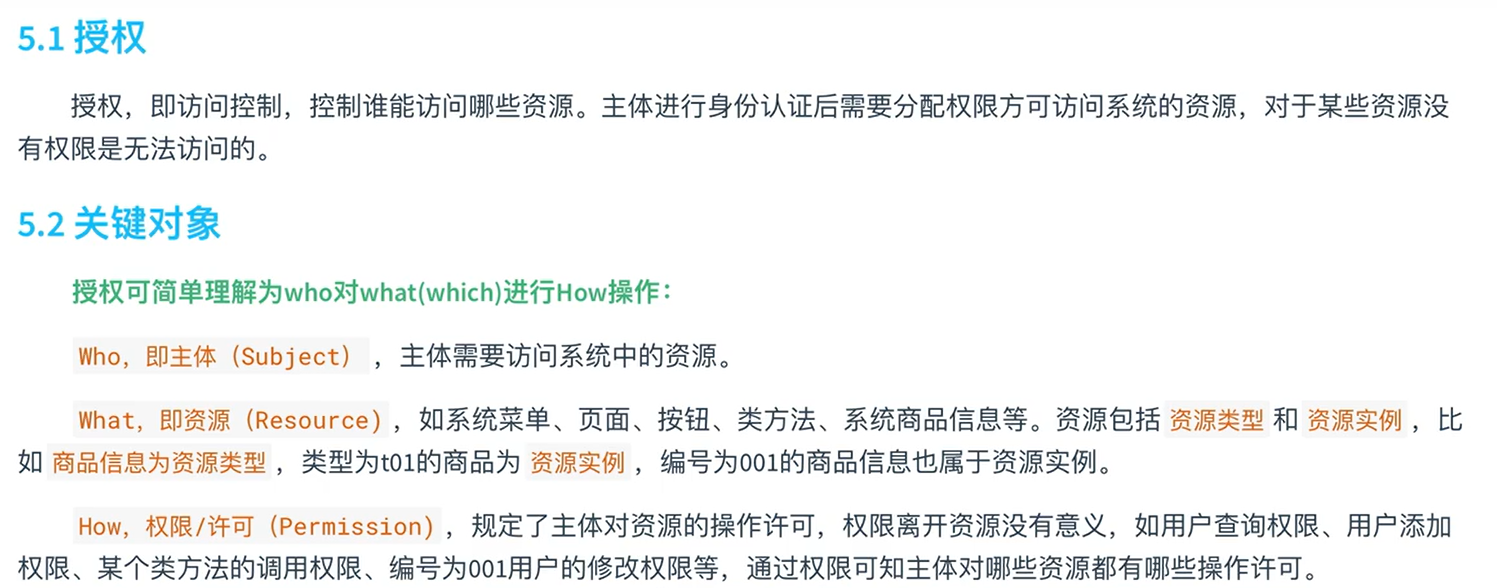

授权

Realm

入门程序

• maven

  <dependency>
    <groupId>org.apache.shiro</groupId>
    <artifactId>shiro-core</artifactId>
    <version>1.7.0</version>
  </dependency>

• ShiroTest.java

  @Test
  public void test() {
    //创建安全管理器对象
    DefaultSecurityManager securityManager = new DefaultSecurityManager();
    //为安全管理器设置realm
    securityManager.setRealm(new IniRealm("classpath:shiro.ini"));
    //为SecurityUtils设置安全管理器
    SecurityUtils.setSecurityManager(securityManager);
    //获得subject主体
    Subject currentUser = SecurityUtils.getSubject();
    //创建令牌
    UsernamePasswordToken token = new UsernamePasswordToken("xiaochen", "123456");
    //用户使用令牌登入
    try {
        currentUser.login(token);
        System.out.println(currentUser.isAuthenticated() ? "认证成功" : "认证失败");
    } catch (UnknownAccountException uae) {
        System.out.println("用户不存在");
    } catch (IncorrectCredentialsException ice) {
        System.out.println("密码错误");
    } catch (LockedAccountException lae) {
        System.out.println("用户被锁定");
    }
  }

• shiro.ini

  #用户信息
  [users]
  xiaochen = 123456
  zhangsan = 123456
  lisi = 123456

  自定义认证

• CustomerRealm.java

  public class CustomerRealm extends AuthorizingRealm {
    //授权
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        return null;
    }
    //认证
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        String principal = String.valueOf(token.getPrincipal());
        //TODO 从数据库获得用户名
        if("xiaochen".equals(principal)){
            return new SimpleAuthenticationInfo(principal,token.getCredentials() , this.getName());
        }
        return null;
    }
  }

• 设置Realm

  securityManager.setRealm(new CustomerRealm());

  自定义授权

• CustomerRealm.java

  //授权
  protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
    System.out.println("该用户主身份: " + principals.getPrimaryPrincipal());
    //TODO 从数据库查询角色信息赋值给用户
    SimpleAuthorizationInfo simpleAuthorizationInfo = new SimpleAuthorizationInfo();
    simpleAuthorizationInfo.addRole("user");

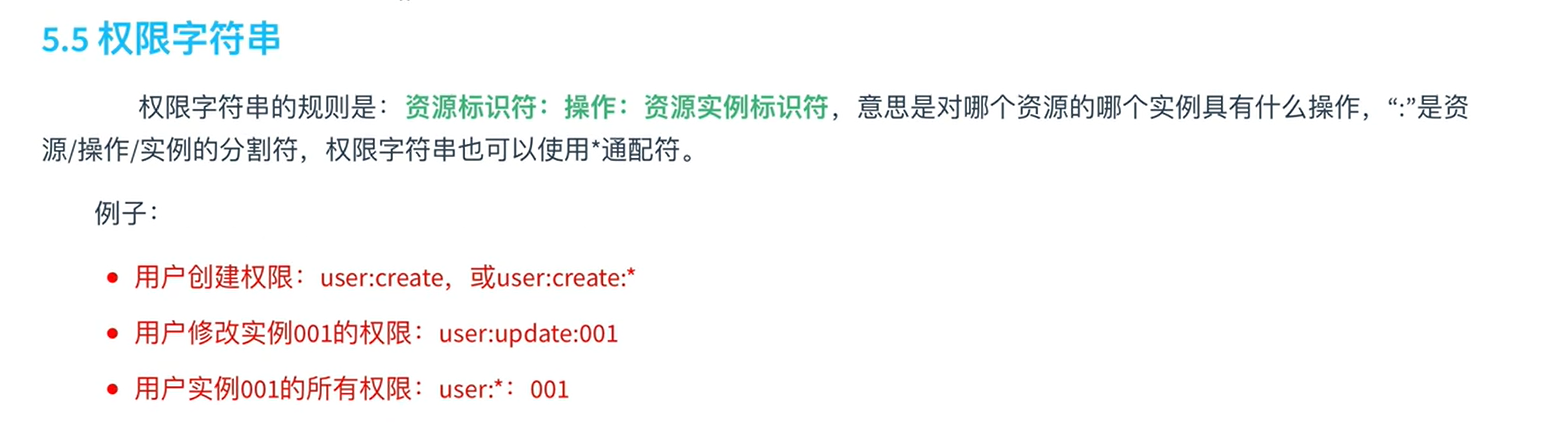

    simpleAuthorizationInfo.addStringPermission("user:*:01");
    simpleAuthorizationInfo.addStringPermission("product:create:*");
    return simpleAuthorizationInfo;
  }

  自定义加密

• test.java ```java //创建安全管理器对象 DefaultSecurityManager securityManager = new DefaultSecurityManager(); //设置自定义realm CustomerRealm realm = new CustomerRealm(); //创建凭证匹配器 HashedCredentialsMatcher matcher = new HashedCredentialsMatcher(); //设置算法 matcher.setHashAlgorithmName(“md5”); //散列次数 matcher.setHashIterations(1024); realm.setCredentialsMatcher(matcher);

securityManager.setRealm(realm);

- CustomerRealm.java
```java
//认证
protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
    String principal = String.valueOf(token.getPrincipal());
    if ("xiaochen".equals(principal)) {
        //用户名,,md5+salt后的密码,salt,realm名称
        return new SimpleAuthenticationInfo(principal, new Md5Hash("123456", "x0*7ps", 1024).toHex()
                , ByteSource.Util.bytes("x0*7ps")
                , this.getName());
    }
    return null;
}

MD5

//使用md5
Md5Hash md5Hash = new Md5Hash("123");
System.out.println(md5Hash.toHex());
//使用md5 + salt
Md5Hash md5Hash1 = new Md5Hash("123","x0*7ps");
System.out.println(md5Hash1.toHex());
//使用md5 + salt + hash散列
Md5Hash md5Hash2 = new Md5Hash("123","x0*7ps",1024);
System.out.println(md5Hash2.toHex());

异常

Subject subject = SecurityUtils.getSubject();
try {
    subject.login(new UsernamePasswordToken(userName,password));
    return "redirect:/index";
}catch (UnknownAccountException e){
    model.addAttribute("message","用户不存在");
}catch (IncorrectCredentialsException e) {
    model.addAttribute("message","密码错误");
}

整合SpringBoot

• maven

  <dependency>
    <groupId>org.apache.shiro</groupId>
    <artifactId>shiro-spring-boot-starter</artifactId>
    <version>1.7.0</version>
  </dependency>

• ShiroConfig

  @Configuration
  public class ShiroConfig {
    //创建ShiroFilter 截拦所有请求
    @Bean
    public ShiroFilterFactoryBean shiroFilterFactoryBean(@Autowired DefaultWebSecurityManager defaultWebSecurityManager){
        ShiroFilterFactoryBean shiroFilterFactoryBean = new ShiroFilterFactoryBean();
        //为Filter配置安全管理器
        shiroFilterFactoryBean.setSecurityManager(defaultWebSecurityManager);
        //配置截拦资源
        HashMap<String, String> map = new HashMap<String, String>();
        map.put("/user/login","anon"); //login设置为公共资源
        map.put("/user/register","anon");
        map.put("/register","anon");
        map.put("/user/getImage","anon");
        map.put("/**","authc"); //截拦所有资源
        shiroFilterFactoryBean.setFilterChainDefinitionMap(map);
        //默认认证界面
        shiroFilterFactoryBean.setLoginUrl("/login");
        return shiroFilterFactoryBean;
    }
    //创建安全管理器
    @Bean
    public DefaultWebSecurityManager defaultWebSecurityManager(@Autowired Realm realm){
        DefaultWebSecurityManager defaultWebSecurityManager = new DefaultWebSecurityManager();
        defaultWebSecurityManager.setRealm(realm);
        return defaultWebSecurityManager;
    }
    @Bean
    public Realm realm(){
        CustomerRealm realm = new CustomerRealm();
        HashedCredentialsMatcher matcher = new HashedCredentialsMatcher();
        //设置算法
        matcher.setHashAlgorithmName("md5");
        //散列次数
        matcher.setHashIterations(1024);
        realm.setCredentialsMatcher(matcher);
        //开启缓存管理
        realm.setCacheManager(new EhCacheManager());  //设置缓存管理器
        realm.setCachingEnabled(true); //开启缓存
        realm.setAuthenticationCachingEnabled(true); //开启认证缓存
        realm.setAuthenticationCacheName("authenticationCache"); //缓存名
        realm.setAuthorizationCachingEnabled(true); //开启授权缓存
        realm.setAuthorizationCacheName("authorizationCache"); //缓存名
        return realm;
    }
  }

• CustomerRealm

  public class CustomerRealm extends AuthorizingRealm {
    @Autowired
    private UserService userService;
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        //主身份(用户名)
        String principal = String.valueOf(principals.getPrimaryPrincipal());
        //根据主身份获取角色
        List<Role> roles = userService.findUserWithRole(principal).getRoles();
        if(!roles.isEmpty()){
            SimpleAuthorizationInfo simpleAuthorizationInfo = new SimpleAuthorizationInfo();
            for(Role r : roles){
                simpleAuthorizationInfo.addRole(r.getRoleName());
                System.out.println(r.getRoleName());
                List<Perms> perms = userService.findPermsByRoleId(r.getId());
                if(!perms.isEmpty()){
                    for(Perms p : perms){
                        simpleAuthorizationInfo.addStringPermission(p.getPermsName());
                        System.out.println(p.getPermsName());
                    }
                }
            }
            //simpleAuthorizationInfo.addStringPermission("user:*:*");
            return simpleAuthorizationInfo;
        }
        return null;
    }
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        String username = String.valueOf(token.getPrincipal());
        QueryWrapper<User> queryWrapper = new QueryWrapper<User>();
        queryWrapper.eq("user_name", username);
        User user = userService.getOne(queryWrapper);
        if (user != null) {
            return new SimpleAuthenticationInfo(username, user.getPassword(), ByteSource.Util.bytes(user.getSalt()), this.getName());
        }
        return null;
    }
  }

  常见过滤器

  | 配置缩写 | 对应的过滤器 | 功能 | | —- | —- | —- | | anon | AnonymousFilter | 指定url可以匿名访问 | | authc | FormAuthenticationFilter | 指定url需要form表单登录，默认会从请求中获取username、password,rememberMe等参数并尝试登录，如果登录不了就会跳转到loginUrl配置的路径。我们也可以用这个过滤器做默认的登录逻辑，但是一般都是我们自己在控制器写登录逻辑的，自己写的话出错返回的信息都可以定制嘛。 | | authcBasic | BasicHttpAuthenticationFilter | 指定url需要basic登录 | | logout | LogoutFilter | 登出过滤器，配置指定url就可以实现退出功能，非常方便 | | noSessionCreation | NoSessionCreationFilter | 禁止创建会话 | | perms | PermissionsAuthorizationFilter | 需要指定权限才能访问 | | port | PortFilter | 需要指定端口才能访问 | | rest | HttpMethodPermissionFilter | 将http请求方法转化成相应的动词来构造一个权限字符串，这个感觉意义不大，有兴趣自己看源码的注释 | | roles | RolesAuthorizationFilter | 需要指定角色才能访问 | | ssl | SslFilter | 需要https请求才能访问 | | user | UserFilter | 需要已登录或“记住我”的用户才能访问 |

页面授权

使用jsp

• 引入标签库

  <%@ taglib prefix="shiro" uri="http://shiro.apache.org/tags" %>

  验证认证情况

• user

  • 用户通过认证或通过记住我登录

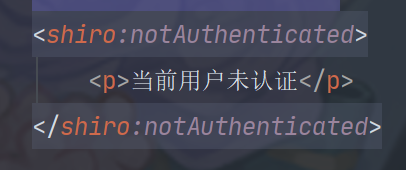

• guest
  • 用户没有身份认证
• authenticated
  • 用户通过身份认证
  •
  •

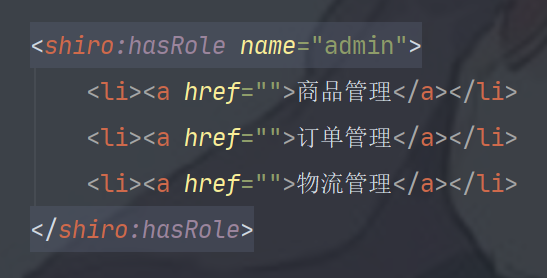

验证权限和角色

• hasRole
  • 含有角色XX
  •

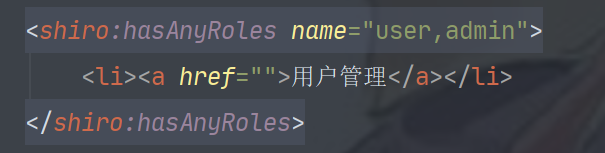

• hasAnyRoles
  • 至少含有其中一个角色
  •

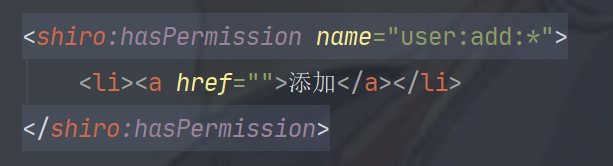

• hasPermission
  • 对某个操作具有权限
  •
• lacksPermission
  • 用户没有相应权限

• lacksRole

  • 用户没有相应角色

    获得用户信息

• principal

  • 用户名
  •


    使用thymeleaf

• maven

  <dependency>
    <groupId>com.github.theborakompanioni</groupId>
    <artifactId>thymeleaf-extras-shiro</artifactId>
    <version>2.0.0</version>
  </dependency>

• xmlns

  xmlns:shiro="http://www.pollix.at/thymeleaf/shiro"

• shirpconfig加入shiro方言配置

  @Bean
  public ShiroDialect shiroDialect(){
  return new ShiroDialect();
  }

• 使用 ```html

  Please login

Welcome back John! Not John? Click here to login.

Hello, , how are you today?

Hello, , how are you today?

Please login in order to update your credit card information.

Administer the system

Sorry, you are not allowed to developer the system.

You are a developer and a admin.

You are a admin, vip, or developer.

添加用户

Sorry, you are not allowed to delete user accounts.

You can see or add users.

You can see or delete users.

<a name="badff791"></a>

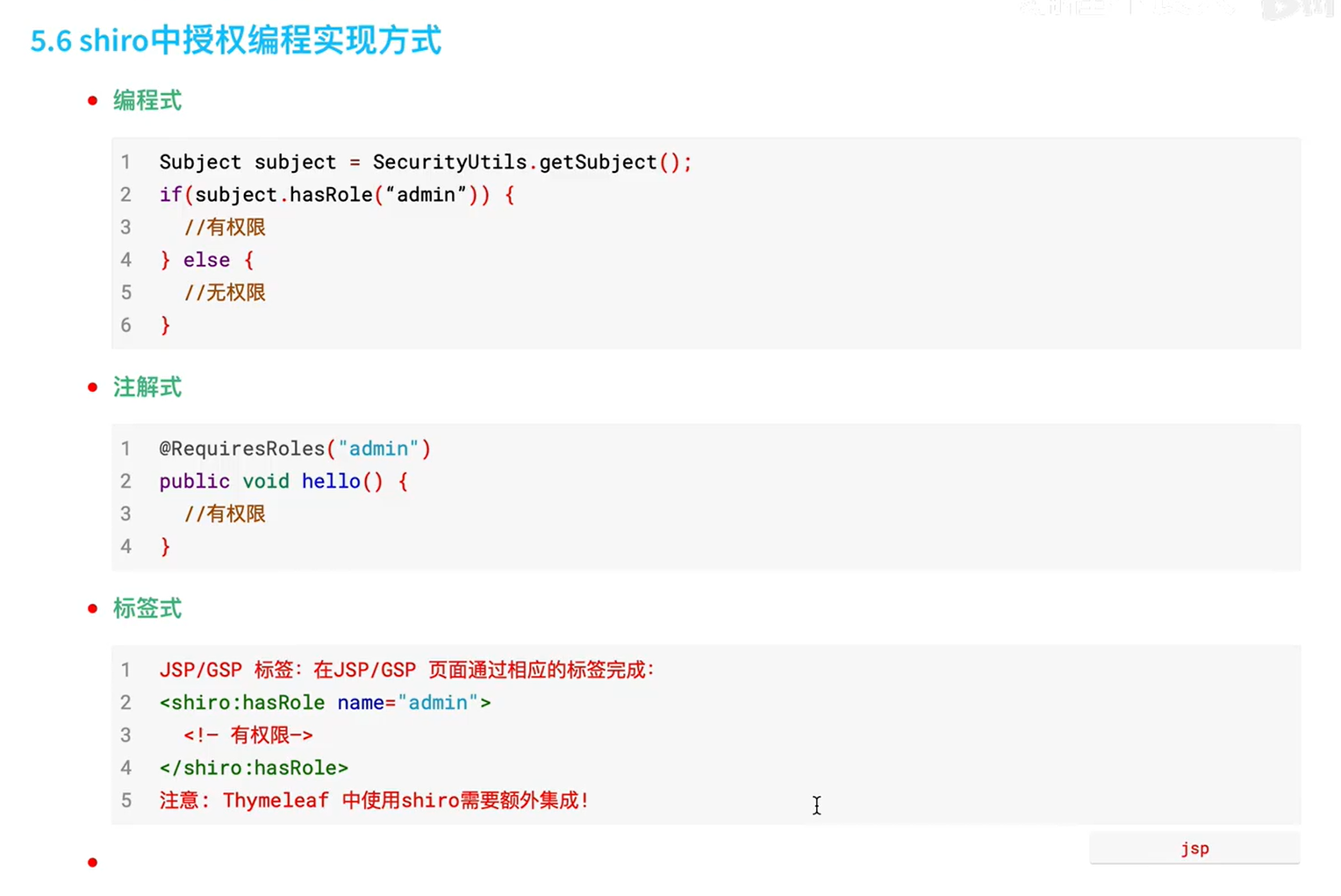

### 方法授权
<a name="a4V5d"></a>

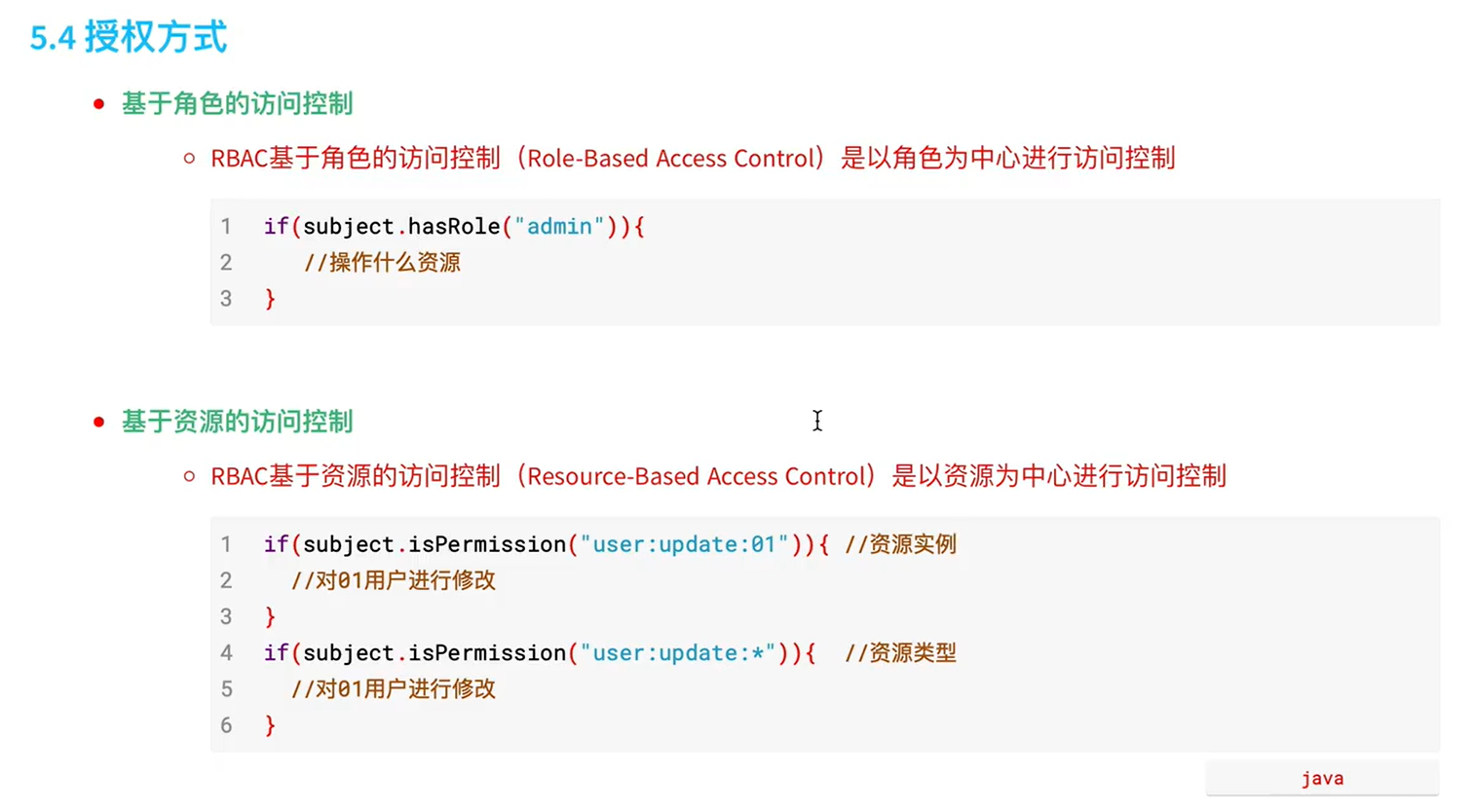

#### 代码授权
![image.png](https://cdn.nlark.com/yuque/0/2020/png/1561124/1605611153107-0ade6e6b-25cc-4b7a-9729-87877a816595.png#align=left&display=inline&height=235&margin=%5Bobject%20Object%5D&name=image.png&originHeight=469&originWidth=732&size=284701&status=done&style=none&width=366)
<a name="y9yhR"></a>
#### [注解授权](https://wiki.jikexueyuan.com/project/shiro/jsp-label.html)
- @RequiresRoles({"admin","user"})
   - 主体需要同时拥有角色admin和user
      - 否则抛出异常**AuthorizationException**
- @RequiresPermissions("user:update:01")
   - 主体需要对应的操作权限
      - 否则抛出异常**AuthorizationException**
<a name="abUzX"></a>
### CacheManager
![image.png](https://cdn.nlark.com/yuque/0/2020/png/1561124/1605659698024-614a2015-9126-4c7e-9ec1-c973996981b5.png#align=left&display=inline&height=304&margin=%5Bobject%20Object%5D&name=image.png&originHeight=607&originWidth=1514&size=189160&status=done&style=none&width=757)
<a name="BRbmJ"></a>
#### 结合echache
- maven
```xml
<dependency>
    <groupId>org.apache.shiro</groupId>
    <artifactId>shiro-ehcache</artifactId>
    <version>1.7.0</version>
</dependency>

• ShiroConfig.java

  //开启缓存管理
  realm.setCacheManager(new EhCacheManager());  //设置缓存管理器
  realm.setCachingEnabled(true); //开启缓存
  realm.setAuthenticationCachingEnabled(true); //开启认证缓存
  realm.setAuthenticationCacheName("authenticationCache"); //缓存名
  realm.setAuthorizationCachingEnabled(true); //开启授权缓存
  realm.setAuthorizationCacheName("authorizationCache"); //缓存名

  结合Redis

  视频

  多Realm

  参考
  https://blog.csdn.net/visket2008/article/details/78539334
  https://blog.csdn.net/cckevincyh/article/details/79629022
  https://blog.csdn.net/xiangwanpeng/article/details/54802509
  https://blog.csdn.net/cckevincyh/article/details/79629824

  ModularRealmAuthorizer

  https://wiki.jikexueyuan.com/project/shiro/right.html

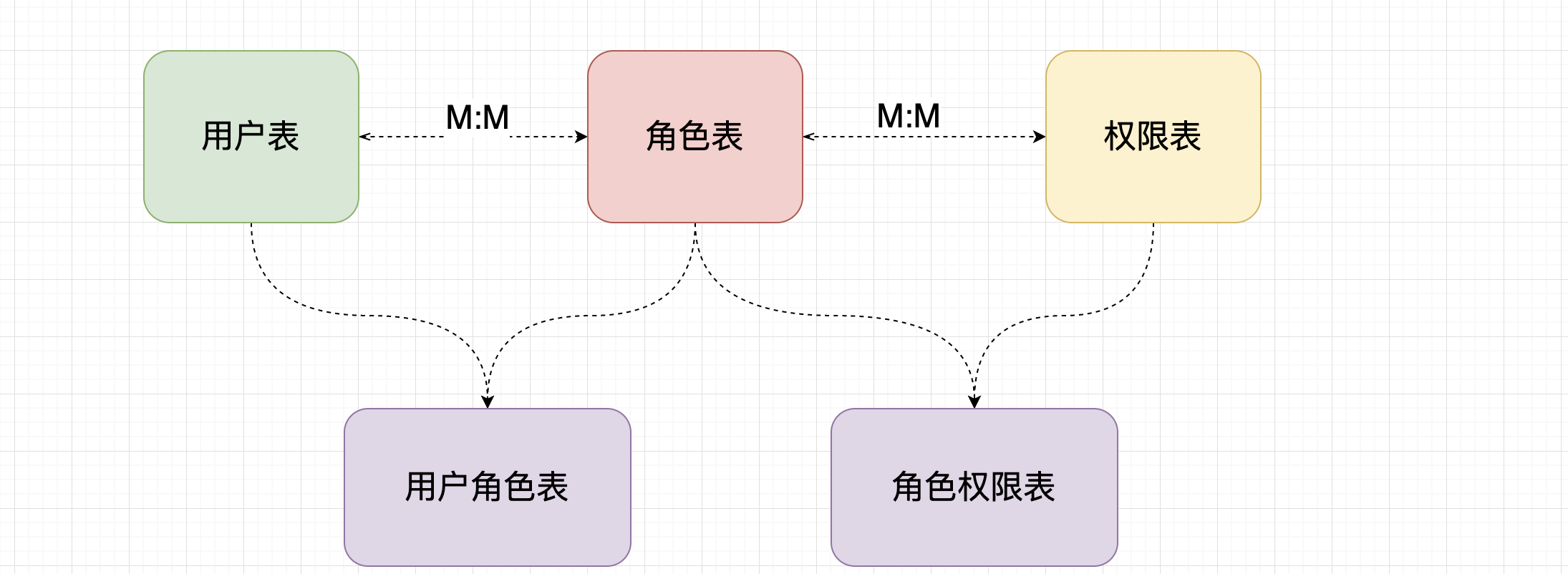

数据库设计

shirotest.sql

实例

springboot_jsp_shiro.zip

加密算法

MD5

• MD5算法不可逆
• 相同的内容加密后结果一致

生成内容始终为16进制32为字符串
