<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-web</artifactId>
    <version>${spring-version}</version>
</dependency>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-tx</artifactId>
    <version>${spring-version}</version>
</dependency>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>${spring-version}</version>
</dependency>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-core</artifactId>
    <version>${spring-version}</version>
</dependency>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-beans</artifactId>
    <version>${spring-version}</version>
</dependency>

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>${spring-version}</version>
</dependency>



<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>${spring-version}</version>
</dependency>

<!--mybatis-->
<dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>3.5.5</version>
</dependency>

<!--ssm-->
<dependency>
    <groupId>org.singledog</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>1.3.3</version>
</dependency>

<!--mysql-->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>8.0.20</version>
</dependency>

<!--druid-->
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>1.1.22</version>
</dependency>


<!--servlet-->
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>servlet-api</artifactId>
    <version>2.5</version>
</dependency>
<!--jsp-->
<dependency>
    <groupId>javax.servlet.jsp</groupId>
    <artifactId>jsp-api</artifactId>
    <version>2.1</version>
</dependency>
<!--jstl-->
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>jstl</artifactId>
    <version>1.2</version>
</dependency>

<!--junit4-->
<dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.12</version>
</dependency>

- web.xml

加载Spring配置文件<br />加载Springmvc配置文件<br />配置前端控制器<br />中文乱码过滤器

```xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <listener>
        <!--  Spring监听器,默认加载WEB-INF目录下的applicationContext.xml配置文件  -->
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <!--  设置配置文件路径  -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-config.xml</param-value>
    </context-param>

    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!--  前端控制器加载spring配置文件  -->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc-config.xml</param-value>
        </init-param>
        <!--  servlet在启动项目时就加载,且顺序为1  -->
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--  解决中文乱码的过滤器  -->
    <filter>
        <filter-name>characterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>characterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

</web-app>

• springmvc-config.xml

扫描控制器
配置视图解析器
静态资源

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">
    <!--  扫描 Controller  -->
    <context:component-scan base-package="cn.landsall">
        <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!--  视图解析器对象  -->
    <bean id="internalResourceViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!--  视图位置  -->
        <property name="prefix" value="/WEB-INF/pages/"/>
        <!--  视图后缀名  -->
        <property name="suffix" value=".jsp"/>
    </bean>

    <!--  不截拦静态资源  -->
    <mvc:resources location="/static/" mapping="/static/**"/>

    <!--  开启SpringMvc框架注解的支持  -->
    <mvc:annotation-driven/>

</beans>

• spring-config.xml

扫描 Spring 和 Mybatis

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/cache"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/cache http://www.springframework.org/schema/cache/spring-cache.xsd">

    <!--  开启扫描,不处理 SpringMvc-->
    <context:component-scan base-package="cn.landsall">
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!--  配置连接池  -->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <!-- 基本属性 url、user、password -->
        <property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://111.229.166.200:3306/ssm?serverTimezone=Asia/Shanghai" />
        <property name="username" value="admin" />
        <property name="password" value="cyl032512" />

        <!-- 配置初始化大小、最小、最大 -->
        <property name="initialSize" value="1" />
        <property name="minIdle" value="1" />
        <property name="maxActive" value="20" />
    </bean>

    <!--  配置 SqlSessionFactory  -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <!--  实体类别名 -->
        <property name="typeAliasesPackage" value="cn.landsall.entity"/>
         <!-- 自动扫描mapping.xml文件 -->
        <property name="mapperLocations" value="classpath:/mapper/*.xml"/>
    </bean>

    <!--  配置 映射器 所在的包  -->
    <bean id="mapperScanner" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.landsall.dao"/>
    </bean>


</beans>

pagehelper 分页

github: https://github.com/pagehelper/Mybatis-PageHelper
文档: https://github.com/pagehelper/Mybatis-PageHelper/blob/master/README_zh.md
API: https://apidoc.gitee.com/free/Mybatis_PageHelper/
实现原理: https://www.w3cschool.cn/mybatis/mybatis-ypsj3bpi.html
视频 : https://www.bilibili.com/video/BV1mE411X7yp?p=302

• 5.X.X 版本

https://github.com/pagehelper/Mybatis-PageHelper/blob/master/wikis/zh/HowToUse.md

• 集成SpringMvc

https://github.com/abel533/Mybatis-Spring

引入依赖jar包

<dependency>
    <groupId>com.github.pagehelper</groupId>
    <artifactId>pagehelper</artifactId>
    <version>5.X.X</version>
</dependency>

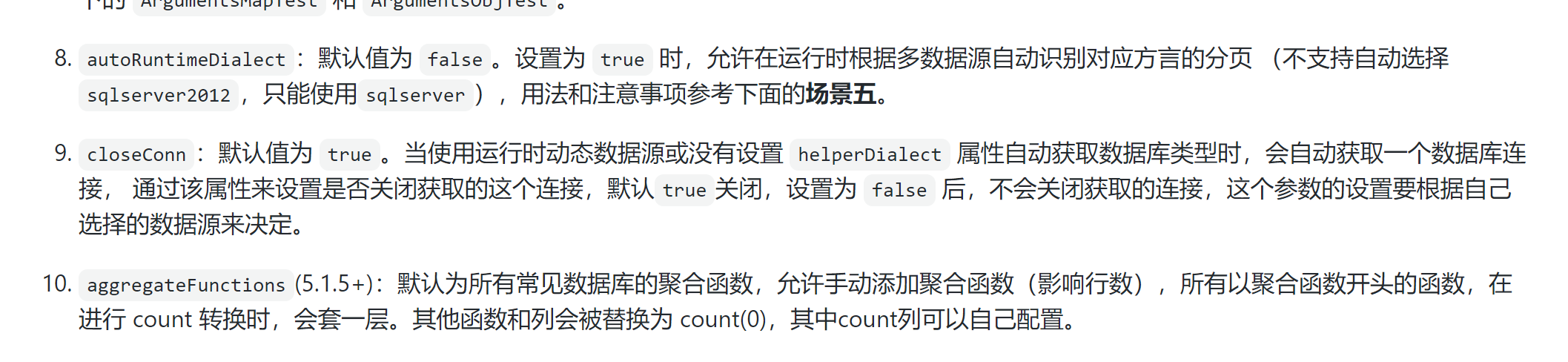

配置分页拦截器

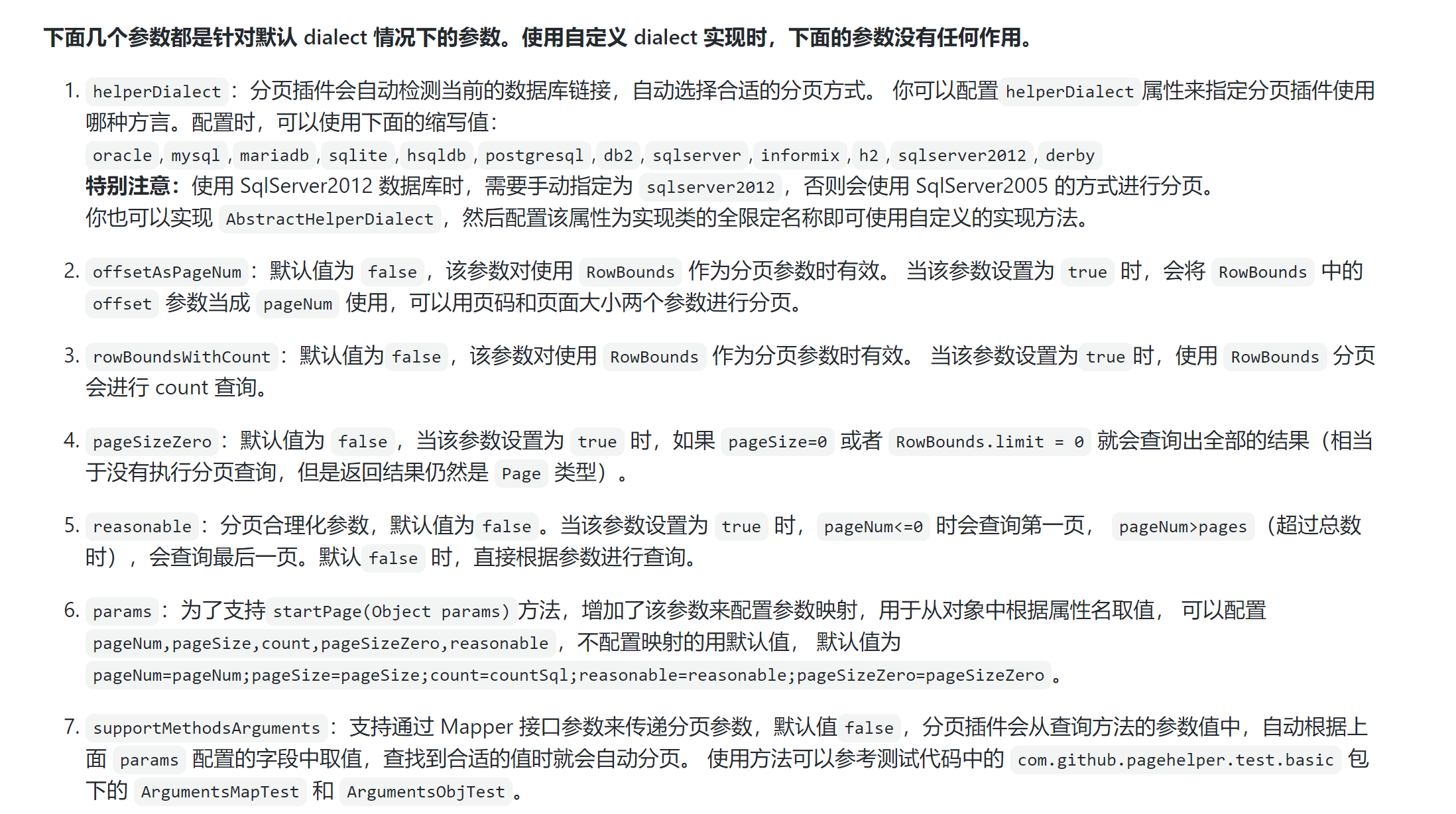

参数

mybatis

• mybatis-config.xml

  <plugins>
  <!-- com.github.pagehelper为PageHelper类所在包名 -->
  <plugin interceptor="com.github.pagehelper.PageHelper">
      <property name="dialect" value="mysql"/>
      <!-- 该参数默认为false -->
      <!-- 设置为true时，会将RowBounds第一个参数offset当成pageNum页码使用 -->
      <!-- 和startPage中的pageNum效果一样-->
      <property name="offsetAsPageNum" value="true"/>
      <!-- 该参数默认为false -->
      <!-- 设置为true时，使用RowBounds分页会进行count查询 -->
      <property name="rowBoundsWithCount" value="true"/>

      <!-- 设置为true时，如果pageSize=0或者RowBounds.limit = 0就会查询出全部的结果 -->
      <!-- （相当于没有执行分页查询，但是返回结果仍然是Page类型）
      <property name="pageSizeZero" value="true"/>-->

      <!-- 3.3.0版本可用 - 分页参数合理化，默认false禁用 -->
      <!-- 启用合理化时，如果pageNum<1会查询第一页，如果pageNum>pages会查询最后一页 -->
      <!-- 禁用合理化时，如果pageNum<1或pageNum>pages会返回空数据 -->
      <property name="reasonable" value="true"/>
      <!-- 3.5.0版本可用 - 为了支持startPage(Object params)方法 -->
      <!-- 增加了一个`params`参数来配置参数映射，用于从Map或ServletRequest中取值 -->
      <!-- 可以配置pageNum,pageSize,count,pageSizeZero,reasonable,不配置映射的用默认值 -->
      <!-- 不理解该含义的前提下，不要随便复制该配置
      <property name="params" value="pageNum=start;pageSize=limit;"/>    -->
  </plugin>
  </plugins>


  ssm

  <!--  配置 SqlSessionFactory  -->
  <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
    <property name="dataSource" ref="dataSource"/>
    <!--  实体类别名 -->
    <property name="typeAliasesPackage" value="cn.landsall.entity"/>
    <!-- 分页插件 -->
    <property name="plugins">
        <array>
            <bean class="com.github.pagehelper.PageInterceptor">
                <property name="properties">
                    <props>
                        <prop key="helperDialect">mysql</prop>
                        <prop key="reasonable">true</prop>
                    </props>
                </property>
            </bean>
        </array>
    </property>
  </bean>


  使用

  在执行查询语句前调用静态方法

  PageHelper.startPage(currentPage,pageSize);
  List<Book> list = bookService.getAll();

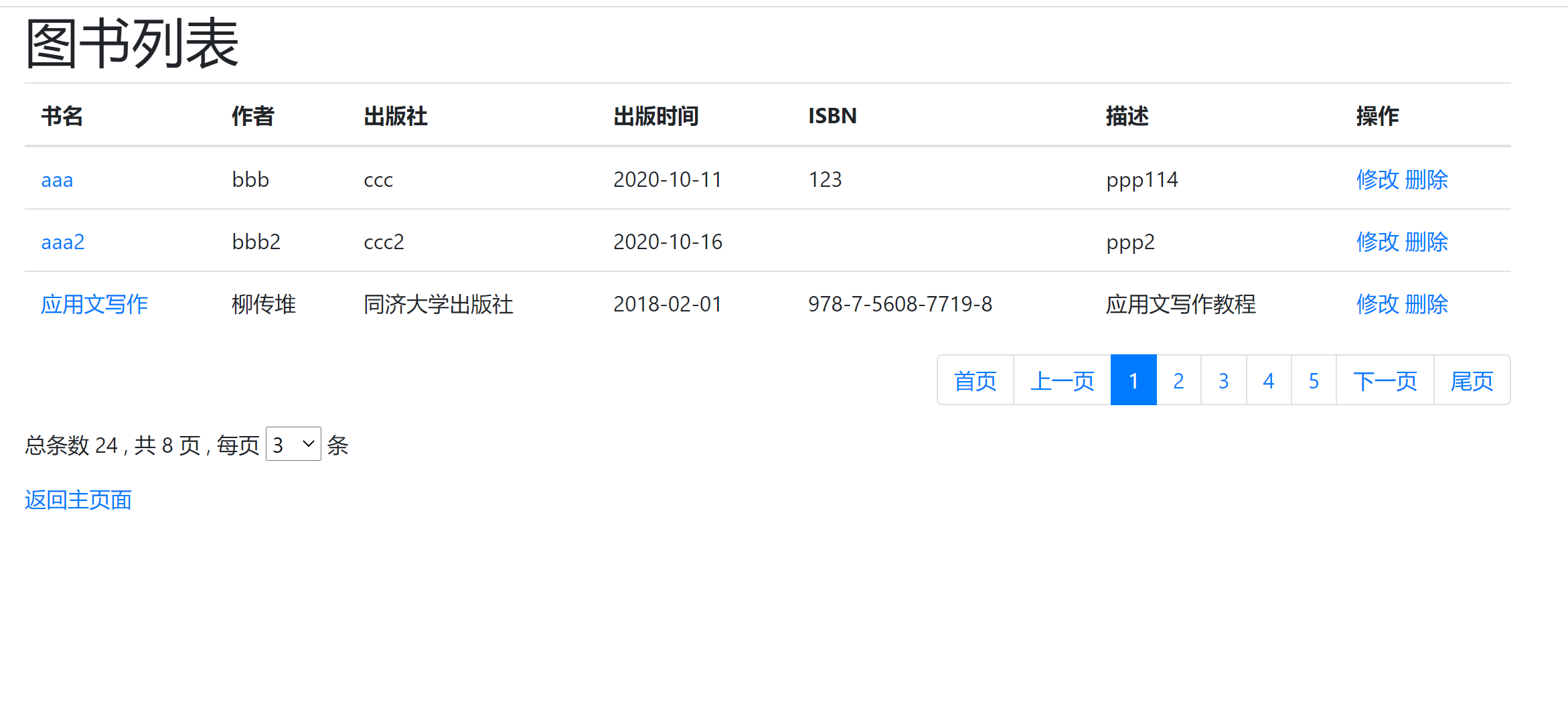

  案例

• BookList.jsp ```html

    <td><a href="${pageContext.request.contextPath}/book/detail/${book.id}">${book.bookName}</a></td>
    <td>${book.author}</td>
    <td>${book.publish}</td>
    <td><fmt:formatDate value="${book.publish_time}" pattern="yyyy-MM-dd"/></td>
    <td>${book.ISBN}</td>
    <td>${book.desc}</td>
    <td colspan="2">
        <a href="${pageContext.request.contextPath}/book/update/${book.id}">修改</a>
        <a href="${pageContext.request.contextPath}/book/del/${book.id}">删除</a>
    </td>


总条数 ${pageinfo.total} , 共 ${pageinfo.pages} 页 , 每页 ${pageinfo.pageSize} 5 10 20 30 40 50 条

- Controller.java
```java
@RequestMapping("/list/{currentPage}/{pageSize}")
public String List(ModelMap modelMap, @PathVariable int currentPage, @PathVariable int pageSize) {
    pageSize = pageSize > MinPageSize ? pageSize : MinPageSize;
    PageHelper.startPage(currentPage, pageSize);
    List<Book> list = bookService.getAll();

    PageInfo<Book> pageInfo = new PageInfo<>(list);
    //导航条逻辑
    int startPage = pageInfo.getPageNum();
    int subPage = (startPage % PageRange + PageRange - 1)%PageRange;
    startPage -= subPage;
    int endPage = startPage + PageRange - 1;
    endPage = Math.min(endPage, pageInfo.getPages());

    modelMap.addAttribute("startPage", startPage);
    modelMap.addAttribute("endPage", endPage);
    modelMap.addAttribute("pageinfo", pageInfo);

    return "BookList";
}
