前言:
上篇文件了解了netty的演变过程,然后结合了两个demo感受了下,本篇文章重点介绍他的一些核心组件。
一 Bootstrap ,ServerBootstrap
Bootstrap 意思是引导,一个 Netty 应用通常由一个 Bootstrap 开始,主要作用是配置整个 Netty 程序,串联各个组件,Netty 中 Bootstrap 类是客户端程序的启动引导类,ServerBootstrap 是服务端启动引导类
常见方法:
方法名称 | 方法介绍 |
---|---|
public ServerBootstrap group(EventLoopGroup parentGroup, EventLoopGroup childGroup) | 该方法用于服务器端,用来设置两个EventLoop |
public B group(EventLoopGroup group) | 该方法用于客户端,用来设置一个EventLoop |
public B channel(Class<? extends C> channelClass) | 该方法用来设置一个服务器端的通道实现 |
public |
用来给 ServerChannel 添加配置 |
public |
用来给接收到的通道添加配置 |
public ServerBootstrap childHandler(ChannelHandler childHandler) | 该方法用来设置业务处理类(自定义的 handler) |
public ChannelFuture bind(int inetPort) | 该方法用于服务器端,用来设置占用的端口号 |
public ChannelFuture connect(String inetHost, int inetPort) | 该方法用于客户端,用来连接服务器 |
二 Future、ChannelFuture
Netty 中所有的 IO 操作都是异步的,不能立刻得知消息是否被正确处理。但是可以过一会等它执行完成或者直接注册一个监听,具体的实现就是通过 Future 和 ChannelFutures,他们可以注册一个监听,当操作执行成功或失败时监听会自动触发注册的监听事件
常见的方法有
方法名 | 方法介绍 |
---|---|
Channel channel() | 返回当前正在进行 IO 操作的通道 |
ChannelFuture sync() | 等待异步操作执行完毕,相当于将阻塞在当前。 |
三 Channel
- Netty 网络通信的组件,能够用于执行网络 I/O 操作。
- 通过Channel 可获得当前网络连接的通道的状态
- 通过Channel 可获得 网络连接的配置参数 (例如接收缓冲区大小)
- Channel 提供异步的网络 I/O 操作(如建立连接,读写,绑定端口),异步调用意味着任何 I/O 调用都将立即返回,并且不保证在调用结束时所请求的 I/O 操作已完成
- 调用立即返回一个 ChannelFuture 实例,通过注册监听器到 ChannelFuture 上,可以 I/O 操作成功、失败或取消时回调通知调用方
- 支持关联 I/O 操作与对应的处理程序
- 不同协议、不同的阻塞类型的连接都有不同的 Channel 类型与之对应
常用的 Channel 类型
名称 | 介绍 |
---|---|
NioSocketChannel | 异步的客户端 TCP Socket 连接。 |
NioServerSocketChannel | 异步的服务器端 TCP Socket 连接 |
NioDatagramChannel | 异步的 UDP 连接。 |
NioSctpChannel | 异步的客户端 Sctp 连接。 |
NioSctpServerChannel | 异步的 Sctp 服务器端连接,这些通道涵盖了 UDP 和 TCP 网络 IO 以及文件 IO。 |
四 Selector
- Netty 基于Selector对象实现 I/O 多路复用,通过Selector 一个线程可以监听多个连接的 Channel 事件。
- 当向一个Selector 中注册Channel 后,Selector内部的机制就可以自动不断地查询(Select) 这些注册的 Channel 是否有已就绪的 I/O 事件(例如可读,可写,网络连接完成等),这样程序就可以很简单地使用一个线程高效地管理多个 Channel
同时,Netty中对selector中的selectedKey集合进行了替换,它替换成了一个它自己实现的一个set集合,这样效率更高。
五 ChannelHandler及其实现类
ChannelHandler 是一个接口,处理 I/O 事件或拦截 I/O 操作,并将其转发到其 ChannelPipeline(业务处理链)中的下一个处理程序。
- ChannelHandler 本身并没有提供很多方法,因为这个接口有许多的方法需要实现,方便使用期间,可以继承它的子类
我们经常需要自定义一个 Handler类去继承 ChannelInboundHandlerAdapter,然后通过重写相应方法实现业务逻辑,我们接下来看看一般都需要重写哪些方法 ```java public class ChannelInboundHandlerAdapter extends ChannelHandlerAdapter implements ChannelInboundHandler {
//通道注册事件 @Skip @Override public void channelRegistered(ChannelHandlerContext ctx) throws Exception {
ctx.fireChannelRegistered();
}
//通道取消注册事件 @Skip @Override public void channelUnregistered(ChannelHandlerContext ctx) throws Exception {
ctx.fireChannelUnregistered();
}
//通道就绪事件 @Skip @Override public void channelActive(ChannelHandlerContext ctx) throws Exception {
ctx.fireChannelActive();
}
/**
- Calls {@link ChannelHandlerContext#fireChannelInactive()} to forward
- to the next {@link ChannelInboundHandler} in the {@link ChannelPipeline}. *
Sub-classes may override this method to change behavior. */ @Skip @Override public void channelInactive(ChannelHandlerContext ctx) throws Exception { ctx.fireChannelInactive(); }
//通道读取数据事件 @Skip @Override public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception { ctx.fireChannelRead(msg); }
//通道数据读取完毕事件 @Skip @Override public void channelReadComplete(ChannelHandlerContext ctx) throws Exception { ctx.fireChannelReadComplete(); }
/**
- Calls {@link ChannelHandlerContext#fireUserEventTriggered(Object)} to forward
- to the next {@link ChannelInboundHandler} in the {@link ChannelPipeline}. *
Sub-classes may override this method to change behavior. */ @Skip @Override public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception { ctx.fireUserEventTriggered(evt); }
/**
- Calls {@link ChannelHandlerContext#fireChannelWritabilityChanged()} to forward
- to the next {@link ChannelInboundHandler} in the {@link ChannelPipeline}. *
Sub-classes may override this method to change behavior. */ @Skip @Override public void channelWritabilityChanged(ChannelHandlerContext ctx) throws Exception { ctx.fireChannelWritabilityChanged(); }
//通道发生异常事件 @Skip @Override @SuppressWarnings(“deprecation”) public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause)
throws Exception {
ctx.fireExceptionCaught(cause); } }

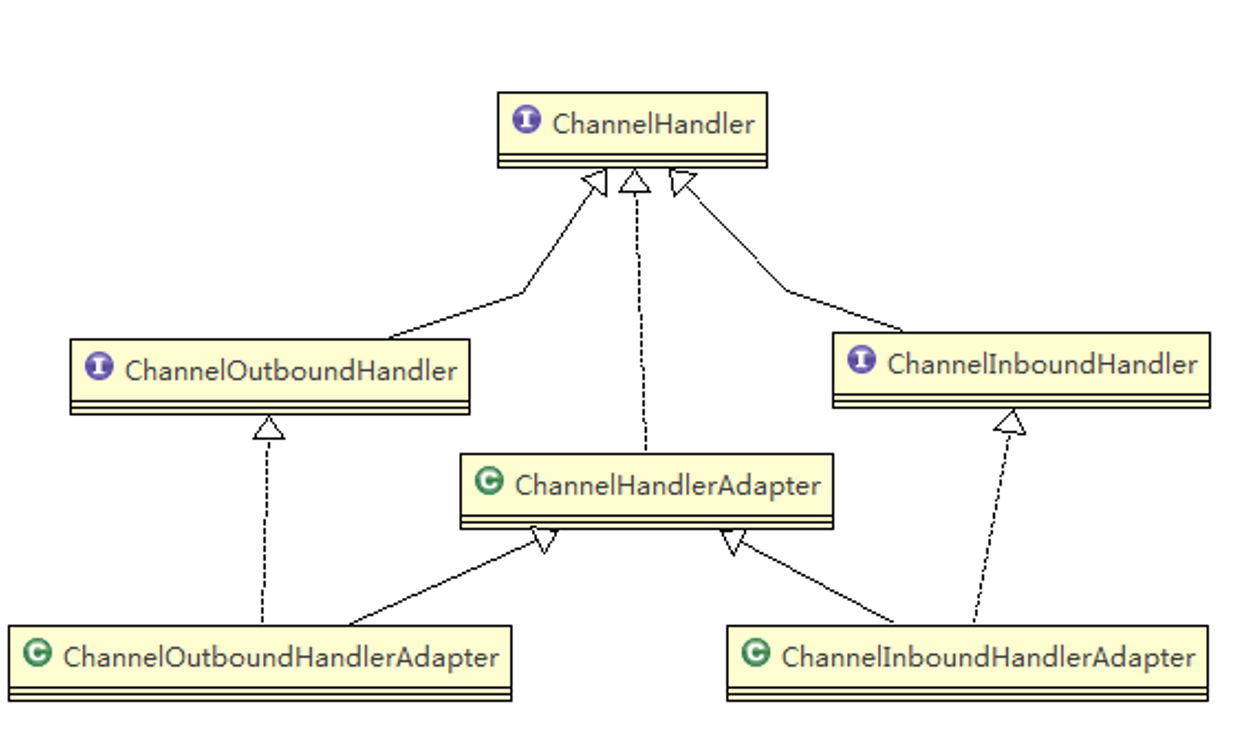

![image.png](https://cdn.nlark.com/yuque/0/2020/png/1502688/1601075440273-97fa646f-5950-4e9a-8504-d2764f31be88.png#height=370&id=Qqelm&margin=%5Bobject%20Object%5D&name=image.png&originHeight=740&originWidth=1234&originalType=binary&ratio=1&size=190169&status=done&style=none&width=617)
- ChannelInboundHandler 用于处理入站 I/O 事件。
- ChannelOutboundHandler 用于处理出站 I/O 操作。
适配器
- ChannelInboundHandlerAdapter 用于处理入站 I/O 事件。
- ChannelOutboundHandlerAdapter 用于处理出站 I/O 操作。
- ChannelDuplexHandler 用于处理入站和出站事件。
<a name="0Th5h"></a>
# 六 Pipeline和ChannelPipeline
1. ChannelPipeline 是一个 Handler 的集合,它负责处理和拦截 inbound 或者 outbound 的事件和操作,相当于一个贯穿 Netty 的链。(也可以这样理解:ChannelPipeline 是保存ChannelHandler的List,用于处理或拦截 Channel 的入站事件和出站操作)
1. ChannelPipeline 实现了一种高级形式的拦截过滤器模式,使用户可以完全控制事件的处理方式,以及 Channel 中各个的 ChannelHandler 如何相互交互

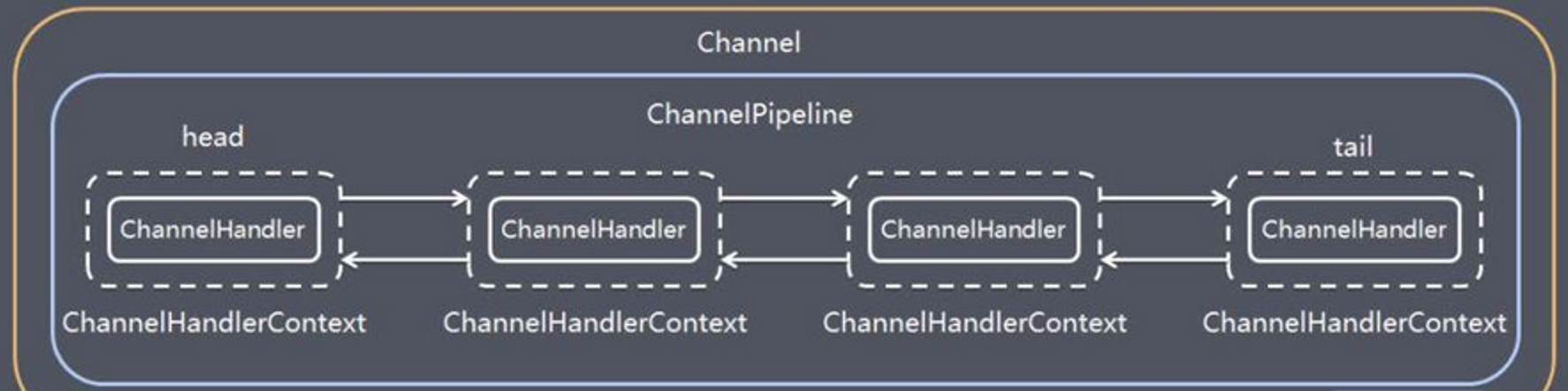

1. 在 Netty 中每个 Channel 都有且仅有一个 ChannelPipeline 与之对应,它们的组成关系如下
![image.png](https://cdn.nlark.com/yuque/0/2020/png/1502688/1601075692411-193de8b1-3a8c-4219-8a6d-705f0eeb724f.png#height=221&id=XZIwW&margin=%5Bobject%20Object%5D&name=image.png&originHeight=442&originWidth=1774&originalType=binary&ratio=1&size=740244&status=done&style=none&width=887)
- 一个 Channel 包含了一个 ChannelPipeline,而 ChannelPipeline 中又维护了一个由 ChannelHandlerContext 组成的双向链表,并且每个 ChannelHandlerContext 中又关联着一个 ChannelHandler
- 入站事件和出站事件在一个双向链表中,入站事件会从链表 head 往后传递到最后一个入站的 handler,出站事件会从链表 tail 往前传递到最前一个出站的 handler,两种类型的 handler 互不干扰
**常用方法:**
| 方法名 | 介绍 |
| --- | --- |
| ChannelPipeline addFirst(ChannelHandler... handlers) | 把一个业务处理类(handler)添加到链中的第一个位置 |
| ChannelPipeline addLast(ChannelHandler… handlers) | 把一个业务处理类(handler)添加到链中的最后一个位置 |
<a name="Xzy0v"></a>
# 七 ChannelHandlerContext
1. 保存 Channel 相关的所有上下文信息,同时关联一个 ChannelHandler 对象
1. 即ChannelHandlerContext 中 包 含 一 个 具 体 的 事 件 处 理 器 ChannelHandler , 同 时ChannelHandlerContext 中也绑定了对应的 pipeline 和 Channel 的信息,方便对 ChannelHandler进行调用.
**常用方法:**
| 方法名 | 介绍 |
| --- | --- |
| ChannelFuture close() | 关闭通道 |
| ChannelOutboundInvoker flush() | 刷新 |
| ChannelFuture writeAndFlush(Object msg) | 将数据写到ChannelPipeline中当前ChannelHandler的下一个ChannelHandler开始处理(出站) |
<a name="Cnhqu"></a>
# 八 ChannelOption
Netty 在创建 Channel 实例后,一般都需要设置 ChannelOption 参数。<br />**ChannelOption 参数如下:**
2. ChannelOption.SO_BACKLOG
1. 对应 TCP/IP 协议 listen 函数中的 backlog 参数,用来初始化服务器可连接队列大小。
1. 服务端处理客户端连接请求是顺序处理的,所以同一时间只能处理一个客户端连接。多个客户端来的时候,服务端将不能处理的客户端连接请求放在队列中等待处理,backlog 参数指定了队列的大小。
4. ChannelOption.SO_KEEPALIVE
1. 一直保持连接活动状态
<a name="6uJJv"></a>

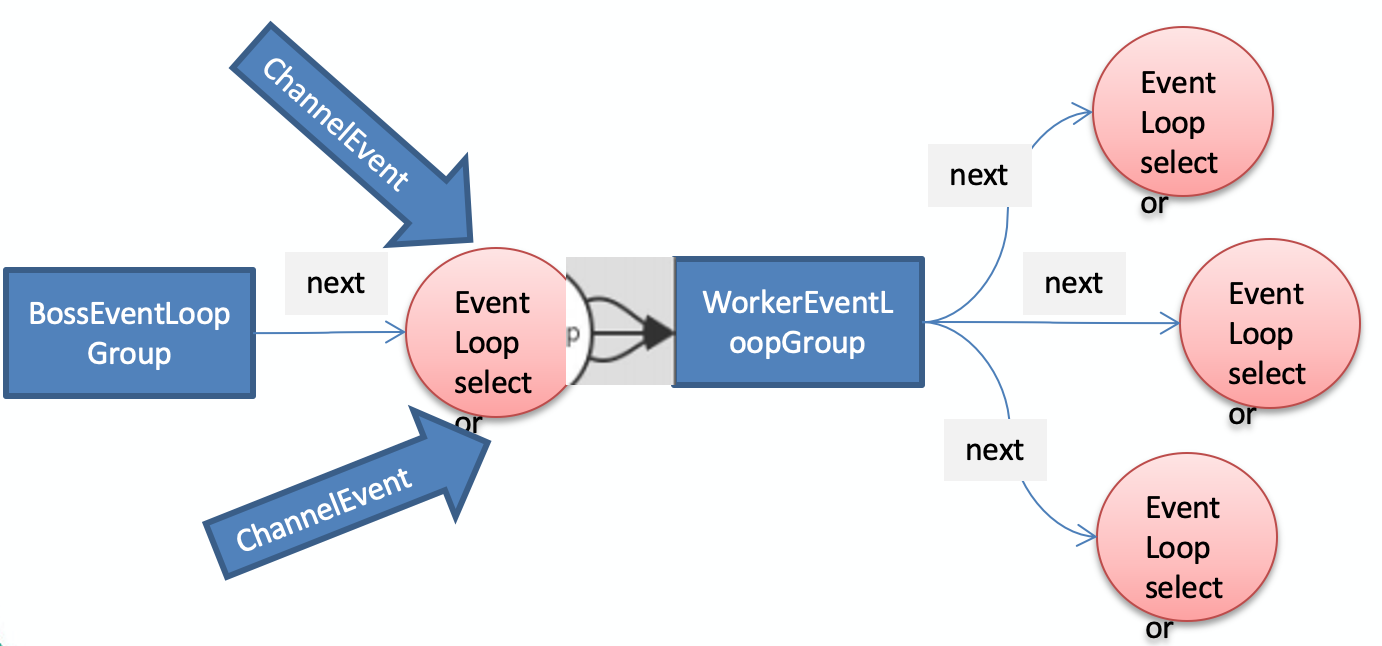

# 九 EventLoopGroup和其实现类NioEventLoopGroup
1. EventLoopGroup是一组EventLoop的抽象,Netty为了更好的利用多核 CPU资源,一般会有多 EventLoop同时工作,每个EventLoop维护着一个 Selector实例。
1. EventLoopGroup 提供next 接口,可以从组里面按照一定规则获取其中一个 EventLoop来处理任务。在 Netty 服务器端编程中,我们一般都需要提供两个 EventLoopGroup,例如:BossEventLoopGroup 和WorkerEventLoopGroup。
1. 通常一个服务端口即一个ServerSocketChannel对应一个Selector 和一个EventLoop线程。BossEventLoop负责接收客户端的连接,并将 SocketChannel交给 WorkerEventLoopGroup 来进行 IO 处理,如下图所示
![image.png](https://cdn.nlark.com/yuque/0/2020/png/1502688/1601076468894-f3c62d68-f043-462a-979b-1cfa7b688c01.png#height=323&id=oPUqP&margin=%5Bobject%20Object%5D&name=image.png&originHeight=646&originWidth=1382&originalType=binary&ratio=1&size=160992&status=done&style=none&width=691)
- BossEventLoopGroup 通常是一个单线程的 EventLoop,EventLoop 维护着一个注册了ServerSocketChannel 的 Selector 实例BossEventLoop 不断轮询 Selector 将连接事件分离出来
- 通常是 OP_ACCEPT 事件,然后将接收到的 SocketChannel 交给 WorkerEventLoopGroup
- WorkerEventLoopGroup 会由 next 选择其中一个 EventLoop来将这个 SocketChannel 注册到其维护的 Selector 并对其后续的 IO 事件进行处理
**常用方法:**
| 方法名 | 介绍 |
| --- | --- |
| public NioEventLoopGroup() | 构造方法 |
| public Future<?> shutdownGracefully() | 断开连接,关闭线程 |
<a name="S7R9W"></a>
# 十 Unpooled
Netty 提供一个专门用来操作缓冲区(即Netty的数据容器)的工具类<br />**常用方法**
| 方法名 | 介绍 |
| --- | --- |
| public static ByteBuf copiedBuffer(CharSequence string, Charset charset) | 通过给定的数据和字符编码返回一个 ByteBuf 对象(类似于 NIO 中的 ByteBuffer 但有区别) |
**代码示例**
```java
//创建一个ByteBuf
//1、创建对象,该对象包含一个数组,是一个byte[10]
//2、在netty的buffer中,写入数据后再读取数据不需要使用 flip 进行反转
// 底层维护了 readerIndex 和 writeIndex
//往buffer中写的范围为 [writeIndex, capacity)
//往buffer中可读的范围为 [readerIndex, writeIndex)。使用 buf.readByte() 会往后移动 readerIndex 指针,使用 buf.getByte(i) 通过索引获取就不会移动该指针
ByteBuf byteBuf = Unpooled.buffer(10);
for (int i = 0; i < 10; i++) {
byteBuf.writeByte(i);
}
//获取该buf的大小
int capacity = byteBuf.capacity();
//输出
for (int i = 0; i < byteBuf.capacity(); i++) {
System.out.println(byteBuf.getByte(i));
System.out.println(byteBuf.readByte());
}
byte[] content = byteBuf.array();
//将content转成字符串
String c = new String(content, StandardCharsets.UTF_8);
//数组偏移量
int offset = byteBuf.arrayOffset();
//获取读取偏移量
int readerIndex = byteBuf.readerIndex();
//获取写偏移量
int writerIndex = byteBuf.writerIndex();
//获取容量
int capacity = byteBuf.capacity();
//获取可读取的字节数
int readableBytes = byteBuf.readableBytes();
//通过索引获取某个位置的字节
byte aByte = byteBuf.getByte(0);
//获取Buf中某个范围的字符序列
CharSequence charSequence = byteBuf.getCharSequence(0, 4, StandardCharsets.UTF_8);
十一 Netty群聊系统
实例要求:
- 编写一个 Netty 群聊系统,实现服务器端和客户端之间的数据简单通讯(非阻塞)
- 实现多人群聊
- 服务器端:可以监测用户上线,离线,并实现消息转发功能
- 客户端:通过channel 可以无阻塞发送消息给其它所有用户,同时可以接受其它用户发送的消息(有服务器转发得到)
-
11.1 服务端代码
```java /*启动类**/ public class GroupChatServer { private int port; //监听端口 public GroupChatServer(int port){
this.port = port;
} //编写run 方法,处理客户端的请求 public void run() throws InterruptedException {
//创建两个线程组
NioEventLoopGroup bossGroup = new NioEventLoopGroup(1);
NioEventLoopGroup workerGroup = new NioEventLoopGroup();
try {
ServerBootstrap serverBootstrap = new ServerBootstrap();
serverBootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.option(ChannelOption.SO_BACKLOG, 128)
.childOption(ChannelOption.SO_KEEPALIVE, true)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel socketChannel) throws Exception {
ChannelPipeline pipeline = socketChannel.pipeline();
pipeline.addLast("decoder", new StringDecoder()); //向pipeline加入解码器
pipeline.addLast("encoder", new StringEncoder()); //加入编码器
pipeline.addLast(new GroupChatServerHandler());
}
});
System.out.println("netty服务器启动");
ChannelFuture channelFuture = serverBootstrap.bind(port).sync();
//监听关闭事件
channelFuture.channel().closeFuture().sync();
} finally {
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
}
} public static void main(String[] args) throws InterruptedException {
GroupChatServer groupChatServer = new GroupChatServer(7000);
groupChatServer.run();
} }
/*Handler**/
public class GroupChatServerHandler extends SimpleChannelInboundHandler
//定义一个Channel组,管理所有的channel
//GlobalEventExecutor.INSTANCE 是全局事件执行器,是一个单例
private static ChannelGroup channelGroup = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);
SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
//此方法表示连接建立,一旦建立连接,就第一个被执行
@Override
public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
Channel channel = ctx.channel();
//该方法会将 channelGroup 中所有 channel 遍历,并发送消息,而不需要我们自己去遍历
channelGroup.writeAndFlush("[客户端]" + channel.remoteAddress() + sdf.format(new Date()) + "加入聊天\n");
//将当前的Channel加入到 ChannelGroup
channelGroup.add(channel);
}
//表示 channel 处于活动状态,提示 xxx 上线
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
System.out.println(ctx.channel().remoteAddress() + " " + sdf.format(new Date()) + "上线了~");
}
//表示 channel 处于不活动状态,提示 xxx 离线
@Override
public void channelInactive(ChannelHandlerContext ctx) throws Exception {
System.out.println(ctx.channel().remoteAddress() + " " + sdf.format(new Date()) + "离线了~");
}
//表示 channel 断开连接,将xx客户离开信息推送给当前在线客户
@Override
public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
Channel channel = ctx.channel();
channelGroup.writeAndFlush("[客户端]" + channel.remoteAddress() +" "+ sdf.format(new Date()) + "离开了\n");
System.out.println("当前channelGroup大小 :" + channelGroup.size());
}
//读取数据,并进行消息转发
@Override
protected void channelRead0(ChannelHandlerContext ctx, String msg) throws Exception {
//获取当前channel
Channel channel = ctx.channel();
//这时,遍历channelGroup,根据不同的情况,回送不同的消息
channelGroup.forEach(item -> {
if (item != channel) {
item.writeAndFlush("[客户]" + channel.remoteAddress() + "发送了消息:" + msg + "\n");
} else { //把自己发送的消息发送给自己
item.writeAndFlush("[自己]发送了消息:" + msg + "\n");
}
});
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
ctx.close();
}
}
<a name="Z77Ue"></a>
## 11.2 客户端代码:
```java
/*********************启动类******************/
public class GroupChatClient {
//属性
private final String host;
private final int port;
public GroupChatClient(String host, int port) {
this.port = port;
this.host = host;
}
public void run() throws InterruptedException {
NioEventLoopGroup eventExecutors = new NioEventLoopGroup();
try {
Bootstrap bootstrap = new Bootstrap()
.group(eventExecutors)
.channel(NioSocketChannel.class)
.handler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
//加入Handler
pipeline.addLast("decoder", new StringDecoder());
pipeline.addLast("encoder", new StringEncoder());
pipeline.addLast(new GroupChatClientHandler());
}
});
ChannelFuture channelFuture = bootstrap.connect(host, port).sync();
//得到channel
Channel channel = channelFuture.channel();
System.out.println("--------" + channel.localAddress() + "---------");
//客户端需要输入信息,创建一个扫描器
Scanner scanner = new Scanner(System.in);
while (scanner.hasNextLine()){
String msg = scanner.nextLine();
//通过channel发送到服务器端
channel.writeAndFlush(msg + "\r\n");
}
} finally {
eventExecutors.shutdownGracefully();
}
}
public static void main(String[] args) throws InterruptedException {
new GroupChatClient("127.0.0.1", 7000).run();
}
}
/*****************Handler*****************/
public class GroupChatClientHandler extends SimpleChannelInboundHandler<String> {
@Override
protected void channelRead0(ChannelHandlerContext ctx, String msg) throws Exception {
System.out.println(msg.trim());
}
}
十二 Netty心跳检测机制案例
实例要求:
- 编写一个 Netty心跳检测机制案例, 当服务器超过3秒没有读时,就提示读空闲
- 当服务器超过5秒没有写操作时,就提示写空闲
实现当服务器超过7秒没有读或者写操作时,就提示读写空闲 ```java public static void main(String[] args) throws InterruptedException { NioEventLoopGroup bossGroup = new NioEventLoopGroup(1); NioEventLoopGroup workerGroup = new NioEventLoopGroup();
try {
ServerBootstrap serverBootstrap = new ServerBootstrap();
serverBootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.handler(new LoggingHandler(LogLevel.INFO)) //为BossGroup中的请求添加日志处理Handler
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
//加入一个 netty 提供的 IdleStateHandler
/**
* 1、IdleStateHandler 是 netty 提供的检测空闲状态的处理器
* 2、long readerIdleTime:表示多长时间没有读,就会发送一个心跳检测包检测是否还是连接的状态
* 3、long writerIdleTime:表示多长时间没有写,就会发送一个心跳检测包检测是否还是连接的状态
* 4、long allIdleTime:表示多长时间没有读写,就会发送一个心跳检测包检测是否还是连接的状态
* 5、当 IdleStateEvent 触发后,就会传递给管道的下一个 Handler,通过调用(触发)下一个Handler的 userEventTriggered,在该方法区处理这个事件。
*/
pipeline.addLast(new IdleStateHandler(3, 5, 7, TimeUnit.SECONDS));
//加入一个对空闲检测进一步处理的Handler(自定义)
pipeline.addLast(new MyServerHandler());
}
});
//启动服务器,设置为同步模式。
ChannelFuture channelFuture = serverBootstrap.bind(7000).sync();
channelFuture.channel().closeFuture().sync();
} finally {
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
} }
Handler:
```java
public class MyServerHandler extends ChannelInboundHandlerAdapter {
/**
* @param ctx 上下文
* @param evt 事件
* @throws Exception
*/
@Override
public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
if (evt instanceof IdleStateEvent) {
//将 evt 向下转型 IdleStateEvent
IdleStateEvent event = (IdleStateEvent)evt;
String eventTye = null;
switch (event.state()) {
case READER_IDLE:
eventTye = "读空闲";
break;
case WRITER_IDLE:
eventTye = "写空闲";
break;
case ALL_IDLE:
eventTye = "读写空闲";
break;
}
System.out.println(ctx.channel().remoteAddress() +"---超时时间--" + eventTye);
System.out.println("服务器做相应处理。。");
}
}
}
十三 Netty建立Websocket连接
实例要求:
- Http协议是无状态的, 浏览器和服务器间的请求响应一次,下一次会重新创建连接.
- 要求:实现基于webSocket的长连接的全双工的交互
- 改变Http协议多次请求的约束,实现长连接了, 服务器可以发送消息给浏览器
客户端浏览器和服务器端会相互感知,比如服务器关闭了,浏览器会感知,同样浏览器关闭了,服务器会感知 ```java public static void main(String[] args) throws InterruptedException { NioEventLoopGroup bossGroup = new NioEventLoopGroup(1); NioEventLoopGroup workerGroup = new NioEventLoopGroup(); try{
ServerBootstrap serverBootstrap = new ServerBootstrap();
serverBootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.handler(new LoggingHandler(LogLevel.INFO))
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
//因为是基于Http协议,所以要使用Http的编码和解码器
pipeline.addLast(new HttpServerCodec());
//是以块方式写,添加ChunkedWriter处理器
pipeline.addLast(new ChunkedWriteHandler());
/**
* 1、http数据在传输过程中是分裂的,HttpObjectAggregator就可以将多个段聚合
* 2、这就是为什么,当浏览器发送大量数据时,就会发出多次http请求
*/
pipeline.addLast(new HttpObjectAggregator(8192));
/**
* 1、对于websocket,它的数据是以帧的形式传递的
* 2、可以看到 WebsocketFrame 下面有六个子类
* 3、浏览器请求时:ws://localhost:7000/hello 表示请求的uri
* 4、WebSocketServerProtocolHandler 核心功能是将 http 协议升级为 ws 协议,保持长连接
* 5、从Http协议升级到Websocket协议,是通过StatusCode 101(Switching Protocols)来切换的。
*/
pipeline.addLast(new WebSocketServerProtocolHandler("/hello"));
//自定义Handler,处理业务逻辑
pipeline.addLast(new MyTextWebSocketFrameHandler());
}
});
ChannelFuture sync = serverBootstrap.bind(7000).sync();
sync.channel().closeFuture().sync();
} finally {
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
} }
十四 套路总结
- 创建启动类:
- 首先初始化两个NioEventLoopGroup。其中BossGroup一般设置线程为1
- 初始化一个ServerBootStrap类。并调用它设置很多参数。
- group():服务端设置两个Group,客户端设置一个Group
- chnnel():服务端传入NioServerSocketChannel,客户端传入NioSocketChannel
- option():服务端给BossGroup设置SO_BACKLOG任务队列大小
- childOption():服务端给WorkerGroup设置连接SO_KEEPALIVE保持连接状态
- handler():服务端给BossGroup设置Handler,客户端设置Handler
- childHandler():服务端给WorkerGroup设置Handler。
- 通过BootStrap去绑定端口,监听关闭事件。设置为同步
- Handler:
- SimpleChannelInboundHandler
- 可以继承它来处理很多通信。经过上面几个案例推敲,一般写自己的Handler继承它就可以了
- ChannelInboundHandlerAdapter
- 这个是上一个的父类,我们在心跳检测的时候通过继承它的userEventTriggered去判断连接状态
- 其实通过上面那个simple也可以继承这个trigger
- IdleStateHandler
- 在心跳检测时我们要通过这个Handler去触发上面的trigger
- HttpServerCodec
- 提供好的用于Http编码解码,一般用于Http请求
- ChunkedWriteHandler
- 提供好的Handler,以块方式写,添加ChunkedWriter处理器
- 我搜了一下,它一般用于发送大文件。这个东西使我们在Websocket的时候用的。
- HttpObjectAggregator
- 它会将http数据聚合在一起发送
- WebSocketServerProtocolHandler
- 传入ws路径,将Http协议升级成为ws协议
- SimpleChannelInboundHandler
- Netty中通信数据实体:
- TextWebSocketFrame
- 这是我们在websocket连接的时候用的,它表示一个文本帧,是websocket进行通信的数据形式
- HttpObject
- 这是我们在建立Http连接的时候用到的,可以将它转换成一个HttpRequest
- TextWebSocketFrame
Hander常用方法:
方法名 | 介绍 |
---|---|
channelRead0(ChannelHandlerContext channelHandlerContext, T t) | 读取数据,并进行消息转发 |
handlerAdded(ChannelHandlerContext ctx) | 连接建立,一旦建立连接,就第一个被执行 |
channelActive(ChannelHandlerContext ctx) | 表示 channel 处于活动状态,提示 xxx 上线 |
channelInactive(ChannelHandlerContext ctx) | 表示 channel 处于不活动状态,提示 xxx 离线 |
handlerRemoved(ChannelHandlerContext ctx) | 表示 channel 断开连接,将xx客户离开信息推送给当前在线客户 |
exceptionCaught(ChannelHandlerContext ctx, Throwable cause) | 出现错误如何进行处理 |
userEventTriggered(ChannelHandlerContext ctx, Object evt) | 事件触发器,通过判断evt的类型去判断发生了什么事件,再通过里面的属性判断事件发生的类型。我们在IdleStateHandler后面加上一个触发器,可以检测心跳。 |
