一、打包镜像

  1. 通过jenkins打包镜像并上传到镜像仓库，只选版本号，不选部署环境，默认上传仓库地址为：

hub.pml.com/sail/ac-device:${imageVersion}
hub.pml.com/sail/ac-management:${imageVersion}
hub.pml.com/sail/ac-monitor:${imageVersion}
hub.pml.com/sail/ac-resource-pool:${imageVersion}
hub.pml.com/sail/ac-ztp:${imageVersion}

  1. Harbor登陆查看镜像

http://172.171.15.104/harbor/projects/15/repositories

二、生成本地文件

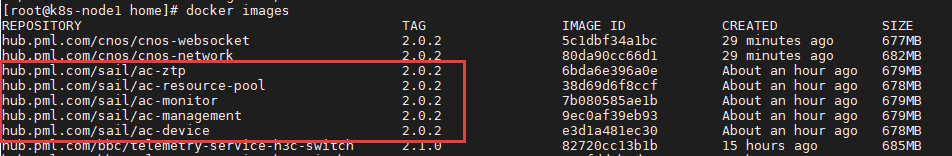

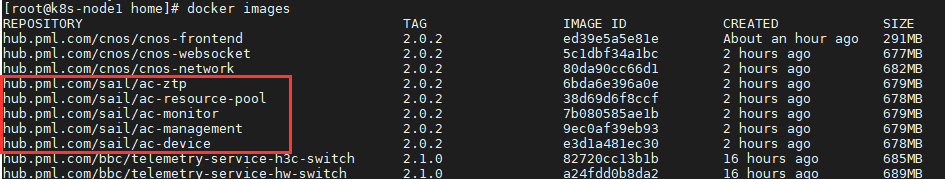

  1. 登陆到一台装有docker环境的机器上，拉取镜像

    1. docker pull hub.pml.com/sail/ac-device:2.0.2
    2. docker pull hub.pml.com/sail/ac-management:2.0.2
    3. docker pull hub.pml.com/sail/ac-monitor:2.0.2
    4. docker pull hub.pml.com/sail/ac-resource-pool:2.0.2
    5. docker pull hub.pml.com/sail/ac-ztp:2.0.2

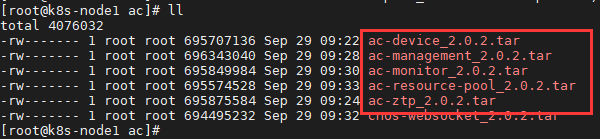

  2. 通过tar文件保存到本地

    1. docker save -o ac-device_2.0.2.tar hub.pml.com/sail/ac-device:2.0.2
    2. docker save -o ac-management_2.0.2.tar hub.pml.com/sail/ac-management:2.0.2
    3. docker save -o ac-monitor_2.0.2.tar hub.pml.com/sail/ac-monitor:2.0.2
    4. docker save -o ac-resource-pool_2.0.2.tar hub.pml.com/sail/ac-resource-pool:2.0.2
    5. docker save -o ac-ztp_2.0.2.tar hub.pml.com/sail/ac-ztp:2.0.2


    三、准备yaml文件

    ac-device.yaml ```yaml apiVersion: v1 kind: Service metadata: name: ac-device namespace: access-controller labels: app: ac-device spec: ports:

    • port: 9901 name: service targetPort: 9901 protocol: TCP
    • port: 9911 name: debug targetPort: 9911 protocol: TCP nodePort: 30101 selector: app: ac-device type: NodePort

apiVersion: apps/v1 kind: Deployment metadata: name: ac-device namespace: access-controller labels: app: ac-device spec: replicas: 1 strategy: type: Recreate selector: matchLabels: app: ac-device template: metadata: labels: app: ac-device spec: hostAliases:

  1.     - ip: 10.33.2.138
  2.       hostnames:
  3.         - mysql.mysql.svc.cluster.local
  4.   nodeSelector:
  5.     ac: node1
  6.   containers:
  7.   - name: ac-device
  8.     image: hub.pml.com/sail/ac-device:2.0.2
  9.     imagePullPolicy: IfNotPresent
  10.     ports:
  11.     - containerPort: 9901
  12.     resources:
  13.       limits:
  14.         memory: 2Gi
  15.       requests:
  16.         memory: 500Mi
  17.     env:
  18.     - name: MYSQL_PASSWORD
  19.       value: "ZZPass2019!"
  20.     - name: LIMITS_MEMORY
  21.       valueFrom:
  22.         resourceFieldRef:
  23.           resource: limits.memory
  24.           divisor: 1Mi
  25.     - name: JAVA_OPTS
  26.       value: "-Xmx500m -Xdebug  -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=9911 -XshowSettings:vm -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.local.only=false -Dcom.sun.management.jmxremote.port=12345 -Dcom.sun.management.jmxremote.ssl=false  -Dcom.sun.management.jmxremote.rmi.port=12345 -Djava.rmi.server.hostname=localhost -Dcom.sun.management.jmxremote.authenticate=false -Dfile.encoding=UTF8 -Ddruid.mysql.usePingMethod=false -Duser.timezone=GMT+08 -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintHeapAtGC -XX:+PrintGCDetails -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=50M -Xloggc:/var/log/jvm/gcc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/var/log/jvm/ -XX:+PrintGCDateStamps"
  27.     volumeMounts:
  28.     - name: date-config
  29.       mountPath: /etc/localtime
  30.     - name: jvm-log
  31.       mountPath: /var/log/jvm/
  32.     - name: app-log
  33.       mountPath: /opt/log/
  34.     livenessProbe:
  35.       httpGet:
  36.         path: /ac/device/health-check
  37.         port: 9901
  38.       initialDelaySeconds: 30
  39.       timeoutSeconds: 3
  40.       failureThreshold: 3
  41.       periodSeconds: 30
  42.     readinessProbe:
  43.       httpGet:
  44.         path: /ac/device/health-check
  45.         port: 9901
  46.       initialDelaySeconds: 30
  47.       timeoutSeconds: 3
  48.       failureThreshold: 3
  49.       periodSeconds: 30
  50.   volumes:
  51.   - name: date-config
  52.     hostPath:
  53.       path: /etc/localtime
  54.   - name: jvm-log
  55.     hostPath:
  56.       path: /var/log/jvm/access-controller/ac-device/
  57.   - name: app-log
  58.     hostPath:
  59.       path: /var/log/app/access-controller/ac-device/
  1. ac-management.yaml
  2. ```yaml
  3. apiVersion: v1
  4. kind: Service
  5. metadata:
  6.   name: ac-management
  7.   namespace: access-controller
  8.   labels:
  9.     app: ac-management
  10. spec:
  11.   ports:
  12.   - port: 9902
  13.     name: service
  14.     targetPort: 9902
  15.     protocol: TCP
  16.   - port: 9912
  17.     name: debug
  18.     targetPort: 9912
  19.     protocol: TCP
  20.     nodePort: 30102
  21.   selector:
  22.     app: ac-management
  23.   type: NodePort
  25. ---
  27. apiVersion: apps/v1
  28. kind: Deployment
  29. metadata:
  30.   name: ac-management
  31.   namespace: access-controller
  32.   labels:
  33.     app: ac-management
  34. spec:
  35.   replicas: 1
  36.   strategy:
  37.     type: Recreate
  38.   selector:
  39.     matchLabels:
  40.       app: ac-management
  41.   template:
  42.     metadata:
  43.       labels:
  44.         app: ac-management
  45.     spec:
  46.       hostAliases:
  47.         - ip: 10.33.2.138
  48.           hostnames:
  49.             - mysql.mysql.svc.cluster.local
  50.       nodeSelector:
  51.         ac: node1
  52.       containers:
  53.       - name: ac-management
  54.         image: hub.pml.com/sail/ac-management:2.0.2
  55.         imagePullPolicy: IfNotPresent
  56.         ports:
  57.         - containerPort: 9902
  58.         resources:
  59.           limits:
  60.             memory: 2Gi
  61.           requests:
  62.             memory: 500Mi
  63.         env:
  64.         - name: MYSQL_PASSWORD
  65.           value: "ZZPass2019!"
  66.         - name: LIMITS_MEMORY
  67.           valueFrom:
  68.             resourceFieldRef:
  69.               resource: limits.memory
  70.               divisor: 1Mi
  71.         - name: JAVA_OPTS
  72.           value: "-Xmx500m -Xdebug  -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=9912 -XshowSettings:vm -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.local.only=false -Dcom.sun.management.jmxremote.port=12345 -Dcom.sun.management.jmxremote.ssl=false  -Dcom.sun.management.jmxremote.rmi.port=12345 -Djava.rmi.server.hostname=localhost -Dcom.sun.management.jmxremote.authenticate=false -Dfile.encoding=UTF8 -Ddruid.mysql.usePingMethod=false -Duser.timezone=GMT+08 -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintHeapAtGC -XX:+PrintGCDetails -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=50M -Xloggc:/var/log/jvm/gcc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/var/log/jvm/ -XX:+PrintGCDateStamps"
  73.         volumeMounts:
  74.         - name: date-config
  75.           mountPath: /etc/localtime
  76.         - name: jvm-log
  77.           mountPath: /var/log/jvm/
  78.         - name: app-log
  79.           mountPath: /opt/log/
  80.         livenessProbe:
  81.           httpGet:
  82.             path: /ac/management/health-check
  83.             port: 9902
  84.           initialDelaySeconds: 30
  85.           timeoutSeconds: 3
  86.           failureThreshold: 3
  87.           periodSeconds: 30
  88.         readinessProbe:
  89.           httpGet:
  90.             path: /ac/management/health-check
  91.             port: 9902
  92.           initialDelaySeconds: 30
  93.           timeoutSeconds: 3
  94.           failureThreshold: 3
  95.           periodSeconds: 30
  96.       volumes:
  97.       - name: date-config
  98.         hostPath:
  99.           path: /etc/localtime
  100.       - name: jvm-log
  101.         hostPath:
  102.           path: /var/log/jvm/access-controller/ac-management/
  103.       - name: app-log
  104.         hostPath:
  105.           path: /var/log/app/access-controller/ac-management/

ac-monitor.yaml

  1. apiVersion: v1
  2. kind: Service
  3. metadata:
  4.   name: ac-monitor
  5.   namespace: access-controller
  6.   labels:
  7.     app: ac-monitor
  8. spec:
  9.   ports:
  10.   - port: 9903
  11.     name: service
  12.     targetPort: 9903
  13.     protocol: TCP
  14.   - port: 9913
  15.     name: debug
  16.     targetPort: 9913
  17.     protocol: TCP
  18.     nodePort: 30103
  19.   selector:
  20.     app: ac-monitor
  21.   type: NodePort
  23. ---
  24. apiVersion: apps/v1
  25. kind: Deployment
  26. metadata:
  27.   name: ac-monitor
  28.   namespace: access-controller
  29.   labels:
  30.     app: ac-monitor
  31. spec:
  32.   replicas: 1
  33.   strategy:
  34.     type: Recreate
  35.   selector:
  36.     matchLabels:
  37.       app: ac-monitor
  38.   template:
  39.     metadata:
  40.       labels:
  41.         app: ac-monitor
  42.     spec:
  43.       hostAliases:
  44.         - ip: 10.33.2.138
  45.           hostnames:
  46.             - mysql.mysql.svc.cluster.local
  47.       nodeSelector:
  48.         ac: node1
  49.       containers:
  50.       - name: ac-monitor
  51.         image: hub.pml.com/sail/ac-monitor:2.0.2
  52.         imagePullPolicy: IfNotPresent
  53.         ports:
  54.         - containerPort: 9903
  55.         resources:
  56.           limits:
  57.             memory: 2Gi
  58.           requests:
  59.             memory: 500Mi
  60.         env:
  61.         - name: MYSQL_PASSWORD
  62.           value: "ZZPass2019!"
  63.         - name: LIMITS_MEMORY
  64.           valueFrom:
  65.             resourceFieldRef:
  66.               resource: limits.memory
  67.               divisor: 1Mi
  68.         - name: JAVA_OPTS
  69.           value: "-Xmx500m -Xdebug  -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=9913 -XshowSettings:vm -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.local.only=false -Dcom.sun.management.jmxremote.port=12345 -Dcom.sun.management.jmxremote.ssl=false  -Dcom.sun.management.jmxremote.rmi.port=12345 -Djava.rmi.server.hostname=localhost -Dcom.sun.management.jmxremote.authenticate=false -Dfile.encoding=UTF8 -Ddruid.mysql.usePingMethod=false -Duser.timezone=GMT+08 -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintHeapAtGC -XX:+PrintGCDetails -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=50M -Xloggc:/var/log/jvm/gcc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/var/log/jvm/ -XX:+PrintGCDateStamps"
  70.         volumeMounts:
  71.         - name: date-config
  72.           mountPath: /etc/localtime
  73.         - name: jvm-log
  74.           mountPath: /var/log/jvm/
  75.         - name: app-log
  76.           mountPath: /opt/log/
  77.         livenessProbe:
  78.           httpGet:
  79.             path: /ac/monitor/health-check
  80.             port: 9903
  81.           initialDelaySeconds: 30
  82.           timeoutSeconds: 3
  83.           failureThreshold: 3
  84.           periodSeconds: 30
  85.         readinessProbe:
  86.           httpGet:
  87.             path: /ac/monitor/health-check
  88.             port: 9903
  89.           initialDelaySeconds: 30
  90.           timeoutSeconds: 3
  91.           failureThreshold: 3
  92.           periodSeconds: 30
  93.       volumes:
  94.       - name: date-config
  95.         hostPath:
  96.           path: /etc/localtime
  97.       - name: jvm-log
  98.         hostPath:
  99.           path: /var/log/jvm/access-controller/ac-monitor/
  100.       - name: app-log
  101.         hostPath:
  102.           path: /var/log/app/access-controller/ac-monitor/

ac-resource-pool.yaml

  1. apiVersion: v1
  2. kind: Service
  3. metadata:
  4.   name: ac-resource-pool
  5.   namespace: access-controller
  6.   labels:
  7.     app: ac-resource-pool
  8. spec:
  9.   ports:
  10.   - port: 9904
  11.     name: service
  12.     targetPort: 9904
  13.     protocol: TCP
  14.   - port: 9914
  15.     name: debug
  16.     targetPort: 9914
  17.     protocol: TCP
  18.     nodePort: 30104
  19.   selector:
  20.     app: ac-resource-pool
  21.   type: NodePort
  23. ---
  24. apiVersion: apps/v1
  25. kind: Deployment
  26. metadata:
  27.   name: ac-resource-pool
  28.   namespace: access-controller
  29.   labels:
  30.     app: ac-resource-pool
  31. spec:
  32.   replicas: 1
  33.   strategy:
  34.     type: Recreate
  35.   selector:
  36.     matchLabels:
  37.       app: ac-resource-pool
  38.   template:
  39.     metadata:
  40.       labels:
  41.         app: ac-resource-pool
  42.     spec:
  43.       hostAliases:
  44.         - ip: 10.33.2.138
  45.           hostnames:
  46.             - mysql.mysql.svc.cluster.local
  47.       nodeSelector:
  48.         ac: node1
  49.       containers:
  50.       - name: ac-resource-pool
  51.         image: hub.pml.com/sail/ac-resource-pool:2.0.2
  52.         imagePullPolicy: IfNotPresent
  53.         ports:
  54.         - containerPort: 9904
  55.         resources:
  56.           limits:
  57.             memory: 2Gi
  58.           requests:
  59.             memory: 500Mi
  60.         env:
  61.         - name: MYSQL_PASSWORD
  62.           value: "ZZPass2019!"
  63.         - name: LIMITS_MEMORY
  64.           valueFrom:
  65.             resourceFieldRef:
  66.               resource: limits.memory
  67.               divisor: 1Mi
  68.         - name: JAVA_OPTS
  69.           value: "-Xmx500m -Xdebug  -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=9914 -XshowSettings:vm -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.local.only=false -Dcom.sun.management.jmxremote.port=12345 -Dcom.sun.management.jmxremote.ssl=false  -Dcom.sun.management.jmxremote.rmi.port=12345 -Djava.rmi.server.hostname=localhost -Dcom.sun.management.jmxremote.authenticate=false -Dfile.encoding=UTF8 -Ddruid.mysql.usePingMethod=false -Duser.timezone=GMT+08 -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintHeapAtGC -XX:+PrintGCDetails -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=50M -Xloggc:/var/log/jvm/gcc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/var/log/jvm/ -XX:+PrintGCDateStamps"
  70.         volumeMounts:
  71.         - name: date-config
  72.           mountPath: /etc/localtime
  73.         - name: jvm-log
  74.           mountPath: /var/log/jvm/
  75.         - name: app-log
  76.           mountPath: /opt/log/
  77.         livenessProbe:
  78.           httpGet:
  79.             path: /ac/resource/health-check
  80.             port: 9904
  81.           initialDelaySeconds: 30
  82.           timeoutSeconds: 3
  83.           failureThreshold: 3
  84.           periodSeconds: 30
  85.         readinessProbe:
  86.           httpGet:
  87.             path: /ac/resource/health-check
  88.             port: 9904
  89.           initialDelaySeconds: 30
  90.           timeoutSeconds: 3
  91.           failureThreshold: 3
  92.           periodSeconds: 30
  93.       volumes:
  94.       - name: date-config
  95.         hostPath:
  96.           path: /etc/localtime
  97.       - name: jvm-log
  98.         hostPath:
  99.           path: /var/log/jvm/access-controller/ac-resource-pool/
  100.       - name: app-log
  101.         hostPath:
  102.           path: /var/log/app/access-controller/ac-resource-pool/

ac-ztp.yaml

  1. apiVersion: v1
  2. kind: Service
  3. metadata:
  4.   name: ac-ztp
  5.   namespace: access-controller
  6.   labels:
  7.     app: ac-ztp
  8. spec:
  9.   ports:
  10.   - port: 9905
  11.     name: service
  12.     targetPort: 9905
  13.     protocol: TCP
  14.   - port: 9915
  15.     name: debug
  16.     targetPort: 9915
  17.     protocol: TCP
  18.     nodePort: 30105
  19.   selector:
  20.     app: ac-ztp
  21.   type: NodePort
  23. ---
  24. apiVersion: apps/v1
  25. kind: Deployment
  26. metadata:
  27.   name: ac-ztp
  28.   namespace: access-controller
  29.   labels:
  30.     app: ac-ztp
  31. spec:
  32.   replicas: 1
  33.   strategy:
  34.     type: Recreate
  35.   selector:
  36.     matchLabels:
  37.       app: ac-ztp
  38.   template:
  39.     metadata:
  40.       labels:
  41.         app: ac-ztp
  42.     spec:
  43.       hostAliases:
  44.         - ip: 10.33.2.138
  45.           hostnames:
  46.             - mysql.mysql.svc.cluster.local
  47.       nodeSelector:
  48.         ac: node1
  49.       containers:
  50.       - name: ac-ztp
  51.         image: hub.pml.com/sail/ac-ztp:2.0.2
  52.         imagePullPolicy: IfNotPresent
  53.         ports:
  54.         - containerPort: 9905
  55.         resources:
  56.           limits:
  57.             memory: 2Gi
  58.           requests:
  59.             memory: 500Mi
  60.         env:
  61.         - name: MYSQL_PASSWORD
  62.           value: "ZZPass2019!"
  63.         - name: LIMITS_MEMORY
  64.           valueFrom:
  65.             resourceFieldRef:
  66.               resource: limits.memory
  67.               divisor: 1Mi
  68.         - name: JAVA_OPTS
  69.           value: "-Xmx500m -Xdebug  -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=9915 -XshowSettings:vm -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.local.only=false -Dcom.sun.management.jmxremote.port=12345 -Dcom.sun.management.jmxremote.ssl=false  -Dcom.sun.management.jmxremote.rmi.port=12345 -Djava.rmi.server.hostname=localhost -Dcom.sun.management.jmxremote.authenticate=false -Dfile.encoding=UTF8 -Ddruid.mysql.usePingMethod=false -Duser.timezone=GMT+08 -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintHeapAtGC -XX:+PrintGCDetails -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=50M -Xloggc:/var/log/jvm/gcc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/var/log/jvm/ -XX:+PrintGCDateStamps"
  70.         volumeMounts:
  71.         - name: date-config
  72.           mountPath: /etc/localtime
  73.         - name: jvm-log
  74.           mountPath: /var/log/jvm/
  75.         - name: app-log
  76.           mountPath: /opt/log/
  77.         livenessProbe:
  78.           httpGet:
  79.             path: /ac/ztp/health-check
  80.             port: 9905
  81.           initialDelaySeconds: 30
  82.           timeoutSeconds: 3
  83.           failureThreshold: 3
  84.           periodSeconds: 30
  85.         readinessProbe:
  86.           httpGet:
  87.             path: /ac/ztp/health-check
  88.             port: 9905
  89.           initialDelaySeconds: 30
  90.           timeoutSeconds: 3
  91.           failureThreshold: 3
  92.           periodSeconds: 30
  93.       volumes:
  94.       - name: date-config
  95.         hostPath:
  96.           path: /etc/localtime
  97.       - name: jvm-log
  98.         hostPath:
  99.           path: /var/log/jvm/access-controller/ac-ztp/
  100.       - name: app-log
  101.         hostPath:
  102.           path: /var/log/app/access-controller/ac-ztp/

ac-gateway.yaml

  1. apiVersion: networking.istio.io/v1alpha3
  2. kind: Gateway
  3. metadata:
  4.   name: ac-gateway
  5.   namespace: access-controller
  6. spec:
  7.   selector:
  8.     istio: ingressgateway
  9.   servers:
  10.   - port:
  11.       number: 9900
  12.       name: http
  13.       protocol: HTTP
  14.     hosts:
  15.     - "*"
  16. ---
  17. apiVersion: networking.istio.io/v1alpha3
  18. kind: VirtualService
  19. metadata:
  20.   name: ac-gateway
  21.   namespace: access-controller
  22. spec:
  23.   hosts:
  24.   - "*"
  25.   gateways:
  26.   - ac-gateway
  27.   http:
  28.   - match:
  29.     - uri:
  30.         prefix: /ac/device
  31.     route:
  32.     - destination:
  33.         port:
  34.           number: 9901
  35.         host: ac-device
  36.   - match:
  37.     - uri:
  38.         prefix: /ac/management
  39.     route:
  40.     - destination:
  41.         port:
  42.           number: 9902
  43.         host: ac-management
  44.   - match:
  45.     - uri:
  46.         prefix: /ac/monitor
  47.     route:
  48.     - destination:
  49.         port:
  50.           number: 9903
  51.         host: ac-monitor
  52.   - match:
  53.     - uri:
  54.         prefix: /ac/resource
  55.     route:
  56.     - destination:
  57.         port:
  58.           number: 9904
  59.         host: ac-resource-pool
  60.   - match:
  61.     - uri:
  62.         prefix: /ac/ztp
  63.     route:
  64.     - destination:
  65.         port:
  66.           number: 9905
  67.         host: ac-ztp

ac-ingressgateway.yaml

  1. apiVersion: v1
  2. kind: Service
  3. metadata:
  4.   labels:
  5.     app: istio-ingressgateway
  6.     istio: ingressgateway
  7.     operator.istio.io/component: IngressGateways
  8.     operator.istio.io/managed: Reconcile
  9.     release: istio
  10.   name: ac-ingressgateway
  11.   namespace: istio-system
  12. spec:
  13.   externalTrafficPolicy: Cluster
  14.   ports:
  15.   - name: access-controller-public-port
  16.     nodePort: 30100
  17.     port: 9900
  18.     protocol: TCP
  19.     targetPort: 9900
  20.   selector:
  21.     app: istio-ingressgateway
  22.     istio: ingressgateway
  23.   sessionAffinity: None
  24.   type: LoadBalancer

namespace.yaml

  1. apiVersion: v1
  2. kind: Namespace
  3. metadata:
  4.   name: access-controller
  5.   labels:
  6.     istio-injection: enabled

四、文件移到生产环境

  1. 打包文件

    1. tar -zcvf cnos-ac.tar.gz ac/


  2. 远程拷贝文件，密码为cdn%nf

    1. scp cnos-ac.tar.gz root@58.240.113.50:/home/2.0.2

  3. 目的机器解压文件

    1. tar -zxvf cnos-ac.tar.gz


    五、安装服务

  4. 上传到本地镜像仓库

    1. docker load -i ac-device_2.0.2.tar
    2. docker load -i ac-management_2.0.2.ta
    3. docker load -i ac-monitor_2.0.2.tar
    4. docker load -i ac-resource-pool_2.0.2.tar
    5. docker load -i ac-ztp_2.0.2.tar


  5. 通过kubectl安装服务

    1. kubectl apply -f namespace.yaml
    2. kubectl apply -f ac-gateway.yaml
    3. kubectl apply -f ac-ingressgateway.yaml
    4. kubectl apply -f ac-device.yaml
    5. kubectl apply -f ac-management.yaml
    6. kubectl apply -f ac-monitor.yaml
    7. kubectl apply -f ac-resource-pool.yaml
    8. kubectl apply -f ac-ztp.yaml

  6. 查看服务运行状态
