一、部署Alertmanager**

1、下载软件包

二进制安装，软件包下载地址：https://prometheus.io/download/

wget https://github.com/prometheus/alertmanager/releases/download/v0.21.0/alertmanager-0.21.0.linux-amd64.tar.gz

2、解压移动安装包

tar -xf alertmanager-0.21.0.linux-amd64.tar.gz
mv alertmanager-0.21.0.linux-amd64.tar.gz /usr/local/alertmanager

3、创建数据存储目录及管理用户

mkdir /usr/local/alertmanager/data
useradd prometheus
chown -R prometheus:prometheus /usr/local/alertmanager/

4、使用system管理启动

vim /usr/lib/systemd/system/alertmanager.service

[Unit]
Description=Alertmanager
After=network.target
[Service]
Type=simple
User=prometheus
ExecStart=/usr/local/alertmanager/alertmanager --config.file=/usr/local/alertmanager/alertmanager.yml --storage.path=/usr/local/alertmanager/data
Restart=on-failure
[Install]
WantedBy=multi-user.target

启动

systemctl start alertmanager.service

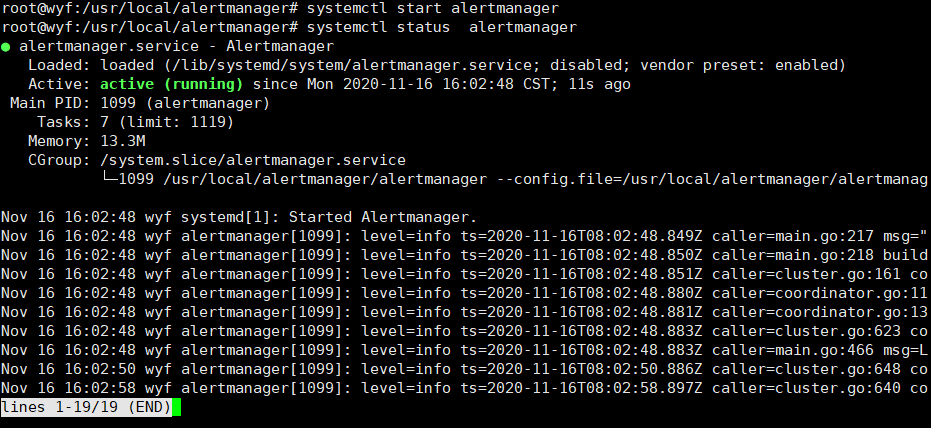

查看运行状态：

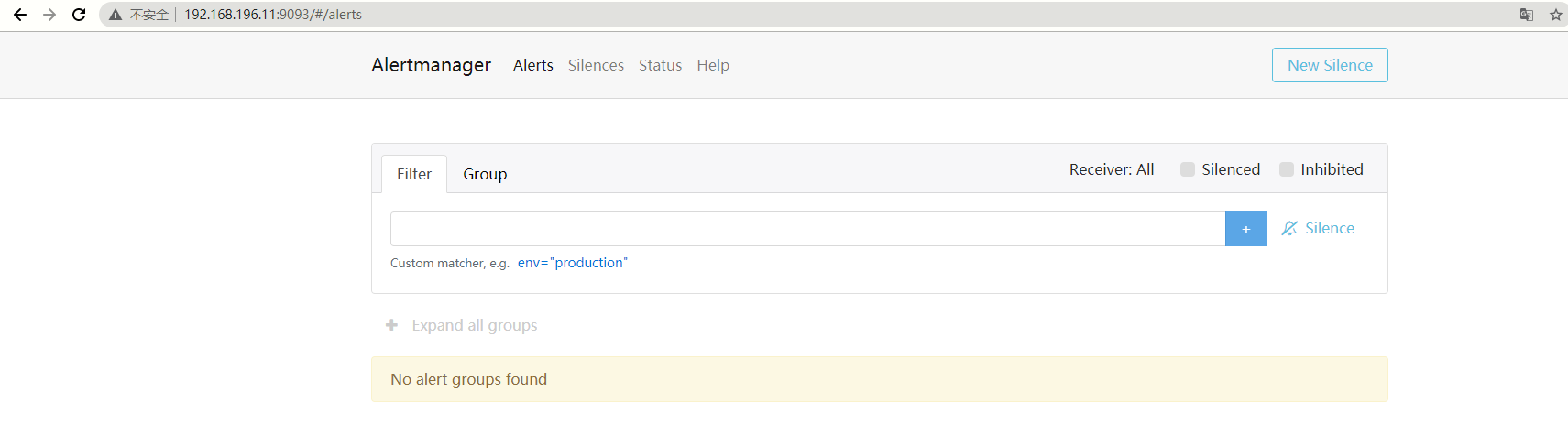

访问
地址：http://ip:9093

二、配置Alertmanager发送邮件

1、修改alertmanager配置文件

vim alertmanager.yml

#全局配置项
global:
  resolve_timeout: 5m                                   #超时，默认5min
  #以下5行为邮箱smtp服务
  smtp_smarthost: 'smtp.163.com:25'
  smtp_from: 'XXXX@163.com'
  smtp_auth_username: 'XXXX@163.com'
  smtp_auth_password: 'JEYIXXXXXXAUO'
  smtp_require_tls: false
#路由
route:
  group_by: ['alertname']       #报警分组依据
  group_wait: 10s               #组等待时间
  group_interval: 10s           #发送前等待时间
  repeat_interval: 30m          #重复周期
  receiver: 'email'             #默认预警接收者
#预警接收者
receivers:
- name: 'email'         #警报名称
  email_configs:
  - send_resolved: true         #恢复后通知
    to: '196XXXX096@qq.com'     #预警接收者邮箱
    html: '{{ template "email.html" . }}'                # 指定使用模板，如果不指定，还是会加载默认的模板的
    headers: { Subject: "[WARN]Prometheus告警邮件" }     # 配置邮件主题
templates:                                               # 指定邮件模板的路径，可以使用相对路径，template/*.tmpl的方式
  - '/usr/local/alertmanager/template/email.tmpl'
inhibit_rules:
  - source_match:
      severity: 'critical'
    target_match:
      severity: 'warning'
    equal: ['alertname', 'dev', 'instance']

2、建立报警模板

mkdir /usr/local/alertmanager/template
vim /usr/local/alertmanager/template/email.tmpl

{{ define "email.html" }}
    {{ range .Alerts }}
 <pre>
故障实例: {{ .Labels.instance }}
故障概要: {{ .Annotations.summary }}
故障描述: {{ .Annotations.description }}
告警级别: {{ .Labels.severity }}
告警时间: {{ .StartsAt.Format "2006-01-02 15:04:05" }}
 </pre>
    {{ end }}
{{ end }}

3、修改Prometheus配置文件

1) 修改prometheus,yml

vim prometheus.yml

#添加alertmanagers主机
# Alertmanager configuration
alerting:
  alertmanagers:
  - static_configs:
    - targets:
      - 192.168.196.11:9093
#添加报警规则文件路径，此处使用的相对路径，规则文件需在相对路径下
rule_files:
  - rule.yml

2）新建rule.yml规则文件

vim rule.yml

groups:
- name: node_cpu
  rules:
  - alert: "CPU使用率过高"
    expr: (1- (sum(increase(node_cpu{mode="idle"}[1m])) by (instance) / sum(increase(node_cpu[1m])) by (instance))) * 100 > 80
    for: 3s
    labels:
      severity: Warning
    annotations:
      summary: "{{ $labels.instance }}CPU总使用率过高"
      description: "{{ $labels.instance }}当前CPU使用率: {{ $value }}%"
- name: node_up
  rules:
  - alert: "客户端掉线"
    expr: up == 0
    for: 3s
    labels:
      severity: Error
    annotations:
      summary: "celint is not online"
      description: "{{ $labels.instance }}客户端不在线"

4、重启Alertmanager与Prometheus

systemctl restart alertmanager
systemctl restart prometheus

5、模拟节点宕机接收邮件

停止一节点的node_exporter模拟宕机

systemctl stop node_exporter

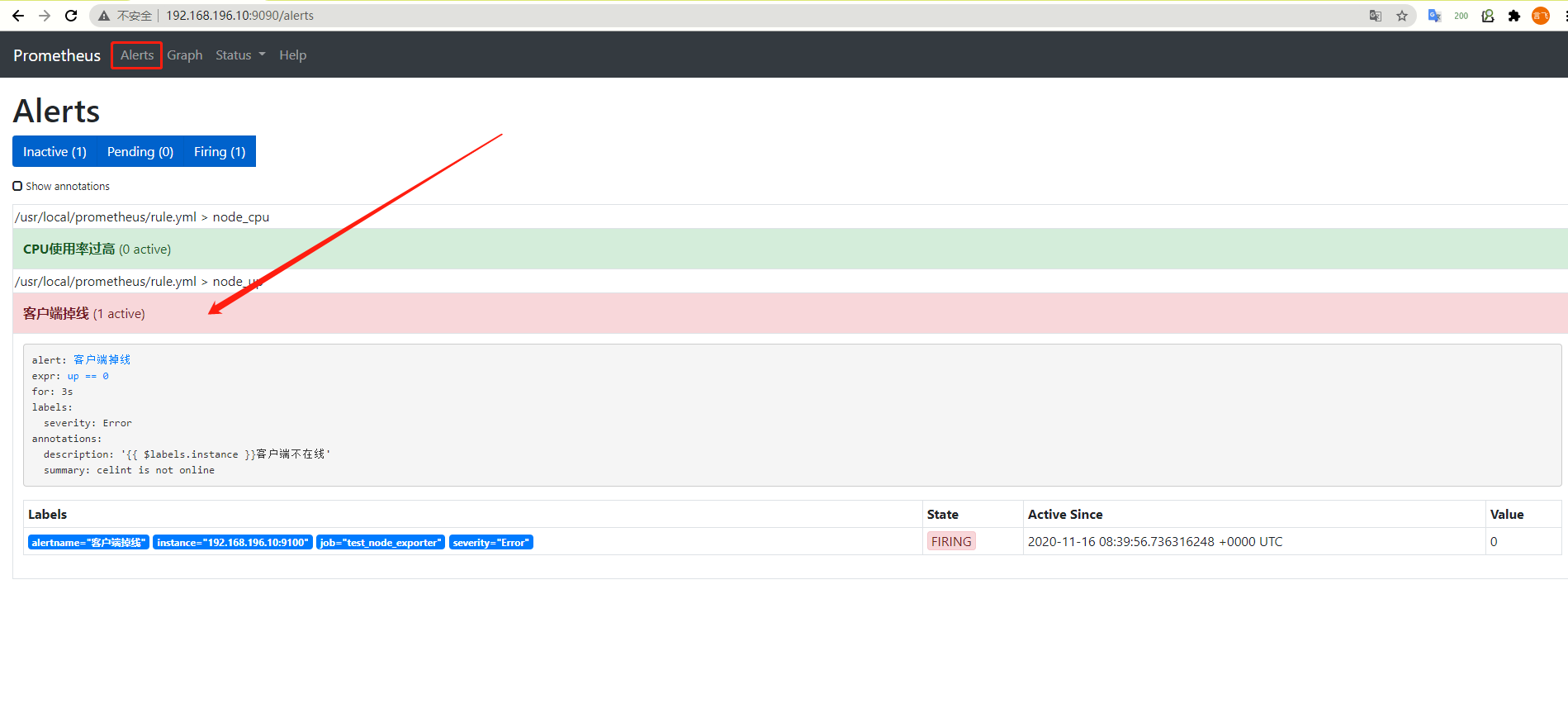

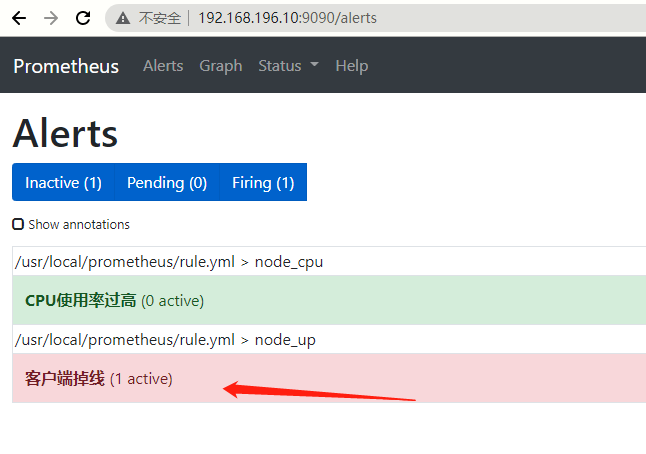

然后在Prometheus的Alerts页面可以已经触发预警

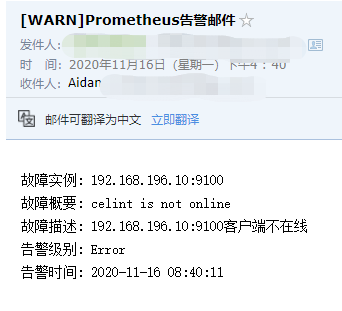

再查看接收人邮箱，即可看到预警已通过邮件推送

三、使用钉钉发送预警通知

1、下载插件

项目地址：https://github.com/timonwong/prometheus-webhook-dingtalk/releases

wget https://github.com/timonwong/prometheus-webhook-dingtalk/releases/download/v1.4.0/prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz

2、解压到安装目录

tar xf /root/prometheus-webhook-dingtalk-1.4.0.linux-amd64.tar.gz -C /usr/local/alertmanager
cd /usr/local/alertmanager && mv prometheus-webhook-dingtalk-1.4.0.linux-amd64/ prometheus-webhook-dingtalk

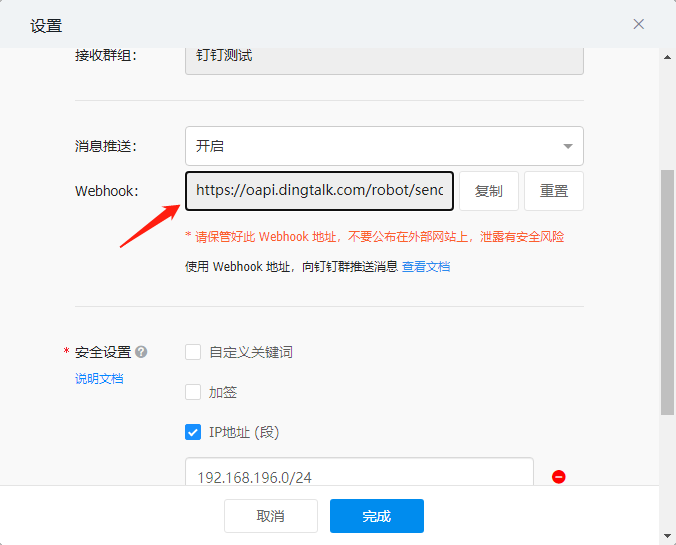

3、钉钉获取Webhook

4、启动 webhook-dingtalk

./prometheus-webhook-dingtalk --ding.profile="webhook1=https://oapi.dingtalk.com/robot/send?access_token=75b269eeXXXXXXX19ac0aXXXXXe2bb87ef2e7f2f3cbXXXXXXX57fd"

注：webhook1=后为钉钉中复制的Webhook

5、修改alertmanager.yml文件

global:
  resolve_timeout: 5m
  smtp_require_tls: false
route:
  group_by: ['alertname']
  group_wait: 10s
  group_interval: 10s
  repeat_interval: 30m
  receiver: 'webhook'        #指定接收者
receivers:    #接收者设置
  - name: 'webhook'
    webhook_configs:
      - url: http://localhost:8060/dingtalk/webhook1/send
        send_resolved: true        #预警恢复通知
inhibit_rules:
  - source_match:
      severity: 'critical'
    target_match:
      severity: 'warning'
    equal: ['alertname', 'dev', 'instance']

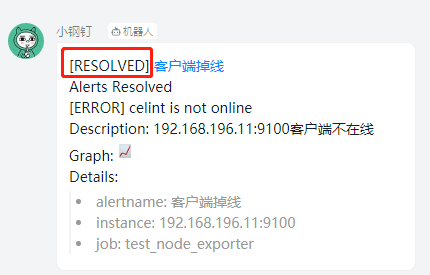

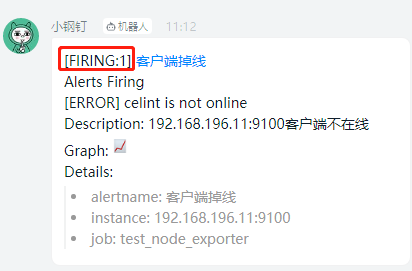

6、模拟节点宕机接收钉钉机器人消息
