配置 MHA

安装相关包

  1. [root@mha-manager ~]#yum -y install mha4mysql-manager-0.58-0.el7.centos.noarch.rpm
  2. [root@mha-manager ~]#yum -y install mha4mysql-node-0.58-0.el7.centos.noarch.rpm
  4. 所有被管理的服务器都要安装 mha4mysql-node-0.58-0.el7.centos.noarch.rpm
  5. 管理端服务器要安装 mha4mysql-manager-0.58-0.el7.centos.noarch.rpm

实现所有节点的 ssh 验证

配置邮件服务器

  1. 1. 安装 potfix 服务
  2. [root@localhost ~]# yum install postfix-* mailx -y
  4. 2. 配置 mail.rc 配置文件
  5. set from=543989246@qq.com
  6. set smtp=smtp.qq.com
  7. set smtp-auth-user=543989246@qq.com
  8. set smtp-auth-password=fzwzpjcekuizbbfi

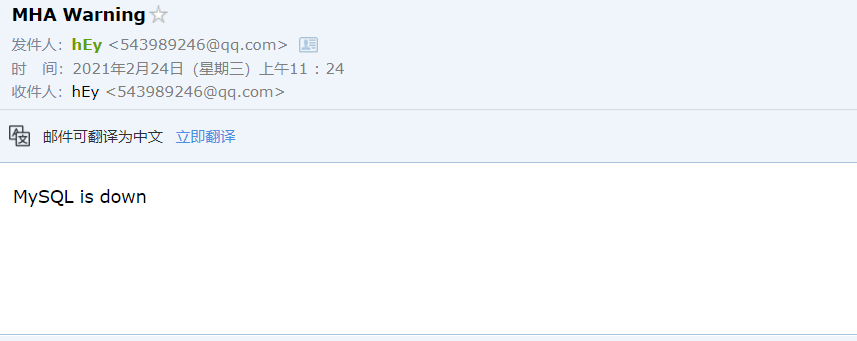

邮件测试

  1. [root@localhost ~]# cat sendmail.sh
  2. #!/bin/bash
  3. echo "MySQL is down" | mail -s "MHA Warning" 543989246@qq.com

配置 manager 配置文件

  1. [root@localhost ~]# mkdir /etc/mastermha
  2. [root@localhost ~]# vim /etc/mastermha/app1.cnf
  3. [server default]
  4. user=mhauser
  5. password=123.com
  6. manager_workdir=/data/mastermha/app1/
  7. manager_log=/data/mastermha/app1/manager.log
  8. remote_workdir=/data/mastermha/app1/
  9. ssh_user=root
  10. repl_user=repluser
  11. repl_password=123.com
  12. ping_interval=1
  13. master_ip_failover_script=/usr/local/bin/master_ip_failover
  14. report_script=/usr/local/bin/sendmail.sh
  15. check_repl_delay=0
  16. master_binlog_dir=/data/mysql/
  18. [server1]
  19. hostname=100.0.0.51
  20. candidate_master=1
  21. [server2]
  22. hostname=100.0.0.52
  23. candidate_master=1

创建 MHA 用户

此用户在 app1.cnf 文件中已经定义了

  1. root@localhost (none) >create user mhauser@'10.0.0.%' identified by "123.com";
  2. Query OK, 0 rows affected (0.01 sec)
  4. root@localhost (none) >grant all on *.* to mhauser@'10.0.0.%';
  5. Query OK, 0 rows affected (0.00 sec)

创建 perl 脚本

  1. 参数 master_ip_failover_script= 中定义的内容
  3. root@mha-m:~$cat /usr/local/bin/master_ip_failover
  4. #!/usr/bin/env perl
  5. use strict;
  6. use warnings FATAL => 'all';
  8. use Getopt::Long;
  10. my (
  11.     $command,          $ssh_user,        $orig_master_host, $orig_master_ip,
  12.     $orig_master_port, $new_master_host, $new_master_ip,    $new_master_port
  13. );
  15. my $vip = '10.0.0.200/24';  #改成我们需要的vip
  16. my $key = '1';
  17. my $ssh_start_vip = "/sbin/ifconfig eth0:$key $vip";        ---指定网卡名称
  18. my $ssh_stop_vip = "/sbin/ifconfig eth0:$key down";        ---指定网卡名称
  20. GetOptions(
  21.     'command=s'          => \$command,
  22.     'ssh_user=s'         => \$ssh_user,
  23.     'orig_master_host=s' => \$orig_master_host,
  24.     'orig_master_ip=s'   => \$orig_master_ip,
  25.     'orig_master_port=i' => \$orig_master_port,
  26.     'new_master_host=s'  => \$new_master_host,
  27.     'new_master_ip=s'    => \$new_master_ip,
  28.     'new_master_port=i'  => \$new_master_port,
  29. );
  31. exit &main();
  33. sub main {
  35.     print "\n\nIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===\n\n";
  37.     if ( $command eq "stop" || $command eq "stopssh" ) {
  39.         my $exit_code = 1;
  40.         eval {
  41.             print "Disabling the VIP on old master: $orig_master_host \n";
  42.             &stop_vip();
  43.             $exit_code = 0;
  44.         };
  45.         if ($@) {
  46.             warn "Got Error: $@\n";
  47.             exit $exit_code;
  48.         }
  49.         exit $exit_code;
  50.     }
  51.     elsif ( $command eq "start" ) {
  53.         my $exit_code = 10;
  54.         eval {
  55.             print "Enabling the VIP - $vip on the new master - $new_master_host \n";
  56.             &start_vip();
  57.             $exit_code = 0;
  58.         };
  59.         if ($@) {
  60.             warn $@;
  61.             exit $exit_code;
  62.         }
  63.         exit $exit_code;
  64.     }
  65.     elsif ( $command eq "status" ) {
  66.         print "Checking the Status of the script.. OK \n";
  67.         exit 0;
  68.     }
  69.     else {
  70.         &usage();
  71.         exit 1;
  72.     }
  73. }
  75. sub start_vip() {
  76.     `ssh $ssh_user\@$new_master_host \" $ssh_start_vip \"`;
  77. }
  78. sub stop_vip() {
  79.      return 0  unless  ($ssh_user);
  80.     `ssh $ssh_user\@$orig_master_host \" $ssh_stop_vip \"`;
  81. }
  83. sub usage {
  84.     print
  85.     "Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n";
  86. }
  89. root@mha-m:/data$chmod o+x /usr/local/bin/master_ip_failover
  90. root@mha-m:/data$chmod o+x /usr/local/bin/sendmail.sh

启动 MHA

检查启动环境

[root@localhost ~]# masterha_check_ssh --conf=/etc/mastermha/app1.cnf
Wed Feb 24 11:05:51 2021 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Feb 24 11:05:51 2021 - [info] Reading application default configuration from /etc/mastermha/app1.cnf..
Wed Feb 24 11:05:51 2021 - [info] Reading server configuration from /etc/mastermha/app1.cnf..
Wed Feb 24 11:05:51 2021 - [info] Starting SSH connection tests..
Wed Feb 24 11:05:52 2021 - [debug]
Wed Feb 24 11:05:51 2021 - [debug]  Connecting via SSH from root@10.0.0.52(10.0.0.52:22) to root@10.0.0.51(10.0.0.51:22)..
Wed Feb 24 11:05:52 2021 - [debug]   ok.
Wed Feb 24 11:05:52 2021 - [debug]  Connecting via SSH from root@10.0.0.52(10.0.0.52:22) to root@10.0.0.53(10.0.0.53:22)..
Wed Feb 24 11:05:52 2021 - [debug]   ok.
Wed Feb 24 11:05:52 2021 - [debug]
Wed Feb 24 11:05:51 2021 - [debug]  Connecting via SSH from root@10.0.0.51(10.0.0.51:22) to root@10.0.0.52(10.0.0.52:22)..
Wed Feb 24 11:05:51 2021 - [debug]   ok.
Wed Feb 24 11:05:51 2021 - [debug]  Connecting via SSH from root@10.0.0.51(10.0.0.51:22) to root@10.0.0.53(10.0.0.53:22)..
Wed Feb 24 11:05:52 2021 - [debug]   ok.
Wed Feb 24 11:05:53 2021 - [debug]
Wed Feb 24 11:05:52 2021 - [debug]  Connecting via SSH from root@10.0.0.53(10.0.0.53:22) to root@10.0.0.51(10.0.0.51:22)..
Wed Feb 24 11:05:52 2021 - [debug]   ok.
Wed Feb 24 11:05:52 2021 - [debug]  Connecting via SSH from root@10.0.0.53(10.0.0.53:22) to root@10.0.0.52(10.0.0.52:22)..
Wed Feb 24 11:05:52 2021 - [debug]   ok.
Wed Feb 24 11:05:53 2021 - [info] All SSH connection tests passed successfully.



[root@localhost ~]# masterha_check_repl --conf=/etc/mastermha/app1.cnf
Wed Feb 24 11:10:06 2021 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Feb 24 11:10:06 2021 - [info] Reading application default configuration from /etc/mastermha/app1.cnf..
Wed Feb 24 11:10:06 2021 - [info] Reading server configuration from /etc/mastermha/app1.cnf..
Wed Feb 24 11:10:06 2021 - [info] MHA::MasterMonitor version 0.58.
Wed Feb 24 11:10:08 2021 - [info] GTID failover mode = 0
Wed Feb 24 11:10:08 2021 - [info] Dead Servers:
Wed Feb 24 11:10:08 2021 - [info] Alive Servers:
Wed Feb 24 11:10:08 2021 - [info]   10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:10:08 2021 - [info]   10.0.0.52(10.0.0.52:3306)
Wed Feb 24 11:10:08 2021 - [info]   10.0.0.53(10.0.0.53:3306)
Wed Feb 24 11:10:08 2021 - [info] Alive Slaves:
Wed Feb 24 11:10:08 2021 - [info]   10.0.0.52(10.0.0.52:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:10:08 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:10:08 2021 - [info]     Primary candidate for the new Master (candidate_master is set)
Wed Feb 24 11:10:08 2021 - [info]   10.0.0.53(10.0.0.53:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:10:08 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:10:08 2021 - [info] Current Alive Master: 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:10:08 2021 - [info] Checking slave configurations..
Wed Feb 24 11:10:08 2021 - [info] Checking replication filtering settings..
Wed Feb 24 11:10:08 2021 - [info]  binlog_do_db= , binlog_ignore_db=
Wed Feb 24 11:10:08 2021 - [info]  Replication filtering check ok.
Wed Feb 24 11:10:08 2021 - [info] GTID (with auto-pos) is not supported
Wed Feb 24 11:10:08 2021 - [info] Starting SSH connection tests..
Wed Feb 24 11:10:10 2021 - [info] All SSH connection tests passed successfully.
Wed Feb 24 11:10:10 2021 - [info] Checking MHA Node version..
Wed Feb 24 11:10:10 2021 - [info]  Version check ok.
Wed Feb 24 11:10:10 2021 - [info] Checking SSH publickey authentication settings on the current master..
Wed Feb 24 11:10:11 2021 - [info] HealthCheck: SSH to 10.0.0.51 is reachable.
Wed Feb 24 11:10:11 2021 - [info] Master MHA Node version is 0.58.
Wed Feb 24 11:10:11 2021 - [info] Checking recovery script configurations on 10.0.0.51(10.0.0.51:3306)..
Wed Feb 24 11:10:11 2021 - [info]   Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data/binlog/ --output_file=/data/mastermha/app1//save_binary_logs_test --manager_version=0.58 --start_file=mysql-bin.000009
Wed Feb 24 11:10:11 2021 - [info]   Connecting to root@10.0.0.51(10.0.0.51:22)..
  Creating /data/mastermha/app1 if not exists..    ok.
  Checking output directory is accessible or not..
   ok.
  Binlog found at /data/binlog/, up to mysql-bin.000009
Wed Feb 24 11:10:11 2021 - [info] Binlog setting check done.
Wed Feb 24 11:10:11 2021 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers..
Wed Feb 24 11:10:11 2021 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='mhauser' --slave_host=10.0.0.52 --slave_ip=10.0.0.52 --slave_port=3306 --workdir=/data/mastermha/app1/ --target_version=5.7.33-log --manager_version=0.58 --relay_log_info=/data/mysql/relay-log.info  --relay_dir=/data/mysql/  --slave_pass=xxx
Wed Feb 24 11:10:11 2021 - [info]   Connecting to root@10.0.0.52(10.0.0.52:22)..
  Checking slave recovery environment settings..
    Opening /data/mysql/relay-log.info ... ok.
    Relay log found at /data/mysql, up to mysql-relay-bin.000002
    Temporary relay log file is /data/mysql/mysql-relay-bin.000002
    Checking if super_read_only is defined and turned on.. not present or turned off, ignoring.
    Testing mysql connection and privileges..
mysql: [Warning] Using a password on the command line interface can be insecure.
 done.
    Testing mysqlbinlog output.. done.
    Cleaning up test file(s).. done.
Wed Feb 24 11:10:11 2021 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='mhauser' --slave_host=10.0.0.53 --slave_ip=10.0.0.53 --slave_port=3306 --workdir=/data/mastermha/app1/ --target_version=5.7.33-log --manager_version=0.58 --relay_log_info=/data/mysql/relay-log.info  --relay_dir=/data/mysql/  --slave_pass=xxx
Wed Feb 24 11:10:11 2021 - [info]   Connecting to root@10.0.0.53(10.0.0.53:22)..
  Checking slave recovery environment settings..
    Opening /data/mysql/relay-log.info ... ok.
    Relay log found at /data/mysql, up to mysql-relay-bin.000002
    Temporary relay log file is /data/mysql/mysql-relay-bin.000002
    Checking if super_read_only is defined and turned on.. not present or turned off, ignoring.
    Testing mysql connection and privileges..
mysql: [Warning] Using a password on the command line interface can be insecure.
 done.
    Testing mysqlbinlog output.. done.
    Cleaning up test file(s).. done.
Wed Feb 24 11:10:12 2021 - [info] Slaves settings check done.
Wed Feb 24 11:10:12 2021 - [info]
10.0.0.51(10.0.0.51:3306) (current master)
 +--10.0.0.52(10.0.0.52:3306)
 +--10.0.0.53(10.0.0.53:3306)

Wed Feb 24 11:10:12 2021 - [info] Checking replication health on 10.0.0.52..
Wed Feb 24 11:10:12 2021 - [info]  ok.
Wed Feb 24 11:10:12 2021 - [info] Checking replication health on 10.0.0.53..
Wed Feb 24 11:10:12 2021 - [info]  ok.
Wed Feb 24 11:10:12 2021 - [info] Checking master_ip_failover_script status:
Wed Feb 24 11:10:12 2021 - [info]   /usr/local/bin/master_ip_failover --command=status --ssh_user=root --orig_master_host=10.0.0.51 --orig_master_ip=10.0.0.51 --orig_master_port=3306


IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 10.0.0.200/24===

Checking the Status of the script.. OK
Wed Feb 24 11:10:12 2021 - [info]  OK.
Wed Feb 24 11:10:12 2021 - [warning] shutdown_script is not defined.
Wed Feb 24 11:10:12 2021 - [info] Got exit code 0 (Not master dead).

MySQL Replication Health is OK.

检测成功后开启 MHA

nohup masterha_manager --conf=/etc/mastermha/app1.cnf &> /dev/null &

查看MHA状态

[root@localhost ~]# masterha_check_status --conf=/etc/mastermha/app1.cnf
app1 (pid:13297) is running(0:PING_OK), master:10.0.0.51

查看MHA日志

[root@localhost ~]# tail -f /data/mastermha/app1/manager.log

IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 10.0.0.200/24===

Checking the Status of the script.. OK
Wed Feb 24 11:15:18 2021 - [info]  OK.
Wed Feb 24 11:15:18 2021 - [warning] shutdown_script is not defined.
Wed Feb 24 11:15:18 2021 - [info] Set master ping interval 1 seconds.
Wed Feb 24 11:15:18 2021 - [warning] secondary_check_script is not defined. It is highly recommended setting it to check master reachability from two or more routes.
Wed Feb 24 11:15:18 2021 - [info] Starting ping health check on 10.0.0.51(10.0.0.51:3306)..
Wed Feb 24 11:15:18 2021 - [info] Ping(SELECT) succeeded, waiting until MySQL doesn't respond..

查看健康检查

[root@localhost ~]# tail -f /data/mastermha/app1/manager.log
IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 10.0.0.200/24===

Checking the Status of the script.. OK
Wed Feb 24 11:15:18 2021 - [info]  OK.
Wed Feb 24 11:15:18 2021 - [warning] shutdown_script is not defined.
Wed Feb 24 11:15:18 2021 - [info] Set master ping interval 1 seconds.
Wed Feb 24 11:15:18 2021 - [warning] secondary_check_script is not defined. It is highly recommended setting it to check master reachability from two or more routes.
Wed Feb 24 11:15:18 2021 - [info] Starting ping health check on 10.0.0.51(10.0.0.51:3306)..
Wed Feb 24 11:15:18 2021 - [info] Ping(SELECT) succeeded, waiting until MySQL doesn't respond..
-----------------------------------------------------------------------------------------------
#健康检查
[root@mysql ~]# tail -f /data/mysql/mysql.log
2021-02-24T03:17:42.821567Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:43.824434Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:44.823319Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:45.823814Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:46.825207Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:47.826499Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:48.826082Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:49.826376Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:50.827108Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:51.831014Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:52.831806Z      110 Query    SELECT 1 As Value
2021-02-24T03:17:53.829655Z      110 Query    SELECT 1 As Value

模拟故障

当 mysql 主宕机后，

Wed Feb 24 11:24:13 2021 - [warning] Got error on MySQL select ping: 2006 (MySQL server has gone away)
Wed Feb 24 11:24:13 2021 - [info] Executing SSH check script: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data/binlog/ --output_file=/data/mastermha/app1//save_binary_logs_test --manager_version=0.58 --binlog_prefix=mysql-bin
Wed Feb 24 11:24:14 2021 - [warning] Got error on MySQL connect: 2003 (Can't connect to MySQL server on '10.0.0.51' (111))
Wed Feb 24 11:24:14 2021 - [warning] Connection failed 2 time(s)..
Wed Feb 24 11:24:14 2021 - [info] HealthCheck: SSH to 10.0.0.51 is reachable.
Wed Feb 24 11:24:15 2021 - [warning] Got error on MySQL connect: 2003 (Can't connect to MySQL server on '10.0.0.51' (111))
Wed Feb 24 11:24:15 2021 - [warning] Connection failed 3 time(s)..
Wed Feb 24 11:24:16 2021 - [warning] Got error on MySQL connect: 2003 (Can't connect to MySQL server on '10.0.0.51' (111))
Wed Feb 24 11:24:16 2021 - [warning] Connection failed 4 time(s)..
Wed Feb 24 11:24:16 2021 - [warning] Master is not reachable from health checker!
Wed Feb 24 11:24:16 2021 - [warning] Master 10.0.0.51(10.0.0.51:3306) is not reachable!
Wed Feb 24 11:24:16 2021 - [warning] SSH is reachable.
Wed Feb 24 11:24:16 2021 - [info] Connecting to a master server failed. Reading configuration file /etc/masterha_default.cnf and /etc/mastermha/app1.cnf again, and trying to connect to all servers to check server status..
Wed Feb 24 11:24:16 2021 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Wed Feb 24 11:24:16 2021 - [info] Reading application default configuration from /etc/mastermha/app1.cnf..
Wed Feb 24 11:24:16 2021 - [info] Reading server configuration from /etc/mastermha/app1.cnf..
Wed Feb 24 11:24:17 2021 - [info] GTID failover mode = 0
Wed Feb 24 11:24:17 2021 - [info] Dead Servers:
Wed Feb 24 11:24:17 2021 - [info]   10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:17 2021 - [info] Alive Servers:
Wed Feb 24 11:24:17 2021 - [info]   10.0.0.52(10.0.0.52:3306)
Wed Feb 24 11:24:17 2021 - [info]   10.0.0.53(10.0.0.53:3306)
Wed Feb 24 11:24:17 2021 - [info] Alive Slaves:
Wed Feb 24 11:24:17 2021 - [info]   10.0.0.52(10.0.0.52:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:17 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:17 2021 - [info]     Primary candidate for the new Master (candidate_master is set)
Wed Feb 24 11:24:17 2021 - [info]   10.0.0.53(10.0.0.53:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:17 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:17 2021 - [info] Checking slave configurations..
Wed Feb 24 11:24:17 2021 - [info] Checking replication filtering settings..
Wed Feb 24 11:24:17 2021 - [info]  Replication filtering check ok.
Wed Feb 24 11:24:17 2021 - [info] Master is down!
Wed Feb 24 11:24:17 2021 - [info] Terminating monitoring script.
Wed Feb 24 11:24:17 2021 - [info] Got exit code 20 (Master dead).
Wed Feb 24 11:24:17 2021 - [info] MHA::MasterFailover version 0.58.
Wed Feb 24 11:24:17 2021 - [info] Starting master failover.
Wed Feb 24 11:24:17 2021 - [info]
Wed Feb 24 11:24:17 2021 - [info] * Phase 1: Configuration Check Phase..
Wed Feb 24 11:24:17 2021 - [info]
Wed Feb 24 11:24:18 2021 - [info] GTID failover mode = 0
Wed Feb 24 11:24:18 2021 - [info] Dead Servers:
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:18 2021 - [info] Checking master reachability via MySQL(double check)...
Wed Feb 24 11:24:18 2021 - [info]  ok.
Wed Feb 24 11:24:18 2021 - [info] Alive Servers:
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.52(10.0.0.52:3306)
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.53(10.0.0.53:3306)
Wed Feb 24 11:24:18 2021 - [info] Alive Slaves:
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.52(10.0.0.52:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:18 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:18 2021 - [info]     Primary candidate for the new Master (candidate_master is set)
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.53(10.0.0.53:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:18 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:18 2021 - [info] Starting Non-GTID based failover.
Wed Feb 24 11:24:18 2021 - [info]
Wed Feb 24 11:24:18 2021 - [info] ** Phase 1: Configuration Check Phase completed.
Wed Feb 24 11:24:18 2021 - [info]
Wed Feb 24 11:24:18 2021 - [info] * Phase 2: Dead Master Shutdown Phase..
Wed Feb 24 11:24:18 2021 - [info]
Wed Feb 24 11:24:18 2021 - [info] Forcing shutdown so that applications never connect to the current master..
Wed Feb 24 11:24:18 2021 - [info] Executing master IP deactivation script:
Wed Feb 24 11:24:18 2021 - [info]   /usr/local/bin/master_ip_failover --orig_master_host=10.0.0.51 --orig_master_ip=10.0.0.51 --orig_master_port=3306 --command=stopssh --ssh_user=root


IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 10.0.0.200/24===

Disabling the VIP on old master: 10.0.0.51
Wed Feb 24 11:24:18 2021 - [info]  done.
Wed Feb 24 11:24:18 2021 - [warning] shutdown_script is not set. Skipping explicit shutting down of the dead master.
Wed Feb 24 11:24:18 2021 - [info] * Phase 2: Dead Master Shutdown Phase completed.
Wed Feb 24 11:24:18 2021 - [info]
Wed Feb 24 11:24:18 2021 - [info] * Phase 3: Master Recovery Phase..
Wed Feb 24 11:24:18 2021 - [info]
Wed Feb 24 11:24:18 2021 - [info] * Phase 3.1: Getting Latest Slaves Phase..
Wed Feb 24 11:24:18 2021 - [info]
Wed Feb 24 11:24:18 2021 - [info] The latest binary log file/position on all slaves is mysql-bin.000009:154
Wed Feb 24 11:24:18 2021 - [info] Latest slaves (Slaves that received relay log files to the latest):
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.52(10.0.0.52:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:18 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:18 2021 - [info]     Primary candidate for the new Master (candidate_master is set)
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.53(10.0.0.53:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:18 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:18 2021 - [info] The oldest binary log file/position on all slaves is mysql-bin.000009:154
Wed Feb 24 11:24:18 2021 - [info] Oldest slaves:
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.52(10.0.0.52:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:18 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:18 2021 - [info]     Primary candidate for the new Master (candidate_master is set)
Wed Feb 24 11:24:18 2021 - [info]   10.0.0.53(10.0.0.53:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:18 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:18 2021 - [info]
Wed Feb 24 11:24:18 2021 - [info] * Phase 3.2: Saving Dead Master's Binlog Phase..
Wed Feb 24 11:24:18 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] Fetching dead master's binary logs..
Wed Feb 24 11:24:19 2021 - [info] Executing command on the dead master 10.0.0.51(10.0.0.51:3306): save_binary_logs --command=save --start_file=mysql-bin.000009  --start_pos=154 --binlog_dir=/data/binlog/ --output_file=/data/mastermha/app1//saved_master_binlog_from_10.0.0.51_3306_20210224112417.binlog --handle_raw_binlog=1 --disable_log_bin=0 --manager_version=0.58
  Creating /data/mastermha/app1 if not exists..    ok.
 Concat binary/relay logs from mysql-bin.000009 pos 154 to mysql-bin.000009 EOF into /data/mastermha/app1//saved_master_binlog_from_10.0.0.51_3306_20210224112417.binlog ..
 Binlog Checksum enabled
  Dumping binlog format description event, from position 0 to 154.. ok.
  No need to dump effective binlog data from /data/binlog//mysql-bin.000009 (pos starts 154, filesize 154). Skipping.
 Binlog Checksum enabled
 /data/mastermha/app1//saved_master_binlog_from_10.0.0.51_3306_20210224112417.binlog has no effective data events.
Event not exists.
Wed Feb 24 11:24:19 2021 - [info] Additional events were not found from the orig master. No need to save.
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] * Phase 3.3: Determining New Master Phase..
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] Finding the latest slave that has all relay logs for recovering other slaves..
Wed Feb 24 11:24:19 2021 - [info] All slaves received relay logs to the same position. No need to resync each other.
Wed Feb 24 11:24:19 2021 - [info] Searching new master from slaves..
Wed Feb 24 11:24:19 2021 - [info]  Candidate masters from the configuration file:
Wed Feb 24 11:24:19 2021 - [info]   10.0.0.52(10.0.0.52:3306)  Version=5.7.33-log (oldest major version between slaves) log-bin:enabled
Wed Feb 24 11:24:19 2021 - [info]     Replicating from 10.0.0.51(10.0.0.51:3306)
Wed Feb 24 11:24:19 2021 - [info]     Primary candidate for the new Master (candidate_master is set)
Wed Feb 24 11:24:19 2021 - [info]  Non-candidate masters:
Wed Feb 24 11:24:19 2021 - [info]  Searching from candidate_master slaves which have received the latest relay log events..
Wed Feb 24 11:24:19 2021 - [info] New master is 10.0.0.52(10.0.0.52:3306)
Wed Feb 24 11:24:19 2021 - [info] Starting master failover..
Wed Feb 24 11:24:19 2021 - [info]
From:
10.0.0.51(10.0.0.51:3306) (current master)
 +--10.0.0.52(10.0.0.52:3306)
 +--10.0.0.53(10.0.0.53:3306)

To:
10.0.0.52(10.0.0.52:3306) (new master)
 +--10.0.0.53(10.0.0.53:3306)
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] * Phase 3.4: New Master Diff Log Generation Phase..
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info]  This server has all relay logs. No need to generate diff files from the latest slave.
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] * Phase 3.5: Master Log Apply Phase..
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] *NOTICE: If any error happens from this phase, manual recovery is needed.
Wed Feb 24 11:24:19 2021 - [info] Starting recovery on 10.0.0.52(10.0.0.52:3306)..
Wed Feb 24 11:24:19 2021 - [info]  This server has all relay logs. Waiting all logs to be applied..
Wed Feb 24 11:24:19 2021 - [info]   done.
Wed Feb 24 11:24:19 2021 - [info]  All relay logs were successfully applied.
Wed Feb 24 11:24:19 2021 - [info] Getting new master's binlog name and position..
Wed Feb 24 11:24:19 2021 - [info]  mysql-bin.000012:154
Wed Feb 24 11:24:19 2021 - [info]  All other slaves should start replication from here. Statement should be: CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3306, MASTER_LOG_FILE='mysql-bin.000012', MASTER_LOG_POS=154, MASTER_USER='repluser', MASTER_PASSWORD='xxx';
Wed Feb 24 11:24:19 2021 - [info] Executing master IP activate script:
Wed Feb 24 11:24:19 2021 - [info]   /usr/local/bin/master_ip_failover --command=start --ssh_user=root --orig_master_host=10.0.0.51 --orig_master_ip=10.0.0.51 --orig_master_port=3306 --new_master_host=10.0.0.52 --new_master_ip=10.0.0.52 --new_master_port=3306 --new_master_user='mhauser'   --new_master_password=xxx
Unknown option: new_master_user
Unknown option: new_master_password


IN SCRIPT TEST====/sbin/ifconfig eth0:1 down==/sbin/ifconfig eth0:1 10.0.0.200/24===

Enabling the VIP - 10.0.0.200/24 on the new master - 10.0.0.52
Wed Feb 24 11:24:19 2021 - [info]  OK.
Wed Feb 24 11:24:19 2021 - [info] Setting read_only=0 on 10.0.0.52(10.0.0.52:3306)..
Wed Feb 24 11:24:19 2021 - [info]  ok.
Wed Feb 24 11:24:19 2021 - [info] ** Finished master recovery successfully.
Wed Feb 24 11:24:19 2021 - [info] * Phase 3: Master Recovery Phase completed.
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] * Phase 4: Slaves Recovery Phase..
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] * Phase 4.1: Starting Parallel Slave Diff Log Generation Phase..
Wed Feb 24 11:24:19 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info] -- Slave diff file generation on host 10.0.0.53(10.0.0.53:3306) started, pid: 13904. Check tmp log /data/mastermha/app1//10.0.0.53_3306_20210224112417.log if it takes time..
Wed Feb 24 11:24:20 2021 - [info]
Wed Feb 24 11:24:20 2021 - [info] Log messages from 10.0.0.53 ...
Wed Feb 24 11:24:20 2021 - [info]
Wed Feb 24 11:24:19 2021 - [info]  This server has all relay logs. No need to generate diff files from the latest slave.
Wed Feb 24 11:24:20 2021 - [info] End of log messages from 10.0.0.53.
Wed Feb 24 11:24:20 2021 - [info] -- 10.0.0.53(10.0.0.53:3306) has the latest relay log events.
Wed Feb 24 11:24:20 2021 - [info] Generating relay diff files from the latest slave succeeded.
Wed Feb 24 11:24:20 2021 - [info]
Wed Feb 24 11:24:20 2021 - [info] * Phase 4.2: Starting Parallel Slave Log Apply Phase..
Wed Feb 24 11:24:20 2021 - [info]
Wed Feb 24 11:24:20 2021 - [info] -- Slave recovery on host 10.0.0.53(10.0.0.53:3306) started, pid: 13906. Check tmp log /data/mastermha/app1//10.0.0.53_3306_20210224112417.log if it takes time..
Wed Feb 24 11:24:21 2021 - [info]
Wed Feb 24 11:24:21 2021 - [info] Log messages from 10.0.0.53 ...
Wed Feb 24 11:24:21 2021 - [info]
Wed Feb 24 11:24:20 2021 - [info] Starting recovery on 10.0.0.53(10.0.0.53:3306)..
Wed Feb 24 11:24:20 2021 - [info]  This server has all relay logs. Waiting all logs to be applied..
Wed Feb 24 11:24:20 2021 - [info]   done.
Wed Feb 24 11:24:20 2021 - [info]  All relay logs were successfully applied.
Wed Feb 24 11:24:20 2021 - [info]  Resetting slave 10.0.0.53(10.0.0.53:3306) and starting replication from the new master 10.0.0.52(10.0.0.52:3306)..
Wed Feb 24 11:24:20 2021 - [info]  Executed CHANGE MASTER.
Wed Feb 24 11:24:20 2021 - [info]  Slave started.
Wed Feb 24 11:24:21 2021 - [info] End of log messages from 10.0.0.53.
Wed Feb 24 11:24:21 2021 - [info] -- Slave recovery on host 10.0.0.53(10.0.0.53:3306) succeeded.
Wed Feb 24 11:24:21 2021 - [info] All new slave servers recovered successfully.
Wed Feb 24 11:24:21 2021 - [info]
Wed Feb 24 11:24:21 2021 - [info] * Phase 5: New master cleanup phase..
Wed Feb 24 11:24:21 2021 - [info]
Wed Feb 24 11:24:21 2021 - [info] Resetting slave info on the new master..
Wed Feb 24 11:24:21 2021 - [info]  10.0.0.52: Resetting slave info succeeded.
Wed Feb 24 11:24:21 2021 - [info] Master failover to 10.0.0.52(10.0.0.52:3306) completed successfully.
Wed Feb 24 11:24:21 2021 - [info]

----- Failover Report -----

app1: MySQL Master failover 10.0.0.51(10.0.0.51:3306) to 10.0.0.52(10.0.0.52:3306) succeeded

Master 10.0.0.51(10.0.0.51:3306) is down!

Check MHA Manager logs at localhost.localdomain:/data/mastermha/app1/manager.log for details.

Started automated(non-interactive) failover.
Invalidated master IP address on 10.0.0.51(10.0.0.51:3306)
The latest slave 10.0.0.52(10.0.0.52:3306) has all relay logs for recovery.
Selected 10.0.0.52(10.0.0.52:3306) as a new master.
10.0.0.52(10.0.0.52:3306): OK: Applying all logs succeeded.
10.0.0.52(10.0.0.52:3306): OK: Activated master IP address.
10.0.0.53(10.0.0.53:3306): This host has the latest relay log events.
Generating relay diff files from the latest slave succeeded.
10.0.0.53(10.0.0.53:3306): OK: Applying all logs succeeded. Slave started, replicating from 10.0.0.52(10.0.0.52:3306)
10.0.0.52(10.0.0.52:3306): Resetting slave info succeeded.
Master failover to 10.0.0.52(10.0.0.52:3306) completed successfully.
Wed Feb 24 11:24:21 2021 - [info] Sending mail..

验证VIP漂移到新的Master上

[root@mysql ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:c1:d6:19 brd ff:ff:ff:ff:ff:ff
    inet 10.0.0.52/24 brd 10.0.0.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
    inet 10.0.0.200/24 brd 10.0.0.255 scope global secondary eth0:1
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fec1:d619/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

收到报警邮件


如果再运行MHA，需删除下面的文件

[root@localhost ~]# ls /data/mastermha/app1/app1.failover.complete
/data/mastermha/app1/app1.failover.complete

[root@localhost ~]# rm -rf/data/mastermha/app1/app1.failover.complete
