Kafka

• 基于发布、订阅模式的消息队列

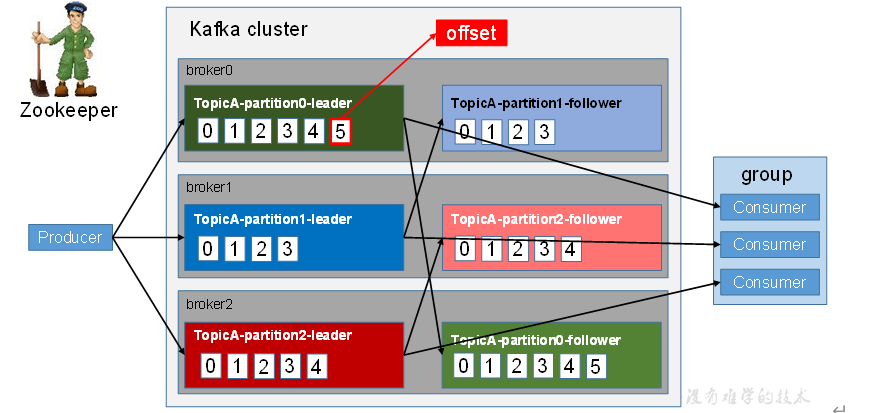

基础架构

工作流程

• producer 生产 追加到log文件，每条数据有offset

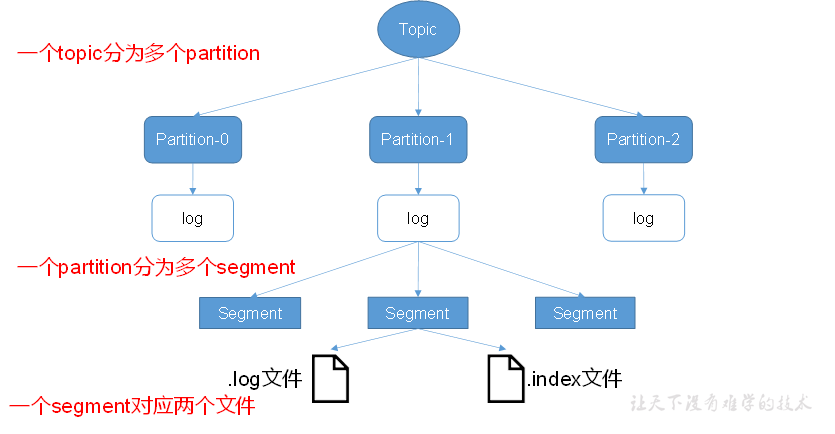

文件存储机制

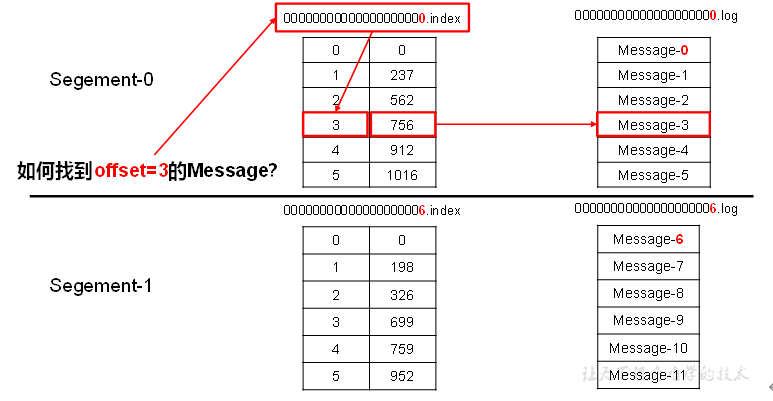

分片+索引

“.index”文件存储大量的索引信息
“.log”文件存储大量的数据
索引文件中的元数据指向对应数据文件中message的物理偏移地址。

生产者

分区策略

• 有partition，直接partition值
• 没有partition，但有key 取 hash(key)%partition
• 都没有 积攒成batch 发送到随机新的分区

数据可靠性

• 副本同步策略
  • 半数以上 2n+1 最坏情况n台故障
  • 全部完成同步
• ISR 形成小圈子 小圈子完成同步即可。 长时间未同步 踢出圈子。 选举也是圈子中选
• ack应答
  • 0 producer 不等待broker ack
  • 1 producer 等待broker ack
  • -1 落盘后菜返回ack
• 故障细节

At Least Once + 幂等性= Exactly Once

幂等性：无论producer发送多少重复数据 server只持续化一条

消费者

• 分区分配策略
  • roundrobin
  • range
• offset维护 —-consumer自己记录自己消费哪个offset

高速读写

• 顺序写磁盘
• 应用Pagecache
  • I/O Scheduler小块组装成大块
  • I/O Scheduler写操作重新顺序排好
  • 充分利用空闲内存
  • 消写速度相同，无需磁盘
  • 重启进程PageCache可用
• 零复制

ProducerAPI

package com.Kafka;
import org.apache.kafka.clients.producer.Callback;
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.apache.kafka.clients.producer.RecordMetadata;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import java.util.Properties;
import java.util.concurrent.ExecutionException;
public class producer {
    Properties properties = null;
    KafkaProducer<String, String> producer = null;
    @Before
    public void init() {
        properties = new Properties();
        properties.put("bootstrap.servers", "node01:9092");//kafka集群，broker-list
        properties.put("acks", "all");
        properties.put("retries", 1);//重试次数
        properties.put("batch.size", 16384);//批次大小
        properties.put("linger.ms", 1);//等待时间
        properties.put("buffer.memory", 33554432);//RecordAccumulator缓冲区大小
        properties.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
        properties.put("value.serializer", "org.apache.kafka.common.serialization.StringSerializer");
        producer = new KafkaProducer<String, String>(properties);
    }
    /***
     * 异步
     *      无回调
     *      有回调
     *
     */
    @Test
    public void withoutcallback() {
        for (int i = 0; i < 100; i++) {
            producer.send(new ProducerRecord<String, String>("first", Integer.toString(i), Integer.toString(i)));
        }
    }
    @Test
    public void withcallback() {
        for (int i = 0; i < 100; i++) {

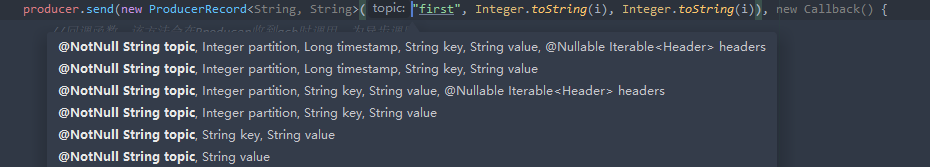

            producer.send(new ProducerRecord<String, String>("first", Integer.toString(i), Integer.toString(i)), new Callback() {
                //回调函数，该方法会在Producer收到ack时调用，为异步调用
                @Override
                public void onCompletion(RecordMetadata metadata, Exception exception) {
                    if (exception == null) {
                        System.out.println("success->" + metadata.offset());
                    } else {
                        exception.printStackTrace();
                    }
                }
            });
        }
    }
    /***
     *  同步
     *
     */
    @Test
    public void sync() throws ExecutionException, InterruptedException {
        for (int i = 0; i < 100; i++) {
            producer.send(new ProducerRecord<String, String>("first", Integer.toString(i), Integer.toString(i))).get();
        }
    }
    @After
    public void close() {
        producer.close();
    }
}

ConsumerAPI

package com.Kafka;
import org.apache.kafka.clients.consumer.*;
import org.apache.kafka.common.TopicPartition;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import java.util.Arrays;
import java.util.Map;
import java.util.Properties;
public class comsumer {
    Properties properties = null;
    KafkaConsumer<String, String> comsumer = null;
    @Before
    public void init() {
        properties = new Properties();
        properties.put("bootstrap.servers", "node01:9092");//kafka集群，broker-list
        properties.put("group.id", "test");
//        properties.put("enable.auto.commit", "true");
        properties.put("auto.commit.interval.ms", "1000");
        properties.put("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
        properties.put("value.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
    }
    /***
     * 自动提交offset
     * 手动提交offset
     *      同步提交
     *      异步提交
     *
     */
    @Test
    public void autoSubmit() {
        properties.put("enable.auto.commit", "true");
        comsumer = new KafkaConsumer<String, String>(properties);
        comsumer.subscribe(Arrays.asList("first"));
        while (true) {
            ConsumerRecords<String, String> records = comsumer.poll(100);
            for (ConsumerRecord<String, String> record : records) {
                System.out.printf("offset = %d, key = %s, value = %s%n", record.offset(), record.key(), record.value());
            }
        }
    }
    @Test
    public void manualSyncSubmit() {
        properties.put("enable.auto.commit", "false");
        comsumer = new KafkaConsumer<String, String>(properties);
        comsumer.subscribe(Arrays.asList("first"));
        ConsumerRecords<String, String> records = comsumer.poll(100);
        for (ConsumerRecord<String, String> record : records) {
            System.out.printf("offset = %d, key = %s, value = %s%n", record.offset(), record.key(), record.value());
        }
        comsumer.commitSync();
    }
    @Test
    public void manualAsyncSubmit() {
        properties.put("enable.auto.commit", "false");
        comsumer = new KafkaConsumer<String, String>(properties);
        comsumer.subscribe(Arrays.asList("first"));
        ConsumerRecords<String, String> records = comsumer.poll(100);
        for (ConsumerRecord<String, String> record : records) {
            System.out.printf("offset = %d, key = %s, value = %s%n", record.offset(), record.key(), record.value());
        }
        comsumer.commitAsync(new OffsetCommitCallback() {
            @Override
            public void onComplete(Map<TopicPartition, OffsetAndMetadata> map, Exception e) {
                if (e != null) {
                    System.out.println("Commit fail for " + map);
                }
            }
        });
    }
    @After
    public void close() {
        comsumer.close();
    }
}
