dble的IO流程

author：彭程

介绍

dble实现了AIO和NIO两种IO，本文主要介绍dble的NIO过程

NIO介绍

NIO主要有三大核心部分：Channel(通道)，Buffer(缓冲区)，Selector(选择器)。传统IO基于字节流和字符流进行操作，而NIO基于Channel和Buffer进行操作，数据总是从通道读取到缓冲区中，或者从缓冲区写入到通道中。Selector(选择区)用于监听多个通道的事件（比如：连接打开，数据到达）。因此，单个线程可以监听多个数据通道，实现多路复用和异步化处理任务。
NIO和传统IO（一下简称IO）之间第一个最大的区别是，IO是面向流的，NIO是面向缓冲区的。

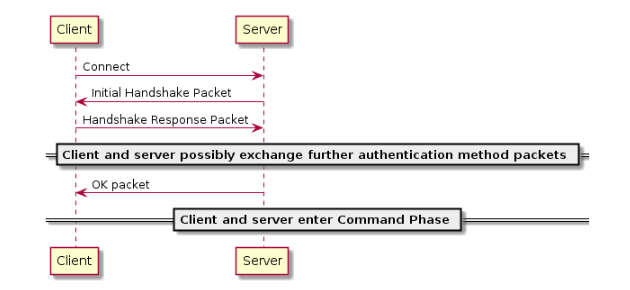

dble实现了mysql协议，以客户端与dble的front连接为例，主要步骤如下：
1、服务端发送握手包；
2、dble 处理客户端的回复包.

服务端发送握手包

dble启动类dblesever中，dble会判断是使用AIO还是NIO，判断为NIO后会分别创建前后端的读写队列，并初始化两个NIOAcceptor对象：manager和server，分别对应与管理端口和服务端口。之后会启动两个NIOAccepter对象的线程。

public final class DbleServer {
...
if (aio) { //判断IO类型
            int processorCount = frontProcessorCount + backendProcessorCount;
            LOGGER.info("using aio network handler ");
            asyncChannelGroups = new AsynchronousChannelGroup[processorCount];
            initAioProcessor(processorCount);
            connector = new AIOConnector();
            manager = new AIOAcceptor(NAME + "Manager", SystemConfig.getInstance().getBindIp(),
                    SystemConfig.getInstance().getManagerPort(), 100, new ManagerConnectionFactory(), this.asyncChannelGroups[0]);
            server = new AIOAcceptor(NAME + "Server", SystemConfig.getInstance().getBindIp(),
                    SystemConfig.getInstance().getServerPort(), SystemConfig.getInstance().getServerBacklog(), new ServerConnectionFactory(), this.asyncChannelGroups[0]);
        } else {
            for (int i = 0; i < frontProcessorCount; i++) {
                frontExecutor.execute(new RW(frontRegisterQueue));
            }
            for (int i = 0; i < backendProcessorCount; i++) {
                backendExecutor.execute(new RW(backendRegisterQueue));
            }
            connector = new NIOConnector(DirectByteBufferPool.LOCAL_BUF_THREAD_PREX + "NIOConnector", backendRegisterQueue);
            connector.start();
                        //管理端口
            manager = new NIOAcceptor(DirectByteBufferPool.LOCAL_BUF_THREAD_PREX + NAME + "Manager", SystemConfig.getInstance().getBindIp(),
                    SystemConfig.getInstance().getManagerPort(), 100, new ManagerConnectionFactory(), frontRegisterQueue);
                         //服务端口
            server = new NIOAcceptor(DirectByteBufferPool.LOCAL_BUF_THREAD_PREX + NAME + "Server", SystemConfig.getInstance().getBindIp(),
                    SystemConfig.getInstance().getServerPort(), SystemConfig.getInstance().getServerBacklog(), new ServerConnectionFactory(), frontRegisterQueue);
        }
...
                manager.start();
        LOGGER.info(manager.getName() + " is started and listening on " + manager.getPort());
        server.start();
        LOGGER.info(server.getName() + " is started and listening on " + server.getPort());
        LOGGER.info("=====================================Server started success=======================================");
}

DBLE 处理客户端 connect 的代码在 NIOAcceptor中：

public final class NIOAcceptor extends Thread implements SocketAcceptor {
    private static final Logger LOGGER = LoggerFactory.getLogger(NIOAcceptor.class);
    private static final AcceptIdGenerator ID_GENERATOR = new AcceptIdGenerator();
    private final int port;
    private final Selector selector;
    private final ServerSocketChannel serverChannel;
    private final FrontendConnectionFactory factory;
    private ConcurrentLinkedQueue<AbstractConnection> frontRegisterQueue;
    public NIOAcceptor(String name, String bindIp, int port, int backlog, FrontendConnectionFactory factory,
                       ConcurrentLinkedQueue<AbstractConnection> frontRegisterQueue) throws IOException {
        super.setName(name);
        this.port = port;
        this.selector = Selector.open(); //打开选择器（Channel都会由Selector统一管理）；
        this.serverChannel = ServerSocketChannel.open(); //打开服务端 Socket 通道，并绑定监听的端口号
        this.serverChannel.configureBlocking(false); //设置当前通道为非阻塞状态；
        //set TCP option
        serverChannel.setOption(StandardSocketOptions.SO_REUSEADDR, true);
        serverChannel.setOption(StandardSocketOptions.SO_RCVBUF, 1024 * 16 * 2);
        serverChannel.bind(new InetSocketAddress(bindIp, port), backlog);
        this.serverChannel.register(selector, SelectionKey.OP_ACCEPT); //将服务器 Socket 通道注册进Selector，由选择器统一管理。
        /*
        SelectionKey中封装了事件的四种类型：
        OP_READ：可读事件;
        OP_WRITE：可写事件;
        OP_CONNECT：客户端连接服务端的事件(tcp连接)，一般为创建SocketChannel客户端channel;
        OP_ACCEPT：服务端接收客户端连接的事件，一般为创建ServerSocketChannel服务端channel;
         */
        this.factory = factory;
        this.frontRegisterQueue = frontRegisterQueue;
    }
...
}

NIOAccepter#run方法会不断检查是否有有效连接的通道，有的话就执行NIOAccepter#accept方法。

  public void run() {
        final Selector tSelector = this.selector; //selector.select():返回已经准备就绪的通道个数（这些通道包含你感兴趣的的事件）。
        //比如：你对读就绪的通道感兴趣，那么select（）方法就会返回读事件已经就绪的那些通道。
        for (; ; ) {
            try {
                tSelector.select(1000L);
                Set<SelectionKey> keys = tSelector.selectedKeys(); //selector.selectedKeys():获取就绪通道的事件列表。
                try {
                    for (SelectionKey key : keys) {
                        if (key.isValid() && key.isAcceptable()) { //当连接有效且可接受时，处理客户端连接
                            accept();
                        } else {
                            key.cancel();
                        }
                    }
                } catch (final Throwable e) {
                    LOGGER.warn("caught Throwable err: ", e);
                } finally {
                    keys.clear();
                }
            } catch (Exception e) {
                LOGGER.info(getName(), e);
            }
        }
    }

accpt方法中成功建立了TCP连接，并将连接放入队列中，之后执行wakeupFrontedSelector()方法

    private void accept() {
        SocketChannel channel = null;
        try {
            //与客户端建立TCP连接
            channel = serverChannel.accept();
            channel.configureBlocking(false); //调整当前通道为非阻塞模式
            NIOSocketWR socketWR = new NIOSocketWR();
            FrontendConnection c = factory.make(channel, socketWR);
            socketWR.initFromConnection(c);
            c.setId(ID_GENERATOR.getId());
            IOProcessor processor = DbleServer.getInstance().nextFrontProcessor();
            c.setProcessor(processor);
            frontRegisterQueue.offer(c); //将连接放入队列
            wakeupFrontedSelector(); //唤醒selector
        } catch (Exception e) {
            LOGGER.info(getName(), e);
            closeChannel(channel);
        }
    }

wakeupFrontedSelector()方法创建了一个RW对象，并唤醒了其select，RW用于读写连接中的数据

    private void wakeupFrontedSelector() {
        Map<Thread, Runnable> threadRunnableMap = DbleServer.getInstance().getRunnableMap().get(DbleServer.FRONT_EXECUTOR_NAME);
        for (Map.Entry<Thread, Runnable> runnableEntry : threadRunnableMap.entrySet()) {
            RW rw = (RW) runnableEntry.getValue();
            rw.getSelector().wakeup();
        }
    }

直接来看RW的run方法，RW首先将dble与客户端的连接注册到了RW的selector中，之后一旦连接中有数据，就会进行处理

    public void run() {
        final Selector finalSelector = this.selector;
        Set<SelectionKey> keys = null;
        if (SystemConfig.getInstance().getUseThreadUsageStat() == 1) {
            this.useThreadUsageStat = true;
            this.workUsage = new ThreadWorkUsage();
            DbleServer.getInstance().getThreadUsedMap().put(Thread.currentThread().getName(), workUsage);
        }
        for (; ; ) {
            try {
                ...
                register(finalSelector); //注册selector
                keys = finalSelector.selectedKeys();
                if (keys.size() == 0) {
                    continue;
                }
                executeKeys(keys); //对有相应事件的连接进行处理
                             ...
            }
        }
    }

    private void register(Selector finalSelector) {
        AbstractConnection c;
        if (registerQueue.isEmpty()) {
            return;
        }
        while ((c = registerQueue.poll()) != null) {
            try {
                    //将连接注册到了RW的selector多路复用选择器中，使得该选择器后续能够读取该连接发送过来的数据
                ((NIOSocketWR) c.getSocketWR()).register(finalSelector);
                c.register();
            } catch (Exception e) {
                //todo 确认调用register的时候会发生什么
                LOGGER.warn("register err", e);
            }
        }
    }

dble处理客户端的回复包

当客户端返回回复包之后，从上面RW的run方法可以看到，RW会调用RW#executeKeys方法进行处理，

private void executeKeys(Set<SelectionKey> keys) {
        for (SelectionKey key : keys) {
            AbstractConnection con = null;
            try {
                Object att = key.attachment();
                if (att != null) {
                    con = (AbstractConnection) att;
                    if (con.isClosed()) {
                        key.cancel();
                    }
                    if (key.isValid() && key.isReadable()) {
                        try {
                            con.asyncRead(); //读取客户端发送过来的数据,asynRead()异步读方法：获取缓冲区，调用通道的read方法，将数据读到缓冲区。
                        } catch (ClosedChannelException e) {
                            //happens when close and read running in parallel.
                            //sometimes ,no byte could be read,but an  read event triggered with  zero bytes although cause this.
                            LOGGER.info("read bytes but the  connection is closed .connection is {}. May be the connection closed suddenly.", con);
                            key.cancel();
                            continue;
                        }
                        ...
                        }
        }
    }

这里调用了NIOSocketWR的asyncRead方法将客户端发送的数据进行了读取到缓存，并进行下一步处理

   public void asyncRead() throws IOException {
        ByteBuffer theBuffer = con.findReadBuffer(); //读取客户端发送过来的数据到缓存theBuffer中
        int got = channel.read(theBuffer);
        con.onReadData(got); //处理相应的数据
    }

AbstractConnection#onReadData方法继续调用AbstractConnection#handle方法，对每个数据包进行处理

  private void handle(ByteBuffer dataBuffer) {
        boolean hasRemaining = true;
        int offset = 0;
        while (hasRemaining) {
            ProtoHandlerResult result = proto.handle(dataBuffer, offset, isSupportCompress);
            //下面处理了客户端传过来的数据包
            switch (result.getCode()) {
                case PART_OF_BIG_PACKET:
                    extraPartOfBigPacketCount++;
                    if (!result.isHasMorePacket()) {
                        readReachEnd();
                        dataBuffer.clear();
                    }
                    break;
                case COMPLETE_PACKET: //完整的数据包，进入这里的处理逻辑
                    processPacketData(result); //进行封装
                    if (!result.isHasMorePacket()) {
                        readReachEnd();
                        dataBuffer.clear();
                    }
                    break;
                case BUFFER_PACKET_UNCOMPLETE:
                    compactReadBuffer(dataBuffer, result.getOffset());
                    break;
                case BUFFER_NOT_BIG_ENOUGH:
                    ensureFreeSpaceOfReadBuffer(dataBuffer, result.getOffset(), result.getPacketLength());
                    break;
                default:
                    throw new RuntimeException("unknown error when read data");
            }
            hasRemaining = result.isHasMorePacket();
            if (hasRemaining) {
                offset = result.getOffset();
            }
        }
    }

AbstractConnection#processPacketData会读取客户端发送过来的握手包，并将它封装成异步任务以备下一步处理。

   private void processPacketData(ProtoHandlerResult result) {
        //这里将读取的数据封装成task任务，提交到队列中，然后通过线程异步处理
        byte[] packetData = result.getPacketData();
        if (packetData != null) {
            int tmpCount = extraPartOfBigPacketCount;
            if (!isSupportCompress) {
                extraPartOfBigPacketCount = 0;
                pushServiceTask(new NormalServiceTask(packetData, service, tmpCount));
            } else {
                List<byte[]> packs = CompressUtil.decompressMysqlPacket(packetData, decompressUnfinishedDataQueue);
                if (decompressUnfinishedDataQueue.isEmpty()) {
                    extraPartOfBigPacketCount = 0;
                }
                for (byte[] pack : packs) {
                    if (pack.length != 0) {
                        pushServiceTask(new NormalServiceTask(pack, service, tmpCount));
                    }
                }
            }
        }
    }
