Dashboard介绍

  1. Dashboard 是基于网页的 Kubernetes 用户界面。
  2. 您可以使用 Dashboard 将容器应用部署到 Kubernetes 集群中
  3. ，也可以对容器应用排错，还能管理集群资源。
  4. 您可以使用 Dashboard 获取运行在集群中的应用的概览信息，
  5. 也可以创建或者修改 Kubernetes 资源（如 Deployment，Job，DaemonSet 等等）。
  6. 例如，您可以对 Deployment 实现弹性伸缩、发起滚动升级、重启 Pod 或者使用向导创建新的应用。

获取并修改Yaml文件

  1. 项目地址 https://github.com/kubernetes/dashboard/releases
  3. # wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta8/aio/deploy/recommended.yaml
  5. master执行
  6. [root@master ~]# mkdir dashboard
  7. [root@master ~]# cd dashboard/
  8. # vim recommended.yaml
  9. kind: Service
  10. apiVersion: v1
  11. metadata:
  12.   labels:
  13.     k8s-app: kubernetes-dashboard
  14.   name: kubernetes-dashboard
  15.   namespace: kubernetes-dashboard
  16. spec:
  17.   type: NodePort #新加此行
  18.   ports:
  19.     - port: 443
  20.       nodePort： 30001 #新加此行
  21.       targetPort: 8443
  22.   selector:
  23.     k8s-app: kubernetes-dashboard
  26. 应用配置文件
  27. # kubectl apply -f recommended.yaml
  29. ############################################################################
  30. [root@master dashboard]# kubectl apply -f recommended.yaml
  31. namespace/kubernetes-dashboard created
  32. serviceaccount/kubernetes-dashboard created
  33. service/kubernetes-dashboard created
  34. secret/kubernetes-dashboard-certs created
  35. secret/kubernetes-dashboard-csrf created
  36. secret/kubernetes-dashboard-key-holder created
  37. configmap/kubernetes-dashboard-settings created
  38. role.rbac.authorization.k8s.io/kubernetes-dashboard created
  39. clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
  40. rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
  41. clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
  42. deployment.apps/kubernetes-dashboard created
  43. service/dashboard-metrics-scraper created
  44. deployment.apps/dashboard-metrics-scraper created
  45. ############################################################################
  48. 查看pod和service
  49. -o wide 宽格式显示 -n 指定名称空间
  50. [root@master dashboard]# kubectl get pod -o wide -n kubernetes-dashboard
  51. NAME                                         READY   STATUS    RESTARTS   AGE     IP           NODE    NOMINATED NODE   READINESS GATES
  52. dashboard-metrics-scraper-76585494d8-2czfj   1/1     Running   0          7m54s   10.244.2.3   node2   <none>           <none>
  53. kubernetes-dashboard-5996555fd8-p8qgc        1/1     Running   0          7m54s   10.244.1.2   node1   <none>           <none>
  55. [root@master dashboard]#  kubectl get svc -o wide -n kubernetes-dashboard
  56. NAME                        TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE     SELECTOR
  57. dashboard-metrics-scraper   ClusterIP   10.98.193.51    <none>        8000/TCP        8m24s   k8s-app=dashboard-metrics-scraper
  58. kubernetes-dashboard        NodePort    10.96.240.128   <none>        443:30001/TCP   8m33s   k8s-app=kubernetes-dashboard


访问Dashboard

  1. 得使用火狐浏览器
  2. https://192.168.81.30:30001
  3. 接受风险并继续



创建一个dashboard用户

  1. master节点
  2. [root@master ~]# cd dashboard/
  3. # vim create-admin.yaml
  4. apiVersion: v1
  5. kind: ServiceAccount
  6. metadata:
  7.   name: admin-user
  8.   namespace: kubernetes-dashboard
  9. ---
  10. apiVersion: rbac.authorization.k8s.io/v1
  11. kind: ClusterRoleBinding
  12. metadata:
  13.   name: admin-user
  14. roleRef:
  15.   apiGroup: rbac.authorization.k8s.io
  16.   kind: ClusterRole
  17.   name: cluster-admin
  18. subjects:
  19. - kind: ServiceAccount
  20.   name: admin-user
  21.   namespace: kubernetes-dashboard
  23. [root@master dashboard]# kubectl apply -f create-admin.yaml
  25. 获取Token
  26. [root@master dashboard]#  kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep admin-user | awk '{print $1}')
  27. Name:         admin-user-token-5vcp4
  28. Namespace:    kubernetes-dashboard
  29. Labels:       <none>
  30. Annotations:  kubernetes.io/service-account.name: admin-user
  31.               kubernetes.io/service-account.uid: 0137b407-a40b-4635-b26a-d53139688b5d
  33. Type:  kubernetes.io/service-account-token
  35. Data
  36. ====
  37. ca.crt:     1025 bytes
  38. namespace:  20 bytes
  39. token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IkR6RWY1alg5MGwybzBuOEVJVGdCOF9XSklleUtaMFY3eTFWRzVrcTBvdFkifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTV2Y3A0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIwMTM3YjQwNy1hNDBiLTQ2MzUtYjI2YS1kNTMxMzk2ODhiNWQiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.O33TppsQxjkha3QsHEFpUJpcggubFZSmGyXRNfRUaw_8d1xBUeiFKaG0lUHp4__Zorv5Hx_K5TQpgUV-bpQmG7hSxwgs4S77mTo2oWOE48c_wMqkRro2DCU1ef3D-aL6ChnGz_evGj8PHF-g7OPcN9oOKuRAD-fLJiccUBZFfc2Jbh_53QVKjbPYfGSyBMrhxnMuVaFajOneocSbfT7a-3D-gBLxPbMXvm3BKvSQjAUJjOh1HpSH5QC6e84QCI_cisxdy2OldzsrTdYFagGO1pbCJmyM0Sq6meYq5AJkcgfCgvgZYI_DycaqcznSBPeVmuaZ0UR0NMu4iR9-MBzcUw

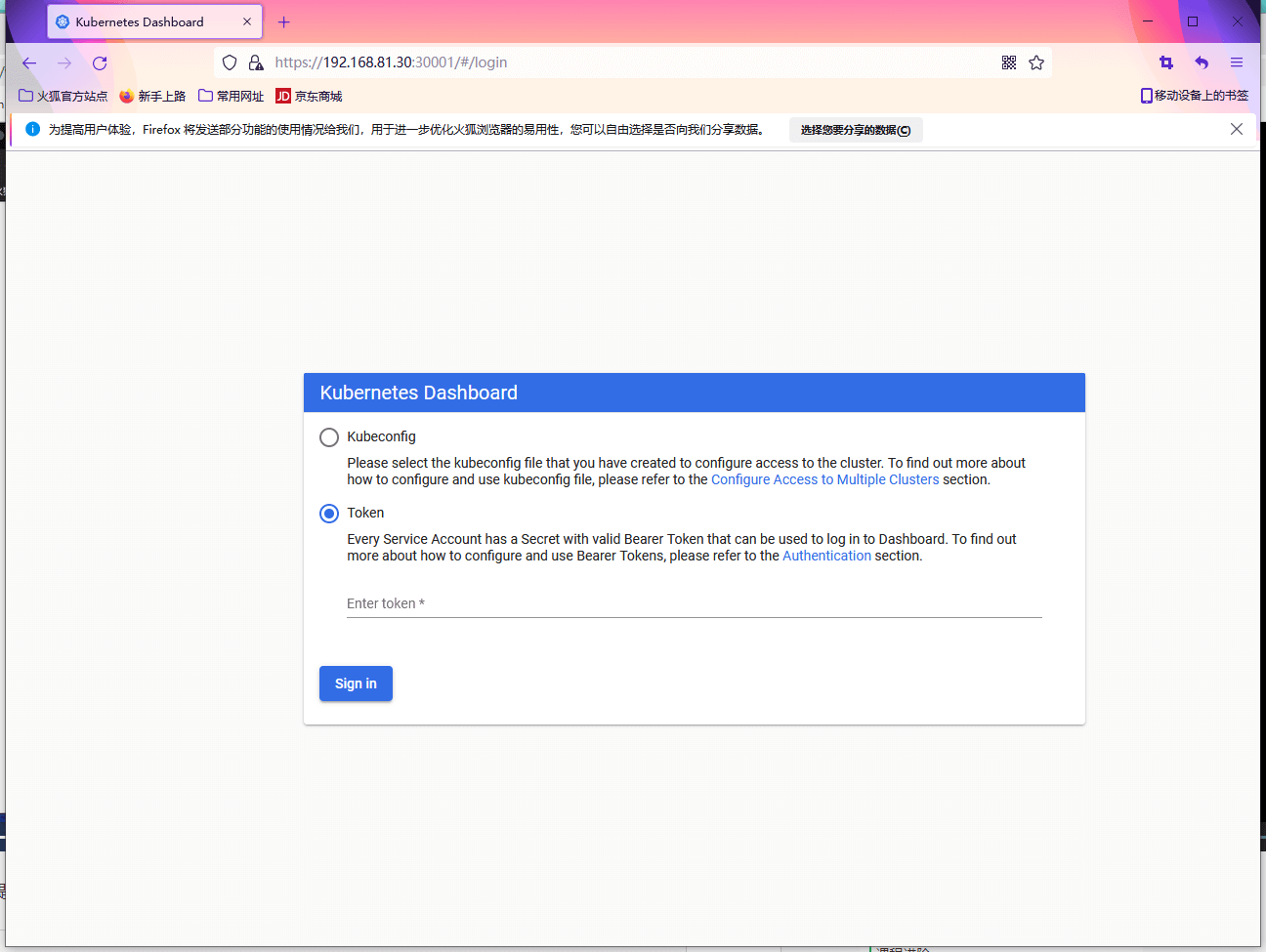

登录dashboard

  1. https://192.168.81.30:30001
  2. 复制token
  3. eyJhbGciOiJSUzI1NiIsImtpZCI6IkR6RWY1alg5MGwybzBuOEVJVGdCOF9XSklleUtaMFY3eTFWRzVrcTBvdFkifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTV2Y3A0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIwMTM3YjQwNy1hNDBiLTQ2MzUtYjI2YS1kNTMxMzk2ODhiNWQiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.O33TppsQxjkha3QsHEFpUJpcggubFZSmGyXRNfRUaw_8d1xBUeiFKaG0lUHp4__Zorv5Hx_K5TQpgUV-bpQmG7hSxwgs4S77mTo2oWOE48c_wMqkRro2DCU1ef3D-aL6ChnGz_evGj8PHF-g7OPcN9oOKuRAD-fLJiccUBZFfc2Jbh_53QVKjbPYfGSyBMrhxnMuVaFajOneocSbfT7a-3D-gBLxPbMXvm3BKvSQjAUJjOh1HpSH5QC6e84QCI_cisxdy2OldzsrTdYFagGO1pbCJmyM0Sq6meYq5AJkcgfCgvgZYI_DycaqcznSBPeVmuaZ0UR0NMu4iR9-MBzcUw

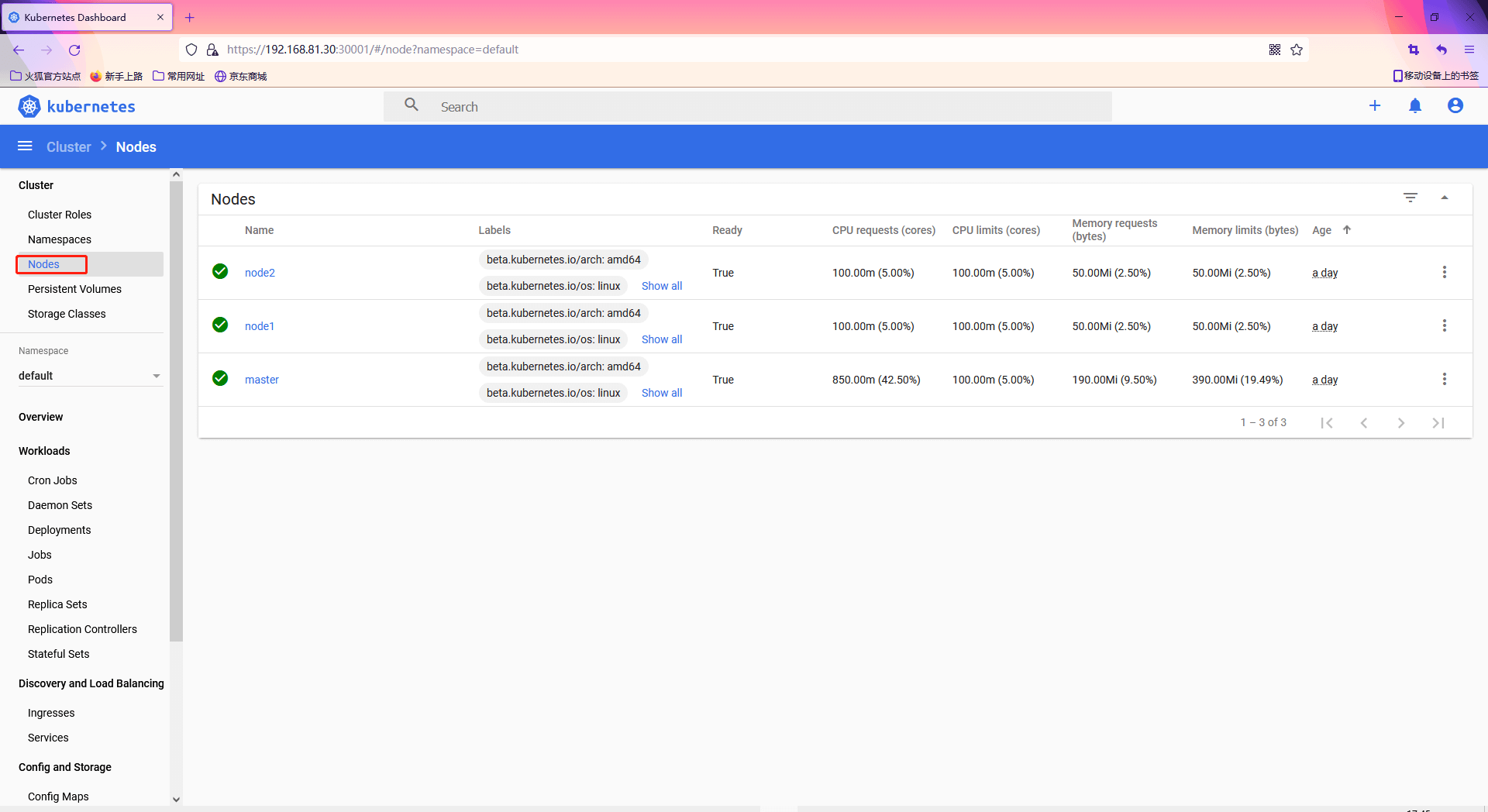

  5. sign in
