树的介绍

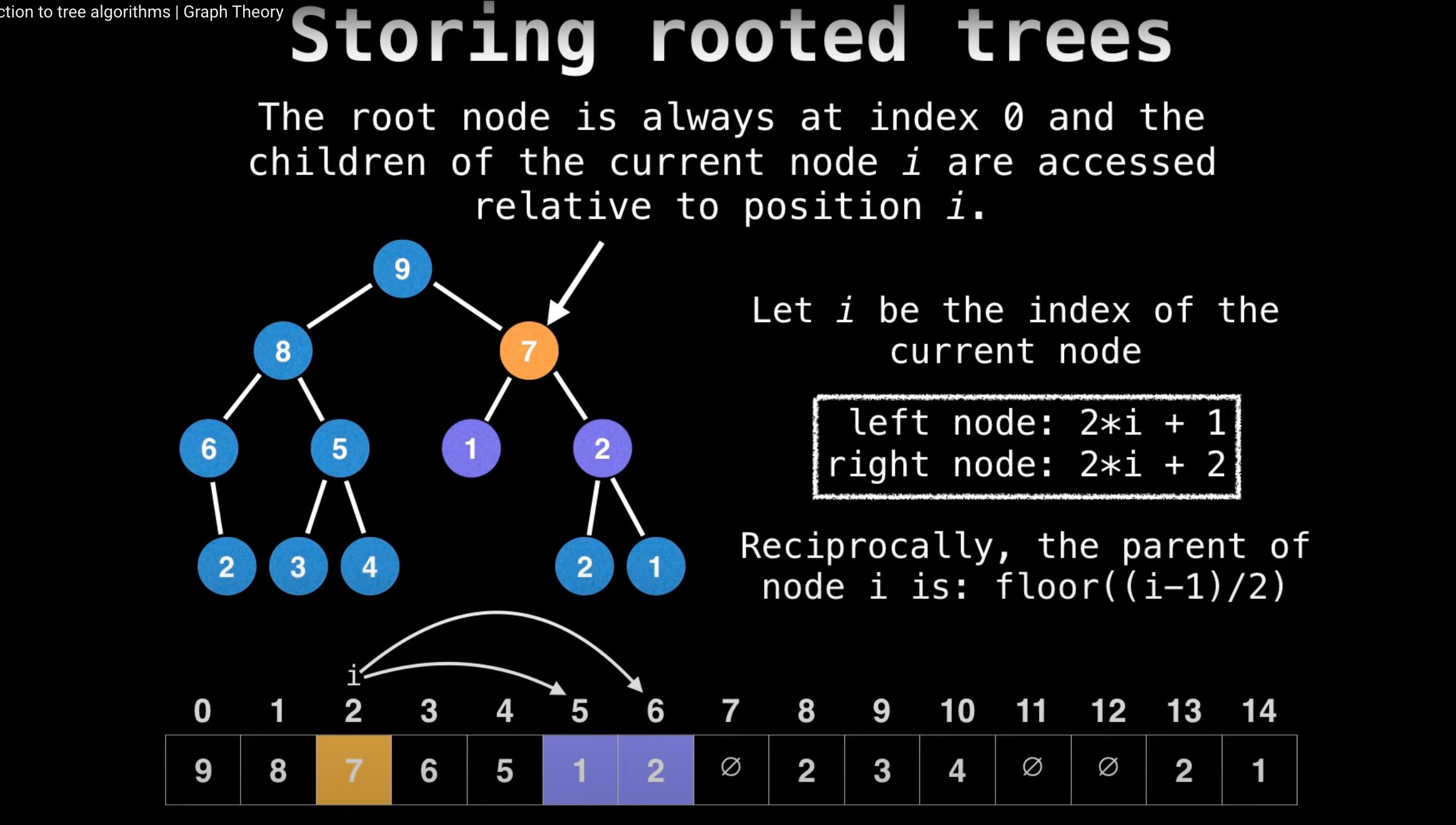

Storing rooted trees

• 左子树和右子树的节点求法
  • left node： 2*i +1
  • right node: 2*i + 2

    root a tree

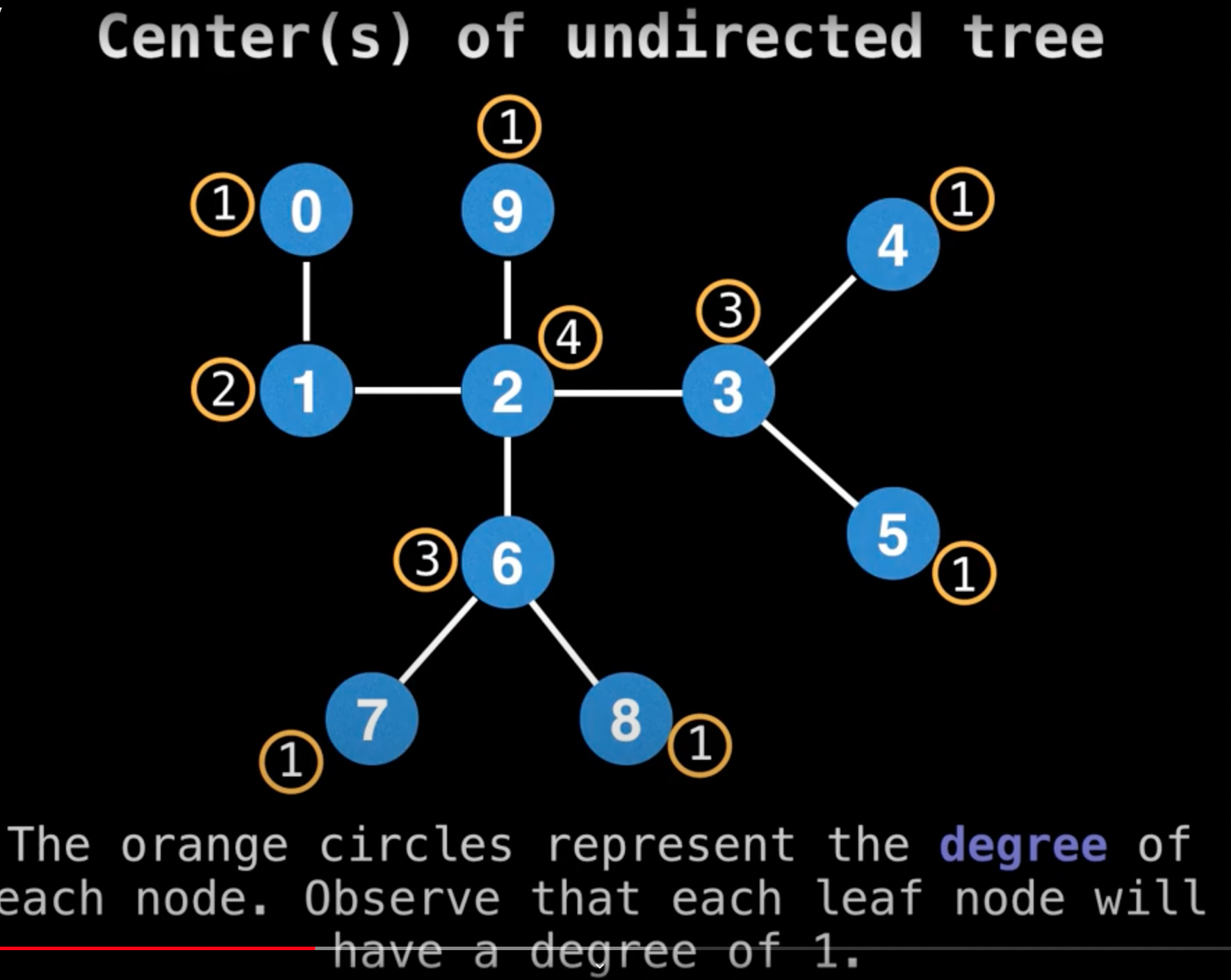

    How to find the center node(s) of tree?

    使用剪枝来实现 —- 对叶子结点进行-1

只有一个中心

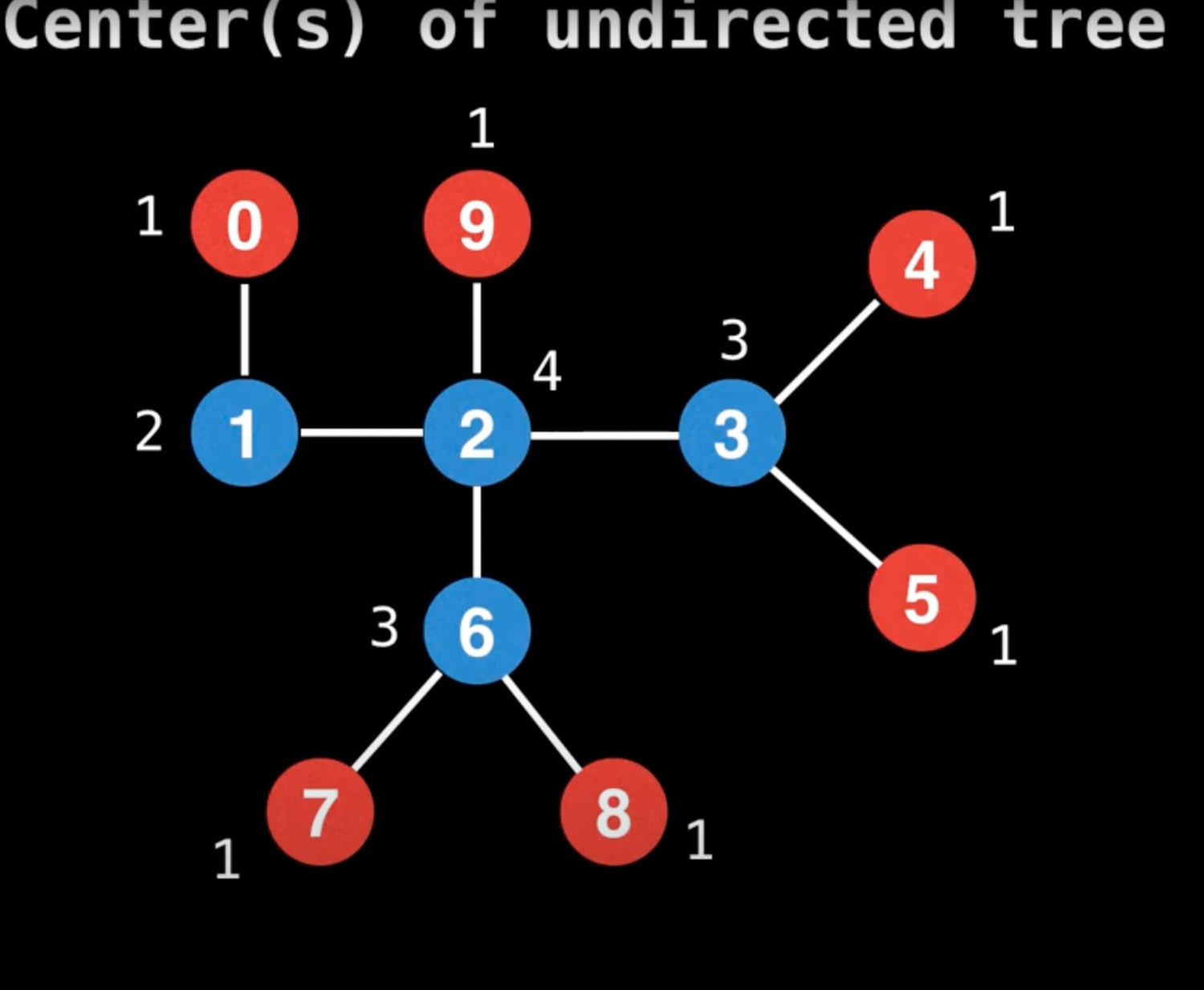

比如下面的图

第一次剪枝

将 上图红色的node，degree 减一 变为如下图

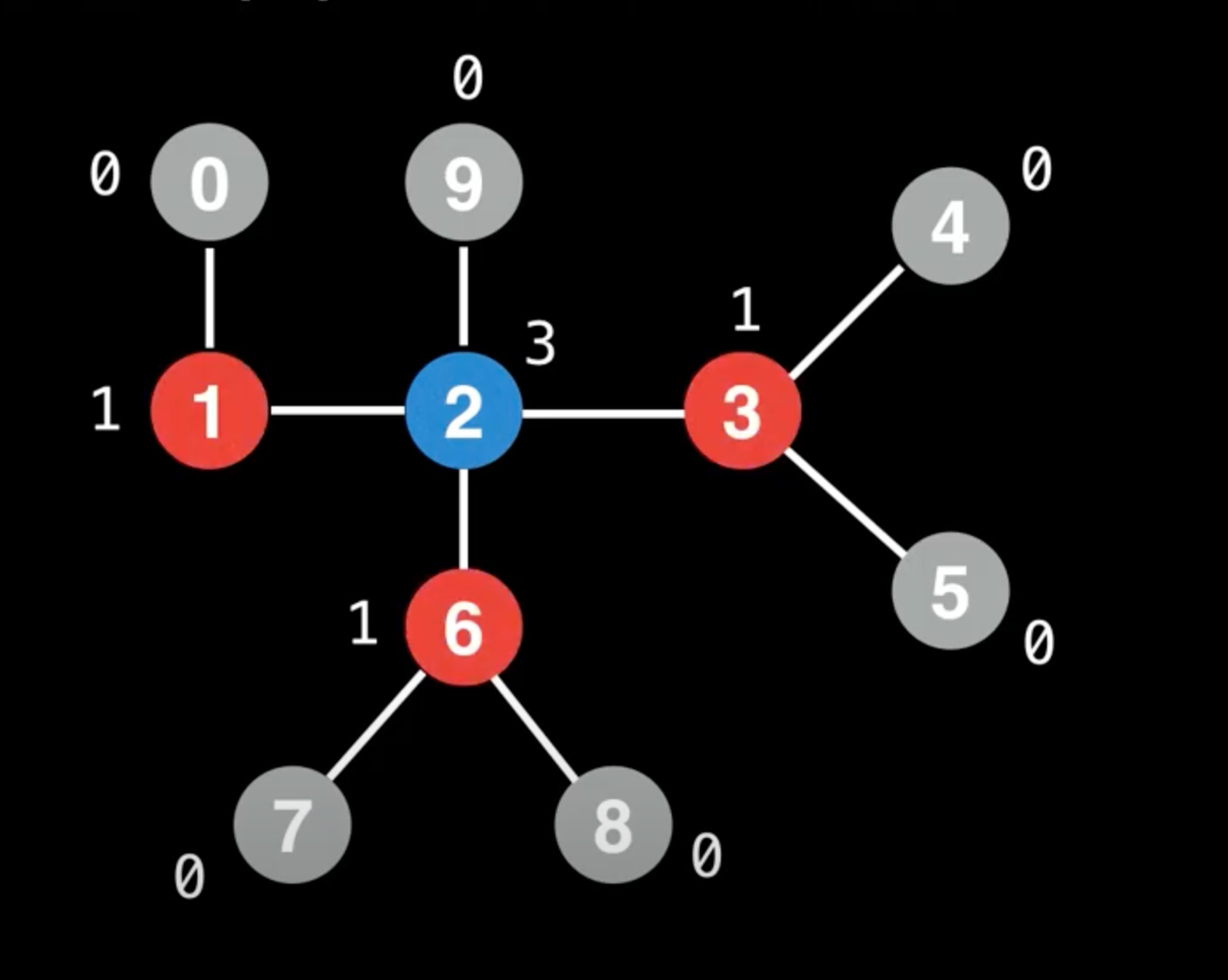

第二次剪枝

当我们修剪节点时，也会减少节点度值

再次将上图中的红色 的 degree 减一 ，变为如下图 ，这个时候只剩下了2，就为中心node

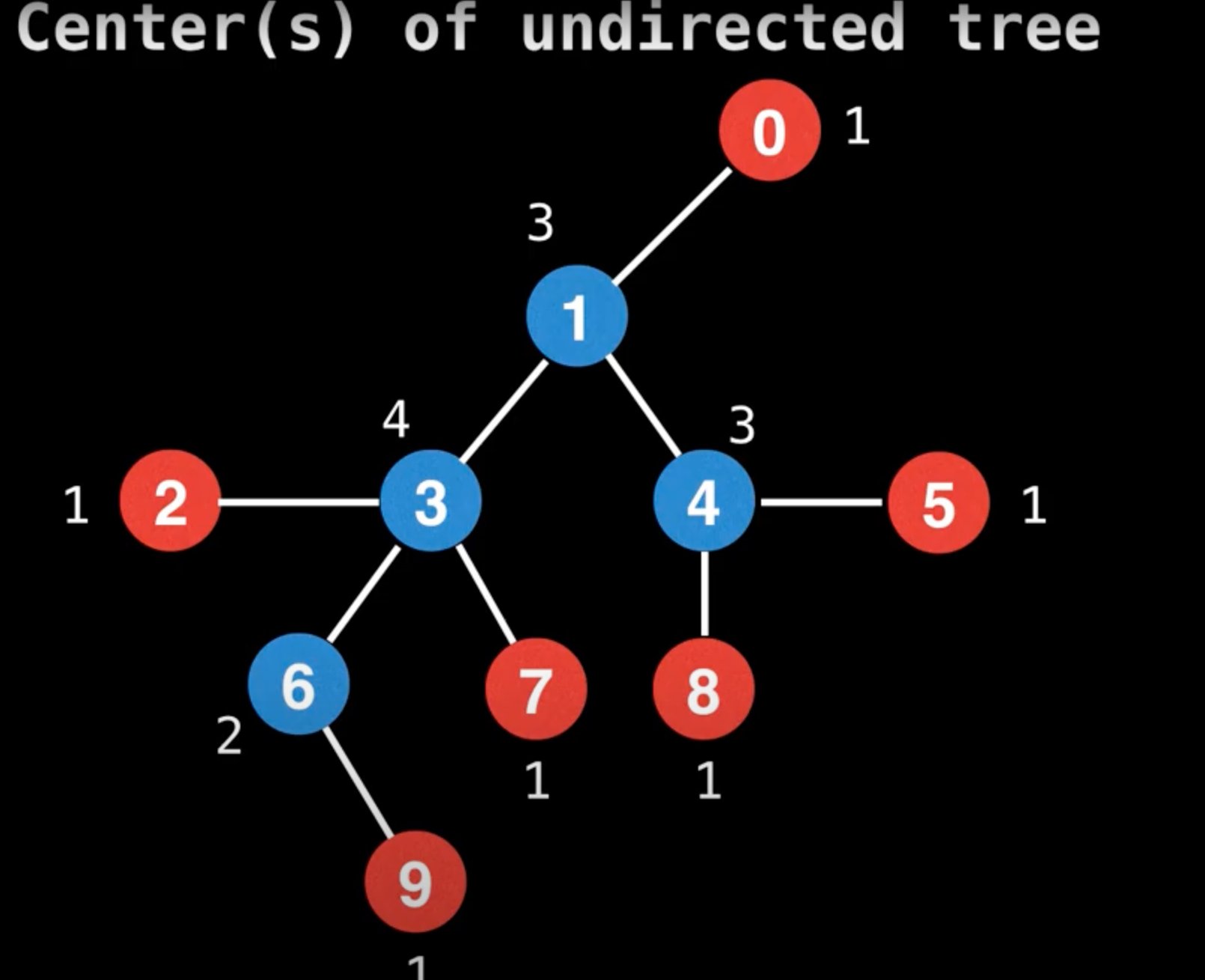

两个中心

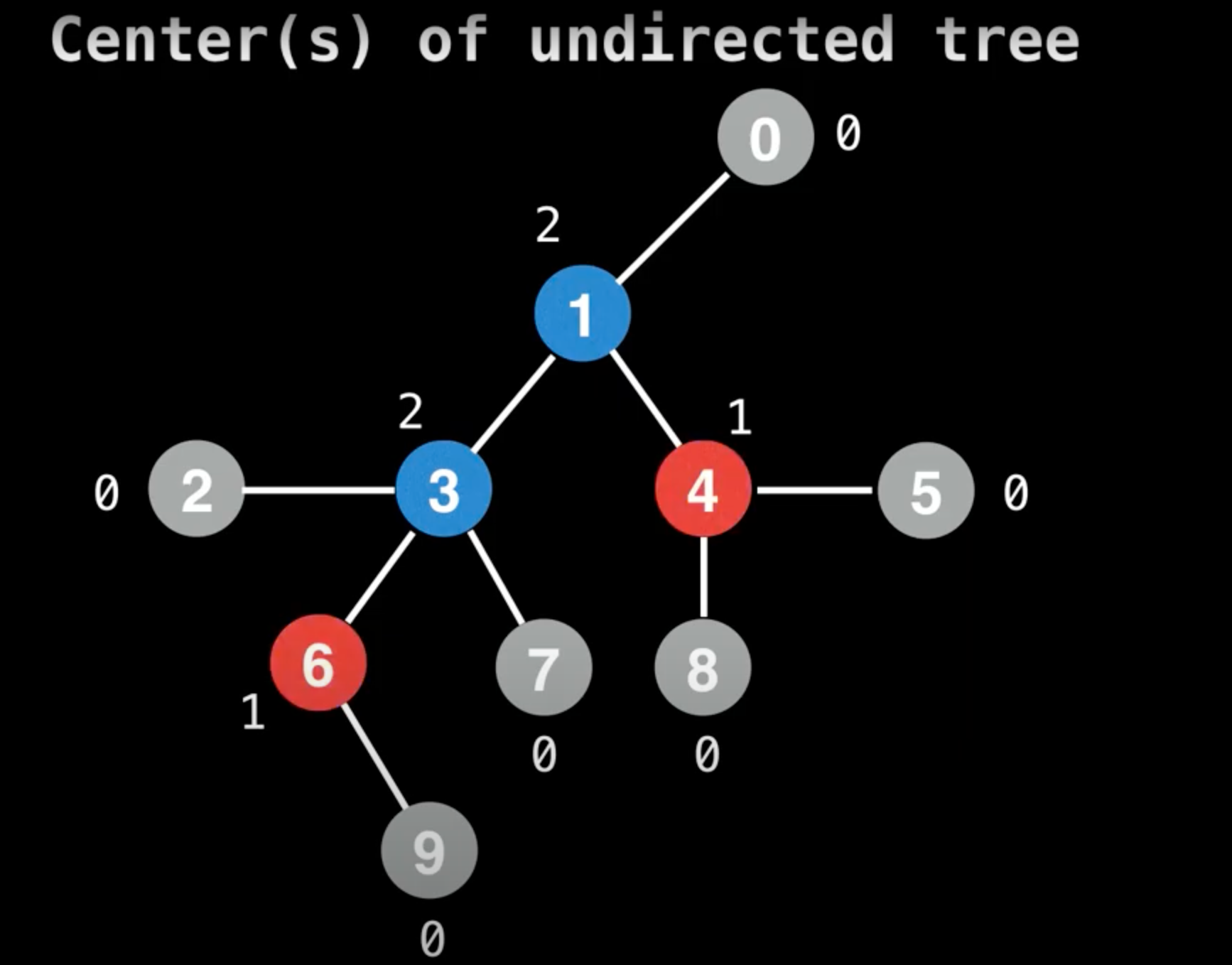

红色剪枝

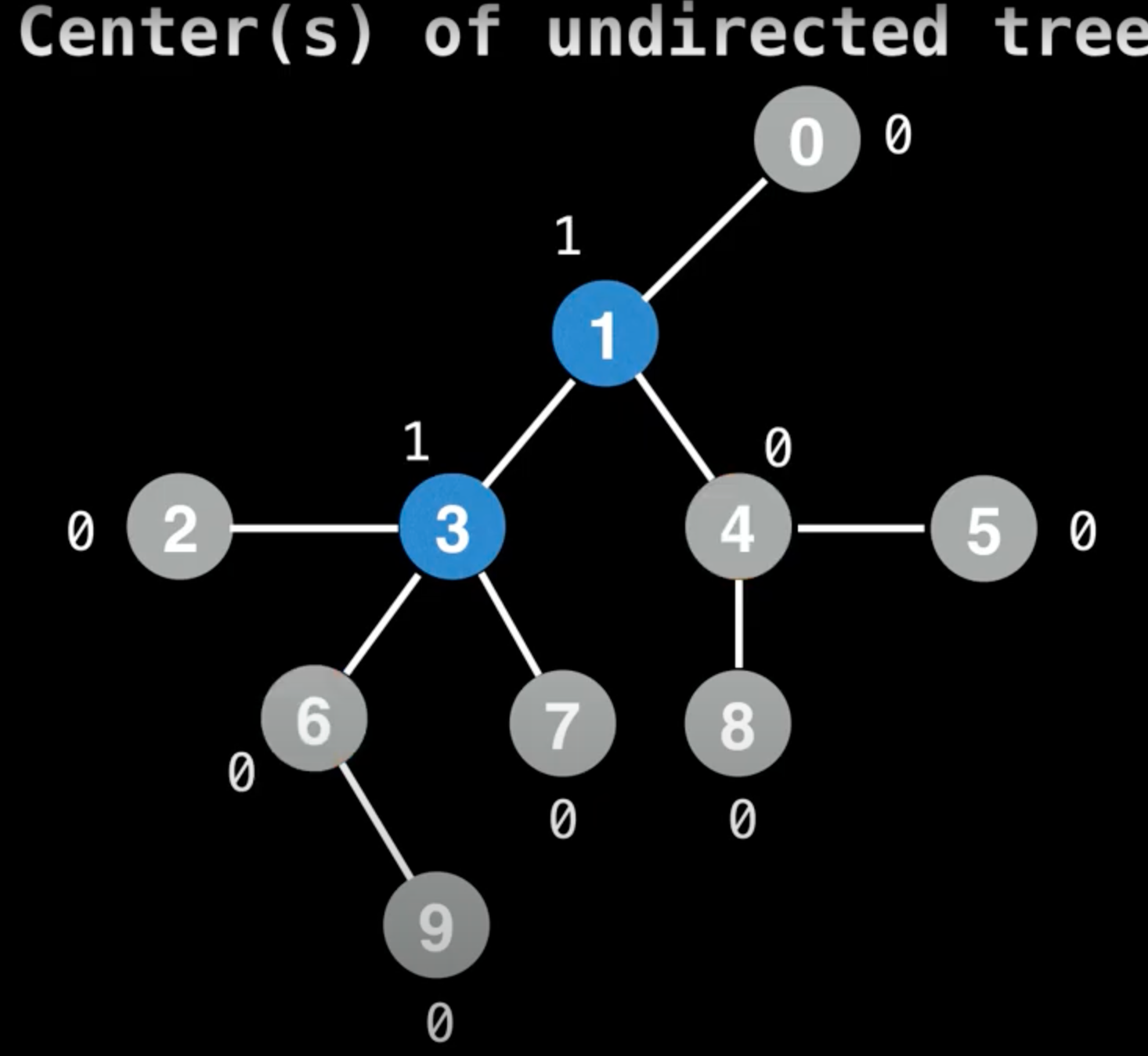

最后剩下如下图两个node。 1 和 3

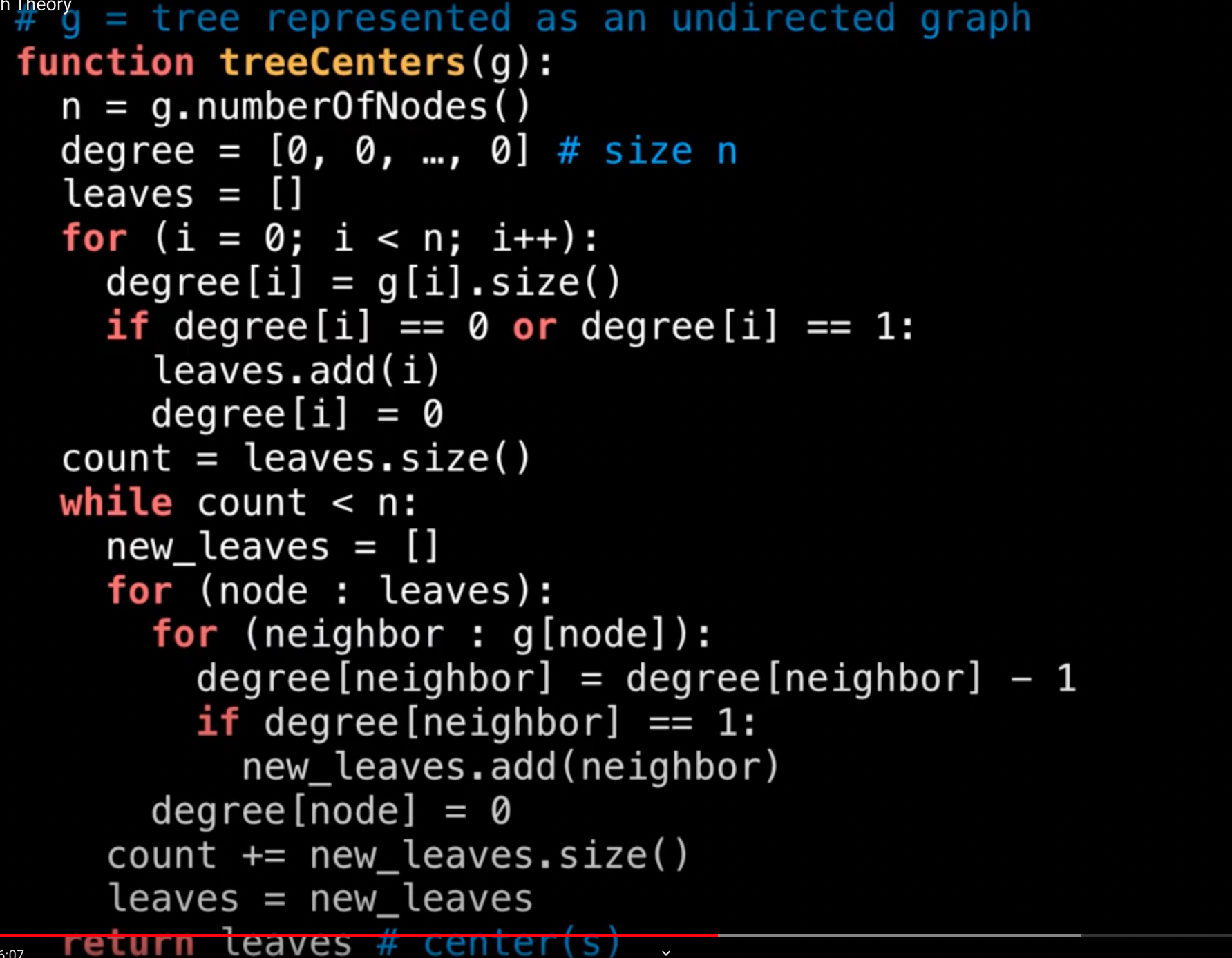

伪代码

实现

import java.util.ArrayList;
import java.util.LinkedList;
import java.util.List;
public class TreeCenter {
  public static List<Integer> findTreeCenters(List<List<Integer>> tree) {
    final int n = tree.size();
    int[] degree = new int[n];
    // Find all leaf nodes
    List<Integer> leaves = new ArrayList<>();
    for (int i = 0; i < n; i++) {
      List<Integer> edges = tree.get(i);
      degree[i] = edges.size();
      if (degree[i] <= 1) {
        leaves.add(i);
        degree[i] = 0;
      }
    }
    int processedLeafs = leaves.size();
    // Remove leaf nodes and decrease the degree of each node adding new leaf nodes progressively
    // until only the centers remain.
    while (processedLeafs < n) {
      List<Integer> newLeaves = new ArrayList<>();
      for (int node : leaves) {
        for (int neighbor : tree.get(node)) {
          if (--degree[neighbor] == 1) {
            newLeaves.add(neighbor);
          }
        }
        degree[node] = 0;
      }
      processedLeafs += newLeaves.size();
      leaves = newLeaves;
    }
    return leaves;
  }
  /** ********** TESTING ********* */
  // Create an empty tree as a adjacency list.
  public static List<List<Integer>> createEmptyTree(int n) {
    List<List<Integer>> tree = new ArrayList<>(n);
    for (int i = 0; i < n; i++) tree.add(new LinkedList<>());
    return tree;
  }
  public static void addUndirectedEdge(List<List<Integer>> tree, int from, int to) {
    tree.get(from).add(to);
    tree.get(to).add(from);
  }
  public static void main(String[] args) {
    List<List<Integer>> graph = createEmptyTree(9);
    addUndirectedEdge(graph, 0, 1);
    addUndirectedEdge(graph, 2, 1);
    addUndirectedEdge(graph, 2, 3);
    addUndirectedEdge(graph, 3, 4);
    addUndirectedEdge(graph, 5, 3);
    addUndirectedEdge(graph, 2, 6);
    addUndirectedEdge(graph, 6, 7);
    addUndirectedEdge(graph, 6, 8);
    // Centers are 2
    System.out.println(findTreeCenters(graph));
    // Centers are 0
    List<List<Integer>> graph2 = createEmptyTree(1);
    System.out.println(findTreeCenters(graph2));
    // Centers are 0,1
    List<List<Integer>> graph3 = createEmptyTree(2);
    addUndirectedEdge(graph3, 0, 1);
    System.out.println(findTreeCenters(graph3));
    // Centers are 1
    List<List<Integer>> graph4 = createEmptyTree(3);
    addUndirectedEdge(graph4, 0, 1);
    addUndirectedEdge(graph4, 1, 2);
    System.out.println(findTreeCenters(graph4));
    // Centers are 1,2
    List<List<Integer>> graph5 = createEmptyTree(4);
    addUndirectedEdge(graph5, 0, 1);
    addUndirectedEdge(graph5, 1, 2);
    addUndirectedEdge(graph5, 2, 3);
    System.out.println(findTreeCenters(graph5));
    // Centers are 2,3
    List<List<Integer>> graph6 = createEmptyTree(7);
    addUndirectedEdge(graph6, 0, 1);
    addUndirectedEdge(graph6, 1, 2);
    addUndirectedEdge(graph6, 2, 3);
    addUndirectedEdge(graph6, 3, 4);
    addUndirectedEdge(graph6, 4, 5);
    addUndirectedEdge(graph6, 4, 6);
    System.out.println(findTreeCenters(graph6));
  }
}

Identifying and encoding isomorphic trees
