自平衡树(AVL),是为了解决二叉搜素树存在的可能某一节点会嵌套太深的缺点。ASVL是一种自平衡二叉搜索树,左子树和右子树高度最多相差1。在添加或移除节点时,AVL树会尽可能尝试转换成完全树.
在AAVL中,需要对每个节点计算右子树高度和左子树高度之间的差值,该值(hr-hl)应为0,1,-1.如果结果不是这三个值之一,需要平衡树AVL树,这就是平衡因子的概念;
节点的高度
节点的高度是从最下开始获取
平衡因子
平衡因子只能是 0,1,-1
,如果不是这三个值之一则就需要计算该AVL树;
平衡因子计算,有的说左高-右高,有的说右高-左高,不过不影响计算。下面按照 左高-右高计算获取平衡因子
每个节点都右自己的平衡因子
,如下7,13也有自己平衡因子,只不过没有值所以平衡因子为0;
平衡操作 - AVL旋转
在对AVL树添加或移除操作后,需要计算节点的高度并验证树是否需要进行平衡。向AVL树插入如节点时,可以执行单旋转或双旋转两种平衡操作。
- 左-左(LL):向右的单旋转
- 右-右(RR):向左的单旋转
- 左-右(LR):向右的双旋转(先LL旋转,后RR旋转)
- 右-左(RL):向左的双旋转(先RR旋转,后LL旋转)
左-左(LL):向右的单向旋转
这种情况出现于节点的左侧节点的高度大于右侧节点的高度时候。
解:因为第二层肯定比三层小,比一层大。所以直接把三层放到到二层右侧就行。// LL 向左单旋转
rotationLL(node) {
const tmp = node.left;
node.left = tmp.right;
tmp.right = node;
return tmp
}

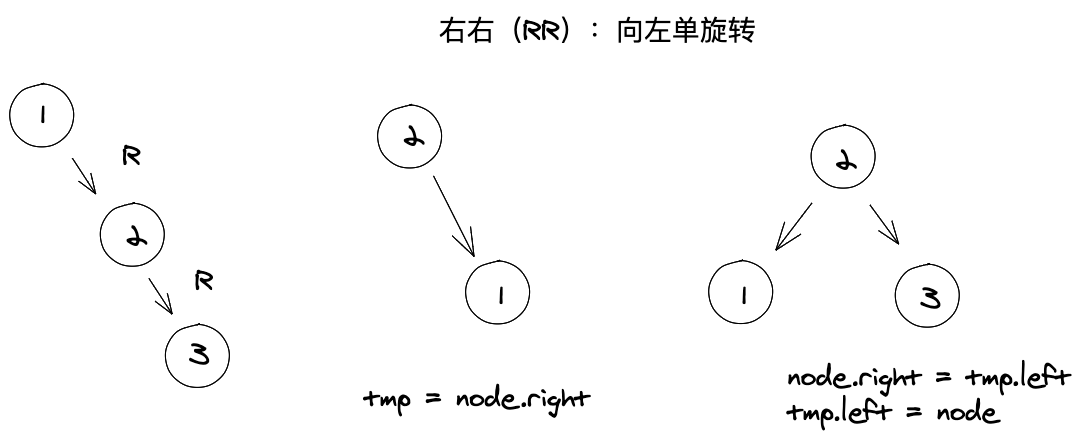

右-右(RR):向左的单向旋转
右侧子节点的高度大于左侧子节点的高度,并且右侧子节点也是平衡或右侧较重的。
// RR 向右单旋转
rotationRR(node) {
const tmp = node.right;
node.right = tmp.left;
tmp.left = node;
return tmp;
}

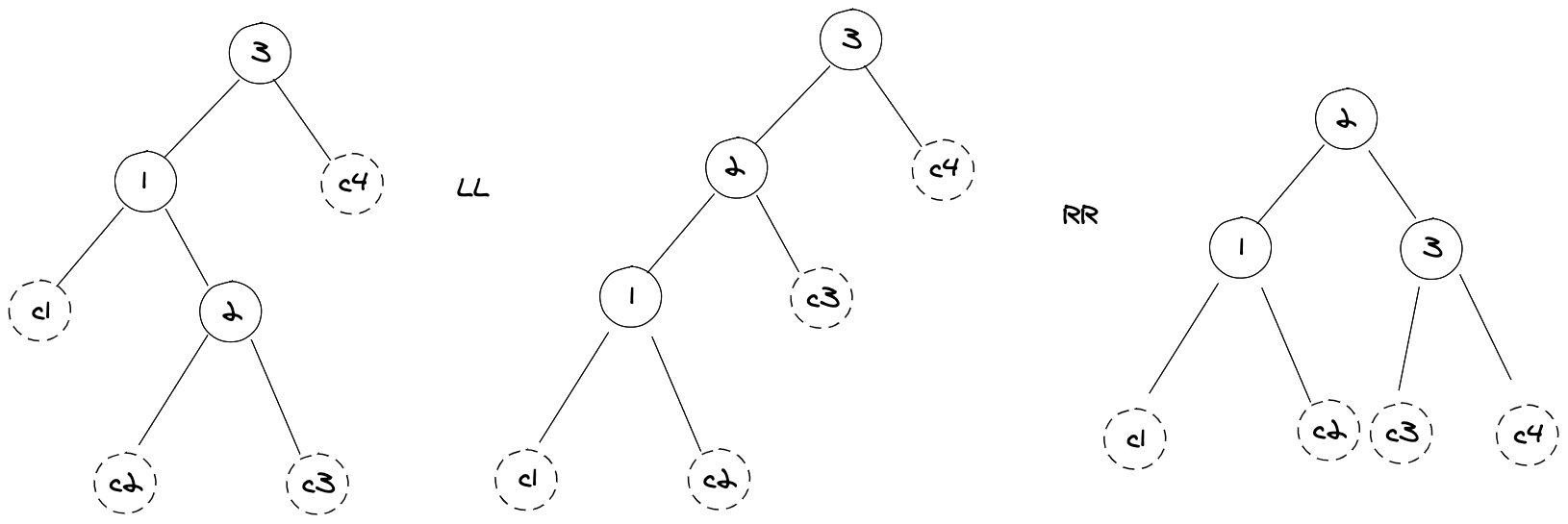

左-右(LR):先右的双旋转
左侧子节点的高度大于右侧子节点的高度,并且左侧子节点右侧较重,这种情况对左侧子节点进行左旋转来修改,然后在对不平衡的节点来一个右旋转来修复
// LR 向右的双旋转
rotationLR(node) {
node.left = this.rotationRR(node.left);
return this.rotationLL(node)
}

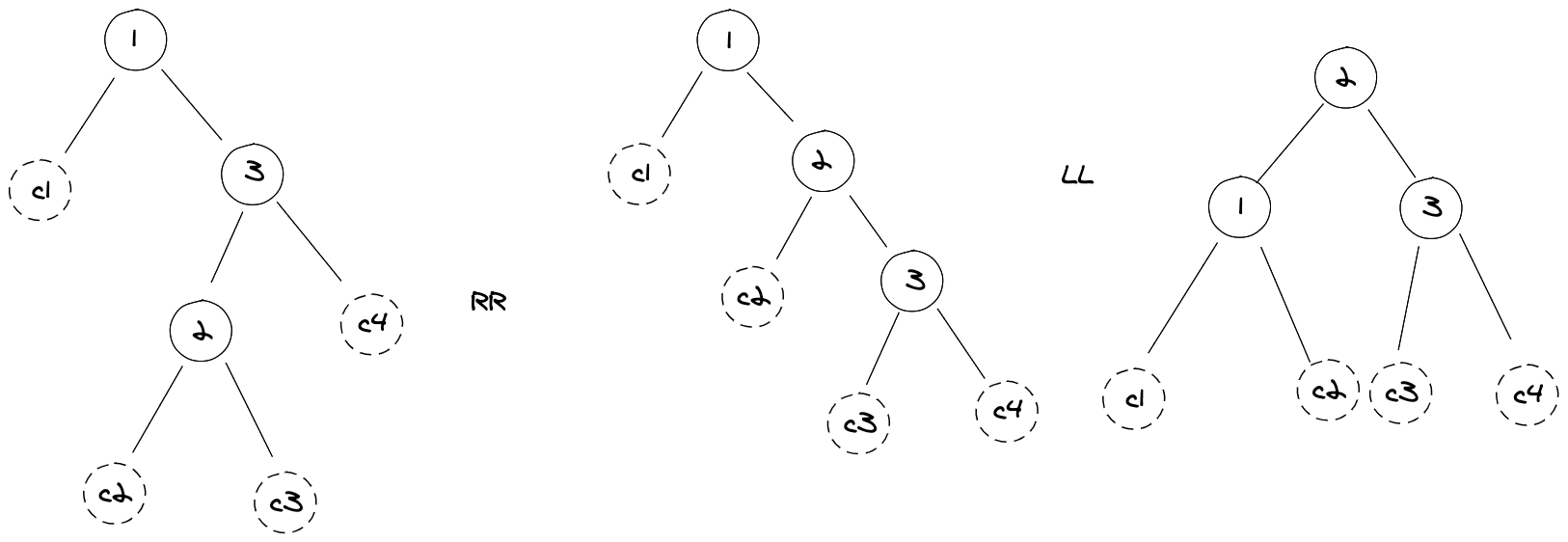

右-左(RL):向左的双旋转
右侧子节点的高度大于左侧子节点的高度,并且右侧子节点左侧较重,先进行右旋转,在通过左旋转修复
// Rl 右左旋转
rotationRL(node) {
node.right = this.rotationLL(node.right);
return this.rotationRR(node);
}
插入节点
insert(key) {
this.root = this.insertNode(this.root, key);
}
// 插入节点 如果不在插入 存在直接返回 节点不平衡 旋转
insertNode(node, key) {
if (node === null) {
// 没有数据的时候直接创建
return new Node(key)
} else if (this.defaultCompare(key, node.key) === -1) {
// 插到左侧
node.left = this.insertNode(node.left, key)
} else if (this.defaultCompare(key, node.key) === 1) {
// 插到右侧
node.right = this.insertNode(node.right, key)
} else {
// 如果插入的节点存在 直接返回
return node;
}
// 进行二叉树平衡操作
const balanceFactor = this.getBalanceFactor(node);
// 左侧树插入节点后不平衡情况下
if (balanceFactor === BalanceFactor.UNBALANCED_LEFT /* 5 */) {
// 插入值比左侧小
if (this.defaultCompare(key, node.left.key) === -1) {
node = this.rotationLL(node)
} else {
return this.rotationLR(node);
}
}
// 右侧树插入节点后不平衡情况下
if (balanceFactor === BalanceFactor.UNBALANCED_RIGHT /* 1 */) {
// 插入值比右侧小
if (this.defaultCompare(key, node.right.key) === 1) {
debugger
node = this.rotationRR(node);
} else {
return this.rotationRL(node)
}
}
return node;
}
移除节点
remove(key){
return this.removeNode(this.root,key)
}
// 移除节点
removeNode(node, key) {
// 使用继承方法的移除; 递归移除
node = super.removeNode(node, key);
if (node === null) return node // null 不需要平衡
// 检测树是否平衡 递归计算 以移除的节点 为根节点的平衡因子
const balanceFactor = this.getBalanceFactor(node);
// 左侧移除完后不平衡
if (balanceFactor === BalanceFactor.UNBALANCED_LEFT /* 5 */) {
// 计算左侧树平衡因子
const balanceFactorLeft = this.getBalanceFactor(node.left);
// 左侧树先左不平衡
if (
balanceFactorLeft === BalanceFactor.BALANCED || // 3
balanceFactorLeft === BalanceFactor.SLIGHTLY_UNBALANCED_LEFT // 4
) {
// 左侧旋转
return this.rotationLL(node)
}
// 左侧树向右不平衡
if (balanceFactorLeft === BalanceFactor.SLIGHTLY_UNBALANCED_RIGHT/* 2 */) {
// 旋转
return this.rotationLR(node);
}
}
// 右侧树移除完后不平衡
if (balanceFactor === BalanceFactor.UNBALANCED_RIGHT/* 1 */) {
// 计算右侧平衡因子
const balanceFactorRight = this.getBalanceFactor(node.right);
// 右侧树向右不平衡
if (
balanceFactorRight === BalanceFactor.BALANCED || // 3
balanceFactorRight === BalanceFactor.SLIGHTLY_UNBALANCED_RIGHT // 2
) {
// 有侧旋转
return this.rotationRR(node)
}
// 右侧向左不平衡
if (balanceFactorRight === BalanceFactor.SLIGHTLY_UNBALANCED_LEFT/* 4 */) {
// 左右旋转
return this.rotationRL(node.right)
}
}
return node;
}
