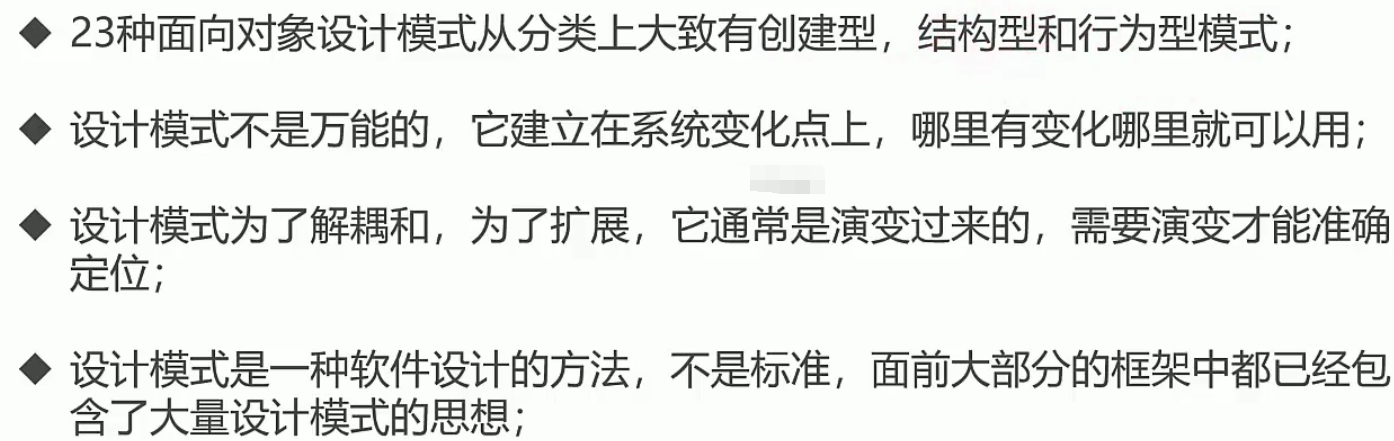

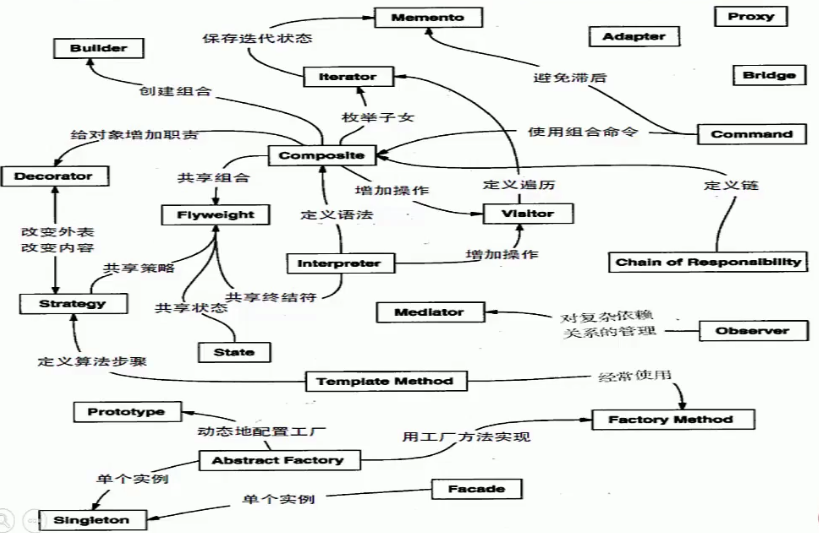

设计模式

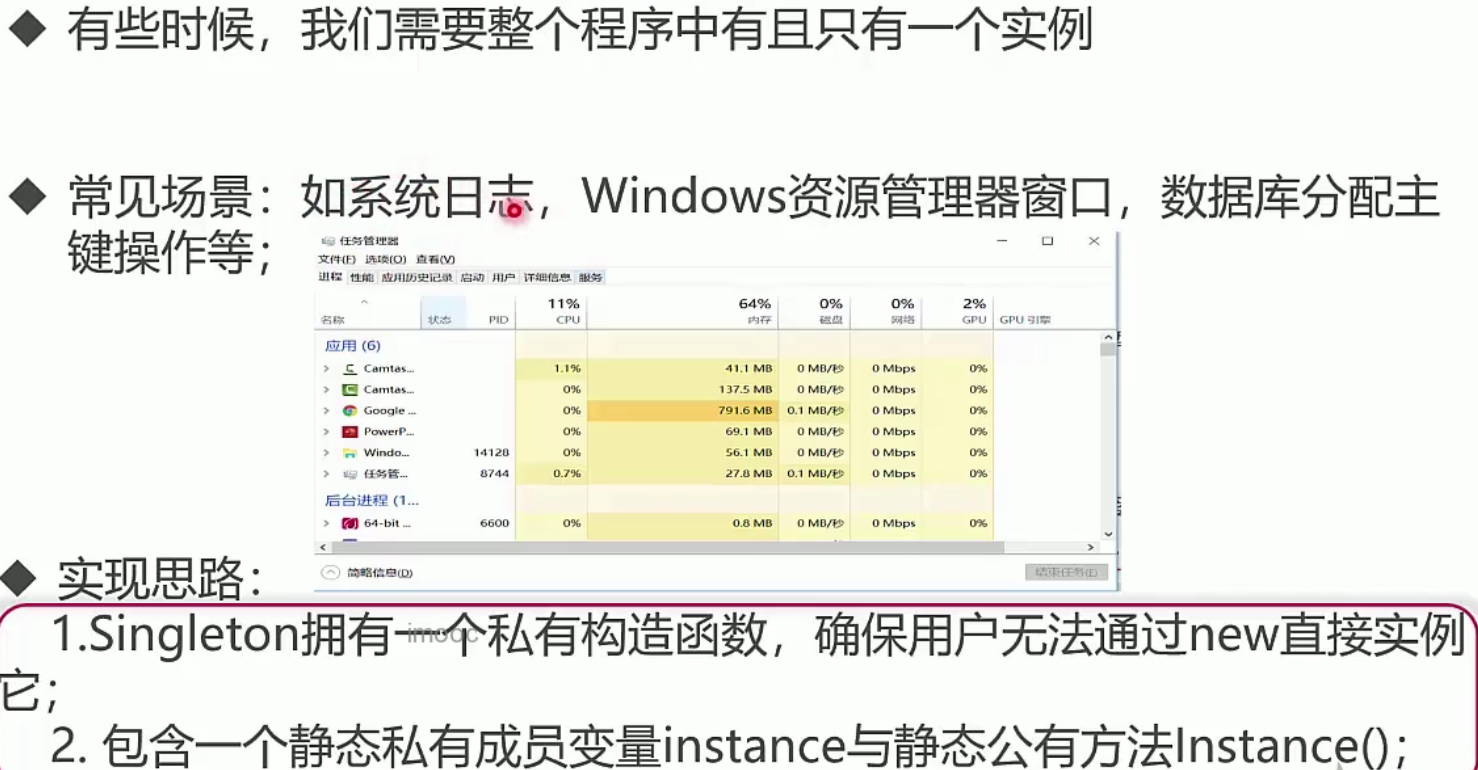

单例模式

//.h
#include <iostream>
using namespace std;
class Singleton {
public:
    static const Singleton* getInstance();
    static void doSomething(){
        cout << "doSomething" <<endl;
    }
private:
    Singleton();
    ~Singleton();
    static Singleton* This; //使用静态变量解决资源的分配和释放
};
//.c
#include "Singleton.h"
//Singleton* Singleton::This = NULL;  //懒汉
Singleton* Singleton::This = new Singleton(); //饿汉
const Singleton* Singleton::getInstance(){
    if(!This){
        This = new Singleton();
    }
    return This;
}
Singleton::Singleton() {
}
Singleton::~Singleton() {
}
int main(){
    Singleton::getInstance() -> doSomething();
}

//https://www.cnblogs.com/kohlrabi/p/9179630.html
//https://blog.csdn.net/dove1202ly/article/details/81477511
#include <iostream>
using namespace std;
class Singleton{
public:
    static Singleton * getInstance(){
        return instance;
    }
    static void destroy(){
        if(instance != nullptr){
            delete instance;
            instance = NULL;
        }
    }
private:
    Singleton(){
    }
    static Singleton* instance;
};
Singleton* Singleton::instance = new Singleton();
int main(){
    Singleton* singleton = Singleton::getInstance();
    Singleton* singleton2 = Singleton::getInstance();
    if(singleton == singleton2){
        cout << "singleton1 = singleton2" << endl;
    }
    Singleton::destroy();
    if(Singleton::getInstance() == nullptr){
        cout << "singleton1 is destroy" << endl;
    }
    return 0;
}

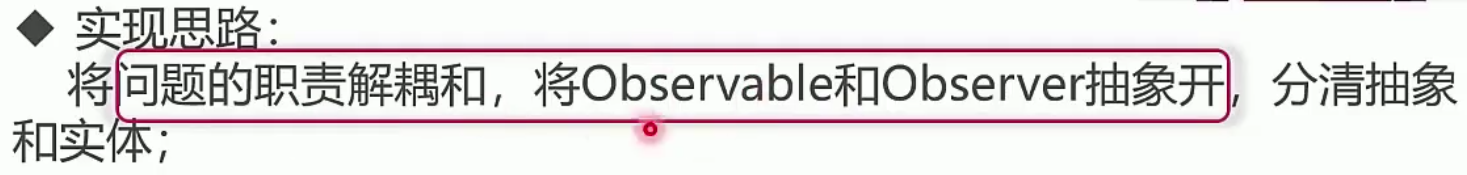

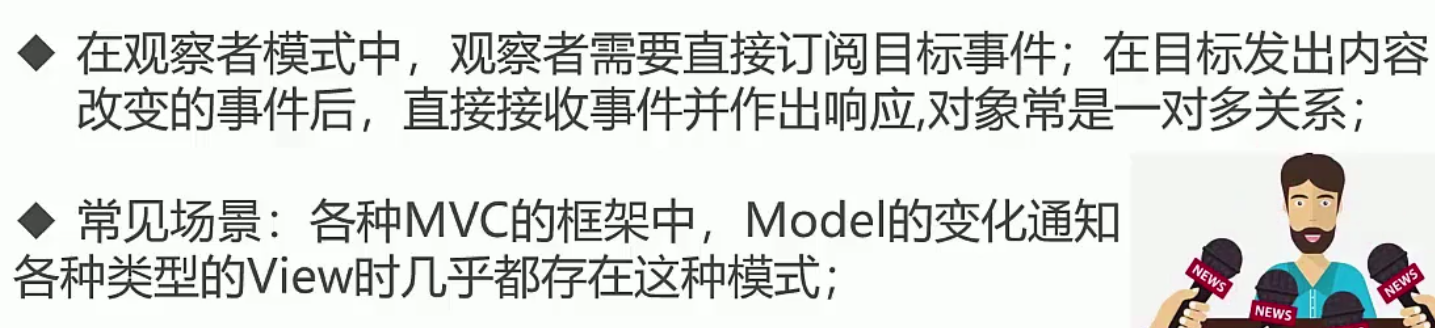

观察者模式

观察者

//observer
//.h
#include <iostream>
using namespace std;
class Observer {
public:
    Observer() { ; }
    virtual ~Observer() { ; }
    //当被观察者发生变化时，通知
    virtual void Update(void* pArg) = 0;
};

被观察者

//.h
#include <list>
#include <string>
#include "Observer.h"
class Observer;
class Observerable {
public:
    Observerable();
    virtual ~Observerable();
    void Attach(Observer* pOb);
    void Detach(Observer* pOb);
    int GetObserverCount() const {
        return _obs.size();
    }
    void DetachAll(){
        _obs.clear();
    }
    virtual void GetSomeNews(string str){
        SetChange(str);
    }
protected:
    void SetChange(string news);
private:
    bool _bChange;
    list<Observer*> _obs;
    void Notify(void* pArg);
};
//.c
#include "Observerable.h"
Observerable::Observerable():_bChange(false){
}
Observerable::~Observerable() {
}
void Observerable::Attach(Observer* pOb){
    if(pOb == NULL){
        return;
    }
    //auto c++11
    auto it = _obs.begin();
    for(; it != _obs.end(); it++){
        if(*it == pOb){
            return;
        }
    }
    _obs.push_back(pOb);
}
void Observerable::Detach(Observer* pOb){
    if((pOb == NULL) || (_obs.empty() == true)){
        return;
    }
    _obs.remove(pOb);
}
void Observerable::SetChange(string news){
    _bChange = true;
    Notify((void *) news.c_str());
}
void Observerable::Notify(void* pArg){
    if(_bChange == false){
        return;
    } else{
        auto it = _obs.begin();
        for(; it != _obs.end(); it++){
            (*it) -> Update(pArg);
        }
        _bChange = false;
    }
}

使用

#include "Observerable.h"
class User1: public Observer{
    void Update(void *pArg) {
        cout << "User1:" << (char *)pArg << endl;
    }
};
class User2: public Observer{
    void Update(void *pArg) {
        cout << "User2:" << (char *)pArg  << endl;
    }
};
class News: public Observerable{
public:
    void GetSomeNews(string str){
        SetChange("News:" + str);
    }
};
int main(){
    //帮忙把职责关系分清了
    User1 u1;
    User2 u2;
    News n1;
    n1.GetSomeNews("T0");
    cout << n1.GetObserverCount() << endl;
    n1.Attach(&u1);
    n1.Attach(&u2);
    n1.GetSomeNews("T1");
    cout << n1.GetObserverCount() << endl;
    n1.Detach(&u2);
    n1.GetSomeNews("T2");
    cout << n1.GetObserverCount() << endl;
    n1.DetachAll();
    n1.GetSomeNews("T3");
    cout << n1.GetObserverCount() << endl;
    return 1;
}

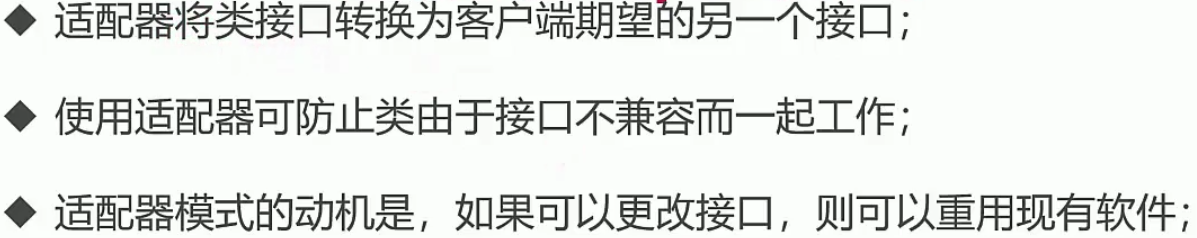

适配器（Adapter）模式

#include <iostream>
#include <string>
using namespace std;
class LegacyRectangle{
public:
    LegacyRectangle(double x1, double y1, double x2, double y2){
        _x1 = x1;
        _y1 = y1;
        _x2 = y2;
        _y2 = y2;
    }
    void LegacyDraw(){
        cout << "LegacyRectangle:LegacyDraw:" << _x1 << " " << _y1 << " " << _x2 << " " << _y2 << " " <<endl;
    }
private:
    double _x1;
    double _y1;
    double _x2;
    double _y2;
};
class Rectangle{
public:
    virtual void draw(string str) = 0;
};
//第一种适配方式 多继承
class RectangleAdapter: public Rectangle, public LegacyRectangle{
public:
    RectangleAdapter(int x, int y, int w, int h):LegacyRectangle(x, y, x + w, y + h){
        cout << "RectangleAdapter(int x, int y, int w, int h)" << endl;
    }
    virtual void draw(string str){
        cout << "RectangleAdapter:draw" << endl;
        LegacyDraw();
    }
};
//第二种适配方式 组合
class RectangleAdapter2: public Rectangle{
public:
    RectangleAdapter2(int x, int y, int w, int h): _lRect(x, y, x + w, y + h){
        cout << "RectangleAdapter(int x, int y, int w, int h)" << endl;
    }
    virtual void draw(string str){
        cout << "RectangleAdapter:draw" << endl;
        _lRect.LegacyDraw();
    }
private:
    LegacyRectangle _lRect;
};
int main(){
    int x = 20, y = 50, w = 200, h = 200;
    RectangleAdapter ra(x, y, w, h);
    Rectangle *pR = &ra;
    pR->draw("Rectangle1");
    cout << endl;
    RectangleAdapter2 ra2(x, y, w, h);
    Rectangle *pR2 = &ra2;
    pR2->draw("Rectangle2");
    return 0;
}
