怎么先初步测试调用API接口打印快递单

API文档/云打印/打印电子面单

1.用API打印发货单、取件码、标签、小票单等

2.用API打印快递单

要初步测试，告知下我们客服要开始测试，
调用API成功打印后，会把您提交打印的效果拍照给您看。

初步测试一定会用到的一些参数（供测试对接看效果用）：
用户ID
app_id=”108344”;
应用密钥
api_key=”86c7ea9521d3b525be539b0bda4c8f6f2e07cf3c“;
目标云打印机的访问密钥
agent_id=”48399299757042546”;
该供测试的目标云打印机，默认绑定配置了圆通菜鸟电子面单，已经可以拉出我们提供的圆通电子面单单号源。
测试时，建议请求参数waybill_code，routing_info留空即可，
【因为是圆通测试单号】请设置请求参数cp_code=”yt”;
请求参数template_id=”666691”; 或template_id=”666696”; 或template_id=”666718”; 或参数template_id留空.【所有不是必填项的请求参数都可以留空，因为云打印机绑定圆通单号源了，所有routing_info也请留空即可】

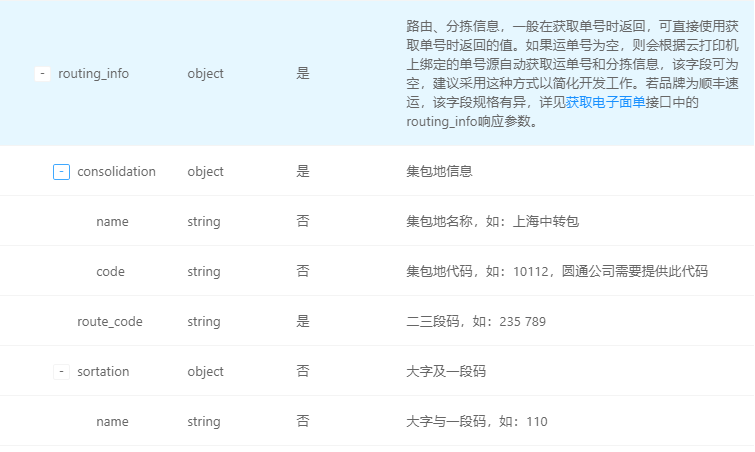

以下请求参数routing_info留空

应用场景

1. 向云打印机发送电子面单打印任务，在云打印机上打印电子面单
   2. 支持利用云打印机上配置的单号源、打印模板，自动获取电子面单号、三段码、设置打印模板，直接打印，无需预先获取单号，提高开发效率
   3. 支持仅获取电子面单号，不打印。将print_type参数置为1，将waybill_code参数留空即可。该功能可替代获取电子面单号接口
   4. 支持仅生成电子面单底单文件（jpg或pdf格式），不打印，print_type传1或7即可
   5. 支持电子面单自定义区域使用自己编辑的模板，模板需要预先在”标签打王“微信小程序中编辑
   回调重试机制：回调请求失败或者对方没有返回正确的格式，将会重试，最多重试三次。如果存在大量回调返回为非约定内容（成功返回：success，失败返回：failure）, 将停止帐号的打印状态回调通知

   接口名称

   cloud.print.waybill

   公共参数

   请求地址

   | 环境名称 | HTTPS请求地址 | | —- | —- | | 正式地址 | https://kop.kuaidihelp.com/api |

公共请求参数

公共响应参数

请求参数

请求参数cp_code值列表：
快递公司 标识符
韵达快递 yd
申通快递 sto
圆通快递 yt
中通快递 zt
极兔快递 jt
百世快递 ht
邮政小包 postx
EMS包裹 ems
邮政包裹 post
天天快递 tt
百世快运 best
优速快递 ys
德邦 dp
宅急送 zjs
京东 jd
中通快运 ztky
顺丰速运 sf
国通快递 gt
顺丰快运 sfky

响应参数

响应参数tid的详情：

回调参数

请求示例

批量任务示例

请求示例[Java,C#,Python,PHP,Node.js,Curl]

Java示例
import java.security.MessageDigest;import java.security.NoSuchAlgorithmException;

import java.util.Map;
import java.util.HashMap;

import java.util.Date;

public class Request {

public static void main(String[] args) {
String host = “http://kop.kuaidihelp.com“;
String path = “/api”;
String requestMethod = “POST”;
Map headers = new HashMap();
//根据API的要求，定义相对应的Content-Type
headers.put(“Content-Type”, “application/x-www-form-urlencoded; charset=UTF-8”);
Map querys = new HashMap();
Map bodys = new HashMap();

String appId = “50001”;
String method = “cloud.print.waybill”;
// 当前时间戳
String ts = new Date().getTime() + “”;
String appKey = “bdf3b5f50865ac813cbdfd6c9b572b79”;

// 计算签名
String signStr = appId + method + ts + appKey;
String sign = Request.getMD5(signStr, 32);

bodys.put(“app_id”, appId);
bodys.put(“method”, method);
bodys.put(“ts”, ts);
bodys.put(“sign”, sign);
// data参数是个json格式的字符串 建议使用函数或方法去生成
bodys.put(“data”, “{
“agent_id”: “目标打印代理,必填”,
“print_type”: “打印类型,1:预览, 2:打印, 3:打印预览. 未设置则默认为3”,
“template_id”: “模板id，打印模板ID”,
“print_data”: [
{
“cod_amount”: 200,如果是货到付款服务,则使用该字段,
“sequence”: “1/1”,
“cp_code”: “快递品牌，参照“快递品牌列表”,兼容菜鸟和快宝品牌编码”,
“pickup_code”: “取件码(可选)”,
“user_name”: “打印人的名称，若是业务员，可包括手机号码(可选)”,
“note”: “备注(可选)”,
“goods_name”: “物品名(可选)”,
“weight”: “物品重量(可选)”,
“tid”: “(建议用订单号之类的唯一标识,提交和回调时将返回该字段, 申请单号时也将使用该字段当订单号)”,
“recipient”: {
“address”: {
“city”: “宁德市”,
“detail”: “哦里咯啦咯啦”,
“district”: “福鼎市”,
“province”: “福建省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“routing_info”: {
“consolidation”: {
“name”: “温州转福鼎包(集包名)”
},
“origin”: {
“code”: “610025”,
“name”: “四川邛崃公司”
},
“route_code”: “009 030(二三段码)”,
“sortation”: {
“name”: “福鼎351(大字 一段码)”
}
},
“sender”: {
“address”: {
“city”: “成都市”,
“detail”: “兴民街55号”,
“district”: “邛崃市”,
“province”: “四川省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“waybill_code”: “333333333333”
}
]
}”);

try {
/*
重要提示如下:
HttpUtils请从
https://github.com/aliyun/api-gateway-demo-sign-java/blob/master/src/main/java/com/aliyun/api/gateway/demo/util/HttpUtils.java
下载

相应的依赖请参照
https://github.com/aliyun/api-gateway-demo-sign-java/blob/master/pom.xml
*/
HttpResponse response = HttpUtils.doPost(host, path, requestMethod, headers, querys, bodys);
System.out.println(response.toString());

//获取response的body
System.out.println(EntityUtils.toString(response.getEntity()));
} catch (Exception e) {
e.printStackTrace();
}
}

// 计算md5<br />    public static String getMD5(String plainText, int length) {<br />        try {<br />            MessageDigest md = MessageDigest.getInstance("MD5");//获取MD5实例<br />            md.update(plainText.getBytes());//此处传入要加密的byte类型值<br />            byte[] digest = md.digest();//此处得到的是md5加密后的byte类型值
        /*<br />               下边的运算就是自己添加的一些二次小加密，记住这个千万不能弄错乱，<br />                   否则在解密的时候，你会发现值不对的（举例：在注册的时候加密方式是一种，<br />                在我们登录的时候是不是还需要加密它的密码然后和数据库的进行比对，但是<br />            最后我们发现，明明密码对啊，就是打不到预期效果，这时候你就要想一下，你是否<br />             有改动前后的加密方式）   <br />            */<br />            int i;<br />            StringBuilder sb = new StringBuilder();<br />            for (int offset = 0; offset < digest.length; offset++) {<br />                i = digest[offset];<br />                if (i < 0)<br />                    i += 256;<br />                if (i < 16)<br />                    sb.append(0);<br />                sb.append(Integer.toHexString(i));//通过Integer.toHexString方法把值变为16进制<br />            }<br />            return sb.toString().substring(0, length);//从下标0开始，length目的是截取多少长度的值<br />        } catch (NoSuchAlgorithmException e) {<br />            e.printStackTrace();<br />            return null;<br />        }<br />    }<br />}

C#请求示例
class Request { private const String host = “https://kop.kuaidihelp.com“;
private const String path = “/api”;
private const String requestMethod = “POST”;
static void Main(string[] args)
{
String querys = “”;
String appId = “50001”;
String method = “cloud.print.waybill”;
String ts = GetTimeStamp() + “”;
String appKey = “bdf3b5f50865ac813cbdfd6c9b572b79”;

// 计算签名
String signStr = appId + method + ts + appKey;
String sign = GetMd5(signStr, 32);

String bodys = “app_id=” + appId + “&method=” + method + “&ts=” + ts + “&sign=” + sign;

// data参数是个json格式字符串 建议使用函数或方法生成json字符串
bodys = bodys + “&data={
“agent_id”: “目标打印代理,必填”,
“print_type”: “打印类型,1:预览, 2:打印, 3:打印预览. 未设置则默认为3”,
“template_id”: “模板id，打印模板ID”,
“print_data”: [
{
“cod_amount”: 200,如果是货到付款服务,则使用该字段,
“sequence”: “1/1”,
“cp_code”: “快递品牌，参照“快递品牌列表”,兼容菜鸟和快宝品牌编码”,
“pickup_code”: “取件码(可选)”,
“user_name”: “打印人的名称，若是业务员，可包括手机号码(可选)”,
“note”: “备注(可选)”,
“goods_name”: “物品名(可选)”,
“weight”: “物品重量(可选)”,
“tid”: “(建议用订单号之类的唯一标识,提交和回调时将返回该字段, 申请单号时也将使用该字段当订单号)”,
“recipient”: {
“address”: {
“city”: “宁德市”,
“detail”: “哦里咯啦咯啦”,
“district”: “福鼎市”,
“province”: “福建省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“routing_info”: {
“consolidation”: {
“name”: “温州转福鼎包(集包名)”
},
“origin”: {
“code”: “610025”,
“name”: “四川邛崃公司”
},
“route_code”: “009 030(二三段码)”,
“sortation”: {
“name”: “福鼎351(大字 一段码)”
}
},
“sender”: {
“address”: {
“city”: “成都市”,
“detail”: “兴民街55号”,
“district”: “邛崃市”,
“province”: “四川省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“waybill_code”: “333333333333”
}
]
}”;
String url = host + path;
HttpWebRequest httpRequest = null;
HttpWebResponse httpResponse = null;
if (0 < querys.Length)
{
url = url + “?” + querys;
}

    if (host.Contains("https://"))<br />        {<br />            ServicePointManager.ServerCertificateValidationCallback = new RemoteCertificateValidationCallback(CheckValidationResult);<br />            httpRequest = (HttpWebRequest)WebRequest.CreateDefault(new Uri(url));<br />        }<br />        else<br />        {<br />            httpRequest = (HttpWebRequest)WebRequest.Create(url);<br />        }<br />        httpRequest.Method = requestMethod;
    //根据API的要求，定义相对应的Content-Type<br />        httpRequest.ContentType = "application/x-www-form-urlencoded; charset=UTF-8";<br />        if (0 < bodys.Length)<br />        {<br />            byte[] data = Encoding.UTF8.GetBytes(bodys);<br />            using (Stream stream = httpRequest.GetRequestStream())<br />            {<br />                stream.Write(data, 0, data.Length);<br />            }<br />        }<br />        try<br />        {<br />            httpResponse = (HttpWebResponse)httpRequest.GetResponse();<br />        }<br />        catch (WebException ex)<br />        {<br />            httpResponse = (HttpWebResponse)ex.Response;<br />        }
    Console.WriteLine(httpResponse.StatusCode);<br />        Console.WriteLine(httpResponse.Method);<br />        Console.WriteLine(httpResponse.Headers);<br />        Stream st = httpResponse.GetResponseStream();<br />        StreamReader reader = new StreamReader(st, Encoding.GetEncoding("utf-8"));<br />        Console.WriteLine(reader.ReadToEnd());<br />        Console.WriteLine("\n");
}
// 计算md5值<br />    public static string GetMd5(string md5str, int type)<br />    {<br />        if (type == 16)<br />        {<br />            MD5 algorithm = MD5.Create();<br />            byte[] data = algorithm.ComputeHash(Encoding.UTF8.GetBytes(md5str));<br />            string sh1 = "";<br />            for (int i = 0; i < data.Length; i++)<br />            {<br />                sh1 += data[i].ToString("x2").ToUpperInvariant();<br />            }<br />            return sh1.Substring(8, 16).ToLower();<br />        }<br />        else if (type == 32)<br />        {<br />            MD5 algorithm = MD5.Create();<br />            byte[] data = algorithm.ComputeHash(Encoding.UTF8.GetBytes(md5str));<br />            string sh1 = "";<br />            for (int i = 0; i < data.Length; i++)<br />            {<br />                sh1 += data[i].ToString("x2").ToUpperInvariant();<br />            }<br />            return sh1.ToLower();<br />        }<br />        return "";<br />    }
// 获取当前时间戳<br />    public static string GetTimeStamp()<br />    {<br />        TimeSpan ts = DateTime.UtcNow - new DateTime(1970, 1, 1, 0, 0, 0, 0);<br />        return Convert.ToInt64(ts.TotalSeconds).ToString();<br />    }
public static bool CheckValidationResult(object sender, X509Certificate certificate, X509Chain chain, SslPolicyErrors errors)<br />    {<br />        return true;<br />    }<br />}

Python请求示例
import http.client , urllib, hashlib
conn = http.client.HTTPSConnection(“kop.kuaidihelp.com”)

appId = ‘’’50001’’’
method = ‘’’cloud.print.waybill’’’;
ts = int(time.time());
appKey = ‘’’bdf3b5f50865ac813cbdfd6c9b572b79’’’

// 计算签名
signStr = appId + method + str(ts) + appKey;
sign = hashlib.md5(signStr.encode(‘utf8’)).hexdigest()

payload_list={}
payload_list[‘app_id’]=appId
payload_list[‘method’]=method
payload_list[‘ts’]=str(ts)
payload_list[‘sign’]=sign
payload_list[‘data’]=r’’’{
“agent_id”: “目标打印代理,必填”,
“print_type”: “打印类型,1:预览, 2:打印, 3:打印预览. 未设置则默认为3”,
“template_id”: “模板id，打印模板ID”,
“print_data”: [
{
“cod_amount”: 200,如果是货到付款服务,则使用该字段,
“sequence”: “1/1”,
“cp_code”: “快递品牌，参照“快递品牌列表”,兼容菜鸟和快宝品牌编码”,
“pickup_code”: “取件码(可选)”,
“user_name”: “打印人的名称，若是业务员，可包括手机号码(可选)”,
“note”: “备注(可选)”,
“goods_name”: “物品名(可选)”,
“weight”: “物品重量(可选)”,
“tid”: “(建议用订单号之类的唯一标识,提交和回调时将返回该字段, 申请单号时也将使用该字段当订单号)”,
“recipient”: {
“address”: {
“city”: “宁德市”,
“detail”: “哦里咯啦咯啦”,
“district”: “福鼎市”,
“province”: “福建省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“routing_info”: {
“consolidation”: {
“name”: “温州转福鼎包(集包名)”
},
“origin”: {
“code”: “610025”,
“name”: “四川邛崃公司”
},
“route_code”: “009 030(二三段码)”,
“sortation”: {
“name”: “福鼎351(大字 一段码)”
}
},
“sender”: {
“address”: {
“city”: “成都市”,
“detail”: “兴民街55号”,
“district”: “邛崃市”,
“province”: “四川省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“waybill_code”: “333333333333”
}
]
}’’’

payload =urllib.parse.urlencode(payload_list)
headers = {
‘content-type’: “application/x-www-form-urlencoded”,
}

conn.request(“POST”, “/api”, payload, headers)

res = conn.getresponse()
data = res.read()

print(data.decode(“utf-8”))

PHP请求示例
$host = “https://kop.kuaidihelp.com/api”;$headers = array();
//根据API的要求，定义相对应的Content-Type
array_push($headers, “Content-Type”.”:”.”application/x-www-form-urlencoded; charset=UTF-8”);
$appId = ‘50001’;
$method = ‘cloud.print.waybill’;
$ts = time();
$appKey = ‘2e0a4e2fd8cf545b35e65f00184bcfa’;
$bodys = [
“app_id” => $appId,
“method” => $method,
“sign” => md5($appId . $method . $ts . $appKey),
“ts” => $ts,
“data” => ‘{
“agent_id”: “目标打印代理,必填”,
“print_type”: “打印类型,1:预览, 2:打印, 3:打印预览. 未设置则默认为3”,
“template_id”: “模板id，打印模板ID”,
“print_data”: [
{
“cod_amount”: 200,如果是货到付款服务,则使用该字段,
“sequence”: “1/1”,
“cp_code”: “快递品牌，参照“快递品牌列表”,兼容菜鸟和快宝品牌编码”,
“pickup_code”: “取件码(可选)”,
“user_name”: “打印人的名称，若是业务员，可包括手机号码(可选)”,
“note”: “备注(可选)”,
“goods_name”: “物品名(可选)”,
“weight”: “物品重量(可选)”,
“tid”: “(建议用订单号之类的唯一标识,提交和回调时将返回该字段, 申请单号时也将使用该字段当订单号)”,
“recipient”: {
“address”: {
“city”: “宁德市”,
“detail”: “哦里咯啦咯啦”,
“district”: “福鼎市”,
“province”: “福建省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“routing_info”: {
“consolidation”: {
“name”: “温州转福鼎包(集包名)”
},
“origin”: {
“code”: “610025”,
“name”: “四川邛崃公司”
},
“route_code”: “009 030(二三段码)”,
“sortation”: {
“name”: “福鼎351(大字 一段码)”
}
},
“sender”: {
“address”: {
“city”: “成都市”,
“detail”: “兴民街55号”,
“district”: “邛崃市”,
“province”: “四川省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“waybill_code”: “333333333333”
}
]
}’
];
$bodys = http_build_query($bodys);
$url = $host;
$curl = curl_init();
curl_setopt($curl, CURLOPT_CUSTOMREQUEST, “POST”);
curl_setopt($curl, CURLOPT_URL, $url);
curl_setopt($curl, CURLOPT_HTTPHEADER, $headers);
curl_setopt($curl, CURLOPT_FAILONERROR, false);
curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);
curl_setopt($curl, CURLOPT_HEADER, false);
if (1 == strpos(“$”.$host, “https://“))
{
curl_setopt($curl, CURLOPT_SSL_VERIFYPEER, false);
curl_setopt($curl, CURLOPT_SSL_VERIFYHOST, false);
}
curl_setopt($curl, CURLOPT_POSTFIELDS, $bodys);
var_dump(curl_exec($curl));

Node.js请求示例
var request = require(“request”);
var appId = ‘50001’;
var method = ‘cloud.print.waybill’;
var ts = Date.now();
var appKey = ‘bdf3b5f50865ac813cbdfd6c9b572b79’;

// 计算签名
var signStr = appId + method + ts + appKey;
var crypto = require(‘crypto’);
var h = crypto.createHash(‘md5’);
h.update(signStr);
var sign = h.digest(‘hex’);

// data参数是个json格式的字符串
var options = {method: ‘POST’,
url: ‘https://kop.kuaidihelp.com/api’,
headers:
{ ‘cache-control’: ‘no-cache’,
‘content-type’: ‘application/x-www-form-urlencoded’ },
form:
{ app_id: appId,
method: method,
ts: ts,
sign: sign,
data: ‘{
“agent_id”: “目标打印代理,必填”,
“print_type”: “打印类型,1:预览, 2:打印, 3:打印预览. 未设置则默认为3”,
“template_id”: “模板id，打印模板ID”,
“print_data”: [
{
“cod_amount”: 200,如果是货到付款服务,则使用该字段,
“sequence”: “1/1”,
“cp_code”: “快递品牌，参照“快递品牌列表”,兼容菜鸟和快宝品牌编码”,
“pickup_code”: “取件码(可选)”,
“user_name”: “打印人的名称，若是业务员，可包括手机号码(可选)”,
“note”: “备注(可选)”,
“goods_name”: “物品名(可选)”,
“weight”: “物品重量(可选)”,
“tid”: “(建议用订单号之类的唯一标识,提交和回调时将返回该字段, 申请单号时也将使用该字段当订单号)”,
“recipient”: {
“address”: {
“city”: “宁德市”,
“detail”: “哦里咯啦咯啦”,
“district”: “福鼎市”,
“province”: “福建省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“routing_info”: {
“consolidation”: {
“name”: “温州转福鼎包(集包名)”
},
“origin”: {
“code”: “610025”,
“name”: “四川邛崃公司”
},
“route_code”: “009 030(二三段码)”,
“sortation”: {
“name”: “福鼎351(大字 一段码)”
}
},
“sender”: {
“address”: {
“city”: “成都市”,
“detail”: “兴民街55号”,
“district”: “邛崃市”,
“province”: “四川省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“waybill_code”: “333333333333”
}
]
}’,
}};

request(options, function (error, response, body) {
if (error) throw new Error(error);

console.log(body);
});

Curl请求示例
curl - X POST ‘https://kop.kuaidihelp.com/api’ \ - H ‘Content-Type:application/x-www-form-urlencoded;charset=utf-8’ \
- d ‘app_id=50001’ \
- d ‘method=cloud.print.waybill’ \
- d ‘sign=bdf3b5f50865ac813cbdfd6c9b572b79’ \
- d ‘ts=1524209949’ \
- d ‘data={
“agent_id”: “目标打印代理,必填”,
“print_type”: “打印类型,1:预览, 2:打印, 3:打印预览. 未设置则默认为3”,
“template_id”: “模板id，打印模板ID”,
“print_data”: [
{
“cod_amount”: 200,如果是货到付款服务,则使用该字段,
“sequence”: “1/1”,
“cp_code”: “快递品牌，参照“快递品牌列表”,兼容菜鸟和快宝品牌编码”,
“pickup_code”: “取件码(可选)”,
“user_name”: “打印人的名称，若是业务员，可包括手机号码(可选)”,
“note”: “备注(可选)”,
“goods_name”: “物品名(可选)”,
“weight”: “物品重量(可选)”,
“tid”: “(建议用订单号之类的唯一标识,提交和回调时将返回该字段, 申请单号时也将使用该字段当订单号)”,
“recipient”: {
“address”: {
“city”: “宁德市”,
“detail”: “哦里咯啦咯啦”,
“district”: “福鼎市”,
“province”: “福建省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“routing_info”: {
“consolidation”: {
“name”: “温州转福鼎包(集包名)”
},
“origin”: {
“code”: “610025”,
“name”: “四川邛崃公司”
},
“route_code”: “009 030(二三段码)”,
“sortation”: {
“name”: “福鼎351(大字 一段码)”
}
},
“sender”: {
“address”: {
“city”: “成都市”,
“detail”: “兴民街55号”,
“district”: “邛崃市”,
“province”: “四川省”
},
“mobile”: “13344556677”,
“name”: “XXX”,
“phone”: “”
},
“waybill_code”: “333333333333”
}
]
}’

响应示例

成功响应示例-JSON示例

{“code”:
int0
“msg”:
string”success”
“uid”:
string”a6934adee62d8ba3430d4ac678dd5f46c7a79d6e”
“data”:{}
“提交任务时的tid”:{}
“status”:
string”success”
“task_id”:
int46208
}

异常响应示例-JSON示例

{“code”:
int200115
“msg”:
string”业务参数有误，请检查”
“uid”:
string”a6934adee62d8ba3430d4ac678dd5f46c7a79d6e”
“data”:{}
}

错误代码

1.用API打印发货单、取件码、标签、小票单等

2.用API打印快递单
