以下配置理论支持Juniper EX系列，可能因具体硬件、固件版本不一致存在差异。
1.日常维护
no copy
unlink
va校验
add
| 查看硬件 | show chassis hardware |
|
|---|---|---|
| 软件版本 | show version |
|
| 查看CPU | show chassis routing-engine |
|
| ping命令 | ping 192.168.1.254 rapid |
|
| 告警信息 | show chassis alarms |
|
| 温度及状态 | show chassis environment |
|
| CASE需要 | request support information |
|
| 看序列号 | show chassis hardware |
|
| 显示锁定用户 | show system login | |
| 显示arp表 | show ethernet-switching table | |
| 清除arp表 | clear ethernet-switching table | |
| 显示端口 | show interfaces terse | |
| 重启 | **>** |
request system reboot in/at |
| 关闭 | request system halt |
|
| 设置DNS服务器 | set system name-server 192.168.1.1 del system name-server 192.168.1.1 |
|
| 已输入未提交的配置 | show | compare 加号是新增配置，减号是删掉的配置 |
|
| 临时提交 | commit confirmed 正式commit之前，可以临时生效几分钟 |
|
| 恢复出厂设置 | >load factory-default 设置root密码 提交commit >重启 只是恢复配置，不能解决一些底层文件的问题 |
|
| 重置操作系统 | >request system zeroize 重置系统，最后的解决办法，时间比较久。 |
|
| 管理口配置IP | set interfaces me0 unit 0 family inet address 192.168.1.1/24 | |
| 存储空间清理 | >request system storage cleanup 和清理垃圾文件一个道理，无需重启 |
|
| 生成树协议 | show spanning-tree interface 查看状态 deactivate protocols rstp 禁用协议 |
|
| 采集RSI和日志 | request support information | no-more 使用SecureCRT记录会话 |
|
| 日志收集 |
file archive compress source /var/log/* destination /var/tmp/Logs20210831.tgz 收集的压缩包在/var/tmp |
|
| 开启USB调试接口 | set system ports auxiliary port-type mini-usb | |
| 自动升级镜像 | set chassis auto-image-upgrade | |
| FTP定期导出配置 commit是导出 |
set system archival configuration transfer-on-commit set system archival configuration archive-sites “ftp://xxx@x.x.x.x:21/子目录” password “xxx” |
|

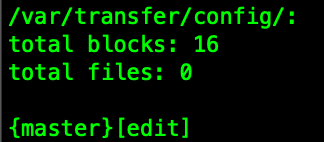

| 查看导出配置文件积压情况 | show system configuration archival 如有文件积压会看到积压的文件。 文件积压会耗尽磁盘空间，导致业务异常。  |
2.时钟设置
| 当前时间 | > | show system uptime |
|---|---|---|
| 设置时区 | set system time-zone Asia/Shanghai | |
| 设置时间 | > | set date 200811071441.00 |
| 同步时间 | > | set date ntp |
| 设置NTP服务器 认证方式 认证密码 |
set system ntp server 192.168.1.1 set system ntp authentication-key 1 type md5 set system ntp authentication-key 1 value “password” | |
| 检查NTP服务器时钟源 | show ntp associations | |
| 检查NTP服务器状态 | show ntp status |
设置主机名
| 设置主机名 | set system host-name EX4200 del system host-name EX4200 |
|
|---|---|---|
3.设置ROOT密码
| 设置root密码-明文 | set system root-authentication plain-text-password | |
|---|---|---|
| 设置root密码-密文 | set system root-authentication encrypted-password |
4.用户配置
添加用户
| 添加用户 添加用户权限 设置用户全名 设置UID 设置用户密码 删除用户 |
edit system login user admin set system login user admin class super-user set system login user admin full-name “中兴通讯” set system login user admin uid 101 set system login user admin authentication plain-text-password password set system login user admin authentication encrypted-password “$19nk.” delete system login user admin |
|
|---|---|---|
| 添加到自定义权限 添加组权限 |
set system login user zte class zte_class set system login class zte_class |
用户权限
5.连接方式
TELNET
| 设置Telnet 服务 | set system service telnet | |
|---|---|---|
| 同时最大连接数 | set system service telnet connection-limit 1-250 | |
| 每分钟最大连接 | set system service telnet rate-limit 1-250 |
SSH
| 开启远程ssh登陆 | set system service ssh protocol-version v1/v2 | |
|---|---|---|
| set system service ssh connection-limit 1-250 | ||
| set system service ssh rate-limit 1-250 | ||
| 查看配置 | show system services ssh |
WEB（HTTP/S）
| 开启远程WEB服务 超时时间(分钟) 同时连接用户数 打开web管理功能 指定web登陆端口 指定登陆板卡接口 https指定证书 | set system system service web-management session idle-timeout 10 set system system service web-management session session-limit 10 set system system service web-management http/https set system system service web-management http port 1-65535 set system system service web-management http interface ge-0/0/1.0 set system system service web-management https local-certificate https-cer set system system service web-management http | |
|---|---|---|
MGT管理口
| 配置MGT管理口 | set interfaces me0 unit 0 family inet address 192.168.1.1/24 | |
|---|---|---|
FTP
| 开启远程Ftp服务 | set system service ftp set system service ftp connection-limit 1-250 set system service ftp rate-limit 1-250 |
|
|---|---|---|
6.告警配置
| 全部端口产生告 不产生告警 管理口产生告警 |
set chassis alarm ethernet link-down red set chassis alarm ethernet link-down ignore set chassis alarm management-ethernet link-down red |
|
|---|---|---|
7.端口配置
启动、关闭端口
| 关闭端口 恢复端口 |
set interfaces ge-0/0/4 disable del interfaces ge-0/0/4 disable |
|
|---|---|---|
mac绑定
| MAC限制和IP绑定
| edit ethernet-switching-options secure-access-port interface ge-0/0/1.0 set mac-limit 100 set mac-limit action drop set allowed-mac 00:50:54:80:1e:1b set static-ip 192.168.1.1 vlan 10 mac 00:50:54:80:1e:1b |
|
|---|---|
双工及速率
| 工作模式为全双工 工作模式自动协商 指定端口速率 自动速率自动协商 |
set interfaces ge-0/0/1 ether-options link-mode full-duplex set interfaces ge-0/0/1 ether-options link-mode automatic set interfaces ge-0/0/1 ether-options speed 10m/100m/1g set interfaces ge-0/0/1 ether-options auto-negotiation |
|
|---|---|---|
POE配置
| 禁止单个端口POE | set poe interface ge-0/0/1 disable | |
|---|---|---|
| 打开单个端口POE | delete poe interface ge-0/0/1 disable set poe interface ge-0/0/1 |
|
| 打开所有端口POE | delete poe interface all disable set poe interface all |
|
| 设置输出电压 | set poe guard-band 1-19w | |
| 如果不使用到poe功能 | 必须通过set poe interface all disable禁止 |
端口镜像配置
| 添加镜像源端口 | set forwarding-options analyzer port-mirroring-1 input ingress interface xe-1/0/21.0 set forwarding-options analyzer port-mirroring-1 input egress interface xe-1/0/21.0 |
|
|---|---|---|
| 添加镜像目的端口 | set forwarding-options analyzer port-mirroring-1 output interface ge-17/0/3.0 | |
| 如果没有镜像数据 为目的接口添加新建vlan |
set interfaces ge-17/0/3 description JingXiang-Port set interfaces ge-17/0/3 unit 0 family ethernet-switching interface-mode access set interfaces ge-17/0/3 unit 0 family ethernet-switching vlan members 999 |
|
| 端口镜像是请注意流量负载，可能会造成整块电板、光板down的情况发生。 |
端口聚合捆绑配置
| 声明聚合口数量，可修改 | set chassis aggregated-devices ethernet device-count 60 | |
|---|---|---|
| 聚合口修改mtu值(可选) | set interfaces ae1 mtu 9216 | |
| 聚合组里面链路的带宽 | set interfaces ae1 aggregated-ether-options link-speed 10g | |
| 启用链路聚合协议(可选) | set interfaces ae1 aggregated-ether-options lacp active 用于动态监测链路是否可用，并自动添加/删除链路，需要对端也配置， deactive set interfaces ae1 aggregated-ether-options lacp active 如果对端不支持lacp动态负载可禁用lacp |
|
| 每30秒发一个lacp pdu | set interfaces ae1 aggregated-ether-options lacp periodic period slow | |
| 聚合口业务配置 | set interfaces ae1 unit 0 family ethernet-switching interface-mode trunk set interfaces ae1 unit 0 family ethernet-switching vlan members 16 set interfaces ae1 unit 0 family ethernet-switching vlan members 85-110 |
|
| 物理口添加到聚合口 |
set interfaces xe-0/0/0 gigether-options 802.3ad ae1 如果要将聚合口里的物理口切换别的聚合口，先关闭物理口，再配置别的聚合口，再启用端口 |
|
| 查询加到ae1的物理接口 | run show lacp statistics interface ae1 run show interfaces terse ｜match ae1 |
|
8.DHCP服务
DHCP配置
新增vlan，设置三层接口、三层地址set vlans v8 description BXHset vlans v8 vlan-id 8set vlans v8 l3-interface irb.8vlan/irb接口启用DHCP服务set system services dhcp-local-server group v8 interface irb.8设置网络号、起始IP、结束IP、租期（建议2H）、主备DNS、网关地址set access address-assignment pool v8 family inet network 10.3.123.192/26set access address-assignment pool v8 family inet range v8 low 10.3.123.200set access address-assignment pool v8 family inet range v8 high 10.3.123.250set access address-assignment pool v8 family inet dhcp-attributes maximum-lease-time 3600set access address-assignment pool v8 family inet dhcp-attributes name-server 10.3.71.3set access address-assignment pool v8 family inet dhcp-attributes name-server 10.3.71.4set access address-assignment pool v8 family inet dhcp-attributes router 10.3.123.193
服务状态
| 显示DHCP服务 | show system services dhcp | display set | |
|---|---|---|
| 显示DHCP服务 | > | show system services dhcp （binding/conflict/global/pool/statistics） 绑定·显示DHCP客户端绑定信息 冲突·显示DHCP地址冲突 全局·显示DHCP全局范围信息 池 ·显示DHCP地址池信息 统计信息·显示DHCP统计信息 |
vlan配置
| 新增vlan名称ID vlan描述 mac数量 mac生存时间 绑定三层接口 端口添加到vlan |
set vlans zte_vlan vlan-id 10 set vlans zte_vlan description “描述” set vlans zte_vlan mac-limit 200 set vlans zte_vlan mac-table-aging-time 600 set vlans zte_vlan l3-interface vlan.10 set vlans zte_vlan interface ge-0/0/1.0 |
|
|---|---|---|
| 端口修改为access 加入到新VLAN | set interfaces ge-0/0/1 unit 0 family ethernet-switching port-mode access set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members 10 | |
|---|---|---|
| 设置端口为Trunk 仅允许vlan10通过 允许所有vlan通过 删除端口下所有vlan | set interfaces ge-0/0/1 unit 0 family ethernet-switching port-mode trunk set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members 10 set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members all del interfaces ge-0/0/1 unit 0 family ethernet-switching vlan members |
三层配置
| 创建三层逻辑子端口 | set interfaces vlan unit 10 family inet address 192.168.1.1/24 | |
|---|---|---|
| 设置为二层接口 设置为三层接口 三层接口IP地址 删除二三层信息 |
set interfaces ge-0/0/1 unit 0 family ethernet-switching set interfaces ge-0/0/1 unit 0 family inet set interfaces ge-0/0/1 unit 0 family inet address 192.168.1.1/30 del interfaces ge-0/0/1 unit 0 |
安全配置
| 用户锁定策略 | set system login re | |
|---|---|---|
备份恢复
| FTP备份方式 | show configuration | save EX4200CONFIG.txt ftp 10.0.0.132 ftp> asc ftp> put EX4200CONFIG.txt ftp> bye |
|
|---|---|---|
| FTP备份文件恢复 | load merge /var/tmp/config20220225 relative 先将配置上传到设备（比如/var/tmp/目录）。 |
|
| 配置恢复 | load override EX4200CONFIG.txt | |
| 批量导入C格式配置 | load merge relative 输入命令回车，将配置复制、粘贴到窗口， 最后一行再回车一下，用Ctrl + D终止输入。 |
| 恢复出厂设置 | 液晶面板上按菜单，当出现reset factiory之后按确定进入。 load factory-default set system root-authentication plain-text-password |
|
|---|---|---|
| 密码恢复 | 启动过程中，console上出现下面的提示的时候，按任意键中断正常启动方式，然后再进入单用户状态 执行密码恢复：在以下提示文字后输入recovery 进入配置模式，删除root密码：root> configure root# delete system root-authentication root# commit root# exit root> exit 重新启动后，配置新的root密码，交换机恢复正常。 |
设置syslog服务器
| 设置syslog服务器 warning级别错误日志 |
set system syslog host 192.168.1.254 any error set system syslog host 192.168.1.254 interactive-commands warning |
|
|---|---|---|
未解之谜
| stp/rstp/mstp/ecmp/ospf/端口镜像/端口广播风暴控制/vrrp/OSPF中配置BFD/Virtual Chassis设置 | ||
|---|---|---|
