k8s-环境搭建(1.8)

镜像下载

使用阿里云地址CentOS-7-x86_64-DVD-2009.iso

Win10 Hyper-v安装

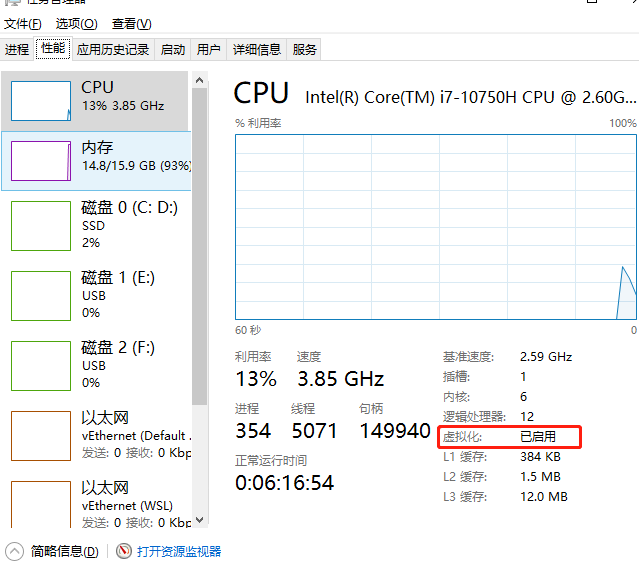

打开任务管理器查看是否支持虚拟化，没有启用需要金融BIOS开启
对于win10 家庭版需要手动安装hyper-v
新建文件hyperf-v.bat
复制代码

pushd "%~dp0"
dir /b %SystemRoot%\servicing\Packages\*Hyper-V*.mum >hyper-v.txt
for /f %%i in ('findstr /i . hyper-v.txt 2^>nul') do dism /online /norestart /add-package:"%SystemRoot%\servicing\Packages\%%i"
del hyper-v.txt
Dism /online /enable-feature /featurename:Microsoft-Hyper-V-All /LimitAccess /ALL

右键以管理员身份运行文件稍等片刻，重启电脑

Hyper-v虚拟机创建

打开Hyper-v管理器
新建虚拟机，按照步骤执行
点击虚拟机交换管理器，新建虚拟交换机，选择内部

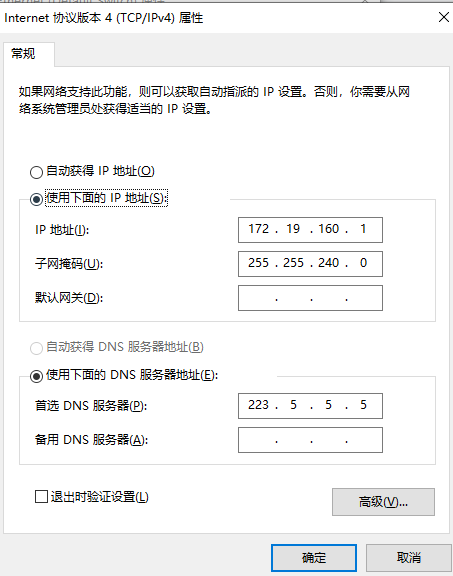

打开系统-网络适配器-vEthernet (Default Switch)-查看IP，后面设置虚拟机IP需要

主机规划

centos7安装

省略

环境初始化

检查系统版本

cat /etc/redhat-release

关闭selinux

查看是否开启

getenforce

永久关闭，重启生效

sed -i 's/enforcing/disabled/' /etc/selinux/config

关闭swap分区

重启生效

sed -ri 's/.*swap.*/#&/' /etc/fstab

关闭防火墙
关闭

systemctl stop firewalld

禁止启动

systemctl disable firewalld

设置主机名

hostnamectl set-hostname k8s-master

hostnamectl set-hostname k8s-node1

hostnamectl set-hostname k8s-node2

主机名解析

cat >> /etc/hosts << EOF
172.19.160.100 k8s-master
172.19.160.101 k8s-node1
172.19.160.102 k8s-node2
EOF

时间同步

ntpdate time.windows.com

增加k8s配置

cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
vm.swappiness = 0
EOF

加载模块

modprobe br_netfilter

生效

sysctl --system

开启ipvs

yum -y install ipset ipvsadm

所有节点执行

cat > /etc/sysconfig/modules/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack_ipv4
EOF

运行

chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack_ipv4

重启

reboot

安装Docker、kubeadm、kubelet和kubectt

安装docker

wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo

yum -y install docker-ce-18.06.3.ce-3.el7

systemctl enable docker && systemctl start docker

docker version

设置镜像加速

sudo mkdir -p /etc/docker

sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "exec-opts": ["native.cgroupdriver=systemd"],
  "registry-mirrors": ["阿里云镜像加速器地址"],
  "live-restore": true,
  "log-driver":"json-file",
  "log-opts": {"max-size":"500m", "max-file":"3"}
}
EOF

sudo systemctl daemon-reload

sudo systemctl restart docker

安装kubeadm、kubelet和kubect

修改阿里源

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

yum install -y kubelet-1.18.0 kubeadm-1.18.0 kubectl-1.18.0

vim /etc/sysconfig/kubelet

修改

KUBELET_EXTRA_ARGS="--cgroup-driver=systemd"
KUBE_PROXY_MODE="ipvs"

systemctl enable kubelet

部署k8s

查看k8s所需镜像

kubeadm config images list

部署master节点

kubeadm init \
  --apiserver-advertise-address=172.19.160.100 \
  --image-repository registry.aliyuncs.com/google_containers \
  --kubernetes-version v1.18.0 \
  --service-cidr=10.96.0.0/12 \
  --pod-network-cidr=10.244.0.0/16

根据提示信息

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

生成永不过期token

kubeadm token create --ttl 0 --print-join-command

部署node节点

 kubeadm join 172.19.160.100:6443 --token zfmjw4.t8rdmpxpyu12s5bq     --discovery-token-ca-cert-hash sha256:2df11c34aab096b68202042af1a8ecebabb005b008e122f8410e5ed9b3ab8644

部署网络插件

查看状态

kubectl get nodes

wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

启动flannel

kubectl apply -f kube-flannel.yml

查看进度

kubectl get pods -n kube-system

查看集群健康

kubectl get cs

kubectl cluster-info

部署Nginx

部署

kubectl create deployment nginx --image=nginx:1.14-alpine

暴露端口

kubectl expose deployment nginx --port=80 --type=NodePort

查看状态

kubectl get pods,svc
