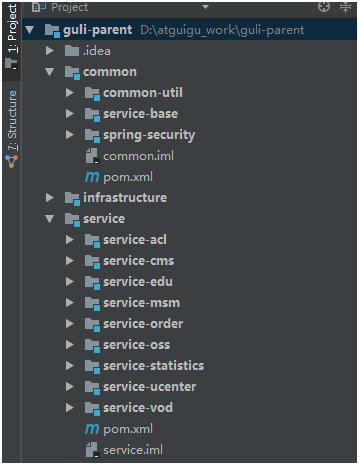

一、工程结构介绍

1、工程结构


2、模块说明

guli-parent：在线教学根目录（父工程），管理四个子模块：
canal-client：canal数据库表同步模块（统计同步数据）
common**：公共模块父节点
common-util：工具类模块，所有模块都可以依赖于它
service-base：service服务的base包，包含service服务的公共配置类，所有service模块依赖于它
spring-security：认证与授权模块，需要认证授权的service服务依赖于它
infrastructure**：基础服务模块父节点
api-gateway：api网关服务
service**：api接口服务父节点
service-acl：用户权限管理api接口服务（用户管理、角色管理和权限管理等）
service-cms：cms api接口服务
service-edu：教学相关api接口服务
service-msm：短信api接口服务
service-order：订单相关api接口服务
service-oss：阿里云oss api接口服务
service-statistics：统计报表api接口服务
service-ucenter：会员api接口服务
service-vod：视频点播api接口服务

二、创建父工程

1、创建sprigboot工程guli-parent

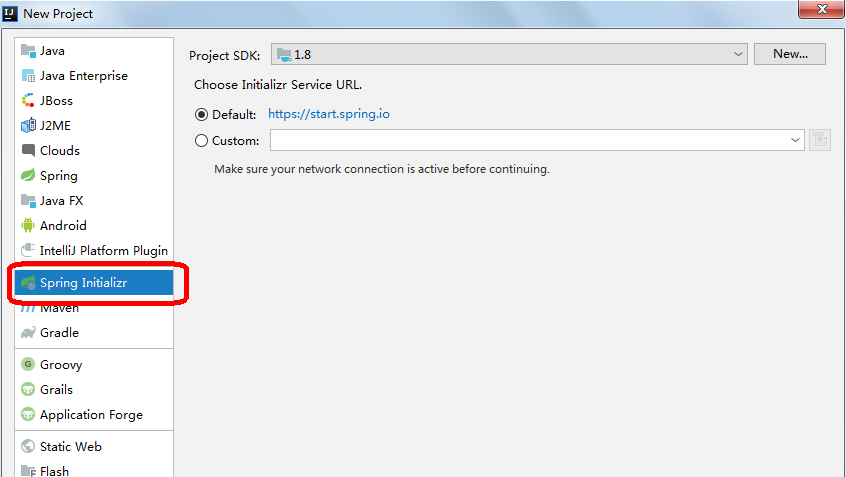

在idea开发工具中，使用 Spring Initializr 快速初始化一个 Spring Boot 模块，版本使用：2.2.1.RELEASE

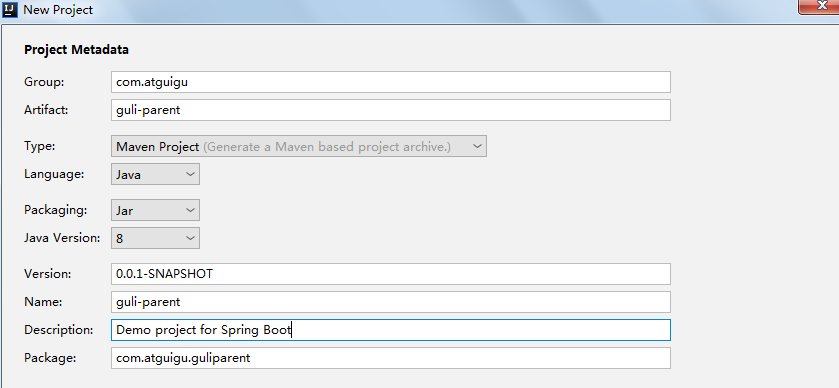

配置：
groupId：com.atguigu
artifactId：guli-parent
一直下一步到完成


2、删除 src 目录




3、配置 pom.xml

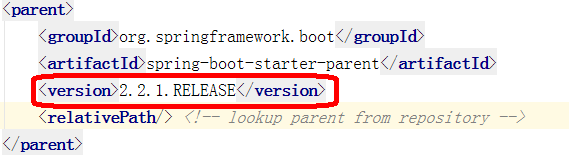

修改版本为 ：2.2.1.RELEASE

节点后面添加 pom类型

  1. <artifactId>guli-parent</artifactId>
  2. <packaging>pom</packaging>

4、在pom.xml中添加依赖的版本

删除pom.xml中的
内容**

  1. <!-- 以下内容删除 -->
  2. <dependencies>
  3.     <dependency>
  4.         <groupId>org.springframework.boot</groupId>
  5.         <artifactId>spring-boot-starter</artifactId>
  6.     </dependency>
  7.     <dependency>
  8.         <groupId>org.springframework.boot</groupId>
  9.         <artifactId>spring-boot-starter-test</artifactId>
  10.         <scope>test</scope>
  11.     </dependency>
  12. </dependencies>

添加 确定依赖的版本

  1. <properties>
  2.     <java.version>1.8</java.version>
  3.     <guli.version>0.0.1-SNAPSHOT</guli.version>
  4.     <mybatis-plus.version>3.0.5</mybatis-plus.version>
  5.     <velocity.version>2.0</velocity.version>
  6.     <swagger.version>2.7.0</swagger.version>
  7.     <aliyun.oss.version>2.8.3</aliyun.oss.version>
  8.     <jodatime.version>2.10.1</jodatime.version>
  9.     <poi.version>3.17</poi.version>
  10.     <commons-fileupload.version>1.3.1</commons-fileupload.version>
  11.     <commons-io.version>2.6</commons-io.version>
  12.     <httpclient.version>4.5.1</httpclient.version>
  13.     <jwt.version>0.7.0</jwt.version>
  14.     <aliyun-java-sdk-core.version>4.3.3</aliyun-java-sdk-core.version>
  15.     <aliyun-sdk-oss.version>3.1.0</aliyun-sdk-oss.version>
  16.     <aliyun-java-sdk-vod.version>2.15.2</aliyun-java-sdk-vod.version>
  17.     <aliyun-java-vod-upload.version>1.4.11</aliyun-java-vod-upload.version>
  18.     <aliyun-sdk-vod-upload.version>1.4.11</aliyun-sdk-vod-upload.version>
  19.     <fastjson.version>1.2.28</fastjson.version>
  20.     <gson.version>2.8.2</gson.version>
  21.     <json.version>20170516</json.version>
  22.     <commons-dbutils.version>1.7</commons-dbutils.version>
  23.     <canal.client.version>1.1.0</canal.client.version>
  24.     <docker.image.prefix>zx</docker.image.prefix>
  25.     <cloud-alibaba.version>0.2.2.RELEASE</cloud-alibaba.version>
  26. </properties>
  27. 配置 <dependencyManagement> 锁定依赖的版本
  28. <dependencyManagement>
  29.     <dependencies>
  30.         <!--Spring Cloud-->
  31.         <dependency>
  32.             <groupId>org.springframework.cloud</groupId>
  33.             <artifactId>spring-cloud-dependencies</artifactId>
  34.             <version>Hoxton.RELEASE</version>
  35.             <type>pom</type>
  36.             <scope>import</scope>
  37.         </dependency>
  38.         <dependency>
  39.             <groupId>org.springframework.cloud</groupId>
  40.             <artifactId>spring-cloud-alibaba-dependencies</artifactId>
  41.             <version>${cloud-alibaba.version}</version>
  42.             <type>pom</type>
  43.             <scope>import</scope>
  44.         </dependency>
  45.         <!--mybatis-plus 持久层-->
  46.         <dependency>
  47.             <groupId>com.baomidou</groupId>
  48.             <artifactId>mybatis-plus-boot-starter</artifactId>
  49.             <version>${mybatis-plus.version}</version>
  50.         </dependency>
  51.         <!-- velocity 模板引擎, Mybatis Plus 代码生成器需要 -->
  52.         <dependency>
  53.             <groupId>org.apache.velocity</groupId>
  54.             <artifactId>velocity-engine-core</artifactId>
  55.             <version>${velocity.version}</version>
  56.         </dependency>
  57.         <!--swagger-->
  58.         <dependency>
  59.             <groupId>io.springfox</groupId>
  60.             <artifactId>springfox-swagger2</artifactId>
  61.             <version>${swagger.version}</version>
  62.         </dependency>
  63.         <!--swagger ui-->
  64.         <dependency>
  65.             <groupId>io.springfox</groupId>
  66.             <artifactId>springfox-swagger-ui</artifactId>
  67.             <version>${swagger.version}</version>
  68.         </dependency>
  69.         <!--aliyunOSS-->
  70.         <dependency>
  71.             <groupId>com.aliyun.oss</groupId>
  72.             <artifactId>aliyun-sdk-oss</artifactId>
  73.             <version>${aliyun.oss.version}</version>
  74.         </dependency>
  75.         <!--日期时间工具-->
  76.         <dependency>
  77.             <groupId>joda-time</groupId>
  78.             <artifactId>joda-time</artifactId>
  79.             <version>${jodatime.version}</version>
  80.         </dependency>
  81.         <!--xls-->
  82.         <dependency>
  83.             <groupId>org.apache.poi</groupId>
  84.             <artifactId>poi</artifactId>
  85.             <version>${poi.version}</version>
  86.         </dependency>
  87.         <!--xlsx-->
  88.         <dependency>
  89.             <groupId>org.apache.poi</groupId>
  90.             <artifactId>poi-ooxml</artifactId>
  91.             <version>${poi.version}</version>
  92.         </dependency>
  93.         <!--文件上传-->
  94.         <dependency>
  95.             <groupId>commons-fileupload</groupId>
  96.             <artifactId>commons-fileupload</artifactId>
  97.             <version>${commons-fileupload.version}</version>
  98.         </dependency>
  99.         <!--commons-io-->
  100.         <dependency>
  101.             <groupId>commons-io</groupId>
  102.             <artifactId>commons-io</artifactId>
  103.             <version>${commons-io.version}</version>
  104.         </dependency>
  105.         <!--httpclient-->
  106.         <dependency>
  107.             <groupId>org.apache.httpcomponents</groupId>
  108.             <artifactId>httpclient</artifactId>
  109.             <version>${httpclient.version}</version>
  110.         </dependency>
  111.         <dependency>
  112.             <groupId>com.google.code.gson</groupId>
  113.             <artifactId>gson</artifactId>
  114.             <version>${gson.version}</version>
  115.         </dependency>
  116.         <!-- JWT -->
  117.         <dependency>
  118.             <groupId>io.jsonwebtoken</groupId>
  119.             <artifactId>jjwt</artifactId>
  120.             <version>${jwt.version}</version>
  121.         </dependency>
  122.         <!--aliyun-->
  123.         <dependency>
  124.             <groupId>com.aliyun</groupId>
  125.             <artifactId>aliyun-java-sdk-core</artifactId>
  126.             <version>${aliyun-java-sdk-core.version}</version>
  127.         </dependency>
  128.         <dependency>
  129.             <groupId>com.aliyun.oss</groupId>
  130.             <artifactId>aliyun-sdk-oss</artifactId>
  131.             <version>${aliyun-sdk-oss.version}</version>
  132.         </dependency>
  133.         <dependency>
  134.             <groupId>com.aliyun</groupId>
  135.             <artifactId>aliyun-java-sdk-vod</artifactId>
  136.             <version>${aliyun-java-sdk-vod.version}</version>
  137.         </dependency>
  138.         <dependency>
  139.             <groupId>com.aliyun</groupId>
  140.             <artifactId>aliyun-java-vod-upload</artifactId>
  141.             <version>${aliyun-java-vod-upload.version}</version>
  142.         </dependency>
  143.         <dependency>
  144.             <groupId>com.aliyun</groupId>
  145.             <artifactId>aliyun-sdk-vod-upload</artifactId>
  146.             <version>${aliyun-sdk-vod-upload.version}</version>
  147.         </dependency>
  148.         <dependency>
  149.             <groupId>com.alibaba</groupId>
  150.             <artifactId>fastjson</artifactId>
  151.             <version>${fastjson.version}</version>
  152.         </dependency>
  153.         <dependency>
  154.             <groupId>org.json</groupId>
  155.             <artifactId>json</artifactId>
  156.             <version>${json.version}</version>
  157.         </dependency>
  158.         <dependency>
  159.             <groupId>commons-dbutils</groupId>
  160.             <artifactId>commons-dbutils</artifactId>
  161.             <version>${commons-dbutils.version}</version>
  162.         </dependency>
  163.         <dependency>
  164.             <groupId>com.alibaba.otter</groupId>
  165.             <artifactId>canal.client</artifactId>
  166.             <version>${canal.client.version}</version>
  167.         </dependency>
  168.     </dependencies>
  169. </dependencyManagement>
