读写锁接口:

  1. public interface ReadWriteLock {
  3.     Lock readLock();//读锁
  5.     Lock writeLock();//写锁
  6. }

读写锁维护两把锁，一把是读锁，一把是写锁

构造器

  1.     public ReentrantReadWriteLock() {
  2.         this(false);
  3.     }
  5.     public ReentrantReadWriteLock(boolean fair) {
  6.         sync = fair ? new FairSync() : new NonfairSync();
  7.         readerLock = new ReadLock(this);
  8.         writerLock = new WriteLock(this);
  9.     }

构造器可以得知,读写锁也分为公平锁和非公平锁
读锁和写锁都实现了Lock接口
并持有同个AQS同步器

读锁的实现

  1.     public static class ReadLock implements Lock, java.io.Serializable {
  2.         private static final long serialVersionUID = -5992448646407690164L;
  3.         private final Sync sync;
  4.         protected ReadLock(ReentrantReadWriteLock lock) {
  5.             sync = lock.sync;
  6.         }
  7.         ....
  8.     }

获取读锁

  1.         public void lock() {
  2.             sync.acquireShared(1);//获取共享锁
  3.         }

读锁获取的是个共享锁

  1.     public final void acquireShared(int arg) {
  2.         if (tryAcquireShared(arg) < 0)
  3.             doAcquireShared(arg);
  4.     }

同步器共享方法中，返回>=0获取成功，<0获取失败

  1.         protected final int tryAcquireShared(int unused) {
  2.             Thread current = Thread.currentThread();//获取当前线程
  3.             int c = getState();//获取state
  4.             if (exclusiveCount(c) != 0 &&//独占计数！=0，说明有线程占用读锁
  5.                 getExclusiveOwnerThread() != current)//这个线程非当前线程
  6.                 return -1;//返回-1 抢占共享锁失败
  7.             int r = sharedCount(c);//获取共享计数
  8.             if (!readerShouldBlock() &&//下个aqs下个被唤醒的不是写线程
  9.                 r < MAX_COUNT &&//允许最大的读线程
  10.                 compareAndSetState(c, c + SHARED_UNIT)) {//cas占有读锁
  11.                 if (r == 0) {//第一个占用锁的线程
  12.                     firstReader = current;//第一读的线程
  13.                     firstReaderHoldCount = 1;//第一个读的线程保持计数
  14.                 } else if (firstReader == current) {//第一个读的线程重入
  15.                     firstReaderHoldCount++;//计数++
  16.                 } else {
  17.                     HoldCounter rh = cachedHoldCounter;//获取最后一个读锁的线程计数器
  18.                     if (rh == null || rh.tid != getThreadId(current))//缓存为空或者 如果最后一个线程计数器不是当前线程
  19.                         cachedHoldCounter = rh = readHolds.get();//创建新的线程计数器
  20.                     else if (rh.count == 0)//缓存计数器无值
  21.                         readHolds.set(rh);
  22.                     rh.count++;
  23.                 }
  24.                 return 1;
  25.             }
  26.             //cas失败，继续获取
  27.             return fullTryAcquireShared(current);
  28.         }

exclusiveCount(c)判断独占锁

  1. static final int SHARED_SHIFT   = 16;
  3. static final int EXCLUSIVE_MASK = (1 << SHARED_SHIFT) - 1;
  5. static int exclusiveCount(int c) { return c & EXCLUSIVE_MASK; }

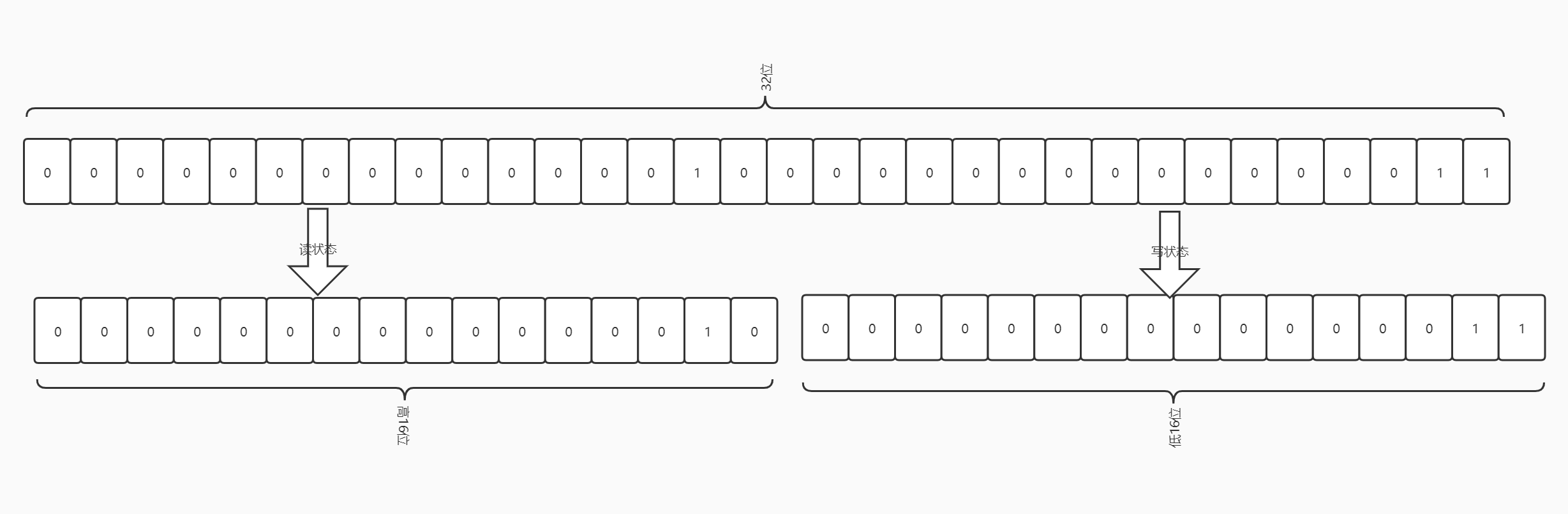

读写锁的状态都维护在state上。这是种按位切割使用，将变量切分成两部分，高16位表示读，低16位表示写。

当前同步状态表示一个线程已经获取了写锁，且重入两次，同时也连续获取了两次读锁。

如果没有线程占有独占锁，那么线程会判断读是否应该阻塞当前线程

readerShouldBlock()

非公平锁实现

  1.         final boolean readerShouldBlock() {
  2.             return apparentlyFirstQueuedIsExclusive();//队列第一是是否是独占
  3.         }
  5.     final boolean apparentlyFirstQueuedIsExclusive() {
  6.         Node h, s;
  7.         return (h = head) != null &&//获取队列头 不为空
  8.             (s = h.next)  != null &&//头的next节点不为空，及排在队列的一个节点
  9.             !s.isShared()         &&//状态不是共享状态。
  10.             s.thread != null; //有线程
  11.     }

非公平锁判断aqs排在第一的线程是写锁的的话则进行阻塞
公平锁实现

  1.         final boolean readerShouldBlock() {
  2.             return hasQueuedPredecessors();
  3.         }
  1.     public final boolean hasQueuedPredecessors() {
  2.         Node t = tail; // Read fields in reverse initialization order  以相反的初始化顺序读取字段
  3.         Node h = head;
  4.         Node s;
  5.         return h != t &&
  6.             ((s = h.next) == null || s.thread != Thread.currentThread());
  7.     }

公平锁只要是aqs里有值就直接阻塞，让队列里的线程先访问资源

如果判断不需要阻塞，则进行一次cas，stete高位+1.成功的话获得锁，并记录是否是firstRead，或者holdCounter
需要阻塞或者cas失败的话，进入fullTryAcquireShared(current)

fullTryAcquireShared(current)自旋获取锁

  1. final int fullTryAcquireShared(Thread current) {
  2.             HoldCounter rh = null;
  3.             for (;;) {//通过自旋方式
  4.                 int c = getState();
  5.                 if (exclusiveCount(c) != 0) {//独占锁
  6.                     if (getExclusiveOwnerThread() != current)//非当前线程
  7.                         return -1;//获取失败
  8.                     // else we hold the exclusive lock; blocking here
  9.                     // would cause deadlock.
  10.                 } else if (readerShouldBlock()) {//读被阻塞。aqs队列排在第一的线程为写线程
  11.                     // Make sure we're not acquiring read lock reentrantly
  12.                     if (firstReader == current) {//当前线程是第一个获取写的线程
  13.                         // assert firstReaderHoldCount > 0;
  14.                     } else {
  15.                         if (rh == null) {
  16.                             rh = cachedHoldCounter;//代表的是最后一个获取读锁的线程的计数器。
  17.                             if (rh == null || rh.tid != getThreadId(current)) {//如果最后一个线程计数器是 null 或者不是当前线程
  18.                                 rh = readHolds.get();
  19.                                 if (rh.count == 0)
  20.                                     readHolds.remove();
  21.                             }
  22.                         }
  23.                         if (rh.count == 0)
  24.                             return -1;
  25.                     }
  26.                 }
  27.                 if (sharedCount(c) == MAX_COUNT)//读锁满了
  28.                     throw new Error("Maximum lock count exceeded");//抛出异常
  29.                 if (compareAndSetState(c, c + SHARED_UNIT)) {//cas去获取线程
  30.                     if (sharedCount(c) == 0) {//第一个获取锁的线程
  31.                         firstReader = current;//记录第一线程
  32.                         firstReaderHoldCount = 1;
  33.                     } else if (firstReader == current) {
  34.                         firstReaderHoldCount++;
  35.                     } else {
  36.                         if (rh == null)
  37.                             rh = cachedHoldCounter;//最后一个线程计数器
  38.                         if (rh == null || rh.tid != getThreadId(current))//为空或者不是当前线程。
  39.                             rh = readHolds.get();//创建一个
  40.                         else if (rh.count == 0)
  41.                             readHolds.set(rh);
  42.                         rh.count++;//计算+1
  43.                         cachedHoldCounter = rh; // cache for release
  44.                     }
  45.                     return 1;
  46.                 }
  47.             }
  48.         }

自旋直到，写锁获取锁，或者需要被阻塞，或者获取当前线程获取锁，或者锁满。

doAcquireShared(arg)加入aqs等待队列，挂起

  1.     private void doAcquireShared(int arg) {
  2.         final Node node = addWaiter(Node.SHARED);
  3.         boolean failed = true;
  4.         try {
  5.             boolean interrupted = false;
  6.             for (;;) {
  7.                 final Node p = node.predecessor();
  8.                 if (p == head) {
  9.                     int r = tryAcquireShared(arg);
  10.                     if (r >= 0) {
  11.                         setHeadAndPropagate(node, r);//传递唤醒
  12.                         p.next = null; // help GC
  13.                         if (interrupted)
  14.                             selfInterrupt();
  15.                         failed = false;
  16.                         return;
  17.                     }
  18.                 }
  19.                 if (shouldParkAfterFailedAcquire(p, node) &&
  20.                     parkAndCheckInterrupt())
  21.                     interrupted = true;
  22.             }
  23.         } finally {
  24.             if (failed)
  25.                 cancelAcquire(node);
  26.         }
  27.     }

挂起的逻辑与独占锁的逻辑一致，被唤醒后，的差异是会传递唤醒下一个也是share状态的锁

setHeadAndPropagate(node, r)传递唤醒

  1.     private void setHeadAndPropagate(Node node, int propagate) {
  2.         Node h = head; // Record old head for check below
  3.         setHead(node);//当前被唤醒的线程设为head
  4.         if (propagate > 0 || h == null || h.waitStatus < 0 ||
  5.             (h = head) == null || h.waitStatus < 0) {
  6.             Node s = node.next;
  7.             if (s == null || s.isShared())
  8.                 doReleaseShared();//传递唤醒线程
  9.         }
  10.     }

读锁释放

  1.         public void unlock() {
  2.             sync.releaseShared(1);
  3.         }
  1.     public final boolean releaseShared(int arg) {
  2.         if (tryReleaseShared(arg)) {//释放共享锁
  3.             doReleaseShared();//唤醒aqs队列中等待的队列
  4.             return true;
  5.         }
  6.         return false;
  7.     }
  1.         protected final boolean tryReleaseShared(int unused) {
  2.             Thread current = Thread.currentThread();
  3.             if (firstReader == current) {//当前线程是头线程
  4.                 // assert firstReaderHoldCount > 0;
  5.                 if (firstReaderHoldCount == 1)
  6.                     firstReader = null;
  7.                 else
  8.                     firstReaderHoldCount--;
  9.             } else {
  10.                 HoldCounter rh = cachedHoldCounter;//最后一个线程
  11.                 if (rh == null || rh.tid != getThreadId(current))
  12.                     rh = readHolds.get();
  13.                 int count = rh.count;
  14.                 if (count <= 1) {
  15.                     readHolds.remove();//移除
  16.                     if (count <= 0)
  17.                         throw unmatchedUnlockException();
  18.                 }
  19.                 --rh.count;
  20.             }
  21.             for (;;) {
  22.                 int c = getState();
  23.                 int nextc = c - SHARED_UNIT;//高位减1
  24.                 if (compareAndSetState(c, nextc))//cas去减state
  25.                     return nextc == 0;//等与0 的话，读锁释放
  26.             }
  27.         }
  1.     private void doReleaseShared() {
  2.         for (;;) {
  3.             Node h = head;
  4.             if (h != null && h != tail) {
  5.                 int ws = h.waitStatus;
  6.                 if (ws == Node.SIGNAL) {
  7.                     if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
  8.                         continue;            // loop to recheck cases
  9.                     unparkSuccessor(h);//唤醒排在第一的线程
  10.                 }
  11.                 else if (ws == 0 &&
  12.                          !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))//PROPAGATE：-3表示下一次共享式同步状态获取将会无条件地被传播下去
  13.                     continue;                // loop on failed CAS
  14.             }
  15.             if (h == head)                   // loop if head changed
  16.                 break;
  17.         }
  18.     }

写锁的实现

获取写锁

  1.         public void lock() {
  2.             sync.acquire(1);
  3.         }
  1.     public final void acquire(int arg) {
  2.         if (!tryAcquire(arg) &&
  3.             acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
  4.             selfInterrupt();//再次中断
  5.     }
  1.         protected final boolean tryAcquire(int acquires) {
  2.             Thread current = Thread.currentThread();//获取当前线程
  3.             int c = getState();
  4.             int w = exclusiveCount(c);//独占线程次数
  5.             if (c != 0) {//有线程占有锁
  6.                 // (Note: if c != 0 and w == 0 then shared count != 0)
  7.                 if (w == 0 || current != getExclusiveOwnerThread()) //不是独占锁，或者不是当前线程占用独占锁
  8.                     return false;//抢占失败
  9.                 if (w + exclusiveCount(acquires) > MAX_COUNT)
  10.                     throw new Error("Maximum lock count exceeded");
  11.                 // Reentrant acquire
  12.                 setState(c + acquires);//重入次数+1 ，由于此时该线程获取了锁，不需要cas
  13.                 return true;
  14.             }
  15.             if (writerShouldBlock() || //判断写线程是否需要阻塞，非公平锁永远不阻塞，公平锁判断aqs队列里是否有值
  16.                 !compareAndSetState(c, c + acquires))//cas去获取锁
  17.                 return false;//阻塞，或者获取失败直接返回 false
  18.             setExclusiveOwnerThread(current);//设置当前线程获取独占锁
  19.             return true;

获取失败的话加入aqs队列，等待被唤醒，并判断是否需要恢复中断标识。该逻辑与重入锁的逻辑一致，这里就不再次详细描述

释放写锁

  1.         public void unlock() {
  2.             sync.release(1);
  3.         }
  1.     public final boolean release(int arg) {
  2.         if (tryRelease(arg)) { // 释放锁
  3.             Node h = head;
  4.             if (h != null && h.waitStatus != 0) //有等待的线程
  5.                 unparkSuccessor(h);//唤醒头节点的线程
  6.             return true;
  7.         }
  8.         return false;
  9.     }
  1.         protected final boolean tryRelease(int releases) {
  2.             if (!isHeldExclusively())//非独占锁，异常
  3.                 throw new IllegalMonitorStateException();
  4.             int nextc = getState() - releases;
  5.             boolean free = exclusiveCount(nextc) == 0;//等与0的时候释放，不等于0，减去重入次数
  6.             if (free)
  7.                 setExclusiveOwnerThread(null);//释放锁的线程
  8.             setState(nextc);
  9.             return free;
  10.         }

因为线程独占锁所以释放的时候不需要cas
释放完成后会唤醒aqs的排在第一的线程。该唤醒与重入锁逻辑一致
