🍙 QLabel 实现字幕滚动功能

🐟🐟🐟 通过自定义Label控件实现字幕滚动功能

实现方法

• 在Label上绘制字幕区域

要想在Label控件上实现字幕功能，可以通过使用QT的QPainter，以及重写Label中的paintEvent（只要窗口部件需要被重绘就被调用。每个要显示输出的窗口部件必须实现它。）事件来进行字幕区域的绘制，后续的字幕内容绘制也放置在paintEvent事件中进行绘制。

def paintEvent(self, event):
    super().paintEvent(event)
    # 基础框架绘制
    painter = QPainter(self)
    painter.setPen(Qt.NoPen)  # 设置画笔
    rect = QRect(750, 70, 200, 140)  # 设置矩形的位置和大小（x,y,wight,height）
    brush = QBrush(QColor(0, 0, 0, 70), Qt.SolidPattern)  # 设置画刷属性
    painter.setBrush(brush)
    painter.drawRect(rect)

• 字幕的更新

想要实现字幕的更新，可以调用update()方法来对painterEvent事件中绘制的内容进行更新，以此来达成字幕的更新效果。此demo将通过Signal以及Qtimer来模拟实现字幕的更新滚动。在具体的使用场景中可以直接通过信号传输来进行效果的实现

class DemoLabel(QLabel):
    demoSignal = Signal(str)
    def __init__(self, parent=None):
        super(DemoLabel, self).__init__(parent)
        self.ylst = [100, 130, 160]  # 字幕y轴坐标
        self.demo = ["hello", "world", "demo"]  # 模拟字幕内容
        self.fake = Faker()  # 模拟要更新的字幕数据
        self.timer = QTimer()  # 创建定时器
        self.timer.timeout.connect(self.emitDemoSignal)
        self.demoSignal.connect(self.changeDemoText)
        self.timer.start(1000)
    def paintEvent(self, event):
        super().paintEvent(event)
        # 基础框架绘制
        painter = QPainter(self)
        painter.setPen(Qt.NoPen)
        rect = QRect(750, 70, 270, 140)
        brush = QBrush(QColor(0, 0, 0, 70), Qt.SolidPattern)
        painter.setBrush(brush)
        painter.drawRect(rect)
        # 字幕内容绘制
        painter.setPen(Qt.white)
        painter.setFont(QFont("SimSun", 14, QFont.Bold))
        painter.drawText(770, self.ylst[0], self.demo[0])
        painter.drawText(770, self.ylst[1], self.demo[1])
        painter.drawText(770, self.ylst[2], self.demo[2])
    # 传递demoSignal
    def emitDemoSignal(self):
        self.demoSignal.emit(self.fake.name())
    # 更新字幕内容
    def changeDemoText(self, word):
        self.demo.pop(0)
        self.demo.append(word)
        self.update()

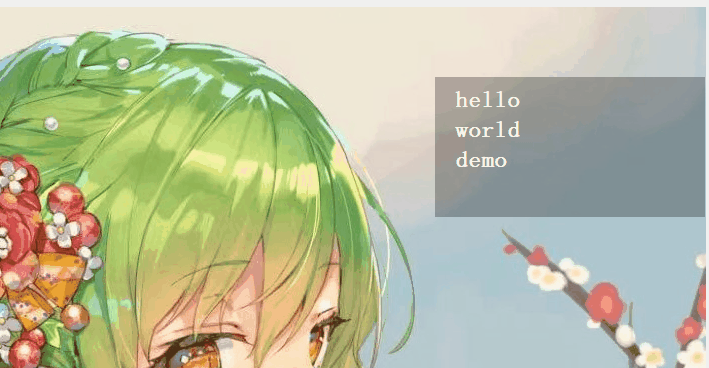

效果展示

完整代码

import sys
from PySide2.QtCore import QRect, Qt, Signal, QTimer
from PySide2.QtGui import QPainter, QBrush, QColor, QFont
from PySide2.QtWidgets import *
from faker import Faker
class DemoLabel(QLabel):
    demoSignal = Signal(str)
    def __init__(self, parent=None):
        super(DemoLabel, self).__init__(parent)
        self.ylst = [100, 130, 160]  # 字幕y轴坐标
        self.demo = ["hello", "world", "demo"]  # 模拟字幕内容
        self.fake = Faker()  # 模拟要更新的字幕数据
        self.timer = QTimer()  # 创建定时器
        self.timer.timeout.connect(self.emitDemoSignal)
        self.demoSignal.connect(self.changeDemoText)
        self.timer.start(1000)
    def paintEvent(self, event):
        super().paintEvent(event)
        # 基础框架绘制
        painter = QPainter(self)
        painter.setPen(Qt.NoPen)
        rect = QRect(750, 70, 270, 140)
        brush = QBrush(QColor(0, 0, 0, 70), Qt.SolidPattern)
        painter.setBrush(brush)
        painter.drawRect(rect)
        # 字幕内容绘制
        painter.setPen(Qt.white)
        painter.setFont(QFont("SimSun", 14, QFont.Bold))
        painter.drawText(770, self.ylst[0], self.demo[0])
        painter.drawText(770, self.ylst[1], self.demo[1])
        painter.drawText(770, self.ylst[2], self.demo[2])
    # 触发demoSignal
    def emitDemoSignal(self):
        self.demoSignal.emit(self.fake.name())
    # 更新字幕内容
    def changeDemoText(self, word):
        self.demo.pop(0)
        self.demo.append(word)
        self.update()
class Example(QWidget):
    def __init__(self):
        super(Example, self).__init__()
        self.initUI()
    def initUI(self):
        self.lo = QVBoxLayout()
        self.label = DemoLabel()
        self.label.setPixmap("xxxx.jpg")
        self.lo.addWidget(self.label)
        self.setLayout(self.lo)
        self.setWindowTitle('demo')
if __name__ == '__main__':
    app = QApplication(sys.argv)
    ex = Example()
    ex.show()
    app.exec_()
