🍙 QPushButton 实现进度条功能

🐟🐟🐟 通过自定义QPushButton实现进度条按钮功能

实现方法

• 基本思路

要想实现在QPushButton中带有进度条的功能，毫无疑问是需要对QPushButton进行自定义操作的。其次就是对其中的paintEvent的方法进行覆写。这个带进度条的按钮总共可以分为三个部分来进行绘制，一是进度条区域、二是文本区域、三是图标区域。三者间的关系是进度条区域为最下层（先绘制），文本和图标区域在进度条区域的上面。其中进度条实现的原理，此次demo将通过定时器来改变进度条的宽度模拟进度条效果。后续可以根据实际场景通过信号传输等方式来实现实际功能。

• 参数初始化

首先是一些参数的初始化，其中num，percent是用于进度条进度的控制。painter_size用于设置图标和文本的字体大小，pos_x，pos_y用于设置进度条绘制的起点来改变按钮和进度条之间的间距

class ProgressButton(QPushButton):
    """
    用于HomeWin self.btn_FT ,self.btn_PT
    """
    demoSignal = Signal()
    def __init__(self, *args, **kwargs):
        super(ProgressButton, self).__init__(*args, **kwargs)
        self.num = 0  # 进度条初始进度
        self.painter_size = 15 # 图标和字体的大小
        self.percent = 10 # 进度条前进进度
        self.text = ""  # 进度条文本
        self.text_width = 0  # 进度条文本实际宽度
        self.pos_x = 5  # 进度条x轴
        self.pos_y = 9  # 进度条y轴
        self.timer = QTimer()  # 创建定时器

• 覆写paintEvent事件

参数初始化后就开始对paintEvent事件进行覆写，其中绘制的顺序为（进度条->文本->图标），在图标绘制中需要注意的事，因为文本的绘制是采用Qt.AlignCenter进行居中的绘制的，所以在进行图标位置的x轴起点定位时需要通过fontMetrics().horizontalAdvance(str)的方法来确定文本的宽度，以此来定位图标绘制的位置防止图标和文本重叠

def paintEvent(self, event):
    super().paintEvent(event)
    if self.num == 0:
        self.text = "1000个文件正在传输"
        self.timer.start(1000)
    painter = QPainter(self)
    brush = QBrush(QColor(71, 102, 45, 255), Qt.SolidPattern)
    painter.setBrush(brush)
    # 绘制进度条
    rect_progress = QRect(self.pos_x, self.pos_y,
                          self.num, self.height() - self.pos_y * 2)  # 进度条区域
    painter.setPen(Qt.NoPen)
    painter.drawRect(rect_progress)
    # 绘制文字
    rect_text = QRect(self.pos_x, self.pos_y, self.width() - self.pos_x * 2,
                      self.height() - self.pos_y * 2)  # 文本区域
    painter.setPen(QColor(167, 216, 169))
    painter.setFont(QFont("SourceHanSansSC-Regular, SourceHanSansSC",
                          self.painter_size))
    painter.drawText(rect_text, Qt.AlignCenter, self.text)
    # 绘制图标
    fm = painter.fontMetrics()
    self.text_width = fm.horizontalAdvance(self.text)
    rect_icon = QRect(self.width() // 2 - self.text_width // 2 - self.painter_size,
                      self.height() // 2 - self.painter_size // 2,
                      self.painter_size, self.painter_size)  # 图标区域
    painter.drawImage(rect_icon, "icon.png")

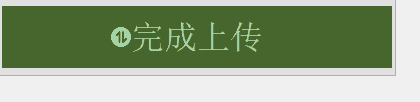

效果展示

完整代码

from PySide2.QtCore import QRect, Qt, Signal, QTimer
from PySide2.QtGui import QPainter, QBrush, QColor, QFont
from PySide2.QtWidgets import *
class ProgressButton(QPushButton):
    """
    用于HomeWin self.btn_FT ,self.btn_PT
    """
    demoSignal = Signal()
    def __init__(self, *args, **kwargs):
        super(ProgressButton, self).__init__(*args, **kwargs)
        self.num = 0
        self.painter_size = 15
        self.percent = 10
        self.text = ""  # 进度条文本
        self.text_width = 0  # 进度条文本实际宽度
        self.pos_x = 5  # 进度条x轴
        self.pos_y = 9  # 进度条y轴
        self.timer = QTimer()  # 创建定时器
        self.timer.timeout.connect(self.emitDemoSignal)
        self.demoSignal.connect(self.updateProgressBar)
    def paintEvent(self, event):
        super().paintEvent(event)
        if self.num == 0:
            self.text = "1000个文件正在传输"
            self.timer.start(1000)
        painter = QPainter(self)
        brush = QBrush(QColor(71, 102, 45, 255), Qt.SolidPattern)
        painter.setBrush(brush)
        # 绘制进度条
        rect_progress = QRect(self.pos_x, self.pos_y,
                              self.num, self.height() - self.pos_y * 2)  # 进度条区域
        painter.setPen(Qt.NoPen)
        painter.drawRect(rect_progress)
        # 绘制文字
        rect_text = QRect(self.pos_x, self.pos_y, self.width() - self.pos_x * 2,
                          self.height() - self.pos_y * 2)  # 文本区域
        painter.setPen(QColor(167, 216, 169))
        painter.setFont(QFont("SourceHanSansSC-Regular, SourceHanSansSC",
                              self.painter_size))
        painter.drawText(rect_text, Qt.AlignCenter, self.text)
        # 绘制图标
        fm = painter.fontMetrics()
        self.text_width = fm.horizontalAdvance(self.text)
        rect_icon = QRect(self.width() // 2 - self.text_width // 2 - self.painter_size,
                          self.height() // 2 - self.painter_size // 2,
                          self.painter_size, self.painter_size)  # 图标区域
        painter.drawImage(rect_icon, "icon.png")
    # 触发demoSignal
    def emitDemoSignal(self):
        self.demoSignal.emit()
    # 更新进度条
    def updateProgressBar(self):
        self.percent = (self.width() - self.pos_x * 2) / 20
        total = self.width() - self.pos_x * 2
        if self.num < total:
            if self.num + self.percent >= total:
                self.num = total
                self.text = "完成上传"
                self.timer.stop()
            else:
                self.num += self.percent
        self.update()
    # 更新字体以及图标大小
    def setPainterSize(self, size: int):
        self.painter_size = size
        self.update()
class Window(QWidget):
    def __init__(self):
        super().__init__()
        self.setWindowTitle("demo")
        self.resize(800, 800)
        self.setup_ui()
    def setup_ui(self):
        self.red_btn = ProgressButton(self)
        self.red_btn.resize(400, 80)
        self.red_btn.setPainterSize(20)
        self.red_btn.setStyleSheet("""
            border-color: transparents;
        """)
        self.red_btn.clicked.connect(self.restartProgress)
    def restartProgress(self):
        self.red_btn.num = 0
if __name__ == '__main__':
    import sys
    app = QApplication(sys.argv)
    window = Window()
    window.show()
    sys.exit(app.exec_())
