5.2 使用 Docker 构建并测试 Web 应用程序

5.2.1 构建 Sinatra 应用程序

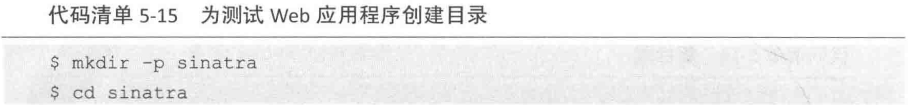

1. 创建目录

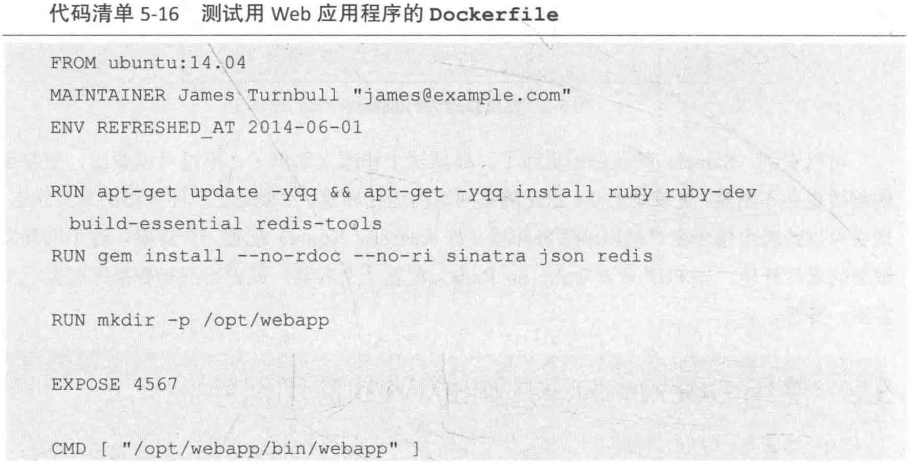

1. Dockerfile

FROM ubuntu:14.04
MAINTAINER James Turnbull "james@example.com"
ENV REFRESHED_AT 2014-06-01
RUN apt-get update -yqq && apt-get -yqq install ruby ruby-dev build-essential redis-tools
RUN gem install --no-rdoc --no-ri sinatra json redis
RUN mkdir -p /opt/webapp
EXPOSE 4567
CMD ["/opt/webapp/bin/webapp"]

1. 构建

$ sudo docker build -t jdxj/sinatra .
[sudo] jdxj 的密码：
Sending build context to Docker daemon  2.048kB
Step 1/8 : FROM ubuntu:14.04
 ---> df043b4f0cf1
Step 2/8 : MAINTAINER James Turnbull "james@example.com"
 ---> Using cache
 ...

5.2.2 创建 Sinatra 容器

启动:

$ sudo docker run -d -p 4567 --name webapp -v $PWD/webapp:/opt/webapp jdxj/sinatra
0f40c6838fa3803962ccd8383ca00af91993cd0532e97aa16a9a8e2d0ca6cb70

5.2.3 扩展 Sinatra 应用程序来使用 Redis

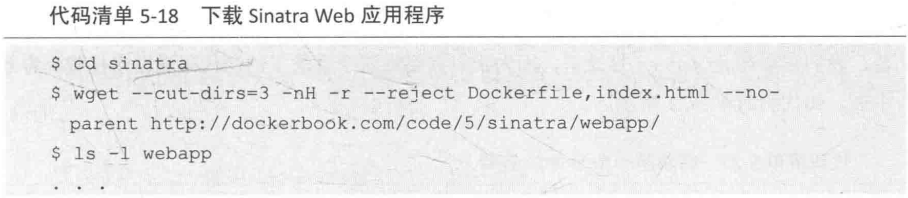

1. 升级我们的 Sinatra 应用程序

2. 构建 Redis 数据库镜像

• Dockerfile

• 构建

$ sudo docker build -t jdxj/redis .
Sending build context to Docker daemon  2.048kB
Step 1/7 : FROM ubuntu:18.04
 ---> 2c047404e52d
Step 2/7 : LABEL maintainer="james@example.com"
 ---> Using cache
 ---> 0bb3ff33e238
 ...

• 启动

$ sudo docker run -d -p 6379 --name redis_test jdxj/redis
0b786164c7f29fc6a47b21289758934c280664ddedddfa39eae167b8ab5cd1f3

5.2.4 将 Sinatra 应用程序连接到 Redis 容器

连接容器有几种方法:

• Docker 的内部网络 (不推荐)
• Docker 1.9 及之后, 可以使用 Docker Networking 以及 docker network 命令
• Docker 链接 (Docker link) (1.9 之前推荐)

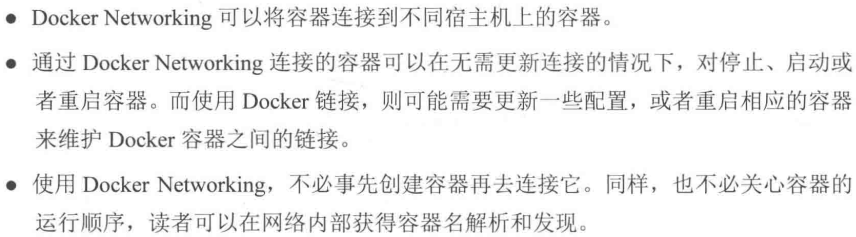

Docker Networking 和 Docker link 的区别:

5.2.5 Docker 内部连网

在安装 Docker 时, 会创建一个新的网络接口 docker0. 每个 Docker 容器都会在这个接口上分配一个 IP 地址.

docker0:

$ ip a show docker0
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:b4:dc:07:fa brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:b4ff:fedc:7fa/64 scope link
       valid_lft forever preferred_lft forever

• 内网地址范围: 172.16.0.0 - 172.31.255.255
• docker0 的分配范围: 172.16~172.30
• docker0 本身地址为: 172.17.0.1

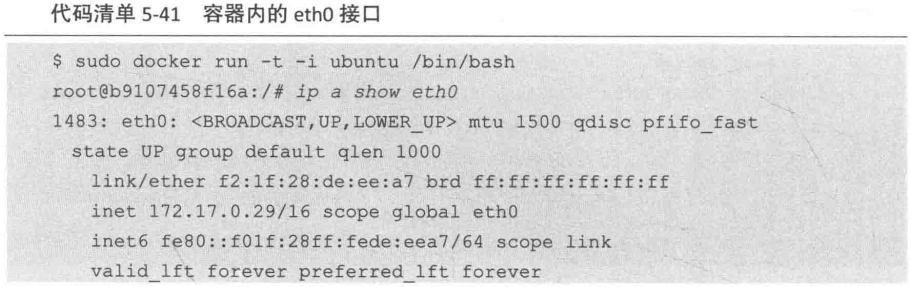

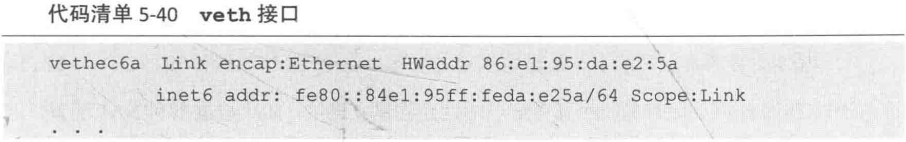

veth:

Docker 网络还有另一个部分配置才能允许建立连接:

• 防火墙规则
• NAT 配置

这些配置允许 Docker 在宿主网络和容器间路由.

查看宿主机上的 IPTables NAT 配置:

$ sudo iptables -t nat -L -n
[sudo] jdxj 的密码：
Chain PREROUTING (policy ACCEPT)
target     prot opt source               destination
DOCKER     all  --  0.0.0.0/0            0.0.0.0/0            ADDRTYPE match dst-type LOCAL
Chain INPUT (policy ACCEPT)
target     prot opt source               destination
Chain OUTPUT (policy ACCEPT)
target     prot opt source               destination
DOCKER     all  --  0.0.0.0/0           !127.0.0.0/8          ADDRTYPE match dst-type LOCAL
Chain POSTROUTING (policy ACCEPT)
target     prot opt source               destination
MASQUERADE  all  --  172.17.0.0/16        0.0.0.0/0
MASQUERADE  all  --  172.18.0.0/16        0.0.0.0/0
MASQUERADE  tcp  --  172.17.0.3           172.17.0.3           tcp dpt:80
MASQUERADE  tcp  --  172.17.0.4           172.17.0.4           tcp dpt:4567
MASQUERADE  tcp  --  172.17.0.5           172.17.0.5           tcp dpt:6379
Chain DOCKER (2 references)
target     prot opt source               destination
RETURN     all  --  0.0.0.0/0            0.0.0.0/0
RETURN     all  --  0.0.0.0/0            0.0.0.0/0
DNAT       tcp  --  0.0.0.0/0            0.0.0.0/0            tcp dpt:49154 to:172.17.0.3:80
DNAT       tcp  --  0.0.0.0/0            0.0.0.0/0            tcp dpt:49155 to:172.17.0.4:4567
DNAT       tcp  --  0.0.0.0/0            0.0.0.0/0            tcp dpt:49156 to:172.17.0.5:6379

网络相关阅读:

• Networking overview

Redis 容器的网络

$ sudo docker inspect redis_test
...
"NetworkSettings": {
            "Bridge": "",
            "SandboxID": "ad6246f985bdcbd0aa15ff5be19a013b28a962b3a3c3d744682719b32346a7b9",
            "HairpinMode": false,
            "LinkLocalIPv6Address": "",
            "LinkLocalIPv6PrefixLen": 0,
            "Ports": {
                "6379/tcp": [
                    {
                        "HostIp": "0.0.0.0",
                        "HostPort": "49157"
                    }
                ]
            },
            "SandboxKey": "/var/run/docker/netns/ad6246f985bd",
            "SecondaryIPAddresses": null,
            "SecondaryIPv6Addresses": null,
            "EndpointID": "ee4ecd535e5d2fd34d9a7d79843c774647860efa100afb937dd7098e7e6b7c3f",
            "Gateway": "172.17.0.1",
            "GlobalIPv6Address": "",
            "GlobalIPv6PrefixLen": 0,
            "IPAddress": "172.17.0.5",
            "IPPrefixLen": 16,
            "IPv6Gateway": "",
            "MacAddress": "02:42:ac:11:00:05",
            "Networks": {
                "bridge": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "NetworkID": "3c81845502810addebbfe15bc6e7db9309f5cf84acd4be2b9215a563c9f659c9",
                    "EndpointID": "ee4ecd535e5d2fd34d9a7d79843c774647860efa100afb937dd7098e7e6b7c3f",
                    "Gateway": "172.17.0.1",
                    "IPAddress": "172.17.0.5",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "02:42:ac:11:00:05",
                    "DriverOpts": null
                }
            }
        }
...

这种容器互联方案有两个问题:

• 应用程序要对 Redis 容器 IP 地址做硬编码
• 重启容器后 Redis 容器 IP 会变化

5.2.6 Docker Networking

1. 创建 Docker 网络
   1. 桥接网络

$ sudo docker network create app
[sudo] jdxj 的密码：
de1722dc3cb119e39338fa56be68674df1b8d230ee89821f7ed87a4713766a68

查看新创建的网络:

$ sudo docker network inspect app
[
    {
        "Name": "app",
        "Id": "de1722dc3cb119e39338fa56be68674df1b8d230ee89821f7ed87a4713766a68",
        "Created": "2021-01-15T15:09:39.40914087+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": {},
            "Config": [
                {
                    "Subnet": "172.19.0.0/16",
                    "Gateway": "172.19.0.1"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {},
        "Options": {},
        "Labels": {}
    }
]

overlay 网络允许跨多台宿主机进行通信:

• Networking with overlay networks

列出所有网络:

$ sudo docker network ls
NETWORK ID     NAME       DRIVER    SCOPE
de1722dc3cb1   app        bridge    local
3c8184550281   bridge     bridge    local
0c2e0f70fb87   host       host      local
52b9fca4051b   localnet   bridge    local
aa57e57f4d0c   none       null      local

1. 向 app 网络中添加容器

redis:

$ sudo docker run -d --net=app --name db jdxj/redis
172eb42594462ec1c22f0b818edd5c1f388a8c5a1ef628bfad76ce88bd858ba1

webapp:

$ sudo docker run -p 4567 --net=app --name webapp -t -i -v $PWD/webapp:/opt/webapp jdxj/sinatra /bin/bash
root@4623e133fbb8:/#

查看 hosts:

root@4623e133fbb8:/# cat /etc/hosts
127.0.0.1    localhost
::1    localhost ip6-localhost ip6-loopback
fe00::0    ip6-localnet
ff00::0    ip6-mcastprefix
ff02::1    ip6-allnodes
ff02::2    ip6-allrouters
172.19.0.3    4623e133fbb8
root@4623e133fbb8:/#

1. 将已有容器连接到 Docker 网络

$ sudo docker network connect app db2

断开:

$ sudo docker network disconnect app db2

2. 通过 Docker 链接连接容器

1.9版本之前的选择.

低于1.9版本的使用:

• 只能工作于同一台 Docker 宿主机中

#                                             容器名:链接名
$ sudo docker run -p 4567 --name webapp --link redis:db -t -i \
-v $PWD/webapp_redis:/opt/webapp jamtur01/sinatra /bin/bash

5.2.7 使用容器连接来通信

有两种方法可以让应用程序连接到 Redis.

• 环境变量
• DNS 和 /etc/hosts 信息

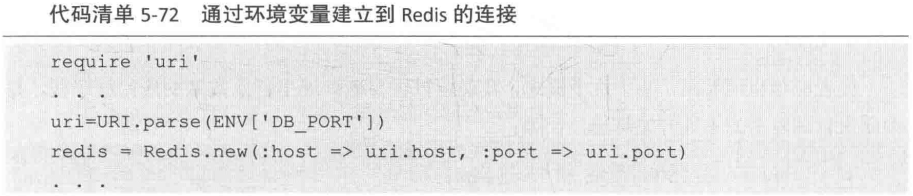

环境变量:

DNS:

5.2.8 连接容器小结
