Orz 最近碰到的几道题都是用到了它，出师不利2333

IO_FILE相关结构

覆盖 _IO_list_all (全局变量) 指向伪造的结构，然后改写 vtable 指针来 getshell
FILE 结构在程序执行 fopen 的时候动态创建并且分配在堆中

_IO_FILE 结构体

  1. struct _IO_FILE {
  2.   int _flags;       /* High-order word is _IO_MAGIC; rest is flags. */
  3. #define _IO_file_flags _flags
  4.   /* The following pointers correspond to the C++ streambuf protocol. */
  5.   /* Note:  Tk uses the _IO_read_ptr and _IO_read_end fields directly. */
  6.   char* _IO_read_ptr;   /* Current read pointer */
  7.   char* _IO_read_end;   /* End of get area. */
  8.   char* _IO_read_base;  /* Start of putback+get area. */
  9.   char* _IO_write_base; /* Start of put area. */
  10.   char* _IO_write_ptr;  /* Current put pointer. */
  11.   char* _IO_write_end;  /* End of put area. */
  12.   char* _IO_buf_base;   /* Start of reserve area. */
  13.   char* _IO_buf_end;    /* End of reserve area. */
  14.   /* The following fields are used to support backing up and undo. */
  15.   char *_IO_save_base; /* Pointer to start of non-current get area. */
  16.   char *_IO_backup_base;  /* Pointer to first valid character of backup area */
  17.   char *_IO_save_end; /* Pointer to end of non-current get area. */
  19.   struct _IO_marker *_markers;
  21.   struct _IO_FILE *_chain;
  23.   int _fileno;
  24. #if 0
  25.   int _blksize;
  26. #else
  27.   int _flags2;
  28. #endif
  29.   _IO_off_t _old_offset; /* This used to be _offset but it's too small.  */
  31. #define __HAVE_COLUMN /* temporary */
  32.   /* 1+column number of pbase(); 0 is unknown. */
  33.   unsigned short _cur_column;
  34.   signed char _vtable_offset;
  35.   char _shortbuf[1];
  37.   /*  char* _save_gptr;  char* _save_egptr; */
  39.   _IO_lock_t *_lock;
  40. #ifdef _IO_USE_OLD_IO_FILE
  41. };

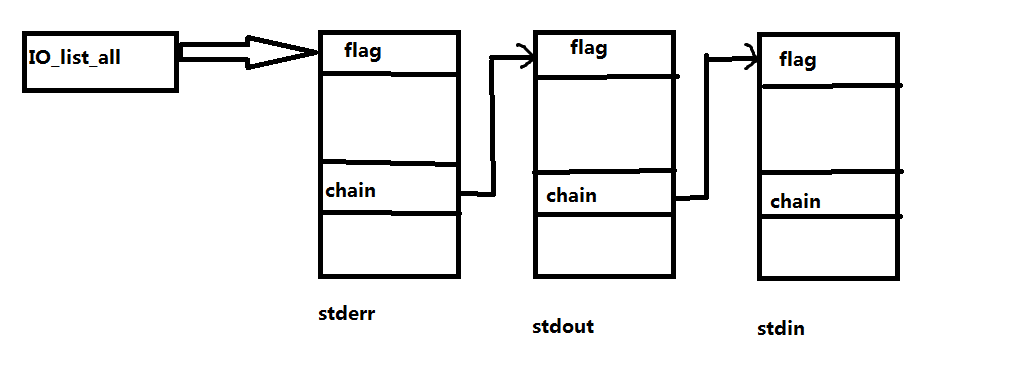

然后通过 _chain 连接成一个链表，全局变量 _IO_list_all 指向链表头部

IO_FILE相关 - 图1

实际上在 IO_FILE 结构体是包含在一个叫 _IO_FILE_plus 中的

  1. struct _IO_FILE_plus
  2. {
  3.     _IO_FILE    file;
  4.     IO_jump_t   *vtable;
  5. }

里面还有个 IO_jump_t 类型的指针 vtable

  1. struct _IO_jump_t
  2. {
  3.     JUMP_FIELD(size_t, __dummy);
  4.     JUMP_FIELD(size_t, __dummy2);
  5.     JUMP_FIELD(_IO_finish_t, __finish);
  6.     JUMP_FIELD(_IO_overflow_t, __overflow);
  7.     JUMP_FIELD(_IO_underflow_t, __underflow);
  8.     JUMP_FIELD(_IO_underflow_t, __uflow);
  9.     JUMP_FIELD(_IO_pbackfail_t, __pbackfail);
  10.     /* showmany */
  11.     JUMP_FIELD(_IO_xsputn_t, __xsputn);
  12.     JUMP_FIELD(_IO_xsgetn_t, __xsgetn);
  13.     JUMP_FIELD(_IO_seekoff_t, __seekoff);
  14.     JUMP_FIELD(_IO_seekpos_t, __seekpos);
  15.     JUMP_FIELD(_IO_setbuf_t, __setbuf);
  16.     JUMP_FIELD(_IO_sync_t, __sync);
  17.     JUMP_FIELD(_IO_doallocate_t, __doallocate);
  18.     JUMP_FIELD(_IO_read_t, __read);
  19.     JUMP_FIELD(_IO_write_t, __write);
  20.     JUMP_FIELD(_IO_seek_t, __seek);
  21.     JUMP_FIELD(_IO_close_t, __close);
  22.     JUMP_FIELD(_IO_stat_t, __stat);
  23.     JUMP_FIELD(_IO_showmanyc_t, __showmanyc);
  24.     JUMP_FIELD(_IO_imbue_t, __imbue);
  25. #if 0
  26.     get_column;
  27.     set_column;
  28. #endif
  29. };

伪造 vtable 劫持程序流程

linux 中常见的 IO 函数都需要经过 FILE 结构体进行处理，尤其是 IO_FILE_plus 结构体中的 vtable，一些函数会取出 vtable 中的指针进行调用

所以这种攻击方法的核心思想是：对 _IO_FILE_plus 的 vtable 动手脚，通过把 vtable 指向我们控制的内存，并在其中布置函数指针来实现

攻击方法有两种：一种是通过任意地址写改写 vtable 中的函数指针
一种是覆盖 vtable 的指针指向我们控制的内存，然后在上面布置函数指针

FSOP

前面的 house of orange 用的就是这种方法来 getshell 的
