前言

整个Kubernetes技术体系由声明式API以及Controller构成，而kube-apiserver是Kubernetes的声明式api server，并为其它组件交互提供了桥梁。因此加深对kube-apiserver的理解就显得至关重要。

声明式api提供了一种面向终态自动化的能力，即告诉它我想要什么样的结果，系统将自动向目标方向演进。

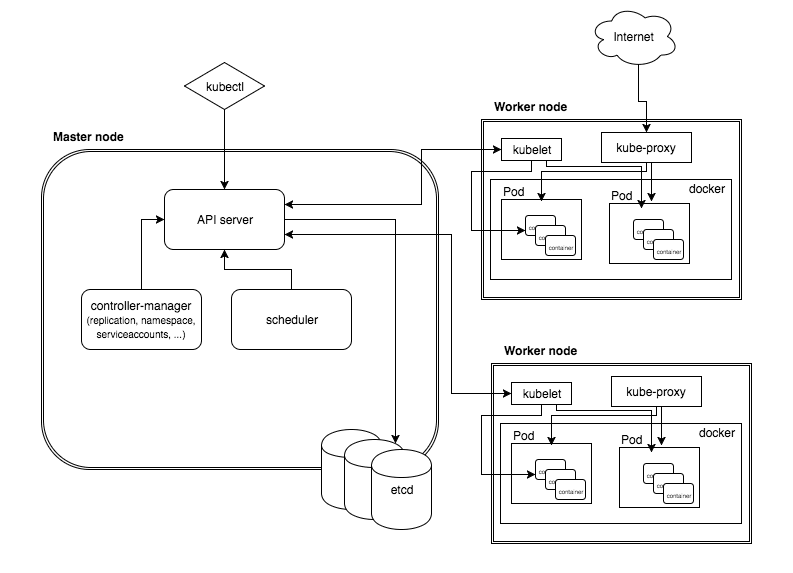

kubernetes apiserver 原理概览 - 图1

整体组件功能

kube-apiserver作为整个Kubernetes集群操作etcd的唯一入口，负责Kubernetes各资源的认证&鉴权，校验以及CRUD等操作，提供RESTful APIs，供其它组件调用：
kubernetes apiserver 原理概览 - 图2
上图大致分为三部分：

  • RESTful APIs ：为外部提供访问、操作入口
  • Filter Chain：过滤一些不合法的请求
  • Registry：字面意思为注册、登记。什么意思？带着疑问继续往后看。

三种APIServer

为了便于拓展、升级，将庞大的kube-apiserver组件功能进行解耦，kube-apiserver设计了三种APIServer：

服务名 概述 对象管理 资源注册表
KubeAPIServer 核心服务，提供k8s内置核心资源服务，不允许开发者随意修改，如：Pod，Service等 Master Legacyscheme.Scheme
APIExtensionsServer API扩展服务，该服务提供了CRD自定义资源服务 CustomResourceDefinitions extensionsapiserver.Scheme
AggregatorServer API聚合服务，提供了聚合服务 APIAggregator aggregatorscheme.Scheme

其中

  • aggregatorServer：负责处理 apiregistration.k8s.io 组下的APIService资源请求，同时将来自用户的请求拦截转发给aggregated server(AA)
  • kubeAPIServer：负责对请求的一些通用处理，包括：认证、鉴权以及各个内建资源(pod, deployment，service and etc)的REST服务等
  • apiExtensionsServer：负责CustomResourceDefinition（CRD）apiResources以及apiVersions的注册，同时处理CRD以及相应CustomResource（CR）的REST请求(如果对应CR不能被处理的话则会返回404)，也是apiserver Delegation的最后一环

三种服务底层都依赖GenericAPIServer，通过GenericAPIServer可以将k8s资源与rest api进行映射

访问APIServer

集群中各个组件访问APIServer通过service，那么就需要有一个组件来创建并维护这个service，它就是bootstrap-controller

bootstrap-controller

  • apiserver bootstrap-controller创建&运行逻辑在pkg/controlplane/controller.go
  • bootstrap-controller主要用于创建以及维护内部kubernetes default apiserver service
  • kubernetes default apiserver service spec.selector为空，这是default apiserver service与其它正常service的最大区别，表明了这个特殊的service对应的endpoints不由endpoints controller控制，而是直接受kube-apiserver bootstrap-controller管理(maintained by this code, not by the pod selector)
  • bootstrap-controller的几个主要功能如下：
    • 创建 default、kube-system 和 kube-public 以及 kube-node-lease 命名空间
    • 创建&维护kubernetes default apiserver service以及对应的endpoint
    • 提供基于Service ClusterIP的检查及修复功能(—service-cluster-ip-range指定范围)
    • 提供基于Service NodePort的检查及修复功能(—service-node-port-range指定范围) ```go // PostStartHook initiates the core controller loops that must exist for bootstrapping. func (c *Controller) PostStartHook(hookContext genericapiserver.PostStartHookContext) error { c.Start() return nil }

// k8s.io/kubernetes/pkg/master/controller.go:142 // Start begins the core controller loops that must exist for bootstrapping // a cluster. func (c *Controller) Start() { if c.runner != nil { return }

  1. // Reconcile during first run removing itself until server is ready.
  2. endpointPorts := createEndpointPortSpec(c.PublicServicePort, "https", c.ExtraEndpointPorts)
  3. if err := c.EndpointReconciler.RemoveEndpoints(kubernetesServiceName, c.PublicIP, endpointPorts); err != nil {
  4.     klog.Errorf("Unable to remove old endpoints from kubernetes service: %v", err)
  5. }
  7. repairClusterIPs := servicecontroller.NewRepair(c.ServiceClusterIPInterval, c.ServiceClient, c.EventClient, &c.ServiceClusterIPRange, c.ServiceClusterIPRegistry, &c.SecondaryServiceClusterIPRange, c.SecondaryServiceClusterIPRegistry)
  8. repairNodePorts := portallocatorcontroller.NewRepair(c.ServiceNodePortInterval, c.ServiceClient, c.EventClient, c.ServiceNodePortRange, c.ServiceNodePortRegistry)
  10. // run all of the controllers once prior to returning from Start.
  11. if err := repairClusterIPs.RunOnce(); err != nil {
  12.     // If we fail to repair cluster IPs apiserver is useless. We should restart and retry.
  13.     klog.Fatalf("Unable to perform initial IP allocation check: %v", err)
  14. }
  15. if err := repairNodePorts.RunOnce(); err != nil {
  16.     // If we fail to repair node ports apiserver is useless. We should restart and retry.
  17.     klog.Fatalf("Unable to perform initial service nodePort check: %v", err)
  18. }
  20. // 定期执行bootstrap controller主要的四个功能(reconciliation)
  21. c.runner = async.NewRunner(c.RunKubernetesNamespaces, c.RunKubernetesService, repairClusterIPs.RunUntil, repairNodePorts.RunUntil)
  22. c.runner.Start()

}

// NewRunner makes a runner for the given function(s). The function(s) should loop until // the channel is closed. func NewRunner(f …func(stop chan struct{})) *Runner { return &Runner{loopFuncs: f} }

// Start begins running. func (r Runner) Start() { r.lock.Lock() defer r.lock.Unlock() if r.stop == nil { c := make(chan struct{}) r.stop = &c for i := range r.loopFuncs { go r.loopFuncs[i](r.stop) } } }


<a name="HcF7v"></a>
## kubeAPIServer
KubeAPIServer主要提供对内建API Resources的操作请求，为Kubernetes中各API Resources注册路由信息，同时暴露RESTful API，使集群中以及集群外的服务都可以通过RESTful API操作Kubernetes中的资源<br />另外，kubeAPIServer是整个Kubernetes apiserver的核心，下面将要讲述的aggregatorServer以及apiExtensionsServer都是建立在kubeAPIServer基础上进行扩展的(补充了Kubernetes对用户自定义资源的能力支持)

<a name="tO1ow"></a>
### 注册路由
kubeAPIServer最核心的功能是为Kubernetes内置资源添加路由，如下：

- 调用 `m.InstallLegacyAPI` 将核心 API Resources添加到路由中，在apiserver中即是以 /api 开头的 resource；
- 调用 `m.InstallAPIs` 将扩展的 API Resources添加到路由中，在apiserver中即是以 /apis 开头的 resource；

代码位于`pkg/controlplane/instance.go`
```go
// k8s.io/kubernetes/pkg/master/master.go:332
// New returns a new instance of Master from the given config.
// Certain config fields will be set to a default value if unset.
// Certain config fields must be specified, including:
//   KubeletClientConfig
func (c completedConfig) New(delegationTarget genericapiserver.DelegationTarget) (*Master, error) {
    // 1、初始化GenericAPIServer
    s, err := c.GenericConfig.New("kube-apiserver", delegationTarget)
    if err != nil {
        return nil, err
    }

    // 2、注册logs相关路由
    if c.ExtraConfig.EnableLogsSupport {
        routes.Logs{}.Install(s.Handler.GoRestfulContainer)
    }
    ...
    m := &Master{
        GenericAPIServer:          s,
        ClusterAuthenticationInfo: c.ExtraConfig.ClusterAuthenticationInfo,
    }

    // 3、安装 LegacyAPI(core API)
    // install legacy rest storage
    if c.ExtraConfig.APIResourceConfigSource.VersionEnabled(apiv1.SchemeGroupVersion) {
        legacyRESTStorageProvider := corerest.LegacyRESTStorageProvider{
            StorageFactory:              c.ExtraConfig.StorageFactory,
            ProxyTransport:              c.ExtraConfig.ProxyTransport,
            KubeletClientConfig:         c.ExtraConfig.KubeletClientConfig,
            EventTTL:                    c.ExtraConfig.EventTTL,
            ServiceIPRange:              c.ExtraConfig.ServiceIPRange,
            SecondaryServiceIPRange:     c.ExtraConfig.SecondaryServiceIPRange,
            ServiceNodePortRange:        c.ExtraConfig.ServiceNodePortRange,
            LoopbackClientConfig:        c.GenericConfig.LoopbackClientConfig,
            ServiceAccountIssuer:        c.ExtraConfig.ServiceAccountIssuer,
            ServiceAccountMaxExpiration: c.ExtraConfig.ServiceAccountMaxExpiration,
            APIAudiences:                c.GenericConfig.Authentication.APIAudiences,
        }
        if err := m.InstallLegacyAPI(&c, c.GenericConfig.RESTOptionsGetter, legacyRESTStorageProvider); err != nil {
            return nil, err
        }
    }

    // The order here is preserved in discovery.
    // If resources with identical names exist in more than one of these groups (e.g. "deployments.apps"" and "deployments.extensions"),
    // the order of this list determines which group an unqualified resource name (e.g. "deployments") should prefer.
    // This priority order is used for local discovery, but it ends up aggregated in `k8s.io/kubernetes/cmd/kube-apiserver/app/aggregator.go
    // with specific priorities.
    // TODO: describe the priority all the way down in the RESTStorageProviders and plumb it back through the various discovery
    // handlers that we have.
    restStorageProviders := []RESTStorageProvider{
        auditregistrationrest.RESTStorageProvider{},
        authenticationrest.RESTStorageProvider{Authenticator: c.GenericConfig.Authentication.Authenticator, APIAudiences: c.GenericConfig.Authentication.APIAudiences},
        authorizationrest.RESTStorageProvider{Authorizer: c.GenericConfig.Authorization.Authorizer, RuleResolver: c.GenericConfig.RuleResolver},
        autoscalingrest.RESTStorageProvider{},
        batchrest.RESTStorageProvider{},
        certificatesrest.RESTStorageProvider{},
        coordinationrest.RESTStorageProvider{},
        discoveryrest.StorageProvider{},
        extensionsrest.RESTStorageProvider{},
        networkingrest.RESTStorageProvider{},
        noderest.RESTStorageProvider{},
        policyrest.RESTStorageProvider{},
        rbacrest.RESTStorageProvider{Authorizer: c.GenericConfig.Authorization.Authorizer},
        schedulingrest.RESTStorageProvider{},
        settingsrest.RESTStorageProvider{},
        storagerest.RESTStorageProvider{},
        flowcontrolrest.RESTStorageProvider{},
        // keep apps after extensions so legacy clients resolve the extensions versions of shared resource names.
        // See https://github.com/kubernetes/kubernetes/issues/42392
        appsrest.RESTStorageProvider{},
        admissionregistrationrest.RESTStorageProvider{},
        eventsrest.RESTStorageProvider{TTL: c.ExtraConfig.EventTTL},
    }
    // 4、安装 APIs(named groups apis)
    if err := m.InstallAPIs(c.ExtraConfig.APIResourceConfigSource, c.GenericConfig.RESTOptionsGetter, restStorageProviders...); err != nil {
        return nil, err
    }

    if c.ExtraConfig.Tunneler != nil {
        m.installTunneler(c.ExtraConfig.Tunneler, corev1client.NewForConfigOrDie(c.GenericConfig.LoopbackClientConfig).Nodes())
    }

    m.GenericAPIServer.AddPostStartHookOrDie("start-cluster-authentication-info-controller", func(hookContext genericapiserver.PostStartHookContext) error {
        kubeClient, err := kubernetes.NewForConfig(hookContext.LoopbackClientConfig)
        if err != nil {
            return err
        }
        controller := clusterauthenticationtrust.NewClusterAuthenticationTrustController(m.ClusterAuthenticationInfo, kubeClient)

        // prime values and start listeners
        if m.ClusterAuthenticationInfo.ClientCA != nil {
            if notifier, ok := m.ClusterAuthenticationInfo.ClientCA.(dynamiccertificates.Notifier); ok {
                notifier.AddListener(controller)
            }
            if controller, ok := m.ClusterAuthenticationInfo.ClientCA.(dynamiccertificates.ControllerRunner); ok {
                // runonce to be sure that we have a value.
                if err := controller.RunOnce(); err != nil {
                    runtime.HandleError(err)
                }
                go controller.Run(1, hookContext.StopCh)
            }
        }
        if m.ClusterAuthenticationInfo.RequestHeaderCA != nil {
            if notifier, ok := m.ClusterAuthenticationInfo.RequestHeaderCA.(dynamiccertificates.Notifier); ok {
                notifier.AddListener(controller)
            }
            if controller, ok := m.ClusterAuthenticationInfo.RequestHeaderCA.(dynamiccertificates.ControllerRunner); ok {
                // runonce to be sure that we have a value.
                if err := controller.RunOnce(); err != nil {
                    runtime.HandleError(err)
                }
                go controller.Run(1, hookContext.StopCh)
            }
        }

        go controller.Run(1, hookContext.StopCh)
        return nil
    })

    return m, nil
}

整个kubeAPIServer提供了三类API Resource接口：

  • core group：主要在 /api/v1 下；
  • named groups：其 path 为 /apis/$GROUP/$VERSION；
  • 系统状态的一些 API：如/metrics 、/version 等；

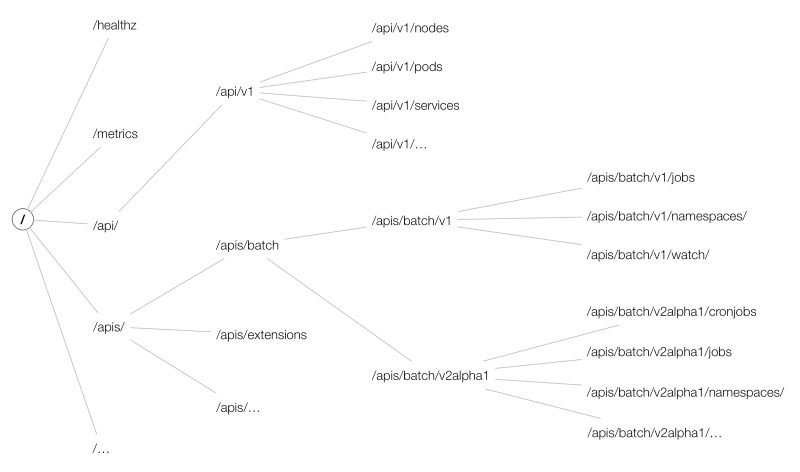

而API的URL大致以 /apis/{group}/{version}/namespaces/{namespace}/resource/{name} 组成，结构如下图所示：
kubeAPIServer会为每种API资源创建对应的RESTStorage，RESTStorage的目的是将每种资源的访问路径及其后端存储的操作对应起来：通过构造的REST Storage实现的接口判断该资源可以执行哪些操作（如：create、update等），将其对应的操作存入到action中，每一个操作对应一个标准的REST method，如create对应REST method为POST，而update对应REST method为PUT。最终根据actions数组依次遍历，对每一个操作添加一个handler(handler对应REST Storage实现的相关接口)，并注册到route，最终对外提供RESTful API，如下：

在上文中提到的InstallLegacyAPI方法中创建对应的RESTStorage,随后进行关联，调用链路如下：

m.GenericAPIServer.InstallLegacyAPIGroup --> s.installAPIResources --> apiGroupVersion.InstallREST --> installer.Install --> a.registerResourceHandlers
将路由和RESTStorage对象关联起来

// m.GenericAPIServer.InstallLegacyAPIGroup --> s.installAPIResources --> apiGroupVersion.InstallREST --> installer.Install --> a.registerResourceHandlers

// k8s.io/kubernetes/pkg/registry/core/rest/storage_core.go:102
func (c LegacyRESTStorageProvider) NewLegacyRESTStorage(restOptionsGetter generic.RESTOptionsGetter) (LegacyRESTStorage, genericapiserver.APIGroupInfo, error) {
    apiGroupInfo := genericapiserver.APIGroupInfo{
        PrioritizedVersions:          legacyscheme.Scheme.PrioritizedVersionsForGroup(""),
        VersionedResourcesStorageMap: map[string]map[string]rest.Storage{},
        Scheme:                       legacyscheme.Scheme,
        ParameterCodec:               legacyscheme.ParameterCodec,
        NegotiatedSerializer:         legacyscheme.Codecs,
    }

    ...
    // 1、LegacyAPI 下的 resource RESTStorage 的初始化
    restStorage := LegacyRESTStorage{}

    podTemplateStorage, err := podtemplatestore.NewREST(restOptionsGetter)
    if err != nil {
        return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
    }
    ...
    endpointsStorage, err := endpointsstore.NewREST(restOptionsGetter)
    if err != nil {
        return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
    }

    nodeStorage, err := nodestore.NewStorage(restOptionsGetter, c.KubeletClientConfig, c.ProxyTransport)
    if err != nil {
        return LegacyRESTStorage{}, genericapiserver.APIGroupInfo{}, err
    }

    // 2、pod RESTStorage 的初始化
    podStorage, err := podstore.NewStorage(
        restOptionsGetter,
        nodeStorage.KubeletConnectionInfo,
        c.ProxyTransport,
        podDisruptionClient,
    )
    ...

    // 3、restStorageMap 保存 resource http path 与 RESTStorage 对应关系
    restStorageMap := map[string]rest.Storage{
        "pods":             podStorage.Pod,
        "pods/attach":      podStorage.Attach,
        "pods/status":      podStorage.Status,
        "pods/log":         podStorage.Log,
        "pods/exec":        podStorage.Exec,
        "pods/portforward": podStorage.PortForward,
        "pods/proxy":       podStorage.Proxy,
        "pods/binding":     podStorage.Binding,
        "bindings":         podStorage.LegacyBinding,

        "podTemplates": podTemplateStorage,

        "replicationControllers":        controllerStorage.Controller,
        "replicationControllers/status": controllerStorage.Status,

        "services":        serviceRest,
        "services/proxy":  serviceRestProxy,
        "services/status": serviceStatusStorage,

        "endpoints": endpointsStorage,

        "nodes":        nodeStorage.Node,
        "nodes/status": nodeStorage.Status,
        "nodes/proxy":  nodeStorage.Proxy,

        "events": eventStorage,

        "limitRanges":                   limitRangeStorage,
        "resourceQuotas":                resourceQuotaStorage,
        "resourceQuotas/status":         resourceQuotaStatusStorage,
        "namespaces":                    namespaceStorage,
        "namespaces/status":             namespaceStatusStorage,
        "namespaces/finalize":           namespaceFinalizeStorage,
        "secrets":                       secretStorage,
        "serviceAccounts":               serviceAccountStorage,
        "persistentVolumes":             persistentVolumeStorage,
        "persistentVolumes/status":      persistentVolumeStatusStorage,
        "persistentVolumeClaims":        persistentVolumeClaimStorage,
        "persistentVolumeClaims/status": persistentVolumeClaimStatusStorage,
        "configMaps":                    configMapStorage,

        "componentStatuses": componentstatus.NewStorage(componentStatusStorage{c.StorageFactory}.serversToValidate),
    }
    apiGroupInfo.VersionedResourcesStorageMap["v1"] = restStorageMap

    return restStorage, apiGroupInfo, nil
}

// k8s.io/kubernetes/pkg/registry/core/pod/storage/storage.go:70
// NewStorage returns a RESTStorage object that will work against pods.
func NewStorage(optsGetter generic.RESTOptionsGetter, k client.ConnectionInfoGetter, proxyTransport http.RoundTripper, podDisruptionBudgetClient policyclient.PodDisruptionBudgetsGetter) (PodStorage, error) {

    store := &genericregistry.Store{
        NewFunc:                  func() runtime.Object { return &api.Pod{} },
        NewListFunc:              func() runtime.Object { return &api.PodList{} },
        PredicateFunc:            registrypod.MatchPod,
        DefaultQualifiedResource: api.Resource("pods"),

        CreateStrategy:      registrypod.Strategy,
        UpdateStrategy:      registrypod.Strategy,
        DeleteStrategy:      registrypod.Strategy,
        ReturnDeletedObject: true,

        TableConvertor: printerstorage.TableConvertor{TableGenerator: printers.NewTableGenerator().With(printersinternal.AddHandlers)},
    }
    options := &generic.StoreOptions{
        RESTOptions: optsGetter,
        AttrFunc:    registrypod.GetAttrs,
        TriggerFunc: map[string]storage.IndexerFunc{"spec.nodeName": registrypod.NodeNameTriggerFunc},
        Indexers:    registrypod.Indexers(),
    }
    // 调用 store.CompleteWithOptions
    if err := store.CompleteWithOptions(options); err != nil {
        return PodStorage{}, err
    }

    statusStore := *store
    statusStore.UpdateStrategy = registrypod.StatusStrategy
    ephemeralContainersStore := *store
    ephemeralContainersStore.UpdateStrategy = registrypod.EphemeralContainersStrategy

    bindingREST := &BindingREST{store: store}
    // PodStorage 对象
    return PodStorage{
        Pod:                 &REST{store, proxyTransport},
        Binding:             &BindingREST{store: store},
        LegacyBinding:       &LegacyBindingREST{bindingREST},
        Eviction:            newEvictionStorage(store, podDisruptionBudgetClient),
        Status:              &StatusREST{store: &statusStore},
        EphemeralContainers: &EphemeralContainersREST{store: &ephemeralContainersStore},
        Log:                 &podrest.LogREST{Store: store, KubeletConn: k},
        Proxy:               &podrest.ProxyREST{Store: store, ProxyTransport: proxyTransport},
        Exec:                &podrest.ExecREST{Store: store, KubeletConn: k},
        Attach:              &podrest.AttachREST{Store: store, KubeletConn: k},
        PortForward:         &podrest.PortForwardREST{Store: store, KubeletConn: k},
    }, nil
}

// k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/endpoints/installer.go:181
func (a *APIInstaller) registerResourceHandlers(path string, storage rest.Storage, ws *restful.WebService) (*metav1.APIResource, error) {
    ...

    // 1、判断该 resource 实现了哪些 REST 操作接口，以此来判断其支持的 verbs 以便为其添加路由
    // what verbs are supported by the storage, used to know what verbs we support per path
    creater, isCreater := storage.(rest.Creater)
    namedCreater, isNamedCreater := storage.(rest.NamedCreater)
    lister, isLister := storage.(rest.Lister)
    getter, isGetter := storage.(rest.Getter)
    getterWithOptions, isGetterWithOptions := storage.(rest.GetterWithOptions)
    gracefulDeleter, isGracefulDeleter := storage.(rest.GracefulDeleter)
    collectionDeleter, isCollectionDeleter := storage.(rest.CollectionDeleter)
    updater, isUpdater := storage.(rest.Updater)
    patcher, isPatcher := storage.(rest.Patcher)
    watcher, isWatcher := storage.(rest.Watcher)
    connecter, isConnecter := storage.(rest.Connecter)
    storageMeta, isMetadata := storage.(rest.StorageMetadata)
    storageVersionProvider, isStorageVersionProvider := storage.(rest.StorageVersionProvider)

    ...
    // 2、为 resource 添加对应的 actions(+根据是否支持 namespace)
    // Get the list of actions for the given scope.
    switch {
    case !namespaceScoped:
        // Handle non-namespace scoped resources like nodes.
        resourcePath := resource
        resourceParams := params
        itemPath := resourcePath + "/{name}"
        nameParams := append(params, nameParam)
        proxyParams := append(nameParams, pathParam)
        suffix := ""
        if isSubresource {
            suffix = "/" + subresource
            itemPath = itemPath + suffix
            resourcePath = itemPath
            resourceParams = nameParams
        }
        apiResource.Name = path
        apiResource.Namespaced = false
        apiResource.Kind = resourceKind
        namer := handlers.ContextBasedNaming{
            SelfLinker:         a.group.Linker,
            ClusterScoped:      true,
            SelfLinkPathPrefix: gpath.Join(a.prefix, resource) + "/",
            SelfLinkPathSuffix: suffix,
        }

        // Handler for standard REST verbs (GET, PUT, POST and DELETE).
        // Add actions at the resource path: /api/apiVersion/resource
        actions = appendIf(actions, action{"LIST", resourcePath, resourceParams, namer, false}, isLister)
        actions = appendIf(actions, action{"POST", resourcePath, resourceParams, namer, false}, isCreater)
        actions = appendIf(actions, action{"DELETECOLLECTION", resourcePath, resourceParams, namer, false}, isCollectionDeleter)
        // DEPRECATED in 1.11
        actions = appendIf(actions, action{"WATCHLIST", "watch/" + resourcePath, resourceParams, namer, false}, allowWatchList)

        // Add actions at the item path: /api/apiVersion/resource/{name}
        actions = appendIf(actions, action{"GET", itemPath, nameParams, namer, false}, isGetter)
        if getSubpath {
            actions = appendIf(actions, action{"GET", itemPath + "/{path:*}", proxyParams, namer, false}, isGetter)
        }
        actions = appendIf(actions, action{"PUT", itemPath, nameParams, namer, false}, isUpdater)
        actions = appendIf(actions, action{"PATCH", itemPath, nameParams, namer, false}, isPatcher)
        actions = appendIf(actions, action{"DELETE", itemPath, nameParams, namer, false}, isGracefulDeleter)
        // DEPRECATED in 1.11
        actions = appendIf(actions, action{"WATCH", "watch/" + itemPath, nameParams, namer, false}, isWatcher)
        actions = appendIf(actions, action{"CONNECT", itemPath, nameParams, namer, false}, isConnecter)
        actions = appendIf(actions, action{"CONNECT", itemPath + "/{path:*}", proxyParams, namer, false}, isConnecter && connectSubpath)
    default:
        namespaceParamName := "namespaces"
        // Handler for standard REST verbs (GET, PUT, POST and DELETE).
        namespaceParam := ws.PathParameter("namespace", "object name and auth scope, such as for teams and projects").DataType("string")
        namespacedPath := namespaceParamName + "/{namespace}/" + resource
        namespaceParams := []*restful.Parameter{namespaceParam}

        resourcePath := namespacedPath
        resourceParams := namespaceParams
        itemPath := namespacedPath + "/{name}"
        nameParams := append(namespaceParams, nameParam)
        proxyParams := append(nameParams, pathParam)
        itemPathSuffix := ""
        if isSubresource {
            itemPathSuffix = "/" + subresource
            itemPath = itemPath + itemPathSuffix
            resourcePath = itemPath
            resourceParams = nameParams
        }
        apiResource.Name = path
        apiResource.Namespaced = true
        apiResource.Kind = resourceKind
        namer := handlers.ContextBasedNaming{
            SelfLinker:         a.group.Linker,
            ClusterScoped:      false,
            SelfLinkPathPrefix: gpath.Join(a.prefix, namespaceParamName) + "/",
            SelfLinkPathSuffix: itemPathSuffix,
        }

        actions = appendIf(actions, action{"LIST", resourcePath, resourceParams, namer, false}, isLister)
        actions = appendIf(actions, action{"POST", resourcePath, resourceParams, namer, false}, isCreater)
        actions = appendIf(actions, action{"DELETECOLLECTION", resourcePath, resourceParams, namer, false}, isCollectionDeleter)
        // DEPRECATED in 1.11
        actions = appendIf(actions, action{"WATCHLIST", "watch/" + resourcePath, resourceParams, namer, false}, allowWatchList)

        actions = appendIf(actions, action{"GET", itemPath, nameParams, namer, false}, isGetter)
        if getSubpath {
            actions = appendIf(actions, action{"GET", itemPath + "/{path:*}", proxyParams, namer, false}, isGetter)
        }
        actions = appendIf(actions, action{"PUT", itemPath, nameParams, namer, false}, isUpdater)
        actions = appendIf(actions, action{"PATCH", itemPath, nameParams, namer, false}, isPatcher)
        actions = appendIf(actions, action{"DELETE", itemPath, nameParams, namer, false}, isGracefulDeleter)
        // DEPRECATED in 1.11
        actions = appendIf(actions, action{"WATCH", "watch/" + itemPath, nameParams, namer, false}, isWatcher)
        actions = appendIf(actions, action{"CONNECT", itemPath, nameParams, namer, false}, isConnecter)
        actions = appendIf(actions, action{"CONNECT", itemPath + "/{path:*}", proxyParams, namer, false}, isConnecter && connectSubpath)

        // list or post across namespace.
        // For ex: LIST all pods in all namespaces by sending a LIST request at /api/apiVersion/pods.
        // TODO: more strongly type whether a resource allows these actions on "all namespaces" (bulk delete)
        if !isSubresource {
            actions = appendIf(actions, action{"LIST", resource, params, namer, true}, isLister)
            // DEPRECATED in 1.11
            actions = appendIf(actions, action{"WATCHLIST", "watch/" + resource, params, namer, true}, allowWatchList)
        }
    }

    // Create Routes for the actions.
    // TODO: Add status documentation using Returns()
    // Errors (see api/errors/errors.go as well as go-restful router):
    // http.StatusNotFound, http.StatusMethodNotAllowed,
    // http.StatusUnsupportedMediaType, http.StatusNotAcceptable,
    // http.StatusBadRequest, http.StatusUnauthorized, http.StatusForbidden,
    // http.StatusRequestTimeout, http.StatusConflict, http.StatusPreconditionFailed,
    // http.StatusUnprocessableEntity, http.StatusInternalServerError,
    // http.StatusServiceUnavailable
    // and api error codes
    // Note that if we specify a versioned Status object here, we may need to
    // create one for the tests, also
    // Success:
    // http.StatusOK, http.StatusCreated, http.StatusAccepted, http.StatusNoContent
    //
    // test/integration/auth_test.go is currently the most comprehensive status code test

    for _, s := range a.group.Serializer.SupportedMediaTypes() {
        if len(s.MediaTypeSubType) == 0 || len(s.MediaTypeType) == 0 {
            return nil, fmt.Errorf("all serializers in the group Serializer must have MediaTypeType and MediaTypeSubType set: %s", s.MediaType)
        }
    }
    mediaTypes, streamMediaTypes := negotiation.MediaTypesForSerializer(a.group.Serializer)
    allMediaTypes := append(mediaTypes, streamMediaTypes...)
    ws.Produces(allMediaTypes...)

    // 3、根据 action 创建对应的 route
    kubeVerbs := map[string]struct{}{}
    reqScope := handlers.RequestScope{
        Serializer:      a.group.Serializer,
        ParameterCodec:  a.group.ParameterCodec,
        Creater:         a.group.Creater,
        Convertor:       a.group.Convertor,
        Defaulter:       a.group.Defaulter,
        Typer:           a.group.Typer,
        UnsafeConvertor: a.group.UnsafeConvertor,
        Authorizer:      a.group.Authorizer,

        EquivalentResourceMapper: a.group.EquivalentResourceRegistry,

        // TODO: Check for the interface on storage
        TableConvertor: tableProvider,

        // TODO: This seems wrong for cross-group subresources. It makes an assumption that a subresource and its parent are in the same group version. Revisit this.
        Resource:    a.group.GroupVersion.WithResource(resource),
        Subresource: subresource,
        Kind:        fqKindToRegister,

        HubGroupVersion: schema.GroupVersion{Group: fqKindToRegister.Group, Version: runtime.APIVersionInternal},

        MetaGroupVersion: metav1.SchemeGroupVersion,

        MaxRequestBodyBytes: a.group.MaxRequestBodyBytes,
    }
    ...
    // 4、从 rest.Storage 到 restful.Route 映射
    // 为每个操作添加对应的 handler
    for _, action := range actions {
        ...
        switch action.Verb {
        case "GET": // Get a resource.
      case "LIST": // List all resources of a kind.
        case "PUT": // Update a resource.
        case "PATCH": // Partially update a resource
        case "POST": // Create a resource.
            var handler restful.RouteFunction
            // 5、初始化 handler
            if isNamedCreater {
                handler = restfulCreateNamedResource(namedCreater, reqScope, admit)
            } else {
                handler = restfulCreateResource(creater, reqScope, admit)
            }
            handler = metrics.InstrumentRouteFunc(action.Verb, group, version, resource, subresource, requestScope, metrics.APIServerComponent, handler)
            article := GetArticleForNoun(kind, " ")
            doc := "create" + article + kind
            if isSubresource {
                doc = "create " + subresource + " of" + article + kind
            }
            // 6、route 与 handler 进行绑定
            route := ws.POST(action.Path).To(handler).
                Doc(doc).
                Param(ws.QueryParameter("pretty", "If 'true', then the output is pretty printed.")).
                Operation("create"+namespaced+kind+strings.Title(subresource)+operationSuffix).
                Produces(append(storageMeta.ProducesMIMETypes(action.Verb), mediaTypes...)...).
                Returns(http.StatusOK, "OK", producedObject).
                // TODO: in some cases, the API may return a v1.Status instead of the versioned object
                // but currently go-restful can't handle multiple different objects being returned.
                Returns(http.StatusCreated, "Created", producedObject).
                Returns(http.StatusAccepted, "Accepted", producedObject).
                Reads(defaultVersionedObject).
                Writes(producedObject)
            if err := AddObjectParams(ws, route, versionedCreateOptions); err != nil {
                return nil, err
            }
            addParams(route, action.Params)
            // 7、添加到路由中
            routes = append(routes, route)
        case "DELETE": // Delete a resource.
        ...
        default:
            return nil, fmt.Errorf("unrecognized action verb: %s", action.Verb)
        }
        for _, route := range routes {
            route.Metadata(ROUTE_META_GVK, metav1.GroupVersionKind{
                Group:   reqScope.Kind.Group,
                Version: reqScope.Kind.Version,
                Kind:    reqScope.Kind.Kind,
            })
            route.Metadata(ROUTE_META_ACTION, strings.ToLower(action.Verb))
            ws.Route(route)
        }
        // Note: update GetAuthorizerAttributes() when adding a custom handler.
    }

    apiResource.Verbs = make([]string, 0, len(kubeVerbs))
    for kubeVerb := range kubeVerbs {
        apiResource.Verbs = append(apiResource.Verbs, kubeVerb)
    }
    sort.Strings(apiResource.Verbs)

    if shortNamesProvider, ok := storage.(rest.ShortNamesProvider); ok {
        apiResource.ShortNames = shortNamesProvider.ShortNames()
    }
    if categoriesProvider, ok := storage.(rest.CategoriesProvider); ok {
        apiResource.Categories = categoriesProvider.Categories()
    }
    if gvkProvider, ok := storage.(rest.GroupVersionKindProvider); ok {
        gvk := gvkProvider.GroupVersionKind(a.group.GroupVersion)
        apiResource.Group = gvk.Group
        apiResource.Version = gvk.Version
        apiResource.Kind = gvk.Kind
    }

    // Record the existence of the GVR and the corresponding GVK
    a.group.EquivalentResourceRegistry.RegisterKindFor(reqScope.Resource, reqScope.Subresource, fqKindToRegister)

    return &apiResource, nil
}

访问链路

而kubeAPIServer从接受到创建请求到完成创建，会经历decode，admission，validation以及encode的流程，
在installer.CreateNamedResource中完成handler与url进行关联，例如POST请求将会被转发至restfulCreateNamedResource,进而到达CreateNamedResource方法。

        case "POST": // Create a resource.
            var handler restful.RouteFunction
            if isNamedCreater {
                handler = restfulCreateNamedResource(namedCreater, reqScope, admit)
            } else {
                handler = restfulCreateResource(creater, reqScope, admit)
            }

如下：

// k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/endpoints/handlers/create.go:196
// CreateNamedResource returns a function that will handle a resource creation with name.
func CreateNamedResource(r rest.NamedCreater, scope *RequestScope, admission admission.Interface) http.HandlerFunc {
    return createHandler(r, scope, admission, true)
}

// k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/endpoints/handlers/create.go:47
func createHandler(r rest.NamedCreater, scope *RequestScope, admit admission.Interface, includeName bool) http.HandlerFunc {
    return func(w http.ResponseWriter, req *http.Request) {
        // For performance tracking purposes.
        trace := utiltrace.New("Create", utiltrace.Field{Key: "url", Value: req.URL.Path}, utiltrace.Field{Key: "user-agent", Value: &lazyTruncatedUserAgent{req}}, utiltrace.Field{Key: "client", Value: &lazyClientIP{req}})
        defer trace.LogIfLong(500 * time.Millisecond)

        if isDryRun(req.URL) && !utilfeature.DefaultFeatureGate.Enabled(features.DryRun) {
            scope.err(errors.NewBadRequest("the dryRun feature is disabled"), w, req)
            return
        }

        // TODO: we either want to remove timeout or document it (if we document, move timeout out of this function and declare it in api_installer)
        timeout := parseTimeout(req.URL.Query().Get("timeout"))

        namespace, name, err := scope.Namer.Name(req)
        if err != nil {
            if includeName {
                // name was required, return
                scope.err(err, w, req)
                return
            }

            // otherwise attempt to look up the namespace
            namespace, err = scope.Namer.Namespace(req)
            if err != nil {
                scope.err(err, w, req)
                return
            }
        }

        ctx, cancel := context.WithTimeout(req.Context(), timeout)
        defer cancel()
        ctx = request.WithNamespace(ctx, namespace)
        outputMediaType, _, err := negotiation.NegotiateOutputMediaType(req, scope.Serializer, scope)
        if err != nil {
            scope.err(err, w, req)
            return
        }

        gv := scope.Kind.GroupVersion()
        s, err := negotiation.NegotiateInputSerializer(req, false, scope.Serializer)
        if err != nil {
            scope.err(err, w, req)
            return
        }

        decoder := scope.Serializer.DecoderToVersion(s.Serializer, scope.HubGroupVersion)

        body, err := limitedReadBody(req, scope.MaxRequestBodyBytes)
        if err != nil {
            scope.err(err, w, req)
            return
        }

        options := &metav1.CreateOptions{}
        values := req.URL.Query()
        if err := metainternalversionscheme.ParameterCodec.DecodeParameters(values, scope.MetaGroupVersion, options); err != nil {
            err = errors.NewBadRequest(err.Error())
            scope.err(err, w, req)
            return
        }
        if errs := validation.ValidateCreateOptions(options); len(errs) > 0 {
            err := errors.NewInvalid(schema.GroupKind{Group: metav1.GroupName, Kind: "CreateOptions"}, "", errs)
            scope.err(err, w, req)
            return
        }
        options.TypeMeta.SetGroupVersionKind(metav1.SchemeGroupVersion.WithKind("CreateOptions"))

        defaultGVK := scope.Kind
        original := r.New()
        trace.Step("About to convert to expected version")
        // Decode
        obj, gvk, err := decoder.Decode(body, &defaultGVK, original)
        if err != nil {
            err = transformDecodeError(scope.Typer, err, original, gvk, body)
            scope.err(err, w, req)
            return
        }
        if gvk.GroupVersion() != gv {
            err = errors.NewBadRequest(fmt.Sprintf("the API version in the data (%s) does not match the expected API version (%v)", gvk.GroupVersion().String(), gv.String()))
            scope.err(err, w, req)
            return
        }
        trace.Step("Conversion done")

        ae := request.AuditEventFrom(ctx)
        admit = admission.WithAudit(admit, ae)
        audit.LogRequestObject(ae, obj, scope.Resource, scope.Subresource, scope.Serializer)

        userInfo, _ := request.UserFrom(ctx)

        // On create, get name from new object if unset
        if len(name) == 0 {
            _, name, _ = scope.Namer.ObjectName(obj)
        }

        trace.Step("About to store object in database")
        admissionAttributes := admission.NewAttributesRecord(obj, nil, scope.Kind, namespace, name, scope.Resource, scope.Subresource, admission.Create, options, dryrun.IsDryRun(options.DryRun), userInfo)
        requestFunc := func() (runtime.Object, error) {
            return r.Create(
                ctx,
                name,
                obj,
                rest.AdmissionToValidateObjectFunc(admit, admissionAttributes, scope),
                options,
            )
        }
        result, err := finishRequest(timeout, func() (runtime.Object, error) {
            if scope.FieldManager != nil {
                liveObj, err := scope.Creater.New(scope.Kind)
                if err != nil {
                    return nil, fmt.Errorf("failed to create new object (Create for %v): %v", scope.Kind, err)
                }
                obj, err = scope.FieldManager.Update(liveObj, obj, managerOrUserAgent(options.FieldManager, req.UserAgent()))
                if err != nil {
                    return nil, fmt.Errorf("failed to update object (Create for %v) managed fields: %v", scope.Kind, err)
                }
            }
            if mutatingAdmission, ok := admit.(admission.MutationInterface); ok && mutatingAdmission.Handles(admission.Create) {
                if err := mutatingAdmission.Admit(ctx, admissionAttributes, scope); err != nil {
                    return nil, err
                }
            }
            result, err := requestFunc()
            // If the object wasn't committed to storage because it's serialized size was too large,
            // it is safe to remove managedFields (which can be large) and try again.
            if isTooLargeError(err) {
                if accessor, accessorErr := meta.Accessor(obj); accessorErr == nil {
                    accessor.SetManagedFields(nil)
                    result, err = requestFunc()
                }
            }
            return result, err
        })
        if err != nil {
            scope.err(err, w, req)
            return
        }
        trace.Step("Object stored in database")

        code := http.StatusCreated
        status, ok := result.(*metav1.Status)
        if ok && err == nil && status.Code == 0 {
            status.Code = int32(code)
        }

        transformResponseObject(ctx, scope, trace, req, w, code, outputMediaType, result)
    }
}

// k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/registry/generic/registry/store.go:337
// Create inserts a new item according to the unique key from the object.
func (e *Store) Create(ctx context.Context, obj runtime.Object, createValidation rest.ValidateObjectFunc, options *metav1.CreateOptions) (runtime.Object, error) {
    if err := rest.BeforeCreate(e.CreateStrategy, ctx, obj); err != nil {
        return nil, err
    }
    // at this point we have a fully formed object.  It is time to call the validators that the apiserver
    // handling chain wants to enforce.
    if createValidation != nil {
        // Validation
        if err := createValidation(ctx, obj.DeepCopyObject()); err != nil {
            return nil, err
        }
    }

    name, err := e.ObjectNameFunc(obj)
    if err != nil {
        return nil, err
    }
    key, err := e.KeyFunc(ctx, name)
    if err != nil {
        return nil, err
    }
    qualifiedResource := e.qualifiedResourceFromContext(ctx)
    ttl, err := e.calculateTTL(obj, 0, false)
    if err != nil {
        return nil, err
    }
    out := e.NewFunc()
    if err := e.Storage.Create(ctx, key, obj, out, ttl, dryrun.IsDryRun(options.DryRun)); err != nil {
        err = storeerr.InterpretCreateError(err, qualifiedResource, name)
        err = rest.CheckGeneratedNameError(e.CreateStrategy, err, obj)
        if !apierrors.IsAlreadyExists(err) {
            return nil, err
        }
        if errGet := e.Storage.Get(ctx, key, "", out, false); errGet != nil {
            return nil, err
        }
        accessor, errGetAcc := meta.Accessor(out)
        if errGetAcc != nil {
            return nil, err
        }
        if accessor.GetDeletionTimestamp() != nil {
            msg := &err.(*apierrors.StatusError).ErrStatus.Message
            *msg = fmt.Sprintf("object is being deleted: %s", *msg)
        }
        return nil, err
    }
    if e.AfterCreate != nil {
        if err := e.AfterCreate(out); err != nil {
            return nil, err
        }
    }
    if e.Decorator != nil {
        if err := e.Decorator(out); err != nil {
            return nil, err
        }
    }
    return out, nil
}

// k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/storage/etcd3/store.go:143
// Create implements storage.Interface.Create.
func (s *store) Create(ctx context.Context, key string, obj, out runtime.Object, ttl uint64) error {
    if version, err := s.versioner.ObjectResourceVersion(obj); err == nil && version != 0 {
        return errors.New("resourceVersion should not be set on objects to be created")
    }
    if err := s.versioner.PrepareObjectForStorage(obj); err != nil {
        return fmt.Errorf("PrepareObjectForStorage failed: %v", err)
    }
    // Encode
    data, err := runtime.Encode(s.codec, obj)
    if err != nil {
        return err
    }
    key = path.Join(s.pathPrefix, key)

    opts, err := s.ttlOpts(ctx, int64(ttl))
    if err != nil {
        return err
    }

    newData, err := s.transformer.TransformToStorage(data, authenticatedDataString(key))
    if err != nil {
        return storage.NewInternalError(err.Error())
    }

    startTime := time.Now()
    txnResp, err := s.client.KV.Txn(ctx).If(
        notFound(key),
    ).Then(
        clientv3.OpPut(key, string(newData), opts...),
    ).Commit()
    metrics.RecordEtcdRequestLatency("create", getTypeName(obj), startTime)
    if err != nil {
        return err
    }
    if !txnResp.Succeeded {
        return storage.NewKeyExistsError(key, 0)
    }

    if out != nil {
        putResp := txnResp.Responses[0].GetResponsePut()
        return decode(s.codec, s.versioner, data, out, putResp.Header.Revision)
    }
    return nil
}

kubeAPIServer代码结构整理如下：

apiserver整体启动逻辑 k8s.io/kubernetes/cmd/kube-apiserver
apiserver bootstrap-controller创建&运行逻辑 k8s.io/kubernetes/pkg/master
API Resource对应后端RESTStorage(based on genericregistry.Store)创建 k8s.io/kubernetes/pkg/registry
aggregated-apiserver创建&处理逻辑 k8s.io/kubernetes/staging/src/k8s.io/kube-aggregator
extensions-apiserver创建&处理逻辑 k8s.io/kubernetes/staging/src/k8s.io/apiextensions-apiserver
apiserver创建&运行 k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/server
注册API Resource资源处理handler(InstallREST&Install&registerResourceHandlers) k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/endpoints
创建存储后端(etcdv3) k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/storage
genericregistry.Store.CompleteWithOptions初始化 k8s.io/kubernetes/staging/src/k8s.io/apiserver/pkg/registry

调用链整理如下：

                    |--> CreateNodeDialer
                    |
                    |--> CreateKubeAPIServerConfig
                    |
CreateServerChain --|--> createAPIExtensionsConfig
                    |
                    |                                                                       |--> c.GenericConfig.New
                    |--> createAPIExtensionsServer --> apiextensionsConfig.Complete().New --|
                    |                                                                       |--> s.GenericAPIServer.InstallAPIGroup
                    |
                    |                                                                 |--> c.GenericConfig.New
                    |                                                                 |
                    |--> CreateKubeAPIServer --> kubeAPIServerConfig.Complete().New --|--> m.InstallLegacyAPI --> legacyRESTStorageProvider.NewLegacyRESTStorage --> m.GenericAPIServer.InstallLegacyAPIGroup
                    |                                                                 |
                    |                                                                 |--> m.InstallAPIs --> restStorageBuilder.NewRESTStorage --> m.GenericAPIServer.InstallAPIGroups
                    |
                    |
                    |--> createAggregatorConfig
                    |
                    |                                                                             |--> c.GenericConfig.New
                    |                                                                             |
                    |--> createAggregatorServer --> aggregatorConfig.Complete().NewWithDelegate --|--> apiservicerest.NewRESTStorage
                                                                                                  |
                                                                                                  |--> s.GenericAPIServer.InstallAPIGroup

aggregatorServer

aggregatorServer主要用于处理扩展Kubernetes API Resources的第二种方式Aggregated APIServer(AA)，将CR请求代理给AA：

这里结合Kubernetes官方给出的aggregated apiserver例子sample-apiserver，总结原理如下：

  • aggregatorServer通过APIServices对象关联到某个Service来进行请求的转发，其关联的Service类型进一步决定了请求转发的形式。aggregatorServer包括一个 GenericAPIServer 和维护自身状态的Controller。其中 GenericAPIServer 主要处理 apiregistration.k8s.io 组下的APIService资源请求，而Controller包括：
    • apiserviceRegistrationController：负责根据APIService定义的aggregated server service构建代理，将CR的请求转发给后端的aggregated server
    • availableConditionController：维护 APIServices 的可用状态，包括其引用 Service 是否可用等；
    • autoRegistrationController：用于保持 API 中存在的一组特定的 APIServices；
    • crdRegistrationController：负责将 CRD GroupVersions 自动注册到 APIServices 中；
    • openAPIAggregationController：将 APIServices 资源的变化同步至提供的 OpenAPI 文档；
  • apiserviceRegistrationController负责根据APIService定义的aggregated server service构建代理，将CR的请求转发给后端的aggregated server。apiService有两种类型：Local(Service为空)以及Service(Service非空)。apiserviceRegistrationController负责对这两种类型apiService设置代理：Local类型会直接路由给kube-apiserver进行处理；而Service类型则会设置代理并将请求转化为对aggregated Service的请求(proxyPath := “/apis/“ + apiService.Spec.Group + “/“ + apiService.Spec.Version)，而请求的负载均衡策略则是优先本地访问kube-apiserver(如果service为kubernetes default apiserver service:443)=>通过service ClusterIP:Port访问(默认) 或者 通过随机选择service endpoint backend进行访问：// k8s.io/kubernetes/staging/src/k8s.io/kube-aggregator/pkg/apiserver/apiserver.go:285 // AddAPIService adds an API service. It is not thread-safe, so only call it on one thread at a time please. // It’s a slow moving API, so its ok to run the controller on a single thread func (s APIAggregator) AddAPIService(apiService v1.APIService) error { // if the proxyHandler already exists, it needs to be updated. The aggregation bits do not // since they are wired against listers because they require multiple resources to respond if proxyHandler, exists := s.proxyHandlers[apiService.Name]; exists { proxyHandler.updateAPIService(apiService) if s.openAPIAggregationController != nil { s.openAPIAggregationController.UpdateAPIService(proxyHandler, apiService) } return nil } proxyPath := “/apis/“ + apiService.Spec.Group + “/“ + apiService.Spec.Version // v1. is a special case for the legacy API. It proxies to a wider set of endpoints. if apiService.Name == legacyAPIServiceName { proxyPath = “/api” } // register the proxy handler proxyHandler := &proxyHandler{ localDelegate: s.delegateHandler, proxyClientCert: s.proxyClientCert, proxyClientKey: s.proxyClientKey, proxyTransport: s.proxyTransport, serviceResolver: s.serviceResolver, egressSelector: s.egressSelector, } proxyHandler.updateAPIService(apiService) if s.openAPIAggregationController != nil { s.openAPIAggregationController.AddAPIService(proxyHandler, apiService) } s.proxyHandlers[apiService.Name] = proxyHandler s.GenericAPIServer.Handler.NonGoRestfulMux.Handle(proxyPath, proxyHandler) s.GenericAPIServer.Handler.NonGoRestfulMux.UnlistedHandlePrefix(proxyPath+”/“, proxyHandler) // if we’re dealing with the legacy group, we’re done here if apiService.Name == legacyAPIServiceName { return nil } // if we’ve already registered the path with the handler, we don’t want to do it again. if s.handledGroups.Has(apiService.Spec.Group) { return nil } // it’s time to register the group aggregation endpoint groupPath := “/apis/“ + apiService.Spec.Group groupDiscoveryHandler := &apiGroupHandler{ codecs: aggregatorscheme.Codecs, groupName: apiService.Spec.Group, lister: s.lister, delegate: s.delegateHandler, } // aggregation is protected s.GenericAPIServer.Handler.NonGoRestfulMux.Handle(groupPath, groupDiscoveryHandler) s.GenericAPIServer.Handler.NonGoRestfulMux.UnlistedHandle(groupPath+”/“, groupDiscoveryHandler) s.handledGroups.Insert(apiService.Spec.Group) return nil } // k8s.io/kubernetes/staging/src/k8s.io/kube-aggregator/pkg/apiserver/handler_proxy.go:109 func (r proxyHandler) ServeHTTP(w http.ResponseWriter, req http.Request) { // 加载roxyHandlingInfo处理请求 value := r.handlingInfo.Load() if value == nil { r.localDelegate.ServeHTTP(w, req) return } handlingInfo := value.(proxyHandlingInfo) if handlingInfo.local { if r.localDelegate == nil { http.Error(w, “”, http.StatusNotFound) return } r.localDelegate.ServeHTTP(w, req) return } // 判断APIService服务是否正常 if !handlingInfo.serviceAvailable { proxyError(w, req, “service unavailable”, http.StatusServiceUnavailable) return } if handlingInfo.transportBuildingError != nil { proxyError(w, req, handlingInfo.transportBuildingError.Error(), http.StatusInternalServerError) return } // 从请求解析用户 user, ok := genericapirequest.UserFrom(req.Context()) if !ok { proxyError(w, req, “missing user”, http.StatusInternalServerError) return } // 将原始请求转化为对APIService的请求 // write a new location based on the existing request pointed at the target service location := &url.URL{} location.Scheme = “https” rloc, err := r.serviceResolver.ResolveEndpoint(handlingInfo.serviceNamespace, handlingInfo.serviceName, handlingInfo.servicePort) if err != nil { klog.Errorf(“error resolving %s/%s: %v”, handlingInfo.serviceNamespace, handlingInfo.serviceName, err) proxyError(w, req, “service unavailable”, http.StatusServiceUnavailable) return } location.Host = rloc.Host location.Path = req.URL.Path location.RawQuery = req.URL.Query().Encode() newReq, cancelFn := newRequestForProxy(location, req) defer cancelFn() if handlingInfo.proxyRoundTripper == nil { proxyError(w, req, “”, http.StatusNotFound) return } // we need to wrap the roundtripper in another roundtripper which will apply the front proxy headers proxyRoundTripper, upgrade, err := maybeWrapForConnectionUpgrades(handlingInfo.restConfig, handlingInfo.proxyRoundTripper, req) if err != nil { proxyError(w, req, err.Error(), http.StatusInternalServerError) return } proxyRoundTripper = transport.NewAuthProxyRoundTripper(user.GetName(), user.GetGroups(), user.GetExtra(), proxyRoundTripper) // if we are upgrading, then the upgrade path tries to use this request with the TLS config we provide, but it does // NOT use the roundtripper. Its a direct call that bypasses the round tripper. This means that we have to // attach the “correct” user headers to the request ahead of time. After the initial upgrade, we’ll be back // at the roundtripper flow, so we only have to muck with this request, but we do have to do it. if upgrade { transport.SetAuthProxyHeaders(newReq, user.GetName(), user.GetGroups(), user.GetExtra()) } handler := proxy.NewUpgradeAwareHandler(location, proxyRoundTripper, true, upgrade, &responder{w: w}) handler.ServeHTTP(w, newReq) }$ kubectl get APIService NAME SERVICE AVAILABLE AGE … v1.apps Local True 50d … v1beta1.metrics.k8s.io kube-system/metrics-server True 50d …# default APIServices $ kubectl get -o yaml APIService/v1.apps apiVersion: apiregistration.k8s.io/v1 kind: APIService metadata: creationTimestamp: “2020-10-20T10:39:48Z” labels: kube-aggregator.kubernetes.io/automanaged: onstart name: v1.apps resourceVersion: “16” selfLink: /apis/apiregistration.k8s.io/v1/apiservices/v1.apps uid: 09374c3d-db49-45e1-8524-1bd8f86daaae spec: group: apps groupPriorityMinimum: 17800 version: v1 versionPriority: 15 status: conditions: - lastTransitionTime: “2020-10-20T10:39:48Z” message: Local APIServices are always available reason: Local status: “True” type: Available # aggregated server $ kubectl get -o yaml APIService/v1beta1.metrics.k8s.io apiVersion: apiregistration.k8s.io/v1 kind: APIService metadata: creationTimestamp: “2020-10-20T10:43:12Z” labels: addonmanager.kubernetes.io/mode: Reconcile kubernetes.io/cluster-service: “true” name: v1beta1.metrics.k8s.io resourceVersion: “35484437” selfLink: /apis/apiregistration.k8s.io/v1/apiservices/v1beta1.metrics.k8s.io uid: b16f7fb6-8aa1-475c-b616-fdbd9402bac2 spec: group: metrics.k8s.io groupPriorityMinimum: 100 insecureSkipTLSVerify: true service: name: metrics-server namespace: kube-system port: 443 version: v1beta1 versionPriority: 100 status: conditions: - lastTransitionTime: “2020-12-05T00:50:48Z” message: all checks passed reason: Passed status: “True” type: Available # CRD $ kubectl get -o yaml APIService/v1.duyanghao.example.com apiVersion: apiregistration.k8s.io/v1 kind: APIService metadata: creationTimestamp: “2020-12-11T08:45:37Z” labels: kube-aggregator.kubernetes.io/automanaged: “true” name: v1.duyanghao.example.com resourceVersion: “40788945” selfLink: /apis/apiregistration.k8s.io/v1/apiservices/v1.duyanghao.example.com uid: 9da804ac-e9f1-406b-b253-b1d13e0bb725 spec: group: duyanghao.example.com groupPriorityMinimum: 1000 version: v1 versionPriority: 100 status: conditions: - lastTransitionTime: “2020-12-11T08:45:37Z” message: Local APIServices are always available reason: Local status: “True” type: Available
  • aggregatorServer创建过程中会根据所有kube-apiserver定义的API资源创建默认的APIService列表，名称即是$VERSION/$GROUP，这些APIService都会有标签kube-aggregator.kubernetes.io/automanaged: onstart，例如：v1.apps apiService。autoRegistrationController创建并维护这些列表中的APIService，也即我们看到的Local apiService；对于自定义的APIService(aggregated server)，则不会对其进行处理
  • aggregated server实现CR(自定义API资源) 的CRUD API接口，并可以灵活选择后端存储，可以与core kube-apiserver一起公用etcd，也可自己独立部署etcd数据库或者其它数据库。aggregated server实现的CR API路径为：/apis/$GROUP/$VERSION，具体到sample apiserver为：/apis/wardle.example.com/v1alpha1，下面的资源类型有：flunders以及fischers
  • aggregated server通过部署APIService类型资源，service fields指向对应的aggregated server service实现与core kube-apiserver的集成与交互
  • sample-apiserver目录结构如下，可参考编写自己的aggregated server：staging/src/k8s.io/sample-apiserver ├── artifacts │ ├── example │ │ ├── apiservice.yaml │ │ ├── auth-delegator.yaml │ │ ├── auth-reader.yaml │ │ ├── deployment.yaml │ │ ├── ns.yaml │ │ ├── rbac-bind.yaml │ │ ├── rbac.yaml │ │ ├── sa.yaml │ │ └── service.yaml │ ├── flunders │ │ └── 01-flunder.yaml │ └── simple-image │ └── Dockerfile ├── hack │ ├── build-image.sh │ ├── update-codegen.sh │ └── verify-codegen.sh ├── main.go └── pkg ├── admission ├── apis │ └── wardle │ ├── register.go │ ├── types.go │ ├── v1alpha1 │ │ ├── BUILD │ │ ├── conversion.go │ │ ├── defaults.go │ │ ├── doc.go │ │ ├── register.go │ │ ├── types.go │ │ ├── zz_generated.conversion.go │ │ ├── zz_generated.deepcopy.go │ │ └── zz_generated.defaults.go │ ├── v1beta1 │ │ ├── BUILD │ │ ├── doc.go │ │ ├── register.go │ │ ├── types.go │ │ ├── zz_generated.conversion.go │ │ ├── zz_generated.deepcopy.go │ │ └── zz_generated.defaults.go │ ├── validation │ │ ├── BUILD │ │ └── validation.go │ └── zz_generated.deepcopy.go ├── apiserver │ ├── BUILD │ ├── apiserver.go │ └── scheme_test.go ├── cmd │ └── server │ ├── BUILD │ └── start.go ├── generated │ ├── clientset │ │ └── versioned │ │ ├── BUILD │ │ ├── clientset.go │ │ ├── doc.go │ │ ├── fake │ │ │ ├── BUILD │ │ │ ├── clientset_generated.go │ │ │ ├── doc.go │ │ │ └── register.go │ │ ├── scheme │ │ │ ├── BUILD │ │ │ ├── doc.go │ │ │ └── register.go │ │ └── typed │ │ └── wardle │ │ ├── v1alpha1 │ │ │ ├── BUILD │ │ │ ├── doc.go │ │ │ ├── fake │ │ │ │ ├── BUILD │ │ │ │ ├── doc.go │ │ │ │ ├── fake_fischer.go │ │ │ │ ├── fake_flunder.go │ │ │ │ └── fake_wardle_client.go │ │ │ ├── fischer.go │ │ │ ├── flunder.go │ │ │ ├── generated_expansion.go │ │ │ └── wardle_client.go │ │ └── v1beta1 │ │ ├── BUILD │ │ ├── doc.go │ │ ├── fake │ │ │ ├── BUILD │ │ │ ├── doc.go │ │ │ ├── fake_flunder.go │ │ │ └── fake_wardle_client.go │ │ ├── flunder.go │ │ ├── generated_expansion.go │ │ └── wardle_client.go │ ├── informers │ │ └── externalversions │ │ ├── BUILD │ │ ├── factory.go │ │ ├── generic.go │ │ ├── internalinterfaces │ │ │ ├── BUILD │ │ │ └── factory_interfaces.go │ │ └── wardle │ │ ├── BUILD │ │ ├── interface.go │ │ ├── v1alpha1 │ │ │ ├── BUILD │ │ │ ├── fischer.go │ │ │ ├── flunder.go │ │ │ └── interface.go │ │ └── v1beta1 │ │ ├── BUILD │ │ ├── flunder.go │ │ └── interface.go │ ├── listers │ │ └── wardle │ │ ├── v1alpha1 │ │ │ ├── BUILD │ │ │ ├── expansion_generated.go │ │ │ ├── fischer.go │ │ │ └── flunder.go │ │ └── v1beta1 │ │ ├── BUILD │ │ ├── expansion_generated.go │ │ └── flunder.go │ └── openapi │ ├── BUILD │ └── zz_generated.openapi.go └── registry ├── BUILD ├── registry.go └── wardle ├── fischer │ ├── BUILD │ ├── etcd.go │ └── strategy.go └── flunder ├── BUILD ├── etcd.go └── strategy.go
    • 其中，artifacts用于部署yaml示例
    • hack目录存放自动脚本(eg: update-codegen)
    • main.go是aggregated server启动入口；pkg/cmd负责启动aggregated server具体逻辑；pkg/apiserver用于aggregated server初始化以及路由注册
    • pkg/apis负责相关CR的结构体定义，自动生成(update-codegen)
    • pkg/admission负责准入的相关代码
    • pkg/generated负责生成访问CR的clientset，informers，以及listers
    • pkg/registry目录负责CR相关的RESTStorage实现

更多代码原理详情，参考kubernetes-reading-notes

apiExtensionsServer

apiExtensionsServer主要负责CustomResourceDefinition（CRD）apiResources以及apiVersions的注册，同时处理CRD以及相应CustomResource（CR）的REST请求(如果对应CR不能被处理的话则会返回404)，也是apiserver Delegation的最后一环
原理总结如下：

  • Custom Resource，简称CR，是Kubernetes自定义资源类型，与之相对应的就是Kubernetes内置的各种资源类型，例如Pod、Service等。利用CR我们可以定义任何想要的资源类型
  • CRD通过yaml文件的形式向Kubernetes注册CR实现自定义api-resources，属于第二种扩展Kubernetes API资源的方式，也是普遍使用的一种
  • APIExtensionServer负责CustomResourceDefinition（CRD）apiResources以及apiVersions的注册，同时处理CRD以及相应CustomResource（CR）的REST请求(如果对应CR不能被处理的话则会返回404)，也是apiserver Delegation的最后一环
  • crdRegistrationController负责将CRD GroupVersions自动注册到APIServices中。具体逻辑为：枚举所有CRDs，然后根据CRD定义的crd.Spec.Group以及crd.Spec.Versions字段构建APIService，并添加到autoRegisterController.apiServicesToSync中，由autoRegisterController进行创建以及维护操作。这也是为什么创建完CRD后会产生对应的APIService对象
  • APIExtensionServer包含的controller以及功能如下所示：
    • openapiController：将 crd 资源的变化同步至提供的 OpenAPI 文档，可通过访问 /openapi/v2 进行查看；
    • crdController：负责将 crd 信息注册到 apiVersions 和 apiResources 中，两者的信息可通过 kubectl api-versions 和 kubectl api-resources 查看：
    • namingController：检查 crd obj 中是否有命名冲突，可在 crd .status.conditions 中查看；
    • establishingController：检查 crd 是否处于正常状态，可在 crd .status.conditions 中查看；
    • nonStructuralSchemaController：检查 crd obj 结构是否正常，可在 crd .status.conditions 中查看；
    • apiApprovalController：检查 crd 是否遵循 Kubernetes API 声明策略，可在 crd .status.conditions 中查看；
    • finalizingController：类似于 finalizes 的功能，与 CRs 的删除有关；
  • 总结CR CRUD APIServer处理逻辑如下：
    • createAPIExtensionsServer=>NewCustomResourceDefinitionHandler=>crdHandler=>注册CR CRUD API接口：// New returns a new instance of CustomResourceDefinitions from the given config. func (c completedConfig) New(delegationTarget genericapiserver.DelegationTarget) (CustomResourceDefinitions, error) { … crdHandler, err := NewCustomResourceDefinitionHandler( versionDiscoveryHandler, groupDiscoveryHandler, s.Informers.Apiextensions().V1().CustomResourceDefinitions(), delegateHandler, c.ExtraConfig.CRDRESTOptionsGetter, c.GenericConfig.AdmissionControl, establishingController, c.ExtraConfig.ServiceResolver, c.ExtraConfig.AuthResolverWrapper, c.ExtraConfig.MasterCount, s.GenericAPIServer.Authorizer, c.GenericConfig.RequestTimeout, time.Duration(c.GenericConfig.MinRequestTimeout)time.Second, apiGroupInfo.StaticOpenAPISpec, c.GenericConfig.MaxRequestBodyBytes, ) if err != nil { return nil, err } s.GenericAPIServer.Handler.NonGoRestfulMux.Handle(“/apis”, crdHandler) s.GenericAPIServer.Handler.NonGoRestfulMux.HandlePrefix(“/apis/“, crdHandler) … return s, nil }
    • crdHandler处理逻辑如下：// k8s.io/kubernetes/staging/src/k8s.io/apiextensions-apiserver/pkg/apiserver/customresource_handler.go:223 func (r crdHandler) ServeHTTP(w http.ResponseWriter, req http.Request) { ctx := req.Context() requestInfo, ok := apirequest.RequestInfoFrom(ctx) if !ok { responsewriters.ErrorNegotiated( apierrors.NewInternalError(fmt.Errorf(“no RequestInfo found in the context”)), Codecs, schema.GroupVersion{Group: requestInfo.APIGroup, Version: requestInfo.APIVersion}, w, req, ) return } if !requestInfo.IsResourceRequest { pathParts := splitPath(requestInfo.Path) // only match /apis// // only registered under /apis if len(pathParts) == 3 { if !r.hasSynced() { responsewriters.ErrorNegotiated(serverStartingError(), Codecs, schema.GroupVersion{Group: requestInfo.APIGroup, Version: requestInfo.APIVersion}, w, req) return } r.versionDiscoveryHandler.ServeHTTP(w, req) return } // only match /apis/ if len(pathParts) == 2 { if !r.hasSynced() { responsewriters.ErrorNegotiated(serverStartingError(), Codecs, schema.GroupVersion{Group: requestInfo.APIGroup, Version: requestInfo.APIVersion}, w, req) return } r.groupDiscoveryHandler.ServeHTTP(w, req) return } r.delegate.ServeHTTP(w, req) return } crdName := requestInfo.Resource + “.” + requestInfo.APIGroup crd, err := r.crdLister.Get(crdName) if apierrors.IsNotFound(err) { if !r.hasSynced() { responsewriters.ErrorNegotiated(serverStartingError(), Codecs, schema.GroupVersion{Group: requestInfo.APIGroup, Version: requestInfo.APIVersion}, w, req) return } r.delegate.ServeHTTP(w, req) return } if err != nil { utilruntime.HandleError(err) responsewriters.ErrorNegotiated( apierrors.NewInternalError(fmt.Errorf(“error resolving resource”)), Codecs, schema.GroupVersion{Group: requestInfo.APIGroup, Version: requestInfo.APIVersion}, w, req, ) return } // if the scope in the CRD and the scope in request differ (with exception of the verbs in possiblyAcrossAllNamespacesVerbs // for namespaced resources), pass request to the delegate, which is supposed to lead to a 404. namespacedCRD, namespacedReq := crd.Spec.Scope == apiextensionsv1.NamespaceScoped, len(requestInfo.Namespace) > 0 if !namespacedCRD && namespacedReq { r.delegate.ServeHTTP(w, req) return } if namespacedCRD && !namespacedReq && !possiblyAcrossAllNamespacesVerbs.Has(requestInfo.Verb) { r.delegate.ServeHTTP(w, req) return } if !apiextensionshelpers.HasServedCRDVersion(crd, requestInfo.APIVersion) { r.delegate.ServeHTTP(w, req) return } // There is a small chance that a CRD is being served because NamesAccepted condition is true, // but it becomes “unserved” because another names update leads to a conflict // and EstablishingController wasn’t fast enough to put the CRD into the Established condition. // We accept this as the problem is small and self-healing. if !apiextensionshelpers.IsCRDConditionTrue(crd, apiextensionsv1.NamesAccepted) && !apiextensionshelpers.IsCRDConditionTrue(crd, apiextensionsv1.Established) { r.delegate.ServeHTTP(w, req) return } terminating := apiextensionshelpers.IsCRDConditionTrue(crd, apiextensionsv1.Terminating) crdInfo, err := r.getOrCreateServingInfoFor(crd.UID, crd.Name) if apierrors.IsNotFound(err) { r.delegate.ServeHTTP(w, req) return } if err != nil { utilruntime.HandleError(err) responsewriters.ErrorNegotiated( apierrors.NewInternalError(fmt.Errorf(“error resolving resource”)), Codecs, schema.GroupVersion{Group: requestInfo.APIGroup, Version: requestInfo.APIVersion}, w, req, ) return } if !hasServedCRDVersion(crdInfo.spec, requestInfo.APIVersion) { r.delegate.ServeHTTP(w, req) return } verb := strings.ToUpper(requestInfo.Verb) resource := requestInfo.Resource subresource := requestInfo.Subresource scope := metrics.CleanScope(requestInfo) supportedTypes := []string{ string(types.JSONPatchType), string(types.MergePatchType), } if utilfeature.DefaultFeatureGate.Enabled(features.ServerSideApply) { supportedTypes = append(supportedTypes, string(types.ApplyPatchType)) } var handlerFunc http.HandlerFunc subresources, err := apiextensionshelpers.GetSubresourcesForVersion(crd, requestInfo.APIVersion) if err != nil { utilruntime.HandleError(err) responsewriters.ErrorNegotiated( apierrors.NewInternalError(fmt.Errorf(“could not properly serve the subresource”)), Codecs, schema.GroupVersion{Group: requestInfo.APIGroup, Version: requestInfo.APIVersion}, w, req, ) return } switch { case subresource == “status” && subresources != nil && subresources.Status != nil: handlerFunc = r.serveStatus(w, req, requestInfo, crdInfo, terminating, supportedTypes) case subresource == “scale” && subresources != nil && subresources.Scale != nil: handlerFunc = r.serveScale(w, req, requestInfo, crdInfo, terminating, supportedTypes) case len(subresource) == 0: handlerFunc = r.serveResource(w, req, requestInfo, crdInfo, terminating, supportedTypes) default: responsewriters.ErrorNegotiated( apierrors.NewNotFound(schema.GroupResource{Group: requestInfo.APIGroup, Resource: requestInfo.Resource}, requestInfo.Name), Codecs, schema.GroupVersion{Group: requestInfo.APIGroup, Version: requestInfo.APIVersion}, w, req, ) } if handlerFunc != nil { handlerFunc = metrics.InstrumentHandlerFunc(verb, requestInfo.APIGroup, requestInfo.APIVersion, resource, subresource, scope, metrics.APIServerComponent, handlerFunc) handler := genericfilters.WithWaitGroup(handlerFunc, longRunningFilter, crdInfo.waitGroup) handler.ServeHTTP(w, req) return } }
      • 解析req(GET /apis/duyanghao.example.com/v1/namespaces/default/students)，根据请求路径中的group(duyanghao.example.com)，version(v1)，以及resource字段(students)获取对应CRD内容(crd, err := r.crdLister.Get(crdName))
      • 通过crd.UID以及crd.Name获取crdInfo，若不存在则创建对应的crdInfo(crdInfo, err := r.getOrCreateServingInfoFor(crd.UID, crd.Name))。crdInfo中包含了CRD定义以及该CRD对应Custom Resource的customresource.REST storage
      • customresource.REST storage由CR对应的Group(duyanghao.example.com)，Version(v1)，Kind(Student)，Resource(students)等创建完成，由于CR在Kubernetes代码中并没有具体结构体定义，所以这里会先初始化一个范型结构体Unstructured(用于保存所有类型的Custom Resource)，并对该结构体进行SetGroupVersionKind操作(设置具体Custom Resource Type)
      • 从customresource.REST storage获取Unstructured结构体后会对其进行相应转换然后返回

更多代码原理详情，参考kubernetes-reading-notes

References
