nexus3 nginx 镜像仓库

:::info 视频演示 https://www.bilibili.com/video/BV1gv411w7SU/ :::

准备工作

申请域名 SSL

上传至 $PWD/nexus3/certs

本地域名解析

windows C:\Windows\System32\drivers\etc\hosts linux /etc/hosts

创建数据路径并设置权限

mkdir -p $PWD/nexus3/data && chmod 777 $PWD/nexus3/data && cd $PWD/nexus3

部署

docker-compose.yml

version: "3.7"
services:
  nexus3:
    image: sonatype/nexus3:3.33.1
    container_name: nexus3
    restart: always
    privileged: true
    environment:
      - TZ=Asia/Shanghai
    volumes:
      - $PWD/data:/nexus-data
  nginx:
    image: nginx:1.21.1-alpine
    container_name: nginx
    restart: always
    environment:
      - TZ=Asia/Shanghai
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - $PWD/nginx.conf:/etc/nginx/nginx.conf:ro     # nginx配置
      - $PWD/certs:/certs                    # SSL证书
      - $PWD/log:/var/log/nginx
    depends_on:
      - nexus3
    logging:
      driver: "json-file"
      options:
        max-size: "5g"  # 限制日志大小

nginx.conf

worker_processes 4;
worker_rlimit_nofile 40000;
events {
    worker_connections 8192;
}
http {
    upstream nexus3_http {
        server nexus3:8081;
    }
    server {
        listen 80;
        server_name hub.haifengat.com; # 域名替换
        location / {
            proxy_pass http://nexus3_http;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "Upgrade";
        }
    }
    upstream nexus3_ssl {
        server nexus3:8082;
    }
    server {
        listen 443 ssl;
        server_name hub.haifengat.com; # 域名替换
        # SSL
        ssl_certificate /certs/20220824_hub.haifengat.com.pem;
        ssl_certificate_key /certs/20220824_hub.haifengat.com.key;
        client_max_body_size 5000m;  # 上传大文件
        location / {
            proxy_pass http://nexus3_ssl;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "Upgrade";
        }
    }
}

运行

docker-compose up -d

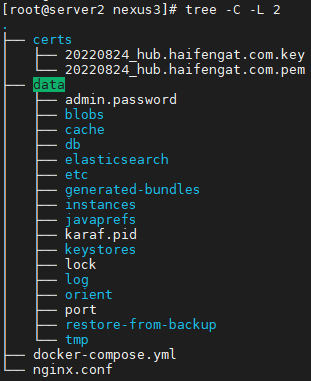

文件列表

配置 nexus3

登录

http://hub.haifengat.com

配置

• 修改admin密码为Harbor12345
• 允许匿名读取数据
• 创建 docker(hosted) 仓库
• 设置http 8082端口
• Allow anonymous docker pull (不要勾选)

  daemon.json

  # 增加信任
  "insecure-registries": ["https://hub.haifengat.com"]

  QA

  502 Bad Gateway

  配置 nexus3 时使用 http 而非 https

no basic auth credentials

需要先 docker login 登录

401 Unauthorized

docker login -u admin -p Harbor12345 hub.haifengat.com 登录时报错

不允许匿名

404 response body: invalid character ‘<’ …

解决

docker login -u admin -p Harbor12345 hub.haifengat.com
