TCP(transport control protocol,传输控制协议)是面向连接的,面向流的,提供高可靠性服务。收发两端(客户端和服务器端)都要有一一成对的socket,因此,发送端为了将多个发往接收端的包,更有效的发到对方,使用了优化方法(Nagle算法),将多次间隔较小且数据量小的数据,合并成一个大的数据块,然后进行封包。这样,接收端,就难于分辨出来了,必须提供科学的拆包机制。即面向流的通信是无消息保护边界的。

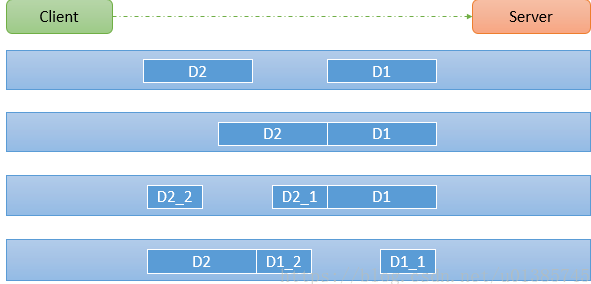

图解TCP的粘包和拆包
假设客户端分别发送了两个数据包D1和D2给服务端,由于服务端一次读取到字节数是不确定的,故可能存在以下四种情况:
1.服务端分两次读取到了两个独立的数据包,分别是D1和D2,没有粘包和拆包
2.服务端一次接受到了两个数据包,D1和D2粘合在一起,称之为TCP粘包
3.服务端分两次读取到了数据包,第一次读取到了完整的D1包和D2包的部分内容,第二次读取到了D2包的剩余内容,这称之为TCP拆包
4.服务端分两次读取到了数据包,第一次读取到了D1包的部分内容D1_1,第二次读取到了D1包的剩余部分内容D1_2和完整的D2包。
特别要注意的是,如果TCP的接受滑窗非常小,而数据包D1和D2比较大,很有可能会发生第五种情况,即服务端分多次才能将D1和D2包完全接受,期间发生多次拆包。
粘包、拆包问题的解决方案:定义通信协议
目前业界主流的协议(protocol)方案可以归纳如下:
1 定长协议:假设我们规定每3个字节,表示一个有效报文。
2.特殊字符分隔符协议:在包尾部增加回车或者空格符等特殊字符进行分割 。
3.长度编码:将消息分为消息头和消息体,消息头中用一个int型数据(4字节),表示消息体长度的字段。在解析时,先读取内容长度Length,其值为实际消息体内容(Content)占用的字节数,之后必须读取到这么多字节的内容,才认为是一个完整的数据报文。
下面我用长度编码方式解决TCP的粘包、拆包问题
首先看一下不使用长度编码协议的时候会发生什么问题?
Server端测试代码
public class MyServer {
public static void main(String[] args) throws Exception {
EventLoopGroup bossGroup = new NioEventLoopGroup(1);
EventLoopGroup workerGroup = new NioEventLoopGroup();
try {
ServerBootstrap serverBootstrap = new ServerBootstrap();
serverBootstrap.group(bossGroup, workerGroup).channel(NioServerSocketChannel.class).
childHandler(new MyServerInitializer());
ChannelFuture channelFuture = serverBootstrap.bind(8899).sync();
channelFuture.channel().closeFuture().sync();
} finally {
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
}
}
}
public class MyServerHandler extends SimpleChannelInboundHandler<ByteBuf> {
private int count;
@Override
protected void channelRead0(ChannelHandlerContext ctx, ByteBuf msg) throws Exception {
byte[] buffer = new byte[msg.readableBytes()];
msg.readBytes(buffer);
String message = new String(buffer, Charset.forName("utf-8"));
System.out.println("服务端接收到的消息内容: " + message);
System.out.println("服务端接收到的消息数量: " + (++this.count));
ByteBuf responseByteBuf = Unpooled.copiedBuffer(UUID.randomUUID().toString(), Charset.forName("utf-8"));
ctx.writeAndFlush(responseByteBuf);
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
cause.printStackTrace();
ctx.close();
}
}
public class MyServerInitializer extends ChannelInitializer<SocketChannel> {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
System.out.println(this);
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new MyServerHandler());
}
}
Client端测试代码
public class MyClient {
public static void main(String[] args) throws Exception{
EventLoopGroup eventLoopGroup = new NioEventLoopGroup();
try {
Bootstrap bootstrap = new Bootstrap();
bootstrap.group(eventLoopGroup).channel(NioSocketChannel.class).
handler(new MyClientInitializer());
ChannelFuture channelFuture = bootstrap.connect("localhost", 8899).sync();
channelFuture.channel().closeFuture().sync();
} finally {
eventLoopGroup.shutdownGracefully();
}
}
}
public class MyClientHandler extends SimpleChannelInboundHandler<ByteBuf> {
private int count;
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
for (int i = 0; i < 10; ++i) {
ByteBuf buffer = Unpooled.copiedBuffer("sent from client ", Charset.forName("utf-8"));
ctx.writeAndFlush(buffer);
}
}
@Override
protected void channelRead0(ChannelHandlerContext ctx, ByteBuf msg) throws Exception {
byte[] buffer = new byte[msg.readableBytes()];
msg.readBytes(buffer);
String message = new String(buffer, Charset.forName("utf-8"));
System.out.println("客户端接收到的消息内容: " + message);
System.out.println("客户端接收到的消息数量: " + (++this.count));
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
cause.printStackTrace();
ctx.close();
}
}
public class MyClientInitializer extends ChannelInitializer<SocketChannel> {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new MyClientHandler());
}
}
启动服务端,然后
第一次启动客户端,服务端日志:![](https://img2018.cnblogs.com/blog/1496041/201908/1496041-20190811160831364-758557088.png#crop=0&crop=0&crop=1&crop=1&id=TTgda&originHeight=61&originWidth=1738&originalType=binary&ratio=1&rotation=0&showTitle=false&status=done&style=none&title=)

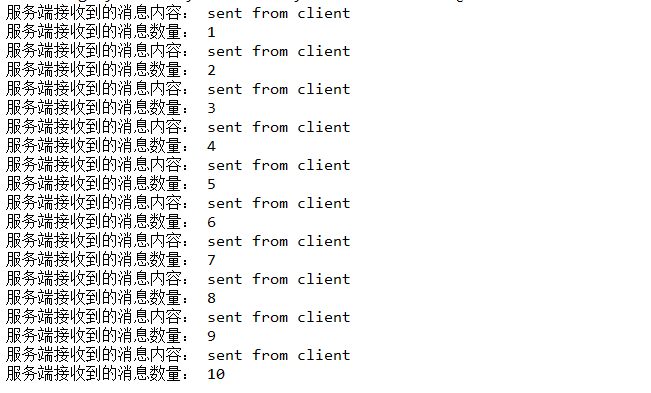

第二次启动客户端,服务端日志:

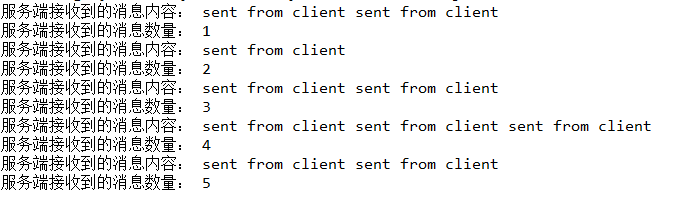

第三次启动客户端,服务端日志:
从结果中可以看出发生了粘包问题。
用长度编码方式解决TCP的粘包和拆包问题
自定义协议CustomProtocol,解码器MyDecoder,编码器MyEncoder
public class CustomProtocol {
private int length;
private byte[] content;
public int getLength() {
return length;
}
public void setLength(int length) {
this.length = length;
}
public byte[] getContent() {
return content;
}
public void setContent(byte[] content) {
this.content = content;
}
}
public class MyDecoder extends ReplayingDecoder<Void> {
@Override
protected void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception {
int length = in.readInt();
byte[] content = new byte[length];
in.readBytes(content);
CustomProtocol personProtocol = new CustomProtocol();
personProtocol.setLength(length);
personProtocol.setContent(content);
out.add(personProtocol);
}
}
public class MyEncoder extends MessageToByteEncoder<CustomProtocol> {
@Override
protected void encode(ChannelHandlerContext ctx, CustomProtocol msg, ByteBuf out) throws Exception {
out.writeInt(msg.getLength());
out.writeBytes(msg.getContent());
}
}
Server端测试代码
public class MyServer {
public static void main(String[] args) throws Exception {
EventLoopGroup bossGroup = new NioEventLoopGroup(1);
EventLoopGroup workerGroup = new NioEventLoopGroup();
try {
ServerBootstrap serverBootstrap = new ServerBootstrap();
serverBootstrap.group(bossGroup, workerGroup).channel(NioServerSocketChannel.class).
childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new MyDecoder());
pipeline.addLast(new MyEncoder());
pipeline.addLast(new MyClientHandler());
}
});
ChannelFuture channelFuture = serverBootstrap.bind(8899).sync();
channelFuture.channel().closeFuture().sync();
} finally {
bossGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
}
}
}
public class MyServerHandler extends SimpleChannelInboundHandler<CustomProtocol> {
private int count;
@Override
protected void channelRead0(ChannelHandlerContext ctx, CustomProtocol msg) throws Exception {
int length = msg.getLength();
byte[] content = msg.getContent();
System.out.println("服务端接收到的数据:");
System.out.println("长度: " + length);
System.out.println("内容:" + new String(content, Charset.forName("utf-8")));
System.out.println("服务端接收到的消息数量:" + (++this.count));
String responseMessage = UUID.randomUUID().toString();
int responseLength = responseMessage.getBytes("utf-8").length;
byte[] responseContent = responseMessage.getBytes("utf-8");
CustomProtocol personProtocol = new CustomProtocol();
personProtocol.setLength(responseLength);
personProtocol.setContent(responseContent);
ctx.writeAndFlush(personProtocol);
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
cause.printStackTrace();
ctx.close();
}
}
Client端测试代码
public class MyClient {
public static void main(String[] args) throws Exception {
EventLoopGroup eventLoopGroup = new NioEventLoopGroup();
try {
Bootstrap bootstrap = new Bootstrap();
bootstrap.group(eventLoopGroup).channel(NioSocketChannel.class).
handler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline pipeline = ch.pipeline();
pipeline.addLast(new MyDecoder());
pipeline.addLast(new MyEncoder());
pipeline.addLast(new MyClientHandler());
}
});
ChannelFuture channelFuture = bootstrap.connect("localhost", 8899).sync();
channelFuture.channel().closeFuture().sync();
} finally {
eventLoopGroup.shutdownGracefully();
}
}
}
public class MyClientHandler extends SimpleChannelInboundHandler<CustomProtocol> {
private int count;
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
for (int i = 0; i < 10; ++i) {
String messageToBeSent = "sent from client ";
byte[] content = messageToBeSent.getBytes(Charset.forName("utf-8"));
int length = messageToBeSent.getBytes(Charset.forName("utf-8")).length;
CustomProtocol personProtocol = new CustomProtocol();
personProtocol.setLength(length);
personProtocol.setContent(content);
ctx.writeAndFlush(personProtocol);
}
}
@Override
protected void channelRead0(ChannelHandlerContext ctx, CustomProtocol msg) throws Exception {
int length = msg.getLength();
byte[] content = msg.getContent();
System.out.println("客户端接收到的消息: ");
System.out.println("长度: " + length);
System.out.println("内容:" + new String(content, Charset.forName("utf-8")));
System.out.println("客户端接受到的消息数量:" + (++this.count));
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
cause.printStackTrace();
ctx.close();
}
}

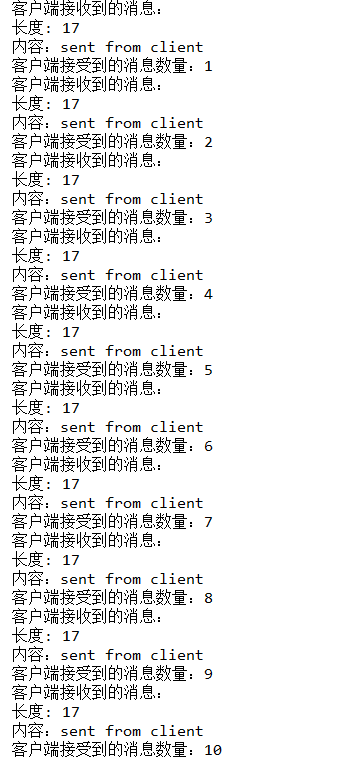

测试结果:
结果分析:没有发生Tcp的粘包和拆包。
