  1. knitr::opts_chunk$set(warning = F, message = F)
  2. library(dplyr)
  3. library(tibble)
  4. library(tidyverse)
  5. library(ISLR)
  6. library(caret)
  7. library(pROC)
  8. library(xgboost)

Gradient Boosting in caret

Model method Value Type Libraries Tuning Parameters
eXtreme Gradient Boosting xgbDART Classification, Regression xgboost, plyr nrounds, max_depth, eta, gamma, subsample, colsample_bytree, rate_drop, skip_drop, min_child_weight
eXtreme Gradient Boosting xgbLinear Classification, Regression xgboost nrounds, lambda, alpha, eta
eXtreme Gradient Boosting xgbTree Classification, Regression xgboost, plyr nrounds, max_depth, eta, gamma, colsample_bytree, min_child_weight, subsample
Gradient Boosting Machines gbm_h2o Classification, Regression h2o ntrees, max_depth, min_rows, learn_rate, col_sample_rate
Stochastic Gradient Boosting gbm Classification, Regression gbm, plyr n.trees, interaction.depth, shrinkage, n.minobsinnode

load data

  1. ml_data <- College
  2. ml_data %>%
  3.   glimpse()
  5. set.seed(123)
  6. index <- createDataPartition(ml_data$Private, p = 0.7, list = FALSE)
  7. train_data <- ml_data[index, ]
  8. test_data  <- ml_data[-index, ]

Stochastic Gradient Boosting

  1. # Train model with preprocessing & repeated cv
  2. model_gbm <- caret::train(Private ~ .,
  3.                           data = train_data,
  4.                           method = "gbm",
  5.                           preProcess = c("scale", "center"),
  6.                           trControl = trainControl(method = "repeatedcv",
  7.                                                   number = 5,
  8.                                                   repeats = 3,
  9.                                                   verboseIter = FALSE),
  10.                           verbose = 0)
  11. model_gbm
  1. caret::confusionMatrix(
  2.   data = predict(model_gbm, test_data),
  3.   reference = test_data$Private
  4.   )
  6. predict(model_gbm, test_data, type = "raw")
  7. predict(model_gbm, test_data, type = "prob")
  • ROC
  1. rocobj0 <- roc(test_data$Private, predict(model_gbm, newdata = test_data, type = "prob")[, "No"])
  2. auc0 <- round(auc(test_data$Private, predict(model_gbm, newdata = test_data, type = "prob")[, "Yes"]),4)
  4. ggroc(rocobj0, color = "red", linetype = 1, size = 1, alpha = 1, legacy.axes = T)+
  5.                 geom_abline(intercept = 0, slope = 1, color="grey", size = 1, linetype=1)+
  6.               labs(x = "False Positive Rate (1 - Specificity)",
  7.                    y = "True Positive Rate (Sensivity or Recall)")+
  8.               annotate("text",x = .75, y = .25,label=paste("AUC =", auc0),
  9.                        size = 5, family="serif")+
  10.               coord_cartesian(xlim = c(0, 1), ylim = c(0, 1))+
  11.               theme_bw()+
  12.               theme(panel.background = element_rect(fill = 'transparent'),
  13.                     axis.ticks.length = unit(0.4, "lines"),
  14.                     axis.ticks = element_line(color='black'),
  15.                     axis.line = element_line(size=.5, colour = "black"),
  16.                     axis.title = element_text(colour='black', size=12,face = "bold"),
  17.                     axis.text = element_text(colour='black',size=10,face = "bold"),
  18.                     text = element_text(size=8, color="black", family="serif"))

基于xgboost包的普通构建模型

  1. xgboost_model <- xgboost(data = as.matrix(train_data[, -1]),
  2.                          label = as.numeric(train_data$Private)-1,
  3.                          max_depth = 3,
  4.                          objective = "binary:logistic",
  5.                          nrounds = 10,
  6.                          verbose = FALSE,
  7.                          prediction = TRUE,
  8.                          eval_metric = "logloss")
  9. xgboost_model
  1. predict(xgboost_model,
  2.         as.matrix(test_data[, -1])) %>%
  3.   as.tibble() %>%
  4.   mutate(prediction = round(value),
  5.          label = as.numeric(test_data$Private)-1) %>%
  6.   count(prediction, label)
  1. rocobj1 <- roc((as.numeric(test_data$Private) - 1), predict(xgboost_model, as.matrix(test_data[, -1]), type="prob"))
  2. auc1 <- round(auc((as.numeric(test_data$Private) - 1), predict(xgboost_model, as.matrix(test_data[, -1]), type="prob")), 4)
  4. ggroc(rocobj1, color = "red", linetype = 1, size = 1, alpha = 1, legacy.axes = T)+
  5.                 geom_abline(intercept = 0, slope = 1, color="grey", size = 1, linetype=1)+
  6.               labs(x = "False Positive Rate (1 - Specificity)",
  7.                    y = "True Positive Rate (Sensivity or Recall)")+
  8.               annotate("text",x = .75, y = .25,label=paste("AUC =", auc1),
  9.                        size = 5, family="serif")+
  10.               coord_cartesian(xlim = c(0, 1), ylim = c(0, 1))+
  11.               theme_bw()+
  12.               theme(panel.background = element_rect(fill = 'transparent'),
  13.                     axis.ticks.length = unit(0.4, "lines"),
  14.                     axis.ticks = element_line(color='black'),
  15.                     axis.line = element_line(size=.5, colour = "black"),
  16.                     axis.title = element_text(colour='black', size=12,face = "bold"),
  17.                     axis.text = element_text(colour='black',size=10,face = "bold"),
  18.                     text = element_text(size=8, color="black", family="serif"))

Machine learning: Boosting - 图1

基于xgboost包的调参建模 (一)

  1. dtrain <- xgb.DMatrix(as.matrix(train_data[, -1]),
  2.                       label = as.numeric(train_data$Private)-1)
  3. dtest <- xgb.DMatrix(as.matrix(test_data[, -1]),
  4.                       label = as.numeric(test_data$Private)-1)
  6. params <- list(max_depth = 3,
  7.                objective = "binary:logistic",
  8.                silent = 0)
  10. watchlist <- list(train = dtrain, eval = dtest)
  12. bst_model <- xgb.train(params = params,
  13.                        data = dtrain,
  14.                        nrounds = 10,
  15.                        watchlist = watchlist,
  16.                        verbose = FALSE,
  17.                        prediction = TRUE,
  18.                        eval_metric = "logloss")
  19. bst_model
  1. predict(bst_model,
  2.         as.matrix(test_data[, -1])) %>%
  3.   as_tibble() %>%
  4.   mutate(prediction = round(value),
  5.          label = as.numeric(test_data$Private)-1) %>%
  6.   count(prediction, label)
  1. rocobj2 <- roc((as.numeric(test_data$Private) - 1), predict(bst_model, as.matrix(test_data[, -1]), type="prob"))
  2. auc2 <- round(auc((as.numeric(test_data$Private) - 1), predict(bst_model, as.matrix(test_data[, -1]), type="prob")), 4)
  4. ggroc(rocobj2, color = "red", linetype = 1, size = 1, alpha = 1, legacy.axes = T)+
  5.                 geom_abline(intercept = 0, slope = 1, color="grey", size = 1, linetype=1)+
  6.               labs(x = "False Positive Rate (1 - Specificity)",
  7.                    y = "True Positive Rate (Sensivity or Recall)")+
  8.               annotate("text",x = .75, y = .25,label=paste("AUC =", auc2),
  9.                        size = 5, family="serif")+
  10.               coord_cartesian(xlim = c(0, 1), ylim = c(0, 1))+
  11.               theme_bw()+
  12.               theme(panel.background = element_rect(fill = 'transparent'),
  13.                     axis.ticks.length = unit(0.4, "lines"),
  14.                     axis.ticks = element_line(color='black'),
  15.                     axis.line = element_line(size=.5, colour = "black"),
  16.                     axis.title = element_text(colour='black', size=12,face = "bold"),
  17.                     axis.text = element_text(colour='black',size=10,face = "bold"),
  18.                     text = element_text(size=8, color="black", family="serif"))

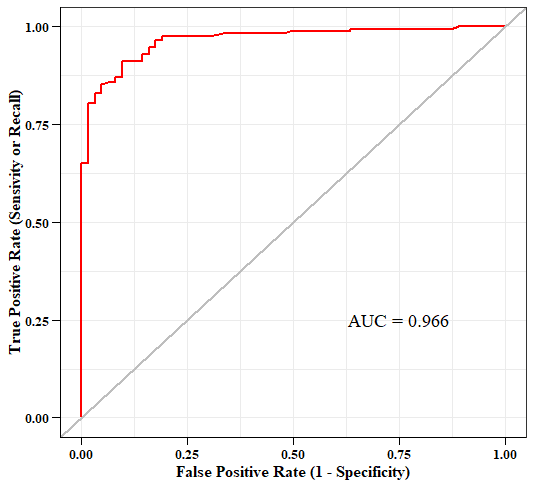

Machine learning: Boosting - 图2

基于xgboost包的调参建模 (二)

  1. cv_model <- xgb.cv(params = params,
  2.                    data = dtrain,
  3.                    nrounds = 100,
  4.                    watchlist = watchlist,
  5.                    nfold = 5,
  6.                    verbose = FALSE,
  7.                    prediction = TRUE,
  8.                    eval_metric = "logloss") # prediction of cv folds
  10. cv_model$evaluation_log %>%
  11.   filter(test_logloss_mean == min(test_logloss_mean))
  13. min_logloss <- min(cv_model$evaluation_log[, test_logloss_mean])
  14. min_logloss_index <- which.min(cv_model$evaluation_log[, test_logloss_mean])
  16. nround <- min_logloss_index
  17. best_param <- params
  18. bst_model_cv <- xgb.train(data=dtrain, params=best_param, nrounds=nround, nthread=6)
  19. bst_model_cv
  1. rocobj3 <- roc((as.numeric(test_data$Private) - 1), predict(bst_model_cv, as.matrix(test_data[, -1]), type="prob"))
  2. auc3 <- round(auc((as.numeric(test_data$Private) - 1), predict(bst_model_cv, as.matrix(test_data[, -1]), type="prob")), 4)
  4. ggroc(rocobj3, color = "red", linetype = 1, size = 1, alpha = 1, legacy.axes = T)+
  5.                 geom_abline(intercept = 0, slope = 1, color="grey", size = 1, linetype=1)+
  6.               labs(x = "False Positive Rate (1 - Specificity)",
  7.                    y = "True Positive Rate (Sensivity or Recall)")+
  8.               annotate("text",x = .75, y = .25,label=paste("AUC =", auc3),
  9.                        size = 5, family="serif")+
  10.               coord_cartesian(xlim = c(0, 1), ylim = c(0, 1))+
  11.               theme_bw()+
  12.               theme(panel.background = element_rect(fill = 'transparent'),
  13.                     axis.ticks.length = unit(0.4, "lines"),
  14.                     axis.ticks = element_line(color='black'),
  15.                     axis.line = element_line(size=.5, colour = "black"),
  16.                     axis.title = element_text(colour='black', size=12,face = "bold"),
  17.                     axis.text = element_text(colour='black',size=10,face = "bold"),
  18.                     text = element_text(size=8, color="black", family="serif"))

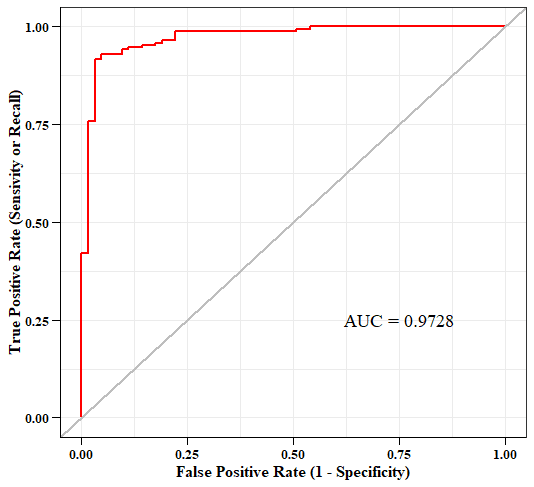

Machine learning: Boosting - 图3

基于caret包的建模

  1. X_train <- xgb.DMatrix(as.matrix(train_data %>% select(-Private)))
  2. y_train <- train_data$Private
  3. X_test <- xgb.DMatrix(as.matrix(test_data %>% select(-Private)))
  4. y_test <- test_data$Private
  7. xgb_trcontrol <- trainControl(method = "cv",
  8.                               number = 5,
  9.                               allowParallel = TRUE,
  10.                               verboseIter = FALSE,
  11.                               returnData = FALSE)
  13. xgbGrid <- expand.grid(nrounds = c(100, 200),
  14.                        max_depth = c(10, 15, 20, 25),
  15.                        colsample_bytree = seq(0.5, 0.9, length.out = 5),
  16.                        eta = 0.1,
  17.                        gamma = 0,
  18.                        min_child_weight = 1,
  19.                        subsample = 1)
  21. set.seed(123)
  22. xgb_model_caret <- train(X_train, y_train,
  23.                    trControl = xgb_trcontrol,
  24.                    tuneGrid = xgbGrid,
  25.                    method = "xgbTree")
  26. xgb_model_caret$bestTune
  1. pred <- predict(xgb_model_caret, newdata=X_test)
  2. print(confusionMatrix(pred, y_test))
  1. rocobj4 <- roc(y_test, predict(xgb_model_caret, newdata = X_test, type = "prob")[, "Yes"])
  2. auc4 <- round(auc(y_test, predict(xgb_model_caret, newdata = X_test, type = "prob")[, "Yes"]), 4)
  4. ggroc(rocobj4, color = "red", linetype = 1, size = 1, alpha = 1, legacy.axes = T)+
  5.                 geom_abline(intercept = 0, slope = 1, color="grey", size = 1, linetype=1)+
  6.               labs(x = "False Positive Rate (1 - Specificity)",
  7.                    y = "True Positive Rate (Sensivity or Recall)")+
  8.               annotate("text",x = .75, y = .25,label=paste("AUC =", auc4),
  9.                        size = 5, family="serif")+
  10.               coord_cartesian(xlim = c(0, 1), ylim = c(0, 1))+
  11.               theme_bw()+
  12.               theme(panel.background = element_rect(fill = 'transparent'),
  13.                     axis.ticks.length = unit(0.4, "lines"),
  14.                     axis.ticks = element_line(color='black'),
  15.                     axis.line = element_line(size=.5, colour = "black"),
  16.                     axis.title = element_text(colour='black', size=12,face = "bold"),
  17.                     axis.text = element_text(colour='black',size=10,face = "bold"),
  18.                     text = element_text(size=8, color="black", family="serif"))

Machine learning: Boosting - 图4

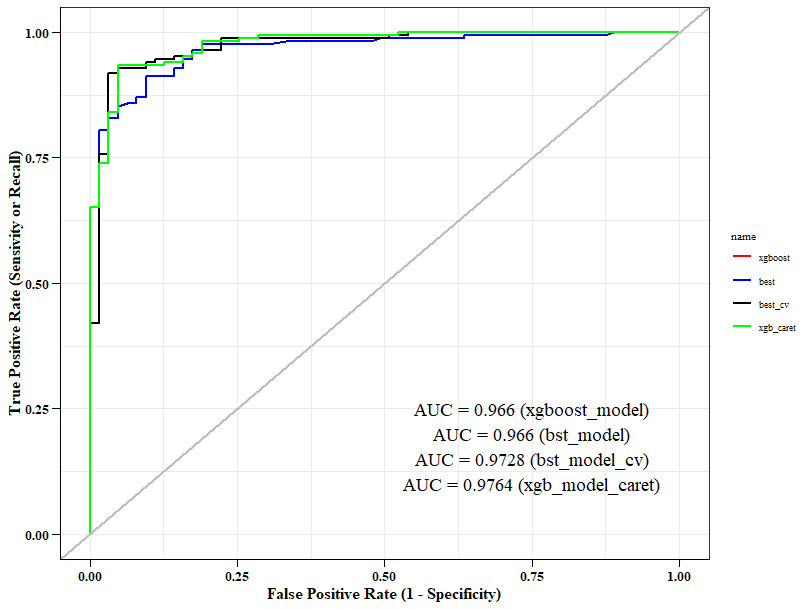

Summary ROC

  1. rocobj1 <- roc((as.numeric(test_data$Private) - 1), predict(xgboost_model, as.matrix(test_data[, -1]), type="prob"))
  2. auc1 <- round(auc((as.numeric(test_data$Private) - 1), predict(xgboost_model, as.matrix(test_data[, -1]), type="prob")), 4)
  4. rocobj2 <- roc((as.numeric(test_data$Private) - 1), predict(bst_model, as.matrix(test_data[, -1]), type="prob"))
  5. auc2 <- round(auc((as.numeric(test_data$Private) - 1), predict(bst_model, as.matrix(test_data[, -1]), type="prob")), 4)
  7. rocobj3 <- roc((as.numeric(test_data$Private) - 1), predict(bst_model_cv, as.matrix(test_data[, -1]), type="prob"))
  8. auc3 <- round(auc((as.numeric(test_data$Private) - 1), predict(bst_model_cv, as.matrix(test_data[, -1]), type="prob")), 4)
  10. rocobj4 <- roc(y_test, predict(xgb_model_caret, newdata = X_test, type = "prob")[, "Yes"])
  11. auc4 <- round(auc(y_test, predict(xgb_model_caret, newdata = X_test, type = "prob")[, "Yes"]), 4)
  14. rocboj_list <- list(xgboost=rocobj1,
  15.                     best=rocobj2,
  16.                     best_cv=rocobj3,
  17.                     xgb_caret=rocobj4)
  19. ggroc(rocboj_list, linetype = 1, size = 1, alpha = 1, legacy.axes = T)+
  20.                 geom_abline(intercept = 0, slope = 1, color="grey", size = 1, linetype=1)+
  21.               labs(x = "False Positive Rate (1 - Specificity)",
  22.                    y = "True Positive Rate (Sensivity or Recall)")+
  23.               annotate("text",x = .75, y = .25,label=paste("AUC =", auc1, "(xgboost_model)"),
  24.                        size = 5, family="serif")+
  25.               annotate("text",x = .75, y = .20,label=paste("AUC =", auc2, "(bst_model)"),
  26.                        size = 5, family="serif")+
  27.               annotate("text",x = .75, y = .15,label=paste("AUC =", auc3, "(bst_model_cv)"),
  28.                        size = 5, family="serif")+
  29.               annotate("text",x = .75, y = .10,label=paste("AUC =", auc4, "(xgb_model_caret)"),
  30.                        size = 5, family="serif")+
  31.               coord_cartesian(xlim = c(0, 1), ylim = c(0, 1))+
  32.               scale_colour_manual(values = c("red", "blue", "black", "green"))+
  33.               theme_bw()+
  34.               theme(panel.background = element_rect(fill = 'transparent'),
  35.                     axis.ticks.length = unit(0.4, "lines"),
  36.                     axis.ticks = element_line(color='black'),
  37.                     axis.line = element_line(size=.5, colour = "black"),
  38.                     axis.title = element_text(colour='black', size=12,face = "bold"),
  39.                     axis.text = element_text(colour='black',size=10,face = "bold"),
  40.                     text = element_text(size=8, color="black", family="serif"))

Machine learning: Boosting - 图5

Information

  1. sessionInfo()
  1. R version 4.0.2 (2020-06-22)
  2. Platform: x86_64-w64-mingw32/x64 (64-bit)
  3. Running under: Windows 10 x64 (build 19042)
  5. Matrix products: default
  7. locale:
  8. [1] LC_COLLATE=English_United States.1252  LC_CTYPE=English_United States.1252
  9. [3] LC_MONETARY=English_United States.1252 LC_NUMERIC=C
  10. [5] LC_TIME=English_United States.1252
  11. system code page: 936
  13. attached base packages:
  14. [1] stats     graphics  grDevices utils     datasets  methods   base
  16. other attached packages:
  17.  [1] xgboost_1.3.1.1 pROC_1.16.2     caret_6.0-86    lattice_0.20-41 ISLR_1.2        forcats_0.5.0
  18.  [7] stringr_1.4.0   purrr_0.3.4     readr_1.4.0     tidyr_1.1.2     ggplot2_3.3.3   tidyverse_1.3.0
  19. [13] tibble_3.0.3    dplyr_1.0.2
  21. loaded via a namespace (and not attached):
  22.  [1] httr_1.4.2           jsonlite_1.7.1       splines_4.0.2        foreach_1.5.1        prodlim_2019.11.13
  23.  [6] modelr_0.1.8         assertthat_0.2.1     stats4_4.0.2         cellranger_1.1.0     yaml_2.2.1
  24. [11] ipred_0.9-9          pillar_1.4.6         backports_1.1.10     glue_1.4.2           digest_0.6.25
  25. [16] rvest_0.3.6          colorspace_1.4-1     recipes_0.1.15       gbm_2.1.8            htmltools_0.5.0
  26. [21] Matrix_1.3-2         plyr_1.8.6           timeDate_3043.102    pkgconfig_2.0.3      broom_0.7.3
  27. [26] haven_2.3.1          scales_1.1.1         gower_0.2.2          lava_1.6.8           farver_2.0.3
  28. [31] generics_0.1.0       ellipsis_0.3.1       withr_2.3.0          nnet_7.3-14          cli_2.1.0
  29. [36] survival_3.2-7       magrittr_1.5         crayon_1.3.4         readxl_1.3.1         evaluate_0.14
  30. [41] fs_1.5.0             fansi_0.4.1          nlme_3.1-150         MASS_7.3-53          xml2_1.3.2
  31. [46] class_7.3-17         rsconnect_0.8.16     tools_4.0.2          data.table_1.13.6    hms_0.5.3
  32. [51] lifecycle_0.2.0      munsell_0.5.0        reprex_0.3.0         compiler_4.0.2       e1071_1.7-4
  33. [56] rlang_0.4.7          grid_4.0.2           iterators_1.0.13     rstudioapi_0.11      labeling_0.4.2
  34. [61] rmarkdown_2.5        gtable_0.3.0         ModelMetrics_1.2.2.2 codetools_0.2-18     DBI_1.1.0
  35. [66] reshape2_1.4.4       R6_2.5.0             lubridate_1.7.9      knitr_1.30           utf8_1.1.4
  36. [71] stringi_1.5.3        Rcpp_1.0.5           vctrs_0.3.4          rpart_4.1-15         dbplyr_2.0.0
  37. [76] tidyselect_1.1.0     xfun_0.19

Reference

  1. extreme gradient boosting
  2. XGBoost R Tutorial
