离线通过tiup搭建tidb集群 - 《tidb安装与mysql数据库转移到tidb》

部署离线环境 TiUP 组件
使用 TiUP 工具部署TIDB集群 ,以下操作均在中控级中进行
4. 部署 TiDB 集群

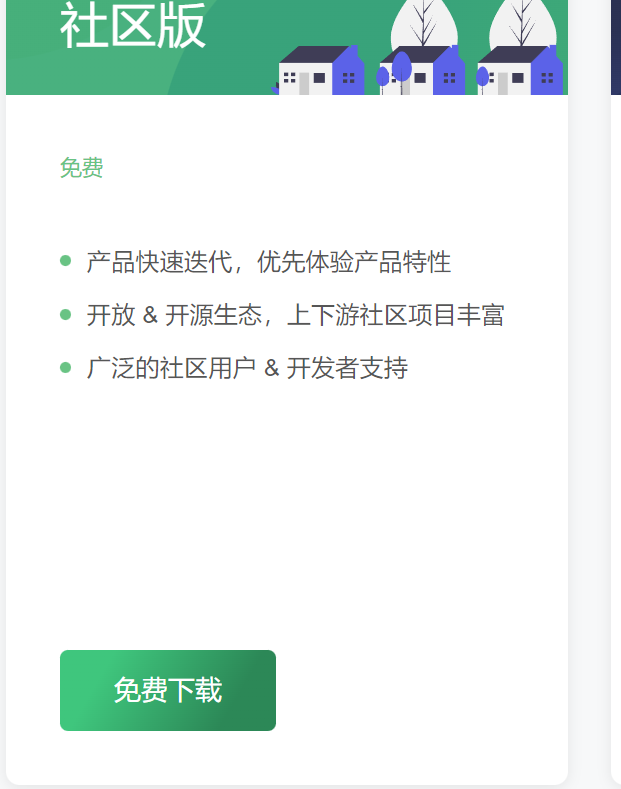

1.在官方下载页面选择对应版本的 TiDB server 离线镜像包（包含 TiUP 离线组件包）

然后选择任意版本

部署离线环境 TiUP 组件

将离线包发送到目标集群的中控机后，执行以下命令安装 TiUP 组件：

tar xzvf tidb-community-server-${version}-linux-amd64.tar.gz && \
sh tidb-community-server-${version}-linux-amd64/local_install.sh && \
source /home/tidb/.bash_profile

local_install.sh 脚本会自动执行 tiup mirror set tidb-community-server-${version}-linux-amd64 命令将当前镜像地址设置为 tidb-community-server-${version}-linux-amd64。
tips:若需将镜像切换到其他目录，可以通过手动执行 tiup mirror set 进行切换。如果需要切换到在线环境，可执行 tiup mirror set https://tiup-mirrors.pingcap.com。

使用 TiUP 工具部署TIDB集群 ,以下操作均在中控级中进行

生成TIDB的配置模板

tiup cluster template > topology.yaml

修改 topology.yaml 文件

这里主要修改，pd-server，tikv-server，tidb-server，monitoring_servers、grafana_servers、alertmanager_servers的ip，这里不安装tiflash-servers，先注释掉，下面是我的配置文件信息：
topology.yaml

# # Global variables are applied to all deployments and used as the default value of
# # the deployments if a specific deployment value is missing.
global:
  # # The user who runs the tidb cluster.
  user: "tidb"
  # # group is used to specify the group name the user belong to if it's not the same as user.
  # group: "tidb"
  # # SSH port of servers in the managed cluster.
  ssh_port: 22
  # # Storage directory for cluster deployment files, startup scripts, and configuration files.
  deploy_dir: "/tidb-deploy"
  # # TiDB Cluster data storage directory
  data_dir: "/tidb-data"
  # # Supported values: "amd64", "arm64" (default: "amd64")
  arch: "amd64"
  # # Resource Control is used to limit the resource of an instance.
  # # See: https://www.freedesktop.org/software/systemd/man/systemd.resource-control.html
  # # Supports using instance-level `resource_control` to override global `resource_control`.
  # resource_control:
  #   # See: https://www.freedesktop.org/software/systemd/man/systemd.resource-control.html#MemoryLimit=bytes
  #   memory_limit: "2G"
  #   # See: https://www.freedesktop.org/software/systemd/man/systemd.resource-control.html#CPUQuota=
  #   # The percentage specifies how much CPU time the unit shall get at maximum, relative to the total CPU time available on one CPU. Use values > 100% for allotting CPU time on more than one CPU.
  #   # Example: CPUQuota=200% ensures that the executed processes will never get more than two CPU time.
  #   cpu_quota: "200%"
  #   # See: https://www.freedesktop.org/software/systemd/man/systemd.resource-control.html#IOReadBandwidthMax=device%20bytes
  #   io_read_bandwidth_max: "/dev/disk/by-path/pci-0000:00:1f.2-scsi-0:0:0:0 100M"
  #   io_write_bandwidth_max: "/dev/disk/by-path/pci-0000:00:1f.2-scsi-0:0:0:0 100M"
# # Monitored variables are applied to all the machines.
monitored:
  # # The communication port for reporting system information of each node in the TiDB cluster.
  node_exporter_port: 9100
  # # Blackbox_exporter communication port, used for TiDB cluster port monitoring.
  blackbox_exporter_port: 9115
  # # Storage directory for deployment files, startup scripts, and configuration files of monitoring components.
  # deploy_dir: "/tidb-deploy/monitored-9100"
  # # Data storage directory of monitoring components.
  # data_dir: "/tidb-data/monitored-9100"
  # # Log storage directory of the monitoring component.
  # log_dir: "/tidb-deploy/monitored-9100/log"
# # Server configs are used to specify the runtime configuration of TiDB components.
# # All configuration items can be found in TiDB docs:
# # - TiDB: https://pingcap.com/docs/stable/reference/configuration/tidb-server/configuration-file/
# # - TiKV: https://pingcap.com/docs/stable/reference/configuration/tikv-server/configuration-file/
# # - PD: https://pingcap.com/docs/stable/reference/configuration/pd-server/configuration-file/
# # - TiFlash: https://docs.pingcap.com/tidb/stable/tiflash-configuration
# #
# # All configuration items use points to represent the hierarchy, e.g:
# #   readpool.storage.use-unified-pool
# #           ^       ^
# # - example: https://github.com/pingcap/tiup/blob/master/examples/topology.example.yaml.
# # You can overwrite this configuration via the instance-level `config` field.
# server_configs:
  # tidb:
  # tikv:
  # pd:
  # tiflash:
  # tiflash-learner:
# # Server configs are used to specify the configuration of PD Servers.
pd_servers:
  # # The ip address of the PD Server.
  - host: 192.168.25.132
  - host: 192.168.25.134
  - host: 192.168.25.136
    # # SSH port of the server.
    # ssh_port: 22
    # # PD Server name
    # name: "pd-1"
    # # communication port for TiDB Servers to connect.
    # client_port: 2379
    # # Communication port among PD Server nodes.
    # peer_port: 2380
    # # PD Server deployment file, startup script, configuration file storage directory.
    # deploy_dir: "/tidb-deploy/pd-2379"
    # # PD Server data storage directory.
    # data_dir: "/tidb-data/pd-2379"
    # # PD Server log file storage directory.
    # log_dir: "/tidb-deploy/pd-2379/log"
    # # numa node bindings.
    # numa_node: "0,1"
    # # The following configs are used to overwrite the `server_configs.pd` values.
    # config:
    #   schedule.max-merge-region-size: 20
    #   schedule.max-merge-region-keys: 200000
 # - host: 10.0.0.1
    # ssh_port: 22
    # name: "pd-1"
    # client_port: 2379
    # peer_port: 2380
    # deploy_dir: "/tidb-deploy/pd-2379"
    # data_dir: "/tidb-data/pd-2379"
    # log_dir: "/tidb-deploy/pd-2379/log"
    # numa_node: "0,1"
    # config:
    #   schedule.max-merge-region-size: 20
    #   schedule.max-merge-region-keys: 200000
  #- host: 10.0.1.13
    # ssh_port: 22
    # name: "pd-1"
    # client_port: 2379
    # peer_port: 2380
    # deploy_dir: "/tidb-deploy/pd-2379"
    # data_dir: "/tidb-data/pd-2379"
    # log_dir: "/tidb-deploy/pd-2379/log"
    # numa_node: "0,1"
    # config:
    #   schedule.max-merge-region-size: 20
    #   schedule.max-merge-region-keys: 200000
# # Server configs are used to specify the configuration of TiDB Servers.
tidb_servers:
  # # The ip address of the TiDB Server.
  - host: 192.168.25.132
    # # SSH port of the server.
    # ssh_port: 22
    # # The port for clients to access the TiDB cluster.
    # port: 4000
    # # TiDB Server status API port.
    # status_port: 10080
    # # TiDB Server deployment file, startup script, configuration file storage directory.
    # deploy_dir: "/tidb-deploy/tidb-4000"
    # # TiDB Server log file storage directory.
    # log_dir: "/tidb-deploy/tidb-4000/log"
  # # The ip address of the TiDB Server.
  #- host: 10.0.1.15
    # ssh_port: 22
    # port: 4000
    # status_port: 10080
    # deploy_dir: "/tidb-deploy/tidb-4000"
    # log_dir: "/tidb-deploy/tidb-4000/log"
  #- host: 10.0.1.16
    # ssh_port: 22
    # port: 4000
    # status_port: 10080
    # deploy_dir: "/tidb-deploy/tidb-4000"
    # log_dir: "/tidb-deploy/tidb-4000/log"
# # Server configs are used to specify the configuration of TiKV Servers.
tikv_servers:
  # # The ip address of the TiKV Server.
  - host: 192.168.25.132
    # # SSH port of the server.
    # ssh_port: 22
    # # TiKV Server communication port.
    # port: 20160
    # # TiKV Server status API port.
    # status_port: 20180
    # # TiKV Server deployment file, startup script, configuration file storage directory.
    # deploy_dir: "/tidb-deploy/tikv-20160"
    # # TiKV Server data storage directory.
    # data_dir: "/tidb-data/tikv-20160"
    # # TiKV Server log file storage directory.
    # log_dir: "/tidb-deploy/tikv-20160/log"
    # # The following configs are used to overwrite the `server_configs.tikv` values.
    # config:
    #   log.level: warn
  # # The ip address of the TiKV Server.
  - host: 192.168.25.134
    # ssh_port: 22
    # port: 20160
    # status_port: 20180
    # deploy_dir: "/tidb-deploy/tikv-20160"
    # data_dir: "/tidb-data/tikv-20160"
    # log_dir: "/tidb-deploy/tikv-20160/log"
    # config:
    #   log.level: warn
  - host: 192.168.25.136
    # ssh_port: 22
    # port: 20160
    # status_port: 20180
    # deploy_dir: "/tidb-deploy/tikv-20160"
    # data_dir: "/tidb-data/tikv-20160"
    # log_dir: "/tidb-deploy/tikv-20160/log"
    # config:
    #   log.level: warn
# # Server configs are used to specify the configuration of TiFlash Servers.
#tiflash_servers:
  # # The ip address of the TiFlash Server.
 # - host: 10.0.1.20
    # # SSH port of the server.
    # ssh_port: 22
    # # TiFlash TCP Service port.
    # tcp_port: 9000
    # # TiFlash HTTP Service port.
    # http_port: 8123
    # # TiFlash raft service and coprocessor service listening address.
    # flash_service_port: 3930
    # # TiFlash Proxy service port.
    # flash_proxy_port: 20170
    # # TiFlash Proxy metrics port.
    # flash_proxy_status_port: 20292
    # # TiFlash metrics port.
    # metrics_port: 8234
    # # TiFlash Server deployment file, startup script, configuration file storage directory.
    # deploy_dir: /tidb-deploy/tiflash-9000
    ## With cluster version >= v4.0.9 and you want to deploy a multi-disk TiFlash node, it is recommended to
    ## check config.storage.* for details. The data_dir will be ignored if you defined those configurations.
    ## Setting data_dir to a ','-joined string is still supported but deprecated.
    ## Check https://docs.pingcap.com/tidb/stable/tiflash-configuration#multi-disk-deployment for more details.
    # # TiFlash Server data storage directory.
    # data_dir: /tidb-data/tiflash-9000
    # # TiFlash Server log file storage directory.
    # log_dir: /tidb-deploy/tiflash-9000/log
  # # The ip address of the TiKV Server.
  #- host: 10.0.1.21
    # ssh_port: 22
    # tcp_port: 9000
    # http_port: 8123
    # flash_service_port: 3930
    # flash_proxy_port: 20170
    # flash_proxy_status_port: 20292
    # metrics_port: 8234
    # deploy_dir: /tidb-deploy/tiflash-9000
    # data_dir: /tidb-data/tiflash-9000
    # log_dir: /tidb-deploy/tiflash-9000/log
# # Server configs are used to specify the configuration of Prometheus Server.
monitoring_servers:
  # # The ip address of the Monitoring Server.
  - host: 192.168.25.134
    # # SSH port of the server.
    # ssh_port: 22
    # # Prometheus Service communication port.
    # port: 9090
    # # ng-monitoring servive communication port
    # ng_port: 12020
    # # Prometheus deployment file, startup script, configuration file storage directory.
    # deploy_dir: "/tidb-deploy/prometheus-8249"
    # # Prometheus data storage directory.
    # data_dir: "/tidb-data/prometheus-8249"
    # # Prometheus log file storage directory.
    # log_dir: "/tidb-deploy/prometheus-8249/log"
# # Server configs are used to specify the configuration of Grafana Servers.
grafana_servers:
  # # The ip address of the Grafana Server.
  - host: 192.168.25.134
    # # Grafana web port (browser access)
    # port: 3000
    # # Grafana deployment file, startup script, configuration file storage directory.
    # deploy_dir: /tidb-deploy/grafana-3000
# # Server configs are used to specify the configuration of Alertmanager Servers.
alertmanager_servers:
  # # The ip address of the Alertmanager Server.
  - host: 192.168.25.134
    # # SSH port of the server.
    # ssh_port: 22
    # # Alertmanager web service port.
    # web_port: 9093
    # # Alertmanager communication port.
    # cluster_port: 9094
    # # Alertmanager deployment file, startup script, configuration file storage directory.
    # deploy_dir: "/tidb-deploy/alertmanager-9093"
    # # Alertmanager data storage directory.
    # data_dir: "/tidb-data/alertmanager-9093"
    # # Alertmanager log file storage directory.
    # log_dir: "/tidb-deploy/alertmanager-9093/log"

3. 检查和自动修复集群存在的潜在风险
tiup cluster check ./topology.yaml —apply —user root -p

如果出现Fail表示有错误,解决方案见官方文档: https://docs.pingcap.com/zh/tidb/stable/troubleshoot-tidb-cluster

4. 部署 TiDB 集群

注意部署的tidb版本，可以通过 tiup cluster list 来查看现有的版本。tidb-test 表示集群的名称。
tiup cluster deploy tidb-test v5.0.0 ./topology.yaml —user root -p

5. 检查集群情况
tiup cluster display tidb-test

如果出现status为down的,使用tiup启动集群
tiup cluster start tidb-test

6.使用navicat连接tidb数据库
‘
到这里集群就已经搭建成功了.
