Definition: “The process of finding out, analyzing, documenting and checking the services and constraints of a software system is called requirements engineering (RE)”

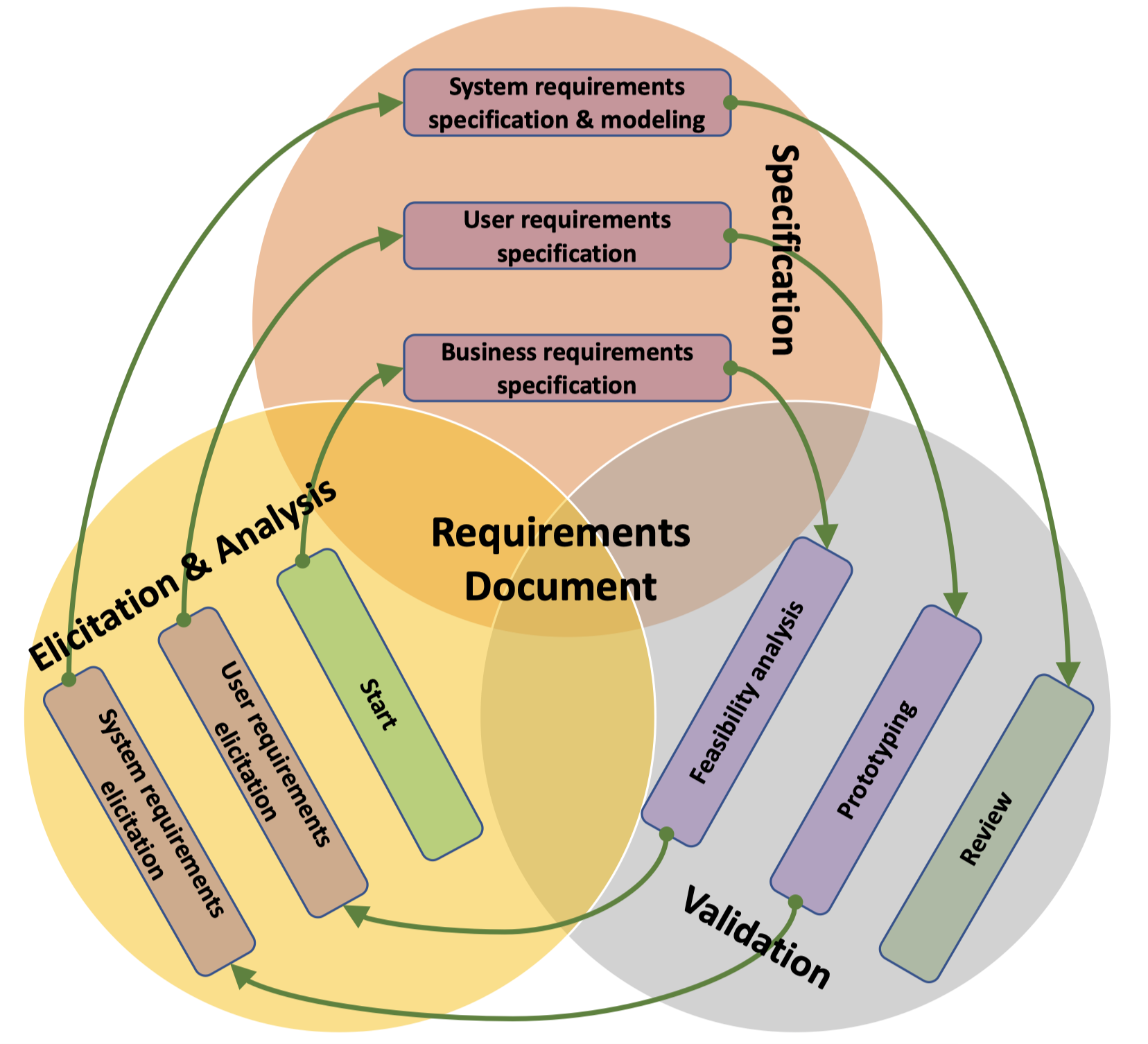

RE Processes

Key Activities

Elicitation and analysis

Interact with stakeholders(someone who is related to the project), discovering the user and system requirements.

Specification

Convert requirements into standard form.

Validations

Assess feasibility of the project; building prototype if needed; review requirements

Requirements Elicitation

Objectives

1. Understand the application domain
2. identify relevant work activities
3. identify service components
4. identify system features
5. identify constraints and environment of the system
6. identify How the new system is going to be used and How the new system is going to help the users

(Personal understanding)
There are 4 questions that can help in RE.

1. What they want?
2. Why they want it?
3. What they actually need?
4. How to turn it into system requirements?

It’s important for SDE to know that what customer wants is **NOT** what they needs.
Example:

1. The Customers want “Questions are grouped based on the types (HR related); each group shall be displayed on a separate page.”
2. Because the Customers don’t want the questions in the questionnaire display crowdedly and the related questions can display together.
3. What they need is a function to determine the position of question. (Having considered the Expandability)
4. (Leave to thinking)

Process Mode

Discovery and understanding

Discover requirements and domain requirements

Domain Requirements

“Domain requirements are derived from the application domain of the system rather than from the specific needs of system users.”

Classification and organization

Take the unstructured collection of requirements, groups related requirements

Prioritization and negotiation

Prioritizing requirements, identify duplicated requirements, and resolving requirements conflicts

Documentation

Requirements maybe formally documented using standard templates or informally maintained on whiteboards, wikis, or other shared spaces

Techniques

Interview

1. Closed Interviews
2. Open Interviews

Aim to get an overall understanding of what users do, and how they might interact with the new system

Ethnography

Ethnography is an observational technique that can be used to understand operational processes and help derive requirements for software to support these processes.

1. Immerse yourself in the working environment
2. Observe day-to-day work and taking notes
3. Discover how people actually work, rather than the pre-defined (standard) business processes
4. Discover implicit requirements of the system

The Importance of the Observation Activity

1. Actual work practices are far richer, more complex, and more dynamic than the models assumed
2. People often find it very difficulty to clearly articulate details of their work
3. People may understand their own work, but may not understand its relationship to other work in the organization

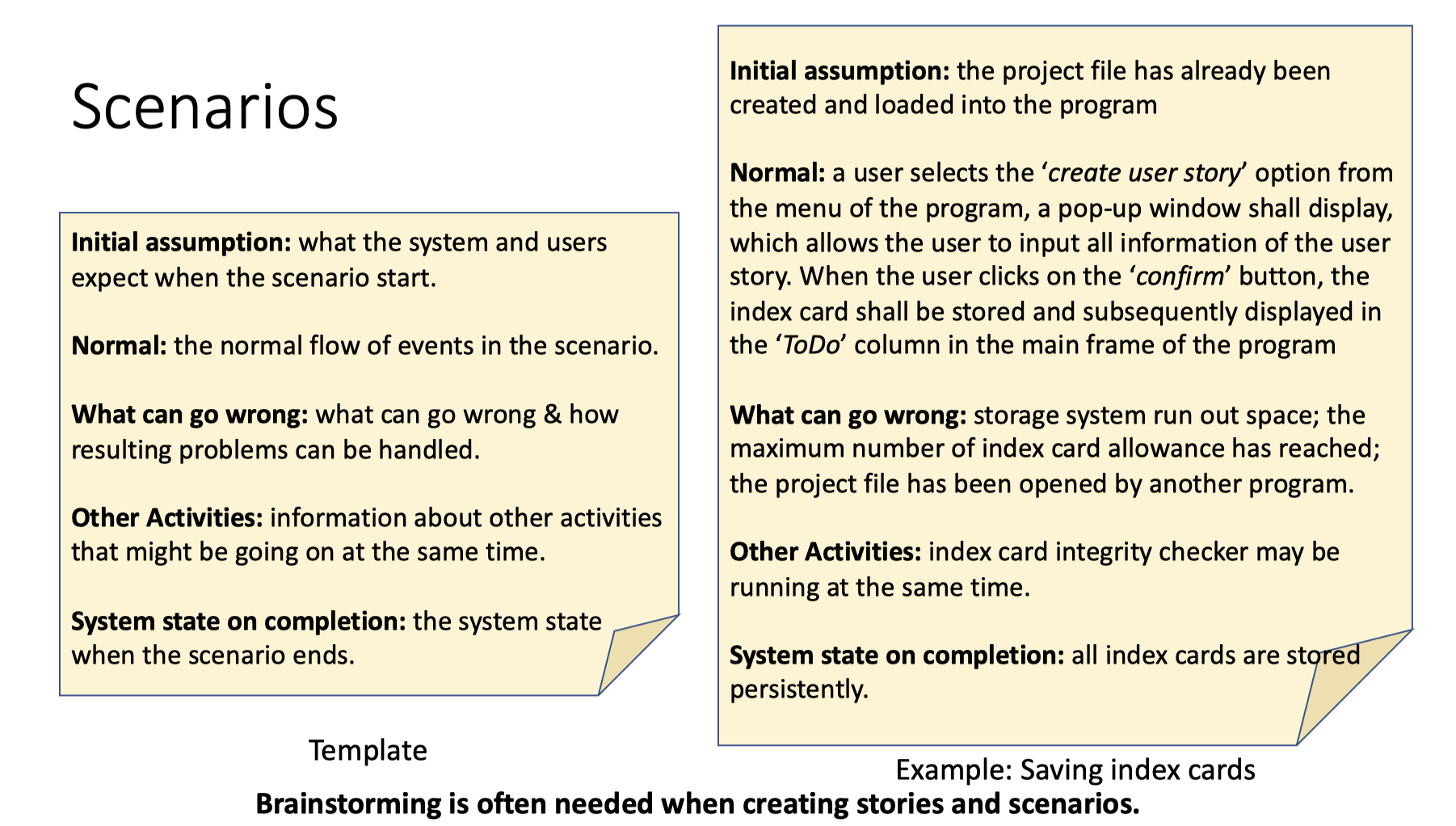

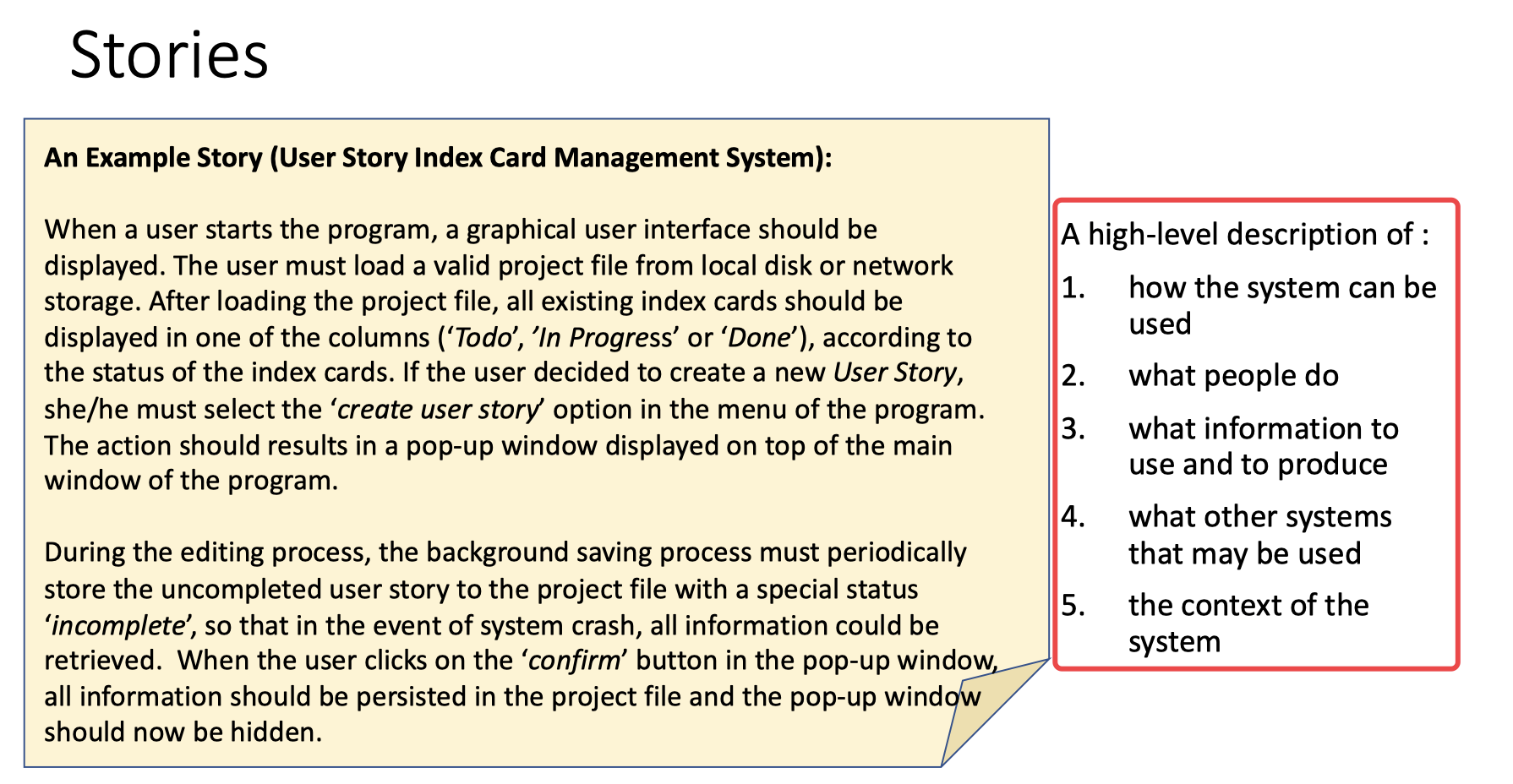

Stories & Scenarios

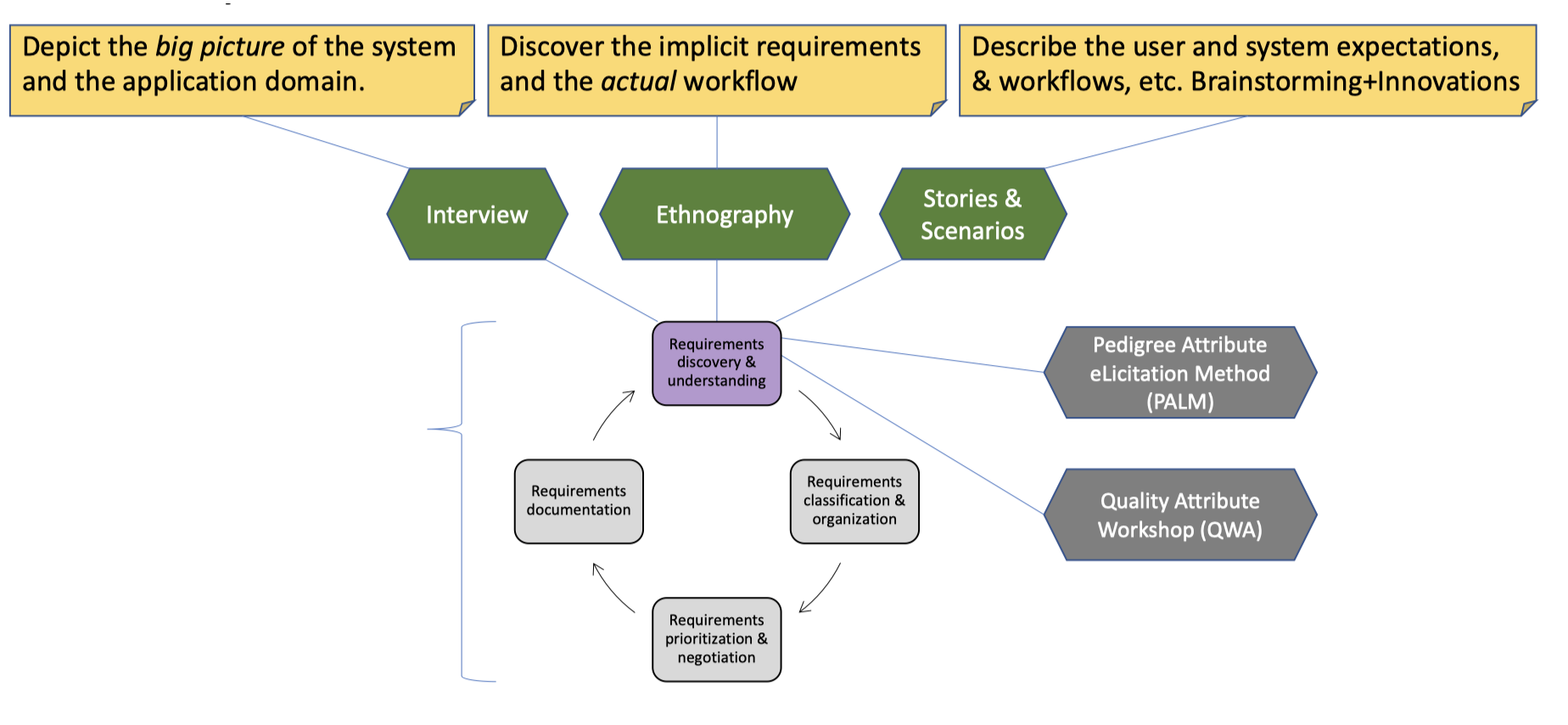

Summary

Requirements

User/System Requirements

User Requirements

• Often written in natural langue with diagrams
• High-level, abstract statement of a service that a system should provide or a constraint on a system

• Usually written for non-technical people

  • Client managers
  • Contractor managers
  • System end-users
  • Client engineers

    System Requirements

• Detailed description of software system’s services and operational constraints

• Define exactly what is to be implemented
• It may be part of the contract between system investors and software developers

• Usually written for technical people

  • System architects
  • Software developers
  • Product Managers
  • Project managers

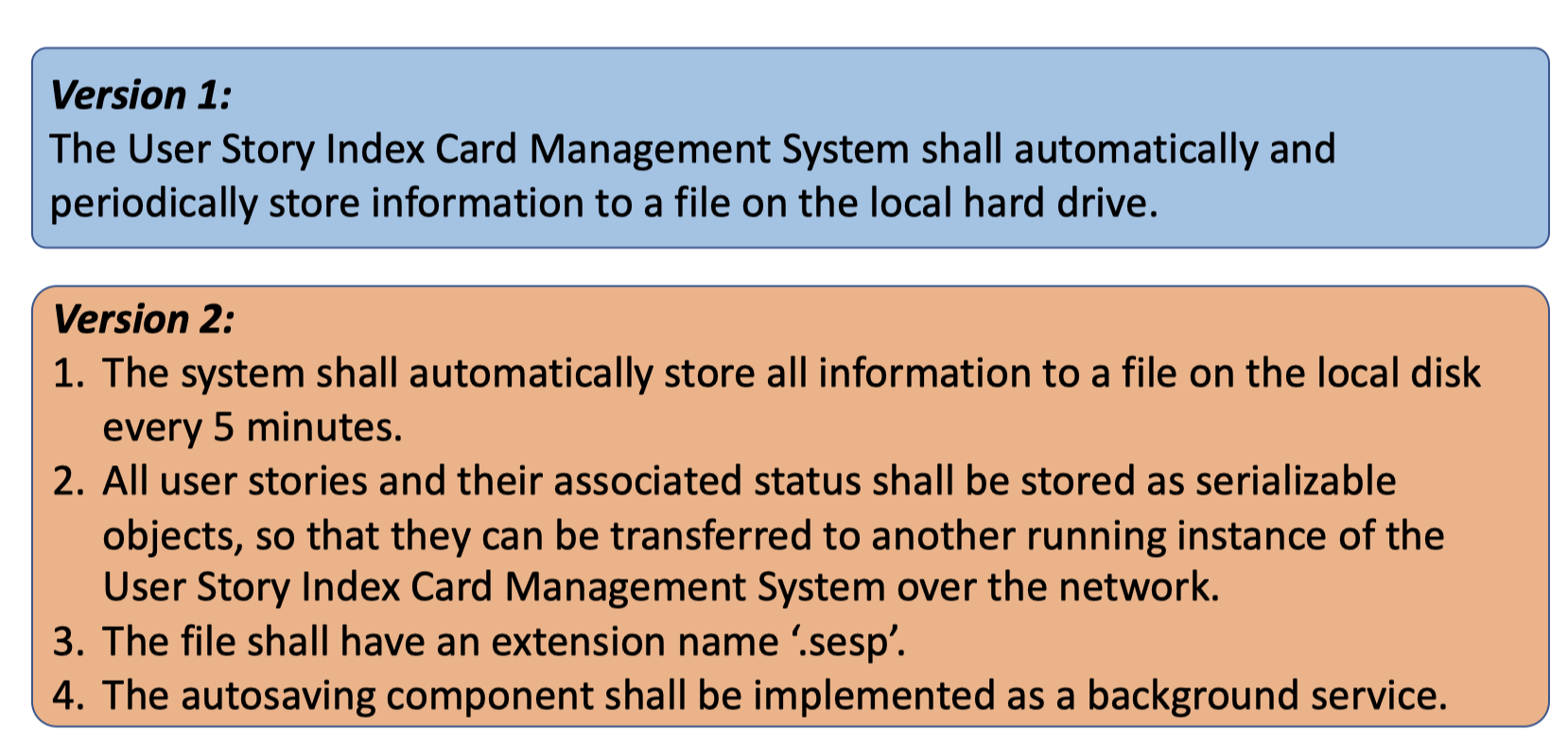

    Example



    Functional/Non-functional Requirements

    Functional Requirements

• Use natural language to write functional requirements

• Functional requirements traditionally focused on what the system should do

• Depending on the nature of the system to be developed, the focus may be shifted to other aspects of the system

  Non-Functional Requirements

• Specify characteristics of the system as a whole.

• Non-functional requirements are more critical than individual functional requirements.
• Non-functional requirements are difficult to implement.

  Measurable Non-Functional Requirements

  Quality Attribute Scenarios

  1. Source of stimulus: entities (a human, a computer system, or any other actuator) that generated the stimulus
  2. Stimulus: a condition that requires a response when it arrives at a system
  3. Environment: the stimulus occurs under certain conditions. For example, the system is under an overloaded condition or in a normal operation, or some other relevant state
  4. Artifact: a collection of systems, the whole system, or some pieces of it.
  5. Response: the activity undertaken as the result of the arrival of the stimulus
  6. Response measure: when the response occurs, it should be measurable in some ways so that the requirements can be tested.
  For System Reliability


  The Categories of Non-Functional Requirement



  The Boundaries

  When documenting requirements, we often need to specify the relationships between functional and non-functional requirements.

  Summary of Requirements



Prioritization and Negotiation

When multiple stakeholders are involved, requirements will conflict. Resolving requirements conflicts through negotiation.

Prioritizing Non-Functional Requirements Using Utility Tree

• A way to record non-functional requirements all in one place
• Establishes priority of each requirement in terms of
  • impact on software architecture
  • impact on business value

• Stakeholders can review the utility tree to make sure their concerns have been addressed

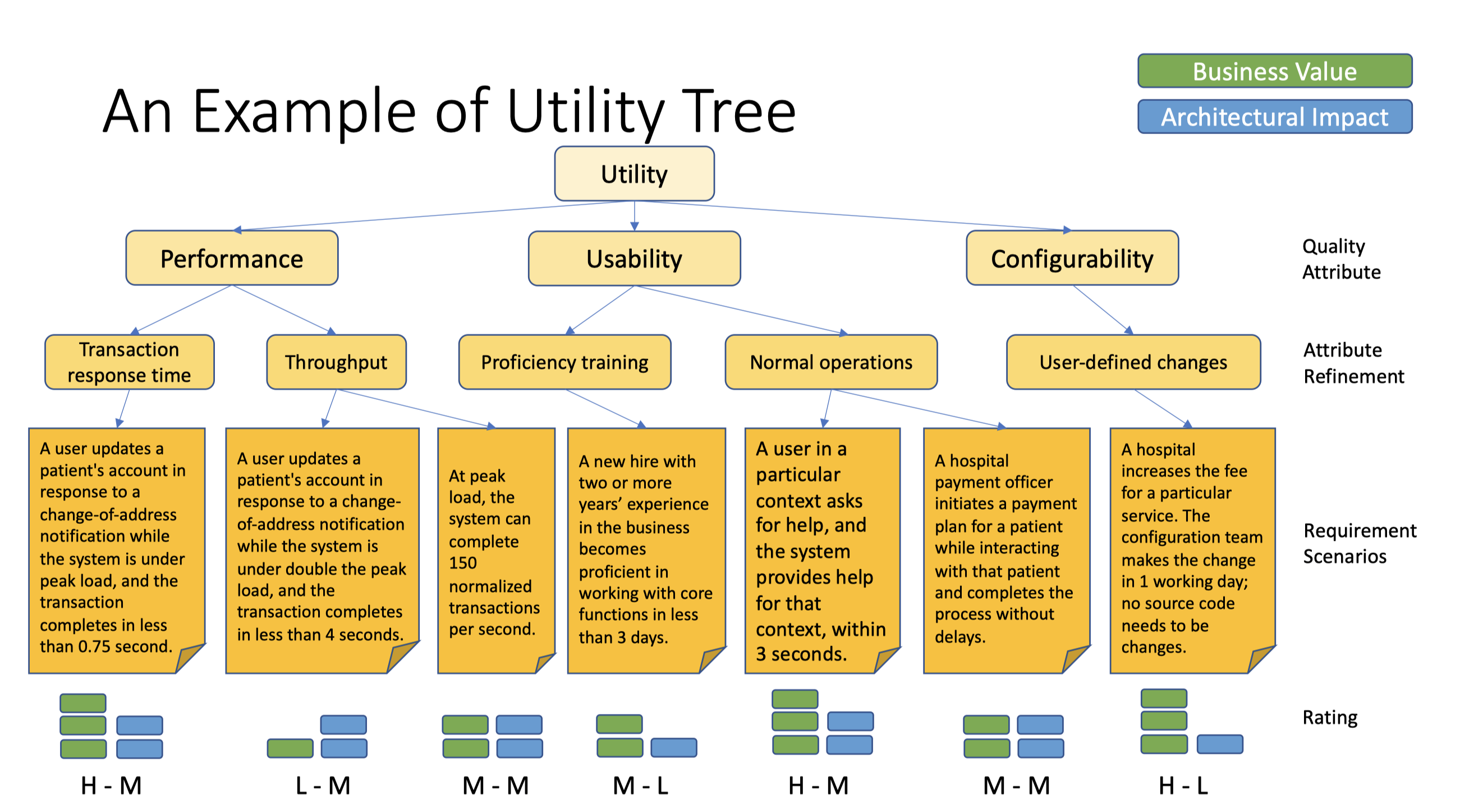

  Utility Tree

• The root of a utility tree is a placeholder node, labelled as “Utility”

• The second level of the tree contains broad quality attribute categories.
• The third level of the tree refines those categories.
• Requirements are captured as scenarios.
• Each scenario is rated by both system buyers and architects, at level of Low (L), Medium (M) or High (H).
  • Scenarios with (H,H) rating are the ones that deserve the most attention.
  • Having too many (H, H) might be a cause for concern: Is the system achievable?

Feasibility Study

Business

• Operational feasibility
  • How the proposed system will affect organizational structures, working procedures and people

• Economic feasibility (cost-benefit analysis)

  • Assesses the costs and benefits of the project

    Technical

• Technical feasibility

  • Assesses the practicality of the proposed technical solution and the availability of technical skills, expertise and resources
• Schedule feasibility
  • Assesses the project timetable

Requirements Specification

Structured natural language

• Requirements are written in natural language in standard form or template
• Use language consistently to distinguish between mandatory and desirable requirements.
• Do NOT assume that readers understand technical or software engineering language

  Using Standard Form (Template)

1. Function:
2. Description:
3. Inputs:
4. Source:
5. Outputs:
6. Destination:
7. Action:
8. Requires:
9. Precondition:
10. Postcondition:
11. Side-effects:

    Consistency Ambiguity

Graphical notations

• Unified Modeling Language (UML) diagrams

  • Case diagrams
  • Sequence diagrams

    Use Case

    “When a user uses the system, she or he will perform a behaviourally related sequence of transactions in a dialogue with the system. We call such a special sequence a use case”


    Mathematical specification

• Using notations based on mathematical concepts

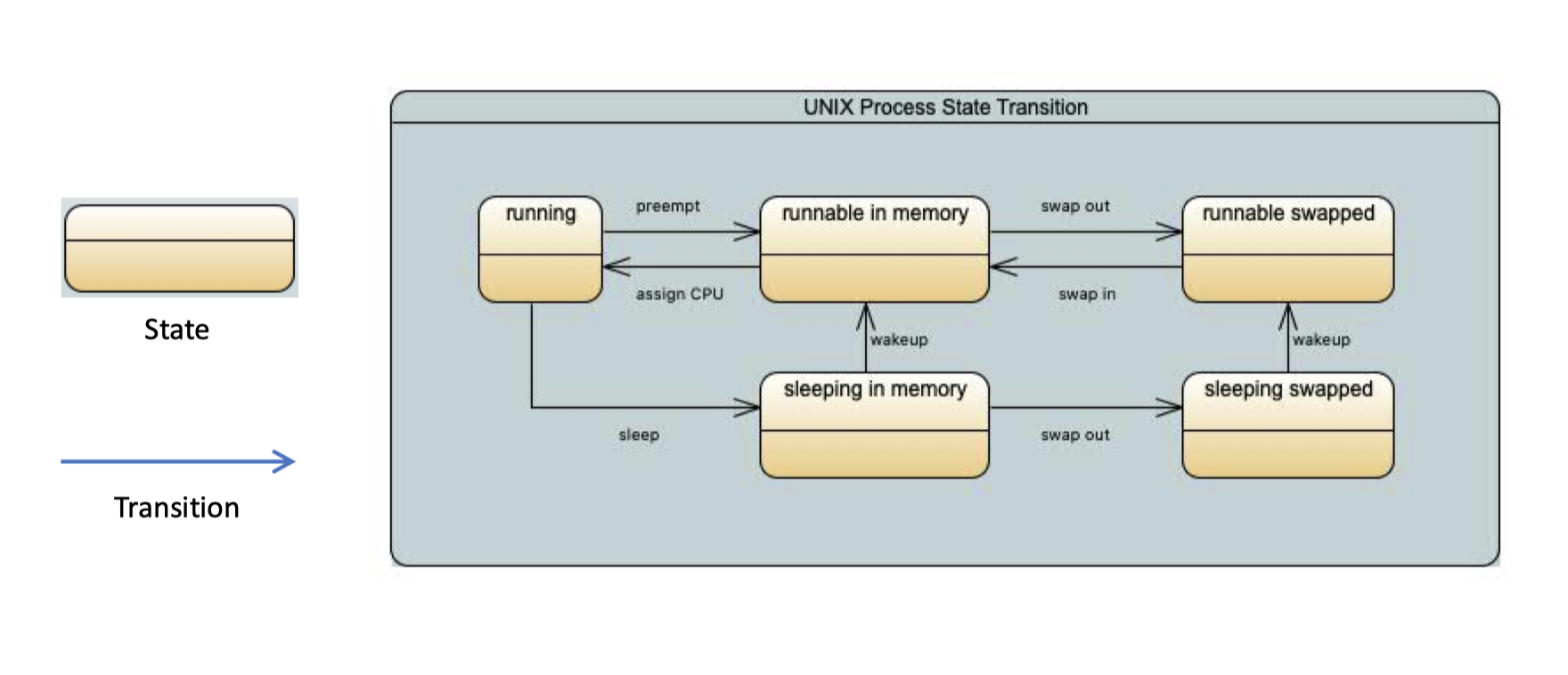

  • Finite-state machines or Formal Methods

Requirements Validation

• Validity checks
  • Whether the requirements reflect the real needs of system users
• Consistency checks
  • Identify conflict & confusion requirements
• Completeness checks
  • Whether the documented requirements define all functions and constraints
• Realism checks
  • Whether the software system can be implemented within the proposed budget or supported by existing technologies
• Verifiability
  • Whether functions and quality attributes are verifiable
