8、《锋迷商城》项目(含swagger、Jwt)

一、《锋迷商城》项目介绍

1.1 项目背景

锋迷商城——电商平台

• B2C 商家对客户
• C2B2C 客户对商家对客户

1.1.1 B2C

平台运营方即商品的卖家 小米商城

• 商品
• 用户

1.1.2 C2B2C

平台运营方不卖商品（也可以卖）

卖家是平台的用户

买家也是平台用户

• 用户（店铺）
• 用户（买家）
• 服务
• 商品

1.1.3 Java

Java语言的应用领域很广，但主要应用于web领域的项目开发，web项目类型分为两类：

• 企业级开发 （供企业内部使用的系统：企业内部的管理系统CRM\ERP、学校的教务管理系统）
• 互联网开发（提供给所有互联网用户使用的系统——用户量）—— 电商

1.2 项目功能

https://www.processon.com/view/link/606bde8b1e08534321fd2103

1.3 技术选型

SSM 企业开发框架 基础的开发技术

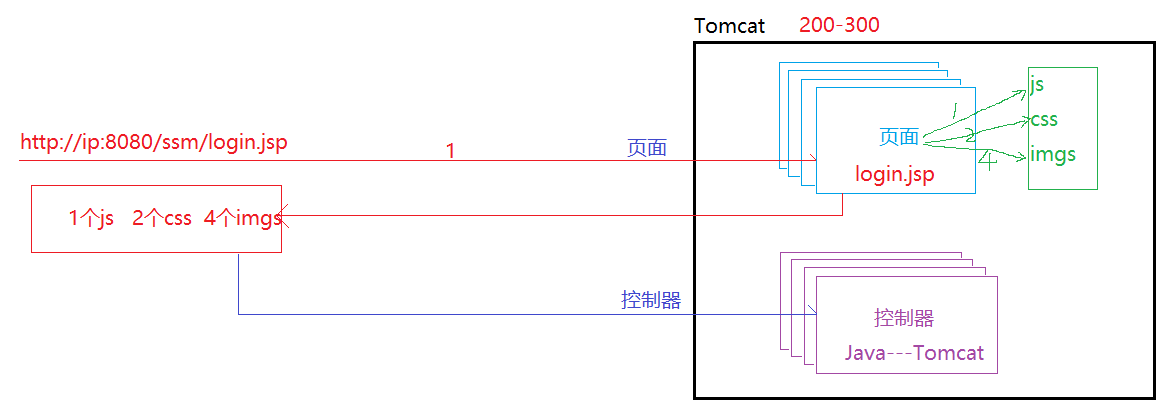

1.3.1 单体项目

项目的页面和代码都在同一个项目，项目开发完成之后直接部署在一台服务器

单体项目遇到的问题：用户对页面静态资源以及对Java代码的访问压力都会落在Tomcat服务器上。

1.3.2 技术清单

• 项目架构：前后端分离
• 前端技术：vue、axios、妹子UI、layui、bootstrap
• 后端技术：SpringBoot+MyBatis、RESTful、swagger
• 服务器搭建：Linux、Nginx

二、项目架构的演进

2.1 单体架构

• 前后端都部署在同一台服务器上（前后端代码都在同一个应用中）
• 缺点：对静态资源的访问压力也会落在Tomcat上

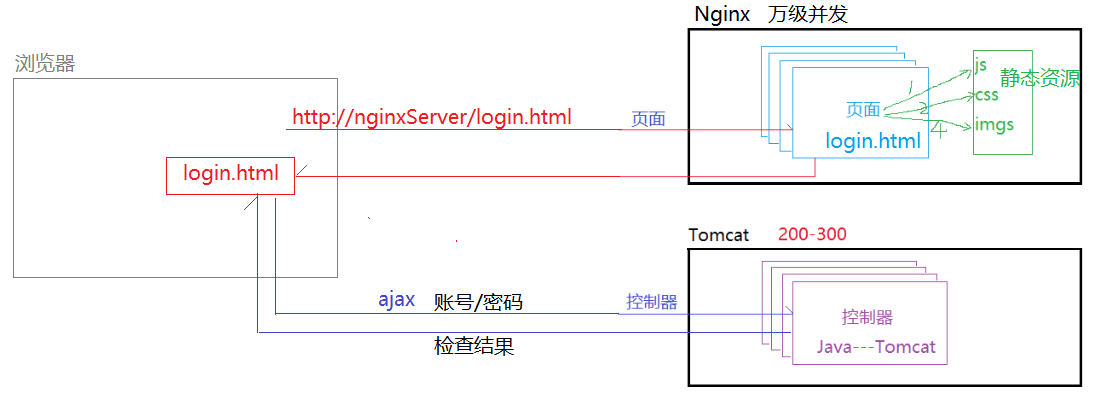

2.2 前后端分离

• 前后端分离：前端和后端分离开发和部署（前后端部署在不同的服务器）
• 优点：将对静态资源的访问和对接口的访问进行分离，Tomcat服务器只负责数据服务的访问

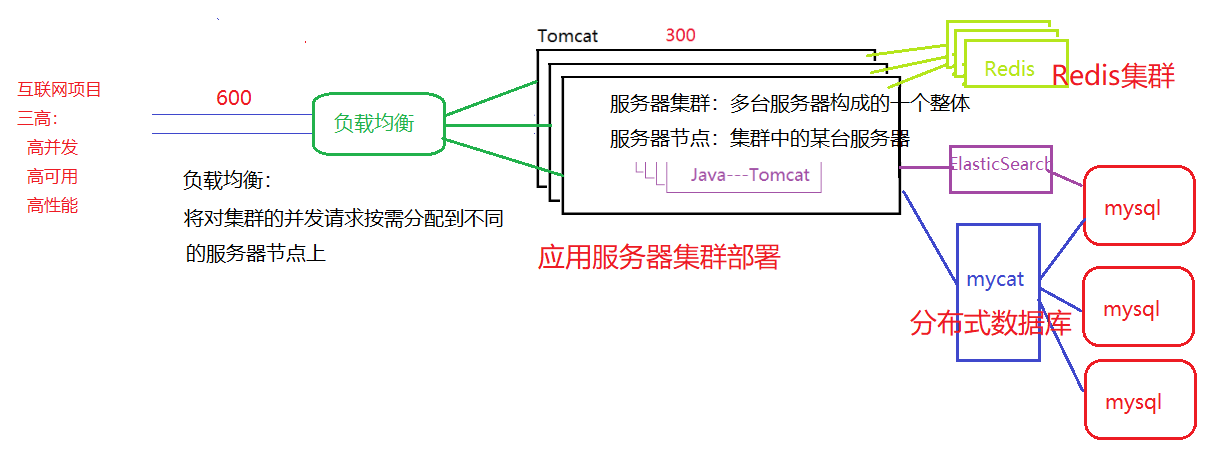

2.3 集群与负载均衡

• 优点：提供并发能力、可用性

2.4 分布式

• 基于redis实现 分布式锁
• 分布式数据库mycat
• redis集群
• 数据库中间件
• 消息中间件

2.5 微服务架构

• 微服务架构：将原来在一个应用中开发的多个模块进行拆分，单独开发和部署
• 保证可用性、性能

三、《锋迷商城》项目搭建

基于Maven的聚合工程完成项目搭建，前端采用vue+axios，后端使用SpringBoot整合SSM

3.1 技术储备

• （√）SpringBoot： 实现无配置的SSM整合
• （√）Maven聚合工程：实现模块的复用

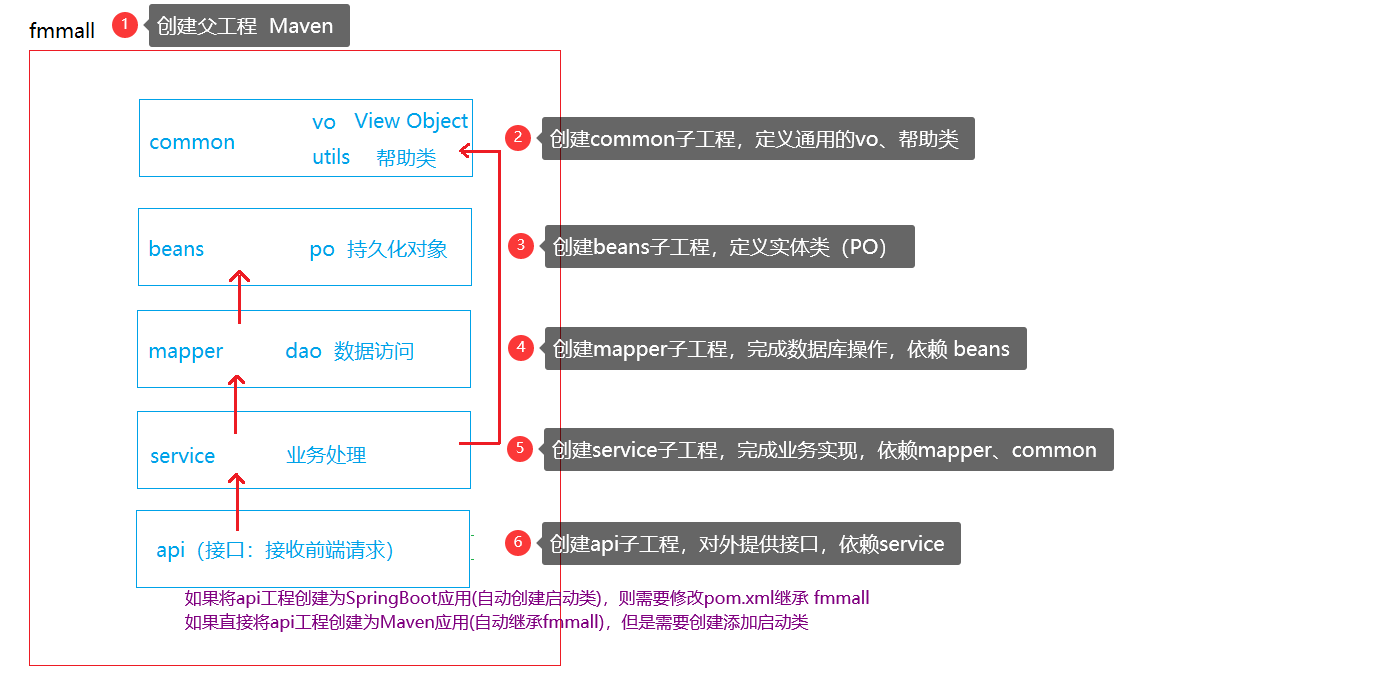

3.2 创建Maven聚合工程

3.2.1 构建父工程fmmall

• 创建一个maven工程、packing设置为 pom

• 父工程继承继承spring-boot-starter-parent
  ```xml <?xml version=”1.0” encoding=”UTF-8”?> <project xmlns=”http://maven.apache.org/POM/4.0.0“

    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  4.0.0 org.springframework.boot spring-boot-starter-parent 2.4.4

  com.qfedu fmmall

  2.0.1 pom

<a name="def700f5"></a>
###### 3.2.2 创建common工程
-  选择fmmall，右键---New---Module （Maven工程）
-  修改common的pom.xml，设置packing=jar
```xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>fmmall</artifactId>
        <groupId>com.qfedu</groupId>
        <version>2.0.1</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>common</artifactId>
    <packaging>jar</packaging>
</project>

3.2.3 创建beans工程

• 选择fmmall，右键—-New—-Module （Maven工程）
• 修改beans的pom.xml，设置packing ——- jar

3.2.4 创建mapper工程

• 选择fmmall，右键—-New—-Module （Maven工程）
• 修改mapper的pom.xml，设置packing ——- jar
• 在mapper的pom.xml，依赖beans

  <dependency>
   <groupId>com.qfedu</groupId>
   <artifactId>beans</artifactId>
   <version>2.0.1</version>
  </dependency>

3.2.5 创建service工程

• 选择fmmall，右键—-New—-Module （Maven工程）
• 修改service的pom.xml，设置packing ——- jar
• 在service的pom.xml，依赖mapper、commom

  <dependency>
   <groupId>com.qfedu</groupId>
   <artifactId>mapper</artifactId>
   <version>2.0.1</version>
  </dependency>
  <dependency>
   <groupId>com.qfedu</groupId>
   <artifactId>common</artifactId>
   <version>2.0.1</version>
  </dependency>

3.2.6 创建api工程

• 选择fmmall，右键—-New—-Module （SpringBoot工程）

• 修改api的pom.xml，继承fmmall，删除自己的groupId 和 version

  <parent>
   <groupId>com.qfedu</groupId>
   <artifactId>fmmall</artifactId>
   <version>2.0.1</version>
  </parent>

• 将spring boot的依赖配置到父工程fmmall的pom.xml

• 在父工程fmmall的pom.xml的modules添加api
  ```xml

  <?xml version=”1.0” encoding=”UTF-8”?> <project xmlns=”http://maven.apache.org/POM/4.0.0“

    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  4.0.0 org.springframework.boot spring-boot-starter-parent 2.4.4

<groupId>com.qfedu</groupId>
<artifactId>fmmall</artifactId>
<version>2.0.1</version>
<modules>
    <module>common</module>
    <module>beans</module>
    <module>mapper</module>
    <module>service</module>
    <module>api</module>
</modules>
<packaging>pom</packaging>
<properties>
    <java.version>1.8</java.version>
</properties>
<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>
<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <excludes>
                    <exclude>
                        <groupId>org.projectlombok</groupId>
                        <artifactId>lombok</artifactId>
                    </exclude>
                </excludes>
            </configuration>
        </plugin>
    </plugins>
</build>

-  在api中，依赖service
```xml
<dependency>
    <groupId>com.qfedu</groupId>
    <artifactId>service</artifactId>
    <version>2.0.1</version>
</dependency>

• api的pom.xml继承fmmall

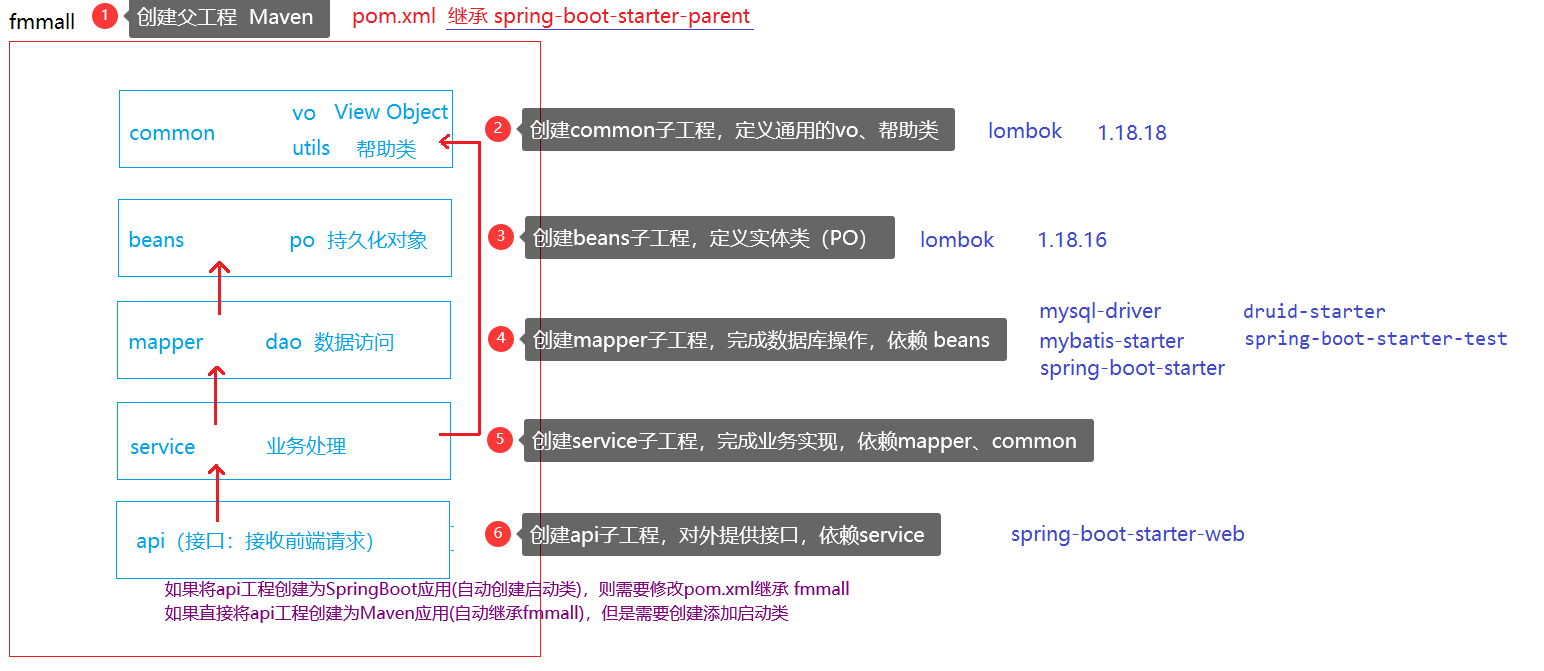

3.3 Maven聚合工程依赖分析

如果将依赖添加到父工程的pom中，根据依赖的继承关系，所有的子工程中都会继承父工程的依赖：

• 好处：当有多个子工程都需要相同的依赖时，无需在子工程中重复添加依赖
• 缺点：如果某些子工程不需要这个依赖，还是会被强行继承

如果在父工程中没有添加统一依赖，则每个子工程所需的依赖需要在子工程的pom中自行添加

如果存在多个子工程需要添加相同的依赖，则需在父工程pom进行依赖版本的管理

**依赖配置说明**

1. 在父工程的pom文件中一次性添加各个子工程所需的所有依赖
2. 在各个子工程中单独添加当前子工程的依赖

3.4 整合MyBatis

3.4.1 common子工程

• lombok

3.4.2 beans子工程

• lombok

3.4.3 MyBatis整合

• 在mapper子工程的pom文件，新增mybatis所需的依赖
  ```xml mysql mysql-connector-java 5.1.47

io.jsonwebtoken jjwt 0.9.1

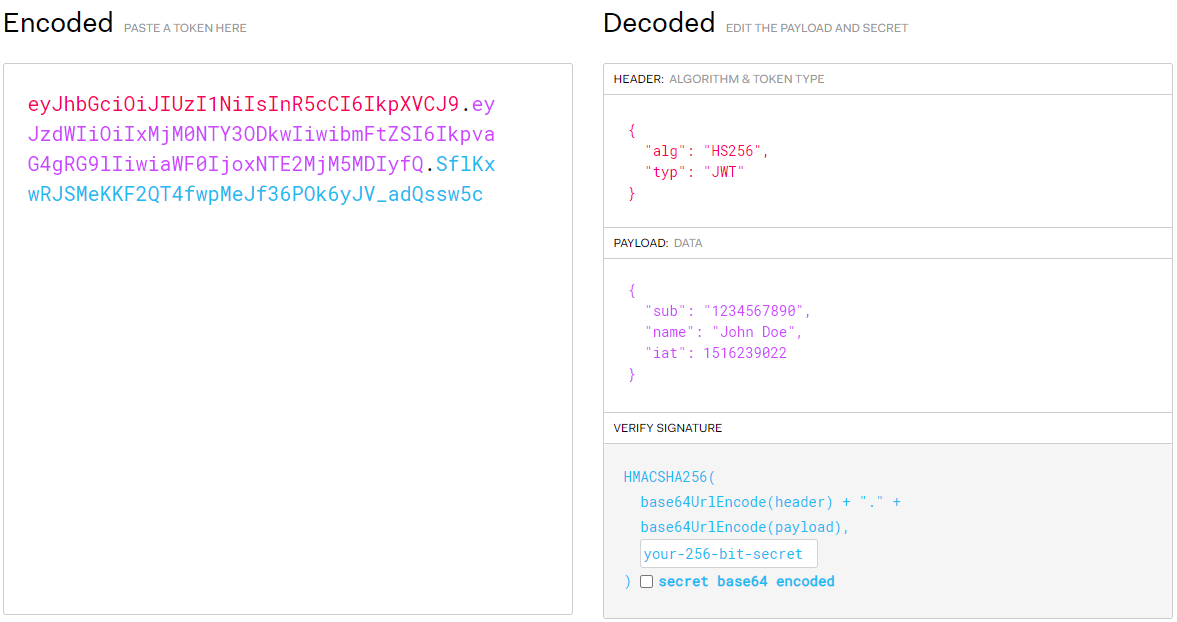

-  生成token
```java
zhoJwtBuilder builder= Jwts.builder();
HashMap<String,Object> map=new HashMap<>();
String token = builder.setSubject(name)                 //主题，就是token中携带的数据
    .setIssuedAt(new Date())                            //设置token的生成时间
    .setId(users.get(0).getUserId() + "")               //设置用户id为token  id
    .setClaims(map)                                     //map中可以存放用户的角色权限信息
    .setExpiration(new Date(System.currentTimeMillis() + 24 * 60 * 60 * 1000)) //设置过期时间
    .signWith(SignatureAlgorithm.HS256, "QIANfeng6666")     //设置加密方式和加密密码
    .compact();

7.4.3 JWT校验

• 如果token正确则正常解析，如果token不正确或者过期，则通过抛出的异常进行识别

  try {
   //验证token
   JwtParser parser = Jwts.parser();
   parser.setSigningKey("QIANfeng6666"); //解析token的SigningKey必须和生成token时设置密码一致
   //如果token正确（密码正确，有效期内）则正常执行，否则抛出异常
   Jws<Claims> claimsJws = parser.parseClaimsJws(token);
   Claims body = claimsJws.getBody();  //获取token中用户数据
   String subject = body.getSubject(); //获取生成token设置的subject
   String v1 = body.get("key1", String.class); //获取生成token时存储的Claims的map中的值
   return new ResultVO(ResStatus.OK,"success",null);
  }catch (ExpiredJwtException e){
   return new ResultVO(ResStatus.NO,"登录过期，请重新登录！",null);
  }catch (UnsupportedJwtException e){
   return new ResultVO(ResStatus.NO,"Tonken不合法，请自重！",null);
  }catch (Exception e){
   return new ResultVO(ResStatus.NO,"请重新登录！",null);
  }

7.4.4 拦截器校验Token

• 创建拦截器（在api中创建interceptor文件夹）
  ```java @Component public class CheckTokenInterceptor implements HandlerInterceptor {

  @Override public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {

   String token = request.getParameter("token");
   if(token == null){
       ResultVO resultVO = new ResultVO(ResStatus.NO, "请先登录！", null);
       //提示请先登录
       doResponse(response,resultVO);
   }else{
       try {
           //验证token
           JwtParser parser = Jwts.parser();
           //解析token的SigningKey必须和生成token时设置密码一致
           parser.setSigningKey("QIANfeng6666");
           //如果token正确（密码正确，有效期内）则正常执行，否则抛出异常
           Jws<Claims> claimsJws = parser.parseClaimsJws(token);
           return true;
       }catch (ExpiredJwtException e){
           ResultVO resultVO = new ResultVO(ResStatus.NO, "登录过期，请重新登录！", null);
           doResponse(response,resultVO);
       }catch (UnsupportedJwtException e){
           ResultVO resultVO = new ResultVO(ResStatus.NO, "Token不合法，请自重！", null);
           doResponse(response,resultVO);
       }catch (Exception e){
           ResultVO resultVO = new ResultVO(ResStatus.NO, "请先登录！", null);
           doResponse(response,resultVO);
       }
   }
   return false;

  }

  private void doResponse(HttpServletResponse response,ResultVO resultVO) throws IOException {

   response.setContentType("application/json");
   response.setCharacterEncoding("utf-8");
   PrintWriter out = response.getWriter();
   String s = new ObjectMapper().writeValueAsString(resultVO);
   out.print(s);
   out.flush();
   out.close();

  }

}

-  配置拦截器
```java
@Configuration
public class InterceptorConfig implements WebMvcConfigurer {
    @Autowired
    private CheckTokenInterceptor checkTokenInterceptor;
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(checkTokenInterceptor)
                .addPathPatterns("/**")    //拦截所有
                .excludePathPatterns("/user/**");    //除了user开头
    }
}

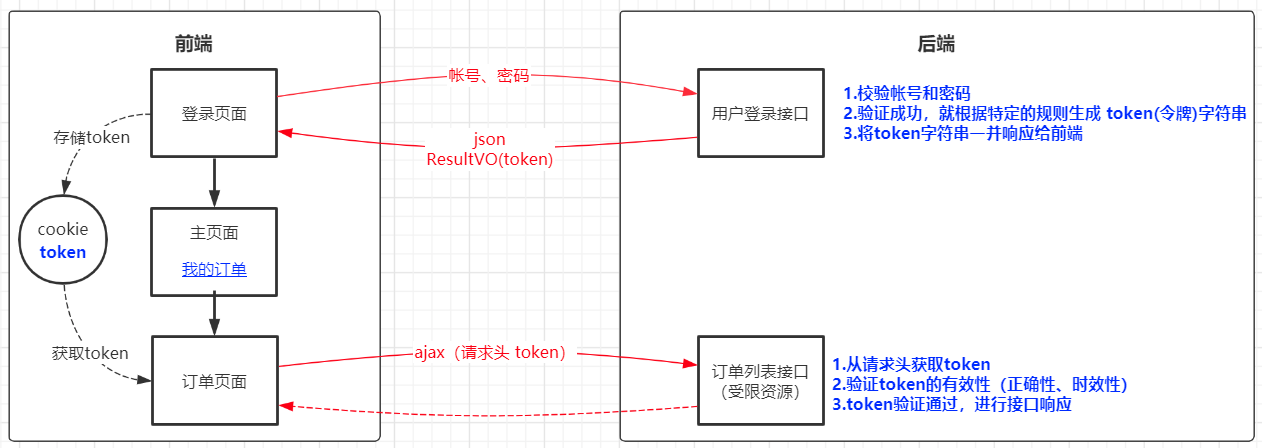

7.5 请求头传递token

前端但凡访问受限资源，都必须携带token发送请求；token可以通过请求行(params)、请求头（header）以及请求体（data）传递，但是习惯性使用header传递

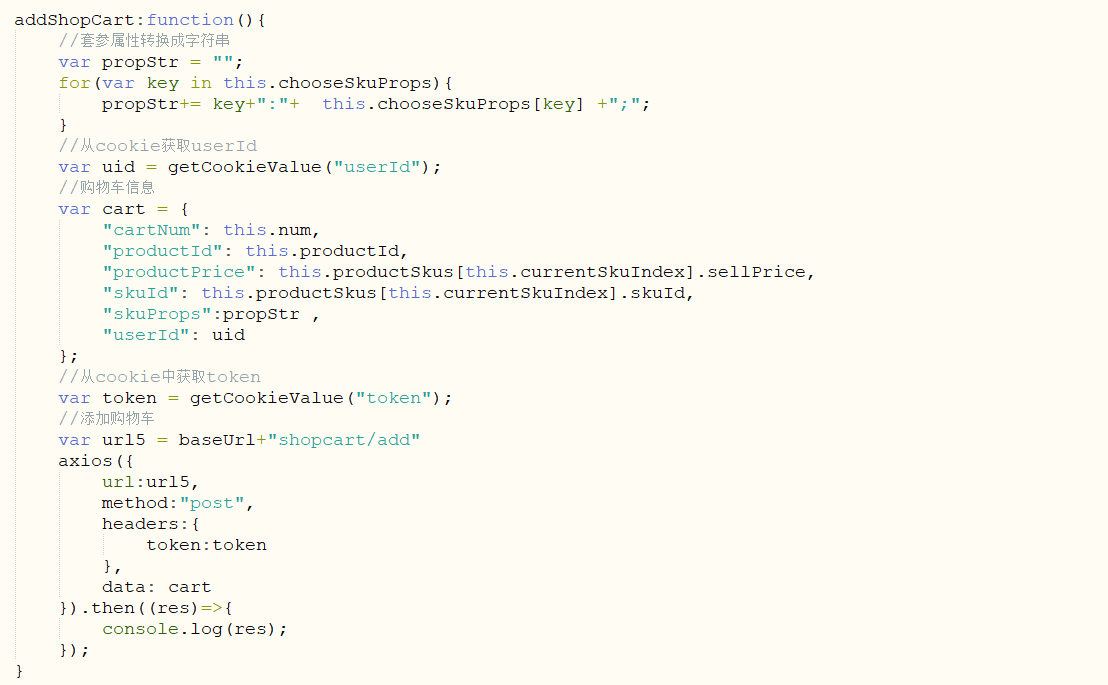

7.5.1 axios通过请求头传值

axios({
    method:"get",
    url:baseUrl+"shopcart/list",
    headers:{
        token:this.token
    }
}).then(function(res){
    console.log(res);
});

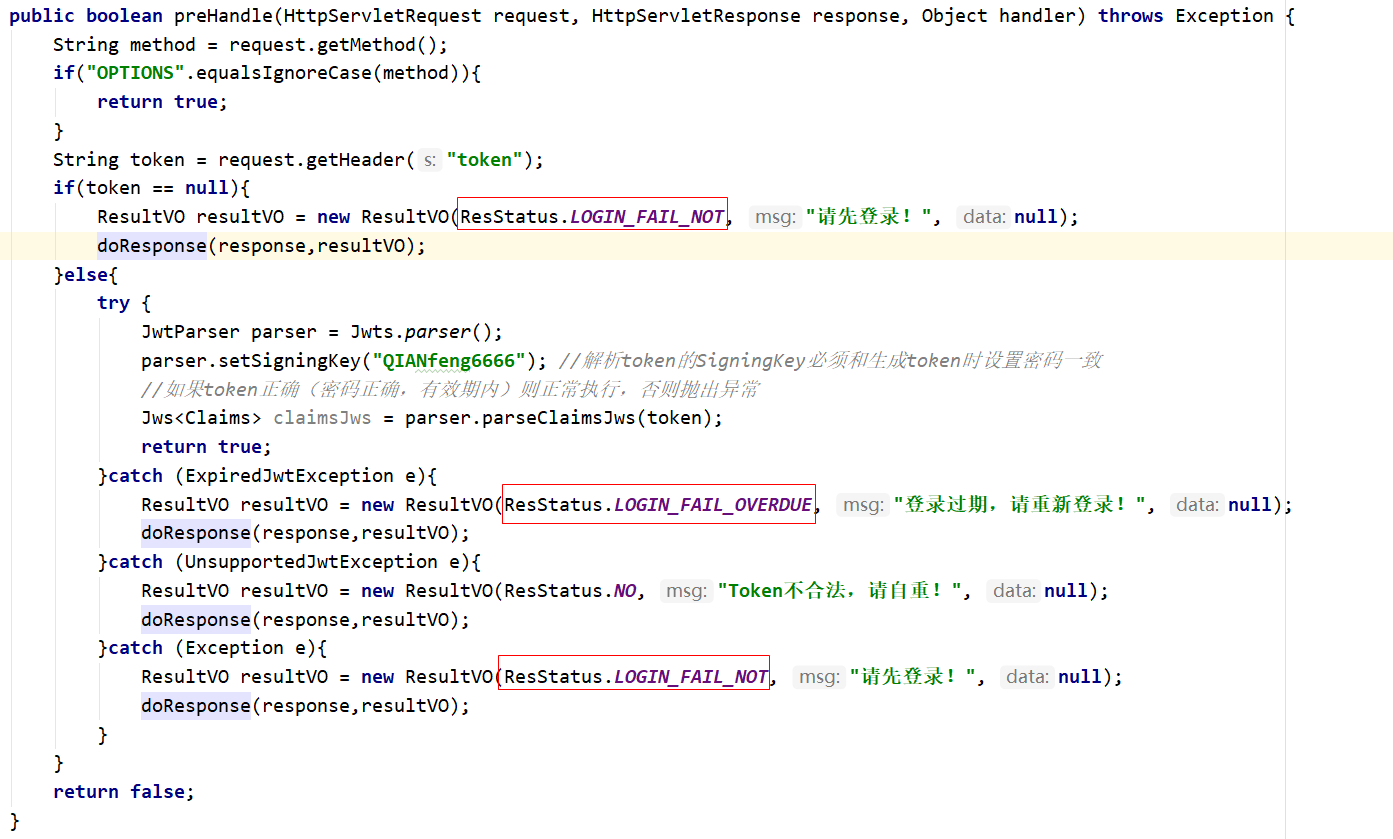

7.5.2 在拦截器中放行options请求

@Component
public class CheckTokenInterceptor implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        //放行options请求
        String method = request.getMethod();
        if("OPTIONS".equalsIgnoreCase(method)){
            return true;
        }
        String token = request.getHeader("token");
        System.out.println("-------------"+token);
        if(token == null){
            ResultVO resultVO = new ResultVO(ResStatus.NO, "请先登录！", null);
            //提示请先登录
            doResponse(response,resultVO);
        }else{
            try {
                //验证token
                JwtParser parser = Jwts.parser();
                //解析token的SigningKey必须和生成token时设置密码一致
                parser.setSigningKey("QIANfeng6666");
                //如果token正确（密码正确，有效期内）则正常执行，否则抛出异常
                Jws<Claims> claimsJws = parser.parseClaimsJws(token);
                return true;
            }catch (ExpiredJwtException e){
                ResultVO resultVO = new ResultVO(ResStatus.NO, "登录过期，请重新登录！", null);
                doResponse(response,resultVO);
            }catch (UnsupportedJwtException e){
                ResultVO resultVO = new ResultVO(ResStatus.NO, "Token不合法，请自重！", null);
                doResponse(response,resultVO);
            }catch (Exception e){
                ResultVO resultVO = new ResultVO(ResStatus.NO, "请先登录！", null);
                doResponse(response,resultVO);
            }
        }
        return false;
    }
   private void doResponse(HttpServletResponse response,ResultVO resultVO) throws IOException {
        response.setContentType("application/json");
        response.setCharacterEncoding("utf-8");
        PrintWriter out = response.getWriter();
        String s = new ObjectMapper().writeValueAsString(resultVO);
        out.print(s);
        out.flush();
        out.close();
    }
}

八、首页—轮播图

8.1 实现流程分析

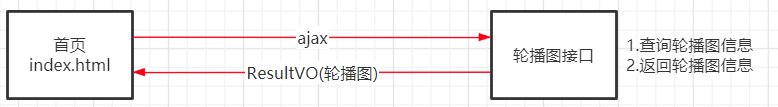

• 流程图

• 接口
  • 查询轮播图信息返回

8.2 完成后台接口开发

8.2.1 数据库操作实现

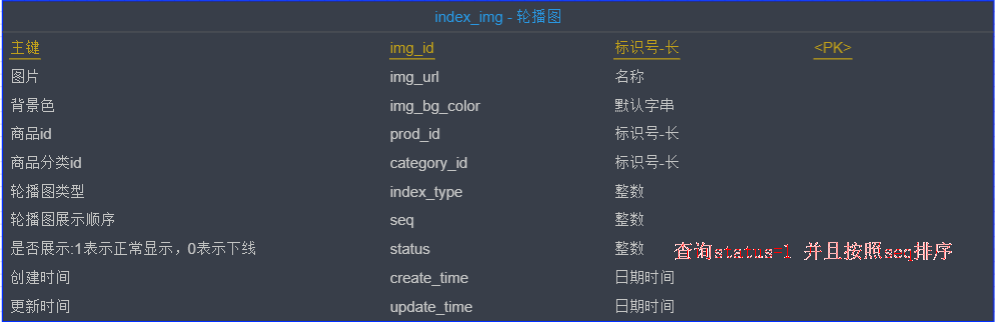

• 分析数据表结构

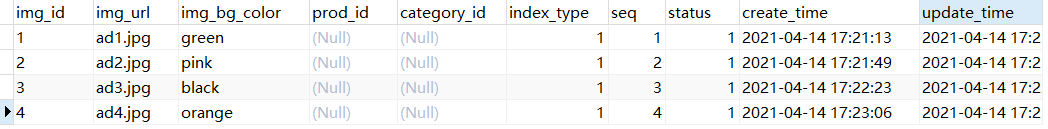

• 添加测试数据

• 编写sql语句

    select img_id,
           img_url,
           img_bg_color,
           prod_id,
           category_id,
           index_type,
           seq,
           status,
           create_time,
           update_time
    from index_img
    where status=1
    order by seq

• 在Mapper接口（DAO）中定义操作方法

@Repository
public interface IndexImgMapper extends GeneralDAO<IndexImg> {
    //1.查询轮播图信息： 查询status=1 且 按照seq进行排序
    public List<IndexImg> listIndexImgs();
}

• 配置映射文件

<!--BaseResultMap是由逆向工程生成的-->
<select id="listIndexImgs" resultMap="BaseResultMap">
    select img_id,
           img_url,
           img_bg_color,
           prod_id,
           category_id,
           index_type,
           seq,
           status,
           create_time,
           update_time
    from index_img
    where status=1
    order by seq
  </select>

8.2.2 业务层实现

• IndexImgService接口

public interface IndexImgService {
    public ResultVO listIndexImgs();
}

• IndexImgServiceImpl实现类

@Service
public class IndexImgServiceImpl implements IndexImgService {
    @Autowired
    private IndexImgMapper indexImgMapper;
    public ResultVO listIndexImgs() {
        List<IndexImg> indexImgs = indexImgMapper.listIndexImgs();
        if(indexImgs.size()==0){
            return new ResultVO(ResStatus.NO,"fail",null);
        }else{
            return new ResultVO(ResStatus.OK,"success",indexImgs);
        }
    }
}

8.2.3 控制层实现

• IndexController类

@RestController
@CrossOrigin
@RequestMapping("/index")
@Api(value = "提供首页数据显示所需的接口",tags = "首页管理")
public class IndexController {
    @Autowired
    private IndexImgService indexImgService;
    @GetMapping("/indeximg")
    @ApiOperation("首页轮播图接口")
    public ResultVO listIndexImgs(){
        return indexImgService.listIndexImgs();
    }
}

8.3 完成前端功能

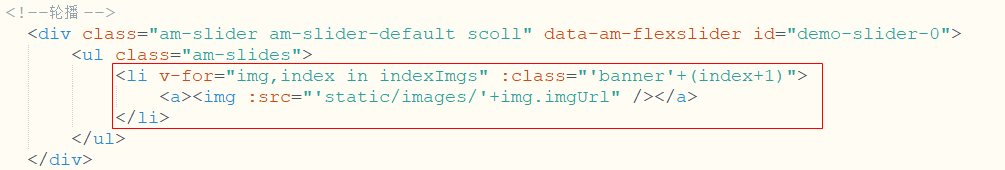

当进入到index.html，在进行页面初始化之后，就需要请求轮播图数据进行轮播图的显示

index.html

九、首页-分类列表

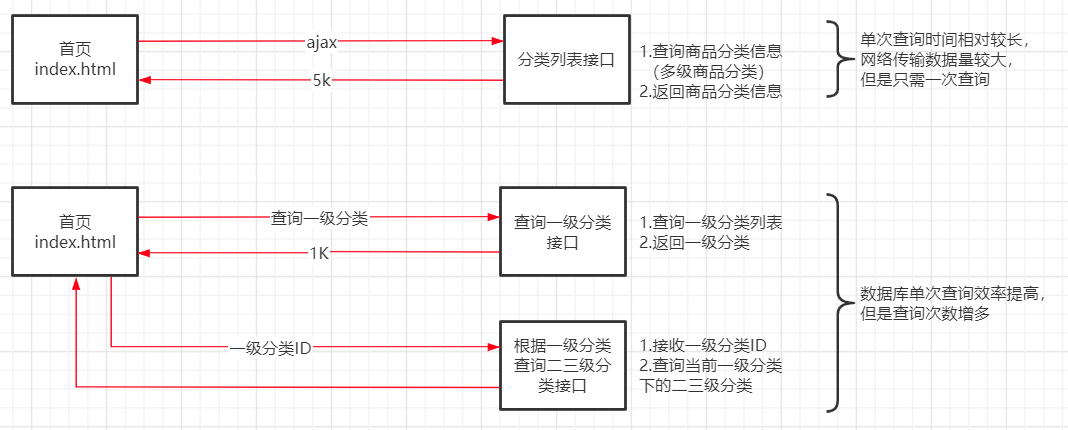

9.1 实现流程分析

• 方案一：一次性查询三级分类
  • 优点：只需要一次查询，根据一级分类显示二级分类时响应速度较快
  • 缺点：数据库查询效率较低，页面首次加载的速度也相对较慢
• 方案二：先只查询一级分类，用户点击/鼠标移动到一级分类，动态加载二级分类
  • 优点：数据库查询效率提高，页面首次加载速度提高
  • 缺点：需要多次连接数据库

9.2 接口开发

9.2.1 数据库操作实现

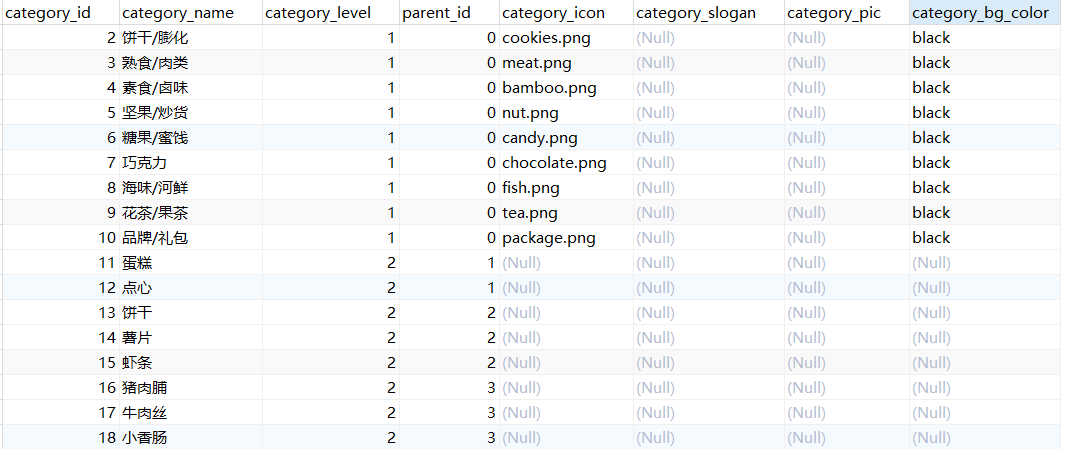

• 数据表结构

• 添加测试数据

• 编写接口实现所需的SQL

  • 连接查询

    select
    c1.category_id 'category_id1',
    c1.category_name 'category_name1',
    c1.category_level 'category_level1',
    c1.parent_id 'parent_id1',
    c1.category_icon 'category_icon1',
    c1.category_slogan 'category_slogan1',
    c1.category_pic 'category_pic1',
    c1.category_bg_color 'category_bg_color1',
    c2.category_id 'category_id2',
    c2.category_name 'category_name2',
    c2.category_level 'category_level2',
    c2.parent_id 'parent_id2',
    c3.category_id 'category_id3',
    c3.category_name 'category_name3',
    c3.category_level 'category_level3',
    c3.parent_id 'parent_id3'
    from category c1
    inner join category c2
    on c2.parent_id=c1.category_id
    left join category c3
    on c3.parent_id=c2.category_id
    where c1.category_level=1

  • 子查询

    -- 根据父级分类的id查询类别信息
    select * from category where parent_id=3;

• 创建用于封装查询的类别信息的CategoryVO
  在beans子工程的entity包新建一个CategoryVO用于封装查询到类别信息，相对于Category来说，新增了如下属性：

  public class CategoryVO {
   //用于存放当前分类的子分类
   private List<CategoryVO> categories;
   public List<CategoryVO> getCategories() {
       return categories;
   }
  }

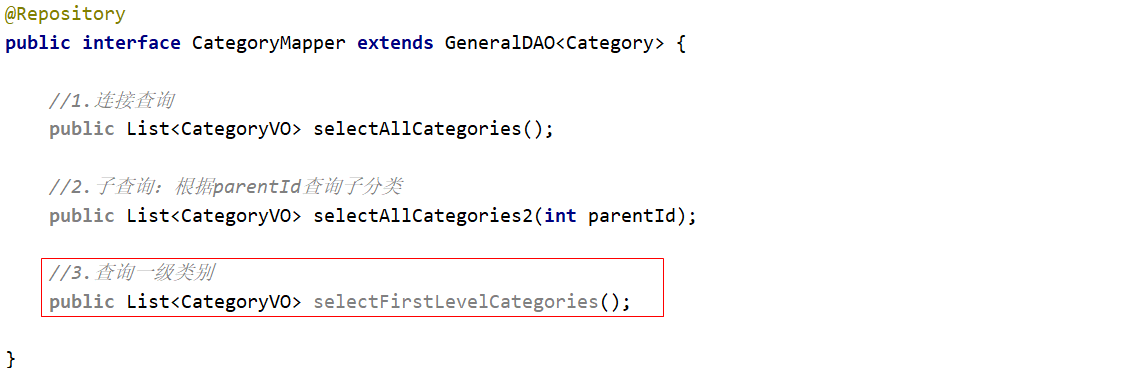

• 在CategoryMapper定义操作方法
  ```java @Repository public interface CategoryMapper extends GeneralDAO {

  //1.连接查询 public List selectAllCategories();

  //2.子查询：根据parentId查询子分类 public List selectAllCategories2(int parentId);

}

-  映射配置
```xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.qfedu.fmmall.dao.CategoryMapper">
  <resultMap id="BaseResultMap" type="com.qfedu.fmmall.entity.Category">
    <id column="category_id" jdbcType="INTEGER" property="categoryId" />
    <result column="category_name" jdbcType="VARCHAR" property="categoryName" />
    <result column="category_level" jdbcType="INTEGER" property="categoryLevel" />
    <result column="parent_id" jdbcType="INTEGER" property="parentId" />
    <result column="category_icon" jdbcType="VARCHAR" property="categoryIcon" />
    <result column="category_slogan" jdbcType="VARCHAR" property="categorySlogan" />
    <result column="category_pic" jdbcType="VARCHAR" property="categoryPic" />
    <result column="category_bg_color" jdbcType="VARCHAR" property="categoryBgColor" />
  </resultMap>
  <resultMap id="categoryVOMap" type="com.qfedu.fmmall.entity.CategoryVO">
    <id column="category_id1" jdbcType="INTEGER" property="categoryId" />
    <result column="category_name1" jdbcType="VARCHAR" property="categoryName" />
    <result column="category_level1" jdbcType="INTEGER" property="categoryLevel" />
    <result column="parent_id1" jdbcType="INTEGER" property="parentId" />
    <result column="category_icon1" jdbcType="VARCHAR" property="categoryIcon" />
    <result column="category_slogan1" jdbcType="VARCHAR" property="categorySlogan" />
    <result column="category_pic1" jdbcType="VARCHAR" property="categoryPic" />
    <result column="category_bg_color1" jdbcType="VARCHAR" property="categoryBgColor" />
    <collection property="categories" ofType="com.qfedu.fmmall.entity.CategoryVO">
        <id column="category_id2" jdbcType="INTEGER" property="categoryId" />
        <result column="category_name2" jdbcType="VARCHAR" property="categoryName" />
        <result column="category_level2" jdbcType="INTEGER" property="categoryLevel" />
        <result column="parent_id2" jdbcType="INTEGER" property="parentId" />
        <collection property="categories"  ofType="com.qfedu.fmmall.entity.CategoryVO">
            <id column="category_id3" jdbcType="INTEGER" property="categoryId" />
            <result column="category_name3" jdbcType="VARCHAR" property="categoryName" />
            <result column="category_level3" jdbcType="INTEGER" property="categoryLevel" />
            <result column="parent_id3" jdbcType="INTEGER" property="parentId" />
        </collection>
    </collection>
  </resultMap>
  <select id="selectAllCategories" resultMap="categoryVOMap">
    select
      c1.category_id 'category_id1',
      c1.category_name 'category_name1',
      c1.category_level 'category_level1',
      c1.parent_id 'parent_id1',
      c1.category_icon 'category_icon1',
      c1.category_slogan 'category_slogan1',
      c1.category_pic 'category_pic1',
      c1.category_bg_color 'category_bg_color1',
      c2.category_id 'category_id2',
      c2.category_name 'category_name2',
      c2.category_level 'category_level2',
      c2.parent_id 'parent_id2',
      c3.category_id 'category_id3',
      c3.category_name 'category_name3',
      c3.category_level 'category_level3',
      c3.parent_id 'parent_id3'
    from category c1
           inner join category c2
                      on c2.parent_id=c1.category_id
           left join category c3
                     on c3.parent_id=c2.category_id
    where c1.category_level=1
  </select>
    <!---------------------------------------------------------------------------->
       <resultMap id="categoryVOMap2" type="com.qfedu.fmmall.entity.CategoryVO">
        <id column="category_id" jdbcType="INTEGER" property="categoryId" />
        <result column="category_name" jdbcType="VARCHAR" property="categoryName" />
        <result column="category_level" jdbcType="INTEGER" property="categoryLevel" />
        <result column="parent_id" jdbcType="INTEGER" property="parentId" />
        <result column="category_icon" jdbcType="VARCHAR" property="categoryIcon" />
        <result column="category_slogan" jdbcType="VARCHAR" property="categorySlogan" />
        <result column="category_pic" jdbcType="VARCHAR" property="categoryPic" />
        <result column="category_bg_color" jdbcType="VARCHAR" property="categoryBgColor" />
        <collection property="categories" column="category_id" select="com.qfedu.fmmall.dao.CategoryMapper.selectAllCategories2"/>
    </resultMap>
    <!-- 根据父级分类的id查询子级分类  -->
    <select id="selectAllCategories2" resultMap="categoryVOMap2">
        select
            category_id,
            category_name,
            category_level,
            parent_id,
            category_icon,
            category_slogan,
            category_pic,
            category_bg_color
        from category
        where parent_id=#{parentId}
    </select>
</mapper>

9.2.2 业务层实现

• CategoryService接口
  ```java public interface CategoryService {

  public ResultVO listCategories();

}

-  CategoryServiceImpl
```java
@Service
public class CategoryServiceImpl implements CategoryService {
    @Autowired
    private CategoryMapper categoryMapper;
    public ResultVO listCategories() {
        List<CategoryVO> categoryVOS = categoryMapper.selectAllCategories();
        ResultVO resultVO = new ResultVO(ResStatus.OK, "success", categoryVOS);
        return resultVO;
    }
}

9.2.3 控制层实现

• IndexController
  ```java @Autowired private CategoryService categoryService;

@GetMapping(“/category-list”) @ApiOperation(“商品分类查询接口”) public ResultVO listCatetory(){ return categoryService.listCategories(); }

<a name="619b66e2"></a>
#### 9.3 前端功能实现
<a name="6f39a371"></a>
## 十、首页-商品推荐
<a name="9b003689"></a>

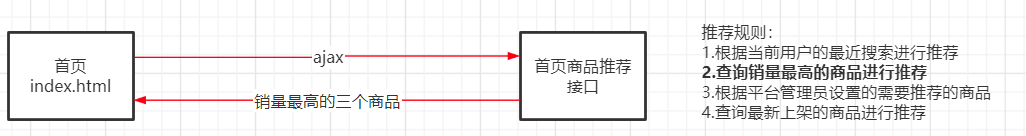

#### 10.1 流程分析
![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644073991011-59df53e2-9369-4fdc-b1b5-5c41fa830173.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=94&id=u0e5d185b&margin=%5Bobject%20Object%5D&name=image.png&originHeight=136&originWidth=1026&originalType=binary&ratio=1&rotation=0&showTitle=false&size=31168&status=done&style=none&taskId=udb87e3d1-94ee-4ac6-8213-ecd5572935a&title=&width=706.9767650922662)
<a name="265accfc"></a>
#### 10.2 接口开发
<a name="8fb8738a"></a>
###### 10.2.1 数据库实现
> 商品推荐算法：推荐最新上架的商品
>
> 说明：商品推荐算法是根据多个维度进行权重计算，计算出一个匹配值
-  数据表分析及数据准备
-  sql
```sql
-- 商品推荐：查询最新上架的商品
select * from product order by create_time desc limit 0,3;
-- 子查询：根据商品id查询商品图片
select * from product_img where item_id=2;

• 在beans子工程entity包创建ProductVO,相比较Product新增了List imgs用于存储商品的图片

  public class ProductVO{
   private List<ProductImg> imgs;
   public List<ProductImg> getImgs() {
       return imgs;
   }
   public void setImgs(List<ProductImg> imgs) {
       this.imgs = imgs;
   }
  }

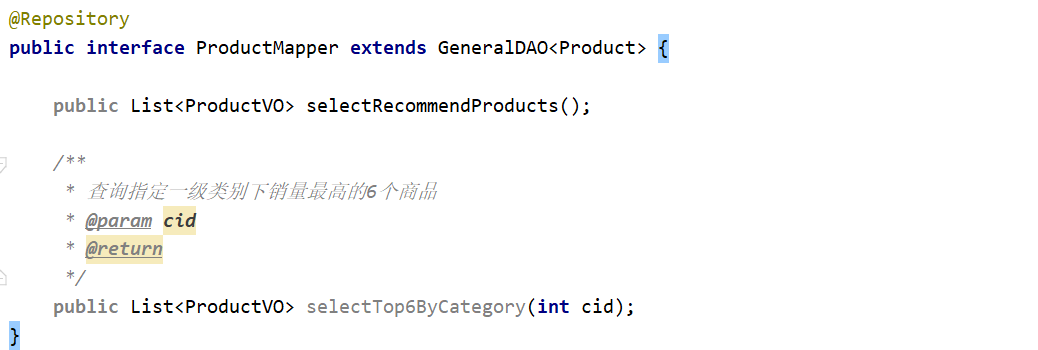

• Mapper接口定义操作方法：

  • ProductMapper ```java public interface ProductMapper extends GeneralDAO {

    public List selectRecommendProducts();

}

   - ProductImgMapper
```java
public interface ProductImgMapper extends GeneralDAO<ProductImg> {
    //根据商品id查询当前商品的图片信息
    public List<ProductImg> selectProductImgByProductId(int productId);
}

• 配置映射文件

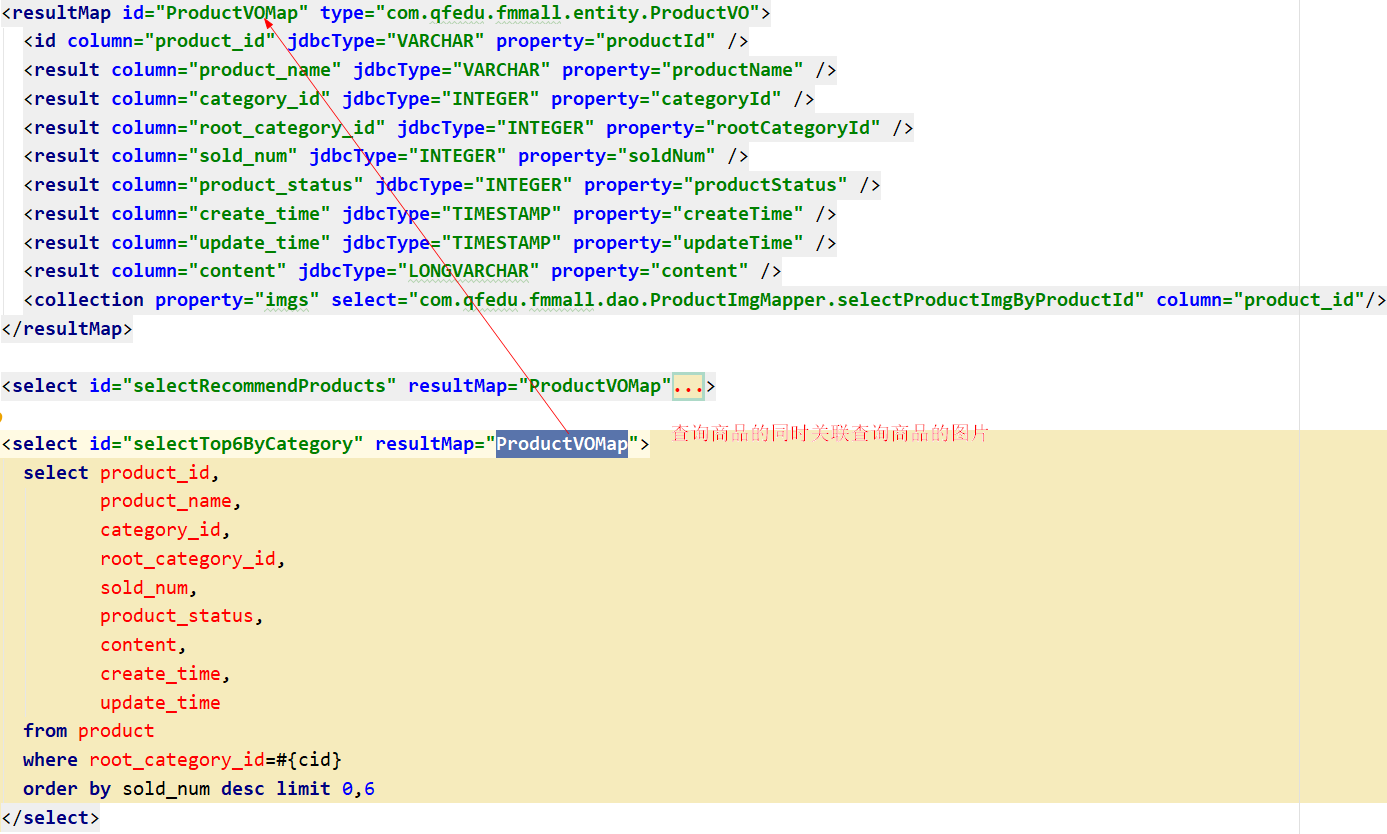

  • ProductMapper.xml ```xml

select product_id, product_name, category_id, root_category_id, sold_num, product_status, content, create_time, update_time from product order by create_time desc limit 0,3

   - ProductImgMapper.xml
```xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.qfedu.fmmall.dao.ProductImgMapper">
  <resultMap id="BaseResultMap" type="com.qfedu.fmmall.entity.ProductImg">
    <id column="id" jdbcType="VARCHAR" property="id" />
    <result column="item_id" jdbcType="VARCHAR" property="itemId" />
    <result column="url" jdbcType="VARCHAR" property="url" />
    <result column="sort" jdbcType="INTEGER" property="sort" />
    <result column="is_main" jdbcType="INTEGER" property="isMain" />
    <result column="created_time" jdbcType="TIMESTAMP" property="createdTime" />
    <result column="updated_time" jdbcType="TIMESTAMP" property="updatedTime" />
  </resultMap>
  <select id="selectProductImgByProductId" resultMap="BaseResultMap">
    select
      id,
      item_id,
      url,
      sort,
      is_main,
      created_time,
      updated_time
    from product_img
    where item_id=#{productId}
  </select>
</mapper>

10.2.2 业务层实现

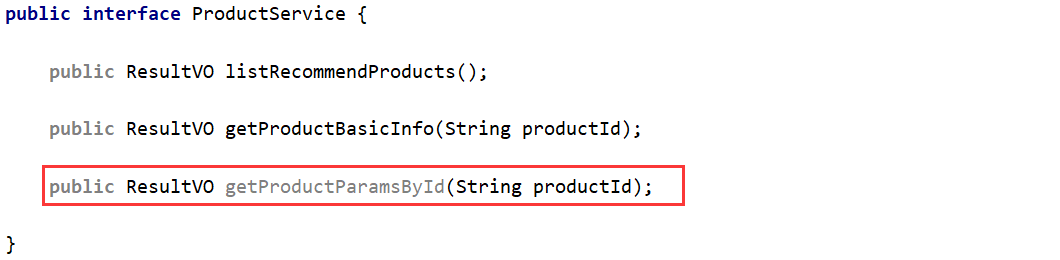

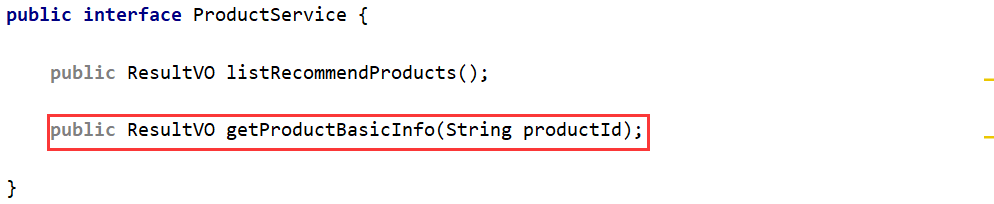

• ProductService接口
  ```java public interface ProductService {

  public ResultVO listRecommendProducts();

}

-  ProductServiceImpl实现类
```java
@Service
public class ProductServiceImpl implements ProductService {
    @Autowired
    private ProductMapper productMapper;
    public ResultVO listRecommendProducts() {
        List<ProductVO> productVOS = productMapper.selectRecommendProducts();
        ResultVO resultVO = new ResultVO(ResStatus.OK, "success", productVOS);
        return resultVO;
    }
}

10.2.3 控制层实现

• IndexController
  ```java @Autowired private ProductService productService;

@GetMapping(“/list-recommends”) @ApiOperation(“查询推荐商品接口”) public ResultVO listRecommendProducts() { return productService.listRecommendProducts(); }

<a name="2ab1a403"></a>
#### 10.3 前端实现
<a name="6b1b6a68"></a>
## 十一、首页-分类商品推荐
> 按照商品的分类（一级分类）推荐销量最高的6个商品
<a name="55a50547"></a>
#### 11.1 流程分析

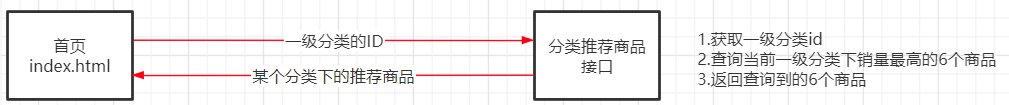

> 加载分类商品推荐有两种实现方案：
>
> 方案一：当加载首页面时不加载分类的推荐商品，监听进度条滚动事件，当进度条触底（滚动指定的距离）就触发分类推荐商品的加载，每次只加载一个分类的商品。
![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074005971-0eeda008-c179-4543-80b3-62c8c0a43ba5.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=72&id=u09b44f1d&margin=%5Bobject%20Object%5D&name=image.png&originHeight=105&originWidth=1009&originalType=binary&ratio=1&rotation=0&showTitle=false&size=23153&status=done&style=none&taskId=ua2d2af85-e497-40fb-9779-7f6c68e14d3&title=&width=695.2627251248505)

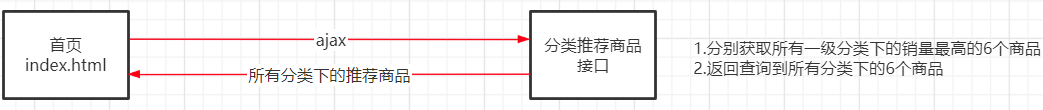

> 方案二：一次性加载所有分类的推荐商品，整体进行初始化。
![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074010577-ccceeaf6-0340-4797-97c8-07bc1e961547.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=76&id=u34561006&margin=%5Bobject%20Object%5D&name=image.png&originHeight=110&originWidth=1043&originalType=binary&ratio=1&rotation=0&showTitle=false&size=21655&status=done&style=none&taskId=u19b6f240-807a-479e-b4c5-68da88da84d&title=&width=718.6908050596819)
<a name="a22c3d19"></a>
#### 11.2 接口实现
<a name="06fa60ba"></a>
###### 11.2.1 数据库实现
-  数据准备
```sql
-- 添加商品
-- 添加十个分类下的商品：
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('5','商品5',10,1,122,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('6','商品6',10,1,123,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('7','商品7',10,1,124,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('8','商品8',10,1,125,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('9','商品9',10,1,126,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('10','商品10',10,1,127,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('11','商品11',10,1,128,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('12','商品12',46,2,122,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('13','商品13',46,2,123,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('14','商品14',46,2,124,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('15','商品15',46,2,125,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('16','商品16',46,2,126,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('17','商品17',46,2,127,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product(product_id,product_name,category_id,root_category_id,sold_num,product_status,content,create_time,updated_time)
values('18','商品18',46,2,128,1,'商品说明','2021-04-26 11:11:11','2021-04-26 11:11:11');
-- 添加商品图片
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('9','5','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('10','6','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('11','7','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('12','8','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('13','9','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('14','10','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('15','11','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('16','12','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('17','13','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('18','14','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('19','15','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('20','16','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('21','17','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');
insert into product_img(id,item_id,url,sort,is_main,created_time,updated_time)
values('22','18','wwxb_1.png',1,1,'2021-04-26 11:11:11','2021-04-26 11:11:11');

• 查询SQL

  -- 查询所有的一级分类
  select * from category where category_level=1;
  -- 查询每个分类下销量前6的商品
  select * from product where root_category_id=2 order by sold_num desc limit 0,6;
  -- 查询每个商品的图片
  select * from product_img where item_id = 1;

• 实体类：
  ```java @Data @NoArgsConstructor @AllArgsConstructor @ToString public class CategoryVO {

  private Integer categoryId; private String categoryName; private Integer categoryLevel; private Integer parentId; private String categoryIcon; private String categorySlogan; private String categoryPic; private String categoryBgColor; //实现首页的类别显示 private List categories; //实现首页分类商品推荐 private List products;

}

-  在Mapper接口中定义查询方法
| CategoryMapper |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074033713-d0894c70-aa93-4cf6-b623-f82d60c65bb6.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=254&id=u7fd6a17d&margin=%5Bobject%20Object%5D&name=image.png&originHeight=368&originWidth=1121&originalType=binary&ratio=1&rotation=0&showTitle=false&size=31532&status=done&style=none&taskId=uaae6ecd6-8a8e-4151-8370-7a7548d6630&title=&width=772.4375766748834) |
| ProductMapper |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074029253-9fa31a06-c3c2-423d-9b48-2c9139dfea4b.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=241&id=u48579179&margin=%5Bobject%20Object%5D&name=image.png&originHeight=350&originWidth=1038&originalType=binary&ratio=1&rotation=0&showTitle=false&size=28892&status=done&style=none&taskId=u3c9cc78f-53aa-4304-b346-e5726aac5b4&title=&width=715.2454991869125) |
-  映射配置
| ProductMapper.xml |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074128996-fa8461d0-8110-4412-8672-4b46c3fde3a4.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=575&id=uc9f896d3&margin=%5Bobject%20Object%5D&name=image.png&originHeight=834&originWidth=1387&originalType=binary&ratio=1&rotation=0&showTitle=false&size=113051&status=done&style=none&taskId=u5399b560-22c5-444c-9580-ccbbad8256b&title=&width=955.7278491062117) |

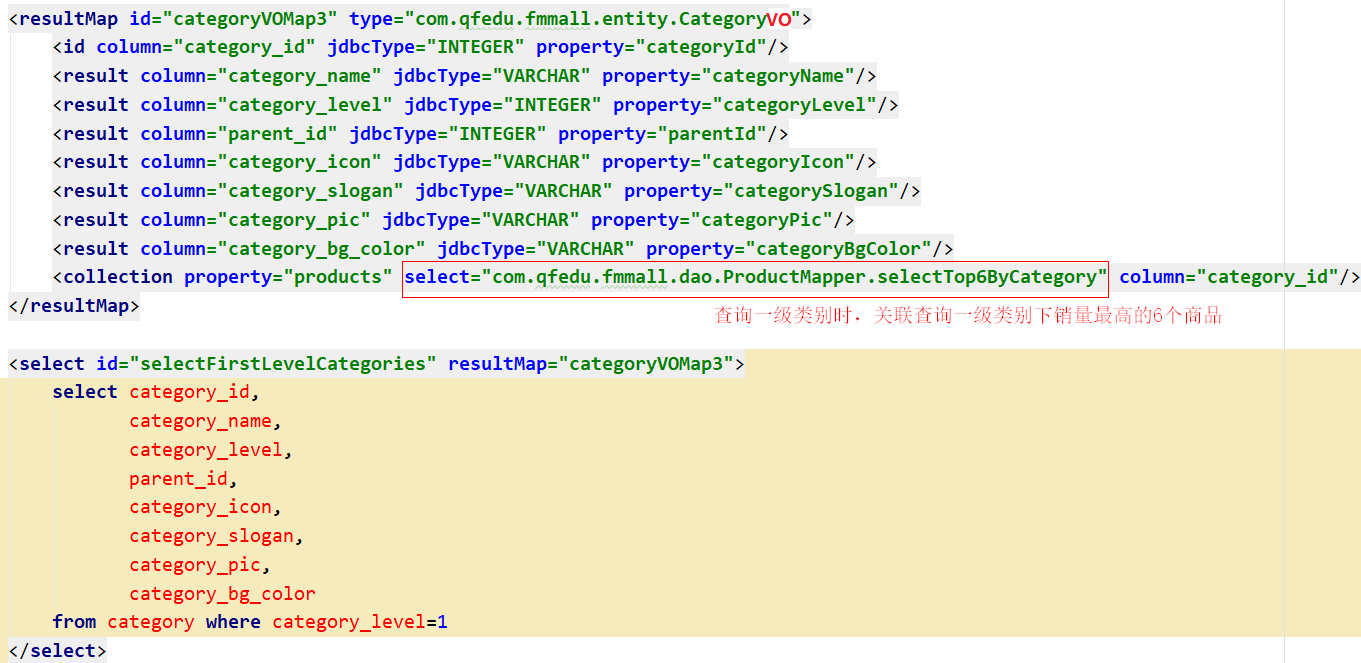

| CategoryMapper.xml |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074134474-2b500ca0-0b2c-4264-8548-ae02e0991321.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=457&id=u3cdb596a&margin=%5Bobject%20Object%5D&name=image.png&originHeight=663&originWidth=1361&originalType=binary&ratio=1&rotation=0&showTitle=false&size=93620&status=done&style=none&taskId=u5d992f62-c7c1-43fa-844d-c5082c742aa&title=&width=937.8122585678111) |
<a name="ec704cc9"></a>
###### 11.2.2 业务层实现
<a name="5c8a3db0"></a>
###### 11.2.3 控制层实现
<a name="69f32560"></a>
#### 11.3 前端实现
<a name="270aea62"></a>
## 十二、商品详情展示—显示商品基本信息
> 点击首页推荐的商品、轮播图商品广告、商品列表页面点击商品，就会进入到商品的详情页面
<a name="a22d397c"></a>

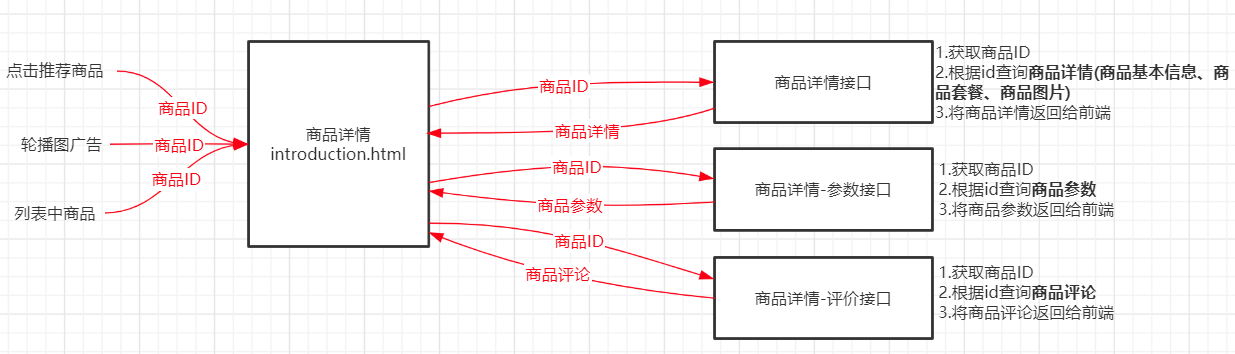

#### 12.1 流程分析
![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074142784-6b5a83f1-2d50-4012-9867-dbb69e0ddc9a.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=244&id=u89b529e1&margin=%5Bobject%20Object%5D&name=image.png&originHeight=354&originWidth=1235&originalType=binary&ratio=1&rotation=0&showTitle=false&size=85265&status=done&style=none&taskId=uf6dc2f8e-8514-4878-ba3d-a03df8a110a&title=&width=850.990550574024)
<a name="8a84c800"></a>
#### 12.2 商品基础信息-接口实现
> 商品基本信息、商品套餐、商品图片
-  SQL
```sql
-- 根据id查询商品基本信息
select * from product where product_id=3;
-- 根据商品id查询当前商品的图片（√）
select * from product_img where item_id=3;
-- 根据商品id查询当前商品的套餐
select * from product_sku where product_id=3;

• 因为上述的三个查询都是单表查询，可以通过tkmapper完成，无需在Mapper接口定义新的方法
• 业务层实现
  | ProductService接口 | | —- | | |

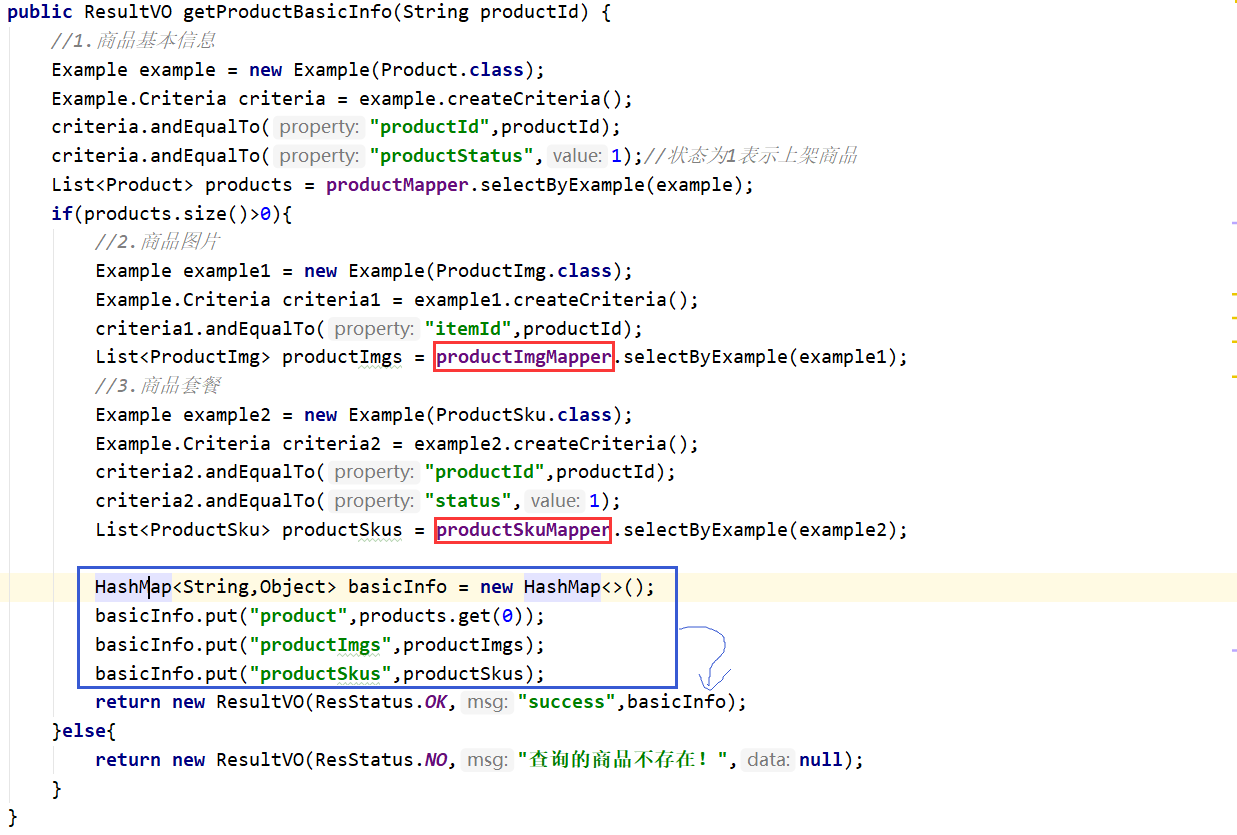

ProductServiceImpl类实现

• 控制层实现

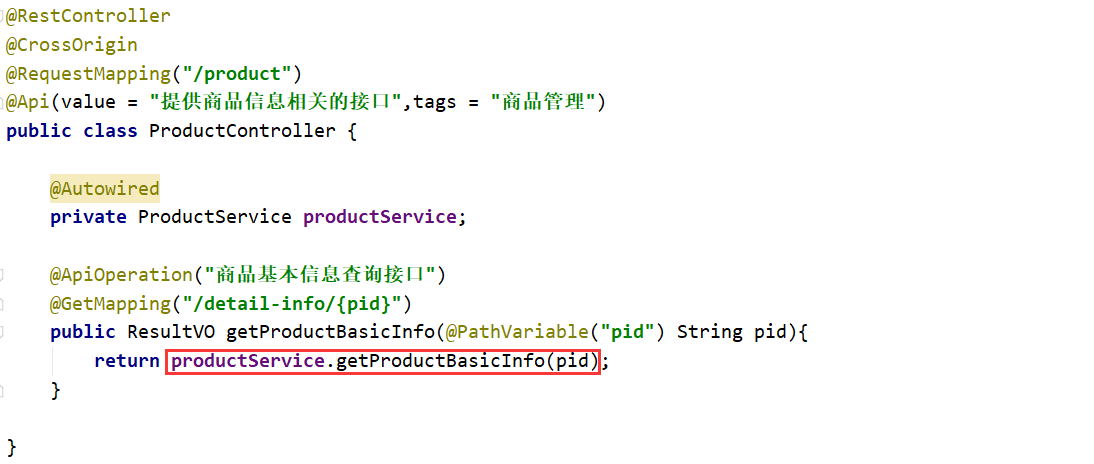

  | ProductController类 | | —- | | |

12.3 商品基础信息-前端显示

十三、商品详情展示—显示商品参数信息

13.1 接口实现

根据商品id查询商品参数信息

• 数据库操作直接只用tkMapper的默认方法实现

• 业务层实现
  | | | —- | | |

• 控制层实现

13.2 前端显示商品参数

13.3 前端显示商品细节

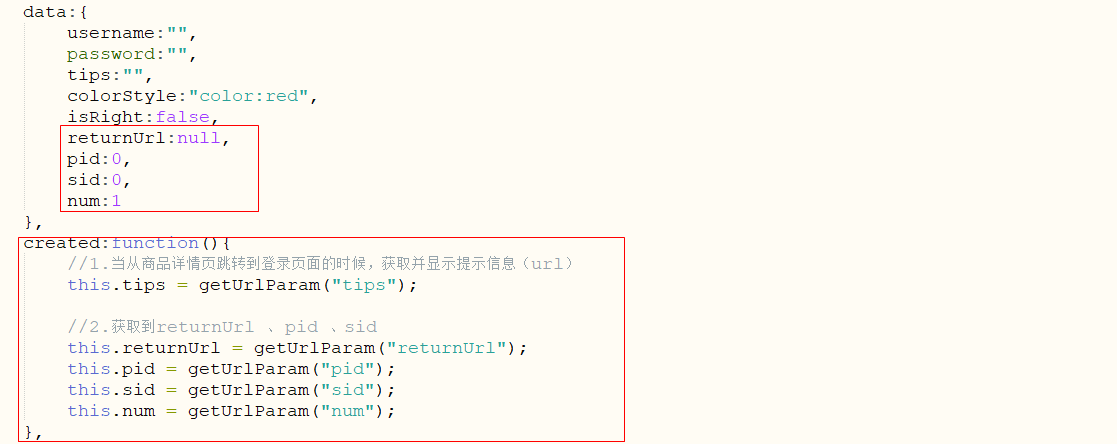

前端页面间URL传值

• utils.js

  function getUrlParam(key){
   var url = decodeURI( window.location.toString() );
   var arr = url.split("?");
   if(arr.length>1){
       var params = arr[1].split("&");
       for(var i=0; i<params.length; i++){
           var param = params[i];  //"pid=101"
           if(param.split("=")[0] == key ){
               return param.split("=")[1];
           }
       }
   }
   return null;
  }

• a.html

  <!DOCTYPE html>
  <html>
   <head>
       <meta charset="UTF-8">
       <title></title>
   </head>
   <body>
       <a href="b.html?pid=101&pname=咪咪虾条">跳转到B页面</a>
   </body>
  </html>

• b.html

  <!DOCTYPE html>
  <html>
   <head>
       <meta charset="UTF-8">
       <title></title>
   </head>
   <body>
       This is Page B...
       <hr/>
       <script type="text/javascript" src="js/utils.js" ></script>
       <script type="text/javascript">
           var pid = getUrlParam("pid");
       </script>
   </body>
  </html>

十四、商品详情展示—显示商品评论信息

14.1 接口实现

14.1.1 数据库实现

• 数据表分析及数据准备
• SQL

-- 根据ID查询商品的评价信息，关联查询评价用户的信息
select u.username,u.nickname,u.user_img,c.*
from product_comments c
INNER JOIN users u
ON u.user_id = c.user_id
WHERE c.product_id =3;

• 实体类封装ProductCommentsVO

@Data
@AllArgsConstructor
@NoArgsConstructor
public class ProductCommentsVO {
    private String commId;
    private String productId;
    private String productName;
    private String orderItemId;
    private Integer isAnonymous;
    private Integer commType;
    private Integer commLevel;
    private String commContent;
    private String commImgs;
    private Date sepcName;
    private Integer replyStatus;
    private String replyContent;
    private Date replyTime;
    private Integer isShow;
    //封装评论对应的用户数据
    private String userId;
    private String username;
    private String nickname;
    private String userImg;
}

• 在Mapper接口定义查询方法

@Repository
public interface ProductCommentsMapper extends GeneralDAO<ProductComments> {
    public List<ProductCommentsVO> selectCommontsByProductId(String productId);
}

• 映射配置：

14.1.2 业务层实现

• 创建ProductCommontsService接口定义方法

public interface ProductCommontsService {
    public ResultVO listCommontsByProductId(String productId);
}

• 创建实现类ProductCommontsServiceImpl实现查询操作

@Service
public class ProductCommontsServiceImpl implements ProductCommontsService {
    @Autowired
    private ProductCommentsMapper productCommentsMapper;
    @Override
    public ResultVO listCommontsByProductId(String productId) {
        List<ProductCommentsVO> productCommentsVOS = productCommentsMapper.selectCommontsByProductId(productId);
        ResultVO resultVO = new ResultVO(ResStatus.OK, "success", productCommentsVOS);
        return resultVO;
    }
}

14.1.3 控制层实现

• ProductController

@ApiOperation("商品评论信息查询接口")
@GetMapping("/detail-commonts/{pid}")
public ResultVO getProductCommonts(@PathVariable("pid") String pid){
    return productCommontsService.listCommontsByProductId(pid);
}

14.2 前端评论内容显示

十五、商品详情展示—商品评论分页及统计信息

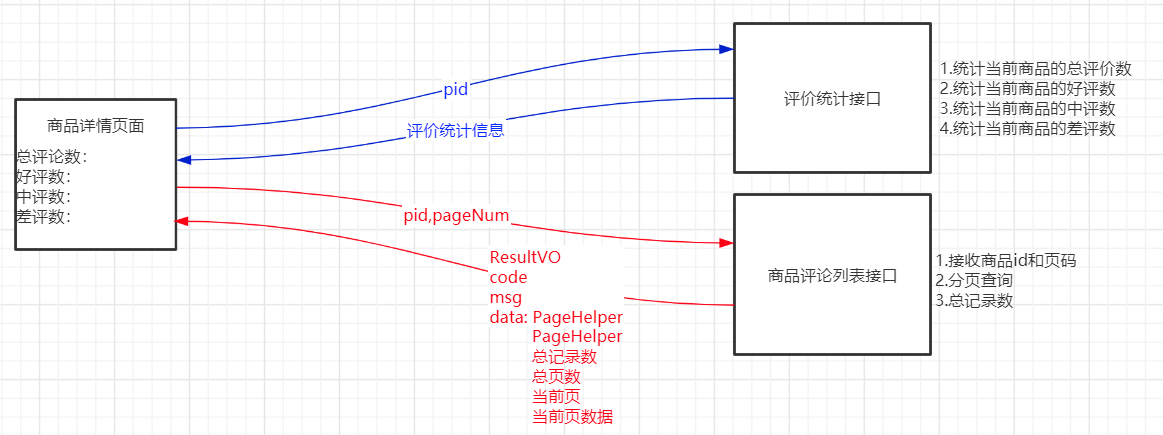

15.1 流程分析

15.2 接口开发

15.2.1 改造商品评论列表接口

分页查询

• 定义PageHelper
  ```java @Data @NoArgsConstructor @AllArgsConstructor public class PageHelper {

  //总记录数 private int count;

  //总页数 private int pageCount;

  //分页数据 private List list;

}

-  改造数据库操作

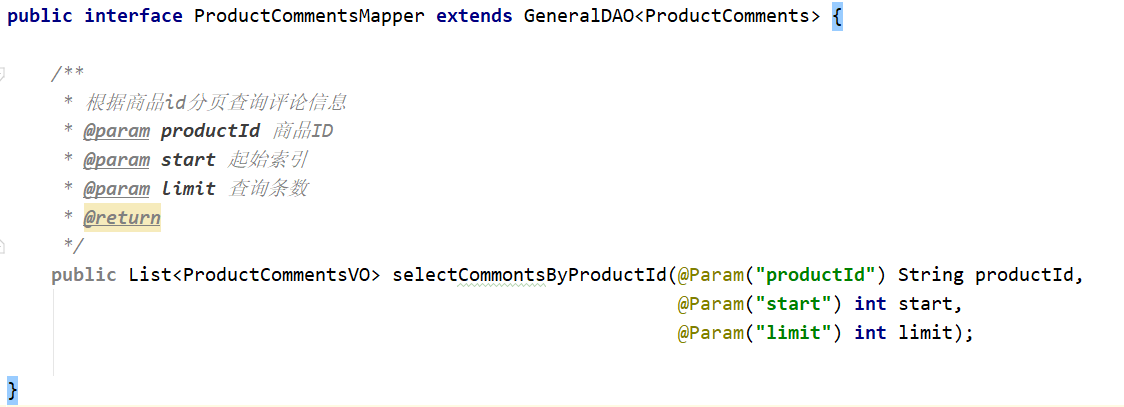

| ProductCommentsMapper 接口 |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074222438-ec3cc1e7-7c83-4da2-8d02-25a88e1206c3.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=280&id=u4276b3e3&margin=%5Bobject%20Object%5D&name=image.png&originHeight=407&originWidth=1124&originalType=binary&ratio=1&rotation=0&showTitle=false&size=39768&status=done&style=none&taskId=u2118e6af-d9c0-4632-9d85-e71bfdcb031&title=&width=774.504760198545) |

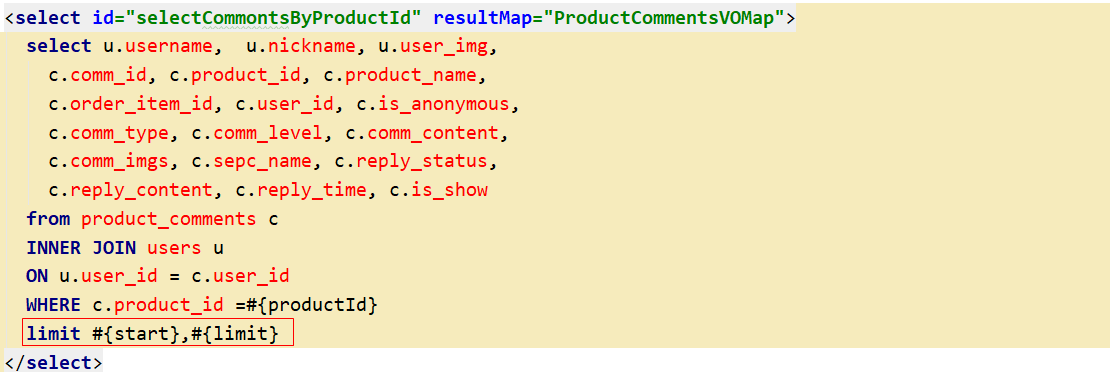

| ProductCommentsMapper.xml映射配置 |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074227311-9abc8558-6762-46b3-9805-709b05813560.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=256&id=u8071ea1e&margin=%5Bobject%20Object%5D&name=image.png&originHeight=372&originWidth=1110&originalType=binary&ratio=1&rotation=0&showTitle=false&size=35164&status=done&style=none&taskId=u55d9fda8-6ec4-4208-97b5-7e5e8bf17bc&title=&width=764.8579037547909) |
-  改造业务逻辑层

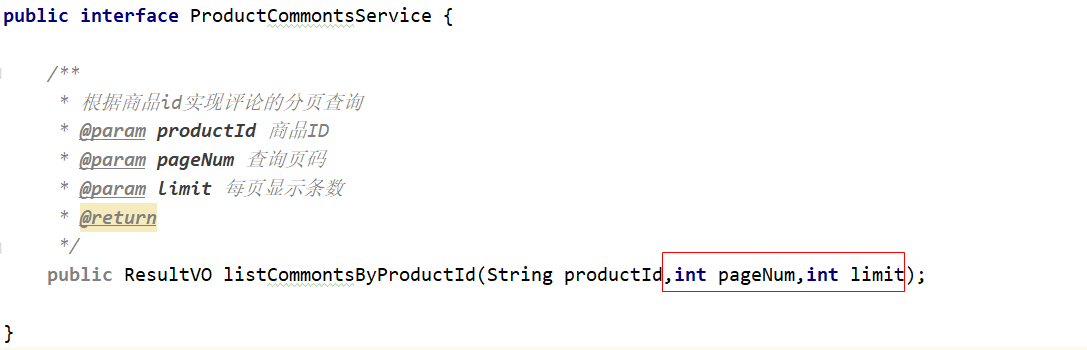

| ProductCommontsService接口 |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074232312-4e6c2872-2f86-4ef0-adef-645a142a8e54.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=241&id=uced38017&margin=%5Bobject%20Object%5D&name=image.png&originHeight=350&originWidth=1087&originalType=binary&ratio=1&rotation=0&showTitle=false&size=32414&status=done&style=none&taskId=ub3b85715-0fbc-4357-a547-baac74a3eca&title=&width=749.009496740052) |

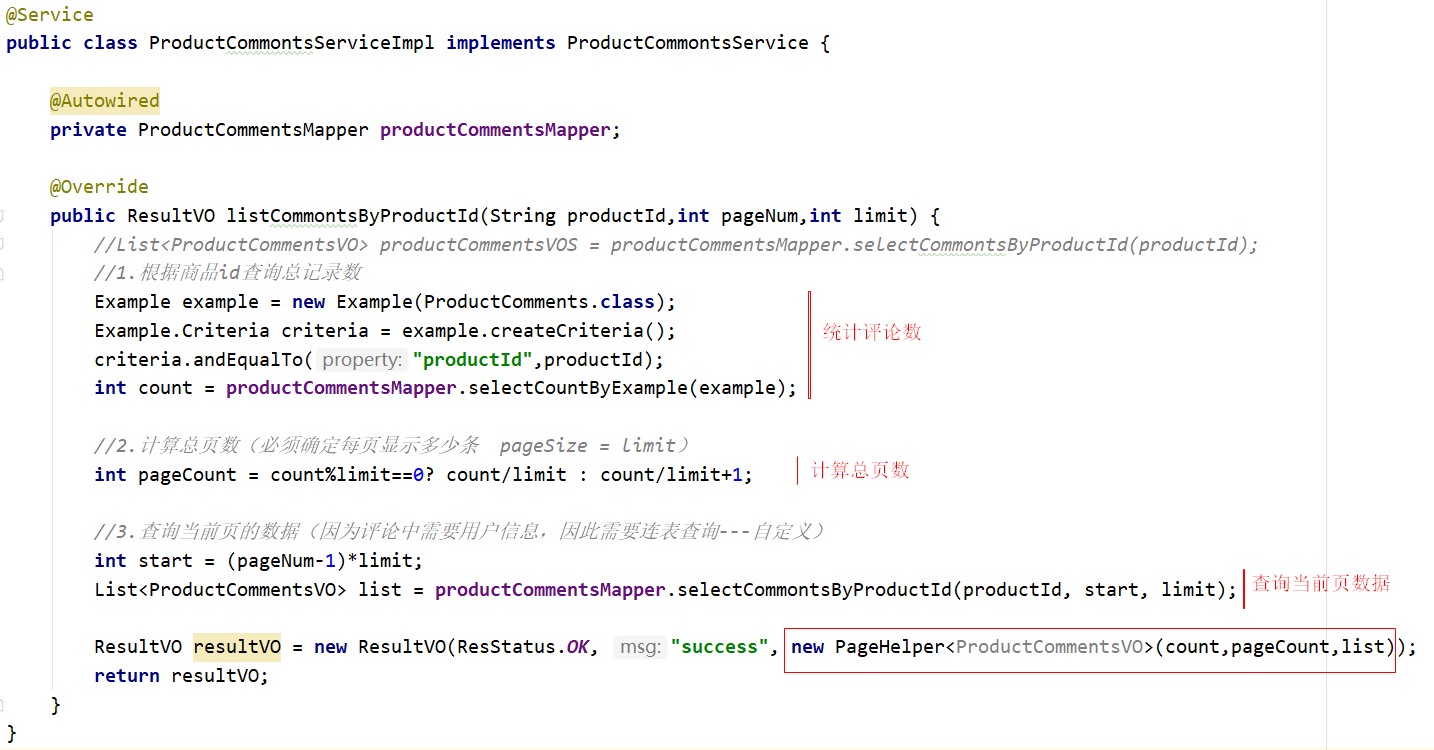

| ProductCommontsServiceImpl |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074237388-268cf522-68d7-473e-a368-d0521e9b018c.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=517&id=u3192b23d&margin=%5Bobject%20Object%5D&name=image.png&originHeight=750&originWidth=1434&originalType=binary&ratio=1&rotation=0&showTitle=false&size=98355&status=done&style=none&taskId=ud24107ec-b734-4229-8af0-ad9769d524a&title=&width=988.1137243102434) |

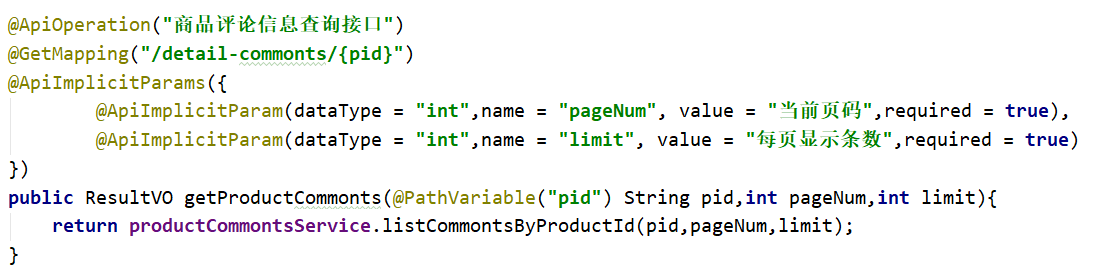

-  改造控制层
| ProductController |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074244382-8c177ea9-c105-48c1-bed9-76e62d416af6.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=188&id=u3ec4308b&margin=%5Bobject%20Object%5D&name=image.png&originHeight=273&originWidth=1098&originalType=binary&ratio=1&rotation=0&showTitle=false&size=41377&status=done&style=none&taskId=ubb30f5ef-e09e-4b04-993a-985bf04ff79&title=&width=756.5891696601444) |
<a name="1eb38d7c"></a>
###### 15.2.2 评价统计接口实现
-  数据库实现
   - 统计当前商品的总记录数
   - 统计当前商品的好评/中评/差评
-  业务层实现: `ProductCommontsServiceImpl`
```java
@Override
public ResultVO getCommentsCountByProductId(String productId) {
    //1.查询当前商品评价的总数
    Example example = new Example(ProductComments.class);
    Example.Criteria criteria = example.createCriteria();
    criteria.andEqualTo("productId",productId);
    int total = productCommentsMapper.selectCountByExample(example);
    //2.查询好评评价数
    criteria.andEqualTo("commType",1);
    int goodTotal = productCommentsMapper.selectCountByExample(example);
    //3.查询中评评价数
    Example example1 = new Example(ProductComments.class);
    Example.Criteria criteria1 =  example1.createCriteria();
    criteria1.andEqualTo("productId",productId);
    criteria1.andEqualTo("commType",0);
    int midTotal = productCommentsMapper.selectCountByExample(example1);
    //4.查询c评评价数
    Example example2 = new Example(ProductComments.class);
    Example.Criteria criteria2 =  example2.createCriteria();
    criteria2.andEqualTo("productId",productId);
    criteria2.andEqualTo("commType",-1);
    int badTotal = productCommentsMapper.selectCountByExample(example2);
    //5.计算好评率
    double percent = (Double.parseDouble(goodTotal+"") / Double.parseDouble(total+"") )*100;
    String percentValue = (percent+"").substring(0,(percent+"").lastIndexOf(".")+3);
    HashMap<String,Object> map = new HashMap<>();
    map.put("total",total);
    map.put("goodTotal",goodTotal);
    map.put("midTotal",midTotal);
    map.put("badTotal",badTotal);
    map.put("percent",percentValue);
    ResultVO success = new ResultVO(ResStatus.OK, "success", map);
    return success;
}

15.3 前端实现

15.3.1 商品评论的分页

• 引用elementUI分页组件

  <!-- 引入样式 -->
  <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
  <!-- vue的引入必须在elementUI组件库引入之前 -->
  <script type="text/javascript" src="js/vue.js"></script>
  <!-- 引入组件库 -->
  <script src="https://unpkg.com/element-ui/lib/index.js"></script>

• 引用分页组件

  <!--分页 -->
  <el-pagination background layout="prev, pager, next"
              :current-page="pageNum"
              :page-size="limit"
              :total="count"
               @current-change="pager"> </el-pagination>

• 监听分页组件的页码改变事件（点击上一页、下一页、页码都会导致页码改变）
  分页组件的事件函数默认传递当前页码参数

  pager:function(currentPage){
   this.pageNum = currentPage;
   //请求下一页数据
   var url3 = baseUrl+"product/detail-commonts/"+this.productId;
   axios.get(url3,{
       params:{
           pageNum:this.pageNum,
           limit:this.limit
       }
   }).then((res)=>{
       //获取到评论分页数据
       var pageHelper = res.data.data;
       //当前页的评论列表
       this.productCommonts = pageHelper.list;
       //总页数
       this.pageCount = pageHelper.pageCount;
       //总记录数
       this.count = pageHelper.count;
   });
  }

15.3.2 商品评价统计

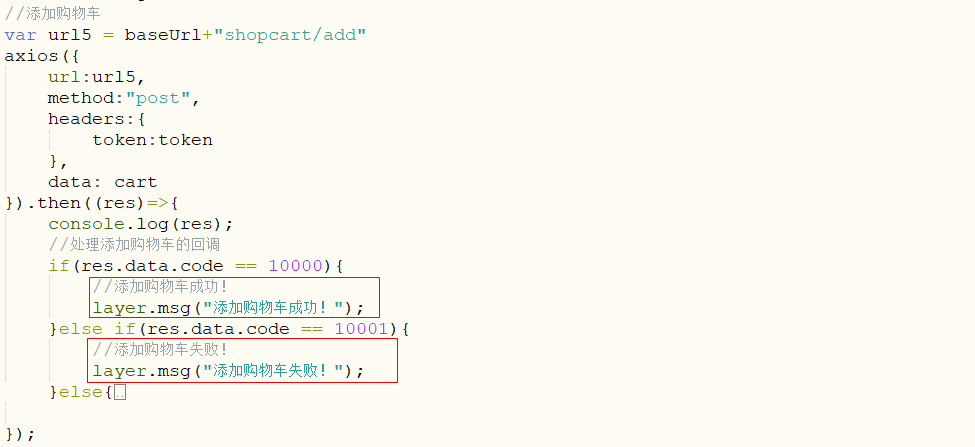

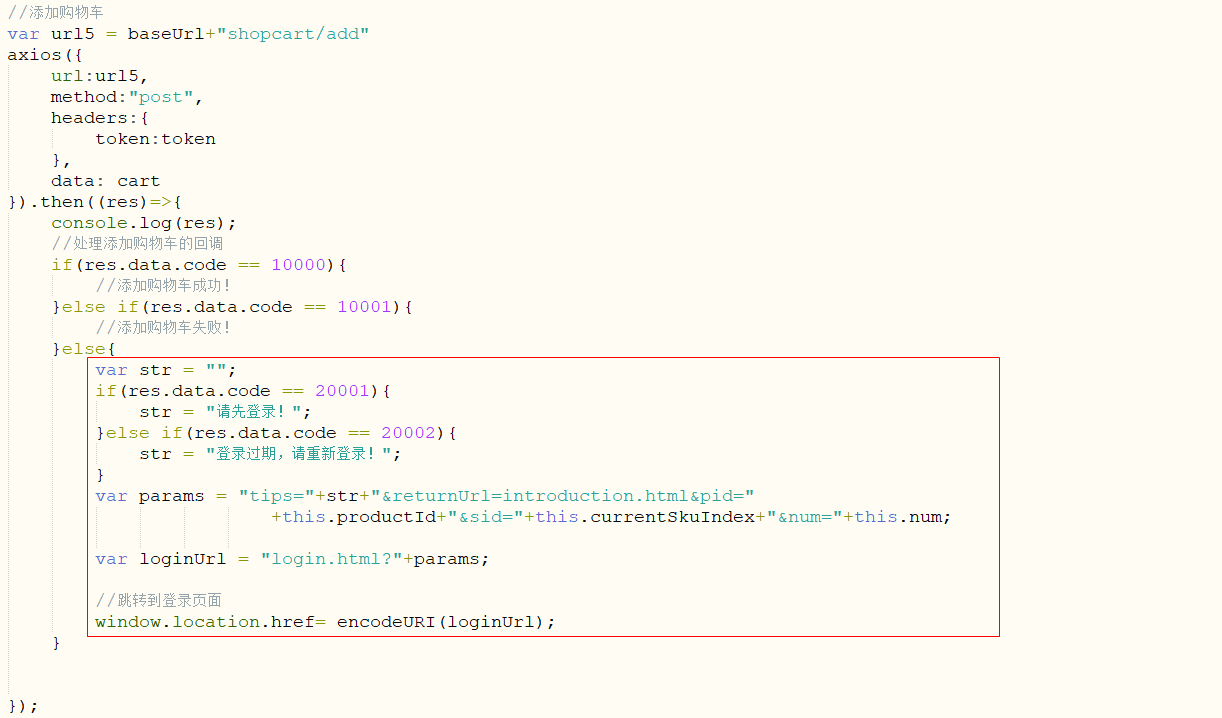

十六、购物车—添加购物车（登陆状态）

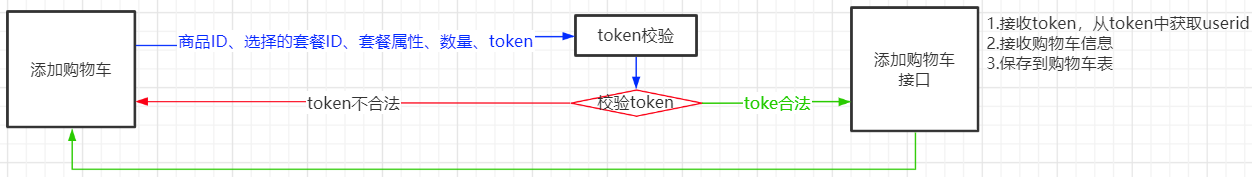

16.1 流程分析

16.2 接口实现

16.2.1 修改购物车数据表结构

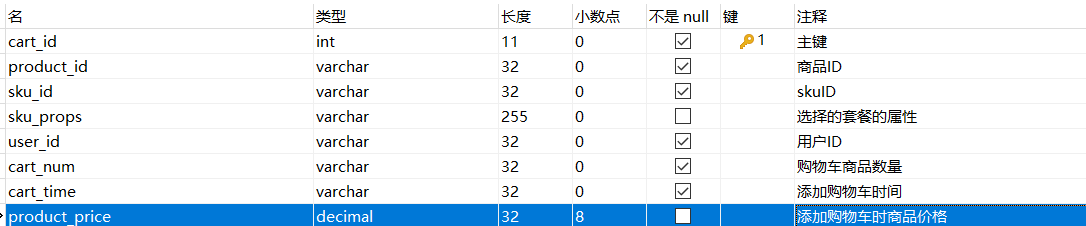

shopping_cart

• 数据表修改完成之后，对此表重新进行逆向工程

16.2.2 数据库实现

• 单表添加操作，可以直接使用tkMapper完成

16.2.3 业务层实现

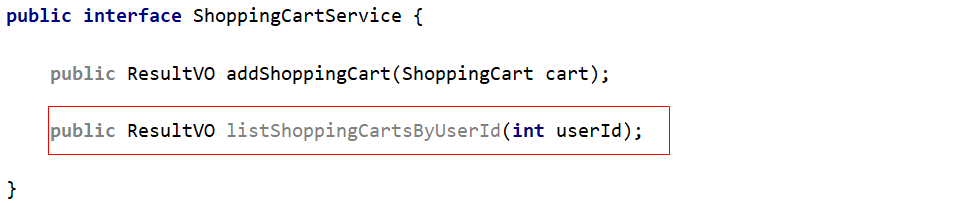

• ShoppingCartService接口
  ```java public interface ShoppingCartService {

  public ResultVO addShoppingCart(ShoppingCart cart);

}

-  实现类
<a name="ee21ebc0"></a>
#### 16.3 前端实现
<a name="71e62ad4"></a>
###### 16.3.1  记录选择的套餐属性

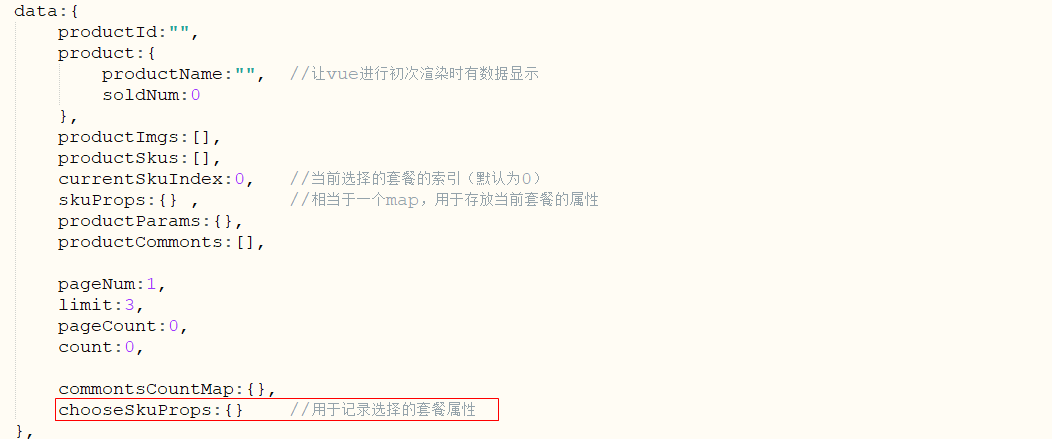

-  在vue的data中定义 `chooseSkuProps`
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074267818-2d37a2eb-1811-4126-b6f1-bebd3cd8a48b.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=302&id=uf8086afd&margin=%5Bobject%20Object%5D&name=image.png&originHeight=439&originWidth=1052&originalType=binary&ratio=1&rotation=0&showTitle=false&size=30916&status=done&style=none&taskId=u90df4b62-4da1-4051-99d9-ed102f6a90c&title=&width=724.8923556306667) |

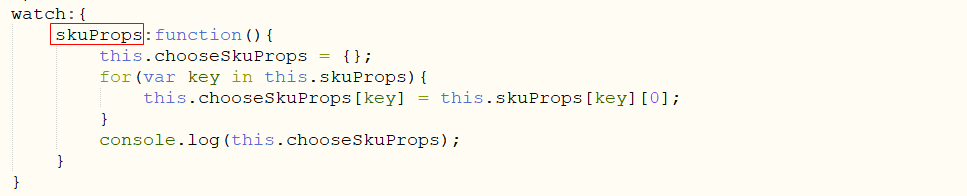

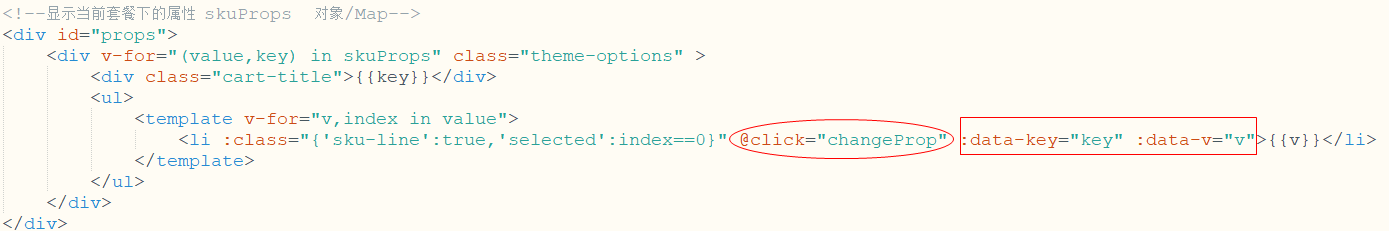

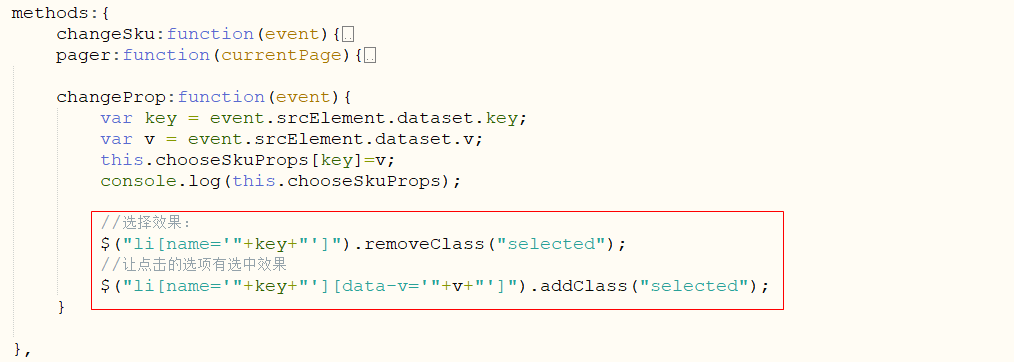

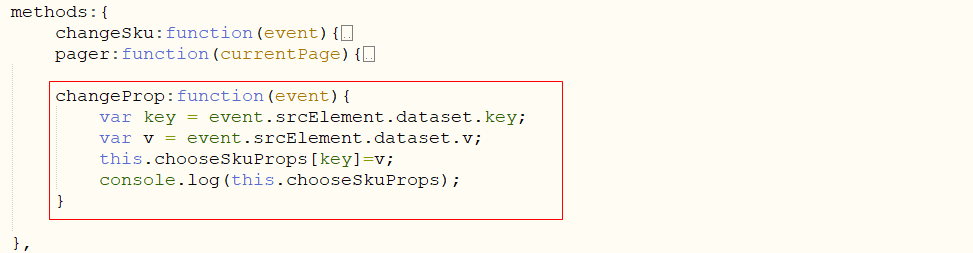

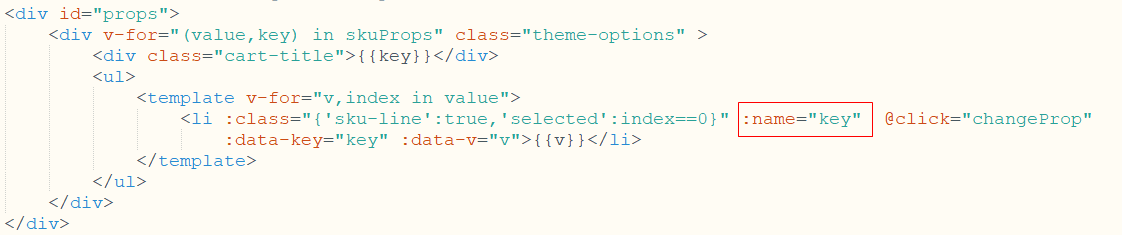

-  为sku的属性添加点击事件
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074273142-8f389cee-1c0f-4f77-8164-d6bd5b72411c.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=159&id=ufdf705d3&margin=%5Bobject%20Object%5D&name=image.png&originHeight=231&originWidth=1389&originalType=binary&ratio=1&rotation=0&showTitle=false&size=30613&status=done&style=none&taskId=u57bfe714-4fb4-4cfd-a910-afa126b9f57&title=&width=957.1059714553194) |
-  在methods中定义事件函数`changeProp`
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074278915-fb9131e2-4945-4be3-b89c-47099994a417.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=174&id=ucff7c661&margin=%5Bobject%20Object%5D&name=image.png&originHeight=253&originWidth=973&originalType=binary&ratio=1&rotation=0&showTitle=false&size=23503&status=done&style=none&taskId=u407db9d5-aa3f-413b-b13b-032d12f44e2&title=&width=670.4565228409112) |
-  添加套餐切换的监听事件：
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074288537-2b5a4a5a-b140-48b2-9f56-4db65a81d091.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=135&id=ub37070ba&margin=%5Bobject%20Object%5D&name=image.png&originHeight=196&originWidth=967&originalType=binary&ratio=1&rotation=0&showTitle=false&size=16313&status=done&style=none&taskId=ua9bca3ed-f724-4d28-ab1a-3eae41a3e75&title=&width=666.3221557935881) |
<a name="a3399e92"></a>
###### 16.3.2 套餐属性选中效果
-  在套餐属性标签上添加name属性
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074293533-d19dccc4-6873-400f-81ef-66a75b348579.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=162&id=ucefb3717&margin=%5Bobject%20Object%5D&name=image.png&originHeight=235&originWidth=1122&originalType=binary&ratio=1&rotation=0&showTitle=false&size=26824&status=done&style=none&taskId=u26d12a68-7096-4f10-95d4-50f8dff2090&title=&width=773.1266378494372) |
-  在属性的点击事件函数实现选中效果
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074298444-986fc35b-48de-4613-b96e-1590f087aa71.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=249&id=u750b5ff6&margin=%5Bobject%20Object%5D&name=image.png&originHeight=362&originWidth=1014&originalType=binary&ratio=1&rotation=0&showTitle=false&size=33823&status=done&style=none&taskId=ue0fc1b0f-f91a-4e11-bf87-7c883f2e053&title=&width=698.7080309976197) |
<a name="7cefa183"></a>
###### 16.3.3 修改商品数量
-  在vue的data中定义`num`存储商品数量（默认值为1）
-  为+，-添加点击事件监听
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074304809-ef58162a-c632-4416-9539-90b572607f7e.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=49&id=u730440b4&margin=%5Bobject%20Object%5D&name=image.png&originHeight=71&originWidth=1097&originalType=binary&ratio=1&rotation=0&showTitle=false&size=17228&status=done&style=none&taskId=u10669d09-e95f-45ac-a575-4f88e2a567c&title=&width=755.9001084855906) |

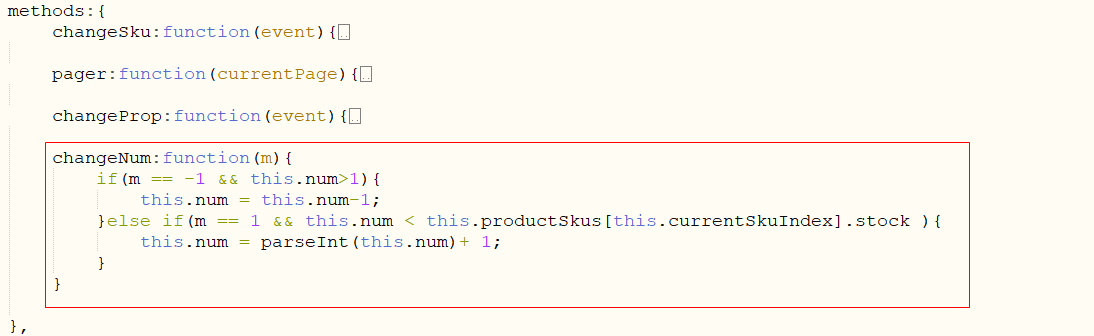

-  定义点击事件函数
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074311745-f7a0b7a6-aa68-42d4-985f-60d210d83efa.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=232&id=uf0d42dec&margin=%5Bobject%20Object%5D&name=image.png&originHeight=336&originWidth=1094&originalType=binary&ratio=1&rotation=0&showTitle=false&size=25484&status=done&style=none&taskId=u7d6fb199-9004-413b-b239-9fea181d12a&title=&width=753.832924961929) |
<a name="d8b587b8"></a>
###### 16.3.4 提交购物车
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074318131-91d86c8f-b644-4a48-bb4d-d01ab96360c7.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=472&id=u50156daa&margin=%5Bobject%20Object%5D&name=image.png&originHeight=685&originWidth=1108&originalType=binary&ratio=1&rotation=0&showTitle=false&size=56874&status=done&style=none&taskId=u3c45d2b0-6ee4-49c3-861a-f3174c783d4&title=&width=763.4797814056831) |
<a name="ca0da361"></a>
## 十七、购物车—添加购物车（未登录状态）
<a name="1f4aab5e"></a>

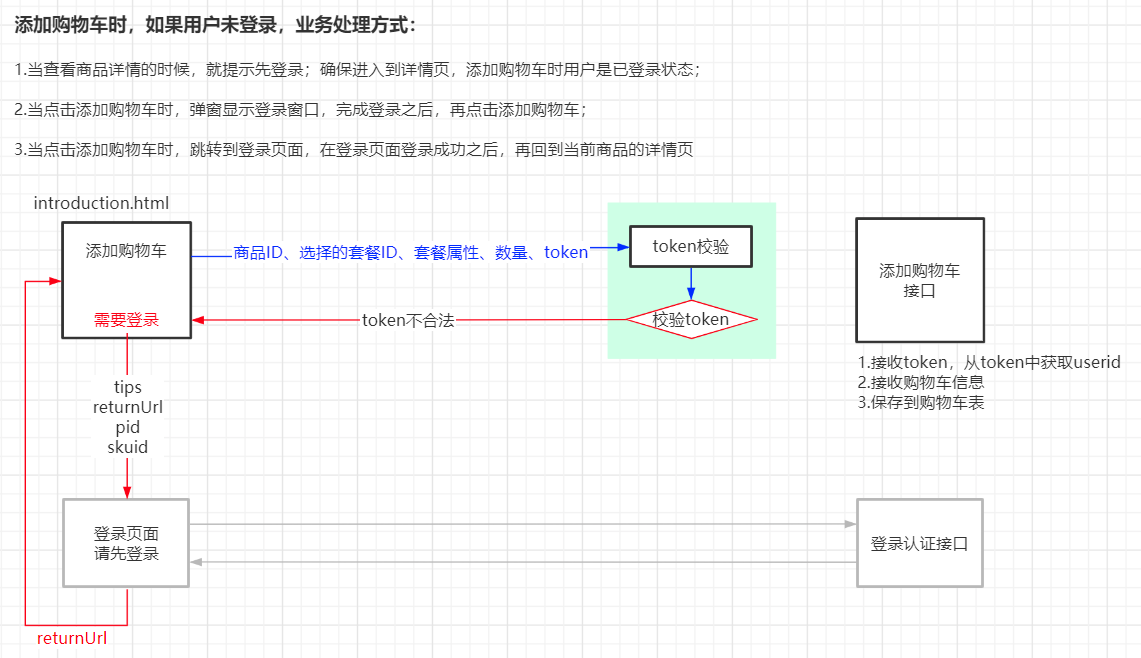

#### 17.1 流程分析
![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074325251-cc3fae69-1918-43db-8914-bf815d8c45bc.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=453&id=ub0e2da32&margin=%5Bobject%20Object%5D&name=image.png&originHeight=658&originWidth=1141&originalType=binary&ratio=1&rotation=0&showTitle=false&size=114353&status=done&style=none&taskId=u1701b748-669e-483e-a9a7-8136a435a52&title=&width=786.2188001659607)
<a name="76ba79af"></a>
#### 17.2 功能实现
<a name="5419de60"></a>

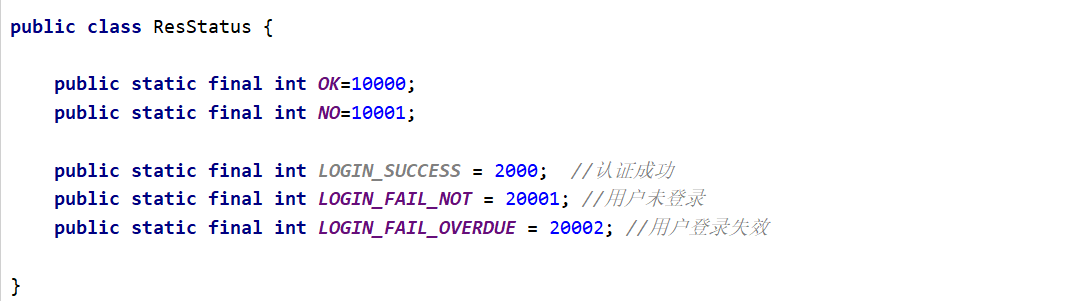

###### 17.2.1 定义新的状态码
| ResStatus |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074331004-d27e9f08-654d-49d7-bfa6-38bc4c5ff44d.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=207&id=u72bf43b6&margin=%5Bobject%20Object%5D&name=image.png&originHeight=301&originWidth=1090&originalType=binary&ratio=1&rotation=0&showTitle=false&size=27586&status=done&style=none&taskId=udd0a4ccd-e716-46f5-b45f-4f908eccae4&title=&width=751.0766802637136) |
| 登录认证拦截器 |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074335419-4c7755d8-e266-41cf-aa4e-22904a34b7c6.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=578&id=u57974304&margin=%5Bobject%20Object%5D&name=image.png&originHeight=839&originWidth=1393&originalType=binary&ratio=1&rotation=0&showTitle=false&size=108785&status=done&style=none&taskId=u5c8452d9-0a1b-4227-91dc-538b0cf241d&title=&width=959.8622161535349) |
<a name="621d4683"></a>
###### 17.2.2 在详情页面判断如果用户未登录，则跳转到登录页面
| introduction.html |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074347163-c6d92394-96d5-4e3d-abf1-87acd6afabfa.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=495&id=uf94f2ff0&margin=%5Bobject%20Object%5D&name=image.png&originHeight=718&originWidth=1222&originalType=binary&ratio=1&rotation=0&showTitle=false&size=50735&status=done&style=none&taskId=u330a5331-d8e9-4dd0-8faa-bdc4fd04e26&title=&width=842.0327553048238) |
<a name="543b4273"></a>

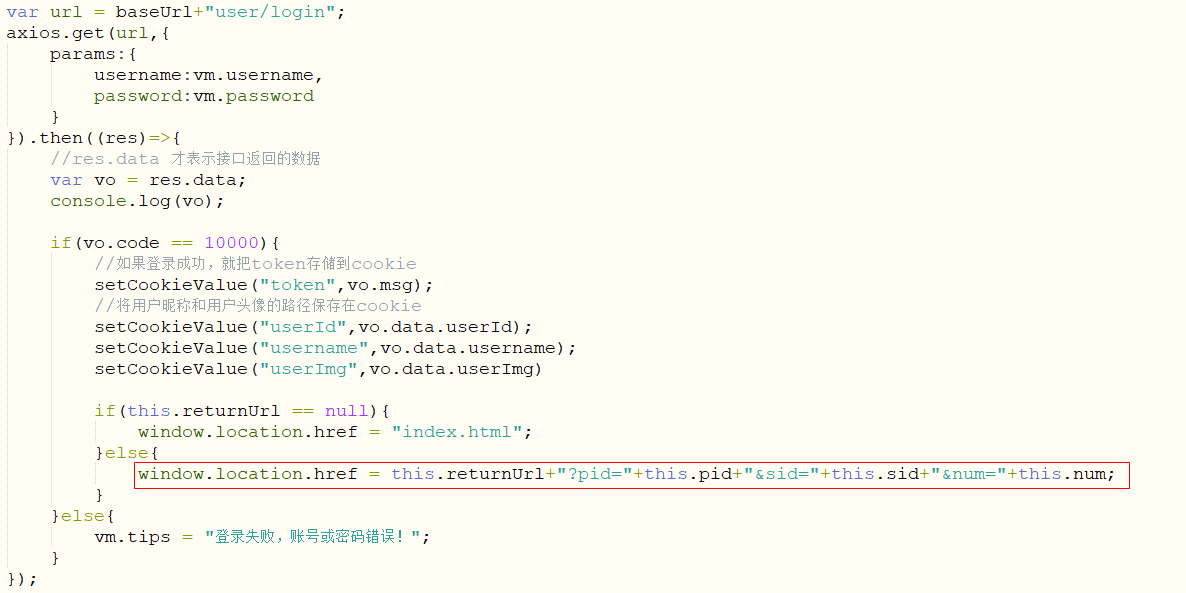

###### 17.2.3 登录页面接收回跳信息
| login.html |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074356835-94a0ac19-e030-4f65-8e72-02662bd7273e.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=306&id=u5875e050&margin=%5Bobject%20Object%5D&name=image.png&originHeight=444&originWidth=1117&originalType=binary&ratio=1&rotation=0&showTitle=false&size=34110&status=done&style=none&taskId=u5e4a8e07-719c-4726-8d57-6279513f66e&title=&width=769.6813319766679) |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074362114-17f82b82-db56-43a1-bc96-9ce526c0e9c3.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=409&id=ud9da686c&margin=%5Bobject%20Object%5D&name=image.png&originHeight=593&originWidth=1186&originalType=binary&ratio=1&rotation=0&showTitle=false&size=52420&status=done&style=none&taskId=u857a773b-828f-42ea-a65a-0cccfaffda9&title=&width=817.2265530208847) |
<a name="db15e15f"></a>

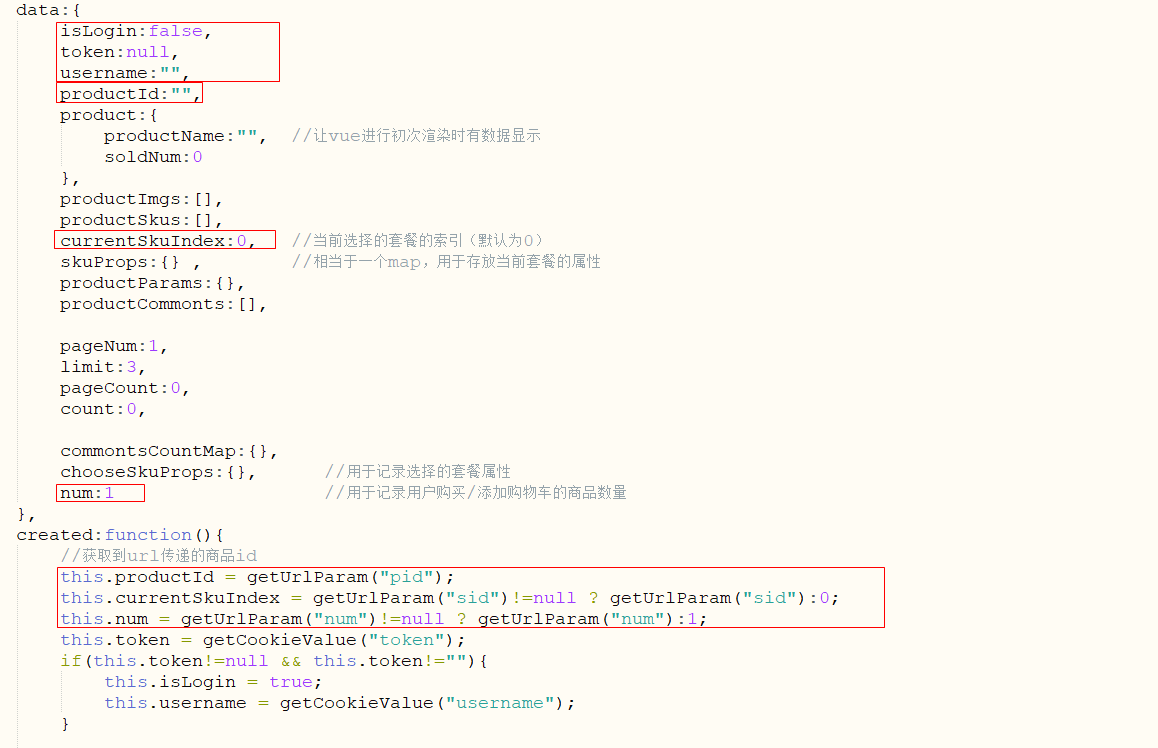

###### 17.2.4 回到详情页时接收参数
| introduction.html |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074372294-a7075f13-59a6-45c3-b025-921f0b8e9fa6.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=515&id=u04a0eed2&margin=%5Bobject%20Object%5D&name=image.png&originHeight=748&originWidth=1158&originalType=binary&ratio=1&rotation=0&showTitle=false&size=63963&status=done&style=none&taskId=u19363dc4-4a96-4840-8c3b-14cd7a7ab41&title=&width=797.9328401333764) |
<a name="16c1372c"></a>
###### 17.2.5 使用layui添加购物车成功/失败进行提示
-  引入layui  layui.com
```html
<!-- 引入 layui.css -->
<link rel="stylesheet" href="//unpkg.com/layui@2.6.5/dist/css/layui.css">
<!-- 引入 layui.js -->
<script src="//unpkg.com/layui@2.6.5/dist/layui.js">

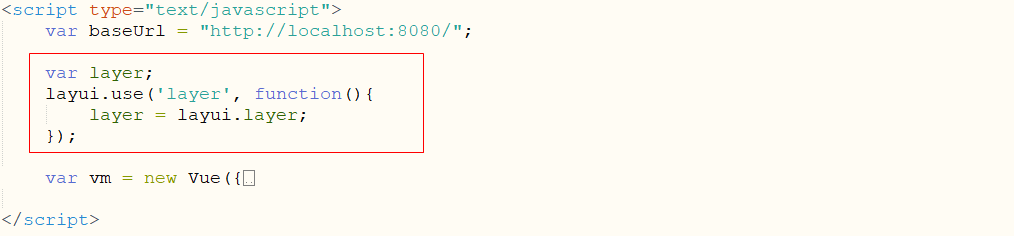

• 声明弹窗组件
  | | | —- | | |

• 当添加购物车成功或者失败的时候，进行提示：
  | | | —- | | |

十八、购物车—购物车列表

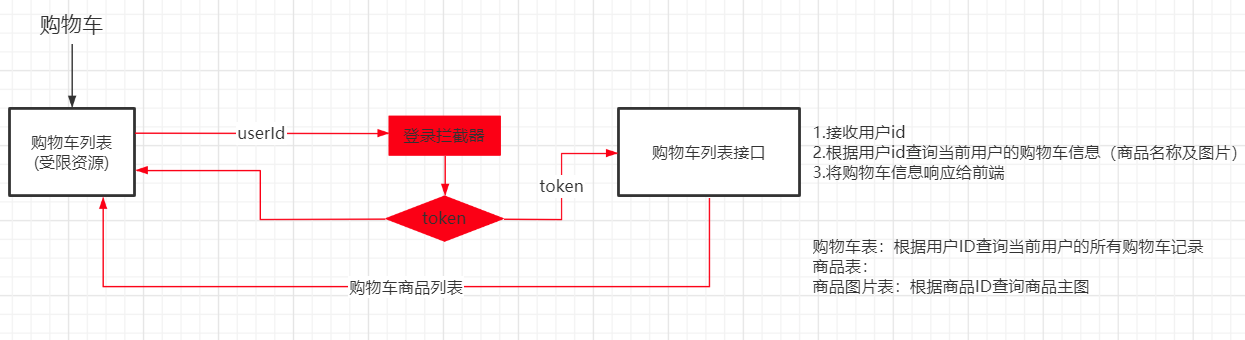

18.1 流程分析

18.2 接口实现

18.2.1 数据库实现

• SQL

  -- 根据用户ID查询当前用户的购物车信息
  select c.*, p.product_name,i.url
  from shopping_cart c
  INNER JOIN product p
  INNER JOIN product_img i
  ON c.product_id = p.product_id and i.item_id=p.product_id
  where user_id=6 and i.is_main=1;

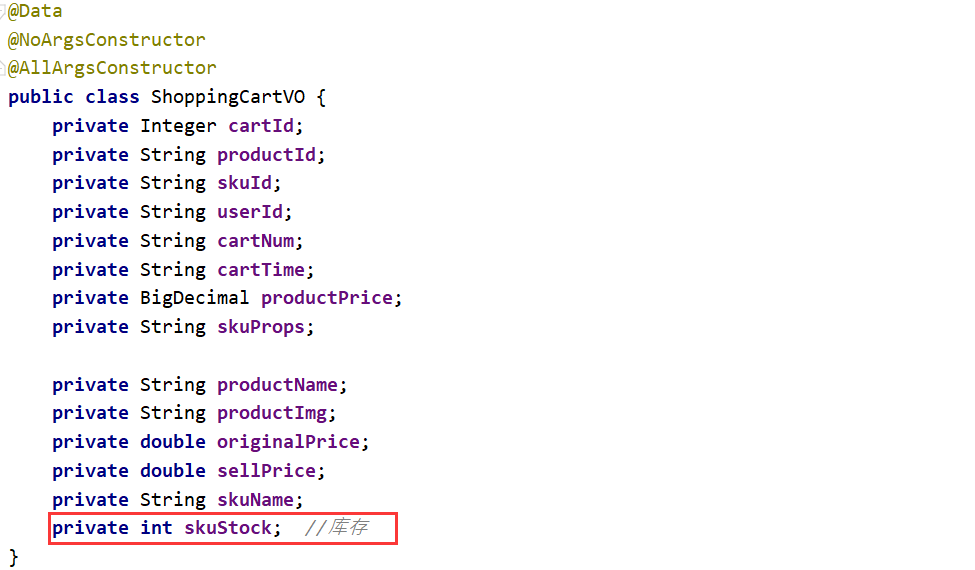

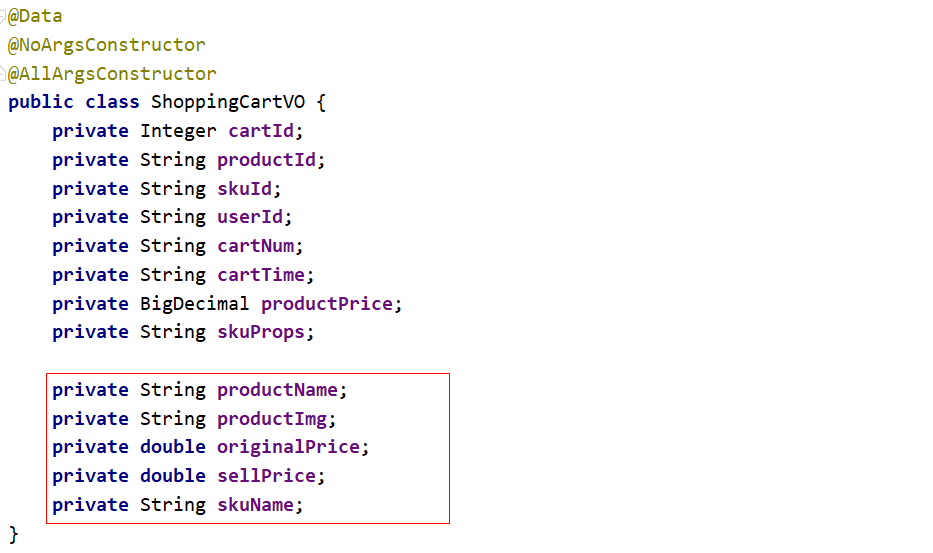

• 实体类
  | | | —- | | |

• 在Mapper接口定义查询方法
  ```java @Repository public interface ShoppingCartMapper extends GeneralDAO {

  public List selectShopcartByUserId(int userId);

}

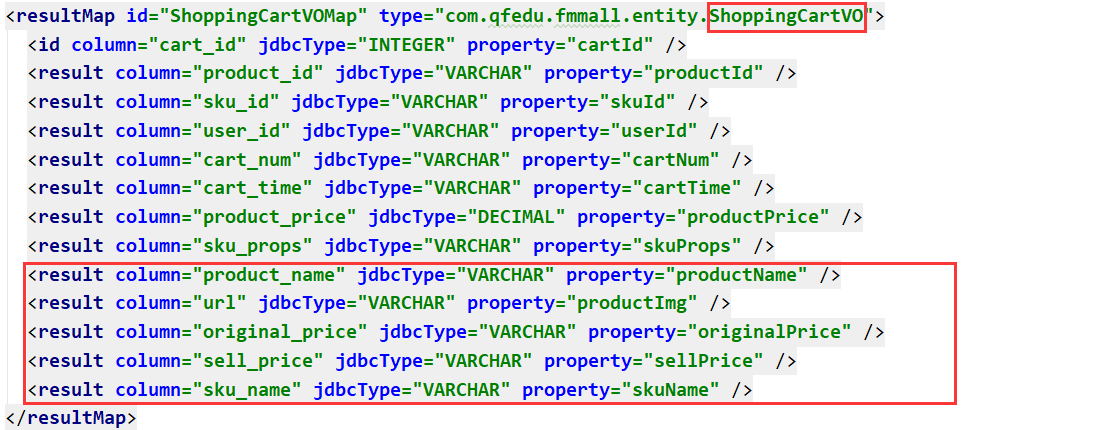

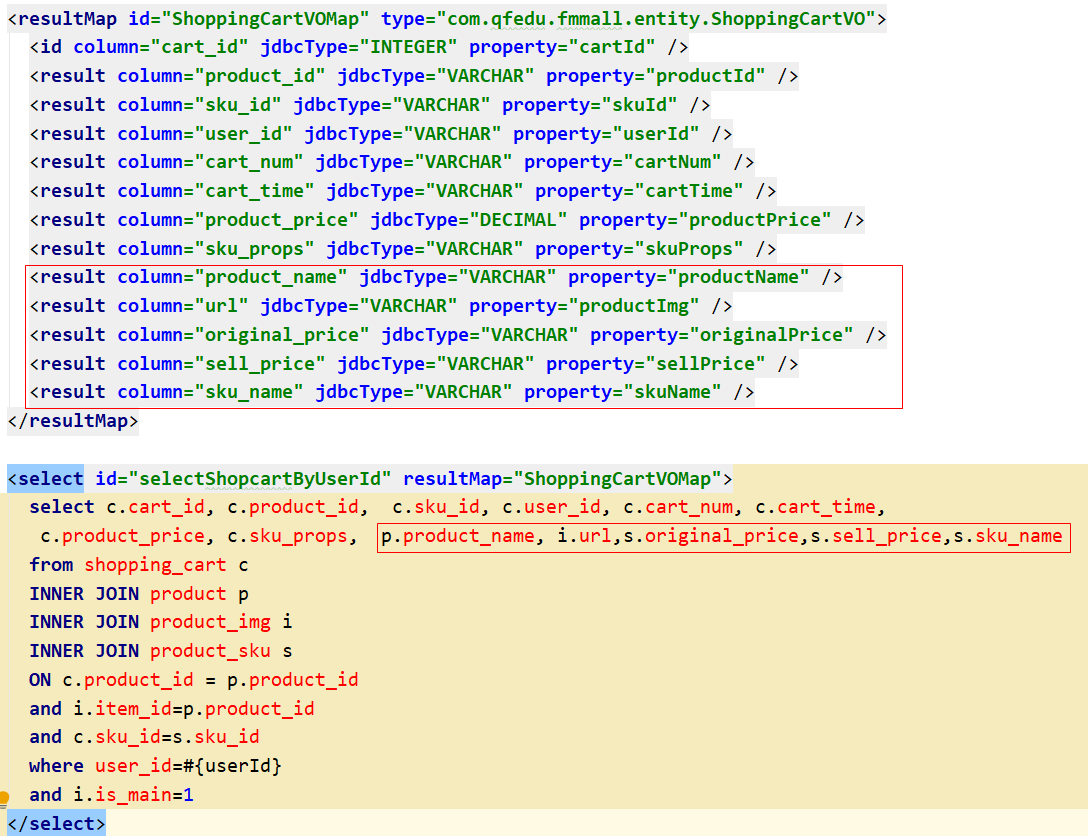

-  映射配置
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074404777-2ea8f476-d209-4dd5-b765-9a48aa022873.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=576&id=ubd159c55&margin=%5Bobject%20Object%5D&name=image.png&originHeight=836&originWidth=1088&originalType=binary&ratio=1&rotation=0&showTitle=false&size=111843&status=done&style=none&taskId=ufacbe9ae-ae81-4c97-9c29-97b93f388e9&title=&width=749.6985579146058) |
<a name="a54874fd"></a>
###### 18.2.2 业务层实现
-  Service接口
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074412175-e02ed736-7a30-4209-842d-d2229fe99bc8.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=140&id=u8e8e10cc&margin=%5Bobject%20Object%5D&name=image.png&originHeight=203&originWidth=970&originalType=binary&ratio=1&rotation=0&showTitle=false&size=13546&status=done&style=none&taskId=u7ab0e87a-08cd-41aa-905c-5209ee0575d&title=&width=668.3893393172497) |

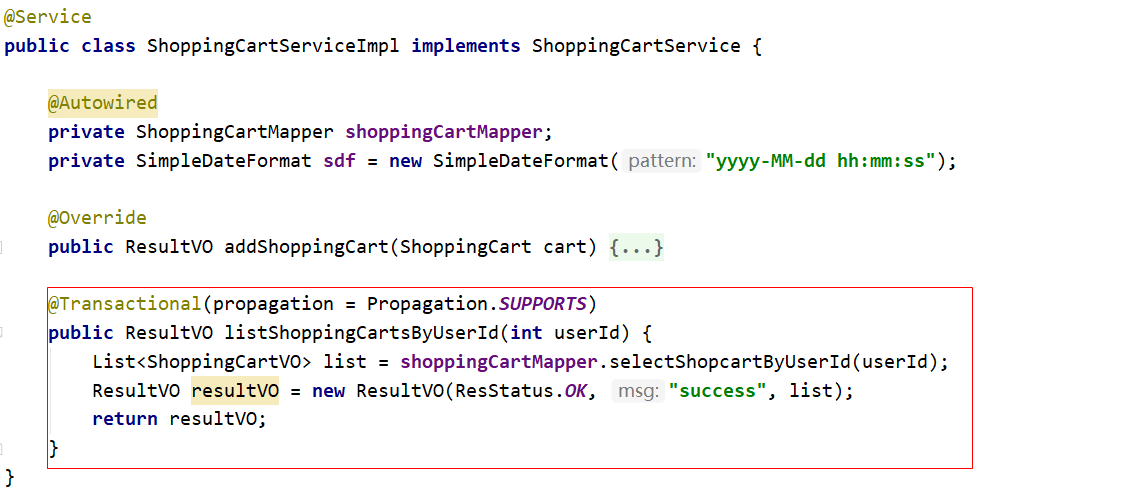

-  Service实现类
|  |
| --- |
| ![image.png](https://cdn.nlark.com/yuque/0/2022/png/23162011/1644074417283-2d064015-9ce1-4673-8b7c-558baeed592f.png#clientId=uc179a9d3-9ffa-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=338&id=u1850f7dd&margin=%5Bobject%20Object%5D&name=image.png&originHeight=490&originWidth=1130&originalType=binary&ratio=1&rotation=0&showTitle=false&size=49184&status=done&style=none&taskId=u557dec28-1113-4d29-9003-85de7285268&title=&width=778.6391272458682) |
<a name="4fbc7df7"></a>
###### 18.2.3 控制层实现
<a name="9cc613d7"></a>
#### 18.3 前端实现
<a name="1aed0391"></a>
###### 18.3.1 显示购物车列表
<a name="28736881"></a>
###### 18.3.2 显示购物车中商品价格
<a name="f68ba5a1"></a>
## 十九、购物车-修改购物车数量
<a name="3d1f3f1f"></a>
#### 19.1 流程分析
<a name="1d49a9ae"></a>
#### 19.2 接口实现
-  在Mapper接口定义修改方法
```java
@Repository
public interface ShoppingCartMapper extends GeneralDAO<ShoppingCart> {
    public List<ShoppingCartVO> selectShopcartByUserId(int userId);
    public int updateCartnumByCartid(@Param("cartId") int cartId,
                                     @Param("cartNum") int cartNum);
}

• 映射配置

  <update id="updateCartnumByCartid">
   update shopping_cart set cart_num=#{cartNum} where cart_id=#{cartId}
  </update>

• Service接口
  ```java public interface ShoppingCartService {

  public ResultVO addShoppingCart(ShoppingCart cart);

  public ResultVO listShoppingCartsByUserId(int userId);

  public ResultVO updateCartNum(int cartId,int cartNum);

}

-  Service实现类
```java
@Service
public class ShoppingCartServiceImpl implements ShoppingCartService {
    @Autowired
    private ShoppingCartMapper shoppingCartMapper;
    private SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd hh:mm:ss");
    @Override
    public ResultVO updateCartNum(int cartId, int cartNum) {
        int i = shoppingCartMapper.updateCartnumByCartid(cartId, cartNum);
        if(i>0){
            return new ResultVO(ResStatus.OK,"update success",null);
        }else{
            return new ResultVO(ResStatus.NO,"update fail",null);
        }
    }
}

• 控制层实现

  @PutMapping("/update/{cid}/{cnum}")
  public ResultVO updateNum(@PathVariable("cid") Integer cartId,
                         @PathVariable("cnum") Integer cartNum,
                         @RequestHeader("token") String token){
   ResultVO resultVO = shoppingCartService.updateCartNum(cartId, cartNum);
   return resultVO;
  }

19.3 前端实现

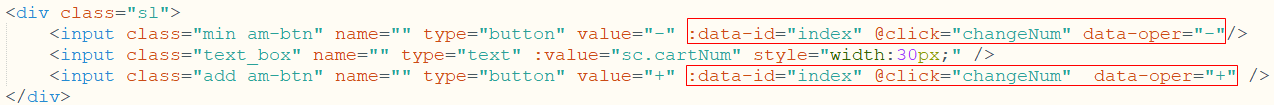

• 为按钮添加点击事件
  | | | —- | | |

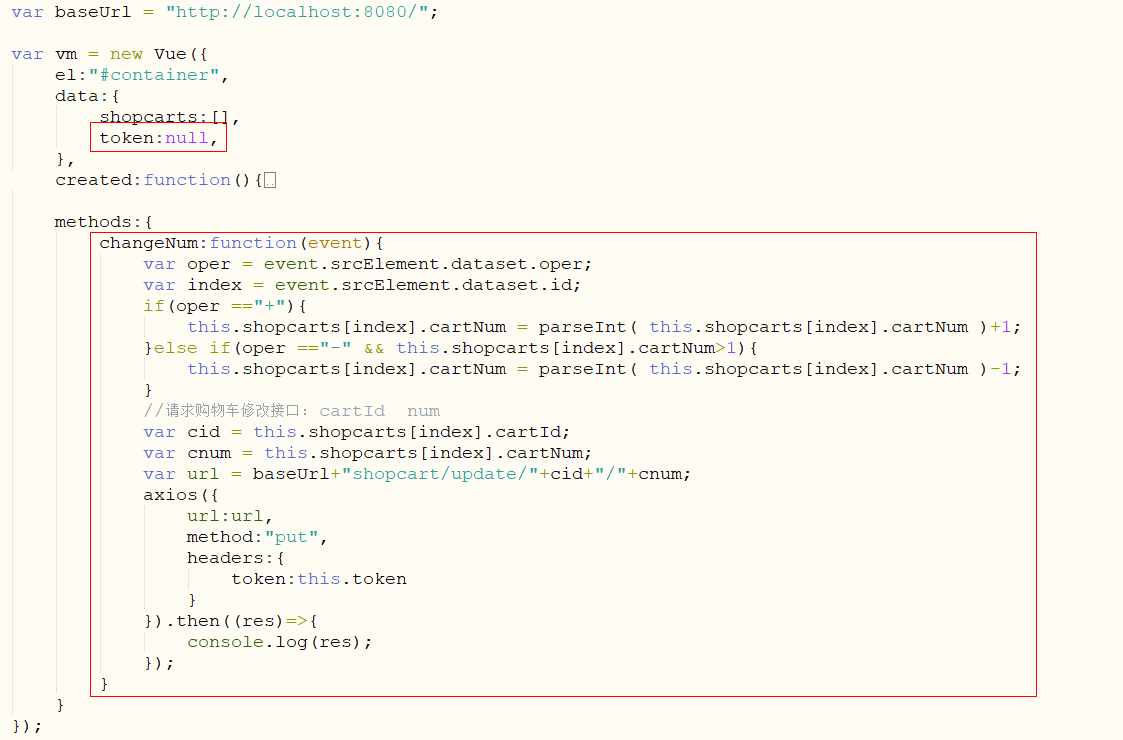

• 定义changeNum事件函数
  | | | —- | | |

二十、购物车—结算、提交订单

在购物车列表中选择对应的的商品之后，点击提交生成订单的过程

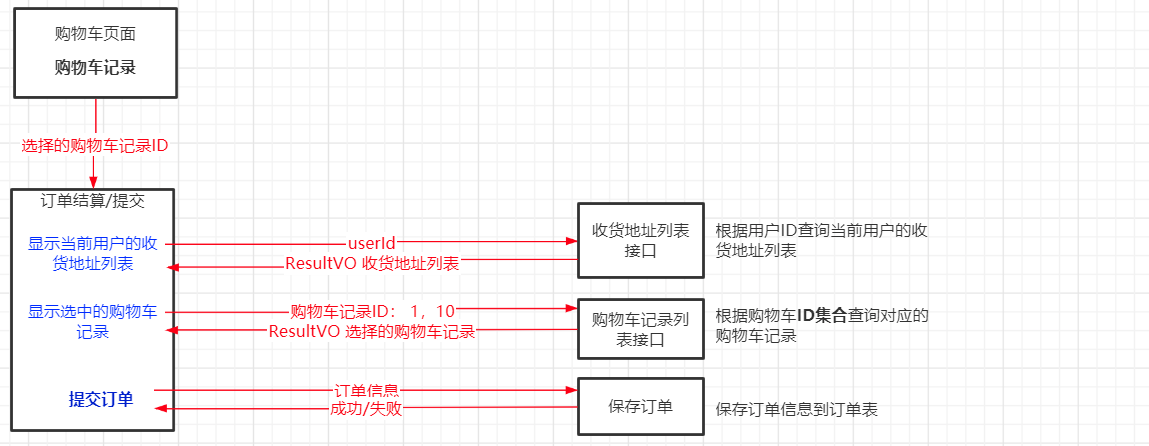

20.1 流程图

20.2 接口实现

20.2.1 收货地址列表接口

此操作的数据库实现可以通过tkmapper通用方法完成

• service接口UserAddrService
  ```java public interface UserAddrService {

  public ResultVO listAddrsByUid(int userId);

}

-  Service实现类 `UserAddrServiceImpl`
```java
@Service
public class UserAddrServiceImpl implements UserAddrService {
    @Autowired
    private UserAddrMapper userAddrMapper;
    @Transactional(propagation = Propagation.SUPPORTS)
    public ResultVO listAddrsByUid(int userId) {
        Example example = new Example(UserAddr.class);
        Example.Criteria criteria = example.createCriteria();
        criteria.andEqualTo("userId",userId);
        criteria.andEqualTo("status",1);
        List<UserAddr> userAddrs = userAddrMapper.selectByExample(example);
        ResultVO resultVO = new ResultVO(ResStatus.OK, "success", userAddrs);
        return resultVO;
    }
}

• 控制器实现
  ```java @RestController @CrossOrigin @Api(value = “提供收货地址相关接口”,tags = “收货地址管理”) @RequestMapping(“/useraddr”) public class UserAddrController {

  @Autowired private UserAddrService userAddrService;

  @GetMapping(“/list”) @ApiImplicitParam(dataType = “int”,name = “userId”, value = “用户ID”,required = true) public ResultVO listAddr(Integer userId, @RequestHeader(“token”) String token){

   ResultVO resultVO = userAddrService.listAddrsByUid(userId);
   return resultVO;

  }

}

<a name="1ad87bd5"></a>
###### 20.2.2 购物车记录列表接口
> 根据一个ID的集合，查询购物车记录，实现方式有两种：
>
> -  动态sql
> -  tkMapper条件查询<br />criteria.andIn("cartId",ids);
>
```xml
<select id="searchShoppingCartById" resultMap="shopCartMap">
    select * from shopping_cart where cart_id in
    <foreach collection="list" item="cid" separator="," open="(" close=")">
        #{cid}
    </foreach>
</select>

• Mapper接口定义查询方法
  | | | —- | | |

• 映射配置(动态sql foreach)
  | | | —- | | |

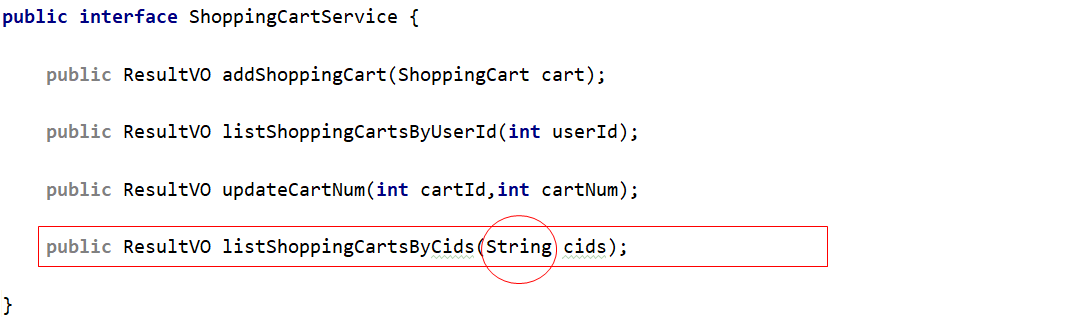

• Service接口
  | | | —- | | |

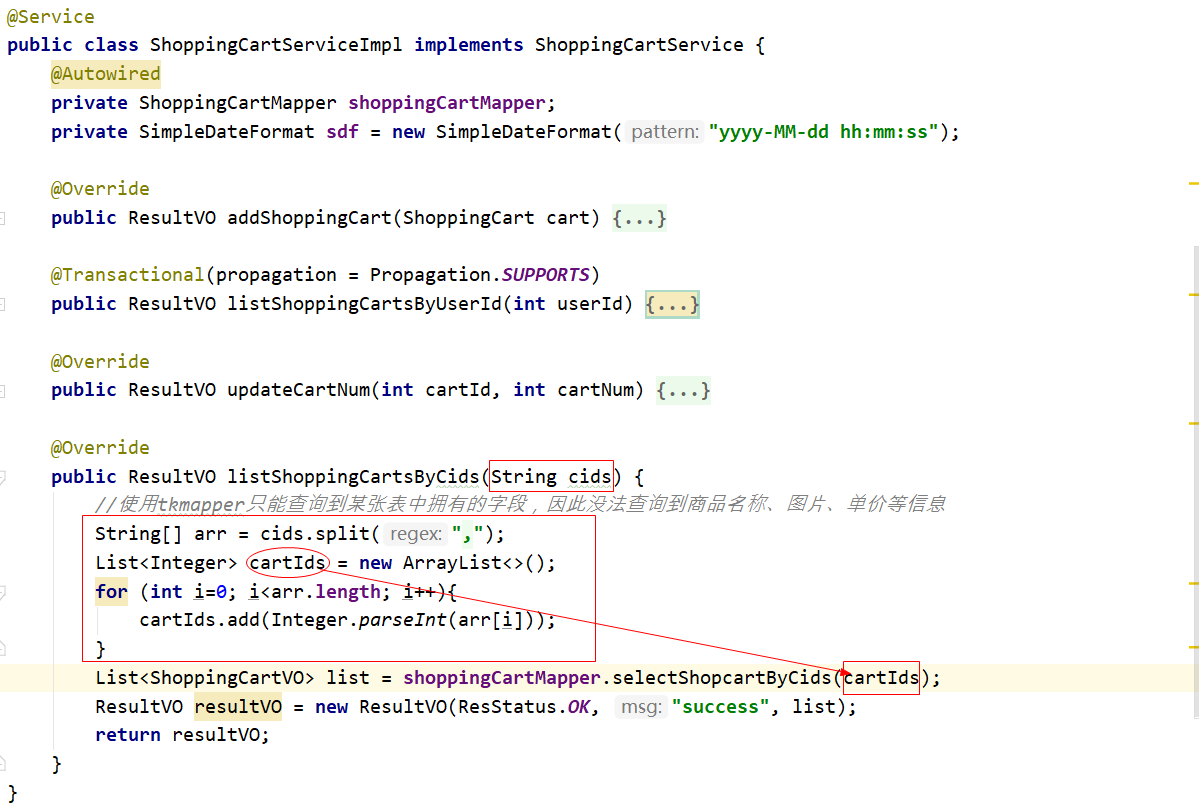

• Service实现类
  | | | —- | | |

• 控制器实现

  @GetMapping("/listbycids")
  @ApiImplicitParam(dataType = "String",name = "cids", value = "选择的购物车记录id",required = true)
  public ResultVO listByCids(String cids, @RequestHeader("token")String token){
   ResultVO resultVO = shoppingCartService.listShoppingCartsByCids(cids);
   return resultVO;
  }

20.2.3 保存订单

20.3 前端实现

20.3.1 选择购物车记录价格联动

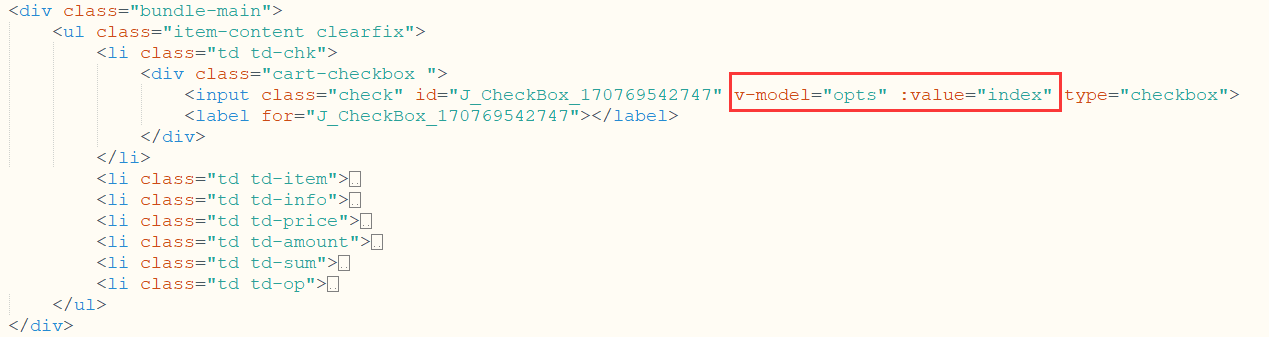

• 列表前的复选框标签
  | | | —- | | |

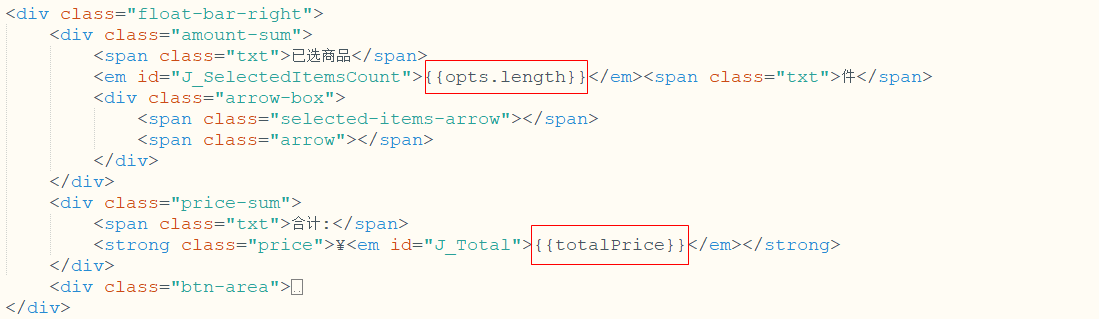

• 渲染商品数量以及总价格
  | | | —- | | |

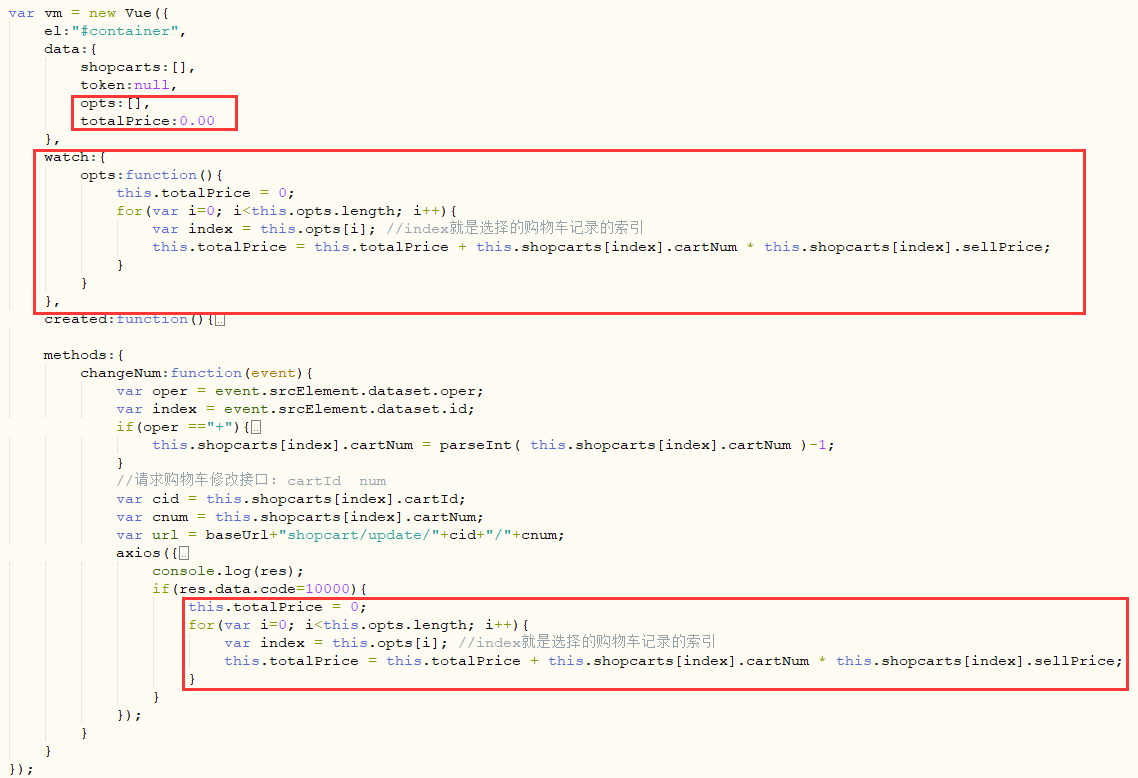

• 在vue示例的data中声明opts和totalPrice，并且监听opts选项的改变—选项一旦改变就计算总价格
  | | | —- | | |

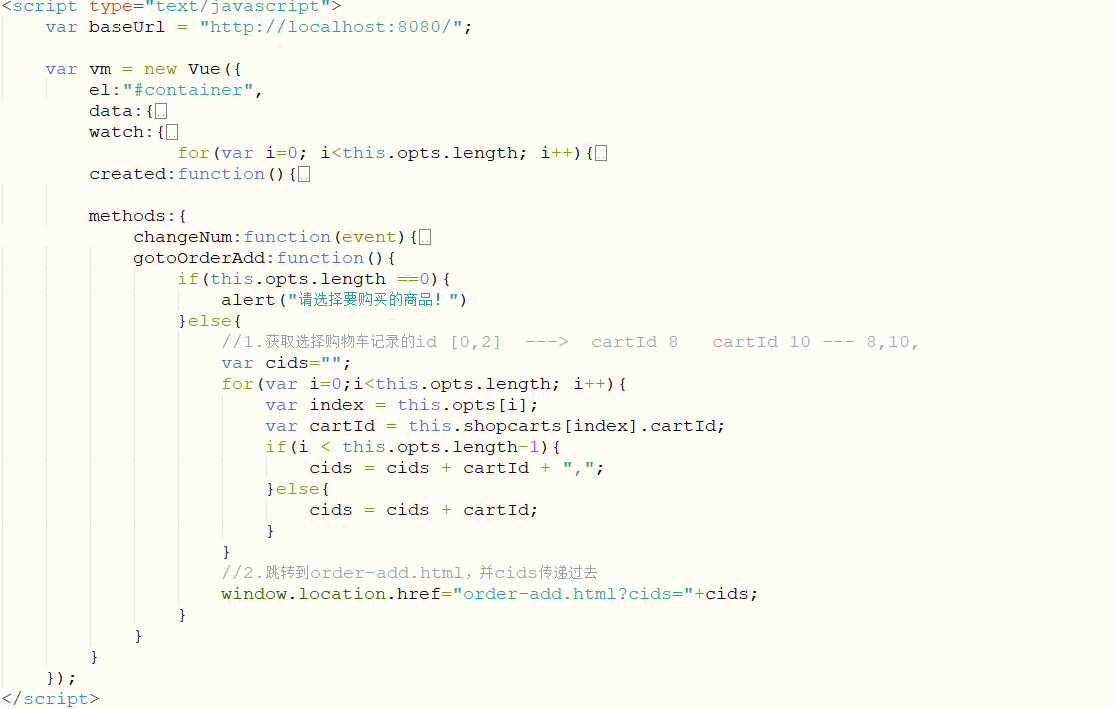

20.3.2 点击“结算”跳转到订单添加页面

在购物车列表页面，选择购物车记录，点击“结算之后”将选择的购物车记录ID传递到order-add.html

• shopcart.html
  | | | —- | | |

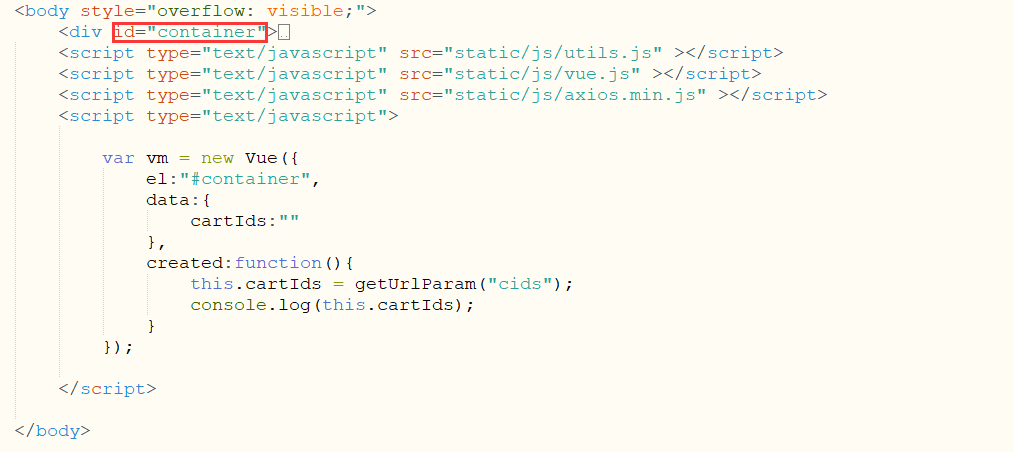

• order-add.html
  | | | —- | | |

20.3.3 显示收货地址及订单商品

20.3.4 订单确认页面选择地址

二十一、订单提交及支付

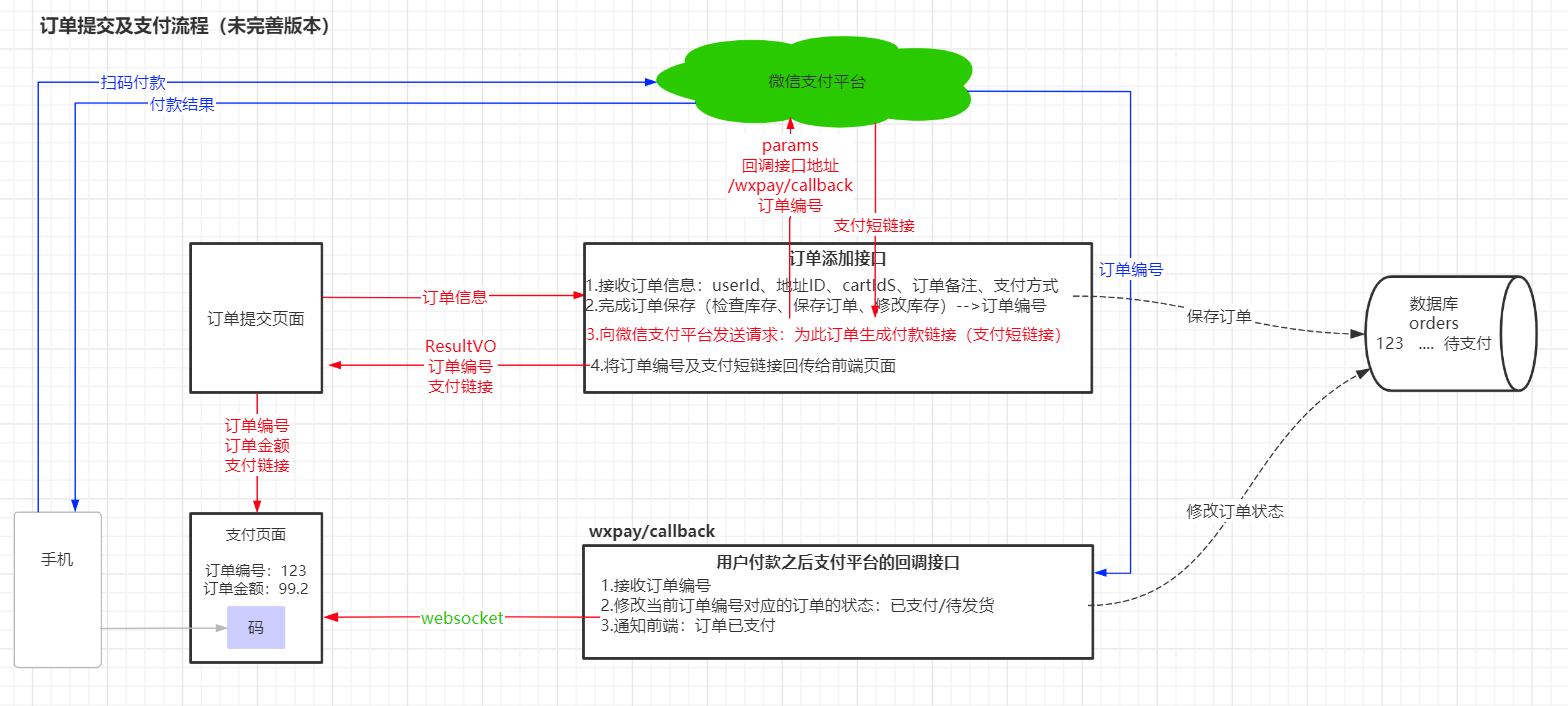

21.1 流程分析

21.2 订单添加接口实现

21.2.1 数据库操作

• 根据收货地址ID，获取收货地址信息（tkMapper）

• 根据购物车ID，查询购物车详情（需要关联查询商品名称、sku名称、库存、商品图片、商品价格）

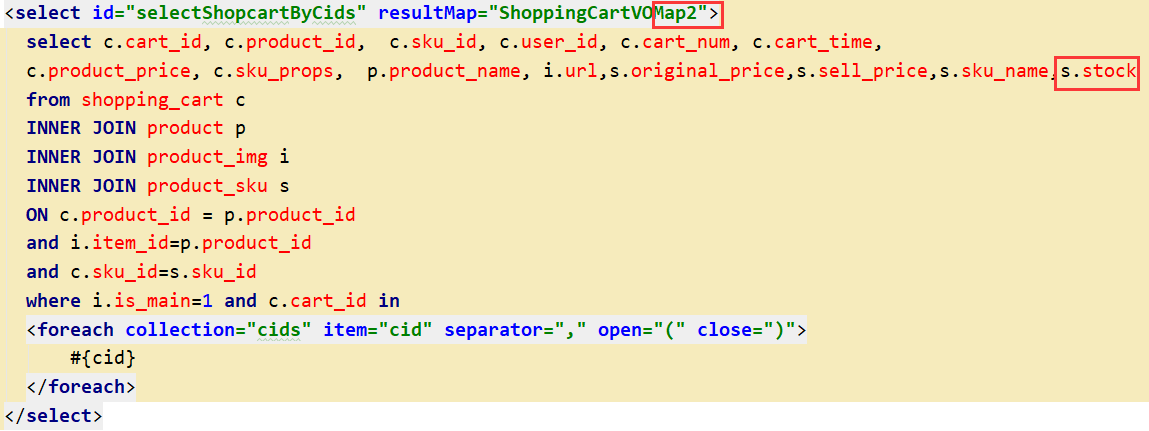

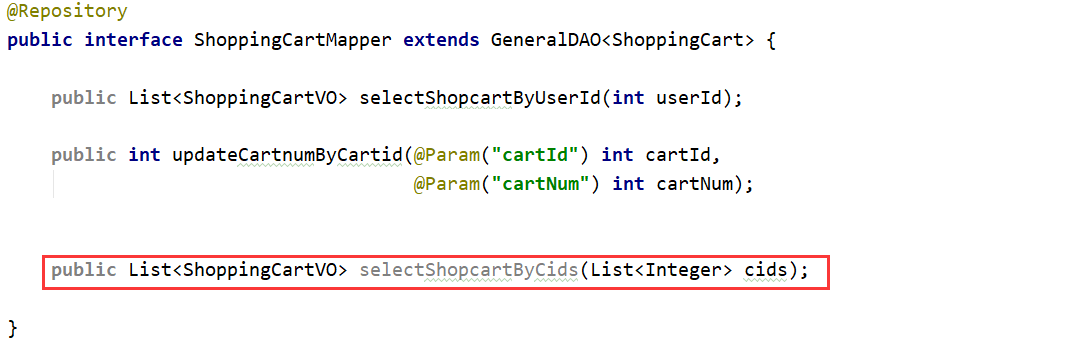

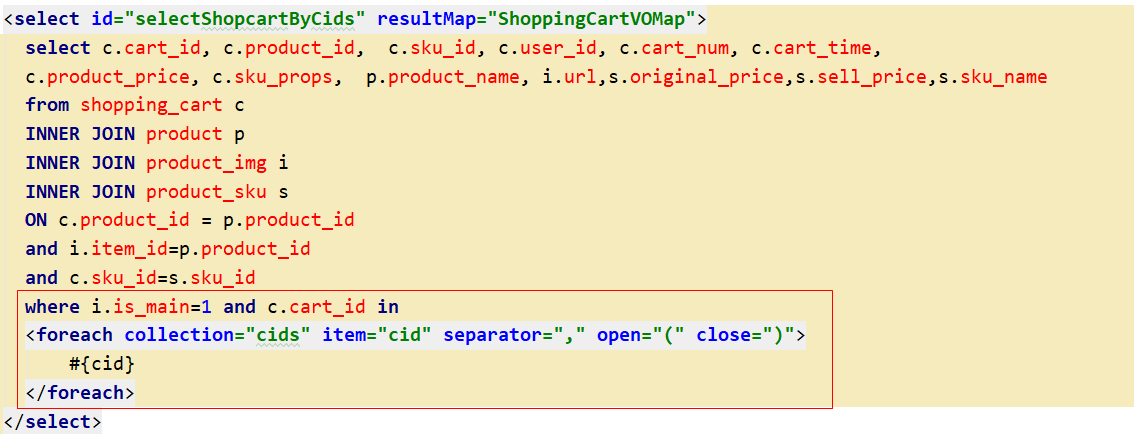

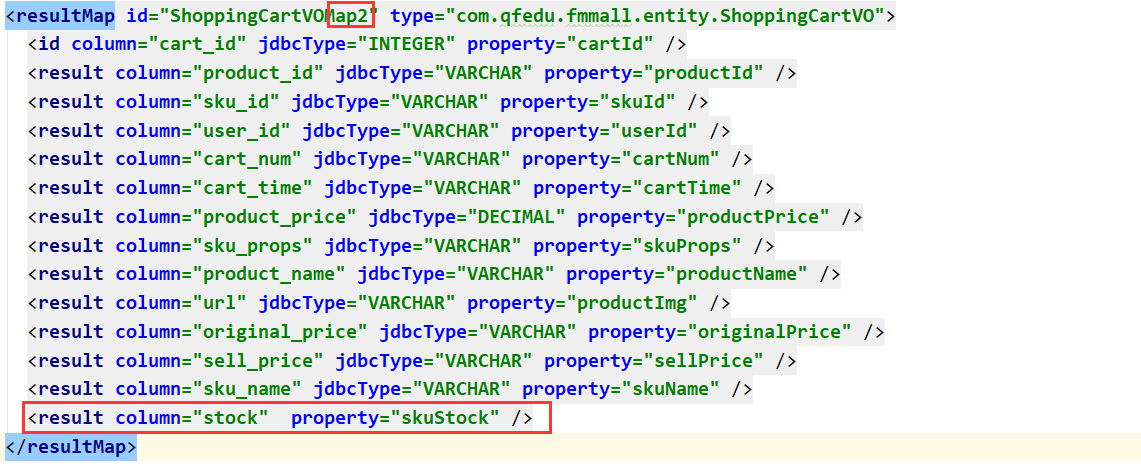

  | 改造：ShoppingCartMapper
  中的selectShopcartByCids | | —- | | | | | | |

• 保存订单（tkMapper）

• 修改库存（tkMapper）
• 保存商品快照（tkMapper）

21.2.2 业务层实现

开发任务

1、首页轮播图

2、首页分类列表

3、首页商品推荐

4、首页类别推荐商品

5、商品详情

6、商品评价显示

7、实现评价统计及分页

8、购物车
