Oracle docker

git地址：https://github.com/oracle/docker-images/tree/master/OracleDatabase/SingleInstance

docker 安装

curl -fsSL https://get.docker.com | bash -s docker --mirror Aliyun

下载构建文件

git clone https://github.com/oracle/docker-images.git

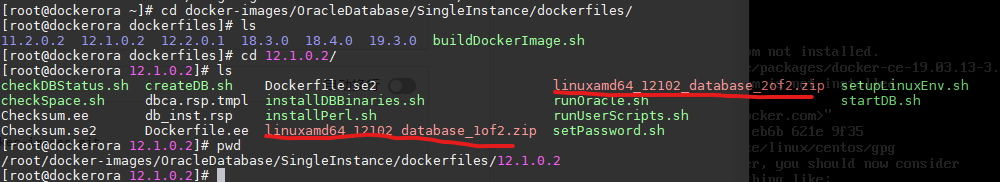

下载对应数据库到对应目录

# 数据库复制到对应的版本文件夹下面去
cp linuxamd64_12102_database_1of2.zip  /root/docker-images/OracleDatabase/SingleInstance/dockerfiles/12.1.0.2
cp linuxamd64_12102_database_2of2.zip  /root/docker-images/OracleDatabase/SingleInstance/dockerfiles/12.1.0.2

镜像构建

cd /root/docker-images/OracleDatabase/SingleInstance/dockerfiles/
./buildDockerImage.sh -v 12.1.0.2 -e

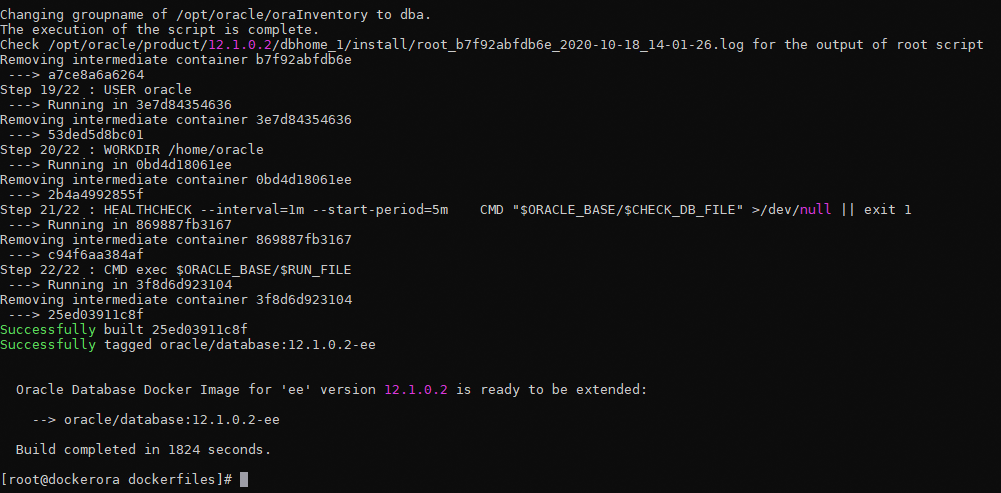

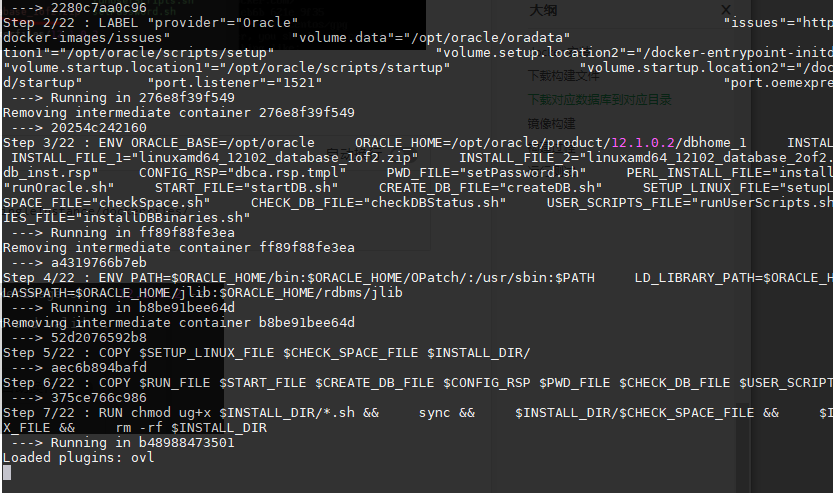

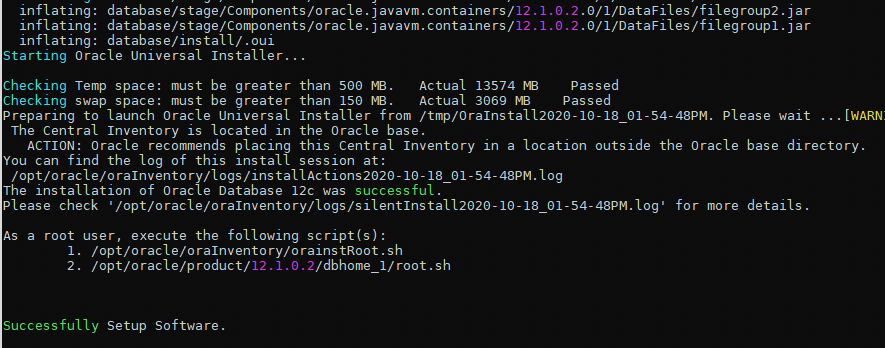

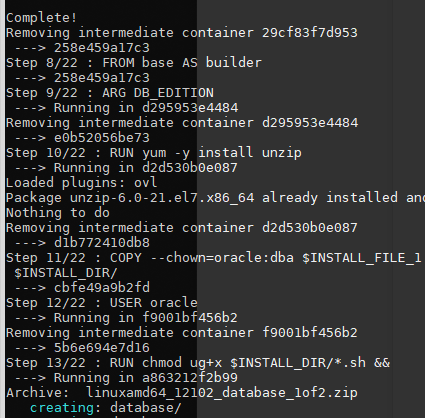

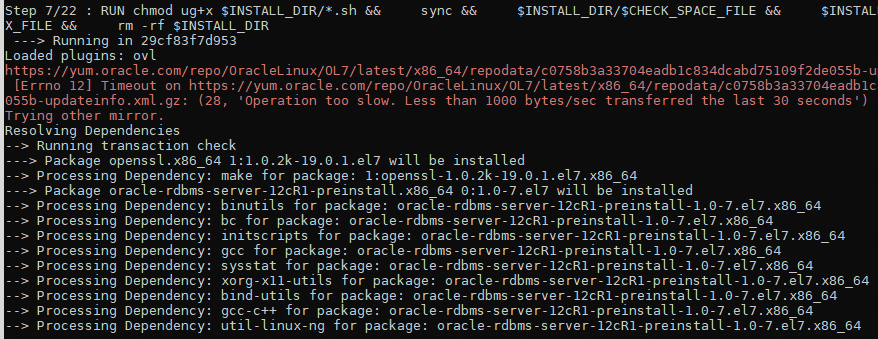

构建过程

第七步耗时较久。





国外服务器下载到构建完成在一刻钟左右

运行测试

+++++++++++++++++++++++++++++++++

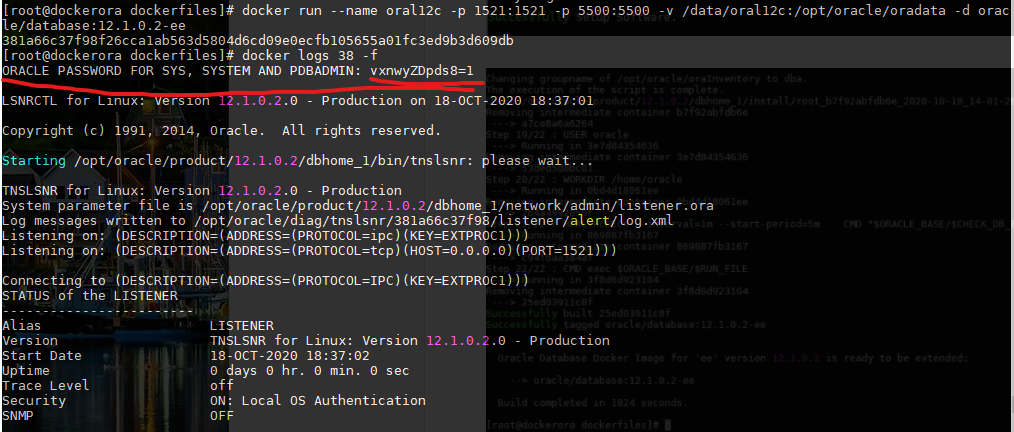

# 第一行日志为密码:ORACLE PASSWORD FOR SYS, SYSTEM AND PDBADMIN: vxnwyZDpds8=1
+++++++++++++++++++++++++++++++++
# 修改密码：docker exec <container name> ./setPassword.sh <your password>
# 启动前先对挂载目录授权，否则报错，启动失败
chmod -R 777 /data/oral12c
docker run --name oral12c \
-p 1521:1521 \
-p 5500:5500 \
-v /data/oral12c:/opt/oracle/oradata \
-d oracle/database:12.1.0.2-ee
docker run --name <container name> \
-p <host port>:1521 \
-p <host port>:5500 \
-e TZ=Asia/Shanghai \
-e ORACLE_SID=<your SID> \
-e ORACLE_PDB=<your PDB name> \
-e ORACLE_PWD=<your database passwords> \
-e INIT_SGA_SIZE=<your database SGA memory in MB> \
-e INIT_PGA_SIZE=<your database PGA memory in MB> \
-e ORACLE_EDITION=<your database edition> \
-e ORACLE_CHARACTERSET=<your character set> \
-v /etc/localtime:/etc/localtime:ro \
-v [<host mount point>:]/opt/oracle/oradata \
oracle/database:19.3.0-ee
# 中文：ORACLE_CHARACTERSET = ZHS16GBK
更多参数：
   --name:        The name of the container (default: auto generated).
   -p:            The port mapping of the host port to the container port.
                  Two ports are exposed: 1521 (Oracle Listener), 5500 (OEM Express).
   -e ORACLE_SID: The Oracle Database SID that should be used (default: ORCLCDB).
   -e ORACLE_PDB: The Oracle Database PDB name that should be used (default: ORCLPDB1).
   -e ORACLE_PWD: The Oracle Database SYS, SYSTEM and PDB_ADMIN password (default: auto generated).
   -e INIT_SGA_SIZE:
                  The total memory in MB that should be used for all SGA components (optional).
                  Supported 19.3 onwards.
   -e INIT_PGA_SIZE:
                  The target aggregate PGA memory in MB that should be used for all server processes attached to the instance (optional).
                  Supported 19.3 onwards.
   -e ORACLE_EDITION:
                  The Oracle Database Edition (enterprise/standard).
                  Supported 19.3 onwards.
   -e ORACLE_CHARACTERSET:
                  The character set to use when creating the database (default: AL32UTF8).
   -v /opt/oracle/oradata
                  The data volume to use for the database.
                  Has to be writable by the Unix "oracle" (uid: 54321) user inside the container!
                  If omitted the database will not be persisted over container recreation.
   -v /opt/oracle/scripts/startup | /docker-entrypoint-initdb.d/startup
                  Optional: A volume with custom scripts to be run after database startup.
                  For further details see the "Running scripts after setup and on startup" section below.
   -v /opt/oracle/scripts/setup | /docker-entrypoint-initdb.d/setup
                  Optional: A volume with custom scripts to be run after database setup.
                  For further details see the "Running scripts after setup and on startup" section below.

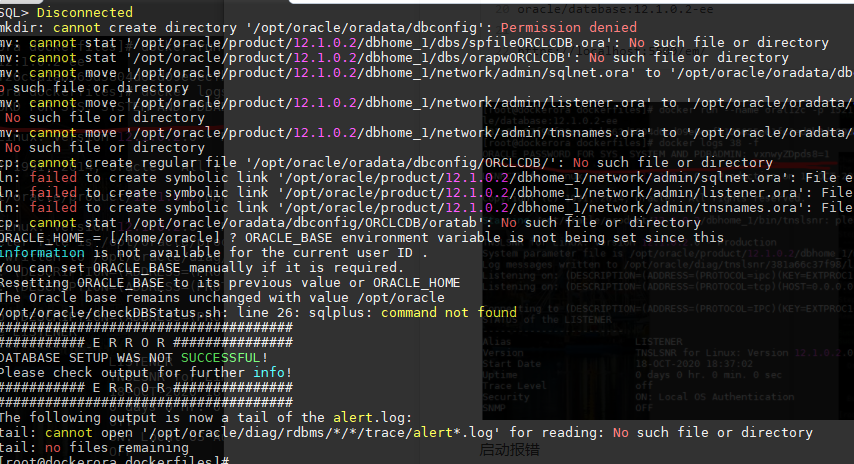

启动报错

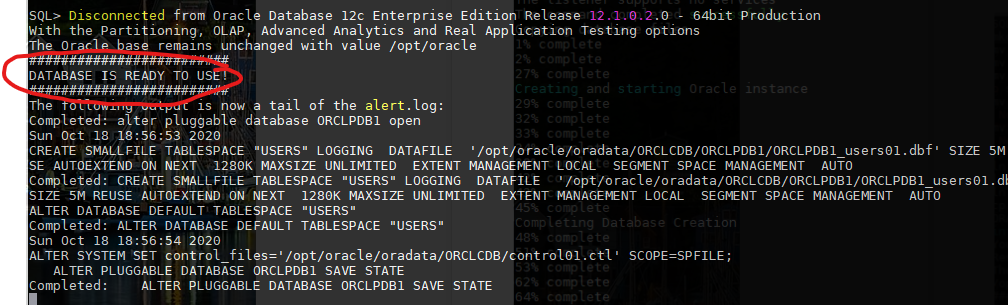

启动成功

放行端口

firewall-cmd --permanent --add-port=1521/tcp --zone=public
firewall-cmd --permanent --add-port=5500/tcp --zone=public
firewall-cmd --reload

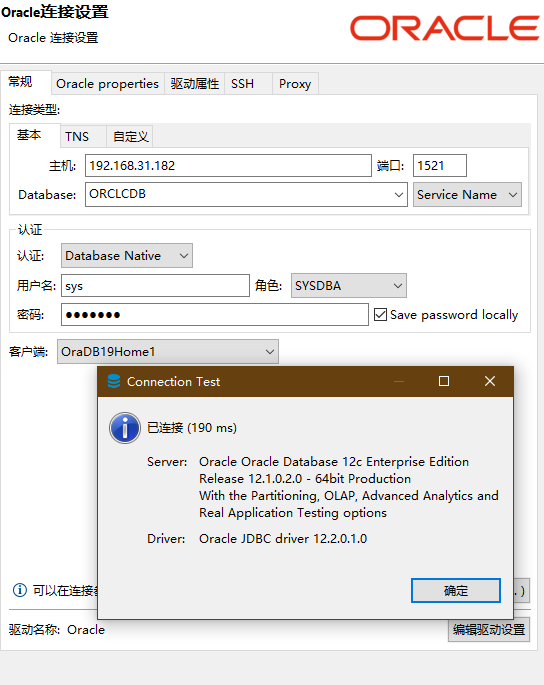

服务名：ORCLCDB

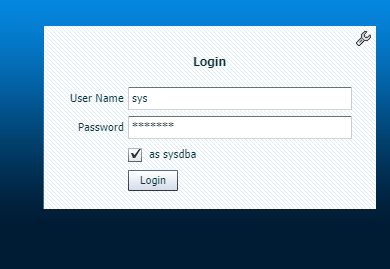

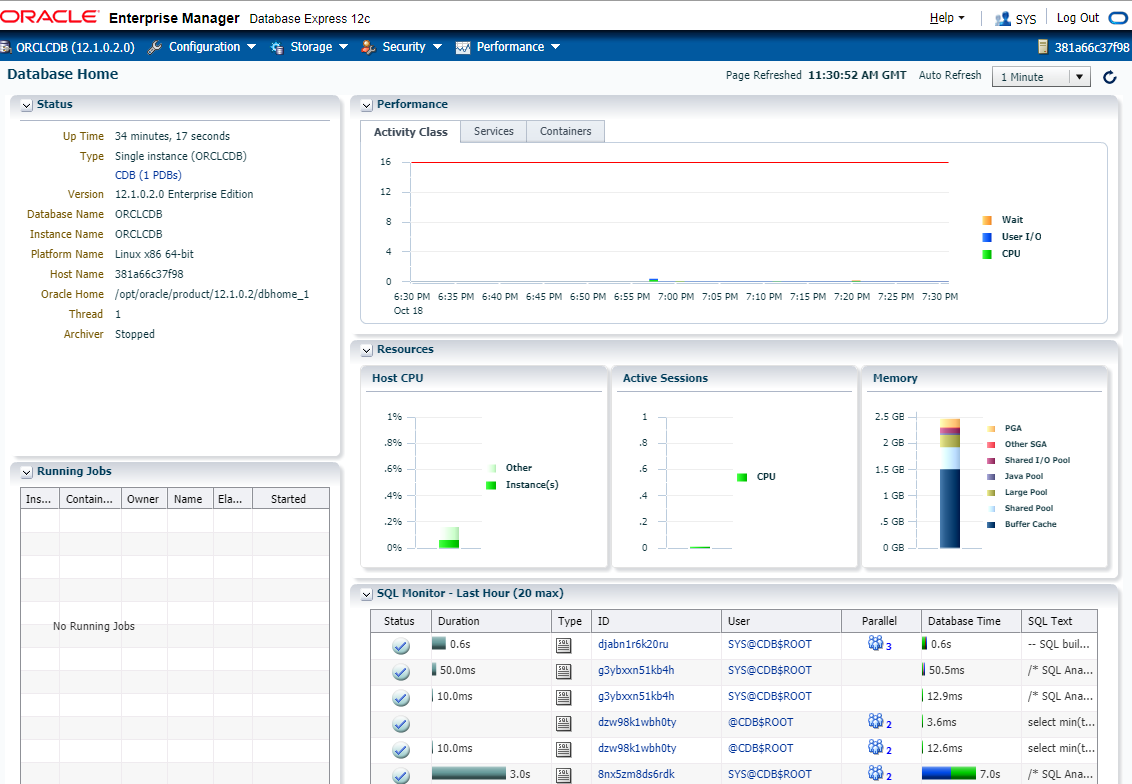

访问 EM

chrome://settings/content/flash
https://localhost:5500/em/
